Fig. 159: Identifying Solenoid Valve Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the input speed sensor connector (A).

Fig. 160: Identifying Input Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the output speed sensor connector (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 163

© 2006 Mitchell Repair Information Company, LLC.

Fig. 161: Identifying Output Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

5. Install the vehicle speed sensor connector (A).

Fig. 162: Identifying Vehicle Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

6. Install the CKP sensor connector (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:55 PM

Page 164

© 2006 Mitchell Repair Information Company, LLC.

Fig. 163: Identifying CKP Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

20. Install the battery tray (B) by tightening the four mounting bolts (A).

Fig. 164: Identifying Battery Tray (B) And Mounting Bolts (A)
Courtesy of KIA MOTORS AMERICA, INC.

21. Connect the air cleaner hose (B) by fastening the clamp (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:55 PM

Page 165

© 2006 Mitchell Repair Information Company, LLC.

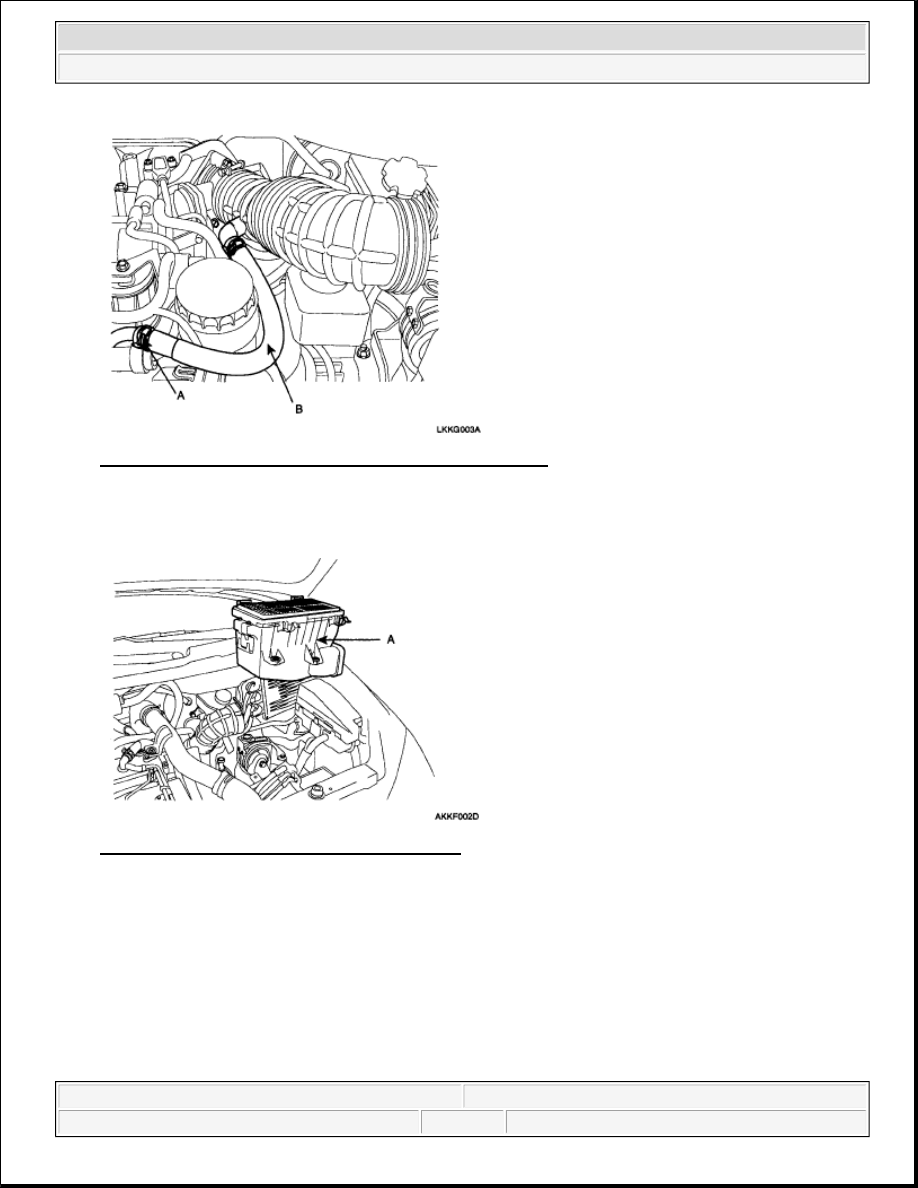

Fig. 165: Identifying Air Cleaner Hose (B) And Clamp (A)
Courtesy of KIA MOTORS AMERICA, INC.

22. Install the air cleaner assembly (A).

Fig. 166: Identifying Air Cleaner Assembly (A)
Courtesy of KIA MOTORS AMERICA, INC.

23. Install the air cleaner upper cover (B) by fastening the clips (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:55 PM

Page 166

© 2006 Mitchell Repair Information Company, LLC.
