Fig. 144: Identifying Power Steering Pressure Tube (A)
Courtesy of KIA MOTORS AMERICA, INC.

20. Disconnect the lower arm, the tie rod end ball joint, the stabilizer bar link from the front knuckle. See

FRONT SUSPENSION SYSTEM .

21. Remove the roll stopper mounting bolts (A, B).

Fig. 145: Identifying Roll Stopper Mounting Bolts (A)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 155

© 2006 Mitchell Repair Information Company, LLC.

Fig. 146: Identifying Roll Stopper Mounting Bolts (B)
Courtesy of KIA MOTORS AMERICA, INC.

22. Remove the mounting bolts from the sub frame by supporting the sub frame with a jack. See FRONT

SUSPENSION SYSTEM .

23. Remove drive shaft from transaxle. See DRIVESHAFT .

24. Install a jack for supporting the transaxle assembly.

25. Remove the transaxle under mounting bolts (A) and the drive plate bolts (B).

Fig. 147: Identifying Mounting Bolts (A) And Drive Plate Bolts (B)
Courtesy of KIA MOTORS AMERICA, INC.

26. Lifting the vehicle up and lowering the jack slowly, remove the transaxle assembly.

INSTALLATION

Installation is in the reverse order of removal.

Perform the following :



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 156

© 2006 Mitchell Repair Information Company, LLC.



Adjust the shift cable.



Refill the transaxle with fluid.



Refill the radiator with engine coolant.



Bleed air from the cooling system with the heater valve open.



Clean the battery posts and cable terminals with sandpaper, assemble them, and apply grease to prevent
corrosion.

1. Lowering the vehicle or lifting up a jack, install the transaxle assembly.

2. Tighten the transaxle under mounting bolts.

TORQUE:

65-85 N.m (650-850 kgf.cm, 47.0-61.5 lb-ft)

3. Install the starter motor. See STARTING SYSTEM .

TORQUE:

65-85 N.m (650-850 kgf.cm, 47.0-61.5 lb-ft)

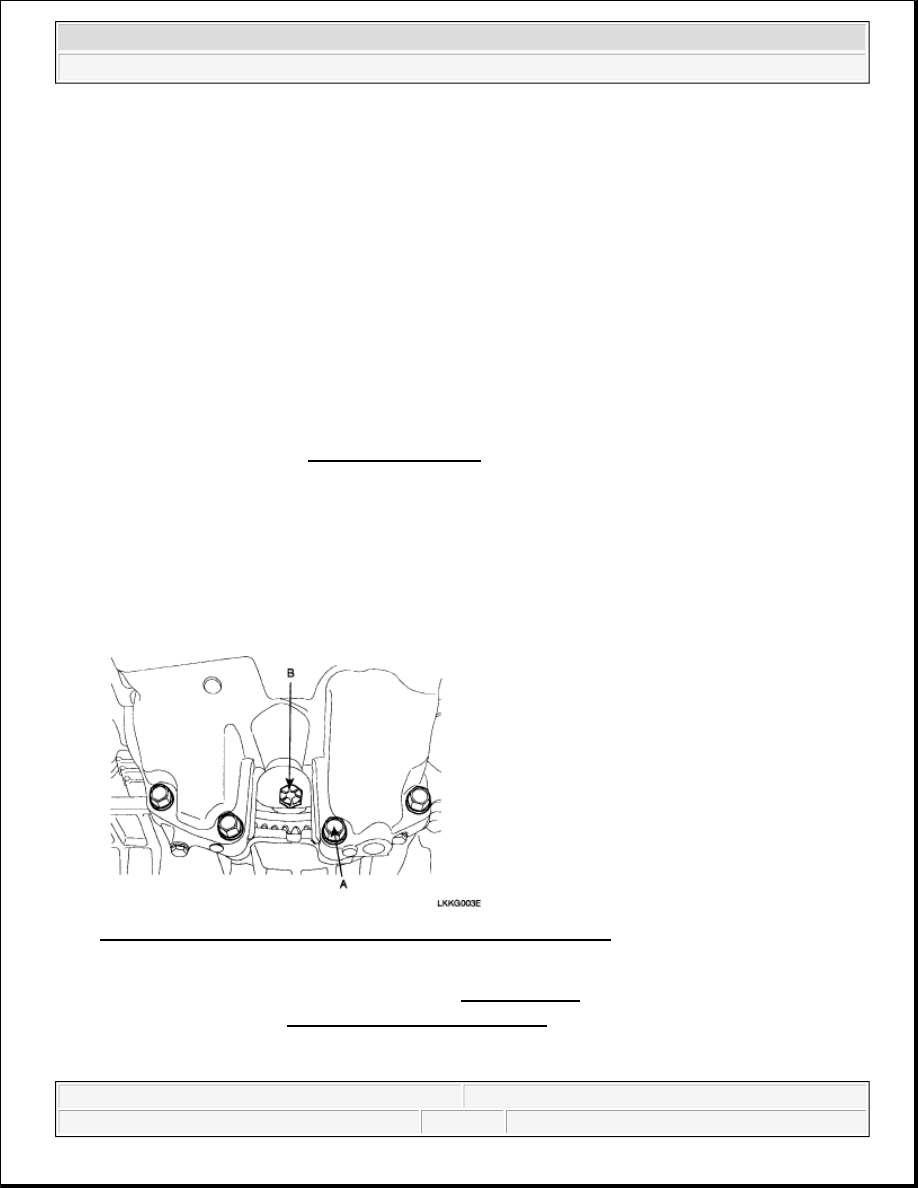

4. Tighten the transaxle under mounting bolts (A, B).

TORQUE:46-53 N.m (460-530 kgf.cm, 33.3-38.3 lb-ft)

Fig. 148: Identifying Mounting Bolts (A) And Drive Plate Bolts (B)
Courtesy of KIA MOTORS AMERICA, INC.

5. After removing a jack, insert the drive shafts. See DRIVESHAFT .

6. Install the sub frame. See FRONT SUSPENSION SYSTEM .

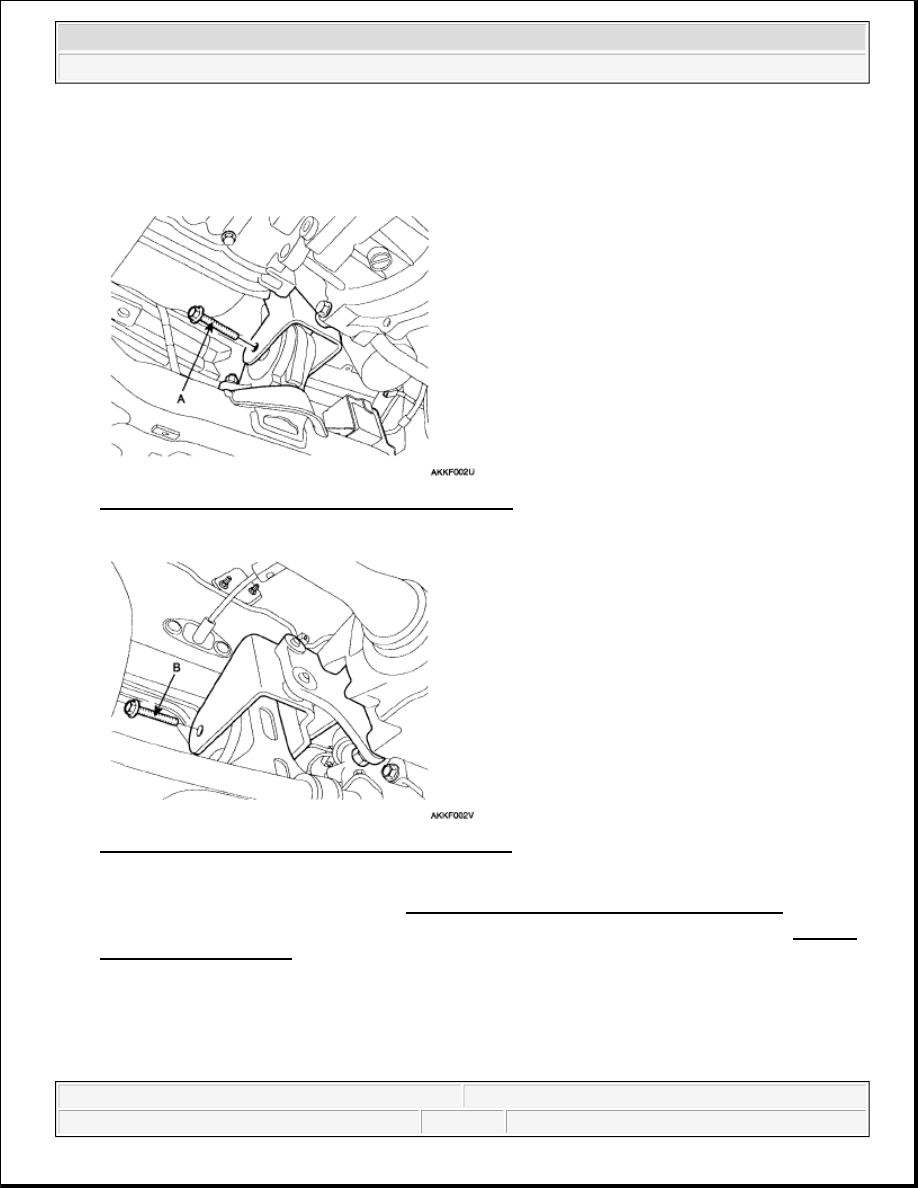

7. Tighten the roll stopper mounting bolts (A, B)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 157

© 2006 Mitchell Repair Information Company, LLC.

TORQUE:

90-110 N.m (900-1100 kgf.cm, 65.1-79.5 lb-ft)

Fig. 149: Identifying Roll Stopper Mounting Bolts (A)
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 150: Identifying Roll Stopper Mounting Bolts (B)
Courtesy of KIA MOTORS AMERICA, INC.

8. Connect the return tube with a clamp. See MECHANICAL POWER STEERING SYSTEM .

9. Connect the lower arm, the tie rod end ball joint, the stabilizer bar link to the front knuckle. See FRONT

SUSPENSION SYSTEM .

10. Connect the power steering pressure tube (A) to the power steering oil pump.
