Fig. 128: Identifying Air Cleaner Upper Cover (B) And Clips (A)
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the air cleaner assembly (A).

Fig. 129: Identifying Air Cleaner Assembly (A)
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the air cleaner hose (B) by loosening the clamp (A).

2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona

Microsoft

Monday, May 24, 2010 3:47:54 PM

Page 147

Fig. 130: Identifying Air Cleaner Hose (B) And Clamp (A)
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the battery tray (B) by removing the four mounting bolts (A).

Fig. 131: Identifying Battery Tray (B) And Mounting Bolts (A)
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the transaxle wire harness connectors.

1. Remove the inhibitor switch connector (A).

2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona

Microsoft

Monday, May 24, 2010 3:47:54 PM

Page 148

Fig. 132: Identifying Inhibitor Switch Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the solenoid valve connector (A).

Fig. 133: Identifying Solenoid Valve Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the input speed sensor connector (A).

2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona

Microsoft

Monday, May 24, 2010 3:47:54 PM

Page 149

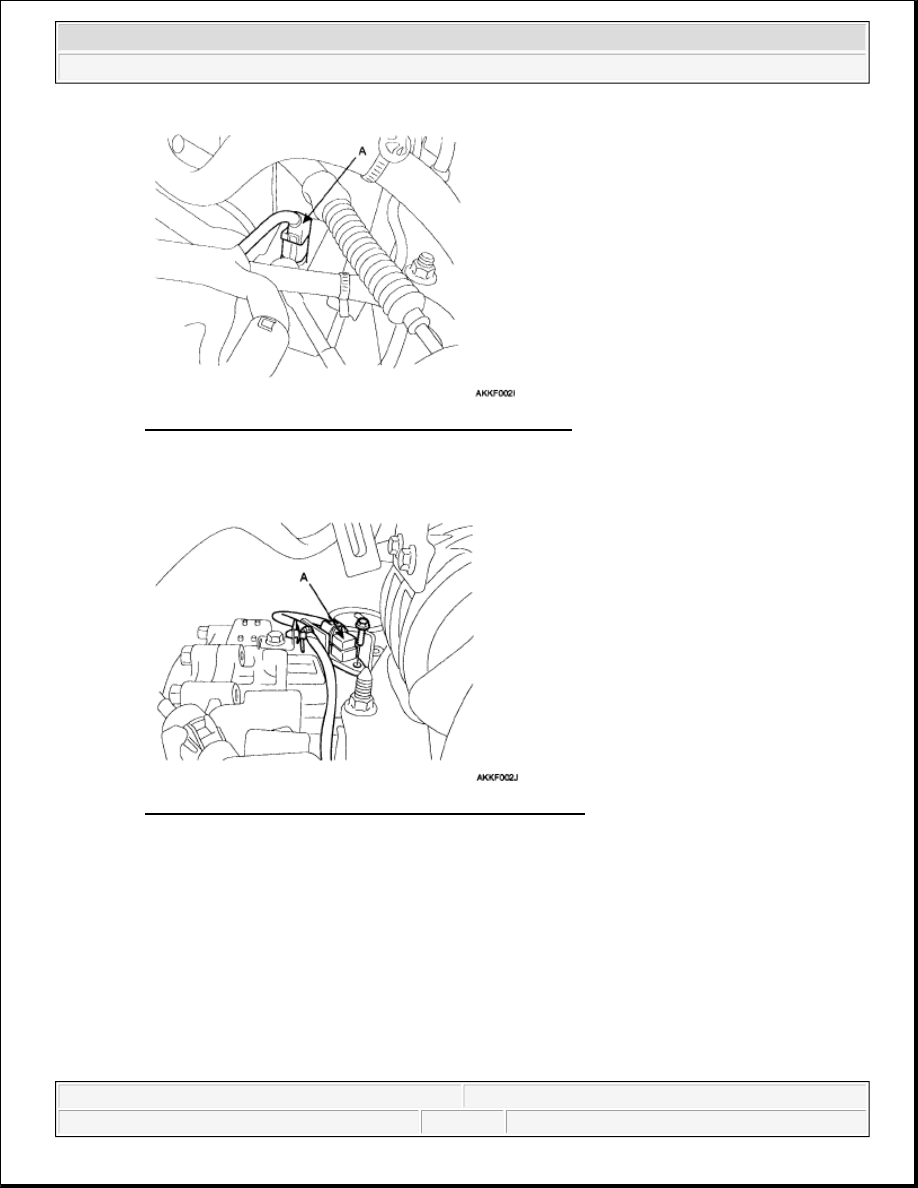

Fig. 134: Identifying Input Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the output speed sensor connector (A).

Fig. 135: Identifying Output Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the vehicle speed sensor connector (A).

2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona

Microsoft

Monday, May 24, 2010 3:47:54 PM

Page 150
