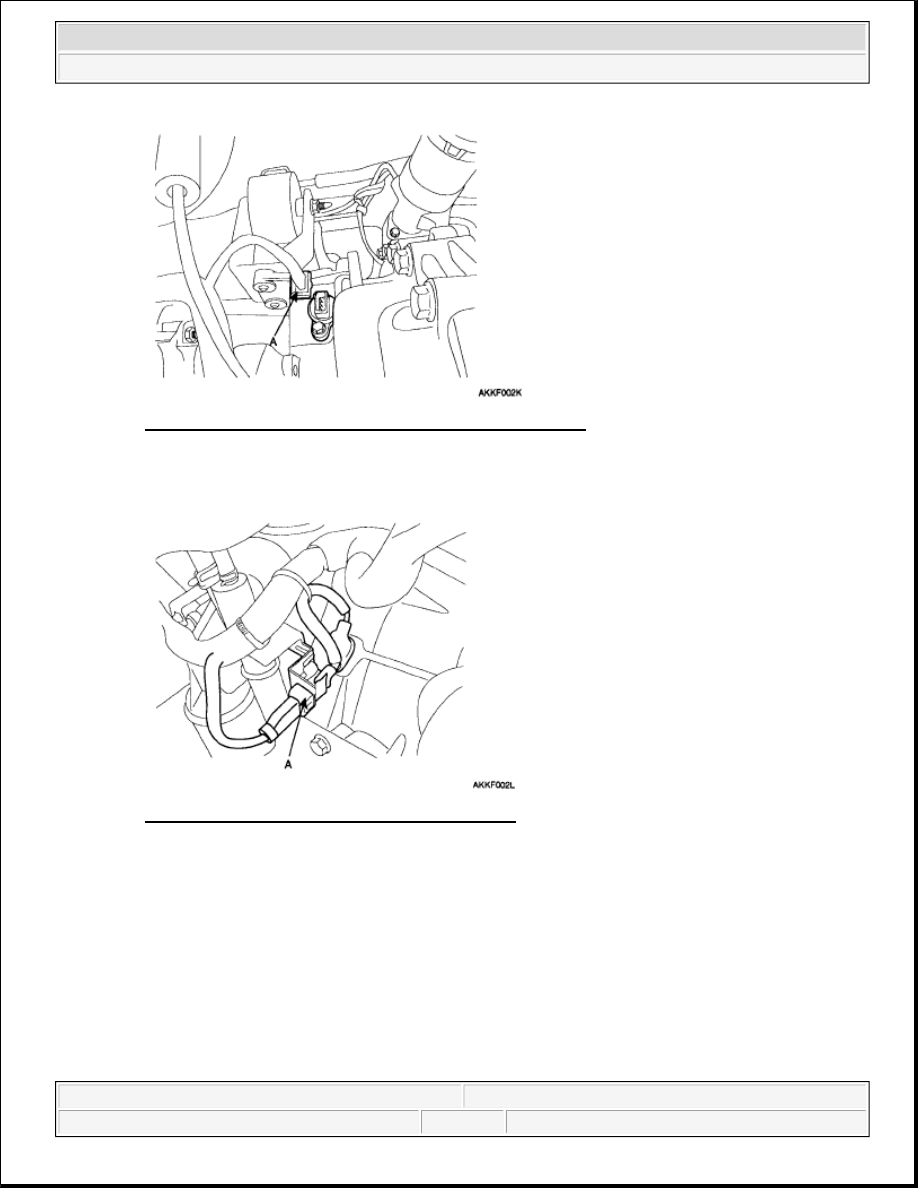

Fig. 136: Identifying Vehicle Speed Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the CKP sensor connector (A).

Fig. 137: Identifying CKP Sensor Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the shift cable by removing the bolt (A) and clip (B).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 151

© 2006 Mitchell Repair Information Company, LLC.

Fig. 138: Identifying Shift Cable, Bolt (A) And Clip (B)
Courtesy of KIA MOTORS AMERICA, INC.

9. Disconnect the transaxle oil cooler hoses (A) from the tubes (C) by loosening the clamps (B).

Fig. 139: Identifying Oil Cooler Hoses (A) Tubes (C) And Clamps (B)
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the transaxle mounting bolts (B, C).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 152

© 2006 Mitchell Repair Information Company, LLC.

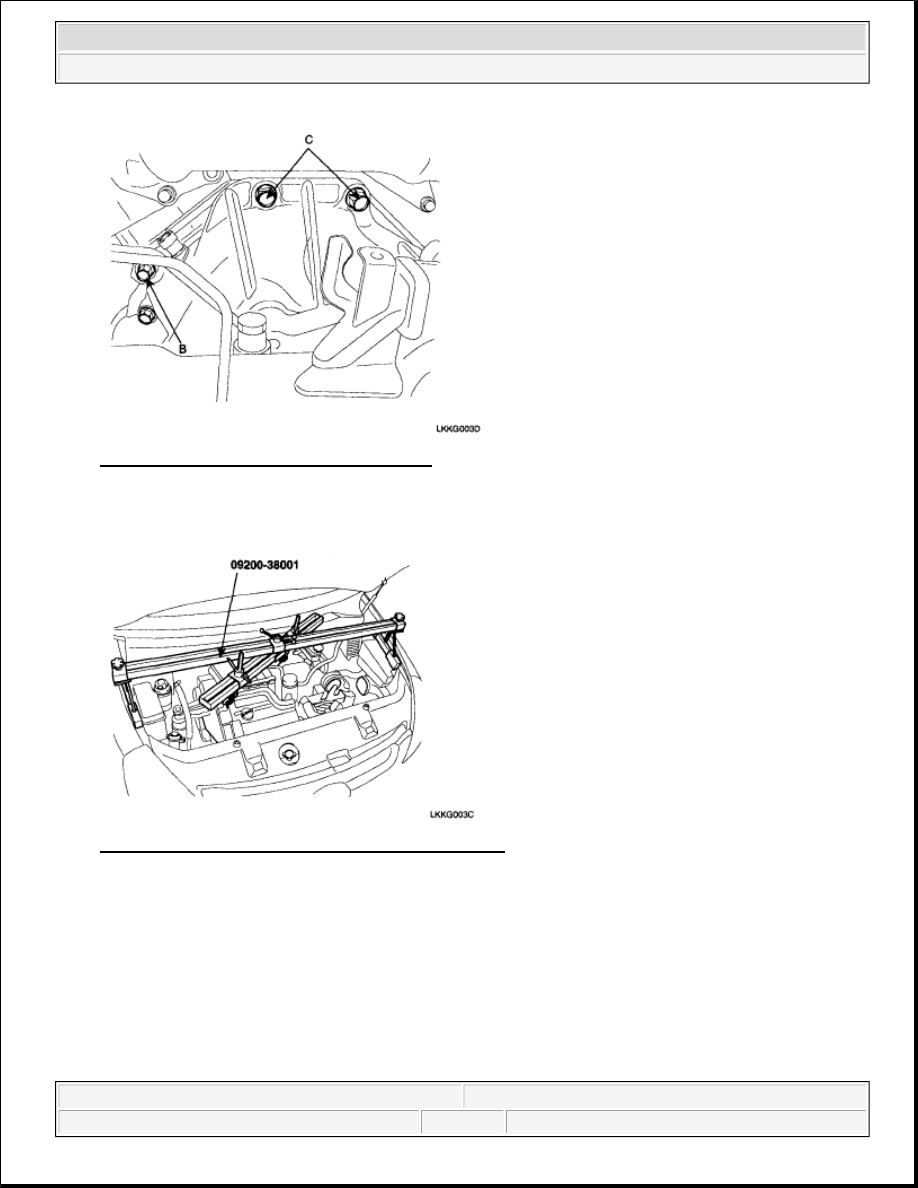

Fig. 140: Identifying Mounting Bolts (B, C)
Courtesy of KIA MOTORS AMERICA, INC.

11. Using the SST (09200-38001), hold the engine and transaxle assembly safely.

Fig. 141: Identifying Special Tool SST (09200-38001)
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the transaxle insulator mounting bolt (A).



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 153

© 2006 Mitchell Repair Information Company, LLC.

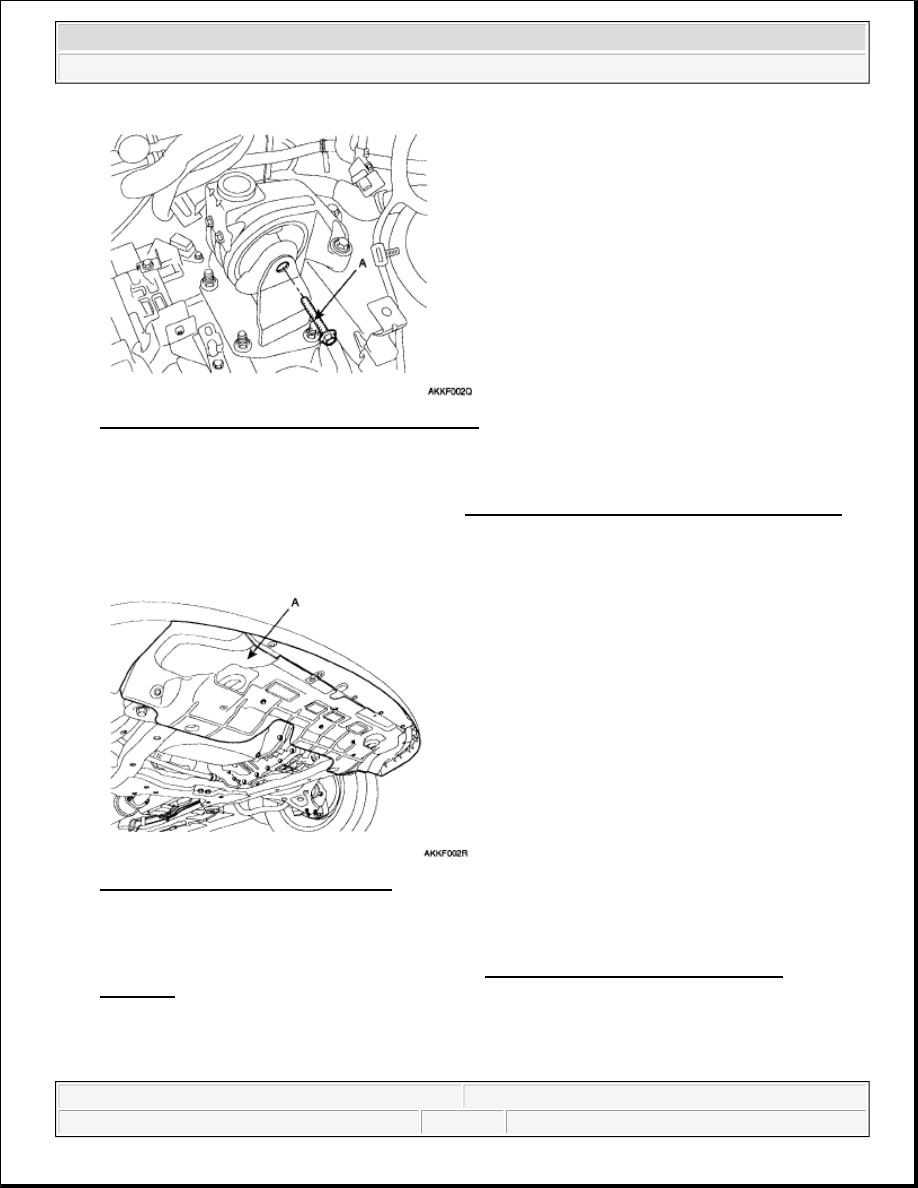

Fig. 142: Identifying Insulator Mounting Bolt (A)
Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the front wheels.

14. Remove the power steering column joint bolt. See MECHANICAL POWER STEERING SYSTEM .

15. Lift up the vehicle.

16. Remove the under cover (A).

Fig. 143: Identifying Under Cover (A)
Courtesy of KIA MOTORS AMERICA, INC.

17. Drain transaxle oil.

18. Drain power steering oil through the return tube. See MECHANICAL POWER STEERING

SYSTEM .

19. Disconnect the power steering pressure tube (A) from the power steering oil pump.
