GROUND CIRCUIT INSPECTION

Refer to DTC P0885.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0885.

AUTOMATIC TRANSAXLE

COMPONENTS



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 143

© 2006 Mitchell Repair Information Company, LLC.

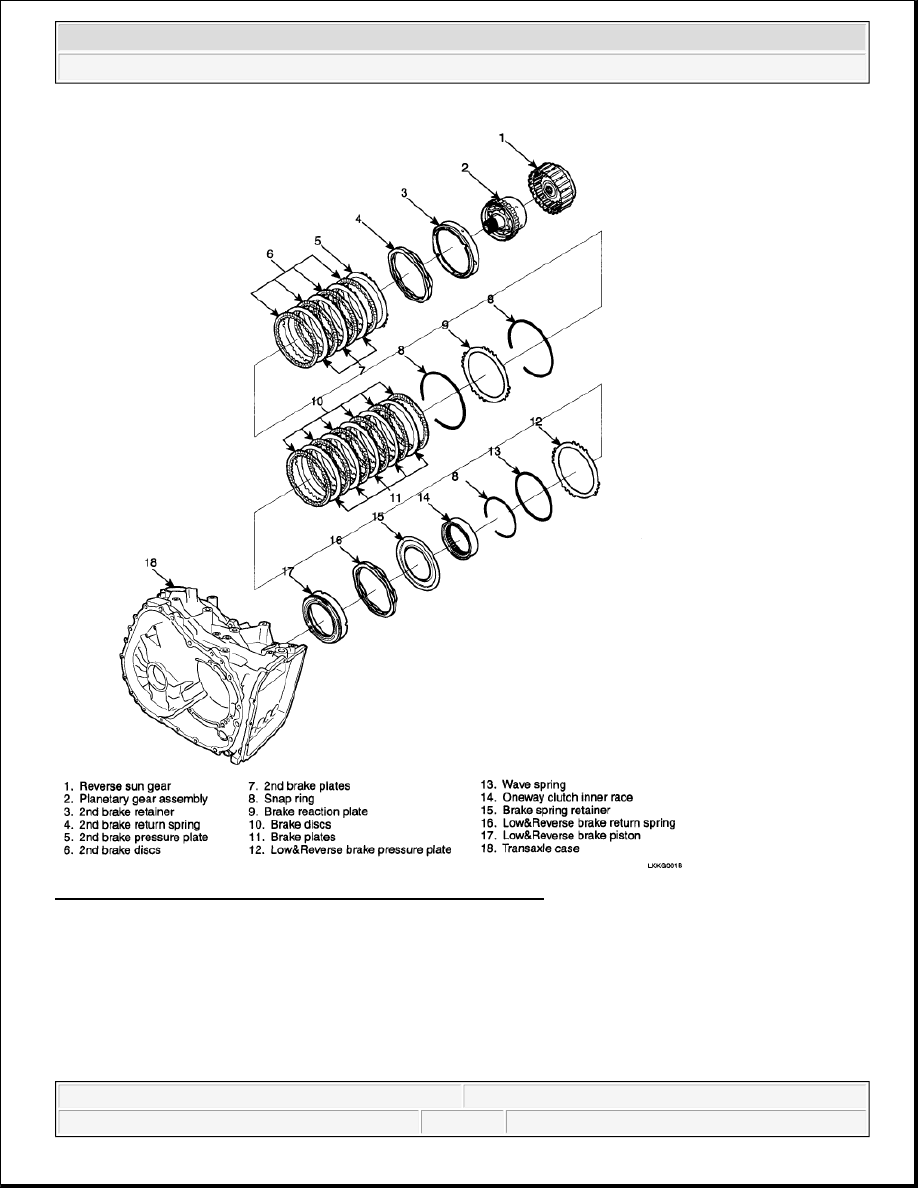

Fig. 124: Identifying Automatic Transaxle Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 144

© 2006 Mitchell Repair Information Company, LLC.

Fig. 125: Identifying Automatic Transaxle Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

CAUTION:



Use a cover not to damage the vehicle surface.



Disconnect connectors carefully not to be damaged.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 145

© 2006 Mitchell Repair Information Company, LLC.

1. Remove the battery (A).

Fig. 126: Identifying Battery (A)
Courtesy of KIA MOTORS AMERICA, INC.

2. Disconnect the AFS connector (A).

Fig. 127: Identifying AFS Connector (A)
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the air cleaner upper cover (B) by loosening the clips (A).

NOTE:



Mark wires or hoses for identification.
