Kia Forte (2024 year). Manual in english

Features of your vehicle

Climate control system

• Air for the heating/cooling system is

drawn through the grille at the base of
the windshield. Care should be taken
that it not blocked by leaves, snow, ice
or other obstructions.

• To prevent fog from forming on the

inside of the windshield:

- Set the air intake control to the fresh

air position and the fan speed to the
desired position.

- Turn on the air conditioning system

and adjust the temperature control
to the desired temperature.

Air conditioning (A/C)

Kia air conditioning systems are filled
with environmentally friendly refriger

ant*.

1. Start the vehicle. Press the A/C but

ton.

2. Set the mode to the

position.

3. Set the air intake control to the out

side-air or recirculated air position.

4. Adjust the fan speed control and tem

perature control to maintain maxi

mum

comfort.

*: Your vehicle is filled with R-1234yf
according to the regulation in your coun

try at the time of producing. You can
find out which air conditioning refriger

ant

is applied your vehicle at the label inside
of engine room. Refer to "Air con

ditioning refrigerant label" on page 4-94
for more detail location of air condition

ing refrigerant label.

CAUTION

• The refrigerant system should only be

serviced by trained and certified tech

nicians to insure proper and safe
operation.

• The refrigerant system should be ser

viced in a well-ventilated place.

• The air conditioning evaporator (cool

ing coil) shall never be repaired or
replaced with one removed from a
used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.

NOTICE

• When using the air conditioning sys

tem, monitor the temperature gauge
closely while driving up hills or in heavy
traffic when outside tempera

tures are

high. Air conditioning system operation
may cause engine over

heating.

Continue to use the blower fan but
turn off the air conditioning system if
the temperature gauge indi

cates

engine overheating.

• When opening the windows in humid

weather, air conditioning may create
water droplets inside the vehicle.
Since excessive water droplets may
cause damage to electrical equip

ment, air conditioning should only be
used with the windows closed.

Air conditioning system opera

tion tips

• If the vehicle has been parked in

direct sunlight during hot weather,
open the windows for a short time to
let the hot air inside the vehicle
escape.

• To help reduce moisture inside of the

windows on rainy or humid days,
decrease the humidity inside the vehi

cle by operating the air conditioning
system.

Features of your vehicle

Climate control system

• During air conditioning system opera

tion, you may occasionally notice a
slight change in vehicle speed as the
air conditioning compressor cycles.
This is a normal characteristic of sys

tem operation.

• To ensure maximum system perfor

mance, the air conditioning system
should be ran for a few minutes each
month.

• When using the air conditioning sys

tem, you may notice clear water drip

ping (or even puddling) on the ground
under the passenger side of the vehi

cle. This is a normal characteristic of
system operation.

• Operating the air conditioning system

in the recirculated air position pro

vides maximum cooling; however,
continual operation in this mode may
cause the air inside the vehicle to
become stale.

• During cooling operation, you may

occasionally notice a misty air flow
because of rapid cooling and humid
air intake. This is a normal character

istic of system operation.

Climate control air filter

The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi

cle from the outside through the heating
and air conditioning system.

A: Outside air

B: Recirculated air

C: Climate control air filter

D: Blower

E: Evaporator core

F: Heater core
If dust or other pollutants accumulate in
the filter over time, air flow from the air
vents may decrease. This leads to mois

ture accumulating on the inside of the
windshield even when the outside (fresh)
air position is selected. Have the climate
control air filter replaced by an authorized
Kia dealer.

NOTICE

• Replace the filter according to the

Maintenance Schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads, more
frequent air conditioner filter inspec

tions and changes are required.

• When the air flow rate suddenly

decreases, have the system checked
by an authorized Kia dealer.

ODEEV068230NR

Features of your vehicle

Climate control system

Air conditioning refrigerant label

The air conditioning refrigerant label in
the vehicle may differ from the illustra

tion.

Each symbol and specification on the air
conditioning refrigerant label is repre

sented below:

1. Classification of refrigerant

2. Amount of refrigerant

3. Classification of Compressor lubricant

4. Caution

5. Flammable Refrigerant
6. Requires Registered Technician to

service Air Conditioning system

The refrigerant label is located on the
underside of the hood.

Checking the amount of air con

ditioner refrigerant and compres

sor lubricant

When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also has a nega

tive impact on the air conditioning sys

tem.

If abnormal operation occurs, have the
system inspected by an authorized Kia
dealer.

W ARNING

The oil and refrigerant in your vehicle's
air conditioning system are under very
high pressure. If proper service proce

dures are not followed an explosion may
result. To reduce the risk of SERIOUS
INJURY OR DEATH, the air
conditioning system in your vehicle
should only be serviced by trained and
certified Kia technicians.

W ARNING

Vehicles equipped with R-1234yf

Since the refrigerant is mildly flammable
and operated at high pressure, the air
conditioning system should only be ser

viced by trained and certified techni

cians.
It is important that the correct type and
amount of oil and refrigerant are used. All
refrigerants should be reclaimed with
proper equipment.

Venting refrigerants directly to the
atmosphere is harmful to individuals and
the environment.

Failure to heed these warnings can lead
to serious injuries.

OKA4040574N

OBD041082

Features of your vehicle

Manual climate control system

The manual climate control system uses cooling and heating to help maintain a
pleasant environment inside the vehicle.

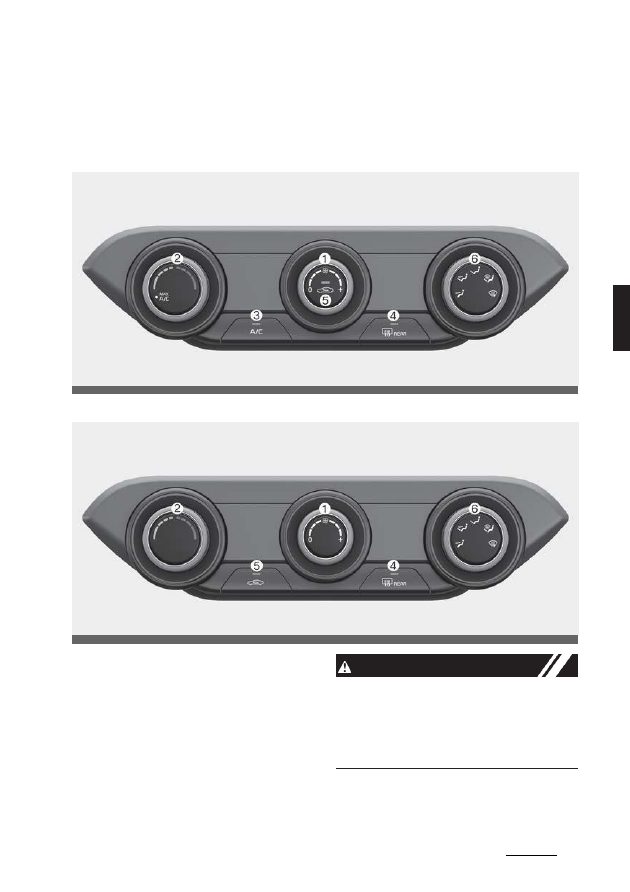

Type A

Type B

1. Fan speed control knob

2. Temperature control knob

3. Air conditioning button (if equipped)

4. Rear window defroster button

5. Air intake control button

6. Mode selection knob

CAUTION

Operating the blower when the ignition
switch or ENGINE START/STOP button
is in the OFF position could cause the
bat

tery to discharge. Operate the

blower when the engine is running.

OBDM048300N

OBDM048301N

Features of your vehicle

Manual climate control system

Mode selection

The mode selection buttons control the
direction of the air flow through the ven

tilation system.

Air can be directed to the floor, dash

board outlets, or windshield. Five sym

bols are used to represent Face, Bi-
Level, Floor, Floor-Defrost and Defrost
air position.

Face-Level (B, D, F)

Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air dis

charged from the outlet.

Bi-Level (B, C, D, E, F)

Air flow is directed towards the face and
the floor.

Floor-Level (A, C, D, E, F)

Most of the air flow is directed to the
floor, with a small amount air being
directed to the windshield, side window
defrosters and side air vents.

Floor/Defrost-Level (A, C, D, E, F)

Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters and side air vents.

Defrost-Level (A, D)

Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters
and side air vents.

Instrument panel vents

Type A

Type B

OBD041303L

OBD041305L

OBD041308L

Features of your vehicle

Manual climate control system

• Type A
The outlet vents can be opened or
closed separately using the thumbwheel.
To close the vent, rotate it downward to
the maximum position. You can adjust
the direction of air from these vents using
the vent control lever as shown.

• Type B
The outlet vents can be opened or
closed separately turning the knob right
or left. You can adjust the direction of air
from these vents by moving the knob to
any direction.

Temperature control

The temperature control knob allows you
to control the temperature of the air
flowing from the ventilation system.

To change the air temperature in the
passenger compartment, turn the knob
to the right for warm and hot air or to the
left for cooler air.

Controlling air intake

The air intake control is used to select the
outside (fresh) air position or recircu

lated

air position.

To change the air intake control position.

僅

Push the desired control button

Recirculated air position

The indicator light on the

button illuminates when the
recirculated air position is
selected.

With the recirculated air posi

tion selected, air from the passenger
compartment will be drawn through the
heating system and heated or cooled
according to the function selected.

Outside (fresh) air position

The indicator light on the
button illuminates when the
recirculated air position is
selected.

The indicator light on the

button will turn off when the outside
(fresh) air position is selected.

OBD041309L

OBD041306L

OBD041307N

Features of your vehicle

Manual climate control system

With the outside (fresh) air position
selected, air enters the vehicle from out

side and is heated or cooled according to
the function selected.

NOTICE

Prolonged operation of the heater in the
recirculated air position (without air con

ditioning selected) may cause fogging of
the windshield and side windows and
make the air in the passenger compart

ment stale.

Prolonged use of the air conditioning
with the recirculated air position selected
will result in excessively dry air in the
passenger compartment.

W ARNING

• Continued use of the climate control

system in the recirculated air position
may allow humidity to increase inside
the vehicle which may fog the glass
and obscure visibility.

• Do not sleep in a vehicle with the air

conditioning or heating system on. It
may cause serious harm or death due
to a drop in the oxygen level and/or
body temperature.

• Continuously using the climate control

system in the recirculated air position
can cause drowsiness or sleepiness,
and loss of vehicle control. Set the air
intake control to the outside (fresh) air
position as much as possible while
driving.

Controlling fan speed

The fan speed control knob allows you
to control the fan speed of the air flow

ing from the ventilation system.

The ignition switch or the ENGINE
START/STOP button must be in the
ON position for fan operation.

• To change the fan speed:
• Turn the knob to the right for higher

speed or left for lower speed.

To turn off the blowers:
• Turn the fan speed control knob to

the "0" position.

Air conditioning (A/C)

• Press the A/C button to turn the air

conditioning system on (indicator light
will illuminate).

• Press the button again to turn the air

conditioning system off.

OBD041412N

OBD041311L

Features of your vehicle

100

Automatic climate control system

Automatic climate control system (if equipped)

The automatic climate control system uses cooling and heating to help maintain a
pleasant environment inside the vehicle.

Driver’s temperature control knob

AUTO (automatic control) button

Front windshield defroster button

Rear window defroster button

Air conditioning button

Air intake control button

Blower OFF button

Fan speed control button

Mode selection button

10.

Passenger’s temperature control knob

11.

SYNC button

12.

A/C display

NOTICE

Operating the blower when the ignition switch or ENGINE START/STOP button is in
the ON position could cause the battery to discharge. Operate the blower when the
engine is running.

OBD041312N

101

Features of your vehicle

Automatic climate control system

Heating and air conditioning
automatically

1. Press the AUTO button.

The modes, fan speeds, air intake and
air-conditioning will be controlled
automatically by setting the tempera

ture.

2. Set the temperature control knob to

set the desired temperature.

NOTICE

• To turn the automatic operation off,

select any button or switch of the fol

lowing:

- Mode selection button

- Air conditioning button
- Front windshield defroster button

(Press the button one more time to
deselect the front windshield

defroster function. The AUTO sign
will illuminate on the information
display once again.)

- Fan speed control knob
The selected function will be con

trolled manually while other functions
operate automatically.

• For your convenience and to improve

the effectiveness of the climate con

trol, use the AUTO button and set the
temperature to 72

°F (22°C).

NOTICE

Never place anything over the sensor
located on the instrument panel to
ensure better control of the heating and
cooling system.

OBD041313L

OBD041333L

OBD041014L

Features of your vehicle

102

Automatic climate control system

Heating and air conditioning manually

The heating and cooling system can be controlled manually by pressing buttons
other than the AUTO button.

In this case, the system works sequentially according to the order of buttons selected.

1. Start the vehicle.

2. Set the mode to the desired position.

For improving the effectiveness of heating and cooling;

• Heating:

• Cooling:

3. Set the temperature control to the desired position.

4. Set the air intake control to the outside (fresh) air position.

5. Set the fan speed control to the desired speed.

If air conditioning is desired, turn the air conditioning system on.

Press the AUTO button in order to convert to fully automatic control of the system.

OBD041304N

103

Features of your vehicle

Automatic climate control system

Mode selection

The mode selection button controls the
direction of the air flow through the ven

tilation system.

The air flow outlet ports are switched in
the following sequence:

Face-Level (B, D, F)

Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air dis

charged from the outlet.

Bi-Level (B, C, D, E, F)

Air flow is directed towards the face and
the floor.

Floor-Level (A, C, D, E, F)

Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield, side
window defrosters and side air vents.

Floor/Defrost-Level (A, C, D, E, F)

Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters and side air vents.

Defrost mode

When you select the defrost mode, the
following system settings will be made
automatically:
• The air conditioning system will be

turned on.

• The outside (fresh) air position will be

selected.

• The fan speed will be set to the high

speed.

To turn the defrost mode off, press the
mode button or defrost button again or
AUTO button.

Instrument panel vents

Type A

OBD041314N

OBD041315N

OBD041305L

Features of your vehicle

104

Automatic climate control system

Type B

• Type A
The outlet vents can be opened or
closed separately using the thumb-
wheel. To close the vent, rotate it down

ward to the maximum position.Also, you
can adjust the direction of air delivery
from these vents using the vent control
lever as shown.
• Type B
The outlet vents can be opened or
closed separately turning the knob right
or left. Also, you can adjust the direction
of air delivery from these vents moving
the knob freely to any directions.

Temperature control

The temperature will increase to the
maximum (HI) by rotating the knob in a
clockwise direction.

The temperature will decrease to the
minimum (Lo) by rotating the knob in a
counter clock wise direction.

When rotating the knob, the tempera

ture will increase or decrease by 1

℉

(0.5

℃

). When set to the lowest temperature

setting, the air conditioning will operate
continuously.

Adjusting the driver and passen

ger side temperature equally

1. Press the

“SYNC” button to adjust the

driver and passenger side tempera

ture equally.

OBD041308L

OBD041309L

OBD041333L

OBD041317L

105

Features of your vehicle

Automatic climate control system

The passenger side temperature will
be set to the same temperature as the
driver side temperature.

2. Turn the driver side temperature con

trol knob. The driver and passenger
side temperature will be adjusted
equally.

Adjusting the driver and passen

ger side temperature individually

1. Press the

“SYNC” button again to

adjust the driver and passenger side
temperature individually. The button
indicator will turn off.

2. Operate the driver side temperature

control knob to adjust the driver side
temperature.

3. Operate the passenger side tempera

ture control knob to adjust the pas

senger side temperature.

Temperature conversion (

°C ↔ °F)

You can switch the temperature mode
between Centigrade to Fahrenheit as
follows; While pressing the OFF button,
depress the AUTO button for 3 seconds
or more. The display will change from
Centigrade to Fahrenheit, or from Fahr

enheit to Centigrade.

Controlling air intake

This is used to select the outside (fresh)
air position or recirculated air position.

To change the air intake control position:

僅

Push the desired control button.

Recirculated air position

With the recirculated air posi

tion selected, air from the
passenger compartment will
be drawn through the heat

ing system and heated or

cooled according to the function
selected.

Outside (fresh) air position

With the outside (fresh) air
position selected, air enters
the vehicle from outside and
is heated or cooled according
to the function selected.

NOTICE

Prolonged operation of the heater in the
recirculated air position (without air con

ditioning selected) may cause fogging of
the windshield and side windows and
the air within the passenger compart

ment may become stale.

In addition, prolonged use of the air con

ditioning with the recirculated air posi

tion

selected will result in excessively dry air in
the passenger compartment.

W ARNING

• Continued climate control system

operation in the recirculated air posi

tion may allow humidity to increase
inside the vehicle which may fog the
glass and obscure visibility.

• Do not sleep in a vehicle with the air

conditioning or heating system on. It
may cause serious harm or death due
to a drop in the oxygen level and/or
body temperature.

OBD041318N

Features of your vehicle

106

Automatic climate control system

• Continued climate control system

operation in the recirculated air posi

tion can cause drowsiness or sleepi

ness, and loss of control. Set the air
intake control to the outside (fresh) air
position while driving.

Controlling fan speed

The fan speed can be set to the desired
speed by operating the fan speed con

trol button.

To change the fan speed:
• Press button right for higher speed, or

press button left for lower speed.

To turn the fan speed control off:

僅

Press the OFF button.

Air conditioning (A/C)

• Press the A/C button to turn the air

conditioning system on (indicator light
will illuminate).

• Press the button again to turn the air

conditioning system off.

Turning off the front air climate
control

• Press the OFF button to turn off the

air climate control system. You can still
operate the mode and air intake
buttons if the ignition switch or the
ENGINE START/STOP button is in
the ON position.

OBD041319N

OBD041320L

OBD041322L

107

Features of your vehicle

Windshield defrosting and defogging

Windshield defrosting and
defogging

When the windshield is covered with
frost or moisture, the front view is
blurred. You should remove the frost
and moisture.

W ARNING

Windshield heating

Do not use the

position

during cooling operation in extremely
humid weather. The difference between
the temperature of the outside air and the
windshield could cause the outer surface
of the windshield to fog up, causing loss
of visibility. Set the mode

selection to the

position and fan

speed control to a lower speed.

• For maximum defrosting, set the tem

perature control to the extreme right/
hot position and the fan speed control
to the highest speed.

• If warm air to the floor is desired while

defrosting or defogging, set the mode
to the floor-defrost position.

• Before driving, clear all snow and ice

from the windshield, rear window,
outside rear view mirrors, and all side
windows.

• Clear all snow and ice from the hood

and air inlet in the cowl grill to improve
heater and defroster effi

ciency and

to reduce the probability of fogging
up the inside of the wind

shield.

Defogging inside windshield with
manual climate control system

1. Select any fan speed except "0" posi

tion.

2. Select desired temperature.

3. Select the

position.

4. The outside (fresh) air and air condi

tioning will be selected automatically.

If the air conditioning and outside (fresh)
air position are not selected automati

cally, press the corresponding button
manually.

Defrosting outside windshield with
manual climate control sys

tem

1. Set the fan speed to the highest

(extreme right) position.

OBD041323L

OBD041324L

Features of your vehicle

108

Windshield defrosting and defogging

2. Set the temperature to the highest

(extreme hot) position.

3. Select the

position.

4. The outside (fresh) air and air condi

tioning will be selected automatically.

Defogging inside windshield with
automatic climate control

1. Set the fan speed to the desired posi

tion.

2. Select desired temperature.

3. Press the defroster button (

4. The outside (fresh) air position will be

selected automatically and the air
conditioning will turn on according to
the detected ambient temperature.

If the air conditioning and outside (fresh)
air position are not selected automati

cally, adjust the corresponding button

manually. If the

position is

selected, lower fan speed is adjusted to
a higher fan speed.

Defrosting outside windshield
with automatic climate control

1. Set the fan speed to the highest posi

tion.

2. Set the temperature to the extreme

hot (HI) position.

3. Press the defroster button (

4. The outside (fresh) air position will be

selected automatically, and the air
conditioning will turn on according to
the detected ambient temperature.

Auto defogging system (only for
automatic climate control system, if
equipped)

Auto defogging helps reduce the possi

bility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.

OBD041325L

OBD041326L

109

Features of your vehicle

Windshield defrosting and defogging

The auto defogging system oper

ates when the heater or air condi

tioning is on.

When the Auto Defogging System oper

ates, the indicator will illuminate.

If high of humidity is detected in the
vehicle, the Auto Defogging System will
be enabled.

The following steps will be performed
automatically:

1. The A/C button will turn ON.
2. The air intake control will change to

Fresh mode under low outside tem

perature.

3. The mode will be changed to defrost

to direct airflow to the windshield.

4. The fan speed will be increased.
To cancel or reset the Auto Defogging
System

Press the front windshield defroster but

ton for 3 seconds when the ignition switch
or ENGINE START/STOP button is in
the ON position.

When the Auto Defogging System is
canceled, the defrost button indicator
will blink 3 times.

When the Auto Defogging System is
reset, the defrost button indicator will
blink 6 times.

NOTICE

• If you try to turn off the air condition

ing when the air conditioning is turned
on by the Auto defogging sys

tem,

the indicator will blink 3 times. The air
conditioning will not be turned off.

• To maintain the efficiency of the Auto

Defogging System, do not select
Recirculation mode while the system
is operating.

• When the Auto Defogging System is

operating, the fan speed adjustment
knob, the temperature adjustment
knob, and the air intake control button
are all disabled.

NOTICE

Do not remove the sensor cover located
on the upper end of the driver side wind

shield glass.

Damage to system parts could occur
and may not be covered by your war

ranty.

Sunroof inside air recirculation

The outside (fresh) air position is auto

matically selected, when the sunroof is
opened.When you select the recirculated
air position, the system maintains the
recirculated air position for 3 minutes and
then automatically converts to the outside
(fresh) air position.When the sunroof is
closed, the air intake position will return
to the position that was selected.

OBD041015L

Features of your vehicle

110

Windshield defrosting and defogging

Automatic Air Ventilation

if you maintain the Recirculation mode
for 30 minutes or more at low tempera

ture when operating the heater and air
conditioner for the ventilation, it auto

matically changes to Fresh mode.

Automatic Air Ventilation control
procedure

When set up or release the automatic air
ventilation function, select the Mode
Selection button at heater or air condi

tioner is on. And press the Air Intake
Control button for 5 times or more within 3
seconds together with the Air condi

tioning button. The Recirculation mode
indicator will blink 3 times at 0.5 second
intervals and air direction, air volume,
Recirculation/Fresh mode, and air condi

tioner will be automatically controlled.

When the automatic ventilation function is
set, the Recirculation mode indicator will
blink 6 times at 0.25 seconds inter

vals.

Air direction, volume, Recirculation/ Fresh
mode, and air conditioner will be
automatically controlled. Auto dehumid

ify is activated when you select

‘Setup →

Vehicle

→ Climate → Automatic Ventila

tion

→ Auto dehumidify’ from the Set

tings in the Infotainment System screen.

For more details, please scan the QR
code in a separately supplied Car Info

tainment System Quick Reference
Guide.

Activate upon Washer Fluid Use

To prevent odor from entering inside the
vehicle, the ventilation system changes to
Recirculated Air Mode when the wind

shield washer fluid is sprayed. To pre

vent windshield fogging low outside
temperatures, the system continues to
use outside air mode.

System setting

1. Place the ignition switch or the

ENGINE START/STOP Button to
ON.

2. Select Floor-Level (

) air flow direc

tion by pressing the Mode Selection
button.

3. While pressing the Air Conditioning

button, press the Recirculated Air but

ton more than 4 times within 2 sec

onds.

4. If the system is set up, the indicator on

Recirculated Air button will blinks 6
times.

System cancellation

1. Place the ignition switch or the

ENGINE START/STOP Button to
ON.

2. Select Floor-Level (

) air flow direc

tion by pressing the Mode Selection
button.

3. While pressing the Air Conditioning

button, press the Recirculated Air but

ton more than 4 times within 2 sec

onds.

4. If the system is cancelled, the indica

tor on Recirculated Air button will
blinks 3 times.

Activation of washer fluid is operates
when you select

‘Setup → Vehicle → Cli

mate

→ Recirculate Air → Activate upon

Washer Fluid

Use’ from the Settings in

the Infotainment System screen.

For more details, please scan the QR
code in the separately supplied Car
Infotainment System Quick Refer

ence Guide.

111

Features of your vehicle

Windshield defrosting and defogging

Recirculation Mode Plus (if
equipped)

To prevent the flow of polluted air inside
when driving through a tunnel or in foul
odor area, this function automatically
switches the air conditioner to Recircula

tion Mode about 7 seconds before the
vehicle enters a tunnel based on the
map information of the navigation sys

tem and speed of the vehicle.

Operating Condition

- Type of Road: Expressway,
- Air Intake Condition: Fresh Mode
You may activate or deactivate this
function from in the Infotainment Sys

tem screen as

‘Setup → Vehicle → Cli

mate

→ Recirculate Air → Recirculation

Mode

Plus’.

For more details, please scan the QR
code in the separately supplied Car
Infotainment System Quick Refer

ence Guide.

Defroster

The vehicle is equipped with a defroster
for removing frost or fog from the rear
window.

CAUTION

Conductors
To prevent damage to the conductors
bonded to the inside surface of the rear
window, never use sharp instruments or
window cleaners containing abrasives to
clean the rear window.

If you want to defrost or defog the front
windshield, refer to "Windshield defrost

ing and defogging" on page 4-107.

Operating rear window defroster

The defroster heats the window to
remove frost, fog and thin ice from the
rear window, while the engine is on.

If there is heavy accumulation of snow
on the rear window, stop driving, and
brush it off before operating the rear
defroster.

Type A/Type B

To activate the rear window defroster:

僅

Press the rear window defroster but

ton located in the heater control
panel.

The indicator on the rear window
defroster button illuminates when the
defroster is ON.

The rear window defroster automati

cally turns off after approximately 20
minutes or when the ignition switch or
the ENGINE START/STOP button is
turned off.

To turn off the defroster:
• Press the rear window defroster but

ton again.

OBD041335N

Features of your vehicle

112

Storage compartments

Outside mirror defroster (if
equipped)

If your vehicle is equipped with outside
mirror defrosters, they will operate at the
same time you turn on the rear window
defroster.

NOTICE

The rear window defroster may turn off
under the following conditions:
• Engine temperature is less than 77°F

(25

°C) and the vehicle speed is

between 0.6~6 mph (1~10 km/h) with
the gear position in

“D” or “R”.

If the vehicle stops or the vehicle speed
is over 6 mph (10 km/h), the rear win

dow defroster turns on again.

Storage compartments

These compartments can be used to
store small items required by the driver
or passengers.

CAUTION

• To avoid possible theft, do not leave

valuables in the storage compart

ments.

• Always keep the storage compart

ment covers closed while driving. Do
not attempt to place so many items a
storage compartment that the storage
compartment cover cannot close
securely.

W ARNING

Flammable materials
Do not store propane cylinders or other
flammable/explosive materials in the
vehicle. These items may catch fire and/
or explode if the vehicle is exposed to hot
temperatures for extended periods.

Center console storage

To open the center console storage:

僅

Pull up the lever.

OBD041016L

113

Features of your vehicle

Storage compartments

Sliding armrest (if equipped)

To move forward

Grab the front portion of the armrest,
press up the lever (1) and pull it forward.

To move rearward

Push the armrest rearward with your
palm.

W ARNING

Do not grab the front portion of the arm

rest (1) when moving the armrest rear

ward. It may pinch your fingers.

Glove box

To open the glove box:
• Pull the handle and the glove box will

automatically open.

Close the glove box after use.

W ARNING

Glove box
To reduce the risk of injury in an acci

dent or sudden stop, always keep the
glove box door closed while driving.

CAUTION

Do not keep food in the glove box for a
long time.

OBD041549L

OBD041017L

Features of your vehicle

114

Interior features

Sunglass holder

To open the sunglass holder, press the
cover and the holder will slowly open.
Place your sunglasses with the lenses
facing out. To close the sunglass holder,
push it up.

W ARNING

• Do not keep objects except sun

glasses inside the sunglass holder.
Such objects can be thrown from the
holder in the event of a sudden stop
or an accident, possibly injuring pas

sengers in the vehicle.

• Do not open the sunglass holder while

the vehicle is moving. The rear view
mirror may be blocked by an opened
sunglass holder.

• Do not forcefully put the glasses into

the sunglass holder to prevent break

age or deformation of the glasses. It
may cause personal injury if you open
it when the glasses are jammed in the
holder.

Interior features

There are various features inside the
vehicle for the convenience of the occu

pants.

Cup holder

Front

Rear (if equipped)

Cups or small beverage cans may be
placed in the cup holders.

W ARNING

Hot liquids
• Do not place uncovered cups with hot

liquid in the cup holders while the
vehicle is in motion. If the hot liquid
spills, you could be burned. A burn to
the driver could lead to loss of control.

OBD041018L

OBD041019L

OBD041020

115

Features of your vehicle

Interior features

• To reduce the risk of personal injury in

the event of sudden stop or collision,
do not place uncovered or unsecured
bottles, glasses, cans, etc., in the cup
holders while the vehicle is in motion.

W ARNING

Keep cans or bottles out of direct sun
light and do not put them in a vehicle
that is hot. They could may explode.

NOTICE

• Keep your drinks sealed while driving

to prevent spillage your drink. If liquid
spills, it may get into the vehicle's
electrical/electronic system and dam

age electrical/ electronic parts.

• When cleaning spilled liquids, do not

dry the cup holder at high tempera

ture. This may damage the cup
holder.

Seat warmer (if equipped)

The seat warmer is provided to warm
the front seats in cold weather.

Front seat

With the ignition switch or ENGINE
START/STOP button in the ON
position:

•

Push either of the buttons to warm
the driver's seat or the front passen

ger's seat.

During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the levers/switch in
the "OFF" position.

Temperature control (Manual)

•

Each time you press the button, the
temperature setting of the seat will
change as follows:

• The seat warmer defaults to the OFF

position whenever the ignition switch
or ENGINE START/STOP button is
turned on.

Temperature control (Automatic)

The seat warmer automatically controls
the seat temperature in order to prevent
low-temperature burns after being man

ually turned ON.

You may manually press the button to
increase the seat temperature. However,
it will soon return to the automatic mode.
• When pressing the button for more

than 1.5 seconds with the seat warmer
operating, the seat warmer will turn
OFF.

• The seat warmer defaults to the OFF

position whenever the ignition switch
or the ENGINE START/STOP button
is in the ON position.

OBDM041023L

Features of your vehicle

116

Interior features

NOTICE

When the seat warmer button is the ON
position, the seat warm system in the
seat turns off or on automatically
depending on the seat temperature.

CAUTION

• When cleaning the seats, do not use

an organic solvent such as paint thin

ner, benzene, alcohol or gasoline. It so
may damage the surface of the heater
or seats.

• To prevent overheating the seat

warmer, do not place anything on the
seats that insulates against heat, such
as blankets, cushions or seat covers,
while the seat warmer is in operation.

• Do not place heavy or sharp objects

on seats equipped with seat warmers.
Damage to the seat warming compo

nents could occur.

• Do not change the seat cover. It may

damage the seat warmer or air venti

lation system.

W ARNING

Seat warmer burns
Passengers should use extreme caution
when using seat warmers due to the
possibility of excess heating or burns.
The seat warmer may cause burns even
at low temperatures, especially if used for
long periods of time. The driver must
exercise extreme care for the following
types of passengers:

1. Infants, children, elderly, disabled per

sons, or hospital outpatients

2. Persons with sensitive skin or those

that burn easily

3. Fatigued individuals

4. Intoxicated individuals

5. Individuals taking medication that can

cause drowsiness or sleepiness
(sleeping pills, cold tablets, etc.)

Air ventilation seat (if equipped)

The temperature setting of the seat
changes according to the button posi

tion.
• To ventilate your seat cushion, press

the button.

Each time you press the button, the
airflow will change as follows:

The seat warmer (with air ventilation)
defaults to the OFF position whenever
the ignition switch or the ENGINE
START/STOP button is turned ON.

CAUTION

Seat damage
• When cleaning the seats, do not use

an organic solvent such as paint thin

ner, benzene, alcohol or gasoline. It so
may damage the air ventilation seat.

OBDM041025L

117

Features of your vehicle

Interior features

Sun visor

Use the sun visor to shield direct light
through the front or side windows.

• To use the sun visor, pull it downward.

僅

To use the sun visor for the side win

dow, pull it downward, unsnap it from
the bracket (1) and swing it to the side
(2). You can slide the sun visor if nec

essary (3) (if equipped).

• To use the vanity mirror, pull down

the visor and slide the mirror cover
(4).

Press the ON button (

) to turn on

the lamp inside the sun visor when
using the mirror. Before returning the
sun visor to the original position, be
sure to press the OFF button (

) to

turn it off.

The ticket holder (5) is provided for
holding a tollgate ticket.

W ARNING

For your safety, do not block your view
when using the sun visor.

NOTICE

Do not put several tickets in the ticket
holder at the same time. This could
cause damage to the ticket holder.

USB charger (if equipped)

The USB car charger allows drivers to
charge their digital devices such smart

phone, and tablets.

Front

2nd row (if equipped)

Plug the cable into the USB port, and
charging will begin.

The USB car charger is available with
either the ACC on or the ignition ON.
Connect the USB port and digital

devices with the engine running. See the

display screen of the device to check its

charging progress. Your smart phone or
tablet could heat up while charging. This
doesn't impact the life or function of the
device. Charging can be stopped if the
battery heats up to a temperature that

OMQ4040075

OBD041026L

OBD041552L

Features of your vehicle

118

Interior features

the devices. Charging some devices may
require dedicated adapters if their char

gers don't fit. Quick Charge 2.0 is avail

able on the smart-phone or the table
equipped with fast charging capabilities.
The list of applicable devices can be
found at https://www.qualcomm.com/
documents/quick-charge-device-list.

The smart-phone or tablet without fast
charging will charge at a regular speed.
Rated output:
• Digital devices with fast charging:

- 9.0 V, 1.67 A

• Digital devices with normal charging:

- 5.0 V, 2.1 A

CAUTION

• Use the USB car charger with the igni

tion on. Otherwise, the vehicle battery
can discharge.

• Use the official USB cable of the man

ufacturer of the device to be charged.

• Make sure that any foreign object,

drinks, and water do not come into
contact with the USB car charger.
Water or a foreign object can damage
the USB charger.

• Do not use the device whose current

consumption exceeds 2.1 A.

• Do not connect an electrical device

that generates excessive electromag

netic noise to the USB car port. If you
do so, noise can be heard or vehicle
electronic devices can be interrupted
while audio or AV is on.

• If the charger is connected incorrectly,

it can cause serious damage to the
devices. Note that damage due to
incorrect usage is not covered by the
warranty.

Power outlet

The power outlet is designed to provide
power for mobile phones or other devices
designed to operate with vehicle
electrical systems.

The devices should draw less than 15
amps with the vehicle ON.

W ARNING

• Use the power outlet only when the

vehicle is ON and remove the acces

sory plug after use. Using the acces

sory plug for prolonged periods of
time with the vehicle off could cause
the battery to discharge.

• Only use 12 V electric accessories

which are less than 15 A in electric
capacity.

• Adjust the air-conditioner or heater to

the lowest level when using the power
outlet.

• Close the cover when not in use.
• Some electronic devices can cause

electronic interference when plugged
into a vehicle's power outlet. These
devices may cause excessive audio
static and malfunctions in other elec

tronic systems or devices used in your
vehicle.

OBD041022L

119

Features of your vehicle

Interior features

• Push the plug in as far as it will go. If

good contact is not made, the plug
may overheat and the fuse may open.

• Plug in battery equipped electronic

devices with reverse current protec

tion. The current from the battery may
flow into the vehicle's electrical/elec

tronic system and cause system mal

function.

W ARNING

Electric shock
Do not put a finger or a foreign object
(pen, etc.) into a power outlet and do not
touch it with a wet hand. You may get an
electric shock.

Wireless smart phone charging
system (if equipped)

A wireless smart phone charging system
is located in front of the center console.

Firmly close all doors, and ensure the
ignition switch or ENGINE START/STOP
button is ON. To start wireless charging,
place the smart phone equipped with
wireless charging function on the wire

less charging pad.

For best wireless charging results, place
the smart phone on the center of the
charging pad.

The wireless charging system is
designed for one smart phone equipped
with QI only. Please refer to the smart
phone accessory cover or the smart
phone

manufacturer’s homepage to

check whether your smart phone sup

ports QI function.

W ARNING

If any metallic object such as coins is
located between the wireless charging
system and the smart phone, charging
may be disrupted. Also, the metallic
object may heat up.

Wireless smart phone charging

1. Remove any object on the smart

phone charging pad including the
smart key. If there is any object on the
pad other than a smart phone, the
wireless charging function may not
operate properly.

2. Place the smart phone on the center

of the wireless charging pad.

3. The indicator light will change to

orange when the wireless charging
begins. After charging is complete,
the orange light will change to green.

4. You can choose to turn the wireless

charging function to either ON or OFF
by selecting the Ultimate Stock Mani

fold (USM) on the instrument cluster.
(Please refer to "Instrument cluster"
on page 4-52 for details).

If wireless charging does not work, gen

tly move your smart phone around the
pad until the charging indicator light
turns yellow. Depending on the smart
phone, the charging indicator light may
not turn green even after charging is
complete.

If the wireless charging is not function

ing properly, the orange light will blink

OBD041657L

Features of your vehicle

120

Interior features

and flash for ten seconds, and then turn
off. Remove the smart phone from the
pad and replace it on the pad, or double
check the charging status.

If you leave the smart phone on the
charging pad when the vehicle ignition is
in OFF, the vehicle will alert you through
warning messages and sound (applica

ble for vehicles with voice guidance
function) after the 'Good bye' function on
the instrument cluster ends.

NOTICE

For some manufacturers' smart phones,
the system may not warn you even
though the smart phone is left on the
wireless charging unit. This is due to the
characteristic of the smart phone and not
a malfunction of the wireless charging
system.

CAUTION

• When the interior temperature of the

wireless charging system rises above
a set temperature, the wireless
charging will cease to function. After
the interior temperature drops below
the threshold, the wireless charging
function will resume.

• If there is any metallic object between

the smart phone and the wireless
charging pad, immediately remove the
smart phone. Remove the metallic
object after it has cooled down.

• The wireless charging system may not

function properly when there is a
heavy accessory cover on the smart
phone.

• Wireless charging will stop when

using the wireless smart key search
function to prevent radio wave disrup

tion.

• Wireless charging will stop when the

smart key is removed from the vehicle
with the ignition in ON.

• Wireless charging will stop when any

of the doors is opened (applicable for
vehicles equipped with smart keys).

• Wireless charging will stop when the

vehicle is turned OFF.

• Wireless charging will stop when the

smart phone is not in complete con

tact with the wireless charging pad.

• Items equipped with magnetic com

ponents such as a credit card, tele

phone card, bankbook, transportation
ticket, etc. may be damaged during
wireless charging.

• Place the smart phone on the center

of the charge pad for best results. The
smart phone may not charge when
placed near the rim of the charging
pad. When the smart phone is
charged, it may heat up excessively.

• For smart-phones without built in

wireless charging system, an appro

priate accessory must be used.

• Smart phones of some manufacturers

may display messages on weak cur

rent. This is due to the characteristic of
the smart-phone and is not a mal

function of the wireless charging sys

tem.

• The indicator light of some manufac

turers' smart phones may still be yel

low after the smart phone is fully
charged. This is due to the character

istic of the smart-phone and not a
malfunction of the wireless charging
system.

• When any smart phone without a

wireless charging function or a metal

lic object is placed on the charging
pad, a noise may sound. This sound is
due to the vehicle discerning compati

121

Features of your vehicle

Interior features

bility of the object placed on the
charging pad. It does not affect your
vehicle or the smart phone in any
way.

• The wireless mobile phone charging

system may not support certain
mobile phones, that are not verified

for the Qi specification (

• For certain mobile phones with their

own protection, the wireless charging
speed may decrease and the wireless
charging may stop.

This device complies with part 15
of the FCC Rules

Operation is subject to the following two
conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any interfer

ence received, including interference
that may cause undesired operation.

Coat hook

A Coat hook is next to the rear grab han

dle.

*This actual feature may differ from the

illustration.

CAUTION

Hanging clothing
Do not hang heavy clothes, since they
may damage the hook.

W ARNING

Do not hang other objects such as hang

ers or hard objects except clothes. Do not
put heavy, sharp or breakable objects in
the clothing's pockets. In an accident or
when the curtain air bag is inflated, it may
cause vehicle damage or body injury.

OSK3048028NR

OSK3040409NR

Features of your vehicle

122

Infotainment system

NOTICE

If you install an after market High Inten

sity Discharge (HID) head lamp, your
vehicle's audio and electronic device
may malfunction.

*If your vehicle is equipped with an Info

tainment system, refer to the sepa

rately supplied manual for detailed
information.

Antenna

1 Shark fin antenna (if equipped)

The sharkfin antenna transmits and
receives wireless signals such as AM/
FM, Sirius XM, GNSS, etc.

*The signals which antenna can

transmit and receive vary by the
vehicle option.

2 Glass antenna (2)

Your vehicle uses a glass antenna to
receive both AM and FM signals.

NOTICE

• To prevent damage to the rear glass

antenna, never use sharp instru

ments or window cleaner containing
abrasives to clean the window. Clean

the inside surface of the rear glass
window with a soft cloth.

• When putting a sticker on the inside

surface of the rear window, be careful
not to damage the rear glass antenna.

• Avoid adding metallic coatings such

as Ni, Cd, etc.

• These can degrade the receiving AM

and FM broadcast signals.

• Do not put sharp instruments nearby

the rear glass antenna.

• Tinted rear window may affect the

proper functioning of the antenna.

USB port

Use the USB port to plug in a USB.

OBDM041027

OBDM041329

123

Features of your vehicle

Infotainment system

How vehicle radio works

FM reception

AM and FM radio signals are broadcast
from transmitter towers located around
your city. They are intercepted by the
radio antenna on your vehicle. This sig

nal is then processed by the radio and
sent to your vehicle speakers.

However, in some cases, the signal com

ing to your vehicle may not be strong and
clear.

This can be due to several factors, such
as the distance from the radio station,
closeness of other strong radio stations
or the presence of buildings, bridges or
other large obstructions in the area.

AM reception

AM broadcasts can be received at
greater distances than FM broadcasts.
This is because AM radio waves are
transmitted at low frequencies. These
long distance, low frequency radio waves
can follow the curvature of the earth
rather than traveling straight. In addition,
they curve around obstructions resulting
in better signal coverage.

FM radio station

FM broadcasts are transmitted at high
frequencies and do not bend to follow
the earth's surface. Because of this, FM
broadcasts generally begin to fade
within short distances from the station.
FM signals are easily affected by build

ings, mountains, and obstructions. This

ODEEV068216NR

ODEEV068217NR

ODEEV068219NR

Kia Forte (2024 year). Manual in english - page 6
