1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

DETAIL

Data item

Meaning

X

ESCAPE RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

Y*

ESCAPE ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for ESCAPE TYPE.

(COPY)

Z

APROCH MOTION

[2 AXES]

: When moving from the current position to

the machining start point, the tool first

moves in the machining plane in two-axis

synchronous operation and then moves

along the tool axis. (initial value)

[3 AXES]

: The tool moves from the current position

to the machining start point in three-axis

synchronous operation.

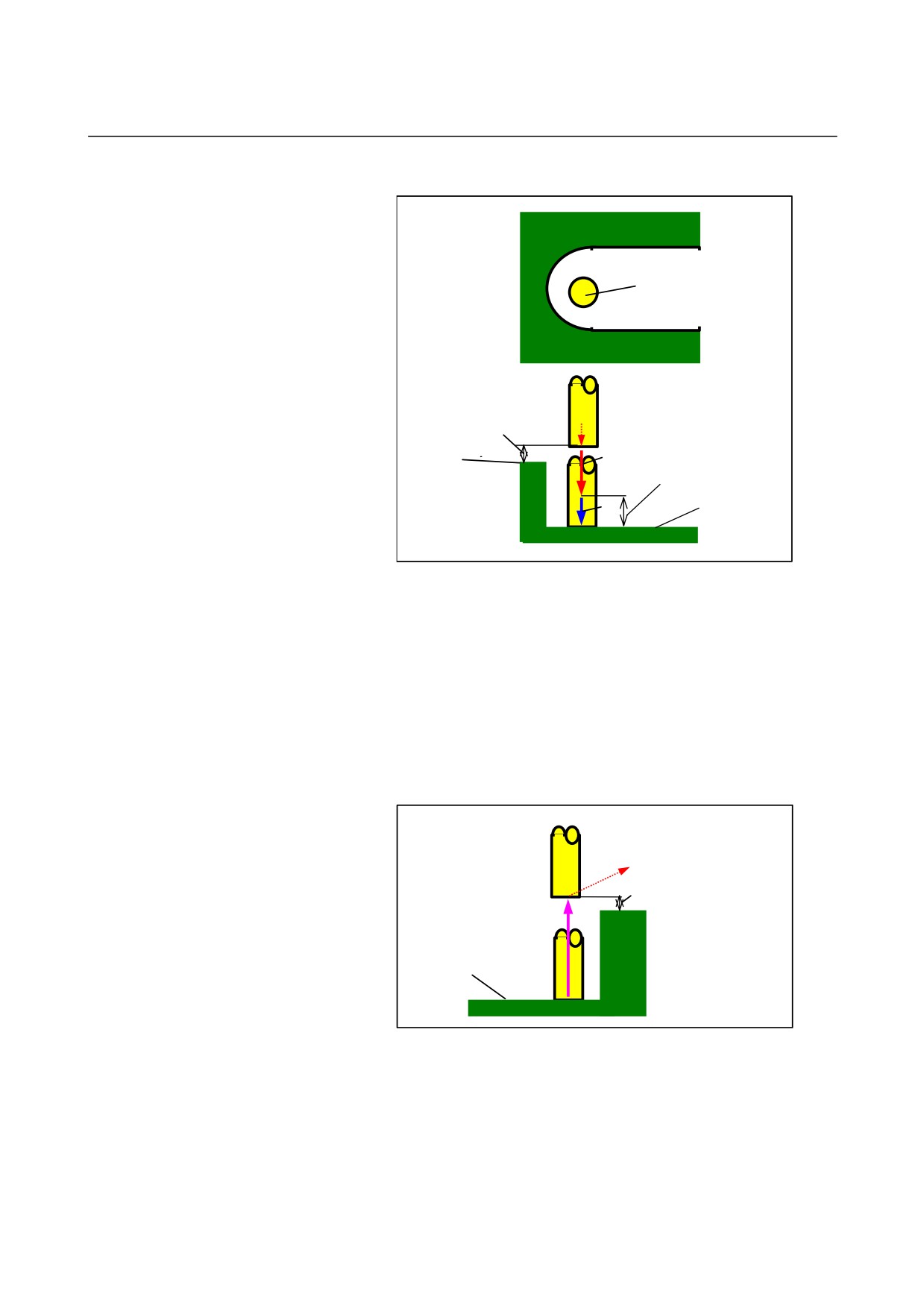

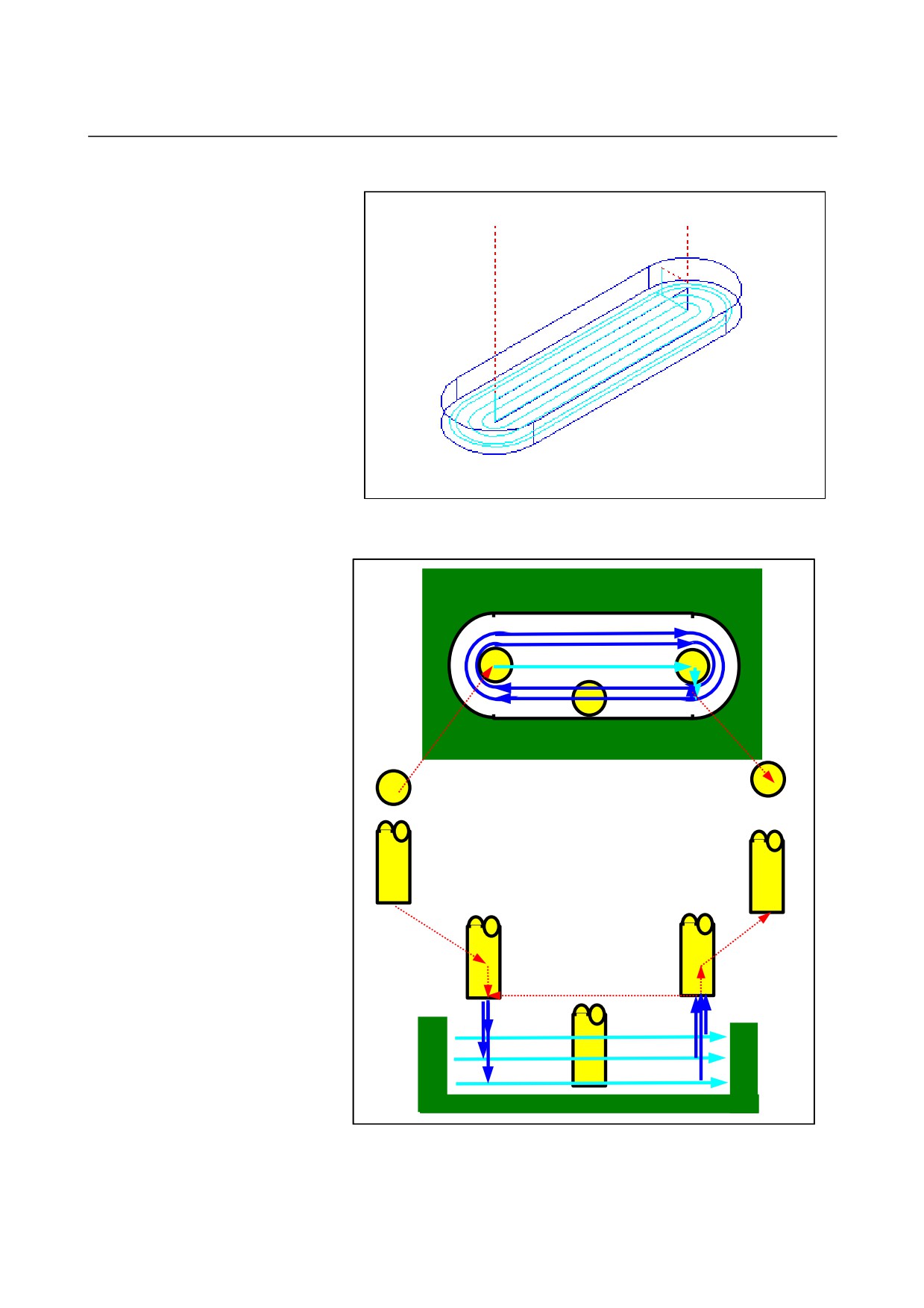

• Tool path

The side-face contour of pocket and island machining profiles is

finished. The tool path for it is the same as for contouring (side-face

finishing).

See descriptions about contouring (side-face finishing) for details.

The specifications for the following points differ in part, though.

No in-feed machining is performed in the tool radius direction or tool

axis direction.

Even if it is anticipated that the tool may interfere with a pocket or

island machining profile during finishing, no tool path that can avoid

interference is created.

- 432 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

Chamfer: G1043

TOOL COND.

Data item

Meaning

K

TOOL SMALL DIAMETER

Diameter of the tip of a chamfering tool (positive

value)

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

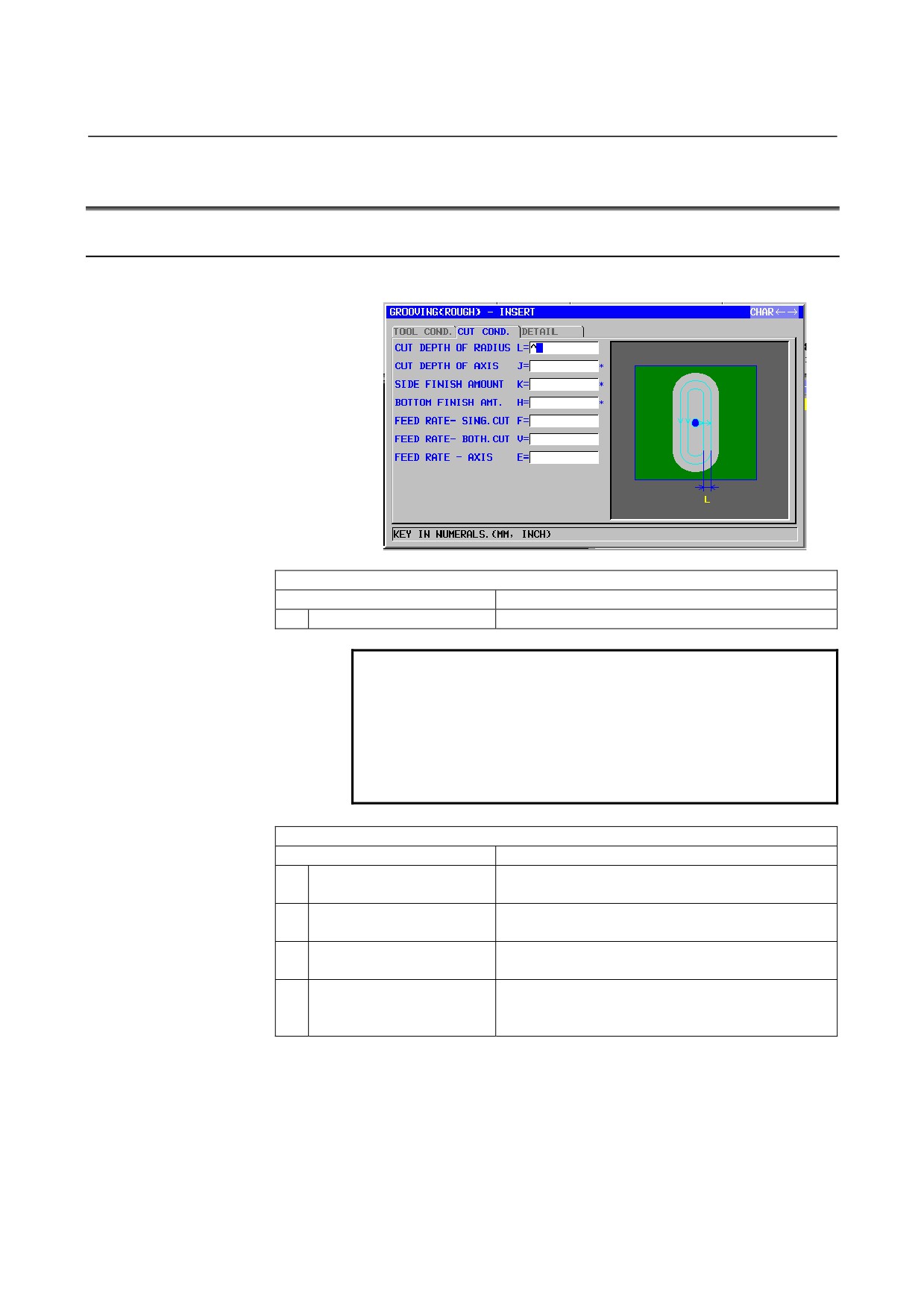

CUT COND.

Data item

Meaning

S

CHAMFER AMOUNT

Chamfer length (radius value, positive value)

H

EJECTION STROKE

Distance between the tip of a chamfering tool and an

actually cut position in the tool axis direction (radius

value, positive value)

F

FEED RATE - RADIUS

Feedrate applicable when cutting is performed in the

tool radius direction

E

FEED RATE - AXIS

Feedrate applicable when cutting is performed in the

tool axis direction

DETAIL

Data item

Meaning

W

UP CUT/DOWN CUT

[UP CUT]

: Performs machining in up-cut mode,

assuming that the tool is rotating

clockwise.

[DWNCUT] : Performs machining in down-cut mode,

assuming that the tool is rotating

clockwise. (initial value)

C

CLEARANCE OF AXIS

Distance between the surface of a blank being

machined and a cutting start point (point R) in the tool

axis direction (radius value, positive value)

Remark) By referring to the parameter No.27009

(minimum clamp value), the system sets the

data as Initial value.

- 433 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

DETAIL

Data item

Meaning

P

APPROACH TYPE

[ARC]

: Approaches a side face along an arc.

[TANGEN]: Approaches a side face along the straight

line tangent to the first figure in side face

cutting.

[VERTIC] : Approaches a side face along the straight

line normal to the first figure in side face

cutting.

(COPY)

R

APPROACH RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

A*

APPROACH ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for APPROACH TYPE.

(COPY)

Q

ESCAPE TYPE

[ARC]

: Retracts from a side face along an arc.

[TANGEN]: Retracts from a side face along the

straight line tangent to the last figure in

side face cutting.

[VERTIC] : Retracts from a side face along the

straight line normal to the last figure in

side face cutting.

(COPY)

X

ESCAPE RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

Y*

ESCAPE ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for ESCAPE TYPE.

(COPY)

Z

APROCH MOTION

[2 AXES]

: When moving from the current position to

the machining start point, the tool first

moves in the machining plane in two-axis

synchronous operation and then moves

along the tool axis. (initial value)

[3 AXES]

: The tool moves from the current position

to the machining start point in three-axis

synchronous operation.

•

Tool path

The top surface of a wall of a pocket is chamfered. The tool path for it

is the same as for contouring (chamfering).

See descriptions about contouring (chamfering) for details.

- 434 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

1.6.2

Fixed Form Figure Blocks for Pocketing (XY Plane)

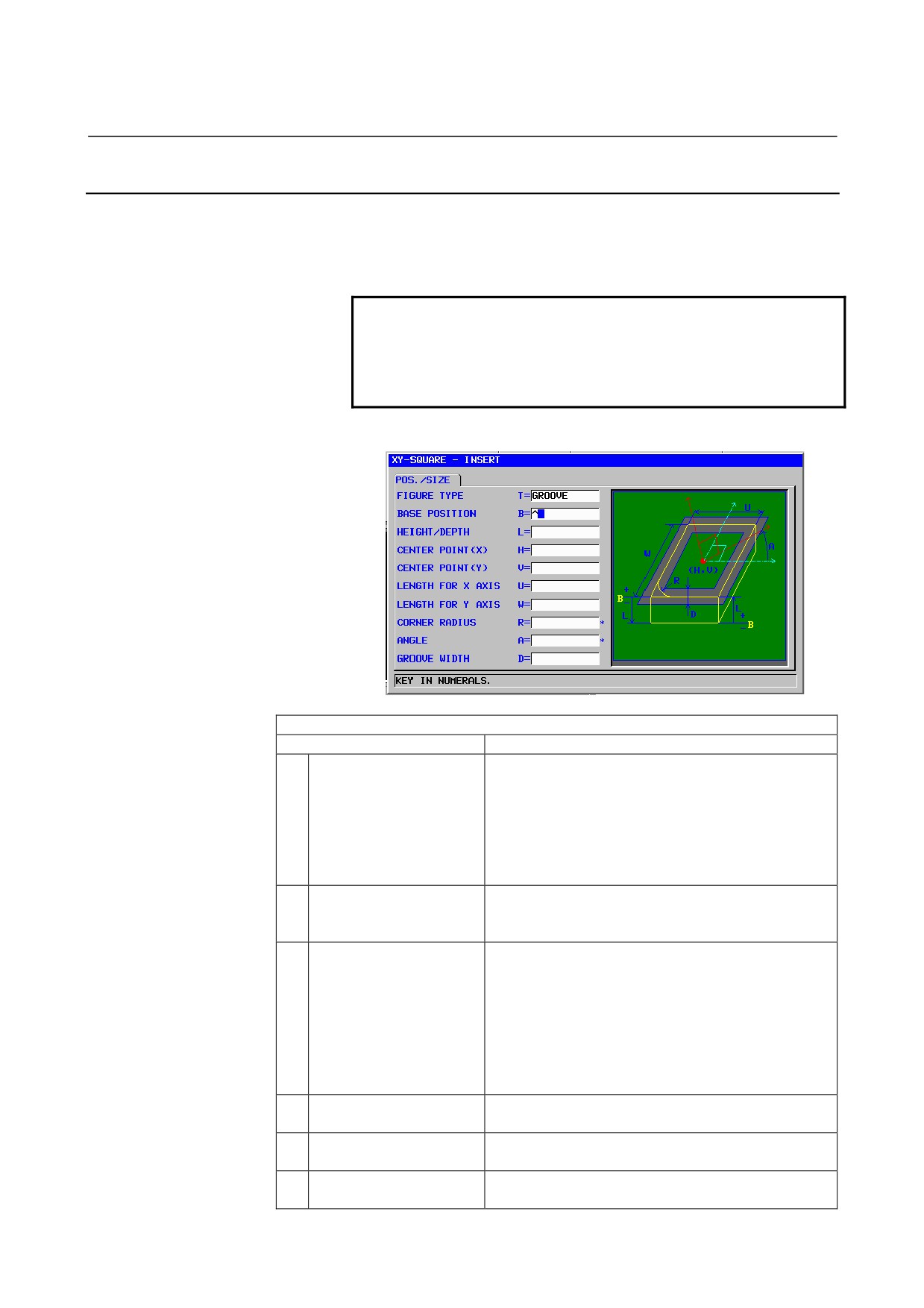

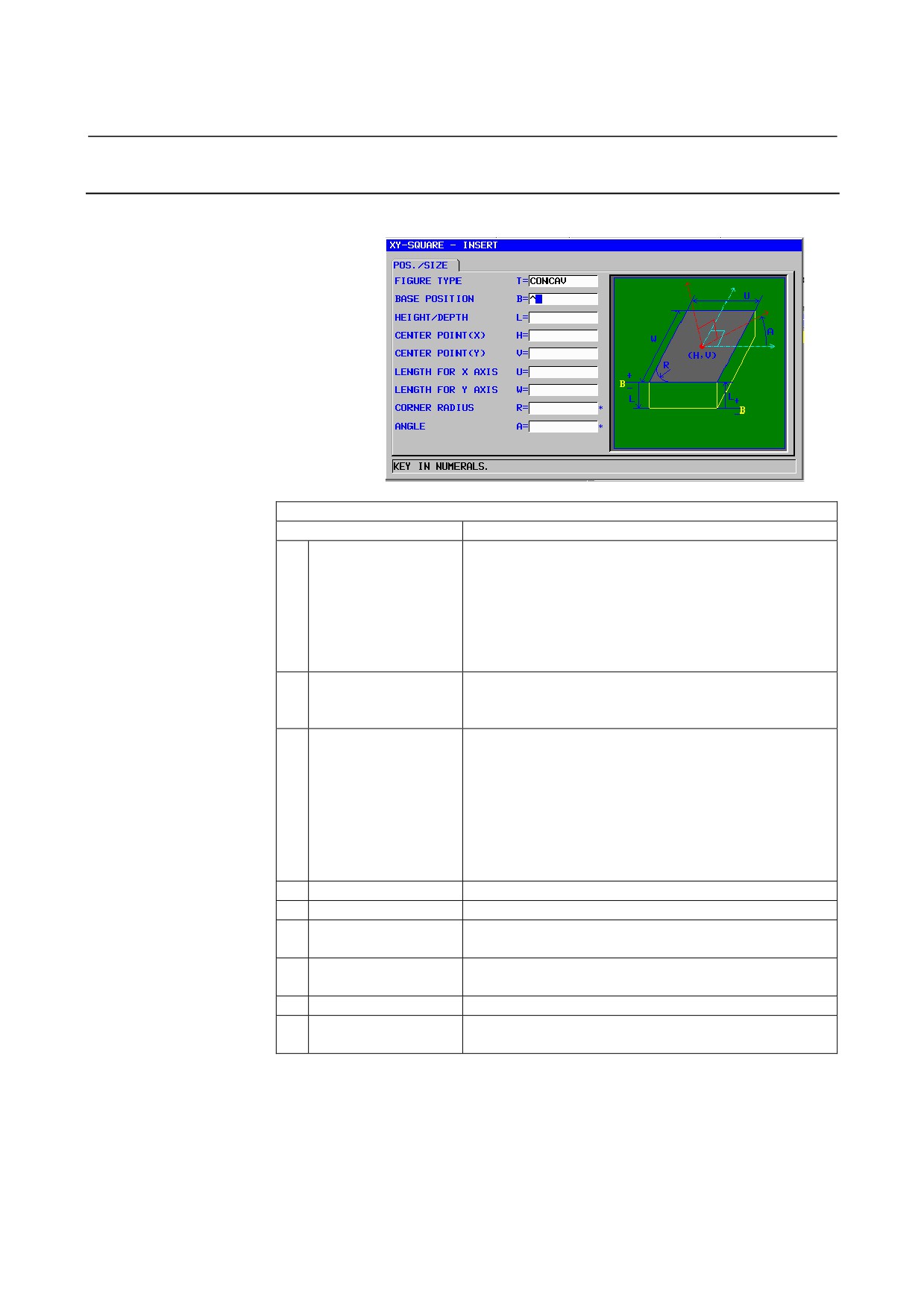

Square: G1220 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

:

Used as a figure for facing

[CONVEX]

:

Used as an outer figure for contouring

[CONCAVE] :

Used as an inner figure for contouring or

as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When pocketing is selected as machining type,

be sure to select [CONCAVE].

B

BASE POSITION

Z coordinate of the top surface of a workpiece subject to

pocketing or the bottom of a pocket (in the tool axis

direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as the

BASE POSITION, specify the distance to the bottom of a

pocket by using a negative value (radius value).

→ Depth

When the bottom of a pocket is selected as the BASE

POSITION, specify the distance to the top surface of the

pocket by using a positive value (radius value).

→ Height

H

CENTER POINT (X)

X coordinate of the center position of a rectangular figure

V

CENTER POINT (Y)

Y coordinate of the center position of a rectangular figure

U

LENGTH FOR X

Length of the side in the X-axis direction (radius value,

AXIS

positive value)

W

LENGTH FOR Y

Length of the side in the Y-axis direction (radius value,

AXIS

positive value)

R*

CORNER RADIUS

Radius for corner rounding (positive value)

A*

ANGLE

Inclination angle of a rectangular figure relative to the

X-axis (positive or negative value)

- 435 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

Circle: G1221 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring or

as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When pocketing is selected as machining type,

be sure to select [CONCAVE].

B

BASE POSITION

Z coordinate of the top surface of a workpiece subject to

pocketing or the bottom of a pocket (in the tool axis

direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as the

BASE POSITION, specify the distance to the bottom of

a pocket by using a negative value (radius value).

→ Depth

When the bottom of a pocket is selected as the BASE

POSITION, specify the distance to the top surface of the

pocket by using a positive value (radius value).

→ Height

H

CENTER POINT (X)

X coordinate of the center position of a circular figure

V

CENTER POINT (Y)

Y coordinate of the center position of a circular figure

R

RADIUS

Radius of a circular figure (radius value, positive value)

- 436 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

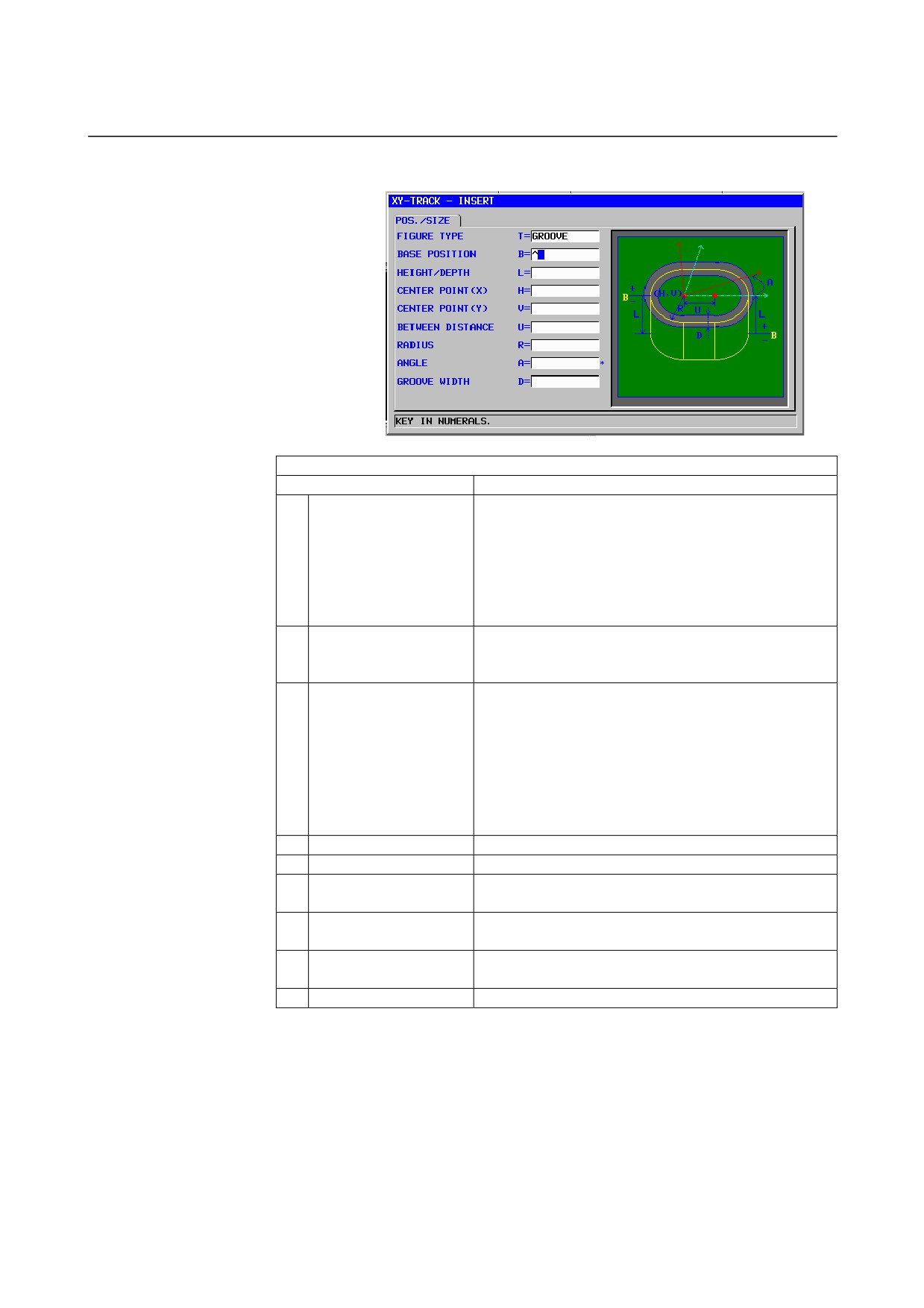

Track: G1222 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring

or as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When pocketing is selected as machining

type, be sure to select [CONCAVE].

B

BASE POSITION

Z coordinate of the top surface of a workpiece

subject to pocketing or the bottom of a pocket (in the

tool axis direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as

the BASE POSITION, specify the distance to the

bottom of a pocket by using a negative value (radius

value). → Depth

When the bottom of a pocket is selected as the

BASE POSITION, specify the distance to the top

surface of the pocket by using a positive value

(radius value). → Height

H

CENTER POINT (X)

X coordinate of the center position of the left

semicircle

V

CENTER POINT (Y)

Y coordinate of the center position of the left

semicircle

U

BETWEEN DISTANCE

Distance between the centers of the right and left

semicircles (radius value, positive value)

R

RADIUS

Radius of the left and right semicircles (radius value,

positive value)

A*

ANGLE

Inclination angle of a track figure relative to the

X-axis (positive or negative value)

- 437 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

1.6.4

Arbitrary Figure Blocks for Pocketing (XY Plane)

When an arbitrary figure for pocketing is input, data such as a figure

type and machining reference position is specified in the start point

block. Other data items to be input such as a straight line and arc are

exactly the same as for arbitrary figures of other machining types.

So, this subsection describes only the start point block of an arbitrary

figure for pocketing.

For other arbitrary figures, see Chapter

5, "DETAILED

DESCRIPTIONS ABOUT ENTERING ARBITRARY FIGURES," in

Part II.

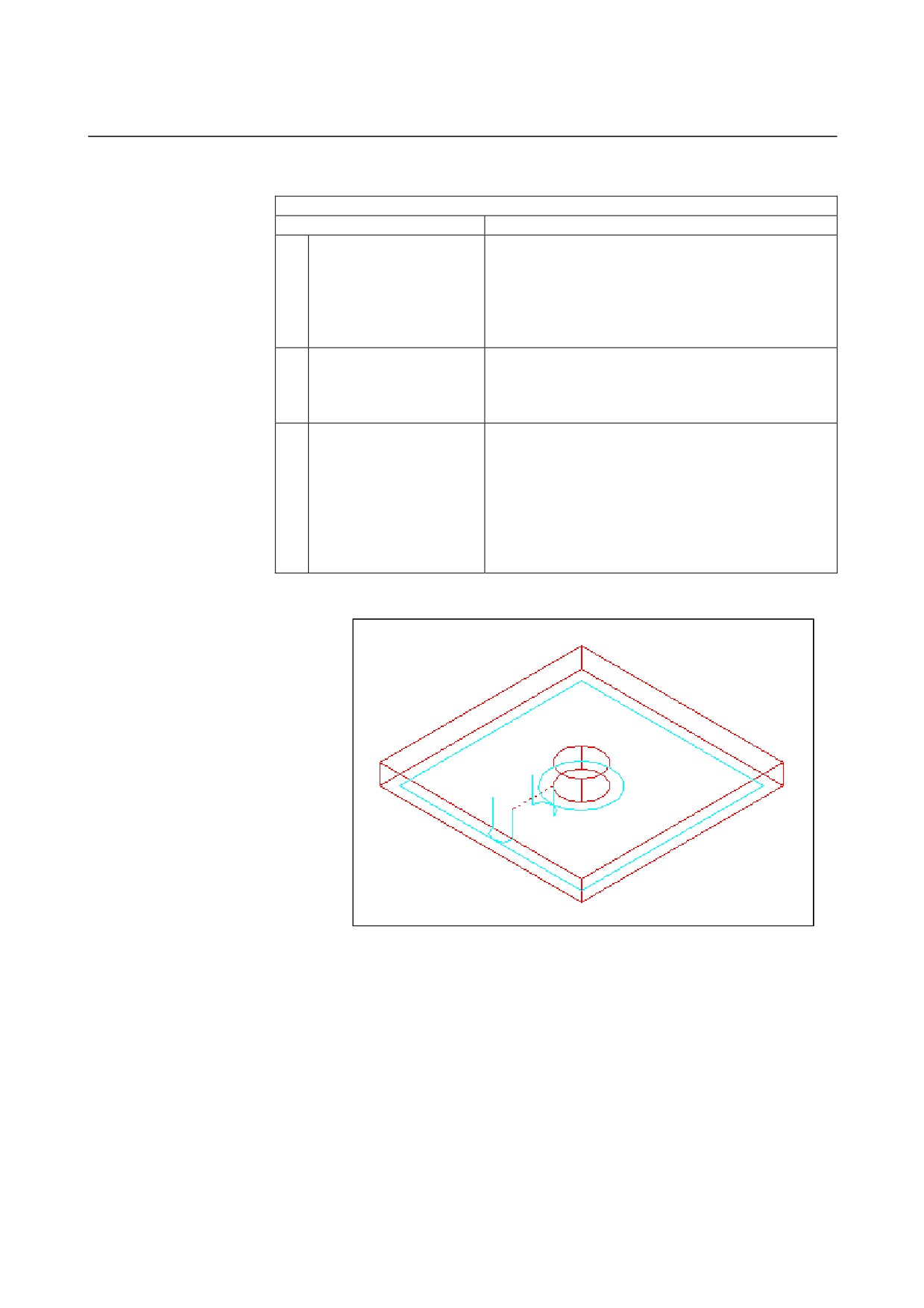

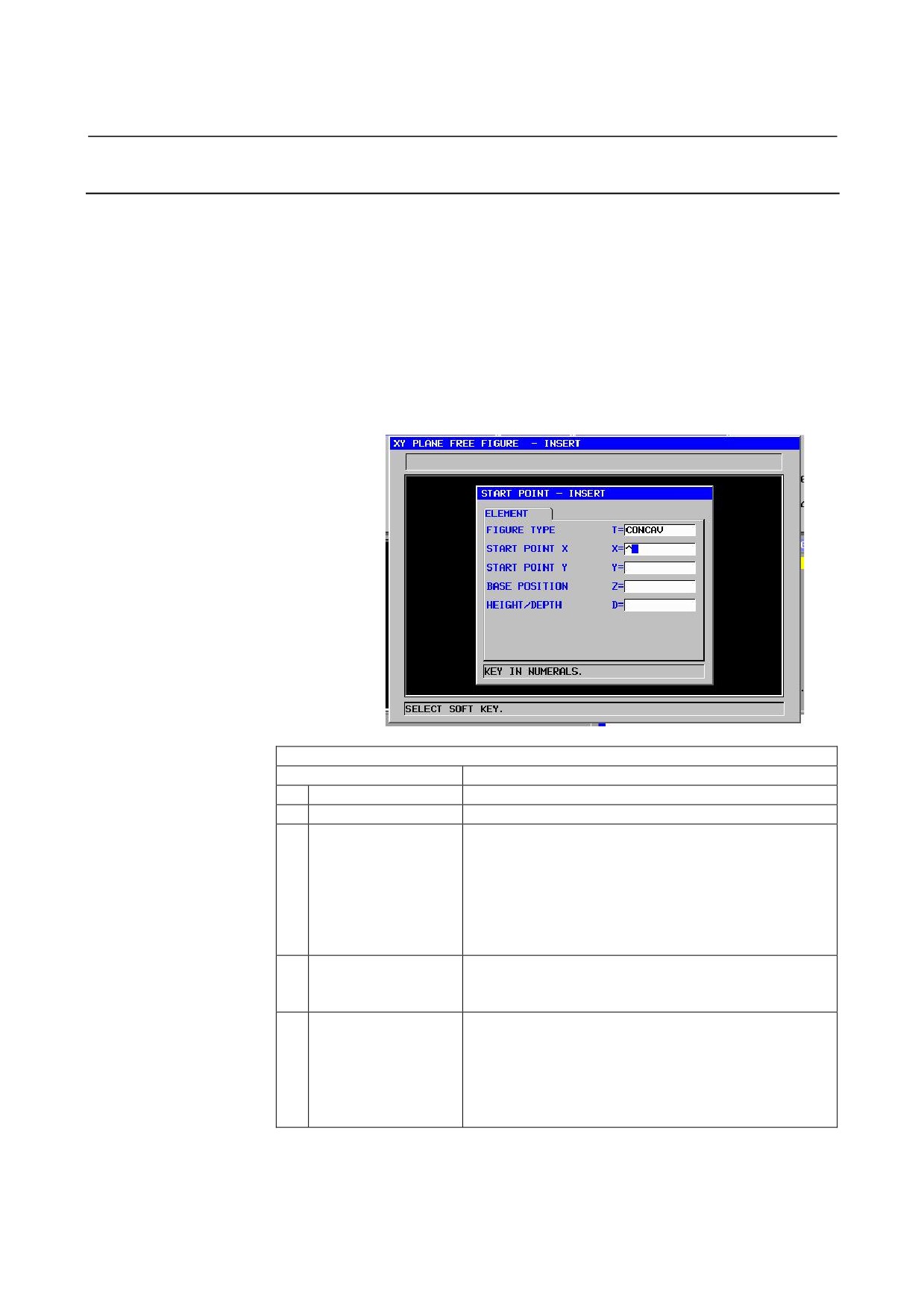

Start point: G1200 (XY plane)

ELEMENT

Data item

Meaning

X

START POINT X

X coordinate of the start point of an arbitrary figure

Y

START POINT Y

Y coordinate of the start point of an arbitrary figure

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring or as

a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When pocketing is selected as machining type,

be sure to select [CONCAVE].

B

BASE POSITION

Z coordinate of the top surface of a workpiece subject to

pocketing or the bottom of a pocket (in the tool axis

direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as the

BASE POSITION, specify the distance to the bottom of a

pocket by using a negative value (radius value). → Depth

When the bottom of a pocket is selected as the BASE

POSITION, specify the distance to the top surface of the

pocket by using a positive value (radius value). → Height

- 439 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

Input of Island :

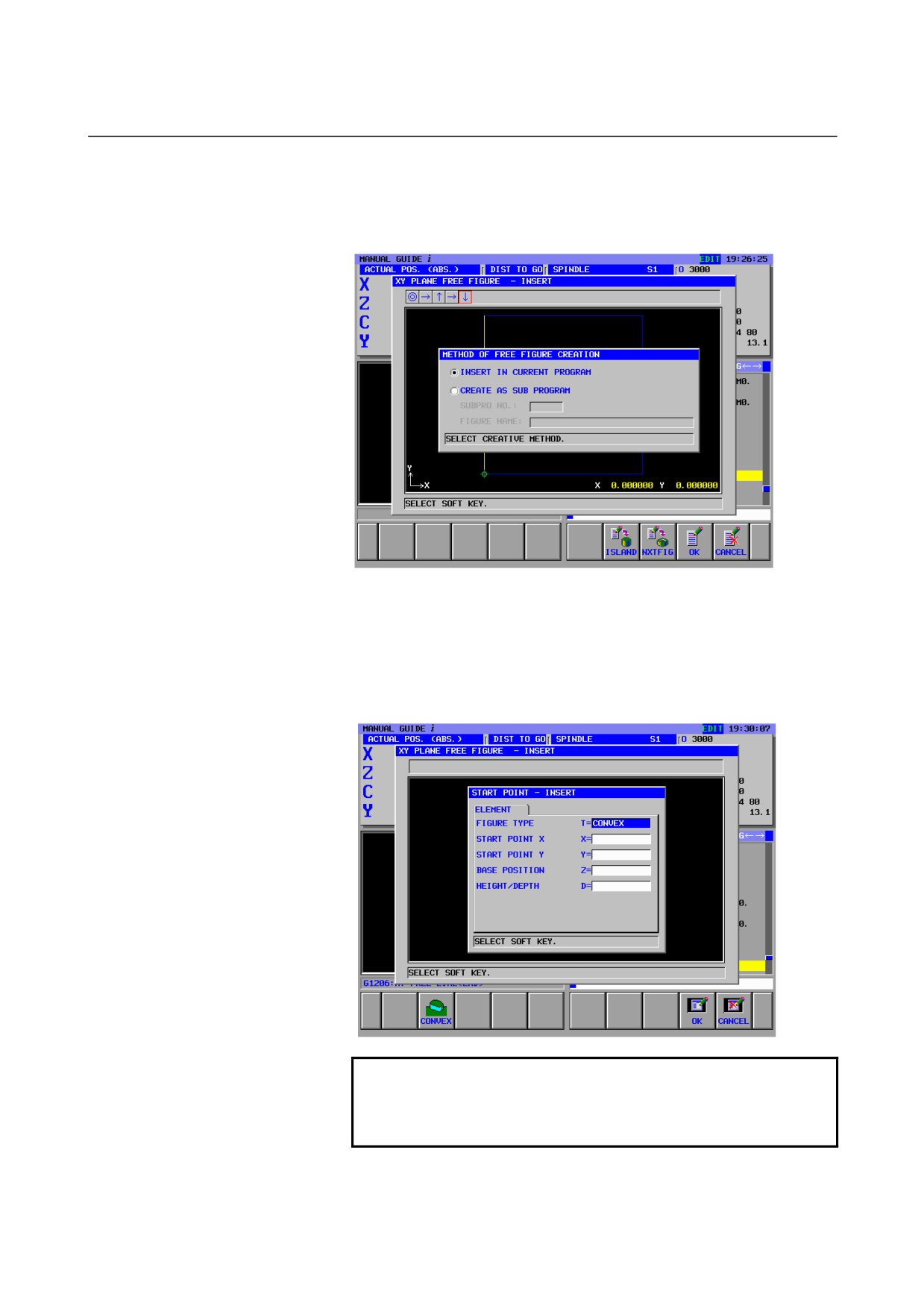

After inputting the outer wall figure of Pocket, the following screen is

displayed by pushing the soft-key [CREATE].

If there is a island, push the soft-key [ISLAND] in order to input the

island figure. The following START POINT screen is displayed.

As to the input data item

[FIGURE TYPE] is set “CONVEX”

automatically. ( When a outer wall, it is set “CONCAV”.)

After that, input the island figure as the same of a outer wall figure.

NOTE

As to the soft-key [NXTFIG], it is used in the case

of inputting the other pocket figure one after

another.

- 440 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

1.7

GROOVING

1.7.1

Machining Type Blocks for Grooving

Roughing: G1050

TOOL COND.

Data item

Meaning

D

TOOL DIAMETER

End mill diameter

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND.

Data item

Meaning

L

CUT DEPTH OF RADIUS

Depth of cut on the side face (tool radius direction)

per cutting operation (radius value, positive value)

J

CUT DEPTH OF AXIS

Depth of cut in the tool axis direction per cutting

operation (radius value, positive value)

K*

SIDE FINISH AMOUNT

Finishing allowance on the side face. The blank is

regarded as 0. (radius value, positive value)

H*

BOTTOM FINISH AMT.

Finishing allowance at the bottom in side face

machining. The blank is regarded as 0. (radius

value, positive value)

- 442 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

CUT COND.

Data item

Meaning

F

FEED RATE- SING.CUT

Feedrate applicable when only the one-side cutter

portion of an end mill is used for cutting. This

feedrate is used for cutting in retract operation and

on the side face other than initial cutting.

V

FEED RATE- BOTH.CUT

Feedrate applicable when the entire front side of an

end mill is used for cutting. This feedrate is used for

initial cutting.

E

FEED RATE- AXIS

Feedrate applicable when cutting is performed in the

tool axis direction toward the bottom of a side face

being machined

DETAIL

Data item

Meaning

W

UP CUT/DOWN CUT

[UP CUT]

: Performs machining in up-cutting

mode, assuming that the tool is

rotating clockwise.

[DWNCUT] : Performs machining in down-cutting

mode, assuming that the tool is

rotating clockwise.

(COPY)

B

CLEARANCE OF RADIUS

Distance between the wall of a groove and a tool

retract position in the tool radius direction (radius

value, positive value)

Remark1) When one groove cutting operation is

completed, the tool performs a retract

operation in the tool axis direction from the

side face of the groove by this clearance

amount.

Remark2) By referring to the parameter No.27009

(minimum clamp value), the system sets

the data as Initial value.

C

CLEARANCE OF AXIS

Distance between the surface of a blank being

machined and a cutting start point (point R) in the

tool axis direction (radius value, positive value)

Remark) By referring to the parameter No.27009

(minimum clamp value), the system sets

the data as Initial value.

Z

APROCH MOTION

[2 AXES]

: When moving from the current position

to the machining start point, the tool first

moves in the machining plane in

two-axis synchronous operation and

then moves along the tool axis. (initial

value)

[3 AXES]

: The tool moves from the current

position to the machining start point in

three-axis synchronous operation.

- 443 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

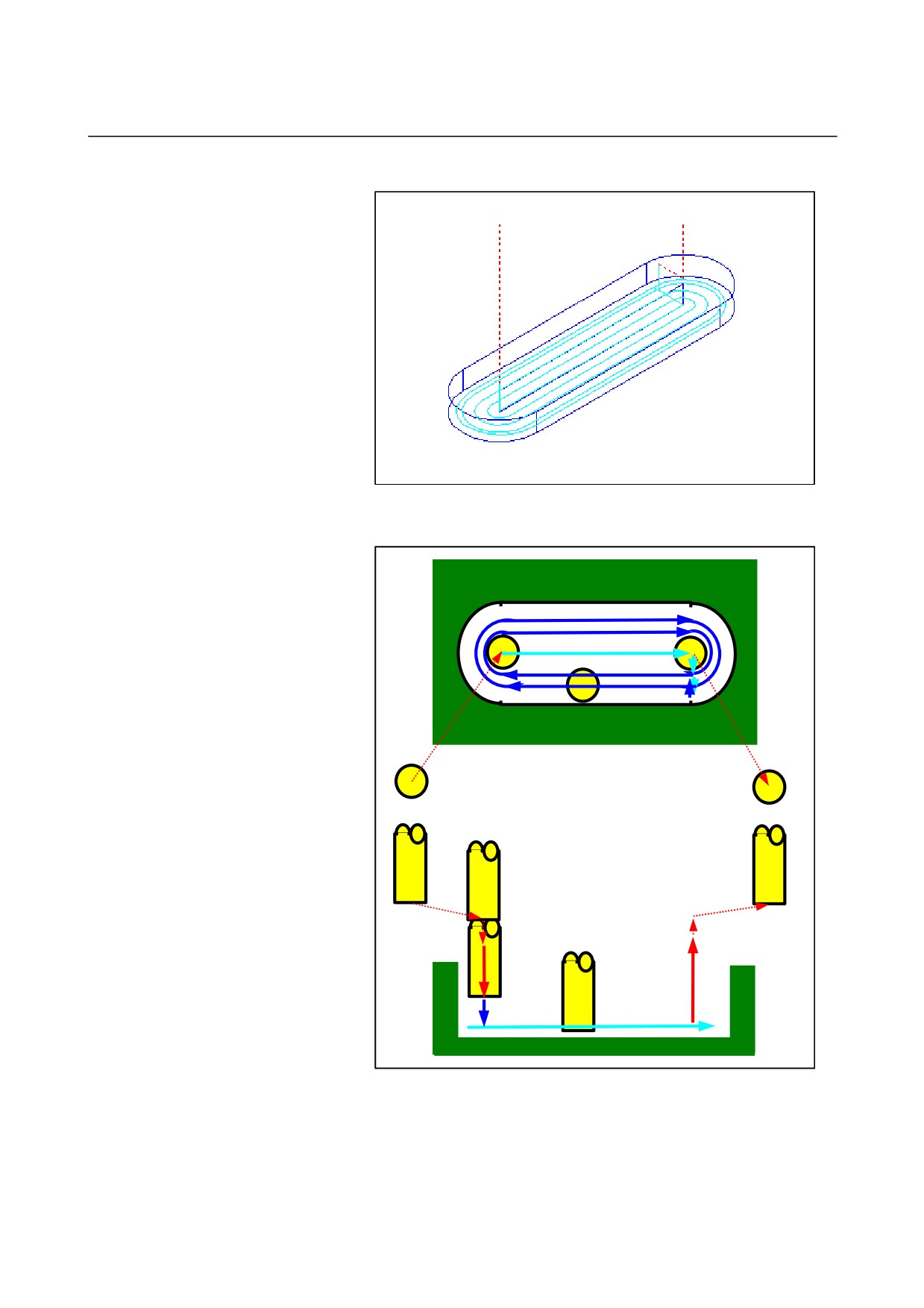

• Tool path

The following tool path is created to cut off the inside of a groove

machining profile.

In-feed machining in the tool radius direction

Approach

Retract

In-feed machining in the

tool axis direction

<1> The tool approaches a point above the cutting start point of a

groove machining profile.

- 444 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

<2> The tool cuts in the groove machining profile in the tool radius

direction.

<3> The tool cuts in the groove machining profile in the tool axis

direction.

<4> Step <2> and <3> are repeated until the cutting allowance is

removed.

<5> The tool retracts.

- Approach

Cutting start point

Clearance Ct in the tool

axis direction

Amount to be cut in the first in-feed

Ft

machining cycle in the tool axis

direction

Groove machining

profile top surface

height

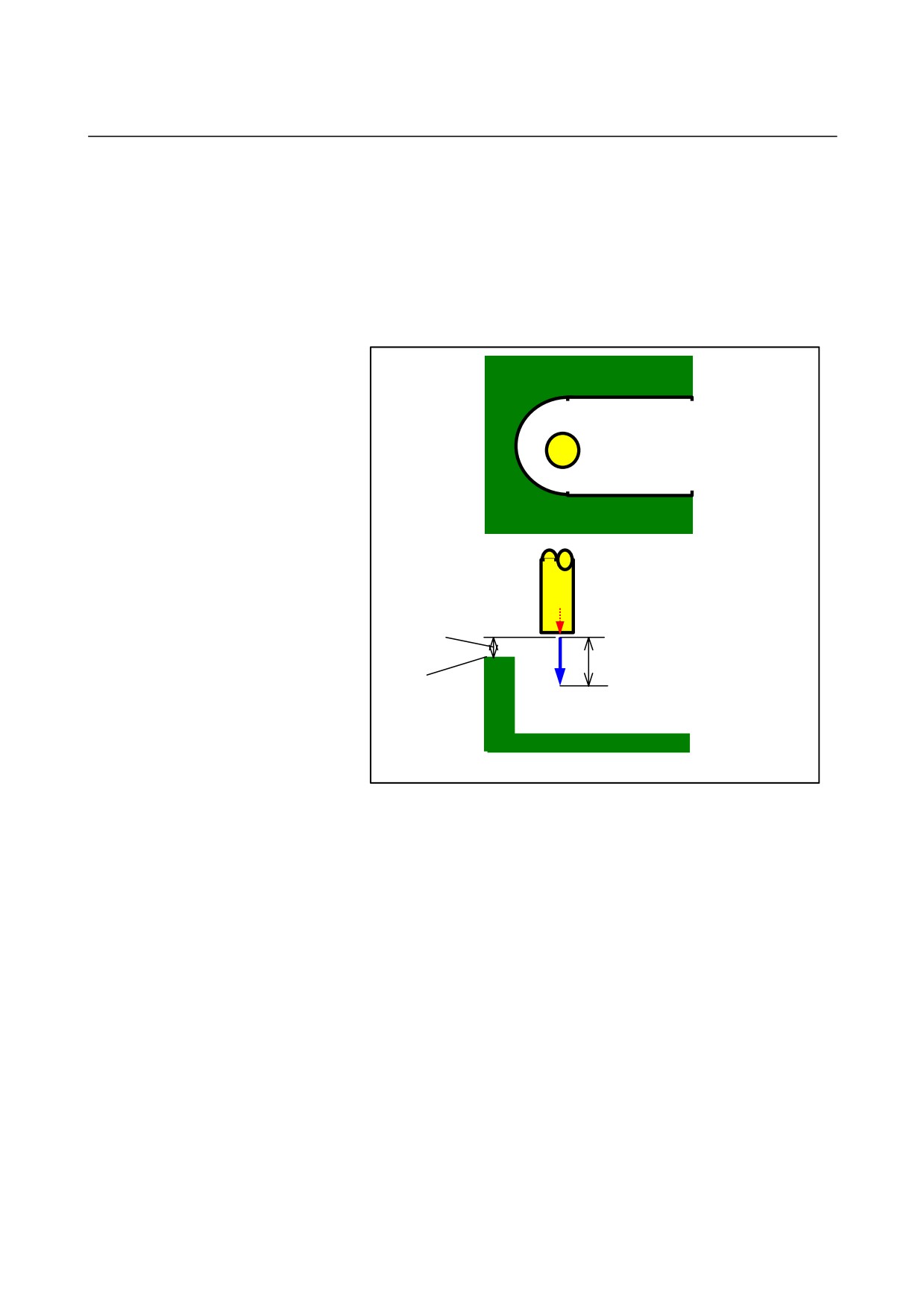

<1> The tool moves to the position "groove machining profile top

surface height + clearance (Ct) in the tool axis direction" by rapid

traverse.

<2> The tool cuts in by the amount to be cut in the first in-feed

machining cycle in the tool axis direction at the feedrate (Ft)

specified for cutting in the tool axis direction.

- 445 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

- Retract

Ftm

Clearance Ct in the tool axis

direction

Groove machining profile

bottom surface

heightdirection

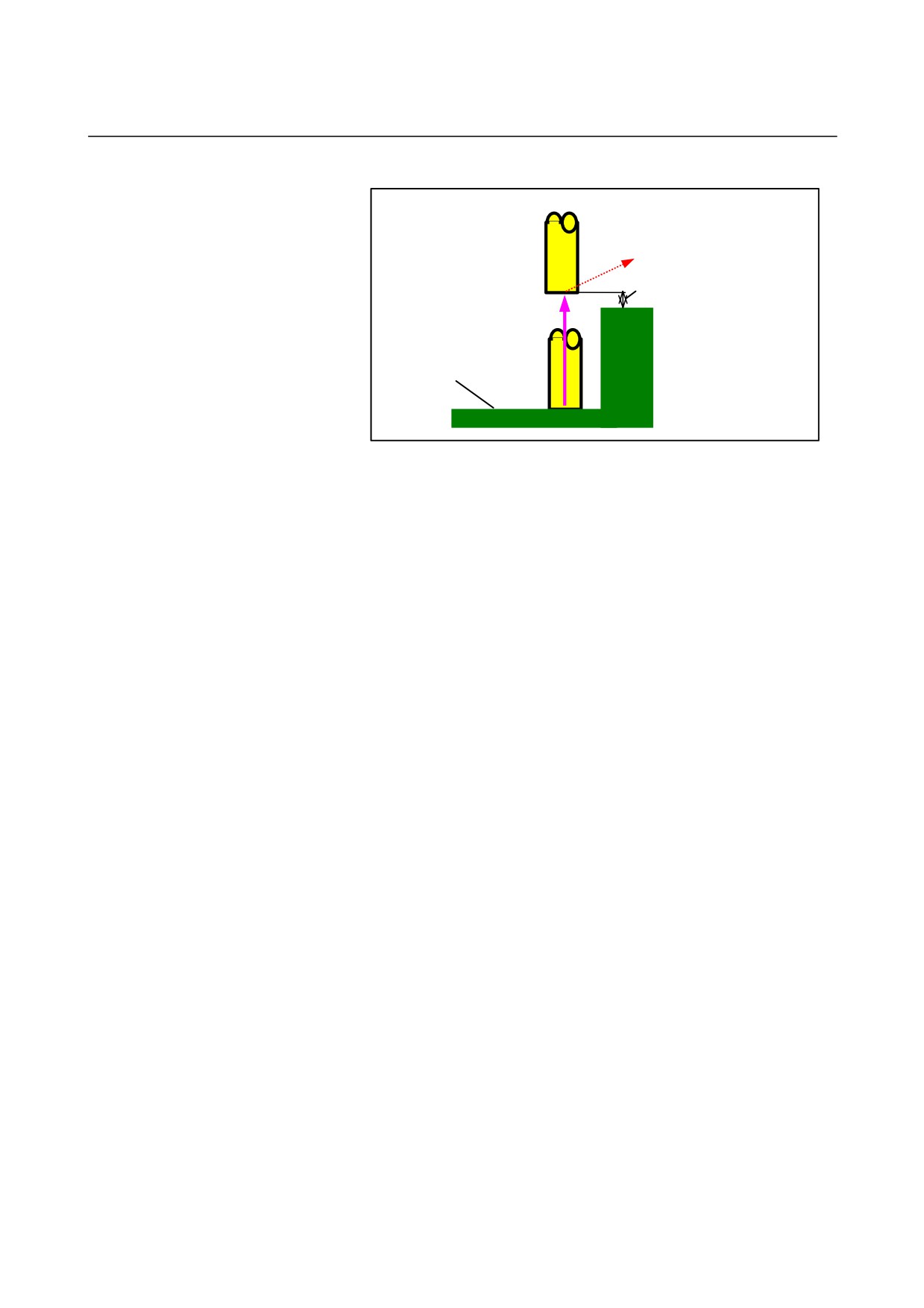

<1> The tool retracts from the groove machining profile bottom

surface height to the position "groove machining profile top

surface height + clearance (Ct) in the tool axis direction" at the

feedrate (Ftm) specified for movement in the tool axis direction.

- 446 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

Bottom face finishing: G1051

TOOL COND.

Data item

Meaning

D

TOOL DIAMETER

End mill diameter

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND.

Data item

Meaning

T*

BOTTOM THICKNESS

Cutting allowance of the bottom of a groove. The

blank is regarded as 0. (radius value, positive

value)

K*

SIDE FINISH AMOUNT

Finishing allowance of the side face. The blank

is regarded as 0. (radius value, positive value)

H*

BOTTOM FINISHI AMT.

Finishing allowance of the bottom of a groove.

The blank is regarded as 0. (radius value, positive

value)

L

CUT DEPTH OF RADIUS

Depth of cut on the side face (tool radius direction)

per cutting operation (radius value, positive value)

F

FEED RATE- SING.CUT

Feedrate applicable when only the one-side cutter

portion of an end mill is used for cutting. This

feedrate is used for cutting in retract operation and

on the side face other than initial cutting.

V

FEED RATE- BOTH.CUT

Feedrate applicable when the entire front side of

an end mill is used for cutting. This feedrate is

used for initial cutting.

E

FEED RATE- AXIS

Feedrate applicable when cutting is performed in

the tool axis direction toward the bottom of a side

face being machined

- 447 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

DETAIL

Data item

Meaning

W

UP CUT/DOWN CUT

[UP CUT]

: Performs machining in up-cutting

mode, assuming that the tool is

rotating clockwise.

[DWNCUT] : Performs machining in down-cutting

mode, assuming that the tool is

rotating clockwise.

(COPY)

B

CLEARANCE OF RADIUS

Distance between the wall of a groove and a tool

retract position in the tool radius direction (radius

value, positive value)

Remark1) When one groove cutting operation is

completed, the tool performs a retract

operation in the tool axis direction from the

side face of the groove by this clearance

amount.

Remark2) By referring to the parameter No.27009

(minimum clamp value), the system sets

the data as Initial value.

C

CLEARANCE OF AXIS

Distance between the surface of a blank being

machined and a cutting start point (point R) in the

tool axis direction (radius value, positive value)

Remark) By referring to the parameter No.27009

(minimum clamp value), the system sets

the data as Initial value.

Z

APROCH MOTION

[2 AXES]

: When moving from the current position

to the machining start point, the tool first

moves in the machining plane in

two-axis synchronous operation and

then moves along the tool axis. (initial

value)

[3 AXES]

: The tool moves from the current

position to the machining start point in

three-axis synchronous operation.

- 448 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

• Tool path

The following tool path is created to cut off the inside of a groove

machining profile.

In-feed machining in the tool

radius direction

Approach

Retract

<1> The tool approaches a point above the cutting start point of a

groove machining profile.

<2> The tool cuts in the groove machining profile in the tool radius

direction.

<3> The tool retracts.

- 449 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

- Approach

Cutting start

point

Clearance Ct in the tool axis

direction

Groove

Ftm

Ct + cutting allowance in the

machining profile

tool axis direction

top surface

height

Groove machining profile

Ft

bottom surface height

<1> The tool moves to the position "groove machining profile top

height

+ clearance

(Ct) in the tool axis direction" by rapid

traverse.

<2> The tool moves to the position "groove machining profile bottom

surface height + clearance (Ct) in the tool axis direction" at the

feedrate (Ftm) specified for cutting in the tool axis direction.

<3> The tool cuts in to the height of the groove machining profile

bottom surface at the feedrate (Ft) specified for cutting in the tool

axis direction.

- Retract

Clearance Ct in the tool axis

direction

Ftm

Groove machining profile

bottom surface height

<1> The tool retracts from the height of the groove machining profile

bottom surface to the position "groove machining profile top

surface height + clearance (Ct) in the tool axis direction" at the

feedrate (Ftm) specified for movement in the tool axis direction.

- In-feed machining in the tool radius direction

This operation is the same as grooving (roughing).

See descriptions about grooving (roughing) for details.

- 450 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

Side face finishing: G1052

TOOL COND.

Data item

Meaning

I

INPUT

[INPUT] : Inputs a cutter compensation value directly.

[REF.]

: Inputs a cutter compensation number to

read a cutter compensation value by that

number.

D

TOOL DIAMETER

End mill diameter (positive value)

Remark) This item is indicated only when [INPUT] is

selected for INPUT.

M

CUTTER COMP.NO.

Cutter compensation number of an end mill (positive

value)

Remark) This item is indicated only when [REF.] is

selected for INPUT.

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

3 Tab ‘TOOL COND.’ is not enabled when bit 3

(GF3) of parameter No. 27081 = 1.

CUT COND.

Data item

Meaning

S*

SIDE THICKNESS

Cutting allowance of the side face. The blank is

regarded as 0. (radius value, positive value)

K*

SIDE FINISH AMOUNT

Finishing allowance of the side face. The blank is

regarded as 0. (radius value, positive value)

B

NUMBER OF FINISHING

Number of cuts for finishing (positive value)

Remark) Depth of each cut = (side surplus

thickness)/(number of finishing cuts)

- 451 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

CUT COND.

Data item

Meaning

F

FEED RATE-SING.CUT

Feedrate applicable when only the one-side cutter

portion of an end mill is used for cutting. This feedrate

is used for cutting in retract operation and on the side

face other than initial cutting.

V

FEED RATE- BOTH.CUT

Feedrate applicable when the entire front side of an

end mill is used for cutting. This feedrate is used for

initial cutting.

E

FEED RATE- AXIS

Feedrate applicable when cutting is performed in the

tool axis direction toward the bottom of a side face

being machined

DETAIL

Data item

Meaning

W

UP CUT/DOWN CUT

[UP CUT]

: Performs machining in up-cutting mode,

assuming that the tool is rotating

clockwise.

[DWNCUT] : Performs machining in down-cutting

mode, assuming that the tool is rotating

clockwise.

(COPY)

C

CLEARANCE OF AXIS

Distance between the surface of a blank being

machined and a cutting start point (point R) in the tool

axis direction (radius value, positive value)

Remark) By referring to the parameter No.27009

(minimum clamp value), the system sets the

data as Initial value.

P

APPROACH TYPE

[ARC]

: Approaches a side face along an arc.

[TANGEN]: Approaches a side face along the straight

line tangent to the first figure in side face

cutting.

[VERTIC] : Approaches a side face along the straight

line normal to the first figure in side face

cutting.

(COPY)

R

APPROACH RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

A*

APPROACH ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for APPROACH TYPE.

(COPY)

- 452 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

DETAIL

Data item

Meaning

Q

ESCAPE TYPE

[ARC]

: Retracts from a side face along an arc.

[TANGEN]: Retracts from a side face along the

straight line tangent to the last figure in

side face cutting.

[VERTIC] : Retracts from a side face along the

straight line normal to the last figure in

side face cutting.

(COPY)

X

ESCAPE RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

Y*

ESCAPE ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for ESCAPE TYPE.

(COPY)

Z

APROCH MOTION

[2 AXES]

: When moving from the current position to

the machining start point, the tool first

moves in the machining plane in two-axis

synchronous operation and then moves

along the tool axis. (initial value)

[3 AXES]

: The tool moves from the current position

to the machining start point in three-axis

synchronous operation.

• Tool path

The side-face contour of a groove machining profile is finished.

The tool path for it is the same as for contouring (side-face finishing).

See descriptions about contouring (side-face finishing) for details.

- 453 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

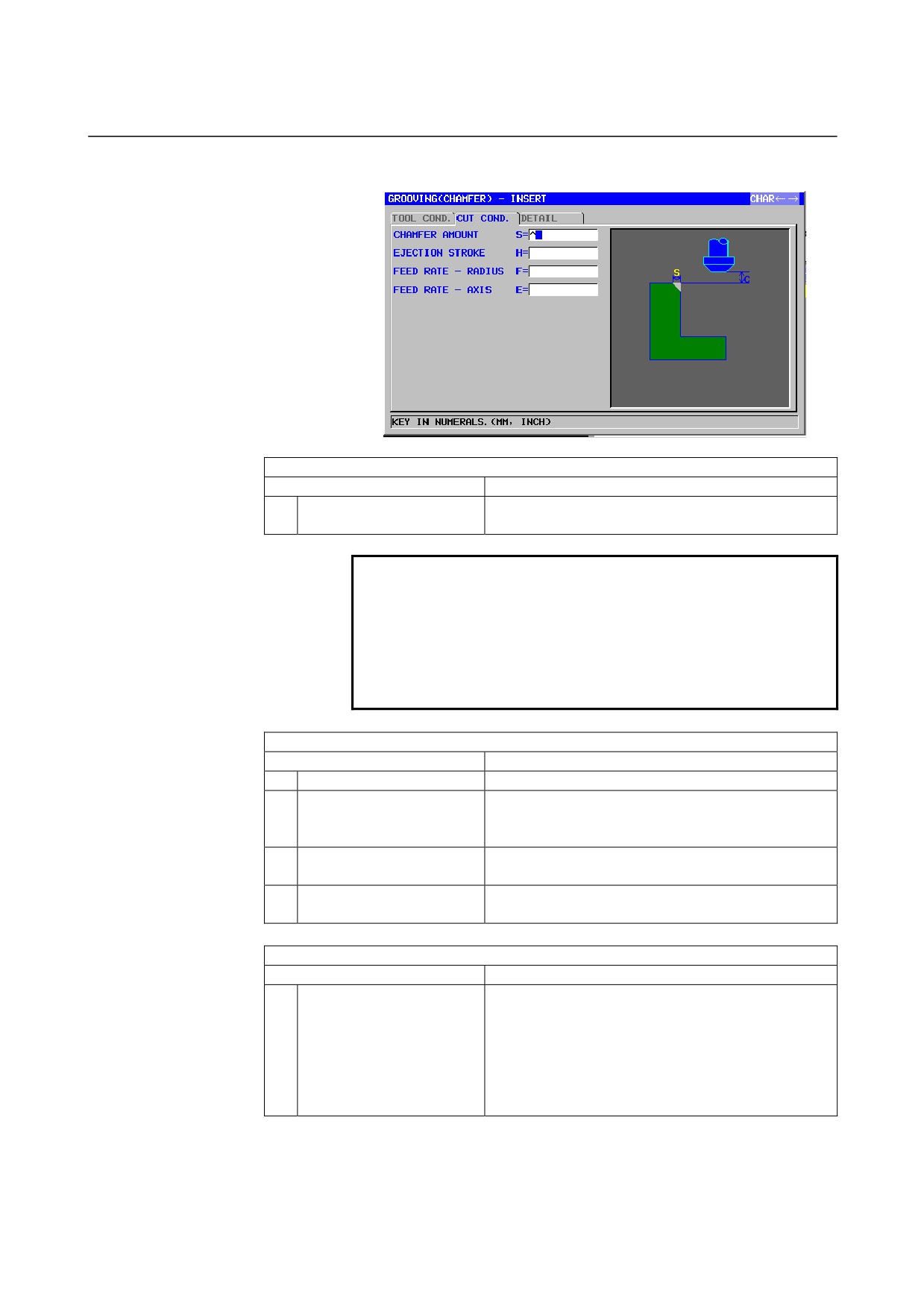

Chamfer: G1053

TOOL COND.

Data item

Meaning

K

TOOL SMALL DIAMETER

Diameter of the tip of a chamfering tool (positive

value)

NOTE

1 Tab ‘TOOL COND.’ is enabled when bit 0 (TLG) of

parameter No. 27002 = 1.

2 The operator ordinarily sets the above data on the

tab of ‘TOOL DATA’ in Tool Offset window.

Therefore, it is not necessary to display the tab

‘TOOL COND.’

CUT COND.

Data item

Meaning

S

CHAMFER AMOUNT

Chamfer length (radius value, positive value)

H

EJECTION STROKE

Distance between the tip of a chamfering tool and an

actually cut position in the tool axis direction (radius

value, positive value)

F

FEED RATE - RADIUS

Feedrate applicable when cutting is performed in the

tool radius direction

E

FEED RATE - AXIS

Feedrate applicable when cutting is performed in the

tool axis direction

DETAIL

Data item

Meaning

W

UP CUT/DOWN CUT

[UP CUT]

: Performs machining in up-cutting mode,

assuming that the tool is rotating

clockwise.

[DWNCUT] : Performs machining in down-cutting

mode, assuming that the tool is rotating

clockwise.

(COPY)

- 454 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

DETAIL

Data item

Meaning

C

CLEARANCE OF AXIS

Distance between the surface of a blank being

machined and a cutting start point (point R) in the tool

axis direction (radius value, positive value)

Remark) By referring to the parameter No.27009

(minimum clamp value), the system sets the

data as Initial value.

P

APPROACH TYPE

[ARC]

: Approaches a side face along an arc.

[TANGEN]: Approaches a side face along the straight

line tangent to the first figure in side face

cutting.

[VERTIC] : Approaches a side face along the straight

line normal to the first figure in side face

cutting.

(COPY)

R

APPROACH RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

A*

APPROACH ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for APPROACH TYPE.

(COPY)

Q

ESCAPE TYPE

[ARC]

: Retracts from a side face along an arc.

[TANGEN]: Retracts from a side face along the

straight line tangent to the last figure in

side face cutting.

[VERTIC] : Retracts from a side face along the

straight line normal to the last figure in

side face cutting.

(COPY)

X

ESCAPE RAD./DIST.

Radius when [ARC] is specified.

Straight line length when [TANGEN] or [VERTIC] is

specified. (radius value, positive value)

Remark) By referring to the parameter No.27010

(minimum clamp value), the system sets the

data as Initial value.

Y*

ESCAPE ANGLE

Center angle of the arc when [ARC] is specified. The

default is 90 degrees. (positive value)

Remark) This data item is indicated only when [ARC]

is selected for ESCAPE TYPE.

(COPY)

Z

APROCH MOTION

[2 AXES]

: When moving from the current position to

the machining start point, the tool first

moves in the machining plane in two-axis

synchronous operation and then moves

along the tool axis. (initial value)

[3 AXES]

: The tool moves from the current position

to the machining start point in three-axis

synchronous operation.

- 455 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

1.7.2

Fixed Form Figure Blocks for Grooving (XY Plane)

As fixed form figures for grooving, a "square", "circle", "track", and

"radial grooves" are available. When any of these pattern figures is

specified, a groove with a specified width is cut along the contour.

NOTE

Each of a "square", "circle", and "track" is a closed

figure. In actual grooving, sets of a start point and

end point are determined, and cutting from the start

point to the end point of a set is repeated.

Square: G1220 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring

or as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When grooving is selected as machining

type, be sure to select [GROOVE].

B

BASE POSITION

Z coordinate of the top surface or the bottom of the

side face of a part to be subject to contouring (in the

tool axis direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as

the BASE POSITION, specify the distance to the

bottom of the side face by using a negative value

(radius value). → Depth

When the bottom of a side face is selected as the

BASE POSITION, specify the distance to the top

surface of the workpiece by using a positive value

(radius value). → Height

H

CENTER POINT (X)

X coordinate of the center position of a rectangular

figure

V

CENTER POINT (Y)

Y coordinate of the center position of a rectangular

figure

U

LENGTH FOR X AXIS

Length of the side in the X-axis direction (radius value,

positive value)

- 457 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

POS./SIZE

Data item

Meaning

W

LENGTH FOR Y AXIS

Length of the side in the Y-axis direction (radius value,

positive value)

R*

CORNER RADIUS

Radius for corner rounding (positive value)

A*

ANGLE

Inclination angle of a rectangular figure relative to the

X-axis (positive or negative value)

D

GROOVE WIDTH

Groove width (radius value, positive value)

- 458 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

Circle: G1221 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring

or as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When grooving is selected as machining

type, be sure to select [GROOVE].

B

BASE POSITION

Z coordinate of the bottom of a groove or the top

surface of a workpiece subject to grooving (in the

tool axis direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as

the BASE POSITION, specify the distance to the

bottom of the groove by using a negative value

(radius value). → Depth

When the bottom of a groove is selected as the

BASE POSITION, specify the distance to the top

surface of the groove by using a positive value

(radius value).

→ Height

H

CENTER POINT (X)

X coordinate of the center position of a circular

figure

V

CENTER POINT (Y)

Y coordinate of the center position of a circular

figure

R

RADIUS

Radius of a circular figure (radius value, positive

value)

D

GROOVE WIDTH

Groove width (radius value, positive value)

- 459 -

1.MILLING

CYCLE MACHINING TYPES

B-63874EN/05

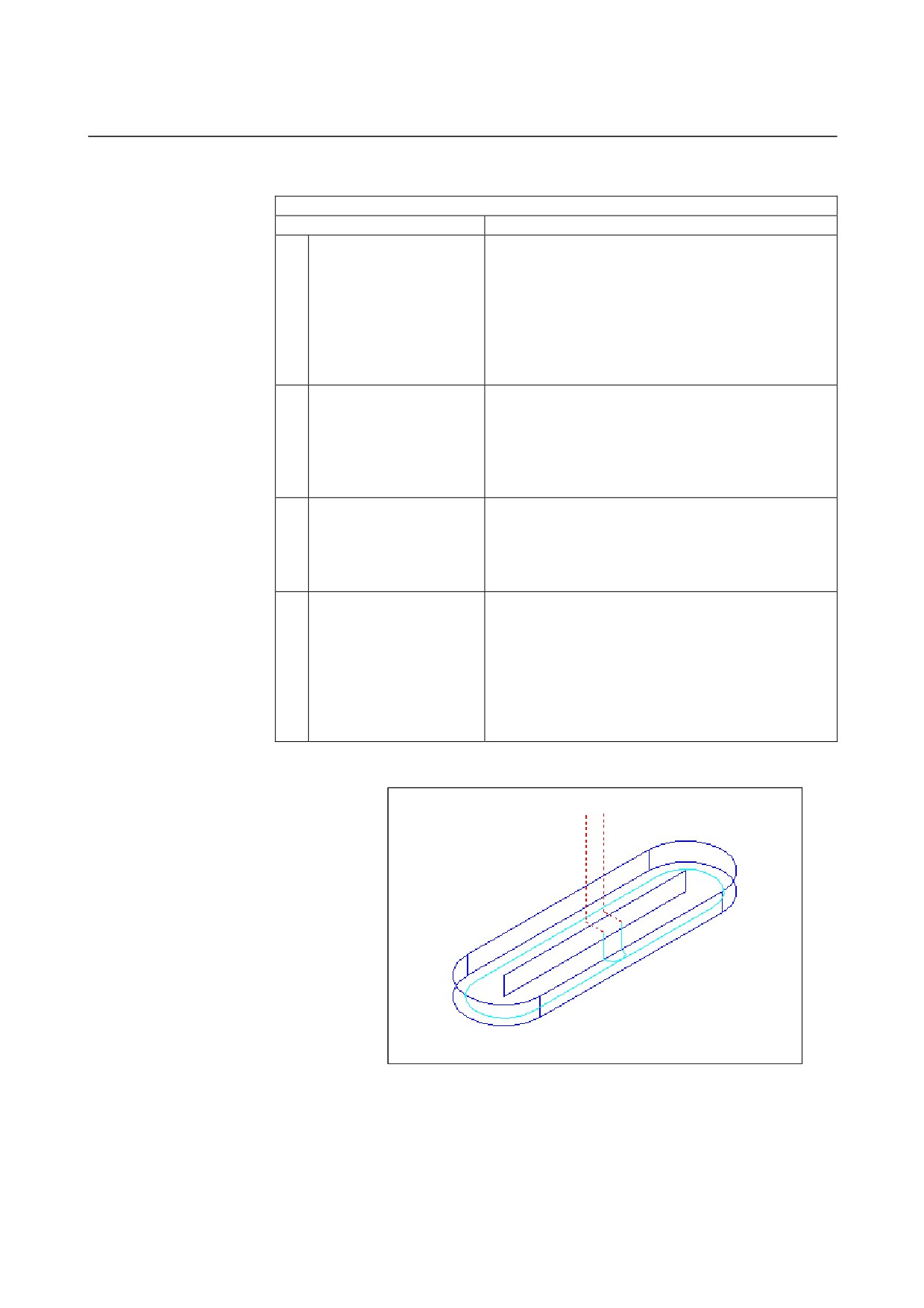

Track: G1222 (XY plane)

POS./SIZE

Data item

Meaning

T

FIGURE TYPE

[FACE]

: Used as a figure for facing

[CONVEX]

: Used as an outer figure for contouring

[CONCAVE] : Used as an inner figure for contouring or

as a figure for pocketing

[GROOVE] : Used as a figure for grooving

Remark) When grooving is selected as machining type,

be sure to select [GROOVE].

B

BASE POSITION

Z coordinate of the bottom of a groove or the top

surface of a workpiece subject to grooving (in the tool

axis direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as the

BASE POSITION, specify the distance to the bottom of

the groove by using a negative value (radius value).

→ Depth

When the bottom of a groove is selected as the BASE

POSITION, specify the distance to the top surface of the

groove by using a positive value (radius value).

→ Height

H

CENTER POINT (X)

X coordinate of the center position of a left semicircle

V

CENTER POINT (Y)

Y coordinate of the center position of a left semicircle

U

BETWEEN DISTANCE

Distance between the centers of the right and left

semicircles (radius value, positive value)

R

RADIUS

Radius of the left and right semicircles (radius value,

positive value)

A*

ANGLE

Inclination angle of a track figure relative to the X-axis

(positive or negative value)

D

GROOVE WIDTH

Groove width (radius value, positive value)

- 460 -

B-63874EN/05

CYCLE MACHINING TYPES

1.MILLING

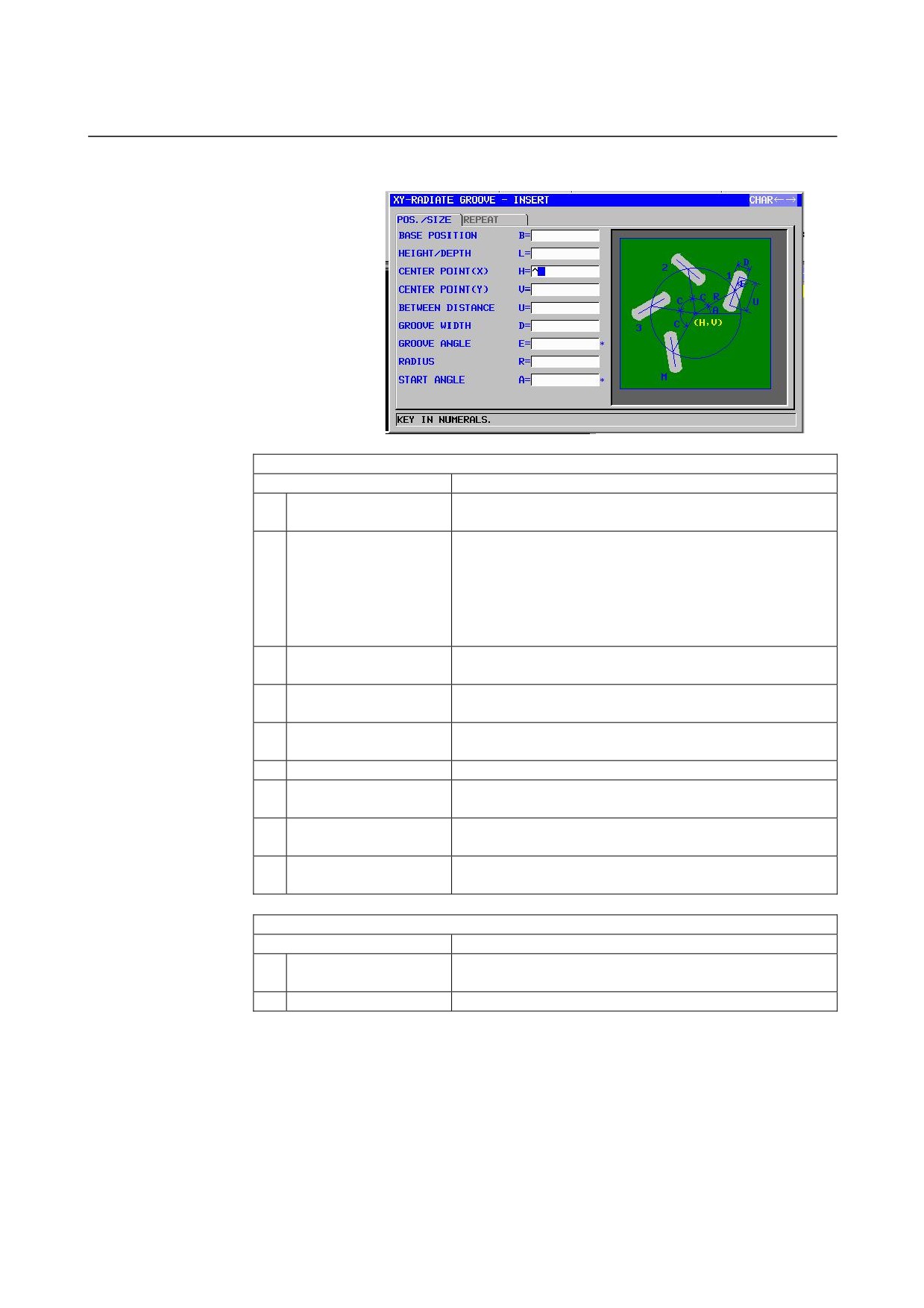

Radial grooves: G1223 (XY plane)

POS./SIZE

Data item

Meaning

B

BASE POSITION

Z coordinate of the bottom of a groove or the top surface of

a workpiece subject to grooving (in the tool axis direction)

L

HEIGHT/DEPTH

When the top surface of a workpiece is selected as the

BASE POSITION, specify the distance to the bottom of the

groove by using a negative value (radius value). → Depth

When the bottom of a groove is selected as the BASE

POSITION, specify the distance to the top surface of the

groove by using a positive value (radius value). → Height

H

CENTER POINT (X)

X coordinate of the center position of a circle where radial

grooves are placed

V

CENTER POINT (Y)

Y coordinate of the center position of a circle where radial

grooves are placed

U

BETWEEN DISTANCE

Distance between the centers of two semicircles along a

radial groove (in a track figure) (radius value, positive value)

D

GROOVE WIDTH

Width of a radial groove (radius value, positive value)

E*

GROOVE ANGLE

Groove inclination angle in an arc where radial grooves are

placed, in the radial direction (positive or negative value)

R

RADIUS

Radius of an arc where radial grooves are placed (radius

value, positive value)

A*

START ANGLE

Center angle of the first groove position relative to the

X-axis (positive or negative value)

REPEAT

Data item

Meaning

C*

PITCH ANGLE

Center angle formed by two adjacent grooves (positive or

negative value)

M*

BROOVE NUMBER

Number of grooves to be cut (positive value)

- 461 -

Content      ..     14      15      16      17     ..
