12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1684 -

Key operations

  - Operations in the standard mode

    MDI key operations

Numeral keys  Inputs a numeric value.



Moves the cursor up on the screen.



Moves the cursor down on the screen.



Moves the cursor left on the screen.



Moves the cursor right on the screen.



    Soft key operations

Horizontal soft key [NO.SRH]


Moves the cursor on a tool geometry number when pressed after
the number is entered.

Horizontal soft key [EDIT]


Enters the data edit mode.

Horizontal soft key [READ]


Reads data related to the tool management functions.



This key is available only in the standard mode.



Put the NC in the EDIT mode.

Horizontal soft key [PUNCH]


Punches data related to the tool management functions.



This key is available only in the standard mode.



Put the NC in the EDIT mode.

In the management data edit mode, the following key operations, in
addition to [NO.SRH] mentioned above, can be performed.


  - Operations in the edit mode

To edit data, press horizontal soft key [EDIT] to enter the edit mode.
In the edit mode, “EDITING” is displayed at the lower right of the
screen.


    MDI key operation

  Actually writes a value entered using numeric keys.



    Soft key operation

Horizontal soft key [END]


Ends the data edit mode.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1685 -

Example

Set the edit mode. When the tool geometry with tool geometry number
1 occupies 1 pot in the left direction, 0.5 pots in the right direction,
and 1.5 pots in the down direction, set data as shown in the figure
below:

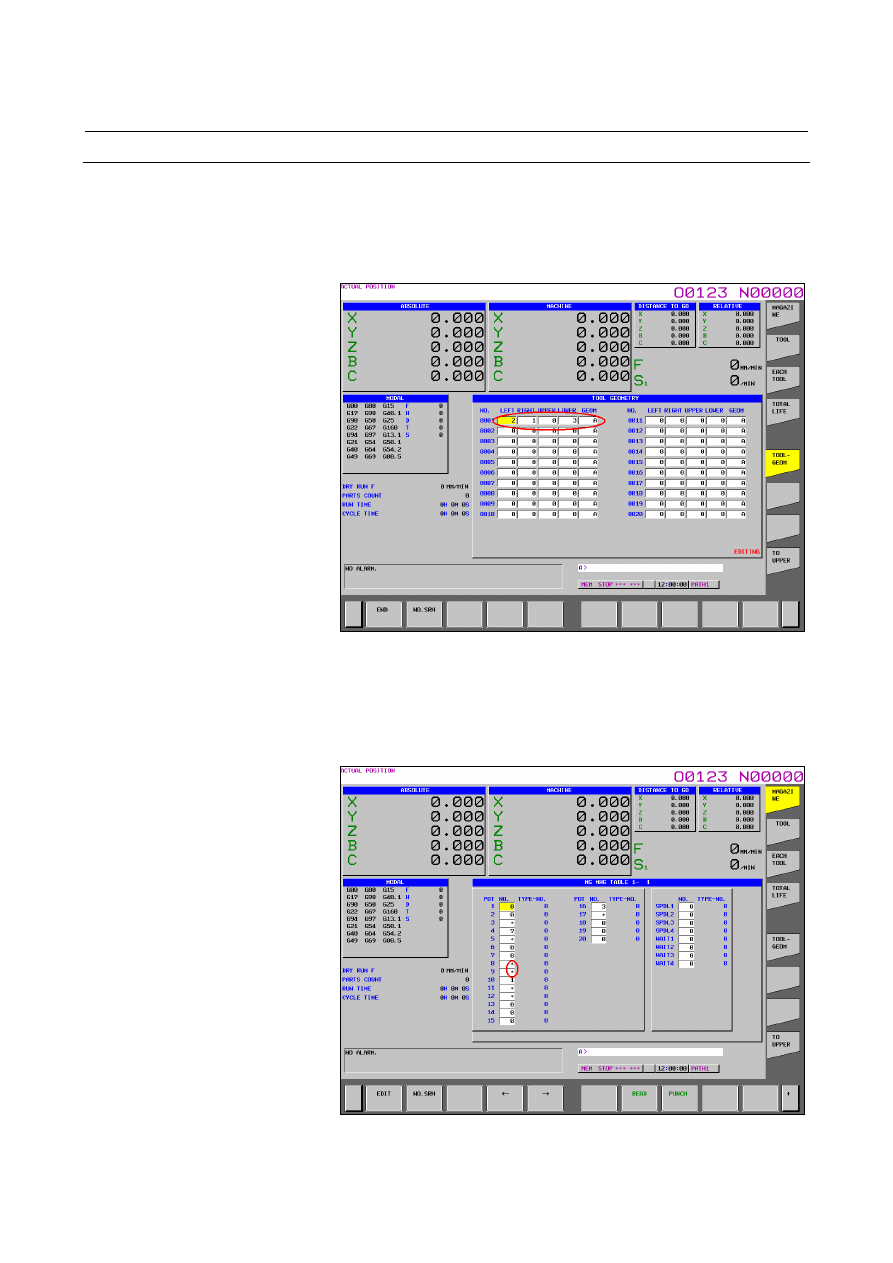

Fig. 12.3.24.5 (b) Example of setting data on the tool geometry data

screen (15-inch)



  - Display of occupied pots in the magazine management table

Each pot occupied by a tool stored in another pot is indicated with an
asterisk (*).




Fig. 12.3.24.5 (c) Magazine management table (15-inch)

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1686 -

If a tool to be registered for a magazine is determined to interfere with
another tool, the warning message “TOOL INTERFERENCE CHECK
ERROR:xxxx,xxxx” is displayed.    xxxx indicates the tool number of
each of the two tools.  If a tool is determined to interfere with
multiple tools, only the first tool detected by the NC interference
check is displayed.
If a tool is determined to interfere with the frame of a magazine, the
tool number of the tool to be stored and “FRAME” are displayed.


  - Search for an empty pot for a oversize tool

During the management data editing, a horizontal soft key for
searching for empty oversize tool pots is displayed.

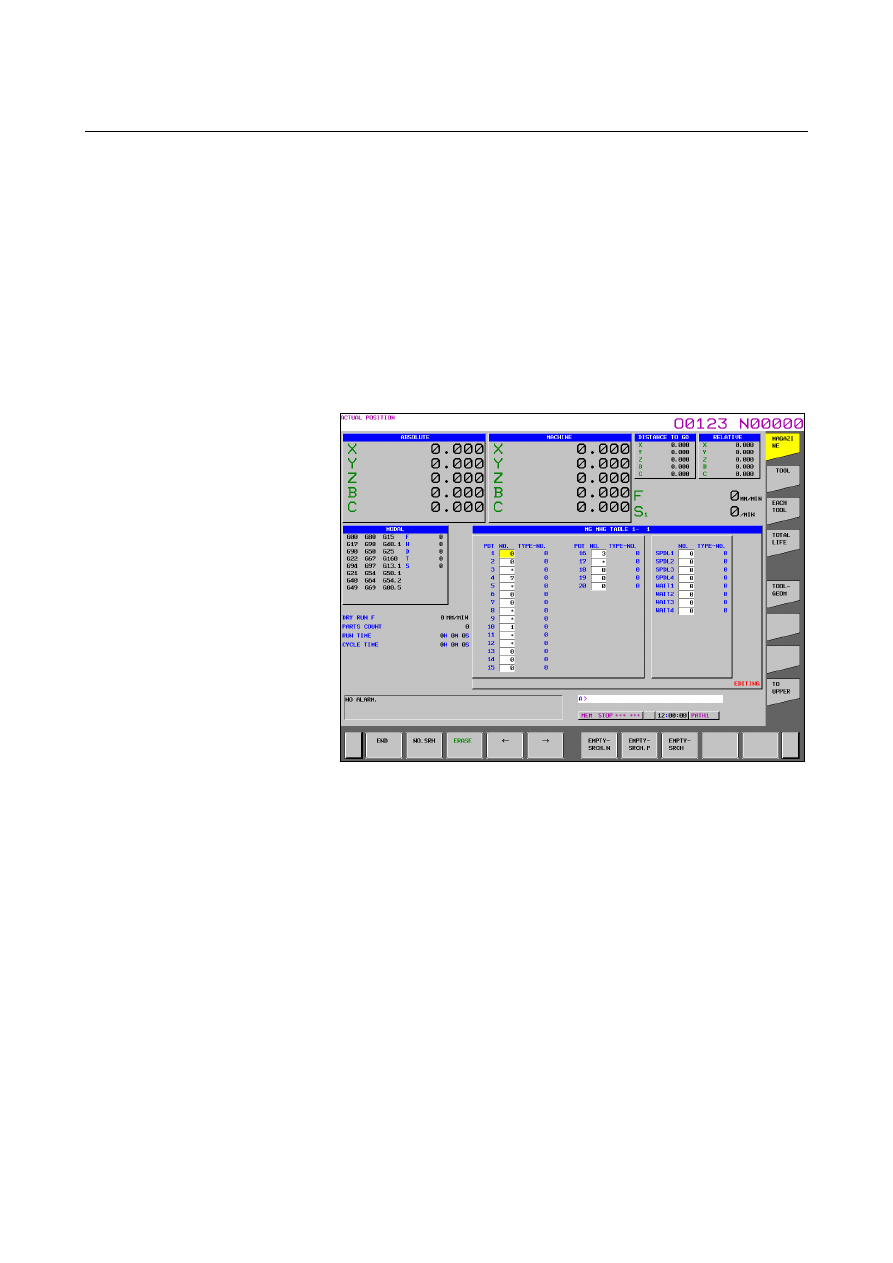

Fig. 12.3.24.5 (d) Searching for an empty pot for a oversize tool (15-inch)


Enter the tool geometry number in the key-in buffer and press a search
horizontal soft key. The cursor moves to an empty pot fit for the
geometry.
EMPTY-SRCH.N:   Searches for an empty pot forward.
EMPTY-SRCH.P:   Searches for an empty pot backward.
EMPTY-SRCH:   Searches for the pot nearest to the current

position.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1687 -

  - Tool management screen

You can use bit 2 of tool information to switch between a oversize
tool and normal tool. For a oversize tool, set a tool geometry number
fit for the tool.

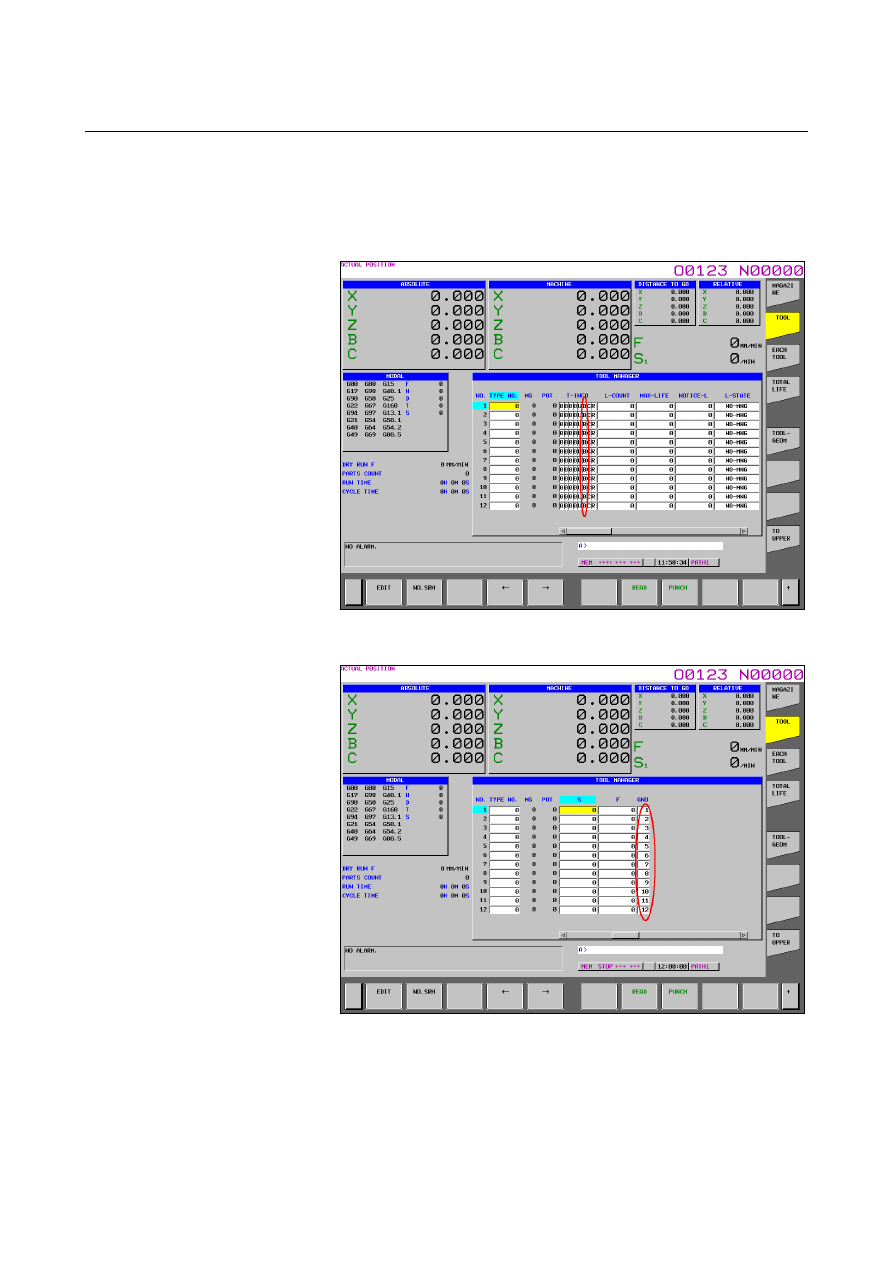

Fig. 12.3.24.5 (e) Bit for switching between a normal tool and oversize

tool (15-inch)





Fig. 12.3.24.5 (f) Tool geometry number (15-inch)



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1688 -

12.3.25

Displaying and Switching the Display Language (15-inch

Display Unit)


The language used for display can be switched to another language.
A display language can be set using a parameter. However, by
modifying the setting of the display language on this screen, the
display language can be switched without turning off then on the
power.


Displaying and setting the display language

Procedure

Press function key

Press vertical soft key [NEXT PAGE] several times to display
soft key [LANGUAGE].

Press vertical soft key [LANGUAGE] to display the language
screen.

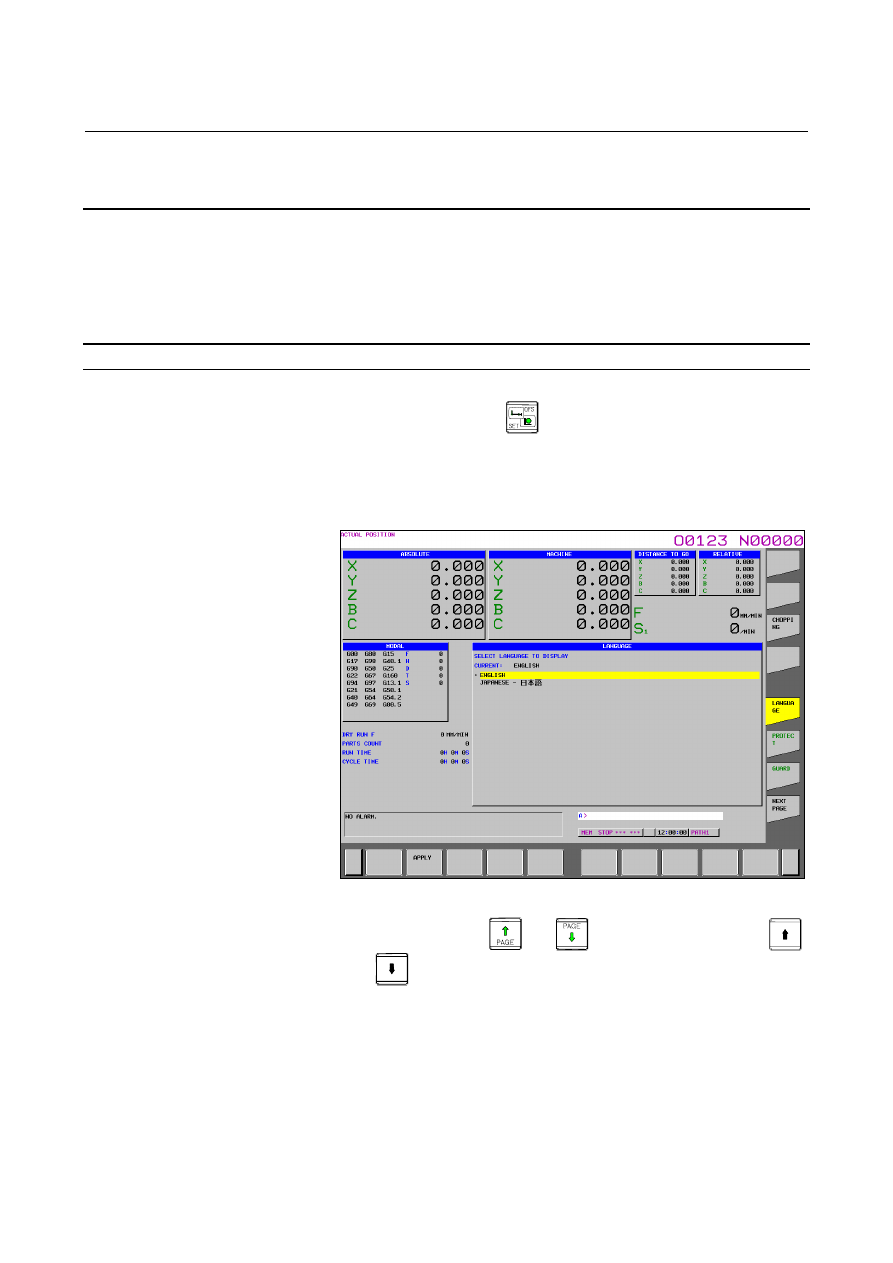

Fig. 12.3.25 (a) LANGUAGE screen (15-inch)


4  Press page key

 or

, then press cursor keys

  to move the cursor to a desired display language.

5  Press horizontal soft key [APPLY]. The display language is

switched to the selected language. The language specified on this
screen continues to be used if the power is turned off then back
on.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1689 -

Explanation
 - Language switching

The language screen can be displayed if bit 0 (NLC) of parameter No.
3280 is set to 0.


 - Selectable languages

The display languages selectable on this screen are as follows:
1. English
2. Japanese
3. German
4. French
5. Chinese

(Traditional)

6. Chinese

(Simplified)

7. Italian
8. Korean
9. Spanish
10. Dutch
11. Danish
12. Portuguese
13. Polish
14. Hungarian
15. Swedish
16. Czech
17. Russian
18. Turkish
Among the languages listed above, English and other usable
languages are displayed on the screen as a list of switchable
languages.


Limitation
  - Language parameter modification on the parameter screen

Which language to be used for display is specified with parameter No.
3281. This parameter can be modified using the parameter screen as
well. However, if a modification is made on the parameter screen, the
new setting is not reflected until "APPLY" operation is performed on
the language screen or the power is turned on again. If an invalid
value is set in parameter No. 3281 on the parameter screen, the screen
is displayed in English after the power is turned on again.

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1690 -

12.3.26

Protection of Data at Eight Levels (15-inch Display Unit)


You can set eight CNC and PMC operation levels and one of eight
protection levels for each type of CNC and PMC data.
When an attempt is made to change CNC and PMC data or output it to
an external unit, the operation level is compared with the protection
level to determine whether to allow the change or external output.


12.3.26.1

Operation level setting (15-inch display unit)


You can set eight CNC and PMC operation levels.


Displaying and setting the operation level setting screen

Procedure

Press function key

Press vertical soft key [NEXT PAGE] several times to display
soft key [PROTECT].

Press vertical soft key [PROTECT].
The operation level setting screen shown below is displayed.

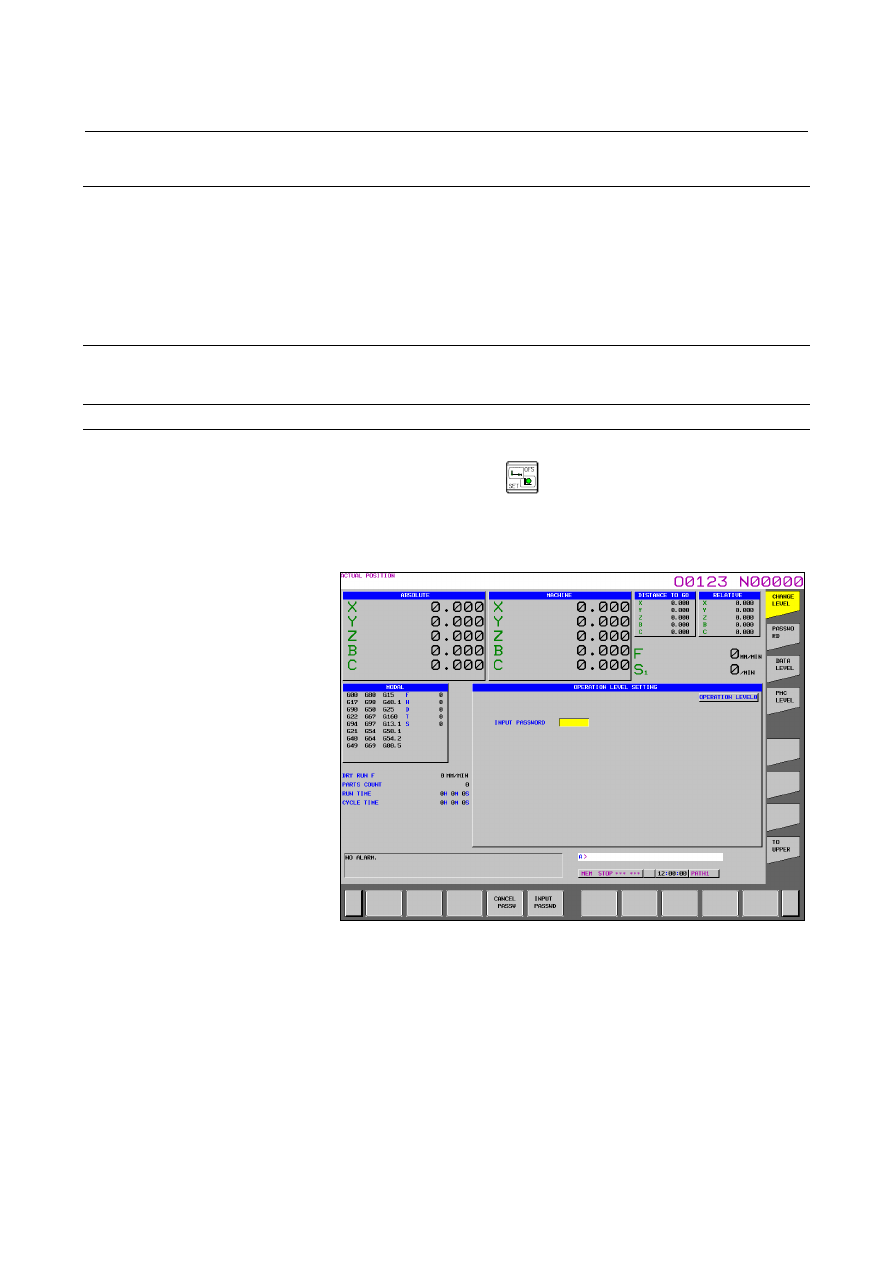

Fig. 12.3.26.1 (a) Operation level setting screen (15-inch)



Key in the password for an operation level to be set/modified,
then press horizontal soft key [INPUT PASSWD].

To return the operation level to 0, 1, 2, or 3, press horizontal soft
key [CANCEL PASSWD].



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1691 -

Explanation
  - Operation level setting

To select operation level 0 to 3, use the corresponding memory
protection key signal.
To select operation level 4 to 7, use the corresponding password.

Table 12.3.26.1 (a) Operation level setting

Operation level

Setting

Sample grouping

7 (high)

Password

6 Password

MTB

Password

Dealer and integrator

4 Password

End

user

Memory protection key signal

User level (level 1)

Memory protection key signal

User level (level 2)

Memory protection key signal

User level (level 3)

0 (low)

Memory protection key signal

User level (level 4)



When operation level 4 to 7 is set, the operation level remains
unchanged until the password is cleared.
(The operation level also remains unchanged if the power is turned
off.)
Operation level 7 is reserved for CNC and PMC maintenance.





NOTE



When a password is being entered, an asterisk (*)
is displayed instead of each entered character.
