FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 193

12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1500 -




2

Press any of the cursor keys to move the cursor to a position
where you want to insert a block.



Note that a block created on the guidance screens is inserted after
the block at the cursor position. (If the block at the cursor
position includes a tilted working plane command, the existing
block is modified. See "Modification to an existing block"
below.)

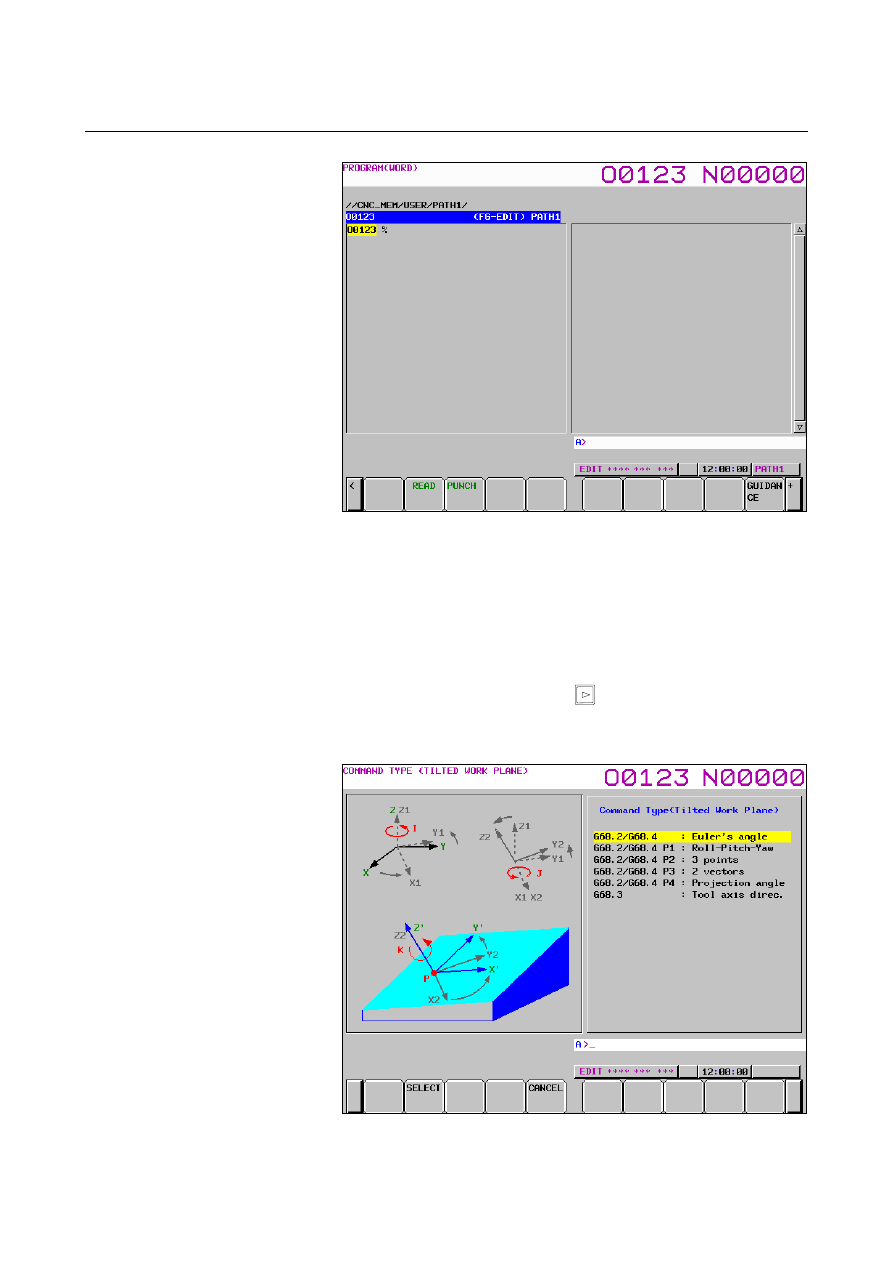

3

Press soft key [(OPRT)].

4

Press continuous menu key

 several times, and then press

soft key [GUIDANCE].
The command type selection screen is displayed.







B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1501 -

5

Select a command type with any of the cursor keys, and then
press soft key [SELECT].
The tilted working plane data setting screen is displayed.

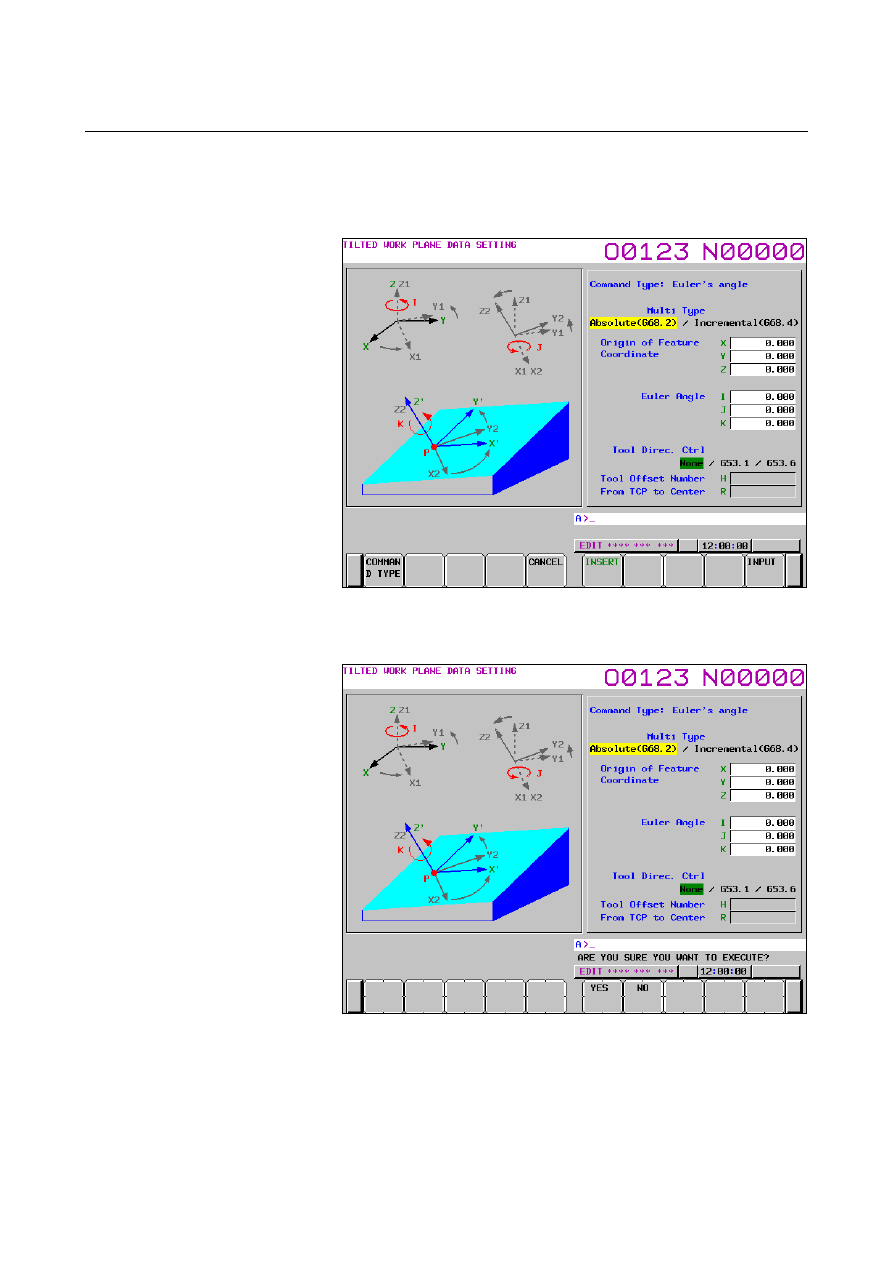

6

Enter command data for the setting items.

7

Press soft key [INSERT].






8

Press soft key [YES].
This takes you back to the program editing screen, where the new
block is inserted after the block at the cursor position.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1502 -

Modification to an existing block

The following describes the procedure for replacing a block in a
program being edited on a program editing screen, with a tilted
working plane command block created on a guidance screen.

1

On a program editing screen, display a program to be edited.



(For the procedure for displaying a program editing screen, see
step 1 in "Creation of a new block".)



The program editing screen is displayed.






2

Press any of the cursor keys to move the cursor to a block to be
modified.



For a command extending over more than one block, move the
cursor to the first block.

3

Press soft key [(OPRT)].

4

Press continuous menu key

 several times, and then press

soft key [GUIDANCE TWP]. The tilted working plane data
setting screen is displayed.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1503 -

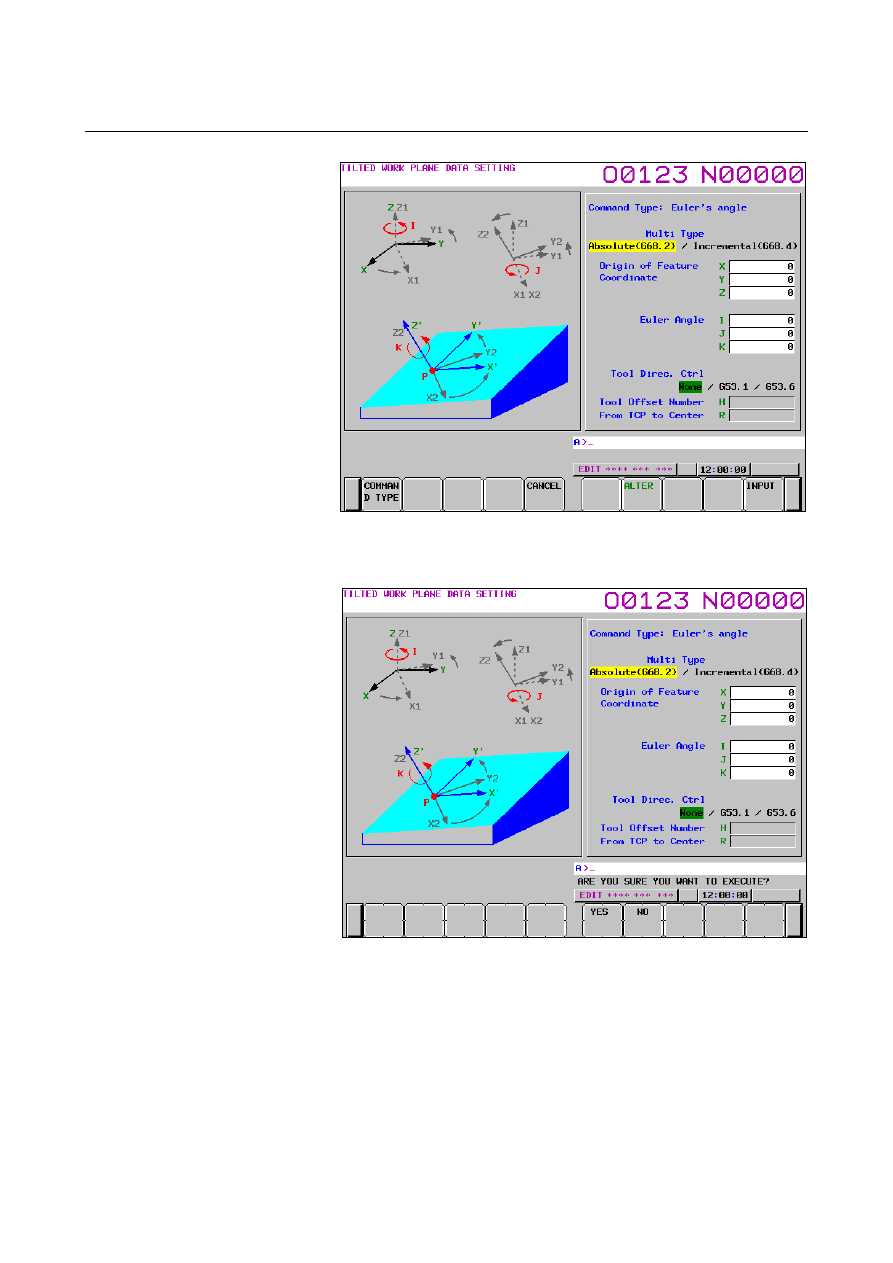

5

Enter command data for setting items to be modified.

6

Press soft key [ALTER].






7

Press soft key [YES].
This takes you back to the program editing screen, where the
block at the cursor position is replaced.


12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1504 -

Guidance screen cancellation

Pressing soft key [CANCEL] on a guidance screen takes you back to
the program editing screen. At this time, the data that has been set on
the guidance screen is discarded.


NOTE

1



In addition to the above operation, the following
operations also cancel a guidance screen. The
data that has been set on the guidance screen is
discarded.

•



When bit 7 (CPG) of parameter No. 11302 is 1
(setting for automatically switching between
program-related screens according to CNC
mode), the CNC mode is changed.

•



When a guidance screen is displayed from the
foreground editing screen, the CNC mode is
changed to a mode other than EDIT, TJOG, or
THND.

•



When a guidance screen is displayed from the
MDI editing screen, the CNC mode is changed
to a mode other than MDI.

•



When a guidance screen is displayed on a
15-inch display unit, the screen is switched by
a vertical soft key.

•

  The s

creen is switched by an MDI key.

•

  The s

creen is switched by a path select signal.

•



An event that causes screen switching has
occurred, including occurrence of an alarm,
display of an operator message, or
signal-based display of a screen (such as a
tool compensation screen, workpiece shift
screen, workpiece coordinate system setting
screen, or C language executor screen).

2  If MDI key

  is pressed after switching from a

guidance screen to another screen, a program
editing screen is displayed, instead of the guidance
screen.



B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1505 -

Notes

•

  Conditions under which soft key [GUIDANCE TWP] is

displayed



Soft key [GUIDANCE TWP] is displayed on a program editing
screen under the following conditions:

1

Foreground editing screen
-

The CNC mode is EDIT, TJOG, or THND.

-  The editing and display are not prohibited for a

program to be edited.

2

Background editing screen
-

A program to be edited is not in reference mode.

-  The editing and display are not prohibited for a

program to be edited.

3

MDI editing screen
-

The CNC mode is MDI.



•



Screen displayed when soft key [GUIDANCE TWP] is pressed
When soft key [GUIDANCE TWP] is pressed, which guidance
screen is displayed is automatically determined according to the
conditions described below.
1

When a tilted working plane command is not included in a
block at the cursor position on a program editing screen


The command type selection screen is displayed. A
block created on the guidance screens is inserted after
the block at the cursor position on the program editing
screen.

2  When a tilted working plane command is included in a

block at the cursor position on a program editing screen


The tilted working plane data setting screen is
displayed, which shows the data for the tilted working
plane command in the block at the cursor position on
the program editing screen. When a block of a tool
axis direction control command exists immediately
after the tilted working plane command, the command
data for the block is also shown. The tilted working
plane command in the block at the cursor position on
the program editing screen is replaced with a block
created on the guidance screen.



NOTE



If the CNC is in the reset state or emergency stop
state when soft key [GUIDANCE TWP] is pressed
on the foreground editing screen or MDI editing
screen, the warning "PROGRAM READ FAILED"
appears, and the operation cannot be continued.
(Soft keys other than [CANCEL] are not displayed.)
Press soft key [CANCEL] to return to the program
editing screen, and then press soft key
[GUIDANCE TWP] again.



12.SETTING AND DISPLAYING DATA

 OPERATION

B-63944EN/03





- 1506 -

12.2.9.1

Command type selection screen


The command type selection screen is used to select the type of a
tilted working plane command you want to insert into a program to be
edited. One of the following command types can be selected:

•



G68.2 / G68.4

(Euler’s angle)

•



G68.2 / G68.4 P1  (Roll-Pitch-Yaw angle)

•



G68.2 / G68.4 P2  (3 points specification)

•



G68.2 / G68.4 P3  (2 vectors specification)

•



G68.2 / G68.4 P4  (Projection angle)

•



G68.3

(Tool Axis Direction)

G68.2 is an absolute command, and G68.4 is an incremental
command.





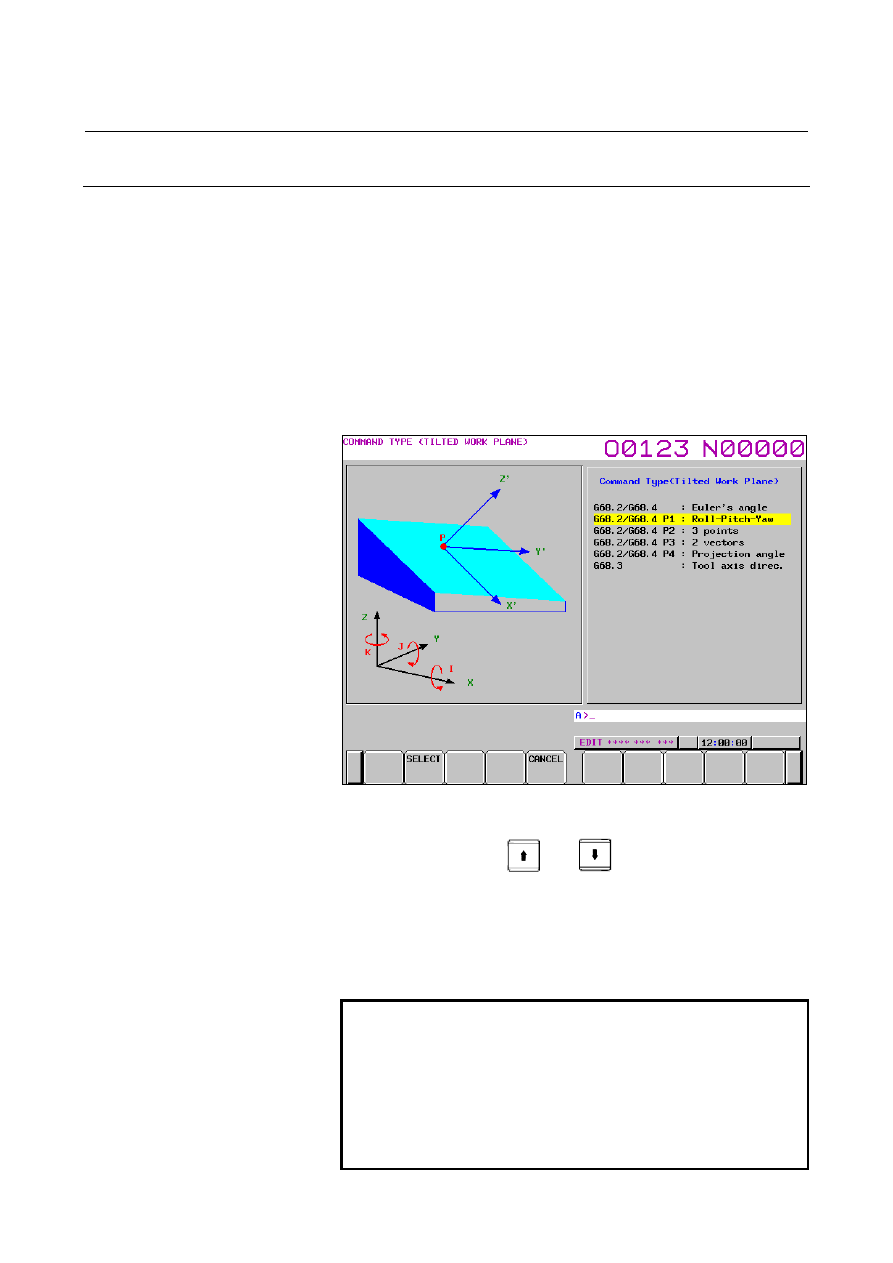

Fig. 12.2.9.1 (a) Command type selection screen (10.4-inch)



Selection of a command type

1  Press cursor key

 or

 to move the cursor to a

command type you want to select. As the cursor is moved, the
figure corresponding to the command type at the cursor position
is displayed.

2

When soft key [SELECT] is pressed, the command type at the
cursor position is accepted, and the tilted working plane data
setting screen is displayed.



NOTE



If the warning "PROGRAM READ FAILED"
appears when the command type selection screen
is displayed, the operation cannot be continued.
(Soft keys other than [CANCEL] are not displayed.)
Press soft key [CANCEL] to return to the program
editing screen, and then press soft key
[GUIDANCE TWP] again.

B-63944EN/03

 OPERATION

12.SETTING AND DISPLAYING DATA





- 1507 -



12.2.9.2

Tilted working plane data setting screen


The tilted working plane data setting screen is used to set specified
tilted working plane data required for a tilted working plane command
of the type that has been selected on the command type selection
screen or has been selected when soft key [GUIDANCE TWP] is
pressed.
Different types of tilted working plane data setting screen are provided
for different command types. For details of each type of tilted working
plane data setting screen, see "Details of the tilted working plane data
setting screen".




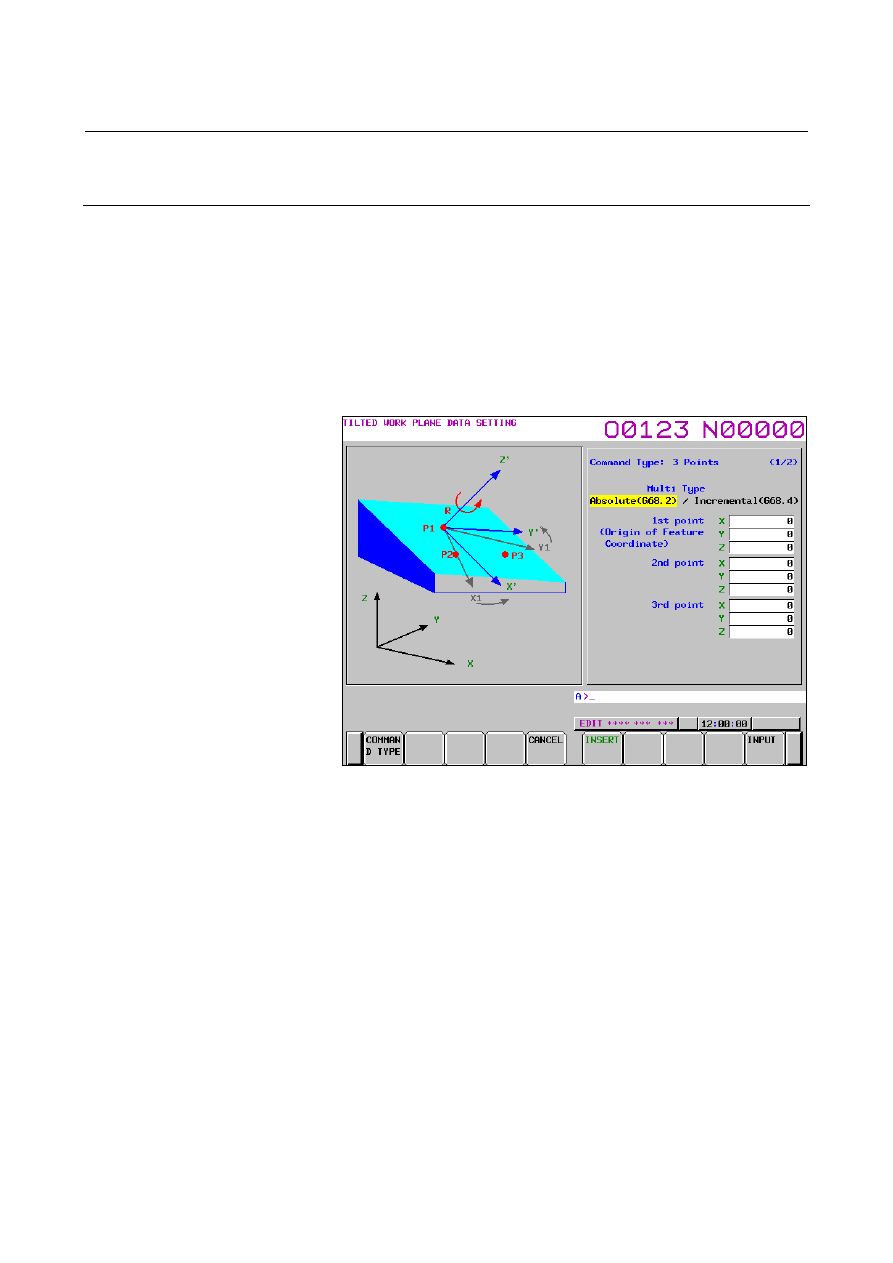

Fig. 12.2.9.2 (a) Tilted working plane data setting screen

－

3 points

specification(10.4-inch)



Display of the tilted working plane data setting screen

When a new block is created, the initial values are set in the setting
and selection items.
When an existing block is modified, the command data for the block
at the cursor position on the program editing screen is reflected in the
setting and selection items.
