FANUC Series 0i-MODEL F Plus. CONNECTION MANUAL (FUNCTION) - page 76

2. PREPARATIONS FOR OPERATION

B-64693EN-1/01

- 562 -

And in addition, DNC operation mode can be selected by combining the memory operation (MEM) mode
setting and the DNCI signal. Manual reference position return mode can be selected by combining the
manual continuous feed (JOG) mode setting and the ZRN signal.
The currently selected operation mode can be posted by outputting the operation mode check signal.

Signals

Signals for mode selection

Select the desired mode by setting signals for mode selection listed below according to the setting shown
in Table 2.6 (a).

Mode selection signals MD1,MD2,MD4<Gn043.0 to .2>

DNC operation selection signal DNCI<Gn043.5>

Signal for selecting manual reference position return ZRN<Gn043.7>

Signals for mode check

Check the current mode by reading the mode check signal(s) according to the setting shown in Table 2.6
(a).

Signal for checking incremental feed selection MINC<Fn003.0>

Signal for checking manual handle feed selection MH<Fn003.1>

Signal for checking jog feed selection MJ<Fn003.2>

Signal for checking manual data input selection MMDI<Fn003.3>

Signal for checking DNC operation selection MRMT<Fn003.4>

Signal for checking memory operation selection MMEM<Fn003.5>

Signal for checking program edit selection MEDT<Fn003.6>

Signal for checking teach-in selection MTCHIN<Fn003.7>

Signal for checking manual reference position return selection MREF<Fn004.5>

Table 2.6 (a) Mode selection signals and corresponding check signals

(A hyphen (-) indicates that the mode is not related to the status of the signal.)

Mode

Input signal

Output signal

MD4

MD2

MD1

DNCI

ZRN

Automatic
operation

Manual data input (MDI)

MMDI

Memory operation (MEM)

MMEM

DNC operation (RMT)

MRMT

Memory edit (EDIT)

MEDT

Manual
operation
Manual

Manual handle/ incremental feed
(HANDLE/INC)

MH,MINC

Jog feed

Manual reference position return

MREF

Teach-in handle feed

MTCHIN

Teach-in jog feed

MTCHIN

B-64693EN-1/01

2. PREPARATIONS FOR OPERATION

- 563 -

Signal address

Gn043

ZRN

DNCI

MD4

MD2

MD1

Fn003

MTCHIN

MEDT

MMEM

MRMT

MMDI

MINC

Fn004

MREF

2. PREPARATIONS FOR OPERATION

B-64693EN-1/01

- 564 -

Note

Precautions on modes and mode switching

NOTE

1 In MDI mode, the cycle start lamp signal STL turns to “0” and the CNC stops as

soon as the commands entered via the MDI have been executed. But the feed
hold lamp signal SPL does not turn to “1”. Therefore, another command can be
entered from the manual data input unit under this condition.

2 Manual operation in jog feed mode

(1) When bit 0 (JHD) of parameter No. 7100 is set to 0

Only jog feed is possible.

(2) When bit 0 (JHD) of parameter No. 7100 is set to 1

Both jog feed and manual handle feed are possible, provided the manual
handle feed function is installed.

3 Manual operation in manual handle/incremental feed mode.

(1) When the manual handle feed function is not used

Incremental feed is valid.

(2) When the manual handle feed function is used and bit 0 (JHD) of parameter

No. 7100 is set to 0

Only manual handle feed is valid.

(3) When the manual handle feed function is used and bit 0 (JHD) of parameter

No. 7100 is set to 1

Incremental feed and manual handle feed are valid.

4 When switching to manual data input mode is made during operation in memory

operation mode, the CNC enters the automatic operation stop state after
executing the command in the current block. Cycle start lamp signal STL is then
set to “0”.
In this case, feed hold lamp signal SPL is not set to “1” (Fig. 2.6 (a)).

When switching to memory operation mode is made during operation in manual
data input mode, the CNC enters memory operation mode after executing the
currently executed command. To perform memory operation at this time, the
program for MDI operation must have been executed (Fig. 2.6 (b))

MEM mode

Mode select signal state

MDI mode

Manual data input
possible in this range

Operation

Executing command

STL

Fig. 2.6 (a)

MEM mode

MDI mode

STL

Operation

in MDI mode

MEM mode

Mode select signal state

Memory operation
possible in this range

Operation

Fig. 2.6 (b)

B-64693EN-1/01

2. PREPARATIONS FOR OPERATION

- 565 -

NOTE

5 When the HANDLE/INC mode is selected while the CNC is operating in the MEM,

RMT or MDI mode, the automatic or MDI operation stops, the Cycle time lamp
signal STL turns to “0”, the feed hold lamp signal SPL simultaneously turns to “1”,
and the CNC enters the HANDLE/INC mode. Under these conditions, manual
handle feed or incremental feed by axis direction select signal is permitted. Since
the MEM, RMT or MDI mode commands are held, operation can be restarted by
the cycle start signal and by selecting the MDI, RMT or MEM mode. However, if
operation was stopped by switching to the HANDLE/INC mode during manual
data input or during automatic operation, it can be restarted only by reactivating
the mode in use before the operation was stopped (Fig. 2.6 (c)).

Operation start
signal in memory
operation or
manual data input
mode

Cycle start signal

MEM/MDI mode

HANDLE/INC mode

Manual handle/
incremental feed
enabled

STL

SPL

Mode select signal state

Fig. 2.6 (c)

2. PREPARATIONS FOR OPERATION

B-64693EN-1/01

- 566 -

NOTE

6 When the JOG mode is selected during MEM, RMT or MDI mode operation,

operation stops, the cycle time lamp signal STL turns to “0”, the feed hold lamp
signal SPL simultaneously turns to “1”, and the CNC enters the JOG mode.

Under these conditions, manual feed by feed axis direction select signal is
permitted. Operation can be restarted by returning to the original mode, as
described for HANDLE/INC mode (Fig. 2.6 (d)). When the mode is switched to
the JOG mode during manual handle feed or during incremental feed operation,
the CNC ignores the manual handle feed or incremental feed command and
manual jog feed becomes effective. If a feed axis direction select signal turns to 1
before the JOG mode is selected, that signal is ignored. The feed axis select
signal is selected by turning the necessary feed axis direction signal to “1” after
turning all the feed axis direction select signals to “0” (Fig. 2.6 (e)).

It is possible to perform handle feed in JOG mode by activating bit 0 (JHD) of
parameter No. 7100. For details, refer to Note 2.

Cycle start signal

MEM/MDI mode

Jog mode

Jog feed enabled

STL

SPL

Operation in the
MEM mode or
MDI mode

Mode select signal

Fig. 2.6 (d)

Jog mode

MEM/MDI/HADLE/INC
mode

100ms
or more

Jog feed
enable

Jog feed
disable

Feed axis direction
select signal

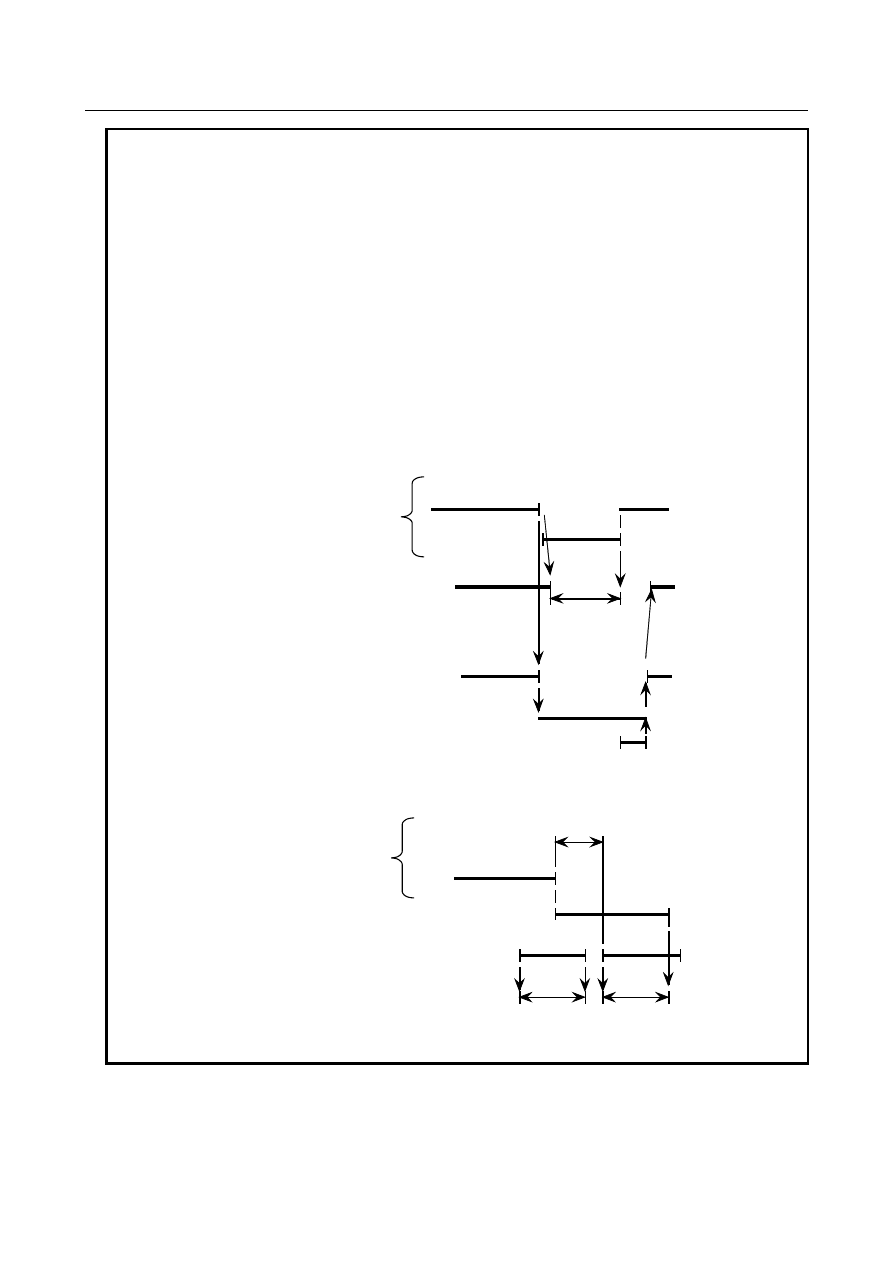

Mode signal time chart

Fig. 2.6 (e)

B-64693EN-1/01

2. PREPARATIONS FOR OPERATION

- 567 -

NOTE

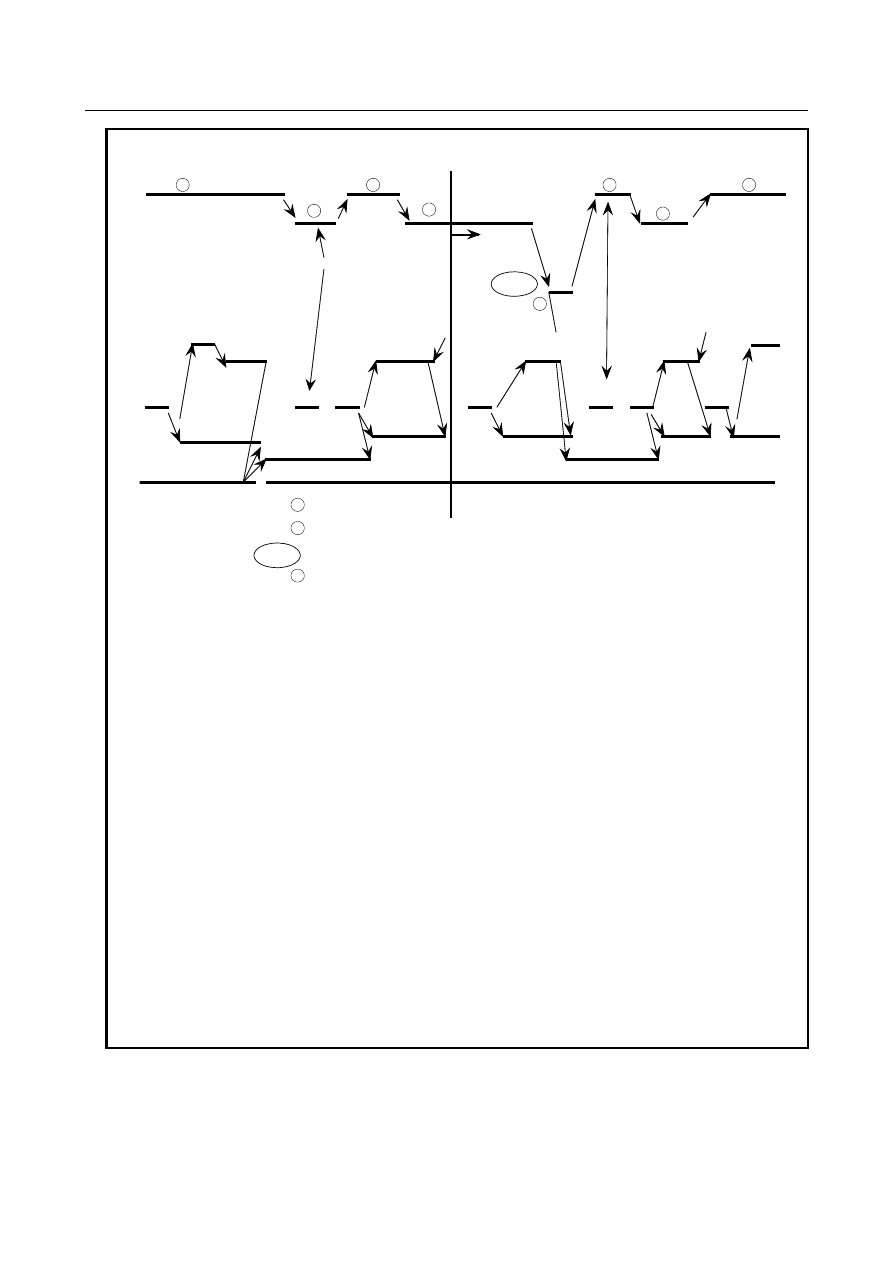

7 The mode switching operation is summarized in the time chart below (Fig. 2.6 (f)).

MDI operation
possible hereafter

End of operation

Memory read

MDI command operation

Disable because of
feed hold state of
automatic operation

H / S

Disable because of
feed hold state of MDI
operation

Memory read

End of operation

Memory operation

MDI command
operation

STL

*SP

SPL

STL

SPL

MEM mode selection

MDI mode selection

HANDLE/INC mode selection

JOG mode selection

H / S

Fig. 2.6 (f) Mode signal time chart

8 Invalid mode selection signals

When mode selection signals MD4, MD2, and MD1 are set to “0”, “1”, and “0”,
respectively, the mode before the signals are changed is selected. When mode
selection signals MD4, MD2, and MD1 have been set to “0”, “1”, and “0”,
respectively, since power-on, the MDI mode is selected.

9 Notes on output signals:

When bit 0 (JHD) of parameter No. 7100 is set to 1:
(1)  In the jog feed mode, the output signals are set as follows:
    MJ=”1”, MH=”0”
(2)  In the manual handle feed mode, the output signals are set as follows:
    MH=”1”, MINC=”0”

10 Teach-in handle/Jog mode selection output signal

(1) In teach-in handle feed mode (mode selection signals MD4, MD2, and MD1

are “1”, ”1”, and “1”), signal for checking teach-in selection
MTCHIN<Fn003.7> and signal for checking manual handle feed selection
MH<Fn003.1> turn to "1".

The status displayed on the bottom right on screen changes to "THND".

(2) In teach-in jog feed mode (mode selection signals MD4, MD2, and MD1 are

“1”, “1”, and “0”), signal for checking teach-in selection MTCHIN<Fn003.7>
and signal for checking jog feed selection MJ<Fn003.2> turn to "1".

The status displayed on the bottom right on screen changes to "TJOG".

2. PREPARATIONS FOR OPERATION

B-64693EN-1/01

- 568 -

Parameter

7100

JHD

[Input type] Parameter input

[Data type] Bit path

#0 JHD

Manual handle feed in JOG feed mode or incremental feed in the manual handle feed is:

Invalid.

Valid.

2.7

STATUS OUTPUT SIGNAL

The table below lists the status output signals. They indicate the state of the CNC. See the sections listed
in the Table 2.7 (a) for details of each signal.

Table 2.7 (a)

Signal name

Symbol

Reference section

Alarm signal

Alarm signals

Battery alarm signal

BAL

Alarm signals

Reset signal

RST

Reset & rewind

Rewinding signal

RWD

Reset & rewind

Tapping signal

TAP

Canned cycle for drilling

Moving signals

MV1 to MV8

Axis moving status output

Moving direction signals

MVD1 to MVD8

Axis moving status output

In-position signals

INP1 to INP8

In-position check

Rapid traversing signal

RPDO

This section

Cutting feed signal

CUT

This section

Threading signal

THRD

Threading

Constant surface speed signal

CSS

Constant surface speed control

Inch input signal

INCH

Inch/metric switching

Dwell status signal

DWL

This section

Signal

Rapid traversing signal RPDO<Fn002.1>

[Classification] Output signal

[Function] This signal indicates that a move command is being executed at rapid traverse.

[Output cond.] “1” indicates an axis starts moving after rapid traverse has been selected; 0 indicates that

an axis starts moving after a feedrate other than rapid traverse has been selected. This
holds true for both automatic and manual operation modes.

NOTE

1 Rapid traverse in automatic operation includes all rapid traverses in

canned cycle positioning, automatic reference position return, etc.,
as well as the move command G00. Rapid traverse in manual
operation also includes rapid traverse in reference position return.

2 Once rapid traverse has been selected, this signal remains “1”,

including during a stop, until another feedrate has been selected
and movement has been started.

B-64693EN-1/01

2. PREPARATIONS FOR OPERATION

- 569 -

Cutting feed signal CUT<Fn002.6>

[Classification] Output signal

[Function] Signals that cutting feed is being performed by automatic operation.

[Output cond.] This signal is set to “1” in the following case:

When cutting feed is being performed by automatic operation (cutting feed for linear
interpolation, circular interpolation, helical interpolation, thread cutting, skip cutting,
or cutting in canned cycle)

CAUTION

This signal is not set to “1” in the feed hold state.

NOTE

This signal is set to “1” even when the feedrate override is 0%, and
even during interlock.

Dwell status signal DWL <Fn526.5>

[Classification] Output signal

[Function] This signal indicates that dwell (G04) is in progress at the automatic operation.

[Output cond.] This signal is set to “1” in the following case:

- When dwell (G04) is being performed
This signal is set to 0 in the following case.
- When dwell (G04) is not performed

When bit 2 (DWS) of parameter No.10351 is 1, dwell status signal DWL <Fn526.5> can

be used.

Signal address

Fn002

CUT

RPDO

Fn526

DWL

Parameter

10351

DWS

[Input type] Parameter input

[Data type] Bit

NOTE

When this parameter is set, the power must be turned off before
operation is continued.

#2 DWS

Dwell status signal DWL <Fn526.5> is:

Disabled.

Enabled.

Content .. 74 75 76 77 ..
