Configuring System Message Logging
Information About System Message Logging
Table 50
Level Keywords
Level Keyword
Level
Description
Syslog Definition
emergencies
0
System unstable
LOG_EMERG
alerts
1
Immediate action needed
LOG_ALERT
critical
2
Critical conditions
LOG_CRIT
errors
3
Error conditions
LOG_ERR
warnings
4
Warning conditions
LOG_WARNING
notifications
5
Normal but significant condition
LOG_NOTICE
informational
6
Informational messages only
LOG_INFO
debugging
7
Debugging messages
LOG_DEBUG
The software generates these categories of messages:
Error messages about software or hardware malfunctions, displayed at levels warnings through emergencies.
These types of messages mean that the functionality of the switch is affected.
Output from the debug commands, displayed at the debugging level. Debug commands are typically used only by
the Technical Assistance Center.
Interface up or down transitions and system restart messages, displayed at the notifications level. This message is
only for information; switch functionality is not affected.
Configuring UNIX Syslog Servers
The next sections describe how to configure the UNIX server syslog daemon and how to define the UNIX system logging
facility.
Logging Messages to a UNIX Syslog Daemon
Before you can send system log messages to a UNIX syslog server, you must configure the syslog daemon on a UNIX
server. This procedure is optional.
Note: Some recent versions of UNIX syslog daemons no longer accept by default syslog packets from the network. If this
is the case with your system, use the UNIX man syslogd command to decide what options must be added to or removed
from the syslog command line to enable logging of remote syslog messages.
Log in as root, and perform these steps:
1. Add a line such as the following to the file /etc/syslog.conf:
local7.debug /usr/adm/logs/cisco.log
The local7 keyword specifies the logging facility to be used. The debug keyword specifies the syslog level. The syslog
daemon sends messages at this level or at a more severe level to the file specified in the next field. The file must already
exist, and the syslog daemon must have permission to write to it.
2. Create the log file by entering these commands at the UNIX shell prompt:
$ touch /var/log/cisco.log
$ chmod 666 /var/log/cisco.log
3. Make sure the syslog daemon reads the new changes:
547
Configuring System Message Logging
Information About System Message Logging
$ kill -HUP `cat /etc/syslog.pid`
For more information, see the man syslog.conf and man syslogd commands on your UNIX system.
Table 51 on page 548 lists the UNIX system facilities supported by the software. For more information about these
facilities, consult the operator’s manual for your UNIX operating system.
Table 51
UNIX System Facilities
Facility Type Keyword
Description
auth
Authorization system
cron
Cron facility
daemon
System daemon
kern
Kernel
local0-7
Locally defined messages
lpr
Line printer system
mail
Mail system
news
USENET news
sys9-14
System use
syslog
System log
user
User process
uucp
UNIX-to-UNIX copy system
548
Configuring System Message Logging
How to Configure System Message Logging
Default System Message Logging Configuration
Feature
Default Setting
System message logging to the console
Enabled.
Console severity
Debugging (and numerically lower levels).
Logging file configuration
No filename specified.
Logging buffer size
4096 bytes.
Logging history size
1 message.
Time stamps
Disabled.
Synchronous logging
Disabled.
Logging server
Disabled.
Syslog server IP address
None configured.
Configuration change logger
Disabled.
Server facility
Local7.
Server severity
Informational (and numerically lower levels).
How to Configure System Message Logging
Disabling Message Logging
Message logging is enabled by default. It must be enabled to send messages to any destination other than the console.
When enabled, log messages are sent to a logging process, which logs messages to designated locations
asynchronously to the processes that generated the messages.
Disabling the logging process can slow down the switch because a process must wait until the messages are written to
the console before continuing. When the logging process is disabled, messages appear on the console as soon as they
are produced, often appearing in the middle of command output.
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
no logging console
Disables message logging.
3.
end
Returns to privileged EXEC mode.
Setting the Message Display Destination Device
If message logging is enabled, you can send messages to specific locations in addition to the console. Beginning in
privileged EXEC mode, use one or more of the following commands to specify the locations that receive messages:
549
Configuring System Message Logging
How to Configure System Message Logging
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
logging buffered [size]
Logs messages to an internal buffer on the switch. The range is 4096 to
2147483647 bytes. The default buffer size is 4096 bytes.
If the switch fails, the log file is lost unless you had previously saved it to
flash memory. See Step 4.
Note: Do not make the buffer size too large because the switch could run
out of memory for other tasks. Use the show memory privileged EXEC
command to view the free processor memory on the switch. However,
this value is the maximum available, and the buffer size should not be set
to this amount.
3.
logging host
Logs messages to a UNIX syslog server host.
host—Specifies the name or IP address of the host to be used as the
syslog server.
To build a list of syslog servers that receive logging messages, enter this
command more than once.
4.
logging file flash:filename
Stores log messages in a file in flash memory.
[max-file-size [min-file-size]]
[severity-level-number | type]
filename—Enters the log message filename.
(Optional) max-file-size—Specifies the maximum logging file size.
The range is 4096 to 2147483647. The default is 4096 bytes.
(Optional) min-file-size—Specifies the minimum logging file size. The
range is 1024 to 2147483647. The default is 2048 bytes.
(Optional) severity-level-number | type—Specifies either the logging
severity level or the logging type. The severity range is 0 to 7. By
default, the log file receives debugging messages and numerically
lower levels.
5.
end
Returns to privileged EXEC mode.
6.
terminal monitor
Logs messages to a nonconsole terminal during the current session.
Terminal parameter-setting commands are set locally and do not remain
in effect after the session has ended. You must perform this step for each
session to see the debugging messages.
550
Configuring System Message Logging
How to Configure System Message Logging
Synchronizing Log Messages
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
line [console | vty] line-number
Specifies the line to be configured for synchronous logging of
[ending-line-number]
messages.
Use the console keyword for configurations that occur through
the switch console port.
Use the line vty line-number command to specify which vty
lines are to have synchronous logging enabled. You use a vty
connection for configurations that occur through a Telnet
session. The range of line numbers is from 0 to 15.
You can change the setting of all 16 vty lines at once by entering:
line vty 0 15
Or you can change the setting of the single vty line being used for
your current connection. For example, to change the setting for vty
line 2, enter:
line vty 2
When you enter this command, the mode changes to line
configuration.
3.
logging synchronous [level [severity-level |
Enables synchronous logging of messages.
all] | limit number-of-buffers]
(Optional) level severity-level—Specifies the message severity
level. Messages with a severity level equal to or higher than this
value are printed asynchronously. Low numbers mean greater
severity and high numbers mean lesser severity. The default is 2.
(Optional) level all—Specifies that all messages are printed
asynchronously regardless of the severity level.
(Optional) limit number-of-buffers—Specifies the number of
buffers to be queued for the terminal after which new messages
are dropped. The range is 0 to 2147483647. The default is 20.
4.
end
Returns to privileged EXEC mode.
551
Configuring System Message Logging
How to Configure System Message Logging
Enabling and Disabling Time Stamps on Log Messages
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
service timestamps log uptime
Enables log time stamps.
or
The first command enables time stamps on log messages,
showing the time since the system was rebooted.
service timestamps log datetime [msec]
[localtime] [show-timezone]
The second command enables time stamps on log
messages. Depending on the options selected, the time
stamp can include the date, time in milliseconds relative to
the local time-zone, and the time zone name.
3.
end
Returns to privileged EXEC mode.
Enabling and Disabling Sequence Numbers in Log Messages
Because there is a chance that more than one log message can have the same time stamp, you can display messages
with sequence numbers so that you can unambiguously see a single message. By default, sequence numbers in log
messages are not displayed.
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
service sequence-numbers
Enables sequence numbers.
3.
end
Returns to privileged EXEC mode.
Defining the Message Severity Level
You can limit messages displayed to the selected device by specifying the severity level of the message, which are
described in Table 2.
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
logging console level
Limits messages logged to the console.
By default, the console receives debugging messages and numerically
lower levels.
3.
logging monitor level
Limits messages logged to the terminal lines.
By default, the terminal receives debugging messages and numerically
lower levels.
4.
logging trap level
Limits messages logged to the syslog servers.
By default, syslog servers receive informational messages and
numerically lower levels.
5.
end
Returns to privileged EXEC mode.
552
Configuring System Message Logging
How to Configure System Message Logging
Limiting Syslog Messages Sent to the History Table and to SNMP
If you enabled syslog message traps to be sent to an SNMP network management station by using the snmp-server
enable trap global configuration command, you can change the level of messages sent and stored in the switch history
table. You also can change the number of messages that are stored in the history table.
Messages are stored in the history table because SNMP traps are not guaranteed to reach their destination. By default,
one message of the level warning and numerically lower levels are stored in the history table even if syslog traps are not
enabled.
When the history table is full (it contains the maximum number of message entries specified with the logging history
size global configuration command), the oldest message entry is deleted from the table to allow the new message entry
to be stored.
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
logging history level
Changes the default level of syslog messages stored in the history file and
sent to the SNMP server.
By default, warnings, errors, critical, alerts, and emergencies messages
are sent.
3.
logging history size number
Specifies the number of syslog messages that can be stored in the history
table.
The default is to store one message. The range is 0 to 500 messages.
4.
end
Returns to privileged EXEC mode.
Enabling the Configuration-Change Logger
You can enable a configuration logger to keep track of configuration changes made with the command-line interface
(CLI). When you enter the logging enable configuration-change logger configuration command, the log records the
session, the user, and the command that was entered to change the configuration. You can configure the size of the
configuration log from 1 to 1000 entries (the default is 100).
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
archive
Enters archive configuration mode.
3.
log config
Enters configuration-change logger configuration mode.
4.
logging enable
Enables configuration change logging.
5.
logging size entries
(Optional) Configures the number of entries retained in the configuration
log. The range is from 1 to 1000. The default is 100.
Note: When the configuration log is full, the oldest log entry is removed
each time a new entry is entered.
6.
end
Returns to privileged EXEC mode.
Configuring the UNIX System Logging Facility
When sending system log messages to an external device, you can cause the switch to identify its messages as
originating from any of the UNIX syslog facilities.
553
Configuring System Message Logging
Monitoring and Maintaining the System Message Log
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
logging host
Logs messages to a UNIX syslog server host by entering its IP address.
To build a list of syslog servers that receive logging messages, enter this
command more than once.
3.
logging trap level
Limits messages logged to the syslog servers.
Be default, syslog servers receive informational messages and lower.
4.
logging facility facility-type
Configures the syslog facility.
The default is local7.
5.
end
Returns to privileged EXEC mode.
Monitoring and Maintaining the System Message Log
Command
Purpose
show logging
Displays logging messages.
show archive log config
Displays the configuration log.
Configuration Examples for the System Message Log
System Message: Example
This example shows a partial switch system message:
00:00:46: %LINK-3-UPDOWN: Interface Port-channel1, changed state to up
00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/17, changed state to up
00:00:47: %LINK-3-UPDOWN: Interface GigabitEthernet1/18, changed state to up
00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan1, changed state to down
00:00:48: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet1/17, changed state to down 2
*Mar
1 18:46:11: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)
18:47:02: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)
*Mar
1 18:48:50.483 UTC: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)
Logging Display: Examples
This example shows part of a logging display with the service timestamps log datetime global configuration command
enabled:
*Mar
1 18:46:11: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)
This example shows part of a logging display with the service timestamps log uptime global configuration command
enabled:
00:00:46: %LINK-3-UPDOWN: Interface Port-channel1, changed state to up
This example shows part of a logging display with sequence numbers enabled:
554
Configuring System Message Logging
Additional References
000019: %SYS-5-CONFIG_I: Configured from console by vty2 (10.34.195.36)
Enabling the Logger: Example
This example shows how to enable the configuration-change logger and to set the number of entries in the log to 500.
Switch(config)# archive
Switch(config-archive)# log config
Switch(config-archive-log-cfg)# logging enable
Switch(config-archive-log-cfg)# logging size 500
Switch(config-archive-log-cfg)# end
Configuration Log Output: Example
This is an example of output for the configuration log:
Switch# show archive log config all
idx
sess
user@line
Logged command
38
11
unknown user@vty3
|no aaa authorization config-commands
39
12
unknown user@vty3
|no aaa authorization network default group radius
40
12
unknown user@vty3
|no aaa accounting dot1x default start-stop group radius
41
13
unknown user@vty3
|no aaa accounting system default
42
14
temi@vty4
|interface GigabitEthernet4/0/1
43
14
temi@vty4
| switchport mode trunk
44
14
temi@vty4
| exit
45
16
temi@vty5
|interface FastEthernet5/0/1
46
16
temi@vty5
| switchport mode trunk
47
16
temi@vty5
| exit
Additional References
The following sections provide references related to switch administration:
555
Configuring System Message Logging
Additional References
Related Documents
Related Topic
Document Title
Cisco IOS basic commands
Cisco IOS Configuration Fundamentals Command Reference
Cisco IOS system management commands
Syslog server configuration steps
Configuring the UNIX System Logging Facility, page 553
Standards
Standards
Title
No new or modified standards are supported by this
—
feature, and support for existing standards has not
been modified by this feature.
MIBs
MIBs
MIBs Link
—
To locate and download MIBs using Cisco IOS XR software, use the
Cisco MIB Locator found at the following URL and choose a platform
under the Cisco Access Products menu:
RFCs
RFCs
Title
No new or modified RFCs are supported by this
—
feature, and support for existing RFCs has not been
modified by this feature.
Technical Assistance
Description
Link
The Cisco Technical Support website contains
thousands of pages of searchable technical content,
including links to products, technologies, solutions,
technical tips, and tools. Registered Cisco.com users
can log in from this page to access even more content.
556
Configuring SNMP
Prerequisites for SNMP
An SNMP group is a table that maps SNMP users to SNMP views. An SNMP user is a member of an SNMP group. An
SNMP host is the recipient of an SNMP trap operation. An SNMP engine ID is a name for the local or remote SNMP
engine.
If the switch starts and the switch startup configuration has at least one snmp-server global configuration
command, the SNMP agent is enabled.
When configuring an SNMP group, do not specify a notify view. The snmp-server host global configuration
command autogenerates a notify view for the user and then adds it to the group associated with that user. Modifying
the group's notify view affects all users associated with that group. See the Cisco IOS Network Management
Command Reference for information about when you should configure notify views.
To configure a remote user, specify the IP address or port number for the remote SNMP agent of the device where
the user resides.
Before you configure remote users for a particular agent, configure the SNMP engine ID, using the snmp-server
engineID global configuration with the remote option. The remote agent's SNMP engine ID and user password are
used to compute the authentication and privacy digests. If you do not configure the remote engine ID first, the
configuration command fails.
Restrictions for SNMP
When configuring SNMP informs, you need to configure the SNMP engine ID for the remote agent in the SNMP
database before you can send proxy requests or informs to it.
If a local user is not associated with a remote host, the switch does not send informs for the auth (authNoPriv) and
the priv (authPriv) authentication levels.
Changing the value of the SNMP engine ID has important implications. A user's password (entered on the command
line) is converted to an MD5 or SHA security digest based on the password and the local engine ID. The
command-line password is then destroyed, as required by RFC 2274. Because of this deletion, if the value of the
engine ID changes, the security digests of SNMPv3 users become invalid, and you need to reconfigure SNMP users
by using the snmp-server user username global configuration command. Similar restrictions require the
reconfiguration of community strings when the engine ID changes.
557
Configuring SNMP
Information About SNMP
Information About SNMP
SNMP
The Simple Network Management Protocol (SNMP) is an application-layer protocol that provides a message format for
communication between managers and agents. The SNMP system consists of an SNMP manager, an SNMP agent, and
a MIB. The SNMP manager can be part of a network management system (NMS) such as CiscoWorks. The agent and
MIB reside on the switch. To configure SNMP on the switch, you define the relationship between the manager and the
agent.
The SNMP agent contains MIB variables whose values the SNMP manager can request or change. A manager can get a
value from an agent or store a value into the agent. The agent gathers data from the MIB, the repository for information
about device parameters and network data. The agent can also respond to a manager’s requests to get or set data.
An agent can send unsolicited traps to the manager. Traps are messages alerting the SNMP manager to a condition on
the network. Traps can mean improper user authentication, restarts, link status (up or down), MAC address tracking,
closing of a TCP connection, loss of connection to a neighbor, or other significant events.
SNMP Versions
This software release supports these SNMP versions:
SNMPv1—The Simple Network Management Protocol, a Full Internet Standard, defined in RFC 1157.
SNMPv2C replaces the Party-based Administrative and Security Framework of SNMPv2Classic with the
community-string-based Administrative Framework of SNMPv2C while retaining the bulk retrieval and improved
error handling of SNMPv2Classic. It has these features:
— SNMPv2—Version 2 of the Simple Network Management Protocol, a Draft Internet Standard, defined in RFCs
1902 through 1907.
— SNMPv2C—The community-string-based Administrative Framework for SNMPv2, an Experimental Internet
Protocol defined in RFC 1901.
SNMPv3—Version 3 of the SNMP is an interoperable standards-based protocol defined in RFCs 2273 to 2275.
SNMPv3 provides secure access to devices by authenticating and encrypting packets over the network and includes
these security features:
— Message integrity—Ensures that a packet was not tampered with in transit.
— Authentication—Determines that the message is from a valid source.
— Encryption—Mixes the contents of a package to prevent it from being read by an unauthorized source.
To select encryption, enter the priv keyword. This keyword is available only when the cryptographic (encrypted)
software image is installed.
Both SNMPv1 and SNMPv2C use a community-based form of security. The community of managers able to access the
agent’s MIB is defined by an IP address access control list and password.
SNMPv2C includes a bulk retrieval mechanism and more detailed error message reporting to management stations. The
bulk retrieval mechanism retrieves tables and large quantities of information, minimizing the number of round-trips
required. The SNMPv2C improved error-handling includes expanded error codes that distinguish different kinds of error
conditions; these conditions are reported through a single error code in SNMPv1. Error return codes in SNMPv2C report
the error type.
558
Configuring SNMP
Information About SNMP
SNMPv3 provides for both security models and security levels. A security model is an authentication strategy set up for
a user and the group within which the user resides. A security level is the permitted level of security within a security
model. A combination of the security level and the security model determine which security mechanism is used when
handling an SNMP packet. Available security models are SNMPv1, SNMPv2C, and SNMPv3.
Table 52 on page 559 identifies the characteristics of the different combinations of security models and levels.
Table 52
SNMP Security Models and Levels
Model
Level
Authentication
Encryption
Result
SNMPv1
noAuthNoPriv
Community string
No
Uses a community string match for authentication.
SNMPv2C
noAuthNoPriv
Community string
No
Uses a community string match for authentication.
SNMPv3
noAuthNoPriv
Username
No
Uses a username match for authentication.
SNMPv3
authNoPriv
Message Digest 5
No
Provides authentication based on the HMAC-MD5 or
(MD5) or Secure
HMAC-SHA algorithms.
Hash Algorithm
(SHA)
SNMPv3
authPriv
MD5 or SHA
Data Encryption
Provides authentication based on the HMAC-MD5 or
Standard (DES)
HMAC-SHA algorithms. Allows specifying the
or Advanced
User-based Security Model (USM) with these
Encryption
encryption algorithms:
Standard (AES)
DES 56-bit encryption in addition to
authentication based on the CBC-DES (DES-56)
standard.
3DES 168-bit encryption
AES 128-bit, 192-bit, or 256-bit encryption
You must configure the SNMP agent to use the SNMP version supported by the management station. Because an agent
can communicate with multiple managers, you can configure the software to support communications using SNMPv1,
SNMPv2C, or SNMPv3.
SNMP Manager Functions
The SNMP manager uses information in the MIB to perform the operations described in Table 53 on page 559.
Table 53
SNMP Operations
Operation
Description
get-request
Retrieves a value from a specific variable.
get-next-request
Retrieves a value from a variable within a table.1
get-bulk-request2
Retrieves large blocks of data, such as multiple rows in a table, that would otherwise require the
transmission of many small blocks of data.
get-response
Replies to a get-request, get-next-request, and set-request sent by an NMS.
set-request
Stores a value in a specific variable.
trap
An unsolicited message sent by an SNMP agent to an SNMP manager when some event has occurred.
559
Configuring SNMP
Information About SNMP
1. With this operation, an SNMP manager does not need to know the exact variable name. A sequential search is performed
to find the needed variable from within a table.
2. The get-bulk command only works with SNMPv2 or later.
SNMP Agent Functions
The SNMP agent responds to SNMP manager requests as follows:
Get a MIB variable—The SNMP agent begins this function in response to a request from the NMS. The agent retrieves
the value of the requested MIB variable and responds to the NMS with that value.
Set a MIB variable—The SNMP agent begins this function in response to a message from the NMS. The SNMP agent
changes the value of the MIB variable to the value requested by the NMS.
The SNMP agent also sends unsolicited trap messages to notify an NMS that a significant event has occurred on the
agent. Examples of trap conditions include, but are not limited to, when a port or module goes up or down, when
spanning-tree topology changes occur, and when authentication failures occur.
SNMP Community Strings
SNMP community strings authenticate access to MIB objects and function as embedded passwords. In order for the NMS
to access the switch, the community string definitions on the NMS must match at least one of the three community string
definitions on the switch.
A community string can have one of these attributes:
Read-only (RO)—Gives read access to authorized management stations to all objects in the MIB except the
community strings, but does not allow write access.
Read-write (RW)—Gives read and write access to authorized management stations to all objects in the MIB, but does
not allow access to the community strings.
When a cluster is created, the command switch manages the exchange of messages among member switches and the
SNMP application.
Using SNMP to Access MIB Variables
An example of an NMS is the CiscoWorks network management software. CiscoWorks 2000 software uses the switch
MIB variables to set device variables and to poll devices on the network for specific information. The results of a poll can
be displayed as a graph and analyzed to troubleshoot internetworking problems, increase network performance, verify
the configuration of devices, monitor traffic loads, and more.
As shown in Figure 73 on page 561, the SNMP agent gathers data from the MIB. The agent can send traps, or notification
of certain events, to the SNMP manager, which receives and processes the traps. Traps alert the SNMP manager to a
condition on the network such as improper user authentication, restarts, link status (up or down), MAC address tracking,
and so forth. The SNMP agent also responds to MIB-related queries sent by the SNMP manager in get-request,
get-next-request, and set-request format.
560
Configuring SNMP
Information About SNMP

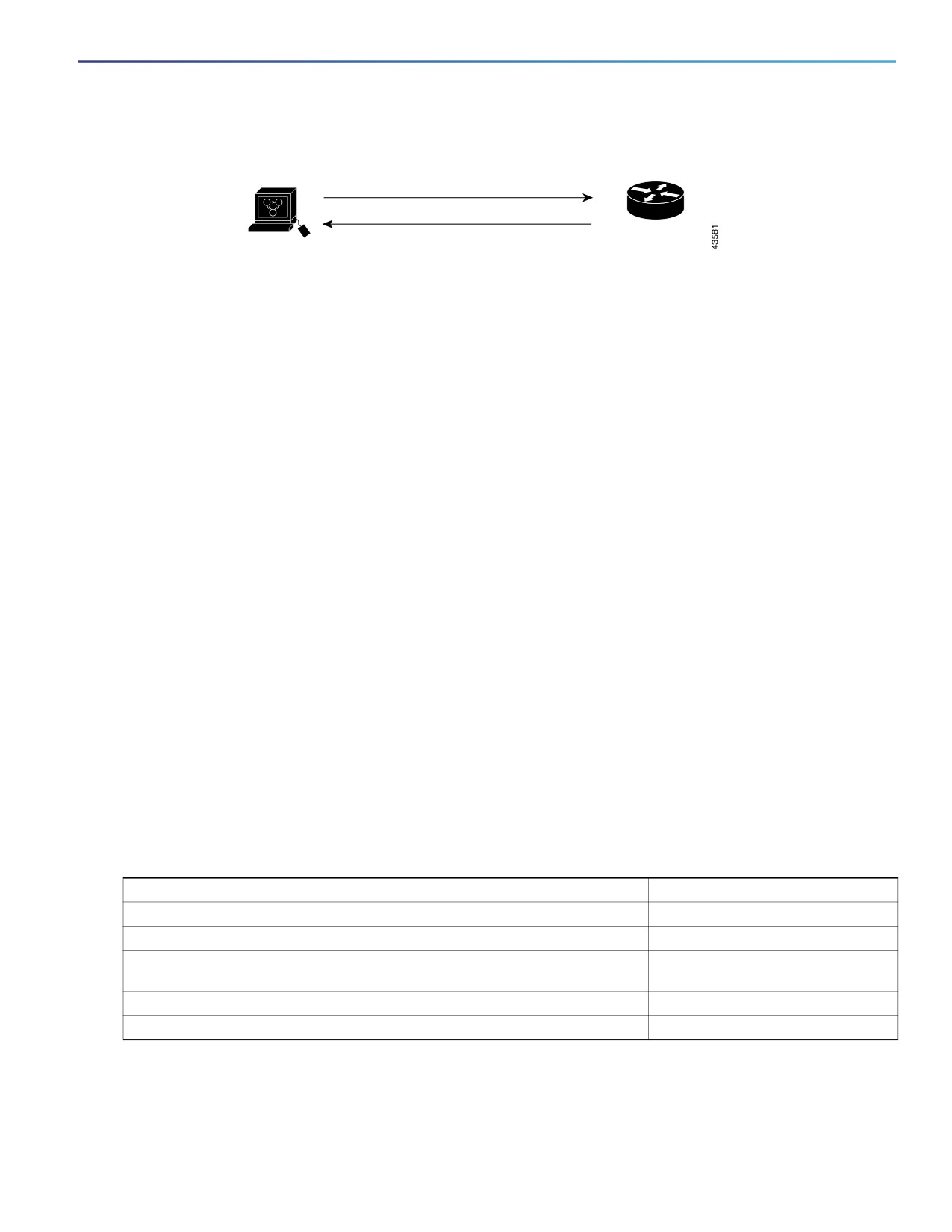

Figure 73
SNMP Network
Get-request, Get-next-request,
Network device
NMS
Get-bulk, Set-request
MIB
Get-response, traps
SNMP Manager
SNMP Agent
SNMP Notifications
SNMP allows the switch to send notifications to SNMP managers when particular events occur. SNMP notifications can
be sent as traps or inform requests. In command syntax, unless there is an option in the command to select either traps
or informs, the keyword traps refers to either traps or informs, or both. Use the snmp-server host command to specify
whether to send SNMP notifications as traps or informs.
Note: SNMPv1 does not support informs.
Traps are unreliable because the receiver does not send an acknowledgment when it receives a trap, and the sender
cannot determine if the trap was received. When an SNMP manager receives an inform request, it acknowledges the
message with an SNMP response protocol data unit (PDU). If the sender does not receive a response, the inform request
can be sent again. Because they can be resent, informs are more likely than traps to reach their intended destination.
The characteristics that make informs more reliable than traps also consume more resources in the switch and in the
network. Unlike a trap, which is discarded as soon as it is sent, an inform request is held in memory until a response is
received or the request times out. Traps are sent only once, but an inform might be resent or retried several times. The
retries increase traffic and contribute to a higher overhead on the network. Therefore, traps and informs require a
trade-off between reliability and resources. If it is important that the SNMP manager receive every notification, use inform
requests. If traffic on the network or memory in the switch is a concern and notification is not required, use traps.
SNMP ifIndex MIB Object Values
In an NMS, the IF-MIB generates and assigns an interface index (ifIndex) object value that is a unique number greater
than zero to identify a physical or a logical interface. When the switch reboots or the switch software is upgraded, the
switch uses this same value for the interface. For example, if the switch assigns a port 2 an ifIndex value of 10003, this
value is the same after the switch reboots.
The switch uses one of the values in Table 54 on page 561 to assign an ifIndex value to an interface.
Table 54
ifIndex MIB Object Values
Interface Type
ifIndex Range
SVI
1-4999
EtherChannel
5001-5048
Physical (such as Gigabit Ethernet or SFP-module interfaces) based on type
10000-14500
and port numbers
Null
10501
Loopback and Tunnel
24567 +
Note: The switch might not use sequential values within a range.
561
Configuring SNMP
Information About SNMP
Community Strings
You use the SNMP community string to define the relationship between the SNMP manager and the agent. The
community string acts like a password to permit access to the agent on the switch. Optionally, you can specify one or
more of these characteristics associated with the string:
An access list of IP addresses of the SNMP managers that are permitted to use the community string to gain access
to the agent
A MIB view, which defines the subset of all MIB objects accessible to the given community
Read and write or read-only permission for the MIB objects accessible to the community
SNMP Notifications
A trap manager is a management station that receives and processes traps. Traps are system alerts that the switch
generates when certain events occur. By default, no trap manager is defined, and no traps are sent. Switches running
this Cisco IOS release can have an unlimited number of trap managers.
Note: Many commands use the word traps in the command syntax. Unless there is an option in the command to select
either traps or informs, the keyword traps refers to traps, informs, or both. Use the snmp-server host global
configuration command to specify whether to send SNMP notifications as traps or informs.
This table describes the supported switch traps (notification types). You can enable any or all of these traps and configure
a trap manager to receive them. To enable the sending of SNMP inform notifications, use the snmp-server enable traps
global configuration command combined with the snmp-server host host-addr informs global configuration command.
Table 55
Switch Notification Types
Notification Type
Description
Keyword
bridge
Generates STP bridge MIB traps.
config
Generates a trap for SNMP configuration changes.
copy-config
Generates a trap for SNMP copy configuration changes.
entity
Generates a trap for SNMP entity changes.
cpu threshold
Allows CPU-related traps.
envmon
Generates environmental monitor traps. You can enable any or all of these environmental traps: fan,
shutdown, status, supply, temperature.
errdisable
Generates a trap for an error-disabled VLAN port. You can also set a maximum trap rate per minute.
The range is from 0 to 10000; the default is 0, which means there is no rate limit.
flash
Generates SNMP FLASH notifications.
hsrp
Generates a trap for Hot Standby Router Protocol (HSRP) changes.
ipmulticast
Generates a trap for IP multicast routing changes.
mac-notification
Generates a trap for MAC address notifications.
msdp
Generates a trap for Multicast Source Discovery Protocol (MSDP) changes.
ospf
Generates a trap for Open Shortest Path First (OSPF) changes. You can enable any or all of these
traps: Cisco specific, errors, link-state advertisement, rate limit, retransmit, and state changes.
pim
Generates a trap for Protocol-Independent Multicast (PIM) changes. You can enable any or all of
these traps: invalid PIM messages, neighbor changes, and rendezvous point (RP)-mapping
changes.
562
Configuring SNMP
Information About SNMP
Table 55
Switch Notification Types (continued)
Notification Type
Description
Keyword
port-security
Generates SNMP port security traps. You can also set a maximum trap rate per second. The range
is from 0 to 1000; the default is 0, which means that there is no rate limit.
Note: When you configure a trap by using the notification type port-security, configure the port
security trap first, and then configure the port security trap rate:
snmp-server enable traps port-security
snmp-server enable traps port-security trap-rate rate
rtr
Generates a trap for the SNMP Response Time Reporter (RTR).
snmp
Generates a trap for SNMP-type notifications for authentication, cold start, warm start, link up or link
down.
storm-control
Generates a trap for SNMP storm control. You can also set a maximum trap rate per minute. The
range is from 0 to 1000; the default is 0 (no limit is imposed; a trap is sent at every occurrence).
stpx
Generates SNMP STP Extended MIB traps.
syslog
Generates SNMP syslog traps.
tty
Generates a trap for TCP connections. This trap is enabled by default.
vlan-membership
Generates a trap for SNMP VLAN membership changes.
vlancreate
Generates SNMP VLAN created traps.
vlandelete
Generates SNMP VLAN deleted traps.
vtp
Generates a trap for VLAN Trunking Protocol (VTP) changes.
Note: Though visible in the command-line help strings, the fru-ctrl, insertion, and removal keywords are not supported.
You can use the snmp-server host global configuration command to a specific host to receive the notification types
listed in Table 55 on page 562.
563
Configuring SNMP
How to Configure SNMP
Default SNMP Settings
Feature
Default Setting
SNMP agent
Disabled1.
SNMP trap receiver
None configured.
SNMP traps
None enabled except the trap for TCP connections (tty).
SNMP version
If no version keyword is present, the default is Version 1.
SNMPv3 authentication
If no keyword is entered, the default is the noauth (noAuthNoPriv) security level.
SNMP notification type
If no type is specified, all notifications are sent.
1. This is the default when the switch starts and the startup configuration does not have any snmp-server global
configuration commands.
How to Configure SNMP
Disabling the SNMP Agent
The no snmp-server global configuration command disables all running versions (Version 1,
Version 2C, and Version 3) on the device. No specific Cisco IOS command exists to enable SNMP. The first snmp-server
global configuration command that you enter enables all versions of SNMP.
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
no snmp-server
Disables the SNMP agent operation.
3.
end
Returns to privileged EXEC mode.
Configuring Community Strings
Note: To disable access for an SNMP community, set the community string for that community to the null string (do not
enter a value for the community string).
564
Configuring SNMP
How to Configure SNMP
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
snmp-server community string
Configures the community string.
[view view-name] [ro | rw]
[access-list-number]
Note: The @ symbol is used for delimiting the context information. Avoid
using the @ symbol as part of the SNMP community string when
configuring this command.
string—Specifies a string that acts like a password and permits access
to the SNMP protocol. You can configure one or more community
strings of any length.
(Optional) view—Specifies the view record accessible to the
community.
(Optional) Specifies either read-only (ro) if you want authorized
management stations to retrieve MIB objects, or specifies read-write
(rw) if you want authorized management stations to retrieve and
modify MIB objects. By default, the community string permits
read-only access to all objects.
(Optional) access-list-number—Specifies an IP standard access list
numbered from 1 to 99 and 1300 to 1999.
3.
access-list access-list-number
(Optional) If you specified an IP standard access list number in Step 2,
{deny | permit} source
then create the list, repeating the command as many times as necessary.
[source-wildcard]
access-list-number—Specifies the access list number specified in
Step 2.
deny — Denies access if the conditions are matched. The permit
keyword permits access if the conditions are matched.
source—Specifies the IP address of the SNMP managers that are
permitted to use the community string to gain access to the agent.
(Optional) source-wildcard—Specifies the wildcard bits in dotted
decimal notation to be applied to the source. Place ones in the bit
positions that you want to ignore.
The access list is always terminated by an implicit deny statement for
everything.
4.
end
Returns to privileged EXEC mode.
Configuring SNMP Groups and Users
You can specify an identification name (engine ID) for the local or remote SNMP server engine on the switch. You can
configure an SNMP server group that maps SNMP users to SNMP views, and you can add new users to the SNMP group.
565
Configuring SNMP
How to Configure SNMP
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
snmp-server engineID {local engineid-string
Configures a name for either the local or remote copy of SNMP.
| remote ip-address [udp-port port-number]
engineid-string}
The engineid-string is a 24-character ID string with the name
of the copy of SNMP. You need not specify the entire
24-character engine ID if it has trailing zeros. Specify only the
portion of the engine ID up to the point where only zeros
remain in the value. For example, to configure an engine ID of
123400000000000000000000, you can enter this:
snmp-server engineID local 1234
If you select remote, specify the ip-address of the device that
contains the remote copy of SNMP and the optional User
Datagram Protocol (UDP) port on the remote device. The
default is 162.
566
Configuring SNMP
How to Configure SNMP
Command
Purpose
3.
snmp-server group groupname {v1 | v2c | v3
Configures a new SNMP group on the remote device.
{auth | noauth | priv}} [read readview] [write
writeview] [notify notifyview] [access
groupname—Specifies the name of the group.
access-list]
Specify a security model:
— v1 is the least secure of the possible security models.
— v2c is the second least secure model. It allows
transmission of informs and integers twice the normal
width.
— v3, the most secure, requires you to select an
authentication level:
auth—Enables the Message Digest 5 (MD5) and the Secure
Hash Algorithm (SHA) packet authentication.
noauth—Enables the noAuthNoPriv security level. This is
the default if no keyword is specified.
priv—Enables Data Encryption Standard (DES) packet
encryption (also called privacy).
Note: The priv keyword is available only when the cryptographic
software image is installed.
(Optional) read readview—Specifies a string (not to exceed 64
characters) that is the name of the view in which you can only
view the contents of the agent.
(Optional) write writeview—Specifies a string (not to exceed
64 characters) that is the name of the view in which you enter
data and configure the contents of the agent.
(Optional) notify notifyview—Specifies a string (not to exceed
64 characters) that is the name of the view in which you
specify a notify, inform, or trap.
(Optional) access access-list—Specifies a string (not to
exceed 64 characters) that is the name of the access list.
567
Configuring SNMP
How to Configure SNMP
Command
Purpose
4.
snmp-server user username groupname
Adds a new user for an SNMP group.
{remote host [udp-port port]} {v1 [access
access-list] | v2c [access access-list] | v3
username—Specifies a name of the user on the host that
[encrypted] [access access-list] [auth {md5
connects to the agent.
| sha} auth-password]} [priv {des | 3des | aes
groupname—Specifies a name of the group to which the user
{128 | 192 | 256}} priv-password]
is associated.
remote—Specifies a remote SNMP entity to which the user
belongs and the hostname or IP address of that entity with the
optional UDP port number. The default is 162.
Enters the SNMP version number (v1, v2c, or v3). If you enter
v3, you have these additional options:
— encrypted—Specifies that the password appears in
encrypted format. This keyword is available only when the
v3 keyword is specified.
— auth—Specifies an authentication level setting session
that can be either the HMAC-MD5-96 (md5) or the
HMAC-SHA-96 (sha) authentication level and requires a
password string auth-password (not to exceed 64
characters).
If you enter v3 and the switch is running the cryptographic
software image, you can also configure a private (priv)
encryption algorithm and password string priv-password (not
to exceed 64 characters).
— priv—Specifies the User-based Security Model (USM).
— des—Specifies the use of the 56-bit DES algorithm.
—
3des—Specifies the use of the 168-bit DES algorithm.
— aes—Specifies the use of the DES algorithm. You must
select either 128-bit, 192-bit, or 256-bit encryption.
(Optional) Enters access access-list with a string (not to
exceed 64 characters) that is the name of the access list.
5.
end
Returns to privileged EXEC mode.
Configuring SNMP Notifications
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
snmp-server engineID remote
Specifies the engine ID for the remote host.
ip-address engineid-string
3.
snmp-server user username
Configures an SNMP user to be associated with the remote host created
groupname {remote host [udp-port
in Step 2.
port]} {v1 [access access-list] | v2c
[access access-list] | v3 [encrypted]
Note: You cannot configure a remote user for an address without first
[access access-list] [auth {md5 | sha}
configuring the engine ID for the remote host. Otherwise, you receive an
auth-password]}
error message, and the command is not executed.
568
Configuring SNMP
How to Configure SNMP
Command
Purpose
4.
snmp-server group groupname {v1 |
Configures an SNMP group.
v2c | v3 {auth | noauth | priv}} [read
readview] [write writeview] [notify
notifyview] [access access-list]
5.
snmp-server host host-addr
Specifies the recipient of an SNMP trap operation.
[informs | traps] [version {1 | 2c | 3
{auth | noauth | priv}}]
host-addr—Specifies the name or Internet address of the host (the
community-string [notification-type]
targeted recipient).
(Optional) informs—Specifies SNMP informs to be sent to the host.
(Optional) traps (the default)—Specifies SNMP traps to be sent to the
host.
(Optional) Specifies the SNMP version (1, 2c, or 3). SNMPv1 does
not support informs.
(Optional) Version 3—Selects authentication level auth, noauth, or
priv.
Note: The priv keyword is available only when the cryptographic
software image is installed.
community-string—When version 1 or version 2c is specified, enters
the password-like community string sent with the notification
operation. When version 3 is specified, enter the SNMPv3
username.
Note: The @ symbol is used for delimiting the context information. Avoid
using the @ symbol as part of the SNMP community string when
configuring this command.
(Optional) notification-type—Specifies a notification type. Use the
keywords listed in Table 55 on page 562. If no type is specified, all
notifications are sent.
6.
snmp-server enable traps
Enables the switch to send traps or informs and specifies the type of
notification-types
notifications to be sent. For a list of notification types, see Table 55 on
page 562, or enter snmp-server enable traps ?
To enable multiple types of traps, you must enter a separate
snmp-server enable traps command for each trap type.
Note: When you configure a trap by using the notification type
port-security, configure the port security trap first, and then configure
the port security trap rate:
snmp-server enable traps port-security
snmp-server enable traps port-security trap-rate rate
7.
snmp-server trap-source interface-id
(Optional) Specifies the source interface, which provides the IP address
for the trap message. This command also sets the source IP address for
informs.
569
Configuring SNMP
How to Configure SNMP
Command
Purpose
8.
snmp-server queue-length length
(Optional) Establishes the message queue length for each trap host. The
range is 1 to 1000; the default is 10.
9.
snmp-server trap-timeout seconds
(Optional) Defines how often to resend trap messages. The range is 1 to
1000; the default is 30 seconds.
10.
end
Returns to privileged EXEC mode.
Setting the CPU Threshold Notification Types and Values
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
process cpu threshold type {total |
Sets the CPU threshold notification types and values:
process | interrupt} rising percentage
total—Sets the notification type to total CPU utilization.
interval seconds [falling fall-percentage
interval seconds]
process—Sets the notification type to CPU process utilization.
interrupt—Sets the notification type to CPU interrupt utilization.
rising percentage—Specifies the percentage (1 to 100) of CPU
resources that, when exceeded for the configured interval, sends
a CPU threshold notification.
interval seconds—Specifies the duration of the CPU threshold
violation in seconds (5 to 86400) that, when met, sends a CPU
threshold notification.
falling fall-percentage—Specifies the percentage (1 to 100) of
CPU resources that, when usage falls below this level for the
configured interval, sends a CPU threshold notification.
This value must be equal to or less than the rising percentage
value. If not specified, the falling fall-percentage value is the
same as the rising percentage value.
3.
end
Returns to privileged EXEC mode.
Setting the Agent Contact and Location Information
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
snmp-server contact text
Sets the system contact string.
3.
snmp-server location text
Sets the system location string.
4.
end
Returns to privileged EXEC mode.
570
Configuring SNMP
Monitoring and Maintaining SNMP
Limiting TFTP Servers Used Through SNMP
Command
Purpose
1.
configure terminal
Enters global configuration mode.
2.
snmp-server tftp-server-list
Limits TFTP servers used for configuration file copies through
access-list-number
SNMP to the servers in the access list.
access-list-number—Enters an IP standard access list numbered
from 1 to 99 and 1300 to 1999.
3.
access-list access-list-number {deny |
Creates a standard access list, repeating the command as many
permit} source [source-wildcard]
times as necessary.
access-list-number—Enters the access list number specified in
Step 2.
deny—Denies access if the conditions are matched. The
permit keyword permits access if the conditions are matched.
source—Enters the IP address of the TFTP servers that can
access the switch.
(Optional) source-wildcard—Enters the wildcard bits, in dotted
decimal notation, to be applied to the source. Place ones in the
bit positions that you want to ignore.
Recall that the access list is always terminated by an implicit deny
statement for everything.
4.
end
Returns to privileged EXEC mode.
Monitoring and Maintaining SNMP
Command
Purpose
show snmp
Displays SNMP statistics.
show snmp engineID [local | remote]
Displays information on the local SNMP engine and all remote engines
that have been configured on the device.
show snmp group
Displays information on each SNMP group on the network.
show snmp pending
Displays information on pending SNMP requests.
show snmp sessions
Displays information on the current SNMP sessions.
show snmp user
Displays information on each SNMP user name in the SNMP users table.
Note: You must use this command to display SNMPv3 configuration
information for auth | noauth | priv mode. This information is not
displayed in the show running-config output.
571
Configuring SNMP
Configuration Examples for SNMP
Configuration Examples for SNMP
Enabling SNMP Versions: Example
This example shows how to enable all versions of SNMP. The configuration permits any SNMP manager to access all
objects with read-only permissions using the community string public. This configuration does not cause the switch to
send any traps.
Switch(config)# snmp-server community public
Permit SNMP Manager Access: Example
This example shows how to permit any SNMP manager to access all objects with read-only permission using the
community string public. The switch also sends VTP traps to the hosts 192.180.1.111 and 192.180.1.33 using SNMPv1
and to the host 192.180.1.27 using SNMPv2C. The community string public is sent with the traps.
Switch(config)# snmp-server community public
Switch(config)# snmp-server enable traps vtp
Switch(config)# snmp-server host 192.180.1.27 version 2c public
Switch(config)# snmp-server host 192.180.1.111 version 1 public
Switch(config)# snmp-server host 192.180.1.33 public
Allow Read-Only Access: Example
This example shows how to allow read-only access for all objects to members of access list 4 that use the comaccess
community string. No other SNMP managers have access to any objects. SNMP Authentication Failure traps are sent by
SNMPv2C to the host cisco.com using the community string public.
Switch(config)# snmp-server community comaccess ro 4
Switch(config)# snmp-server enable traps snmp authentication
Switch(config)# snmp-server host cisco.com version 2c public
Configure SNMP Traps: Examples
This example shows how to send entity MIB traps to the host cisco.com. The community string is restricted. The first line
enables the switch to send entity MIB traps in addition to any traps previously enabled. The second line specifies the
destination of these traps and overwrites any previous snmp-server host commands for the host cisco.com.
Switch(config)# snmp-server enable traps entity
Switch(config)# snmp-server host cisco.com restricted entity
This example shows how to enable the switch to send all traps to the host myhost.cisco.com using the community string
public:
Switch(config)# snmp-server enable traps
Switch(config)# snmp-server host myhost.cisco.com public
Associating a User with a Remote Host: Example
This example shows how to associate a user with a remote host and to send auth (authNoPriv) authentication-level
informs when the user enters global configuration mode:
Switch(config)# snmp-server engineID remote 192.180.1.27 00000063000100a1c0b4011b
Switch(config)# snmp-server group authgroup v3 auth
Switch(config)# snmp-server user authuser authgroup remote 192.180.1.27 v3 auth md5 mypassword
Switch(config)# snmp-server user authuser authgroup v3 auth md5 mypassword
Switch(config)# snmp-server host 192.180.1.27 informs version 3 auth authuser config
572
Configuring SNMP
Additional References
Switch(config)# snmp-server enable traps
Switch(config)# snmp-server inform retries 0
Assigning a String to SNMP: Example
This example shows how to assign the string comaccess to SNMP, to allow read-only access, and to specify that IP
access list 4 can use the community string to gain access to the switch SNMP agent:
Switch(config)# snmp-server community comaccess ro 4
Additional References
The following sections provide references related to switch administration:
573
Configuring SNMP
Additional References
Related Documents
Related Topic
Document Title
Cisco IOS basic commands
Cisco IOS Configuration Fundamentals Command Reference
Cisco IOS SNMP syntax and usage
Cisco IOS Network Management Command Reference
Standards
Standards
Title
No new or modified standards are supported by this
—
feature, and support for existing standards has not
been modified by this feature.
MIBs
MIBs
MIBs Link
—
To locate and download MIBs using Cisco IOS XR software, use the
Cisco MIB Locator found at the following URL and choose a platform
under the Cisco Access Products menu:
RFCs
RFCs
Title
No new or modified RFCs are supported by this
—
feature, and support for existing RFCs has not been
modified by this feature.
Technical Assistance
Description
Link
The Cisco Technical Support website contains
thousands of pages of searchable technical content,
including links to products, technologies, solutions,
technical tips, and tools. Registered Cisco.com users
can log in from this page to access even more content.
574
Configuring Network Security with ACLs
This chapter describes how to configure network security on the IE 4000, IE 4010 and IE5000 switches by using access
control lists (ACLs), also referred to as access lists. In this chapter, references to IP ACLs are specific to IP Version 4
(IPv4) ACLs, Port ACLs, VLAN ACLs and VLAN Maps.
Understanding ACLs
Configuring IPv4 ACLs
How to Configure Network Security with ACLs
Monitoring and Maintaining Network Security with ACLs
Configuration Examples for Network Security with ACLs
Configuring VLAN Maps with ACLs
Additional References
Understanding ACLs
Packet filtering can help limit network traffic and restrict network use by certain users or devices. ACLs filter traffic as it
passes through a router or switch and permit or deny packets crossing specified interfaces or VLANs. An ACL is a
sequential collection of permit and deny conditions that apply to packets. When a packet is received on an interface, the
switch compares the fields in the packet against any applied ACLs to verify that the packet has the required permissions
to be forwarded, based on the criteria specified in the access lists. One by one, it tests packets against the conditions
in an access list. The first match decides whether the switch accepts or rejects the packets. Because the switch stops
testing after the first match, the order of conditions in the list is critical. If no conditions match, the switch rejects the
packet. If there are no restrictions, the switch forwards the packet; otherwise, the switch drops the packet. The switch
can use ACLs on all packets it forwards, including packets bridged within a VLAN.
You configure access lists on a router or Layer 3 switch to provide basic security for your network. If you do not configure
ACLs, all packets passing through the switch could be allowed onto all parts of the network. You can use ACLs to control
which hosts can access different parts of a network or to decide which types of traffic are forwarded or blocked at router
interfaces. For example, you can allow e-mail traffic to be forwarded but not Telnet traffic. ACLs can be configured to
block inbound traffic, outbound traffic, or both.
An ACL contains an ordered list of access control entries (ACEs). Each ACE specifies permit or deny and a set of
conditions the packet must satisfy in order to match the ACE. The meaning of permit or deny depends on the context in
which the ACL is used.
The switch supports IP ACLs and Ethernet (MAC) ACLs:
IP ACLs filter IPv4 traffic, including TCP, User Datagram Protocol (UDP), Internet Group Management Protocol
(IGMP), and Internet Control Message Protocol (ICMP).
Ethernet ACLs filter non-IP traffic.
This switch also supports quality of service (QoS) classification ACLs. For more information, see Classification Based on
QoS ACLs, page 622.
575
Configuring Network Security with ACLs
Understanding ACLs
These sections contain this conceptual information:
Supported ACLs, page 576
Handling Fragmented and Unfragmented Traffic, page 578
Supported ACLs
Note: Router ACLs and VLAN maps are supported only on switches running the IP services image.
Port ACLs access-control traffic entering a Layer 2 interface. The switch does not support port ACLs in the outbound
direction. You can apply only one IP access list and one MAC access list to a Layer 2 interface. For more information, see
Port ACLs, page 576.
If IEEE 802.1Q tunneling is configured on an interface, any IEEE 802.1Q encapsulated IP packets received on the tunnel
port can be filtered by MAC ACLs, but not by IP ACLs. This is because the switch does not recognize the protocol inside
the IEEE 802.1Q header. This restriction applies to router ACLs and port ACLs.
Port ACLs
Port ACLs are ACLs that are applied to Layer 2 interfaces on a switch. Port ACLs are supported only on physical
interfaces and not on EtherChannel interfaces and can be applied only on interfaces in the inbound direction. These
access lists are supported:
Standard IP access lists using source addresses
Extended IP access lists using source and destination addresses and optional protocol type information
MAC extended access lists using source and destination MAC addresses and optional protocol type information
The switch examines ACLs associated with all inbound features configured on a given interface and permits or denies
packet forwarding based on how the packet matches the entries in the ACL. In this way, ACLs control access to a network
or to part of a network. Figure 74 on page 577 is an example of using port ACLs to control access to a network when all
workstations are in the same VLAN. ACLs applied at the Layer 2 input would allow Host A to access the Human Resources
network, but prevent Host B from accessing the same network. Port ACLs can only be applied to Layer 2 interfaces in
the inbound direction.
When you apply a port ACL to a trunk port, the ACL filters traffic on all VLANs present on the trunk port. When you apply
a port ACL to a port with voice VLAN, the ACL filters traffic on both data and voice VLANs.
With port ACLs, you can filter IP traffic by using IP access lists and non-IP traffic by using MAC addresses. You can filter
both IP and non-IP traffic on the same Layer 2 interface by applying both an IP access list and a MAC access list to the
interface.
Note: You cannot apply more than one IP access list and one MAC access list to a Layer 2 interface. If an IP access list
or MAC access list is already configured on a Layer 2 interface and you apply a new IP access list or MAC access list to
the interface, the new ACL replaces the previously configured one.
576
|
|
