Boeing 737 - 600/700/800/900. Operations Manual (1997 year) - page 52
Flight Instruments, Displays -
Primary Flight Display (PFD)
Boeing 737 Operations Manual
Approach Minimums
[Option - Radio altitude above ADI]
The selected radio altitude or barometric approach minimums are set on the EFIS
control panel. The radio altitude approach minimum is displayed near the top left
of the altitude display and the barometric approach minimums is displayed near
the bottom left of the altitude display.
Radio Altitude
[Option - Radio altitude above ADI, round dial]
The current radio altitude is displayed above the upper right corner of the attitude
indication area when radio altitude is below 2,500 feet AGL. When between 1000
feet and 2500 feet AGL, the readout is digital. When below 1000 feet AGL, the
readout is displayed in a round dial format. The display turns amber when the
radio altimeter is below the radio altitude minimums.
Altitude
Altitude is displayed on an altitude tape along the right side of the PFD. It is also
shown digitally in a window in the middle of the tape. When meters is selected on
the EFIS control panel:
• current altitude in meters is also shown above the altitude window
• selected altitude in meters is displayed above the altitude tape.
Selected altitude is displayed above the altitude tape and is boxed when
approaching the selected altitude. Selected altitude is also depicted with a bug on
the altitude tape.
[Option - Landing altitude reference bar]
A landing altitude reference bar is displayed along the inner edge of the altitude
indication. The reference bar indicates the height above touchdown. A white bar
is displayed from 1000 to 500 feet above landing altitude. An amber bar is
displayed from 500 feet to the landing altitude.
A landing altitude indication is displayed as a crosshatched area and indicates:
• the FMC landing altitude for destination runway or airport, or
• the landing altitude for departure runway or airport until 400 NM from
departure or one-half the distance to destination, whichever occurs first.
The current barometric reference is displayed below the altitude tape in either
inches of mercury or hectopascals as selected on the EFIS control panel. A
preselected barometric reference can be displayed when STD is displayed.
10.31.4
Flight Instruments, Displays -
Primary Flight Display (PFD)
Boeing 737 Operations Manual
[Option - Altimeter with QFE]
Altitude reference is selectable between QNH and QFE. QNH is the normal
operating mode. A description of QFE operation is contained in the CDU
Approach Reference Page description in Chapter
11, Flight Management,
Navigation.
Vertical Speed
Vertical speed is displayed to the right of the altitude tape with a tape and pointer.
Vertical speed is digitally displayed above or below the vertical speed display
when vertical speed is greater than 400 feet per minute. It is displayed above with
positive vertical speed and below with negative vertical speed. The selected
vertical speed bug shows the selected vertical speed when in the AFDS vertical
speed (V/S) pitch mode.
Heading/Track Indications
Heading/track information is displayed in the bottom section of the PFD on a
section of the compass rose. Current heading is displayed under a pointer at the
top of the compass rose. The MCP selected heading is displayed as a bug on the
outside of the compass rose and digitally in the left half of the compass rose.
The current heading/track reference (MAG/TRU) is shown in the right half of the
compass rose. A line drawn perpendicular to the edge of the compass rose from
the invisible center depicts the current airplane track.
Traffic Alert and Collision Avoidance (TCAS) Indications
[Option - VSI TCAS advisory]
TCAS resolution advisories are displayed in the attitude indication and vertical
speed indication areas.
Refer to Chapter 15, Warning Systems.
GPWS Warnings
GPWS warnings are displayed in large capital letters between the attitude display
and the heading/track compass rose. Refer to Chapter 15, Warning Systems.
10.31.5
Flight Instruments, Displays -
Primary Flight Display (PFD)
Boeing 737 Operations Manual
Intentionally
Blank
10.31.6
Boeing 737 Operations Manual
Flight Instruments, Displays
Chapter 10
Navigation Displays
Section 40
Introduction
The navigation displays provide a color display of flight progress. The displays
consist of the following:
• horizontal situation indicator
• navigation display with MAP,
• radio distance magnetic
APP (approach), VOR, and
indicator
PLN (plan) modes.
The MAP, VOR, and APP modes can be switched between an expanded mode
with a partial compass rose and a center mode with a full compass rose.
Horizontal Situation Indicator (HSI)
The HSI provides heading and track data with VOR navigation or ILS approach
information. The data are normally displayed on a compass rose with 200 degrees
of heading. In the compact EFIS mode, the data are presented on a 360 degree
display.
Radio Distance Magnetic Indicator (RDMI)
The RDMI provides the same information as a conventional RDMI.
Navigation Display - MAP Mode
The MAP mode is recommended for most phases of flight.
[Option - Heading-up display]
Presented heading up, this mode shows airplane position relative to the route of
flight against a moving map background.
Displayed information can include:
• current track
• true airspeed
• selected and current heading
• wind direction and speed
• position trend vector
• next waypoint distance
• range to selected altitude
• waypoint estimated
• map range scale
time of arrival
• ground speed
• selected navigation data points.
Navigation Data Points
Additional navigation facility (STA), waypoint (WPT), airport (ARPT), route
progress (DATA) and position (POS) data are available for display in both the
expanded and center MAP modes.
10.40.1
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
VOR and Approach Modes
The VOR and APP modes are presented heading up. The VOR and APP modes
display track, heading, and wind speed and direction with VOR navigation or ILS
approach information.
Plan Mode
The PLN mode is presented true north up. The active route may be viewed using
the STEP prompt on the CDU LEGS pages.
Navigation Display Information
Heading
Heading is supplied by air data inertial reference system (ADIRS). The compass
rose can be referenced to magnetic north or true north.
Track
Track is supplied by the FMC during normal operation.
Traffic
Traffic information from the TCAS can be displayed on the navigation display
when in MAP, Center MAP, APP and VOR modes. TCAS is described in Chapter
15, Warning Systems.
Weather Radar
Weather radar information can be displayed on the navigation display when in
MAP, Center MAP, APP and VOR modes. The weather radar system is described
in Chapter 11, Flight Management, Navigation.
Failure Flags and Messages
Failure flags are displayed for system failures or invalid information. Indications
are removed or replaced by dashes when source system information is not
available.
The message EXCESS DATA is displayed if the amount of information sent to the
navigation display exceeds the display capability. The message can be removed
by:
• reducing the amount of map information
• reducing range, or
• deselecting one or more of the EFIS control panel map switches (STA,
WPT, ARPT, DATA, POS).
10.40.2
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
Navigation Display Symbology
The following symbols can be displayed, depending on EFIS control panel switch
selections. Colors indicate the following:
• W (white) - present status, range scales
• G (green) - active or selected mode and/or dynamic conditions
• M (magenta) - command information, pointers, symbols, fly-to
condition, weather radar turbulence
• C (cyan) - nonactive or background information
• A (amber) - cautions, faults, flags
• R (red) - warnings
• B (black) - blank area, off condition.
Heading, Track, and Speed
[Option - Heading-up display]

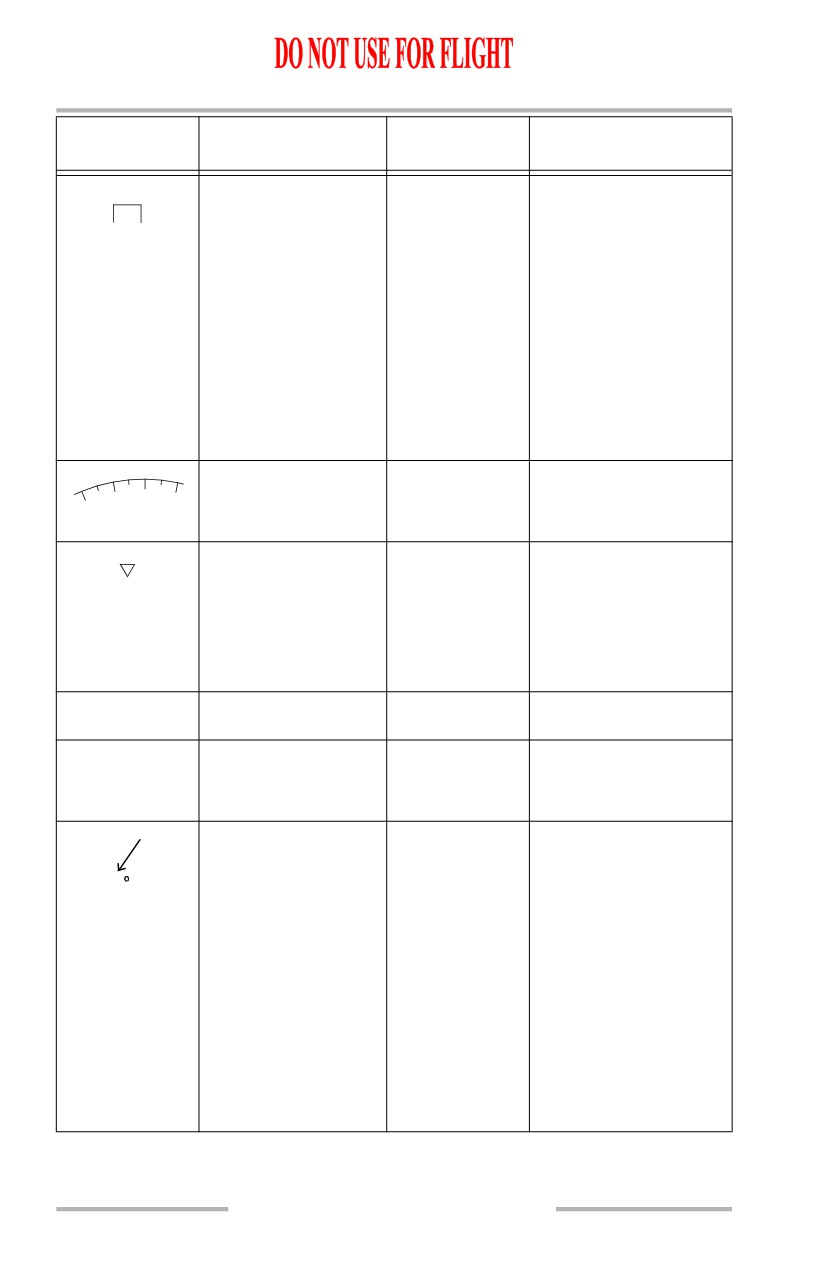

SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
Heading orientation
MAP,
Displays HDG as the
HDG
263
M
(G), current heading
MAP CTR,
display orientation,
(W), heading
APP,
current heading, M or
reference (G), and
APP CTR,
TRU as the heading
heading pointer (W)
VOR,
reference, and points to
VOR CTR
the heading on the
compass rose.
Selected heading bug
MAP,
Displays the
(M)
MAP CTR,
MCP-selected heading.
APP,
A dashed line (M)
APP CTR,
extends from the marker
VOR,
to the airplane symbol
VOR CTR
(VOR CTR and APP
CTR do not display
dashed line).
Track line and range
MAP,
Indicates current track.
scale (W)
MAP CTR,
40
APP,
VOR
10.40.3
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
M OR
Heading/track
MAP,
Indicates heading/track
TRU
reference (G), box
MAP CTR,
is referenced to
(W) in TRU, box (A)
APP,
magnetic north or true
if TRU displayed in
APP CTR,
north. On transition
descent
VOR,
from TRU to M, a
VOR CTR
highlight box is
displayed around M for
10 seconds. When TRU
is the reference, the
highlight box is
displayed full time
(white).
Expanded compass
MAP,
Displays 60 degrees of
15
(W)
APP,
compass rose.
12
VOR
Current heading
MAP,
Points to current
pointer (W)
MAP CTR,
heading on the compass
APP,
rose.
APP CTR,
VOR,
VOR CTR
Groundspeed (W)
All
Current ground speed.
GS310
True airspeed (W)
All
Current true airspeed
TAS312
displayed above 100
knots.
Wind direction/ speed
MAP,
Indicates wind speed
and wind arrow (W)
MAP CTR,
and direction, with
350 /15
APP,
respect to display
APP CTR,
orientation and
VOR,
heading/track reference.
VOR CTR
Displayed if wind
magnitude is greater
than 6 knots and blanked
if wind magnitude
becomes less than 4
knots. Dashes are
displayed until TAS is
greater than 101 knots.
10.40.4
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual

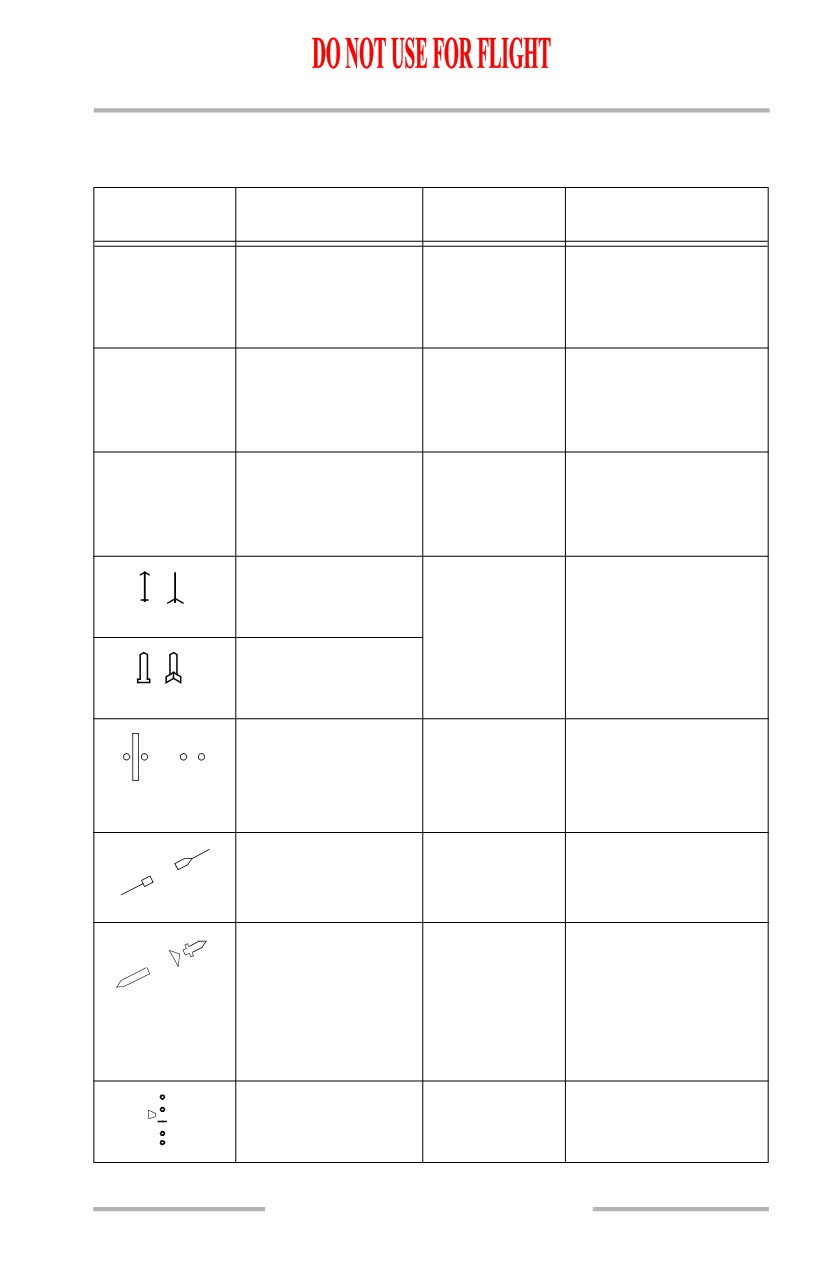

Radio Navigation
[Option - Full time ADF, VOR course lines displayed, dual ADF]
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
System source
APP,
Indicates the selected
VOR 1, 2
ILS 1, 2
annunciation (G)
APP CTR,
receiver as the display
VOR,
reference.
VOR CTR
ILS/VOR frequency
APP,
Displays frequency of
116.80
display (G)
APP CTR,
manually tuned navaid.
VOR,
VOR CTR
DME distance (W)
APP,
Indicates DME distance
DME
24.6
APP CTR,
to the reference navaid.
VOR,
VOR CTR
VOR 1 or ADF 1
All except PLN
Indicates bearing to
pointer head and tail
(head) or from (tail) the
(C)
tuned station. Not
displayed if POS
VOR 2 or ADF 2
selected on the EFIS
pointer head and tail
control panel.
(C)
ILS localizer or VOR
APP,
Displays LOC or VOR
course deviation
APP CTR,
course deviation.
indication (M) and
VOR,
scale (W)
VOR CTR
Selected course
APP,
Displays selected course
pointer (W) and line
VOR
as set by the related
(M)
MCP course selector.
Selected course
APP CTR, VOR
Displays selected course
pointer (W)
CTR
as set by the related
MCP course selector.
TO/FROM pointer
(W)
TO/FROM pointer is
displayed when VOR
navigation is being used.
Glideslope pointer
APP,
Displays glideslope
(M) and scale (W)
APP CTR
position and deviation.
October 15, 2001
10.40.5
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

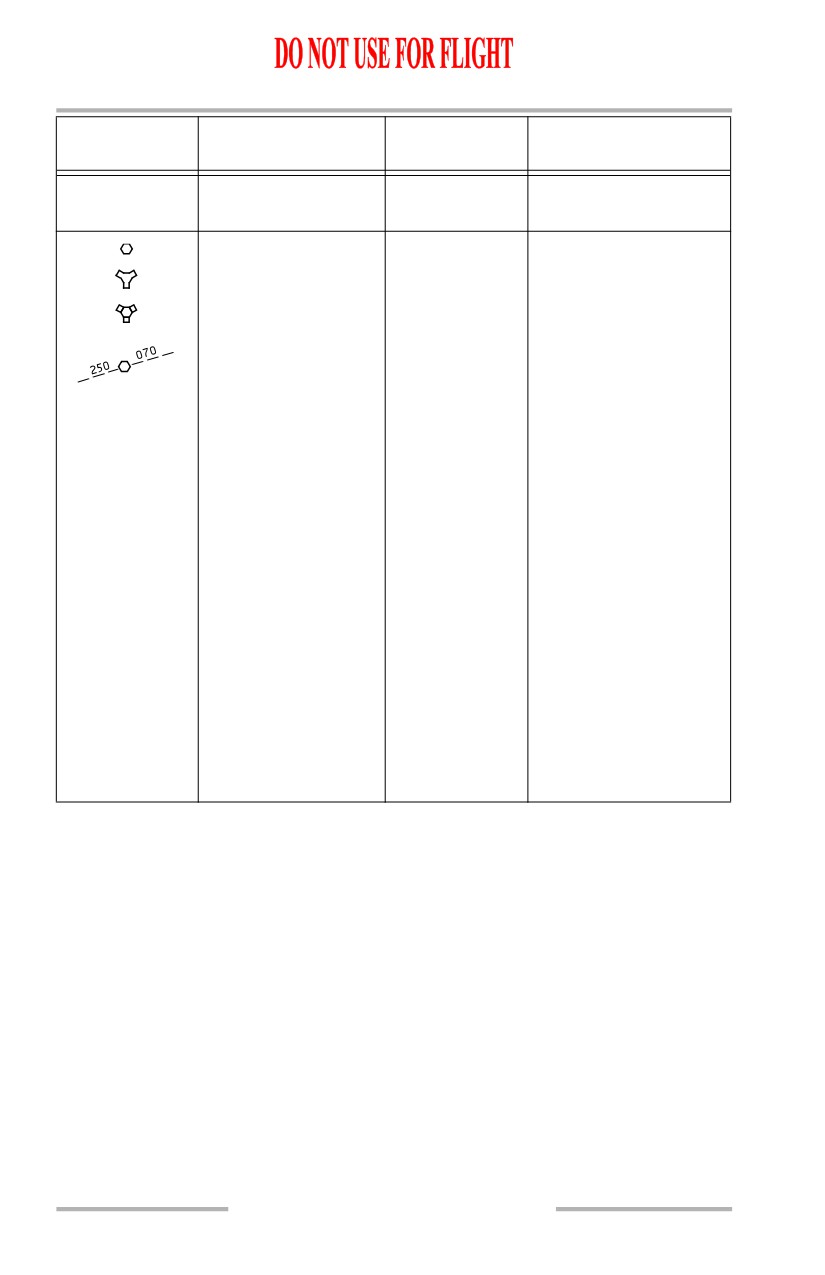

To/from indication
VOR,
Displays VOR
TO
FROM
(W)
VOR CTR
TO/FROM indication.
VOR (C, G),
MAP,
When the EFIS control
MAP CTR, PLN
panel STA map switch is
DME/TACAN (C, G),
selected on, appropriate
VORTAC (C, G)
navaids are displayed.
Manually tuned VOR
All navaids contained in
radials
the FMC data base and
within the MAP area are
displayed when the
selected range is 5, 10,
20 or 40 nm. Only high
altitude navaids are
displayed when the
selected range is 80,
160, 320 or 640 nm.
Navaids not being used
are displayed in cyan.
Manually tuned VHF
navaids are displayed in
green, regardless of STA
map switch selection.
When a navaid is
manually tuned, the
selected course and
reciprocal are displayed.
10.40.6
October 15, 2001
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

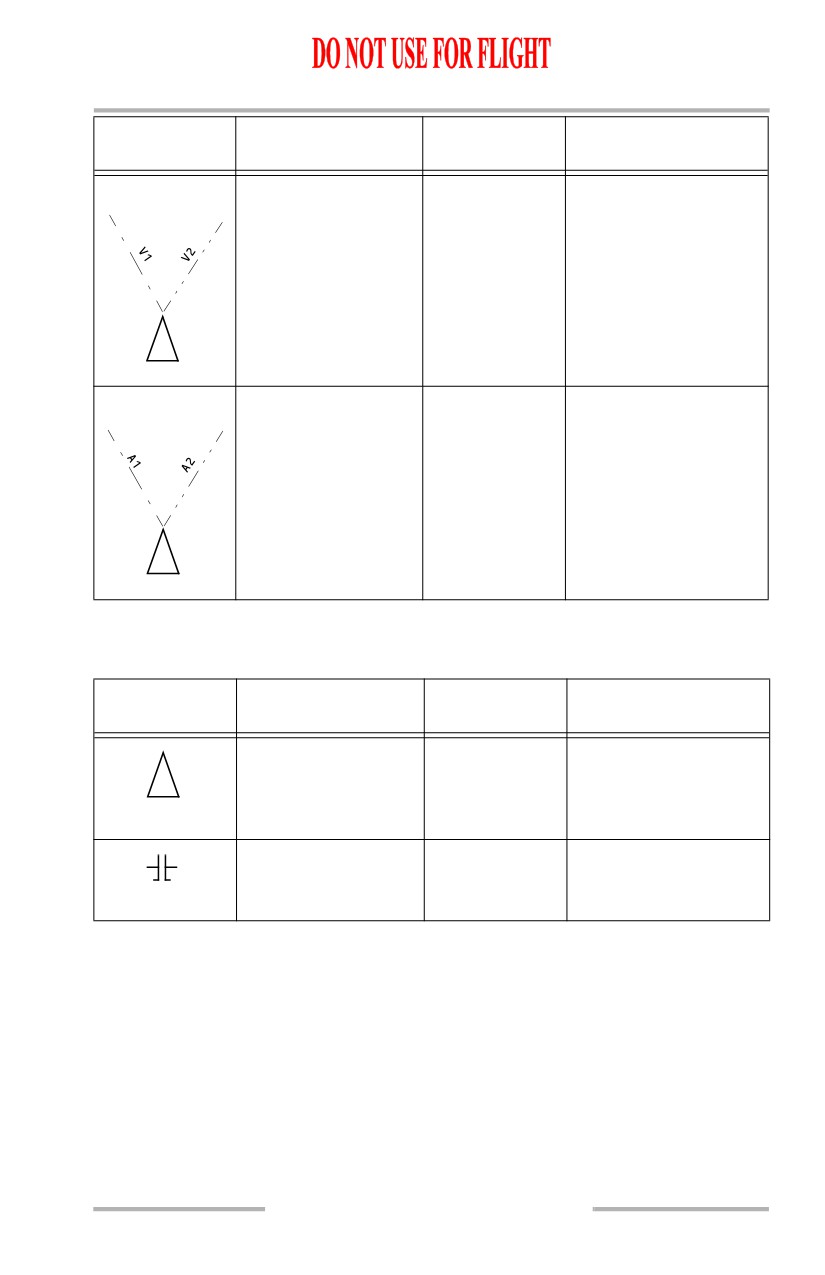

VOR radials (G)
MAP,
When the POS map
MAP CTR
switch is selected on and
a valid VOR signal is
received, the station
radial is displayed.
ADF bearings (C)
MAP,
When the POS map
MAP CTR
switch is selected on and
a valid ADF signal is
received, the relative
bearing to the tuned
ADF station is
displayed.
MAP
[Option - Automatic position difference, weather radar range marks, single FMC]
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
Airplane symbol (W)
MAP,
Current airplane
MAP CTR,
position is at the apex of
APP,
the triangle.
VOR
Airplane symbol (W)
APP CTR, VOR
Current airplane
CTR
position is at the center
of the symbol.
10.40.7
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

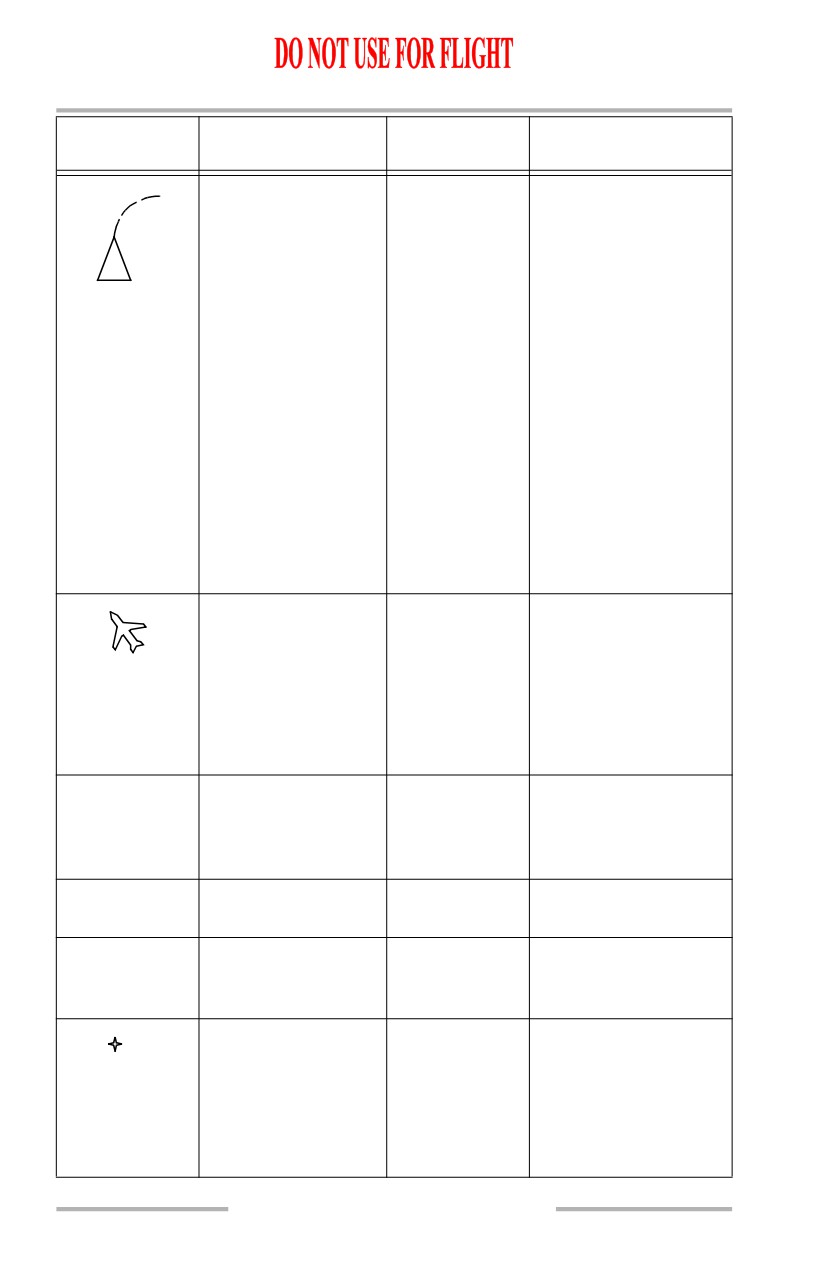

Position trend vector
MAP,
Predicts position at the
(W) (dashed line)
MAP CTR
end of 30, 60, and 90
second intervals. Each
segment represents 30
seconds. Based on bank
angle and ground speed.
Selected range
determines the number
of segments displayed.
For range:
• greater than 20
NM, 3
segments
•
= 20 NM, 2
segments
•
<= 10 NM, 1
segment.
Airplane symbol (W)
PLN
Indicates actual position
and track along the
flight plan route in plan
mode only.
Inhibited north of 82N
latitude and south of 82S
latitude.
Active waypoint
MAP,
Indicates the active
ABCDE
identifier (M)
MAP CTR, PLN
flight plan waypoint, the
next waypoint on the
route of flight.
Active waypoint
MAP,
Distance to the active
124 NM
distance (W)
MAP CTR, PLN
waypoint.
Active waypoint ETA
MAP,
Indicates
0835.4z
(W)
MAP CTR, PLN
FMS-calculated ETA at
the active waypoint.
Waypoint: active (M),
MAP,
Active - represents the
inactive (W)
MAP CTR, PLN
waypoint the airplane is
AMBOY
currently navigating to.
Inactive - represents the
waypoints on the active
route.
10.40.8
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

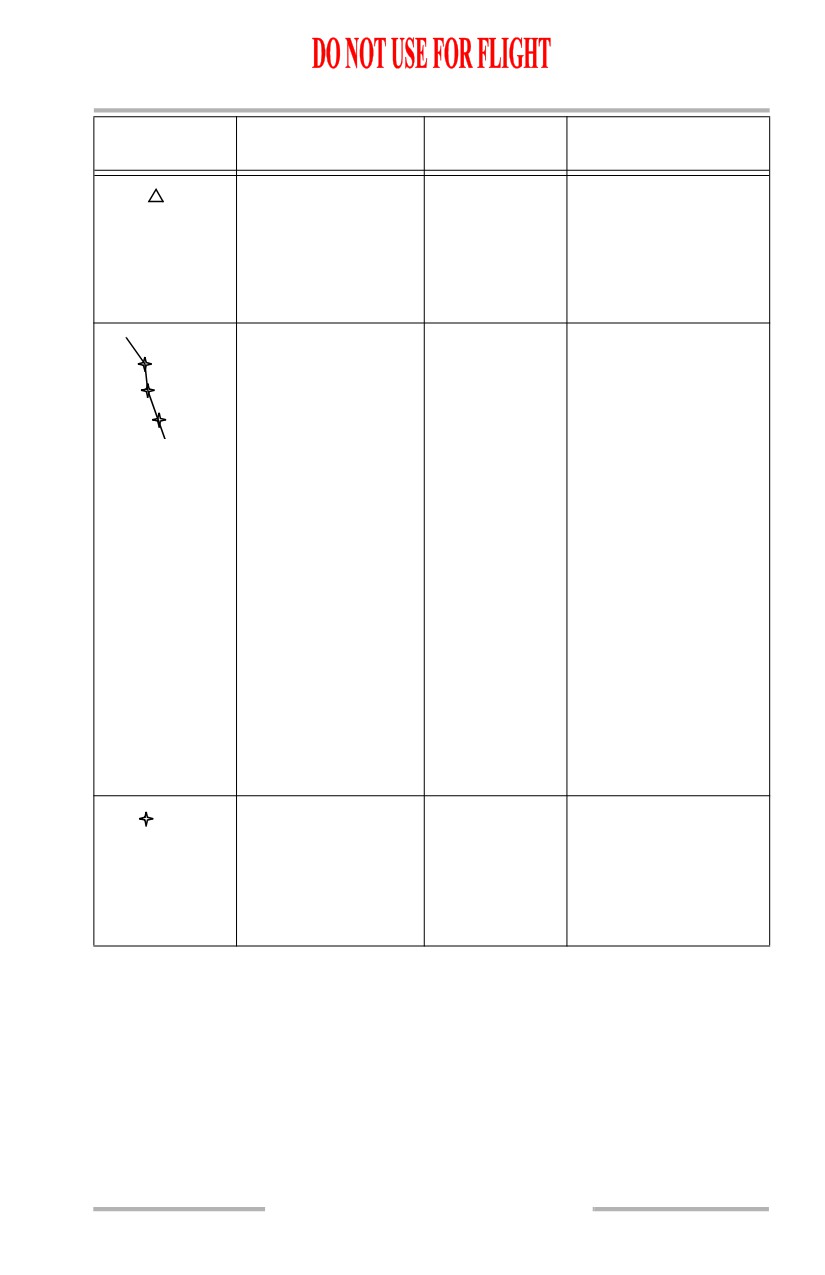

Off route waypoint
MAP,
When the EFIS control
MLF
(C)
MAP CTR, PLN
panel WPT map switch
is selected on, waypoints
not on the selected route
are displayed, for ranges
of 5, 10, 20, or 40 NM.
Flight plan route:
MAP,
The active route is
AMBOY
active (M), modified
MAP CTR, PLN
displayed with a
(W), inactive (C),
continuous line (M)
KILMR
offset (M)
between waypoints.
PARBY
Active route
modifications are
displayed with short
dashes (W) between
waypoints.
Inactive routes are
displayed with long
dashes (C) between
waypoints.
An offset route, selected
through the FMC, is
displayed with a
dot-dash line (M)
parallel to the active
route.
Route data: active
MAP,
When the EFIS control
KILMR
12000
waypoint (M),
MAP CTR, PLN
panel DATA map switch
0835Z
inactive waypoint (W)
is selected on, entered or
procedural altitude and
ETAs for route
waypoints are displayed.
October 15, 2001
10.40.9
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
Holding pattern:
MAP,
A holding pattern
active route (M),
MAP CTR, PLN
appears when in the
modified route (W),
flight plan.
inactive route (C)
The holding pattern
appears as a fixed size if
the selected range is
greater than 80 NM.
A scaled representation
of the holding pattern is
displayed when the
selected range is 80 NM
or less and the airplane
is within 3 minutes of
the holding fix.
Altitude range arc (G)
MAP,
Based on vertical speed
MAP CTR
and groundspeed,
indicates the
approximate map
position where the MCP
altitude is reached.
10.40.10
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)
Altitude profile point
MAP,
Indicates the
and identifier (G)
MAP CTR,
approximate map
T/D
PLAN
position of the
T/C
FMC-calculated T/C
(top-of-climb), T/D
S/C
(top- of-descent), S/C
E/D
(step climb), and E/D
(end of descent) points.
T/D-XXXXX
Indicates intermediate
T/D points for level
flight path segments
during descent. Level
flight path segment
altitude is displayed.
DECEL
Indicates the beginning
of a deceleration
segment resulting from
deceleration to a holding
pattern, a waypoint
speed restriction or flaps
up maneuvering speed.
Indicates airport speed
restriction deceleration
point (no identifier).
VNAV path pointer
MAP,
Displays vertical
(M) and deviation
MAP CTR
deviation from selected
scale (W)
VNAV PATH during
descent only. Scale
indicates +/- 400 feet
deviation. Digital
display is provided
when the pointer
indicates more than +/-
400 feet.
10.40.11
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

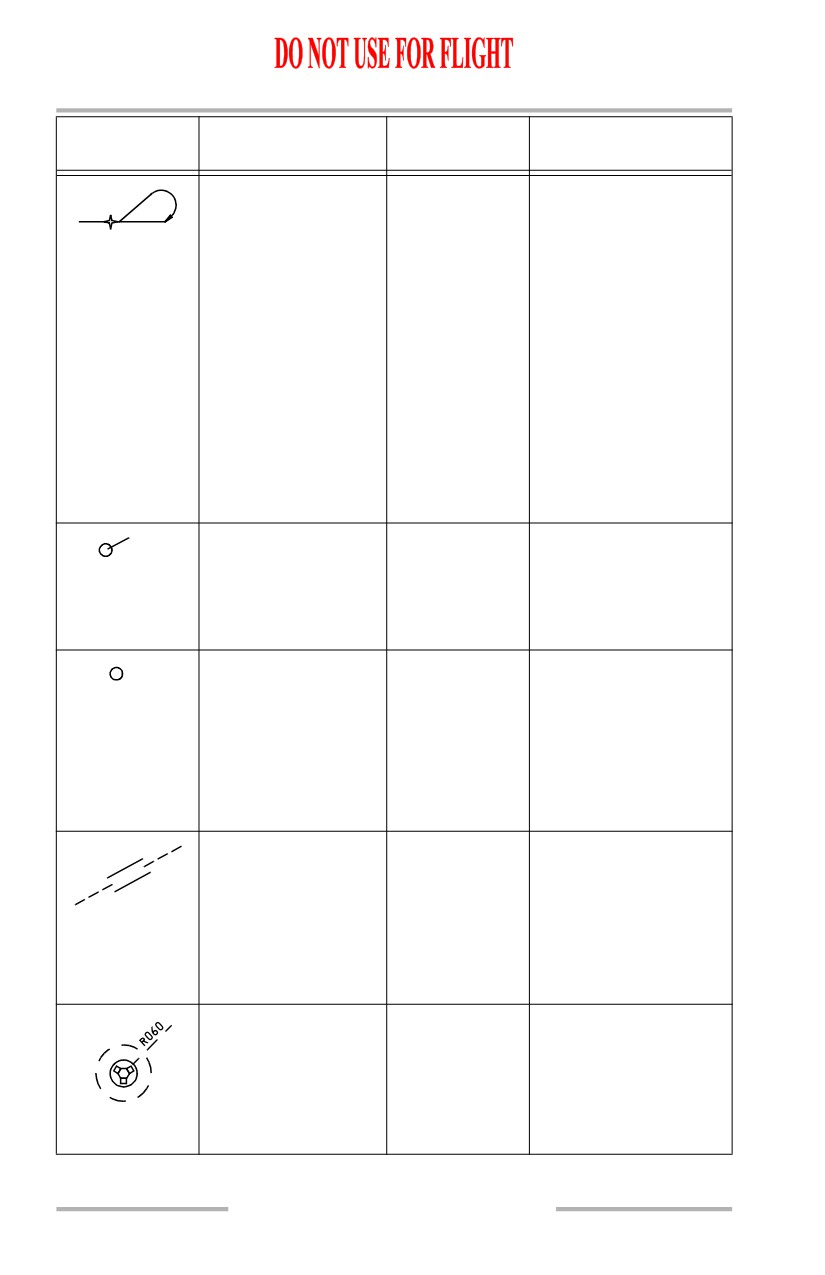

Procedure turn: active
MAP,
A procedure turn
route (M), modified
MAP CTR, PLN
appears when in the
route (W), inactive
flight plan.
route (C)
The procedure turn
appears as a fixed size if
the selected range is
greater than 80 NM.
A scaled representation
of the procedure turn is
displayed when the
selected range is 80 NM
or less and the airplane
is within 3 minutes of
the procedure turn.
Airport and runway
MAP,
Displayed when selected
KABC
(W)
MAP CTR, PLN
as the origin or
22L
destination and selected
range is 80, 160, 320, or
640 NM.
Airport (C)
MAP,
Displayed if the EFIS
KTEB
MAP CTR, PLN
control panel ARPT map
switch is selected on.
Origin and destination
airports are always
displayed, regardless of
map switch selection.
Airport and runway
MAP,
Displayed when selected
(W)
MAP CTR, PLN
as the origin or
22L
destination and selected
range is 5, 10, 20, or 40
NM. Dashed runway
centerlines extend 14.2
NM.
Selected reference
MAP,
Displays the reference
point and bearing
MAP CTR, PLN
point selected on the
distance information
CDU FIX page. Bearing
ABC
(G)
and/or distance from the
fix are displayed with
dashes (G).
10.40.12
October 15, 2001
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

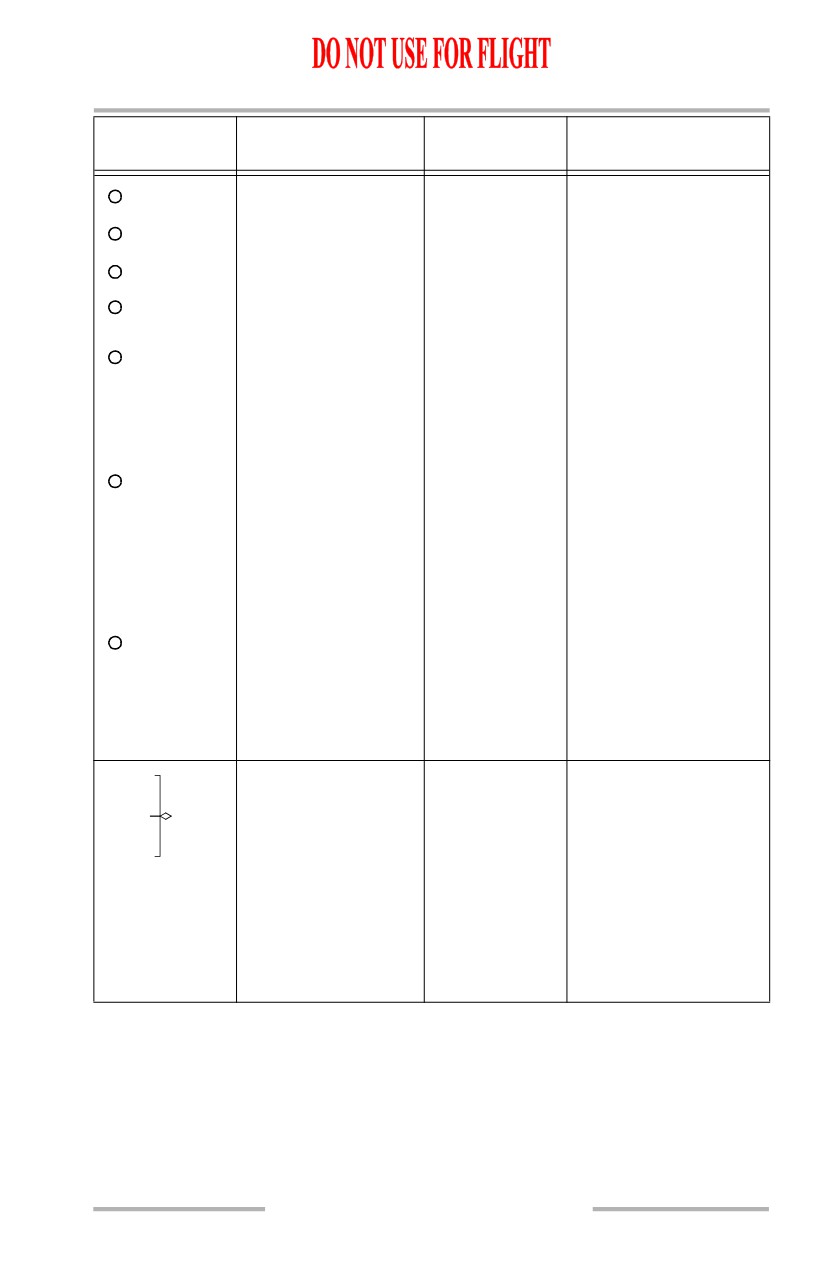

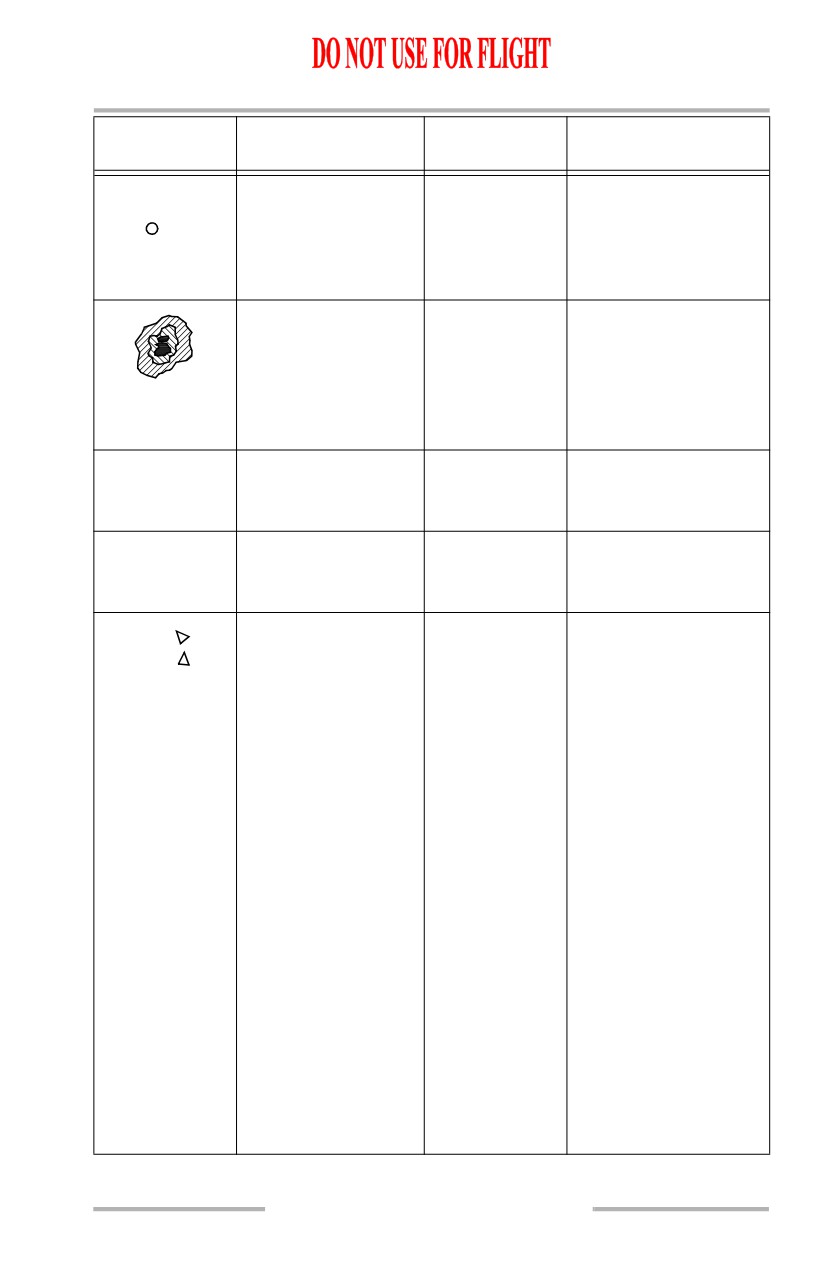

Position shift symbol:
PLN
Displays the position of
FMC
Active position (M),
each navigation sensor.
RADIO
IRS-R
Other position (G),
Symbols only appear if
IRS-L
GPS
Position selected for
the POS SHIFT page is
update (W)
displayed on the CDU.
Weather radar returns
MAP,
The most intense areas
(R, A, G, M)
MAP CTR,
are displayed in red,
APP,
lesser intensity in amber,
VOR
and lowest intensity
green. Turbulence is
displayed in magenta.
Selected map options
MAP,
Displays EFIS control
STA
WPT
(C)
MAP CTR, PLN
panel selected map
ARPT
options.
MAP source
MAP,
Displays source of data
FMC
annunciation (G)
MAP CTR, PLN
used by CDS for data
presentation.
Position difference
MAP,
Numbers - indicate the
4.5
L
4.3
display (W)
MAP CTR
position difference in
R
NM between the present
FMC position and the L
IRS and R IRS present
position. The selected
IRS source is displayed
on the first line.
Arrows - indicate the
relative bearing to the
related IRS present
position.
L or R - indicates which
IRS present position the
displayed position
difference corresponds
to.
Displayed when the
position difference of
the L IRS and/or R IRS
exceeds the position
difference limits.
10.40.13
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
APPLICABLE
REMARKS
MODE(S)

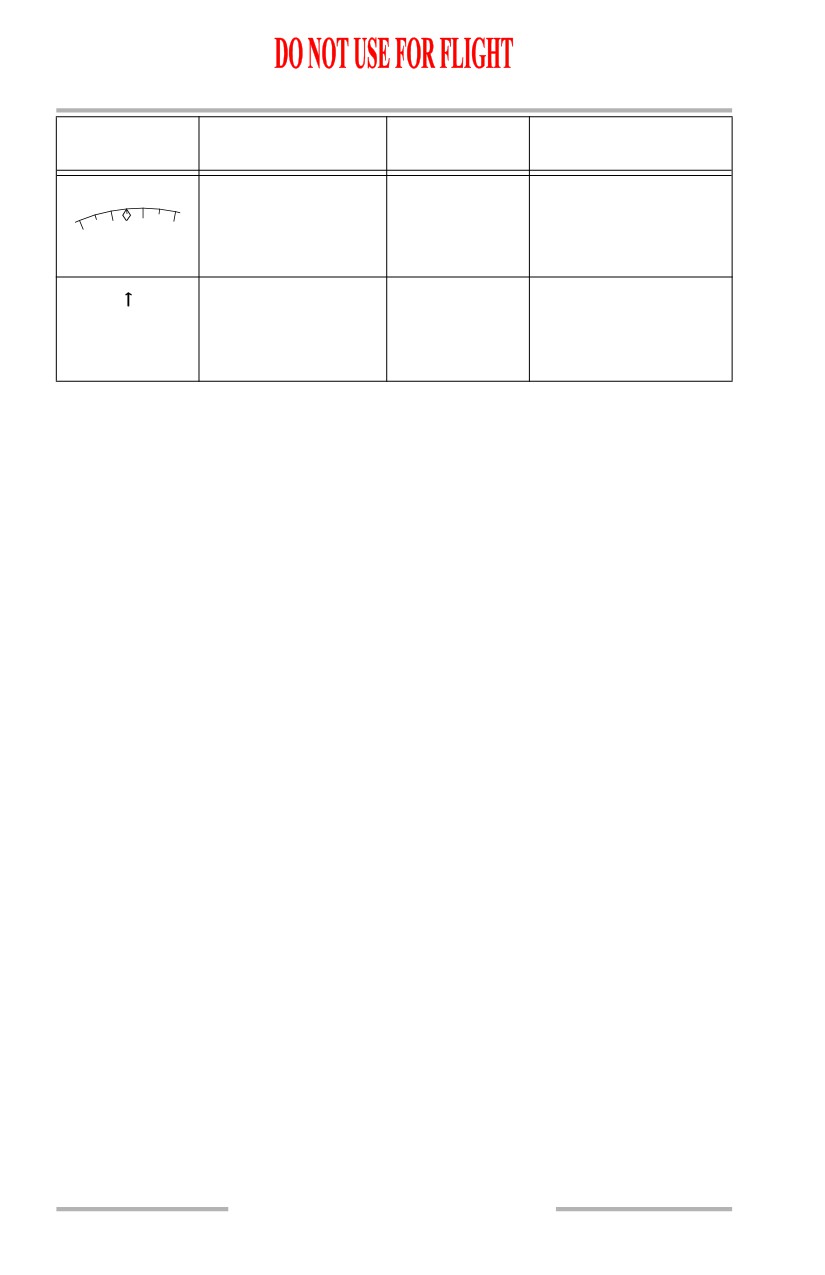

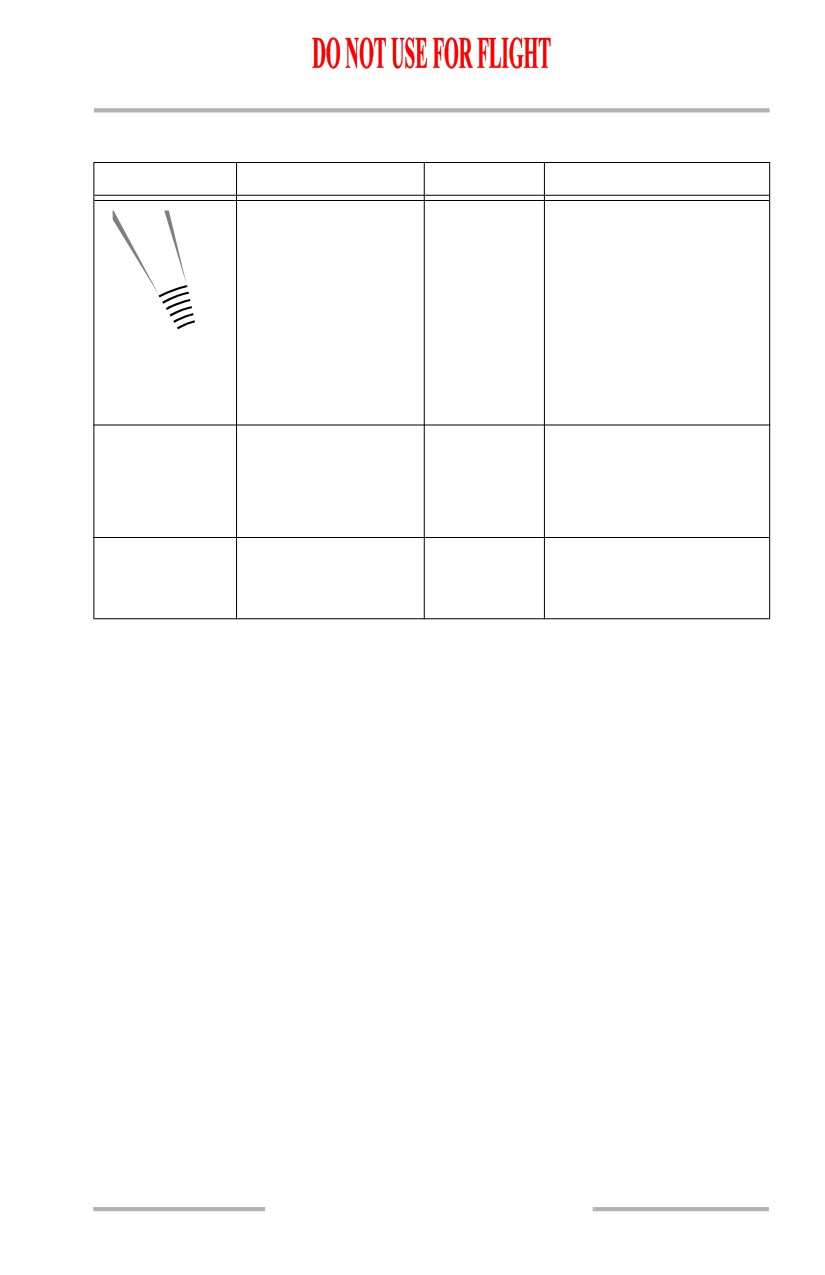

Drift angle pointer
APP CTR, VOR
Indicates airplane’s
(W)
CTR
present track. Replaces
15
12
track line in the center
APP and VOR modes.
North up arrow (G)
PLN
Indicates map
N
background is oriented
and referenced to true
north.
10.40.14
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual

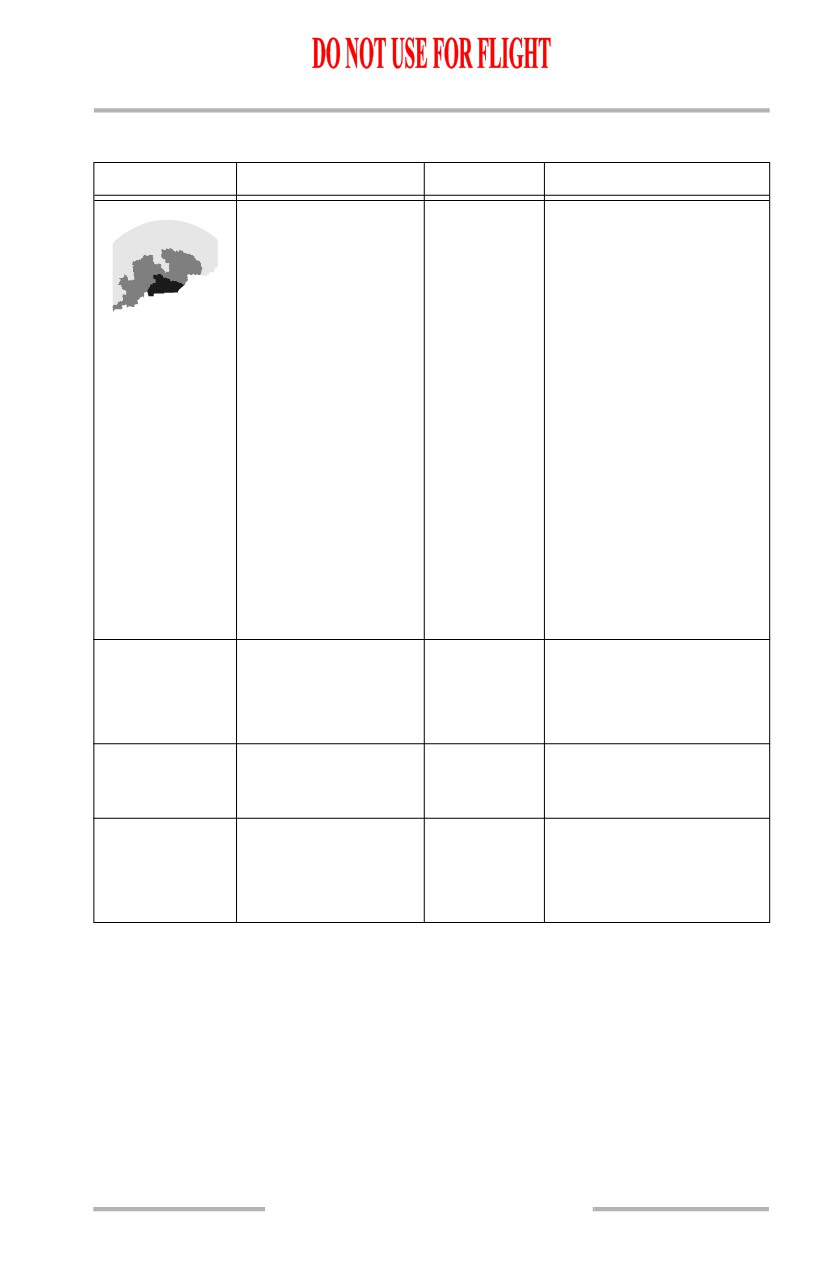

Look-Ahead Terrain
SYMBOL
NAME
ND MODE
REMARKS
Terrain display (R, A,
MAP,
Displays terrain data from
G, M)
MAP CTR,
the GPWS terrain data
APP,
base.
VOR
Terrain 2000 feet below to
500 feet (250 feet with gear
down) below the airplane’s
current altitude (G), terrain
500 feet (250 feet with gear
down) below to 2000 feet
above the airplane’s current
altitude (A), terrain more
than 2000 feet above
airplane’s current altitude
(R), no terrain data
available (M).
Color and density vary
based on terrain height vs.
airplane altitude.
Terrain mode
MAP,
Terrain display enabled
TERR
annunciation (C)
MAP CTR,
(manual or automatic
APP,
display).
VOR
Terrain test mode
All
GPWS operating in
TERR TEST
annunciation (C)
self-test mode.
Terrain annunciation
All
Look-ahead terrain caution
TERRAIN
(R, A)
alert active (A), look-ahead
terrain warning alert active
(R).
10.40.15
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
SYMBOL
NAME
ND MODE
REMARKS
Terrain status
All
Look-ahead terrain alerting
TERR
annunciations (A)
and display have failed.
FAIL
All
Look-ahead terrain alerting
TERR
and display unavailable due
POS
to position uncertainty.
All
GPWS terrain inhibit
TERR
switch in TERR INHIBIT
INHIBIT
position.
Terrain range status
MAP,
Terrain output range
TERR RANGE
annunciations (A)
MAP CTR,
disagrees with selected
DISAGREE
APP,
EFIS control panel range.
VOR
MAP,
Terrain output range and
MAP/TERR
MAP CTR
map display output range
RANGE
disagree with selected EFIS
DISAGREE
control panel range.
10.40.16
Flight Instruments, Displays -
Navigation Displays
Boeing 737 Operations Manual
Predictive Windshear
SYMBOL
NAME
ND MODE
REMARKS
Predictive windshear
MAP,
Displays windshear
symbol (R, B, A)
MAP CTR,
location and approximate
APP,
geometric size (width and
VOR
depth).
Amber radials extend from
predictive windshear
symbol to help identify
location of windshear
event.
Windshear
All
Predictive windshear
WINDSHEAR
annunciation (R, A)
caution active (A).
Predictive windshear
warning active (R).
Predictive windshear
All
Predictive windshear
PWS
status annunciation
alerting and display have
FAIL
(A)
failed.
10.40.17
