PGEV and PGE Locomotive Governors. Manual - part 24

Manual 36703

PGEV and PGE Locomotive Governors







Woodward

85

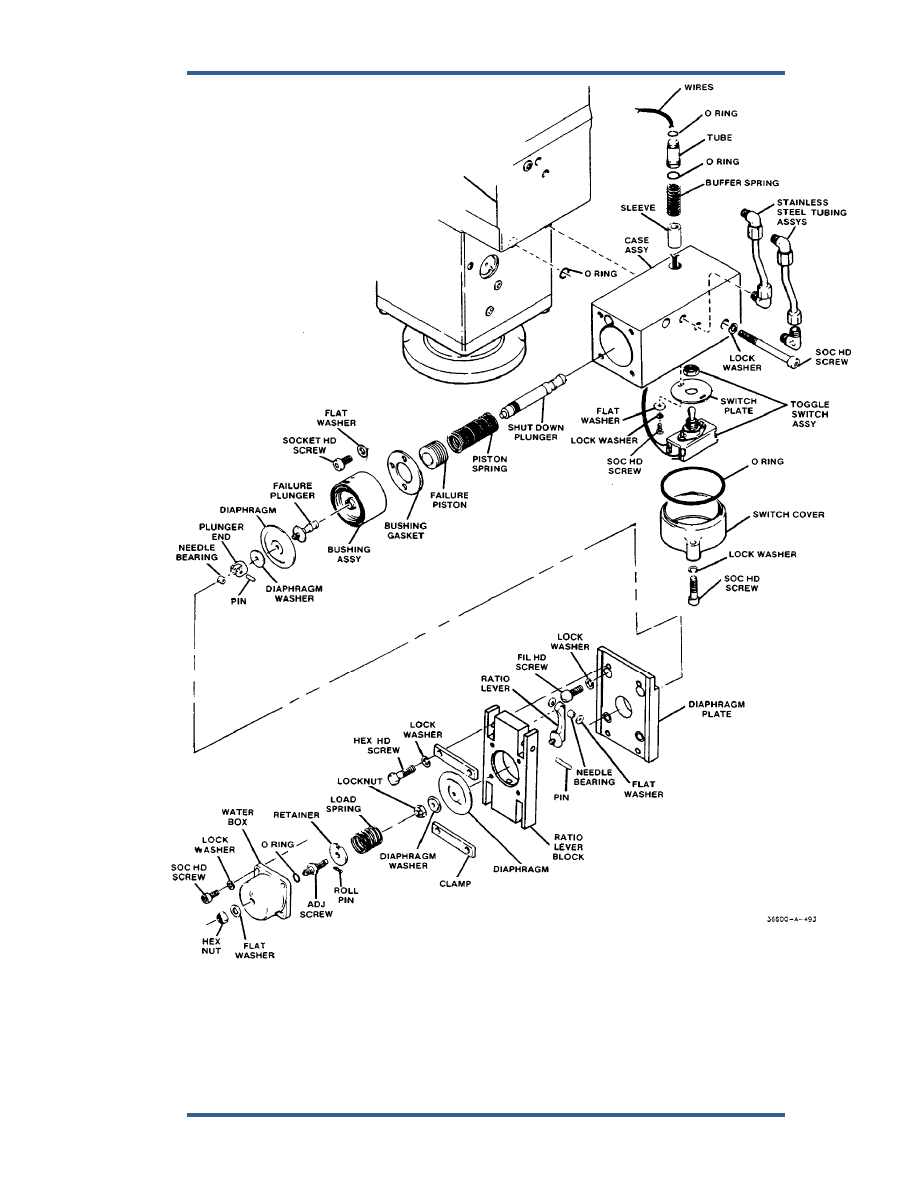

Figure 5-66. Water Box

PGEV and PGE Locomotive Governors

Manual 36703







86

Woodward

Chapter 6.

Test and Adjustment




Test Setup


1.  Make the following settings on the test stand before starting the test.


a.  Turn heater switch to "O2N."



b.  Turn oil pump switch to "OFF."



c.  Set air gauges to zero.

 d.

Close

valves.



e.  Set direction of rotation for the governor under test.


2.  Mount governor on test stand. See Figures 6-1, 6-2, and 6-3, and make the

following connections:



a.  Electrical (remove cover first)



b.  Governor oil pressure gauge

 c.

Drain

 d.

Float

 e.

Fill

 f. Fuel-limiter

pressure

(if fuel limiter is present)



g.  Low lube oil pressure (air or oil)



h.  Low water pressure (air or oil)



i.

Servo rod end to test stand


3.  Test Specifications (TSPs) for each PGE and PGEV part number are

available from Woodward Governor Company or your nearest authorized
service facility. These TSPs reflect calibration instructions and set points.
Calibration should not be attempted without the appropriate TSP. Use the
information in the appropriate TSP (for your governor part number) to
calibrate your governor.


4.  To locate adjustable components, refer to Figures 6-1 through 6-6 below.

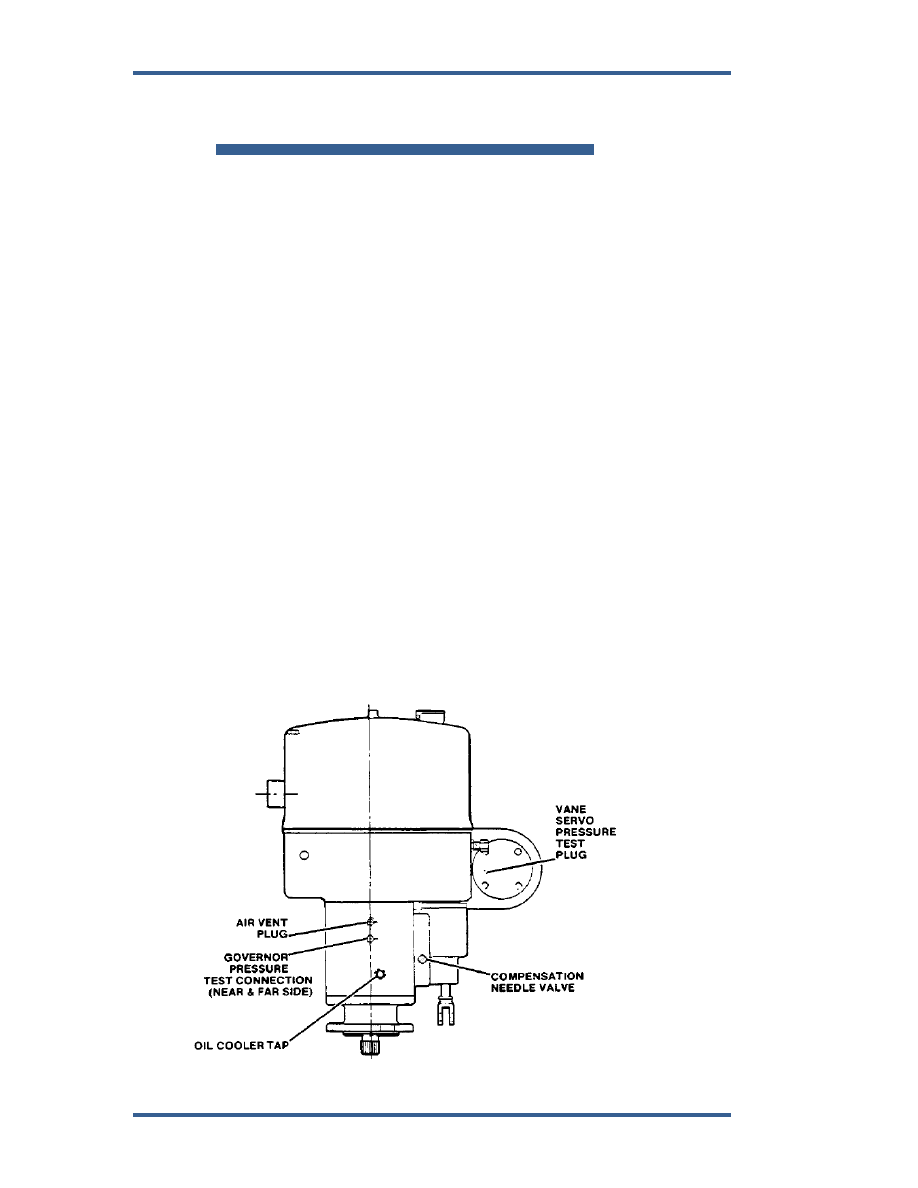

Figure 6-1. PGEV Test (Right-hand Side)





Manual 36703

PGEV and PGE Locomotive Governors







Woodward

87

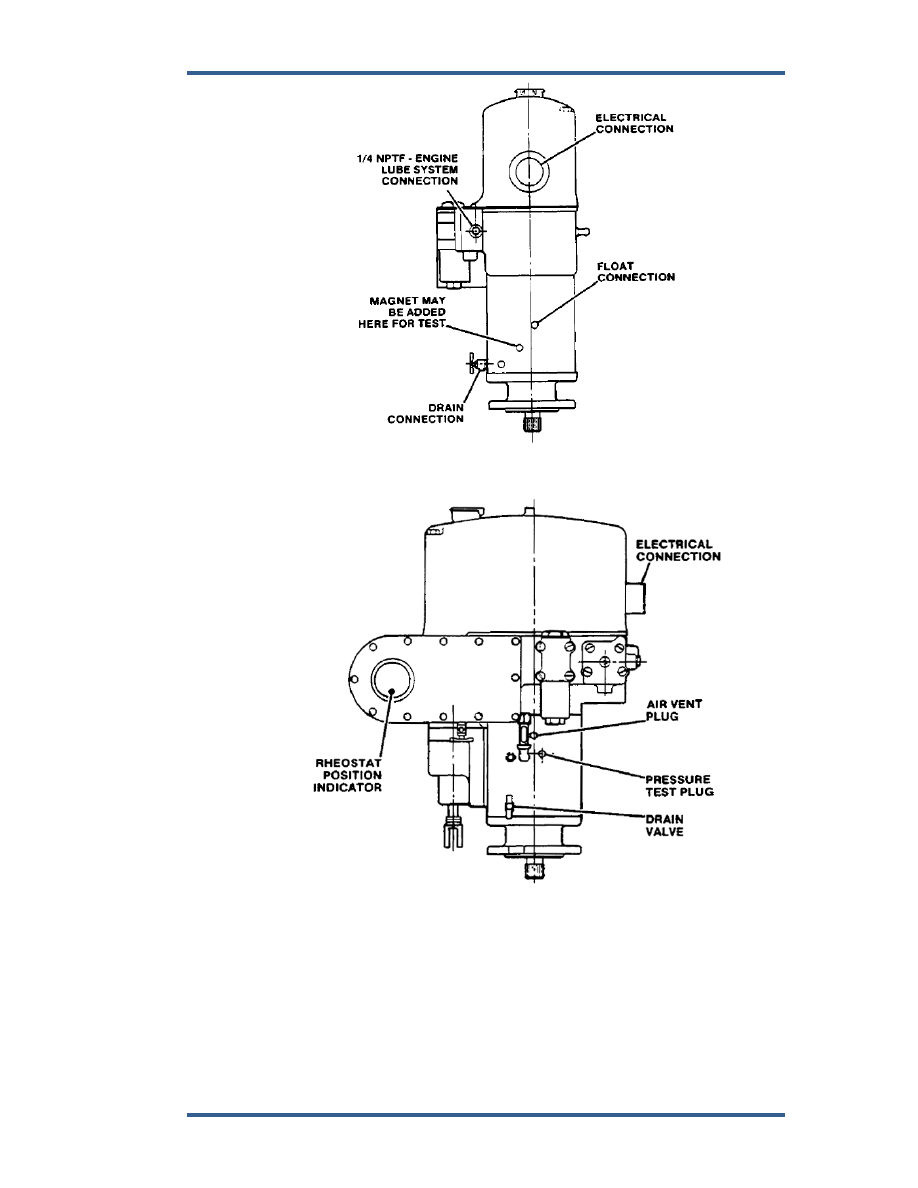

Figure 6-2. PGEV Test (Front)







Figure 6-3. PGEV Test (Left-hand Side)





PGEV and PGE Locomotive Governors

Manual 36703







88

Woodward

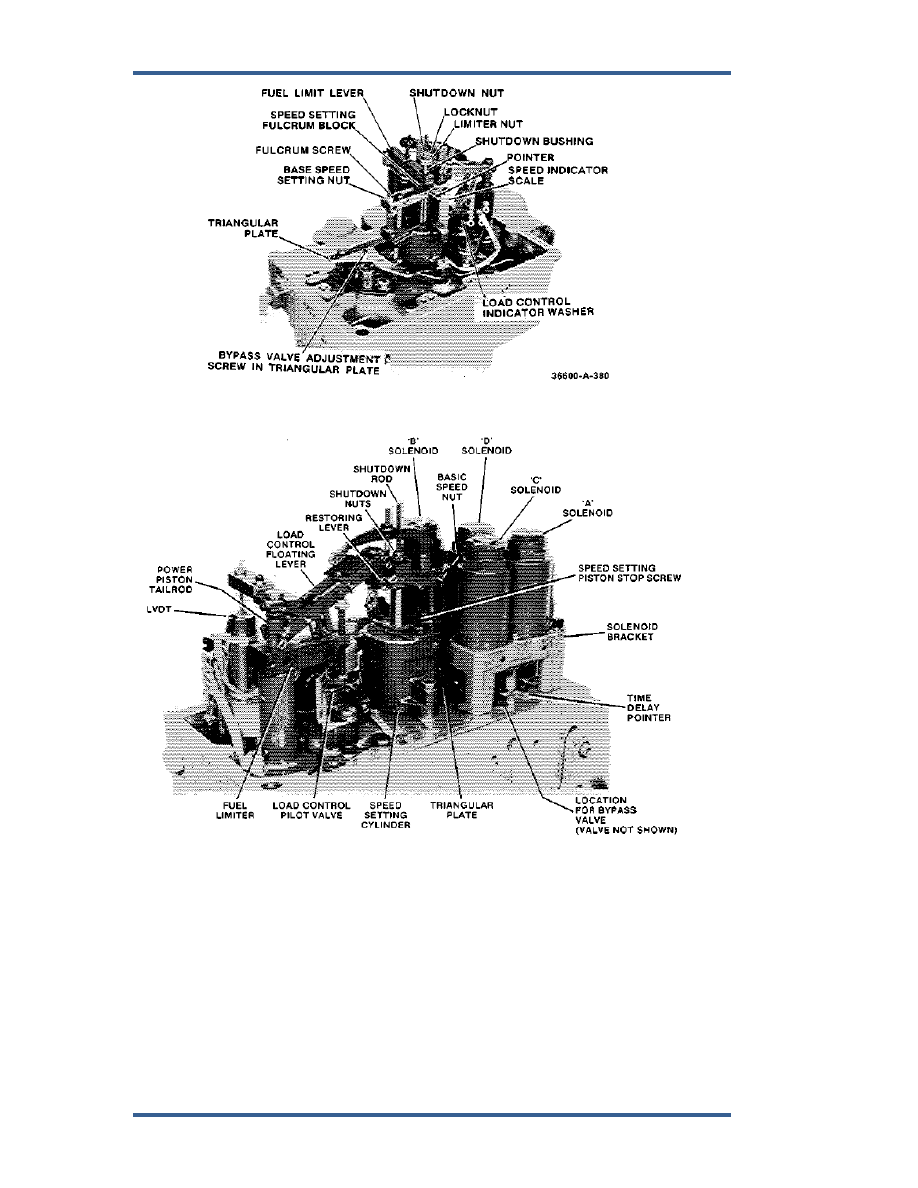

Figure 6-4. Speed Setting Assembly







Figure 6-5. Solenoid Pack
