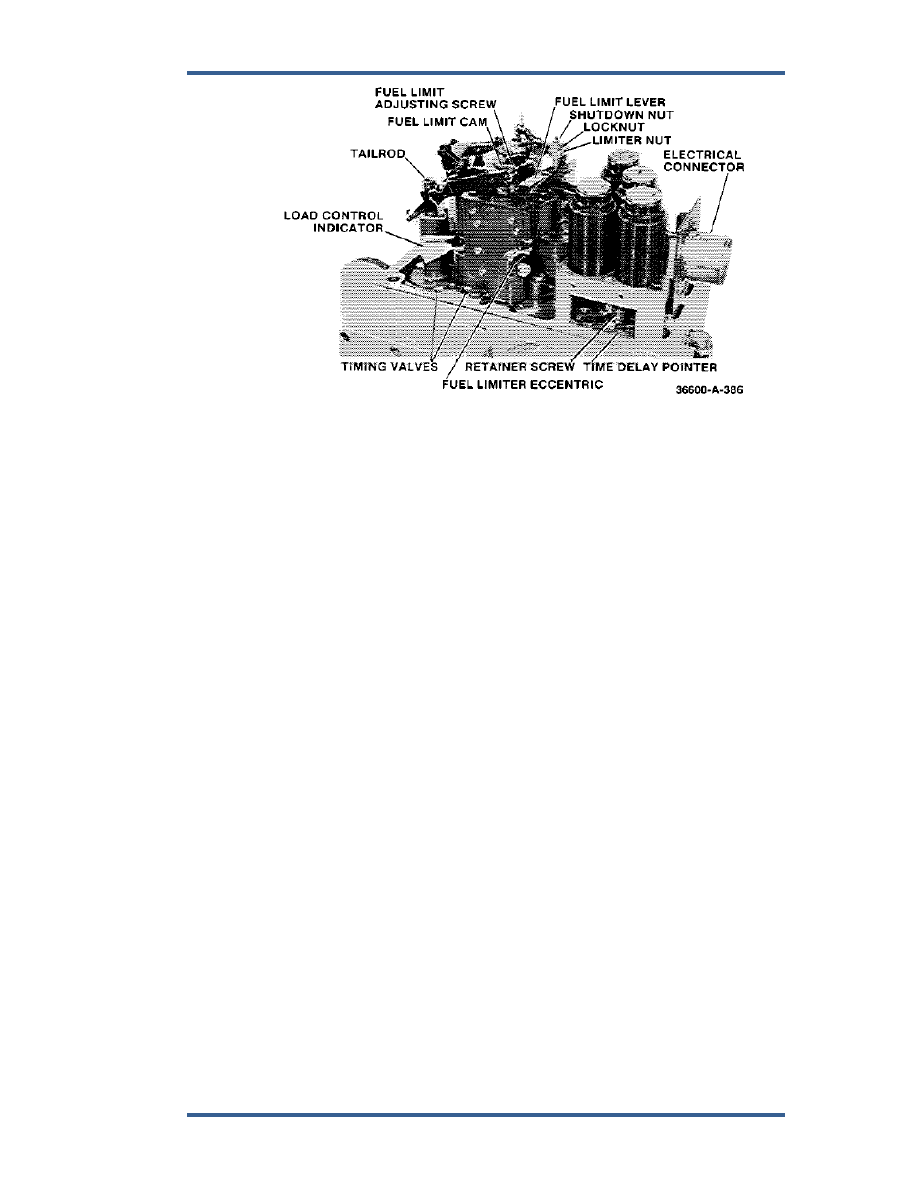

Figure 6-6. PGEV

PGEV and PGE Locomotive Governors

Manual 36703

Woodward

Chapter 7.

Replacement Parts

This chapter provides replacement parts information for the PGE and PGEV
governors.

When ordering replacement parts, include the following information:



Governor serial number and part number shown on nameplate



Manual number (this manual 36703)



Parts reference number in parts list and description of part or part name

Parts List for Figure 7-1

Ref. No.

Part Name ..................................... Quantity

36703-1

Screw, hex hd., drilled, 5/16-24 x 7-1/4 ....... 2

36703-2 Plain

washer,

5/16 x 1/2 x 1/32 ................... 2

36703-3

Oil filler cup (Press-fit) ................................. 1

36703-4

Cover dowel bushing (Press-fit) .................. 1

36703-5 Cover

..........................................................

36703-6 Cover gasket ............................................... 1
36703-7 Screw,

soc.

hd., 1/4-28 x 2-3/8 ................... 3

36703-8

Lock washer, split, 1/4 ................................. 3

36703-9 Electrical

receiver

assy (see Fig. 7-16) ....... 1

36703-10 Nut

(Shutdown), 8-32 .................................. 2

36703-11 Cotter

pin, 1/16 x 3/8 ................................... 1

36703-11A Plain washer, 13/64 x 3/8 x 0.0501 ............. 1
36703-12 Headed

pin,

3/16 x 61/64 ........................... 1

36703-13 Screw hex. hd., Grade 5, 5/16-24 x 5 ......... 4
36703-14 Lock washer, split, 5/16 ............................... 4
36703-15 Cotter

pin, 1/16 x 3/8 ................................... 1

36703-15A Plain washer, 13/64 x 3/8 x 0.050 ............... 1
36703-16 Headed

pin, 3/16 x 61/64 ............................ 1

36703-17 Screw

hex.

hd., 1/4-28 x 1 .......................... 2

36703-18 Lock washer, split, 1/4 ................................. 2
36703-19 Ld ctrl pilot valve assy (see Fig. 7-10) ......... 1
36703-20 Performed

packing (O-ring), 3/8 OD ........... 1

36703-21  Oil Seal (used with rem. ld reg. apps) ......... 1
36703-22  Spacer (used with integral ld reg. apps) ...... 1
36703-23  Gasket (Oil seal/spacer) .............................. 1
36703-24 Loading

spring

(Load control bushing) ........ 1

36703-25 Load

control bushing ................................... 1

36703-26 Retaining

ring, internal ................................ 1

36703-27 Cotter

pin, 1/16 x 3/8 ................................... 2

36703-28 Straight pin, drilled, 1/8 x 47/64 ................... 1
36703-29 Screw, hex. hd., 1/4-28 x 1-3/8 ................... 2
36703-30 Plain

washer, 1/4 ........................................ 2

36703-31 Triangular plate ........................................... 1
36703-32  Spd setting servo assy (see Fig. 7-13) ........ 1
36703-33  Return spring (Speed setting piston) ........... 1
36703-34  Performed packing 3/8 OD .......................... 1
36703-34A Solenoid counterbalance spring .................. 1
36703-35  Bypass valve assy (Engine lube oil pressure

failure shutdown- see manual 36652 .......... 1

36703-35A Retainer screw ............................................ 1
36703-35B Plain washer, 1/4 ........................................ 1
36703-36 Time delay mechanism (Engine lube oil

pressure failure shutdown- see Manual
36652) ......................................................... 1

Ref. No.

Part Name ..................................... Quantity

36703-37 "D"

solenoid cup ......................................... 1

36703-38 Straight

pin, 0.1245 x 9/16 .......................... 1

36703-39 Floating

lever

(Speed setting) ..................... 1

36703-40 Thrust

bearing

............................................. 1

36703-41 Pilot valve plunger (speed setting) .............. 1
36703-42 Loading

spring (SS PV plunger) ................. 1

36703-43 Rotating

bushing (SS PV plunger) .............. 1

36703-44 Loading

spring (SS PV bushing) ................. 1

36703-45 Drive

gear

(SS PV bushing) ........................ 1

36703-46 Start Fuel Limit Lever failure shutdown ....... 1
36703-47 Int. vane servo (see Fig. 7-11 or 7-12) ........ 1
36703-48 Not

Used

36703-49 Setscrew, soc. hd., cup pt., 1/4-28 x 1/4

(Plug) ....................................................... AR

36703-50 Not

Used .................................................. AR

36703-51  Union, 3/8-18 NPTF-to-3/8 or 1/2" tube ... AR
36703-52  Pipe plug, soc. hd. 1/8-27 NPTF .............. AR
36703-53  Bearing stud (Drive gear) Press-fit .............. 1
36703-54  Thread insert, 5/16-24 x 5/8, mid-grip ......... 2
36703-55  Screw, phil. bdg. hd., 8-32 x 1/4 or #2 x 3/16

drive screw .............................................. AR

36703-56 Nameplate .................................................. 1
36703-57 Screw, phil. rd. hd., 5-40 x 1/4 ................. AR
36703-58 Nameplate

insert

...................................... AR

36703-59 Column

sub-assy

(includes item 54) ........... 1

36703-60 Gasket

(Column/Case) ............................... 1

36703-61 Seal

ring ..................................................... 1

36703-62 LVDT (Linear Variable Differential

Transformer) ............................................... 1

36703-63 Screw,

soc.

hd., 3/8-16 x 1 ......................... 4

36703-64 Lock

washer, split, 3/8 ................................ 4

36703-65 Power servo assy (12 ft-lb, spring return

reciprocating motion w/tailrod) (see manual
36692) ........................................................ 1

36703-66 LVDT mtg. brkt. ........................................... 1
36703-67 Gasket

(Power

cylinder/case) ..................... 1

36703-68 Screw,

hex.

hd., 5/16-18 x 1 ....................... 8

36703-69 Lock

washer,

split, 5/16 .............................. 8

36703-70 Base assy (Std. PG) (see manual 36693) .. 1
36703-71 Oil

seal

(Preformed) .................................... 1

36703-72 Power case assy (see manual 36600 ......... 1

Manual 36703

PGEV and PGE Locomotive Governors

Woodward

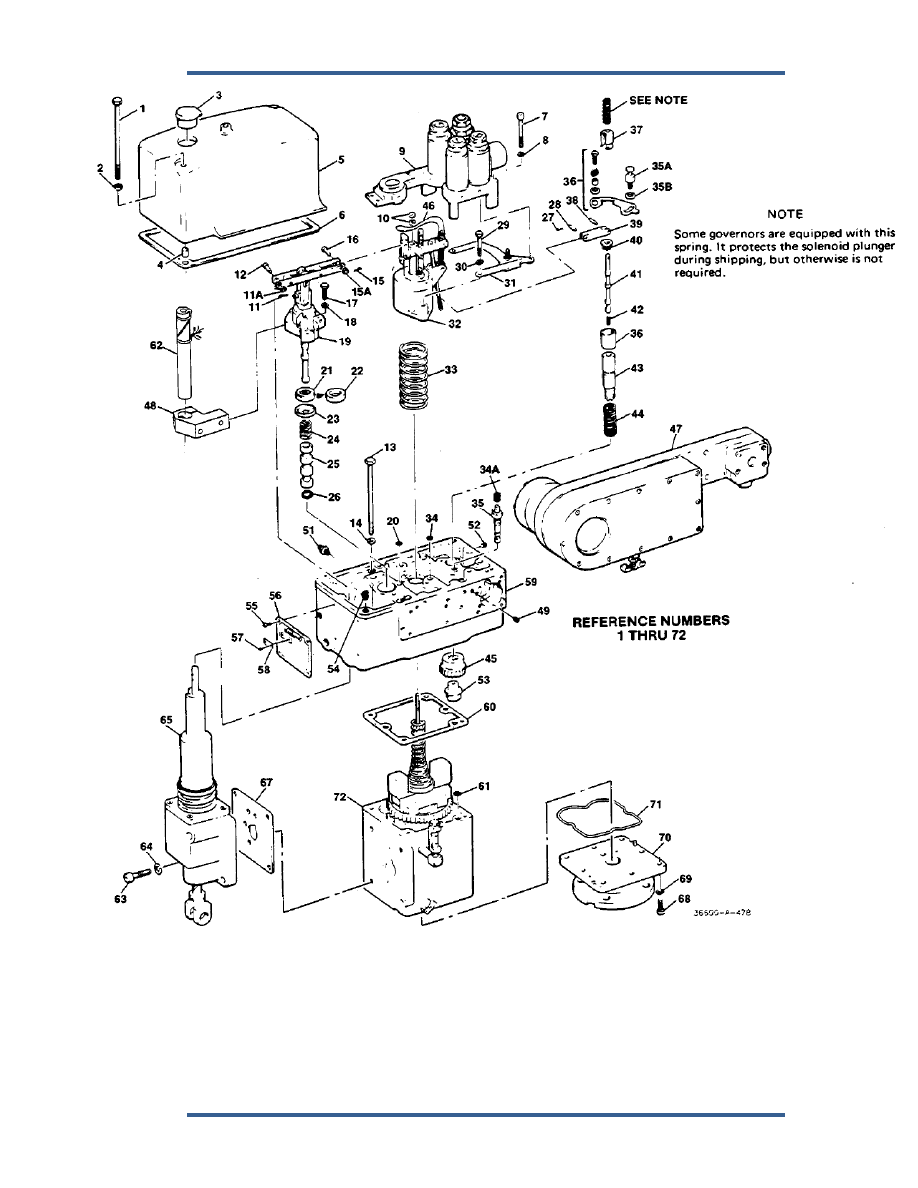

Figure 7-1. Exploded View of PGEV Governor Assembly (8571-882 Type)

PGEV and PGE Locomotive Governors

Manual 36703

Woodward

Parts List for Figure 7-2

Ref. No.

Part Name ..................................... Quantity

36703-126  Screw, hex., hd., drilled, 5/16-24 x 7-1/4 ..... 2
36703-127 Plain washer, 5/16 x 1/2 x 1/32 ................... 2
36703-128 Oil filler cup (Press-fit) ................................. 1
36703-129  Cover dowel bushing (Press-fit) .................. 1
36703-130  Cover .......................................................... 1
36703-131 Cover gasket ............................................... 1
36703-132 Screw, soc. hd., 1/4-28 x 2-3/8 ................... 3
36703-133  Lock washer, split, 1/4 ................................. 3
36703-134 Electrical receiver assy (see Fig. 7-16) ....... 1
36703-135 Nut (Shutdown), 8-32 .................................. 2
36703-136 Cotter pin, 1/16 x 3/8 ................................... 1
36703-137 Lever and Linkage Assy. ............................. 1
36703-138 Headed pin, 3/16 x 61/64 ........................... 1
36703-139 Screw hex hd. Grade 5, 5/16-24 x 5 ........... 4
36703-140  Lock washer, split, 5/16 ............................... 4
36703-141 Cotter pin, 1/16 x 3/8 ................................... 1
36703-142 Special Washer ........................................... 1
36703-143 Headed pin, 3/16 x 61/64 ............................ 1
36703-144 Screw hex. hd., 1/4-28 x 1 .......................... 2
36703-145  Lock washer, split, 1/4 ................................. 2
36703-146  Load control pilot valve assy (see Fig. 7-10)1
36703-147 Performed packing (O-ring), 3/8 OD ........... 1
36703-148  Oil Seal (used with remote load regulator

applications) ................................................ 1

36703-149 Spacer (used with integral load regulator

applications) ................................................ 1

36703-150 Gasket (oil seal/spacer) .............................. 1
36703-151 Loading spring (load control bushing) ......... 1
36703-152 Load control bushing ................................... 1
36703-153 Retaining ring, internal ................................ 1
36703-154 Cotter pin, 1/16 x 3/8 ................................... 2
36703-155 Straight pin, drilled, 1/8 x 47/64 ................... 1
36703-156 Screw, hex. hd., 1/4-28 x 1-3/8 ................... 2
36703-157 Plain washer, 1/4 ........................................ 2
36703-158 Triangular plate ........................................... 1
36703-159  Speed setting servo assy (see Fig. 7-13) .... 1
36703-160 Return spring (Speed setting piston) ........... 1
36703-161  Performed packing 3/8 OD .......................... 1
36703-162 Solenoid counterbalance spring .................. 1
36703-163  Bypass valve assy (Engine lube oil pressure

failure shutdown- see manual 36652) ......... 1

36703-164 Retainer screw ............................................ 1
36703-165 Plain washer, 1/4 ........................................ 1

Ref. No.

Part Name ..................................... Quantity

36703-166 Time delay mechanism (Engine lube oil

pressure failure shutdown- see manual
36652) ........................................................ 1

36703-167 "D" solenoid cup ......................................... 1
36703-168 Straight pin, 0.1245 x 9/16 .......................... 1
36703-169 Floating lever (Speed setting) ..................... 1
36703-170 Thrust bearing

............................................. 1

36703-171  Pilot valve plunger (Speed setting) ............. 1
36703-172 Loading spring (SS PV plunger) ................. 1
36703-173 Rotating bushing (SS PV plunger) .............. 1
36703-174 Loading spring (SS PV bushing) ................. 1
36703-175 Drive gear (SS PV bushing) ........................ 1
36703-176 Not Used .......................................................
36703-177  Integral vane servo (see Fig. 7-11 or 7-12). 1
36703-178  Lube oil time delay accum. ......................... 1
36703-179  Setscrew, soc. hd., cup pt., 1/4-28 x 1/4

(plug) ....................................................... AR

36703-180 Not Used .......................................................
36703-181  Union, 3/8-18 NPTF-to-3/8 or 1/2" tube ... AR
36703-182  Pipe plug, soc. hd. 1/8-27 NPTF .............. AR
36703-183  Bearing stud (Drive gear) Press-fit .............. 1
36703-184  Thread insert, 5/16-24 x 5/8, mid-grip ......... 2
36703-185  Screw, phil. bdg. hd., 8-32 x 1/4 or #2 x 3/16

drive screw .............................................. AR

36703-186 Nameplate .................................................. 1
36703-187 Screw, phil. rd. hd., 5-40 x 1/4 ................. AR
36703-188 Nameplate insert

...................................... AR

36703-189 Column sub-assy (includes item  184) ......... 1
36703-190 Gasket (Column/Case) ............................... 1
36703-191 Seal ring ..................................................... 1
36703-192 Not Used .......................................................
36703-193 Not Used .......................................................
36703-194 Not Used .......................................................
36703-195 Not Used .......................................................
36703-196  Power servo assy (12 ft-lb spring-return

rotary motion w/tailrod) (see manual 36692)1

36703-197 Gasket (Power cylinder/case) ..................... 1
36703-198 Screw, hex. hd., 5/16-18 x 1 ....................... 8
36703-199 Lock washer, split, 5/16 .............................. 8
36703-200 Base assy (Std. PG) (see manual 36693) .. 1
36703-201 Oil seal (Preformed) .................................... 1
36703-202 Power case assy (see manual 36600 ......... 1

Content .. 23 24 25 26 ..
