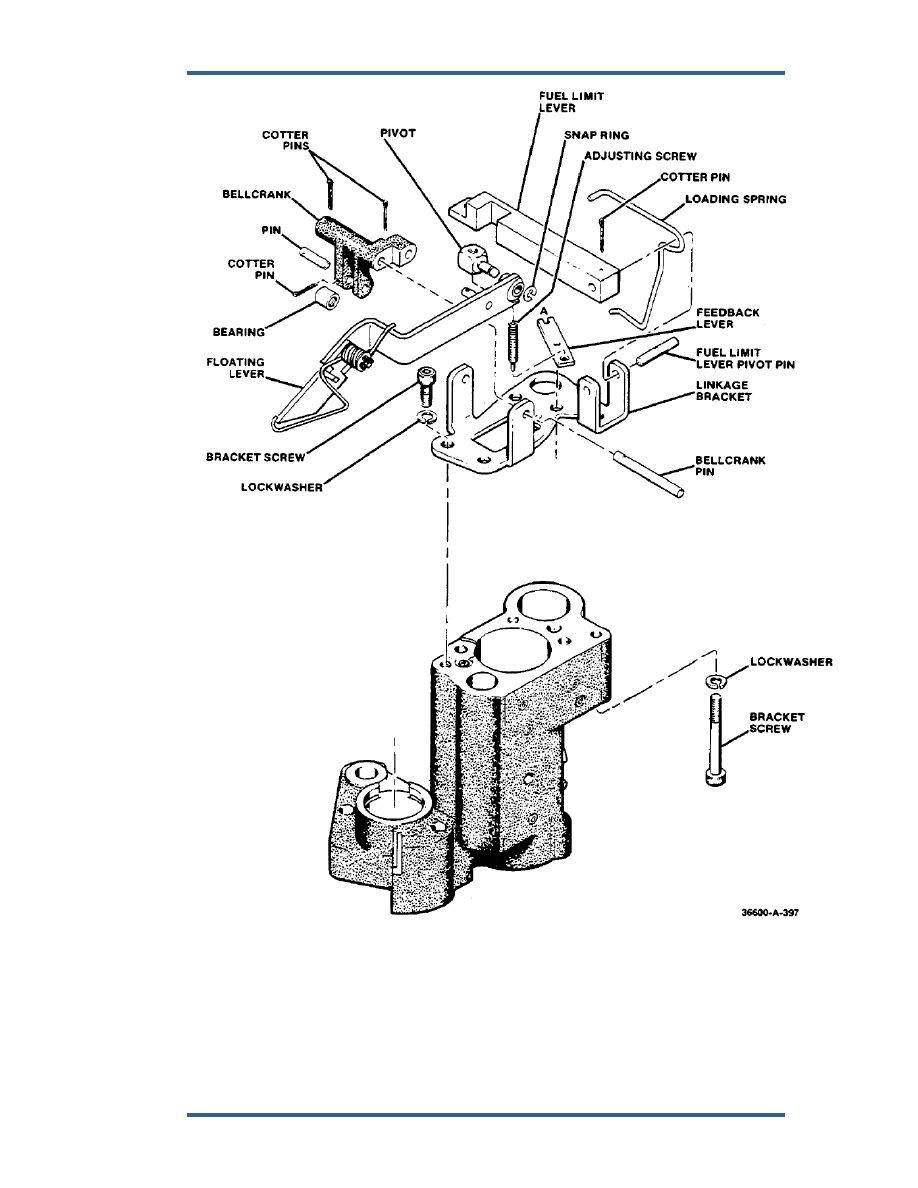

Figure 5-60. Fuel Limit Bracket and Linkage





PGEV and PGE Locomotive Governors

Manual 36703







82

Woodward

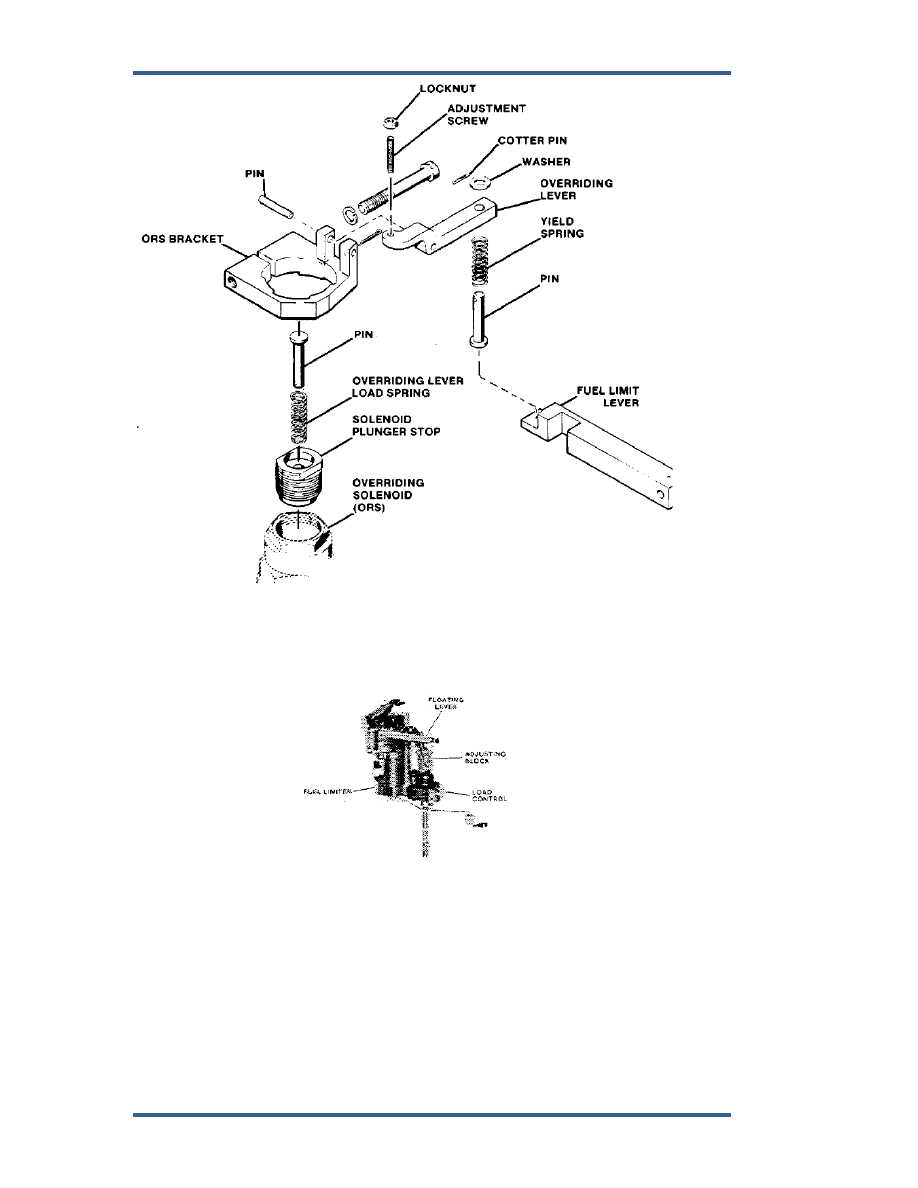

Figure 5-61. ORS Bracket



37.  Install fuel limiter/load control assembly (Figure 5-62) in column.






Figure 5-62. Fuel Limiter and Load Control Assembly

Manual 36703

PGEV and PGE Locomotive Governors







Woodward

83

38.  Attach linkage of fuel limiter, load control. and speed setting as shown in

Figure 5-63.







Figure 5-63. Floating Lever Connection



39.  If pressure-biased load control is present, assemble as shown in Figure

5-64.

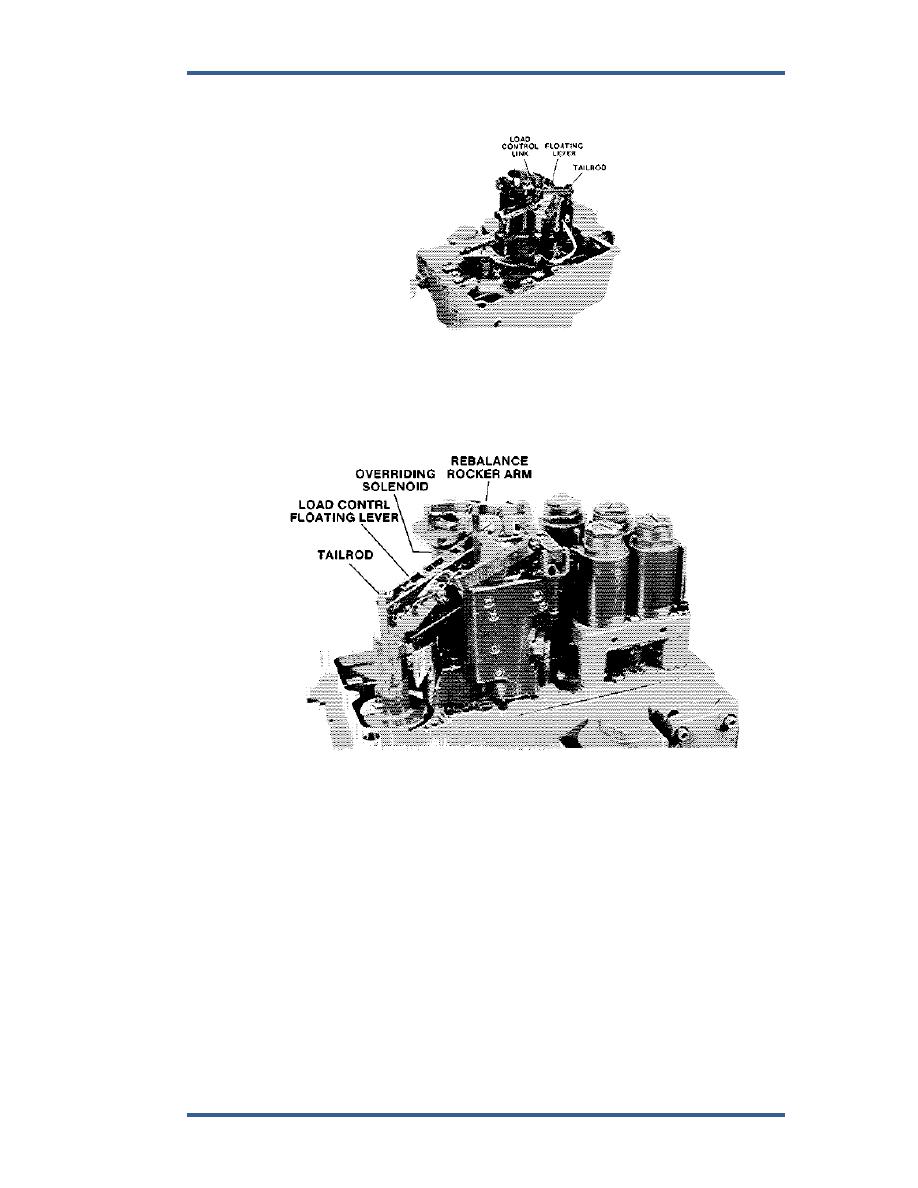

Figure 5-64. Lever and Linkage with Overriding Solenoid



40.  See Figure 5-66. When assembling the water box, install both diaphragms

so that fabric sides face each other. Install diaphragm washers so that the
side with the radius is against the diaphragm.





PGEV and PGE Locomotive Governors

Manual 36703







84

Woodward

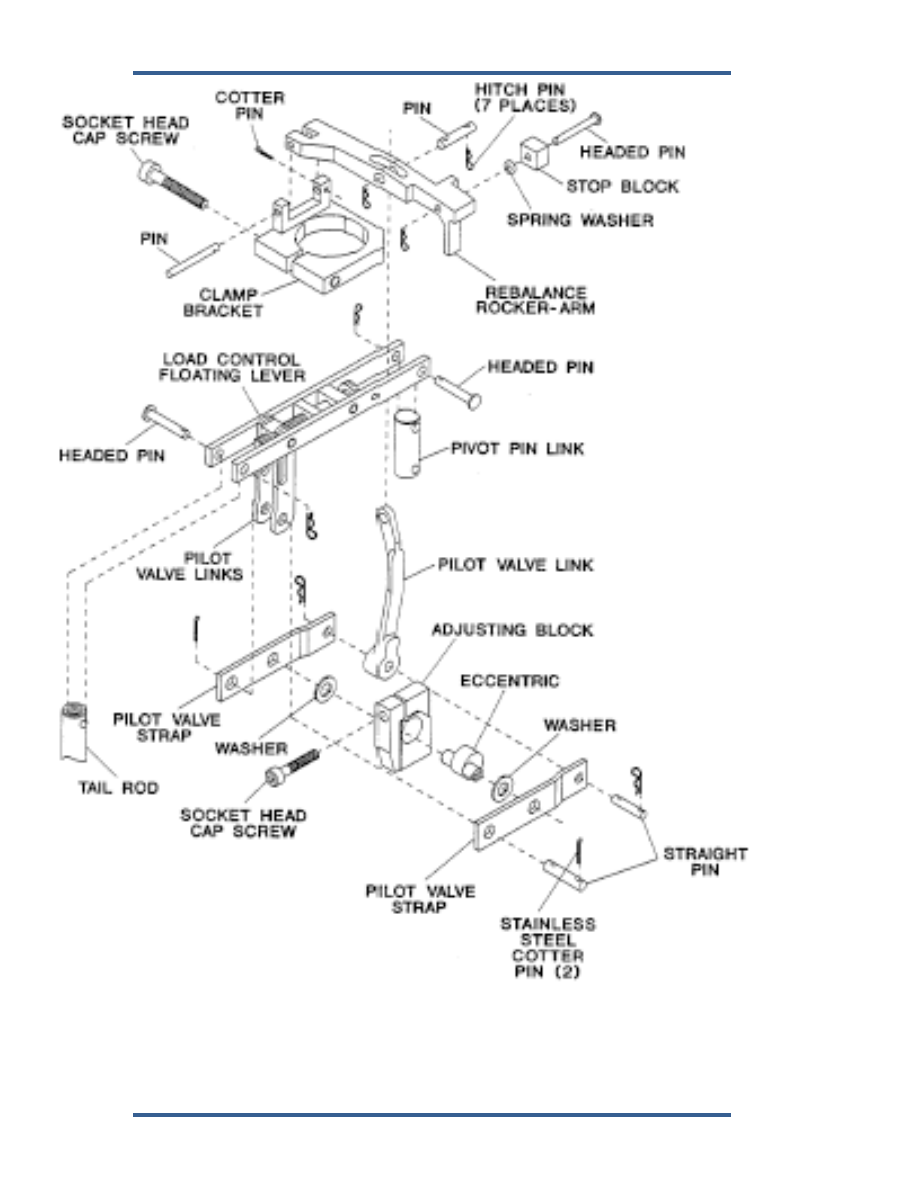

Figure 5-65. Lever and Linkage
