4-2. Audio System

● Listening to HD Radio™ Technology

If

 icon turns on by selecting a radio station which is an

 broadcasting station, the analog broadcast is

switched to an

 broadcast automatically after a few

seconds and then received.

If the

 broadcast is stopped and changed to an analog

broadcast, press down

 to turn off

.

iA_OM_OM99M17z_(U)

287

4-2. Audio System

4

In

te

rior Fea

tu

res

● Multicast channel selection (FM)

If multi-cast channels are available for an

 broadcast

currently being received, the multi-cast channel list is displayed.
Select the desired radio station.

● iTunes Tagging (for Apple devices with USB use only)

By tagging a song currently being aired, the song can be easily
purchased from the iTunes Store. Up to 100 tags can be stored.

Select the

 icon. The tag is stored in the audio unit.

Connect the device via USB. The tag is sent to the connected
device automatically.

Synchronize the device with iTunes. The tagged song can now
be purchased from the iTunes Store.

■

Operating the Radio

●

If the battery is disconnected, your Favorites list will be not deleted.

●

Radio text information is a function of FM radio. Text information is not dis-
played in the following:

• During

reception

• Not an RBDS broadcast
• RBDS broadcast, but radio text is not transmitted from the radio station

●

To change the desired genre, select the

 icon.

Ex.)

89.3 is currently being received. With Rock selected as the Genre, the
radio stations broadcasting Rock are at the following frequencies.
98.3

*

1

, 98.7, 104.3

*

1

, 107.1

*

1

Radio stations with good reception

The frequency changes as follows each time

 is pressed.

89.3

98.3104.398.3

●

Only one Genre can be selected.

●

It may not be possible to receive any station even if the Genre Seek function
is used.

●

If a program in the selected genre is not broadcast to a region, reception is
not possible even if the Genre Seek function is used.

●

The Genre Seek function searches for genre code (program type) which FM
analog broadcasts transmit.

 specialty programs (HD2-HD8) can-

not be searched because they are not FM analog broadcasts.

1

2

3

288

iA_OM_OM99M17z_(U)

4-2. Audio System

●

If radio stations which are selected by scanning using the Genre Seek func-

tion are

 broadcasting stations, they are changed from analog

broadcasts to

 broadcdiffer.

●

Both AM and FM

 can be used.

●

Because iTunes Tagging only supports purchasing from the iTunes Store,
direct downloading from the equipped vehicle audio is not possible.

●

If the available memory for the connected device is insufficient, the tag is not
sent.

●

If an error occurs while the tag is being sent, reconnect the device.

●

If an analog broadcast is received once and

 is received while HD1

is selected, the audio unit switches to the

 station automatically.

●

When the

 icon is illuminated, there could be a noticeable difference in

sound quality and volume when a change from digital to analog signals
occurs. If the sound quality and volume become noticeably diminished or
cut off, select the

 icon to turn off

 (

 icon is not illumi-

nated).

●

Once an analog broadcast is received when HD1 is selected from the
Favorite channels, it is switched to

 automatically. If the radio

reception conditions are poor, or HD is off, switching to

 broadcasts

is not possible.

●

When an HD specialty channel (HD2 to HD8) is selected from the Favorite
channels, “Signal Lost” is displayed and no audio is output until

 is

received. If the radio reception conditions are poor, “Signal Lost” continues
to be displayed.

●

If the

 icon is not illuminated, information such as song titles of the

 station are received, however, the audio output is analog.

iA_OM_OM99M17z_(U)

289

4-2. Audio System

4

In

te

rior Fea

tu

res

■

What is satellite radio?

With over 130 channels, SiriusXM Satellite Radio brings you more
of what you love. Get channels and channels of commercial-free
music, plus sports, news, talk, entertainment and more.
● Commercial-free music from nearly every genre-rock to pop, hip-

hop to country, jazz, classical and more. Plus live performances
and artist-dedicated channels.

● Live sports Play-by-Play & Expert Talk-every NFL game, every

NASCAR

®

 race, 24/7 sports talk, college sports and more.

● Exclusive entertainment, comedy and talk-The biggest names,

compelling talk, hilarious comedy.

● World-class news plus local traffic and weather.

Sign up for SiriusXM Satellite Radio today!

■

How to Activate Satellite Radio

You must call SiriusXM to activate your service. Activation is free
and takes only a few minutes.

SiriusXM service uses an ID code to identify your radio. This code
is needed to activate SiriusXM service, and report any problems.

Please have the following information ready:
● Radio ID (8-digit electronic serial no - See below for how to find

your ESN)

● Valid credit card information (may not be required at initial sign-

up)

Be sure you are parked outside with a clear view of open sky, you
will be instructed to turn on your radio (in SiriusXM mode and tuned
to channel 184 (Sirius)/1 (XM and SiriusXM)). Activation typically
takes only 2-5 minutes.

■

Displaying the Radio ID (ESN)

When channel 0 is selected, the radio ID is displayed. Use the
PREVIOUS or NEXT channel buttons to select channel 0.

Operating the Satellite Radio (if equipped)

290

iA_OM_OM99M17z_(U)

4-2. Audio System

■

SiriusXM operation

Select the

 icon on the home screen to display the Entertain-

ment screen. When

 is selected, the following icons are indi-

cated in the bottom part of the center display.

● Selection from channel list

Receivable channels can be displayed on the channel list
screen. You can easily select the channel you want to listen from
the list. Each category can be also displayed.

Select the

 icon to display the channel list.

Select a desired channel.

Select from category list:

Select the

 icon to display the channel list.

Select

 to display the category list.

Select a desired category.

Icon

Function

Displays the Entertainment menu. Use to switch to a
different audio source.

Displays the channel list of the current category.

Displays the favorites list. Long-press to store the
channel currently being aired. Refer to Operating
the Radio on P. 282.

Indicates that the parental lock function is in use.
Switching of Lock/Unlock and PIN code setting
changes can be performed.

Plays each channel in the current channel list for 5
seconds. Select again to continue receiving the
channel.

Plays the previous channel.

Plays the next channel.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.

1

2

1

2

3

iA_OM_OM99M17z_(U)

291

4-2. Audio System

4

In

te

rior Fea

tu

res

■

Parental lock

If a channel is locked, the channel is muted.

To use the parental lock function, the PIN code must be initialized
first.

By using the session lock, the parental lock can be enabled or dis-
abled during the current drive cycle (from when the ignition is
switched on to switched off). When the session lock is on, the
parental lock is available. When the session lock is off, the parental
lock is temporarily cancelled.

When canceling the parental lock or session lock, or when chang-
ing the PIN code, PIN code input is required.
● PIN code reset

If the registered code has been forgotten, reset the code to the
default [0000] code.

Select the

 icon.

If the selected channel is locked, input the PIN code to cancel
the parental lock temporarily.

Select .

Input the default code [0000] using the number buttons.

Select .

Input the new PIN code using the number buttons.

Select .

■

Operating the Satellite Radio (if equipped)

●

To listen to SiriusXM, a prior subscription (fee-based) is required.

●

The channels which you can receive depend on the package you subscribe
to.

●

Satellite radio is broadcast as Sirius, XM, and SiriusXM in the U.S.A., and
Sirius and XM in Canada. In this owner’s manual, only the name SiriusXM is
used.

●

For traffic and weather channels, map information is not displayed and only
audio broadcasts can be received.

●

Call 888-539-7474 to activate. For more information, visit www.siriusxm.
com. Satellite radio is only available in regions providing satellite radio ser-
vice (some areas of the United States and Canada). Contact Authorized
your Scion Dealer for details.

1

2

3

4

5

6

7

292

iA_OM_OM99M17z_(U)

4-2. Audio System

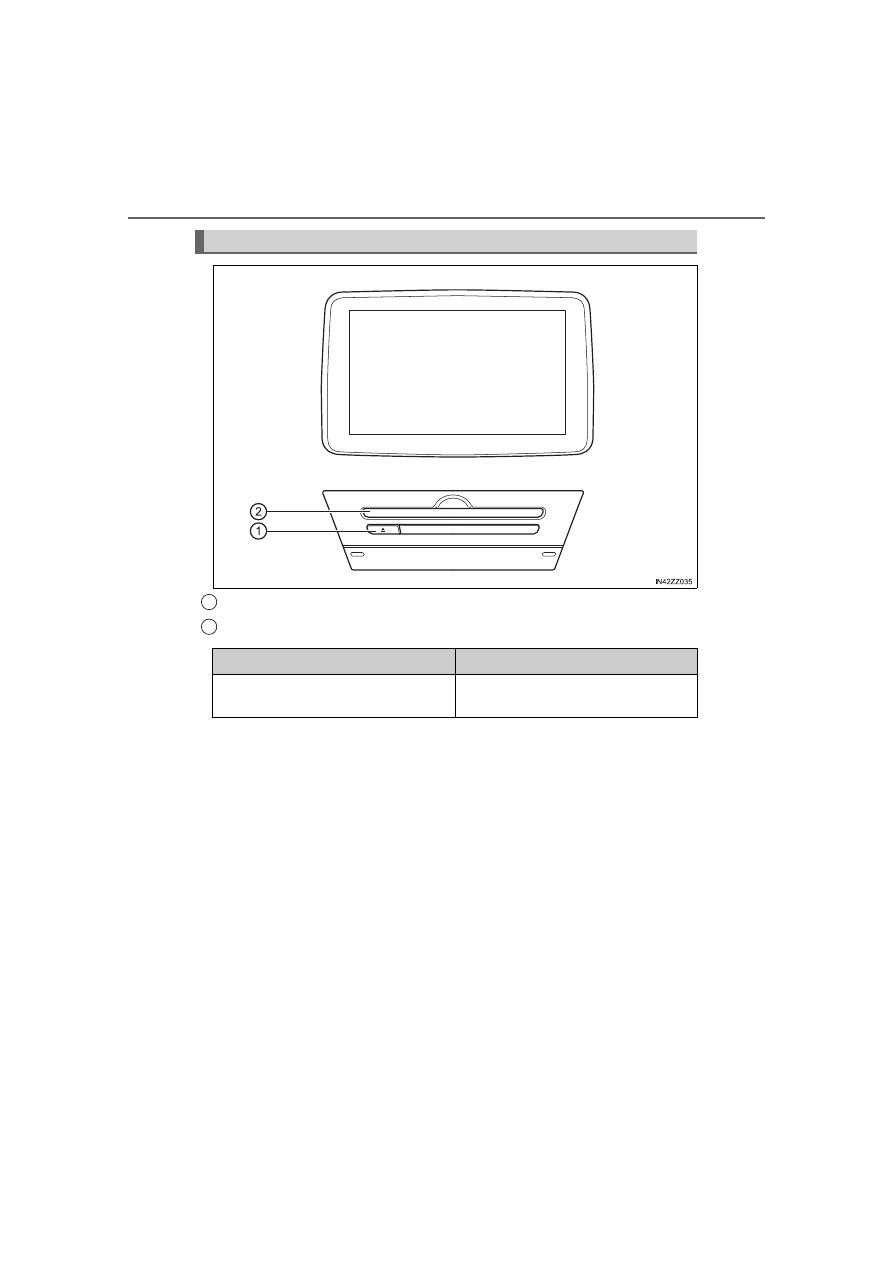

CD eject button

CD slot

Operating the Compact Disc (CD) Player (if equipped)

1
2

Type

Playable data

Music/MP3/WMA/ AAC CD player

• Music data (CD-DA)
• MP3/WMA/AAC file

iA_OM_OM99M17z_(U)

293

4-2. Audio System

4

In

te

rior Fea

tu

res

■

Inserting the CD

Insert the CD into the slot, label-side up. The auto-loading mecha-
nism will set the CD and begin play.

■

Ejecting the CD

Press the CD eject button (

) to eject the CD.

■

Playback

Select the

 icon on the home screen with a CD inserted and

display the Entertainment screen. When

 is selected, the follow-

ing icons are indicated in the lower part of the center display.

Icon

Function

Displays the Entertainment menu. Use to switch to a
different audio source.

(Music CD)
Displays the track list of the CD. Select the track you
want to play.
(MP3/WMA/AAC CD)
Displays the top level folder/file list. Select the folder
you want to select.
The files in the selected folder are displayed. Select
the file you want to play.

(MP3/WMA/ACC CDs only)
Displays the file list of the folder currently being
played. Select the song you want to listen to.

(Music CD)
Replays the song currently being played repeatedly.
Select it again to cancel.
(MP3/WMA/AAC CD)
Replays the song currently being played repeatedly.
When selected again, the songs in the folder are
played repeatedly. Select it again to cancel.

(Music CD)
Plays songs on the CD in random order. Select it
again to cancel.
(MP3/WMA/AAC CD)
Plays songs in the folder in random order.
When selected again, the songs on the CD are
played in random order. Select it again to cancel.

294

iA_OM_OM99M17z_(U)

4-2. Audio System

(Music CD)
The beginning of each track on a CD is played to aid
in searching for a desired track. When selected
again, the operation is canceled and the song cur-
rently being played continues.
(MP3/WMA/AAC CD)
The beginning of each track in a folder is played to
aid in searching for a desired track. When selected
again, the operation is canceled and the song cur-
rently being played continues.

If the audio is operated during scan-play, the track
being scan-played is played normally. Then, the
audio operation is performed.

If selected within a few seconds of a song which has
started to play, the previous song is selected.
If more than a few seconds have elapsed after a
song has begun to play, the song currently being
played is replayed from the beginning.
Long-press to fast reverse. It stops when you
remove your hand from the icon or the commander
knob.

Plays a CD. When selected again, playback is tem-
porarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you
remove your hand from the icon or the commander
knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on P. 280.

Icon

Function

iA_OM_OM99M17z_(U)

295

4-2. Audio System

4

In

te

rior Fea

tu

res

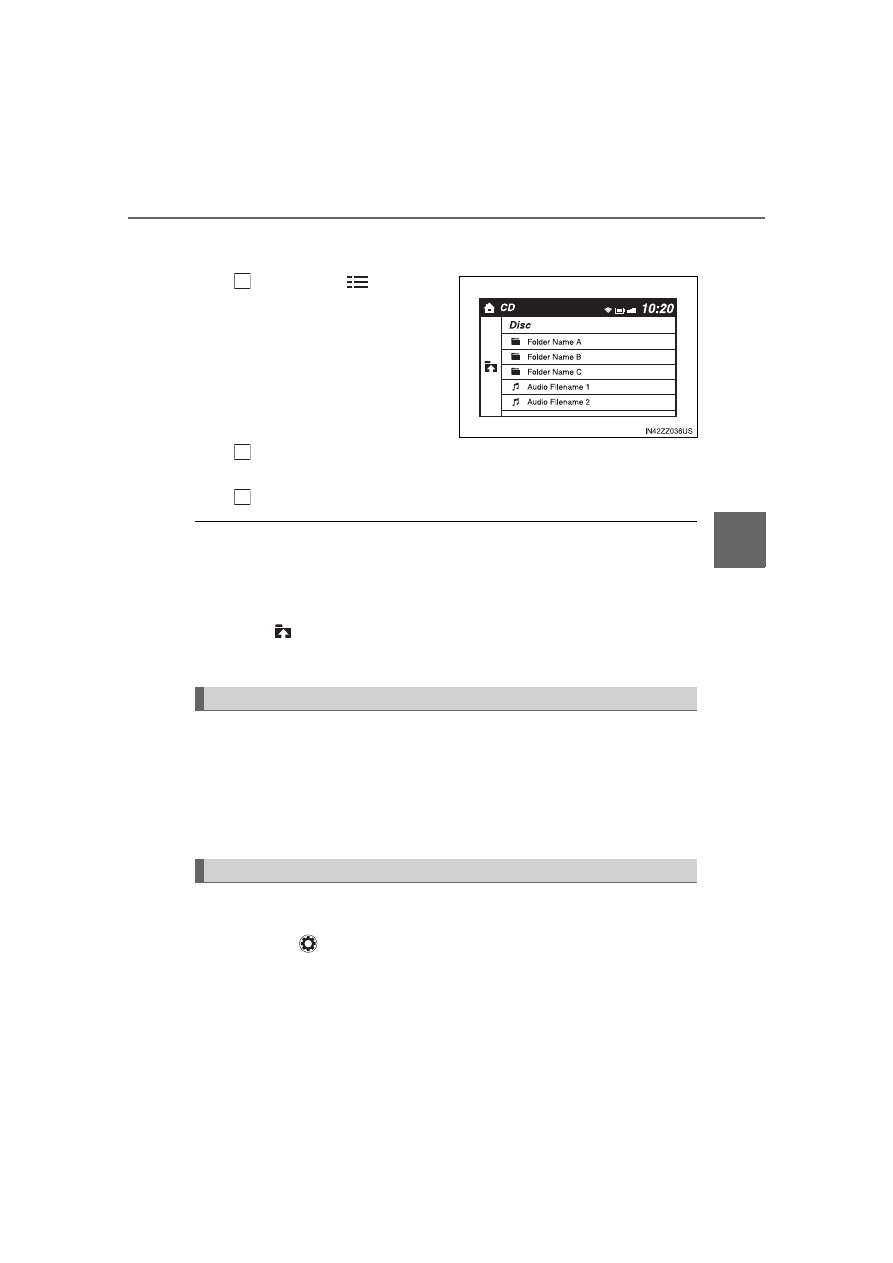

● Example of use (When searching for a song from the top level of

an MP3/ WMA/AAC CD)

Select the

 icon and

display the folder/file list at
the top level.

When the folder is selected, folders/file lists in the folder are
displayed.

Select the desired song.

■

Operating the Compact Disc (CD) Player (if equipped)

●

If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of
the two or three file types differs depending on how the disc was recorded.

●

There will be a short lapse before play begins while the player reads the dig-
ital signals on the CD.

●

Select

 to move to a folder one level higher.

●

The appearance of the repeat and shuffle icons changes depending on the
type of operation in which the function is used.

Audio can be heard from the vehicle’s speakers by connecting a com-
mercially- available portable audio unit to the auxiliary jack.

Use a commercially-available, non- impedance (3.5

) stereo mini

plug cable. In addition, audio can be played from the vehicle audio
device by connecting a USB device or an iPod to the USB port.

Refer to AUX/USB/iPod mode on P. 302.

Depending on the grade and specification, the screen display may dif-
fer.

Select the

 icon on the home screen and display the Settings

screen. Switch the tab and select the setting item you want to change.

You can customize settings in the setup display as follows:

1

How to use Auxiliary jack/USB port

Settings

2

3

296

iA_OM_OM99M17z_(U)

4-2. Audio System

Tab

Item

Function

Display

Refer to Volume/Display/Sound Controls on P. 280.

Safety

Smart City Brake Support
Blind Spot Monitoring Vol-
ume

Refer to Customizable Fea-
tures on P. 572.

Sound

Refer to Volume/Display/Sound Controls on P. 280.

Clock

Adjust Time

Displays the currently set
time is displayed.

Press

 to advance

the hour/minute, and select

 to move the hour/

minute back.
AM/PM can only be
selected with the 12-hour
clock display.

GPS Sync

When ON is selected,
“Adjust Time” is disabled.

Time Format

Changes the display
between 12 and 24-hour
clock time.

Time Zone Select

Selects the time zone.

Daylight Savings Time

Turns the daylight saving
time setting on/off. When
ON, the time advances 1
hour. When OFF, it returns
to normal time.

Vehicle

Door Locks
Turn Signals
Other

Refer to Customizable Fea-
tures on P. 572.

Devices

Bluetooth

®

Refer to Bluetooth

®

 Prepa-

ration (Type B) on P. 351.

iA_OM_OM99M17z_(U)

297

4-2. Audio System

4

In

te

rior Fea

tu

res

System

Tool Tips

Turns button explanations
ON/OFF.

Language

Changes the language.

Temperature

Changes the setting
between Fahrenheit and
Celsius.

Distance

Changes the setting
between miles and kilome-
ters.

Music Database Update

Used to update Gracenote

®

.

Gracenote is used with USB
Audio, and provides:

Supplemental music
information (Such as
song name, artist name)

Voice recognition assis-
tance for Play Artist and
Play Album

Gracenote can be down-
loaded from the Scion
Handsfree Website.
Refer to Gracenote Data-
base (Type B) on P. 319.

Restore All Factory Settings

Memory and settings are ini-
tialized to the factory set-
tings.
The initialization launches

by selecting the

 button.

About

Agreements and
Disclaimers

Verify the disclaimer and
agree.

Version Informa-
tion

Can verify the current audio
unit OS version and
Gracenote Database ver-
sion.

Tab

Item

Function

1

2

298

iA_OM_OM99M17z_(U)

4-2. Audio System

Depending on the grade and specification, the screen display may dif-
fer.

Select the

 icon on the home screen to display the Applications

screen. The following information can be verified.

Applications

Top screen

Item

Function

HD Radio™ Traffic
Map

-

-

Fuel Economy Monitor

-

-

Maintenance

Scheduled
Maintenance
Tire Rotation
Oil Change

Refer to Maintenance
Monitor (Type B audio)
on P. 420.

Warning Guidance

Warnings currently
active can be verified.

Refer to If a Warning
Light Turns On or
Flashes on P. 507.

299

iA_OM_OM99M17z_(U)

4-2. Audio System

4

In

te

rior Fea

tu

res

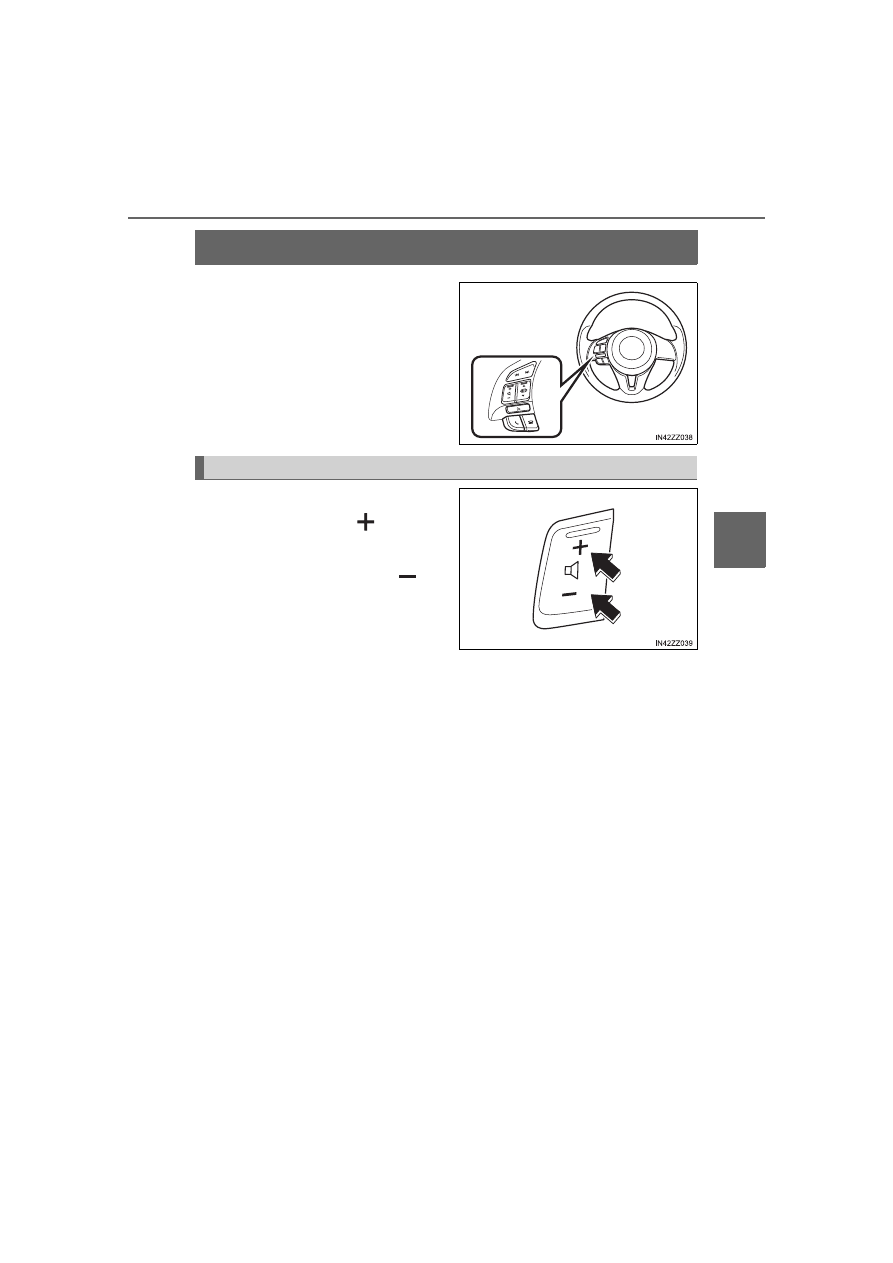

Audio Control Switch Operation



To increase the volume, press up

the volume switch (

).

To decrease the volume, press

down the volume switch (

).



: If equipped

Adjusting the Volume

300

iA_OM_OM99M17z_(U)

4-2. Audio System

■

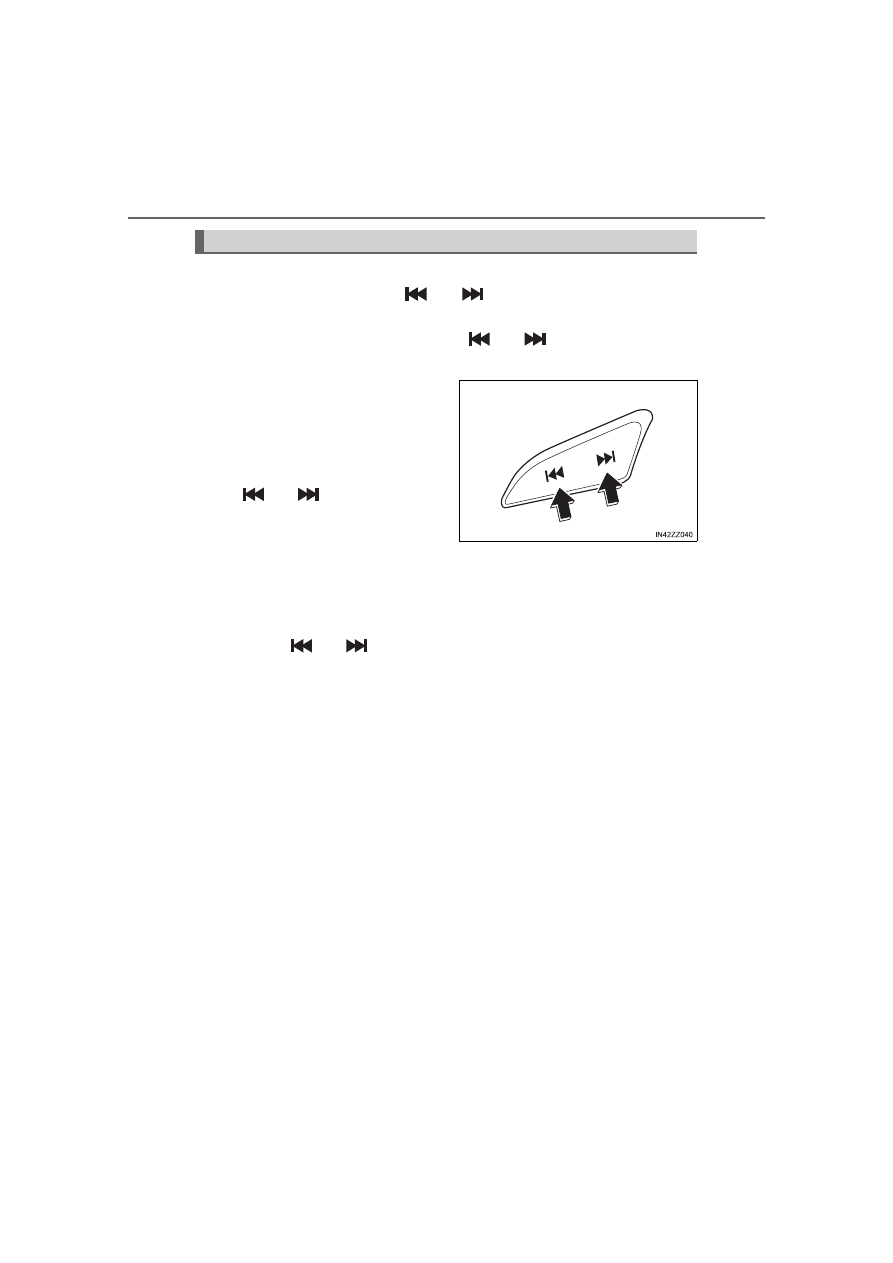

AM/FM radio

Press the seek switch (

,

). The radio switches to the

next/previous stored station in the order that it was stored.

Press and hold the seek switch (

,

) to seek all usable

stations at a higher or lower frequency whether programmed or not.

Radio stations which have been
previously stored in the auto
memory tuning (Type A)/favor-
ite radio (Type B) can be called
up by pressing the seek switch

(

,

) while any radio

station stored in the auto mem-
ory tuning (Type A)/favorite
radio (Type B) is being
received. Radio stations can be
called up in the order they were
stored with each press of the

switch (

,

).

Seek Switch

iA_OM_OM99M17z_(U)

301

4-2. Audio System

4

In

te

rior Fea

tu

res

■

USB Audio/Bluetooth

®

 Audio /CD

Press the seek switch (

) to skip forward to the beginning of

the next track.

Press the seek switch (

) within a few seconds after playback

begins to track down to the beginning of the previous track.

Press the seek switch (

) after a few seconds have elapsed to

start playback from the beginning of the current track. Press and

hold the seek switch (

,

) to continuously switch the

tracks up or down.

■

Pandora

®

/Aha™/Stitcher™ Radio (Type B)

Press the seek switch (

) to skip forward to the beginning of

the next track.

Press and hold the seek switch (

) to evaluate the playback of

the current song as “Like”.

Press and hold the seek switch (

) to evaluate the playback of

the current song as “Dislike”.
