AAC stands for Advanced Audio Coding, which is standardized voice
compression established by the ISO

working group (MPEG). Audio

data can be created and stored at a higher compression ratio than
MP3.

This unit plays files with the extensions (.aac/.m4a/.wav

) as the

AAC files.
● AAC files written under specifications other than the indicated spec-

ification may not play normally or files or folder names may not dis-
play correctly.

● The file extension may not be provided depending on the computer

operating system, version, software, or settings. In this case, add
the file extension “.aac”, “.m4a”, or “.wav

” to the end of the file

name, and then write it to the memory.

International Organization for Standardization

Type B

Operating Tips for AAC

NOTICE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

256

iA_OM_OM99M17z_(U)

OGG is the audio compression format for Xiph. Org Foundation.

Audio data can be created and stored at a higher compression ratio
than MP3.

This unit plays files with the extension (.ogg) as OGG files.
● OGG files written under specifications other than the indicated

specification may not play normally or files or folder names may not
display correctly.

● The file extension may not be provided depending on the computer

operating system, version, software, or settings. In this case, add
the file extension “.ogg” to the end of the file name, and then write it
to the disc.

This unit plays audio files as follows:

Type B

Operating Tips for OGG

NOTICE

Operating Tips for USB device

Extension

Playback with this unit

.mp3

MP3

.wma

WMA

.aac

AAC

.m4a

.wav

.ogg

OGG

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

257

■

Operating Tips for USB device

●

Playback may not be possible depending on the type and condition of the
USB flash memory even if the audio file complies with the standard above.

●

A copyright protected WMA/AAC file cannot be played in this unit.

●

The order of the music data stored in the device may differ from the play-
back order.

●

To prevent loss or damage of stored data, we recommend that you always
back up your data.

●

If a device exceeds the maximum electric current value of 1,000 mA, it may
not operate or recharge when connected.

●

Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio or CD mode).

●

The device will not operate if the data is password protected.

●

MP3/WMA/AAC/OGG

files written under specifications other than the

indicated specification may not play normally or files/folder names may not
display correctly.

Type B

This unit supports playback of music files recorded to an iPod.
● iPod is a trademark of Apple Inc., registered in the U.S. and other

countries.

The iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.

The audio unit cannot display images or videos stored in an iPod.

NOTICE

Operating Tips for iPod

-------------------------------------------------------------------------------------------------------------------------------------------------------------

258

iA_OM_OM99M17z_(U)

NOTICE

●

Remove the iPod when it is not in use. Because the iPod is not designed
to withstand excessive changes in temperature inside the cabin, it could
be damaged or the battery may deteriorate due to the excessive tempera-
ture or humidity inside the cabin if it is left in the vehicle.

●

If data in the iPod is lost while it is connected to the unit, Scion cannot
guarantee recovery of any lost data.

●

If the iPod battery is deteriorated, the iPod may not recharge and playback
may not be possible when it is connected to the unit.

●

For details on using the iPod, refer to the iPod instruction manual.

●

When connecting the iPod to a USB port, all commands are made from
the audio unit. iPod control is not possible.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

259

iA_OM_OM99M17z_(U)

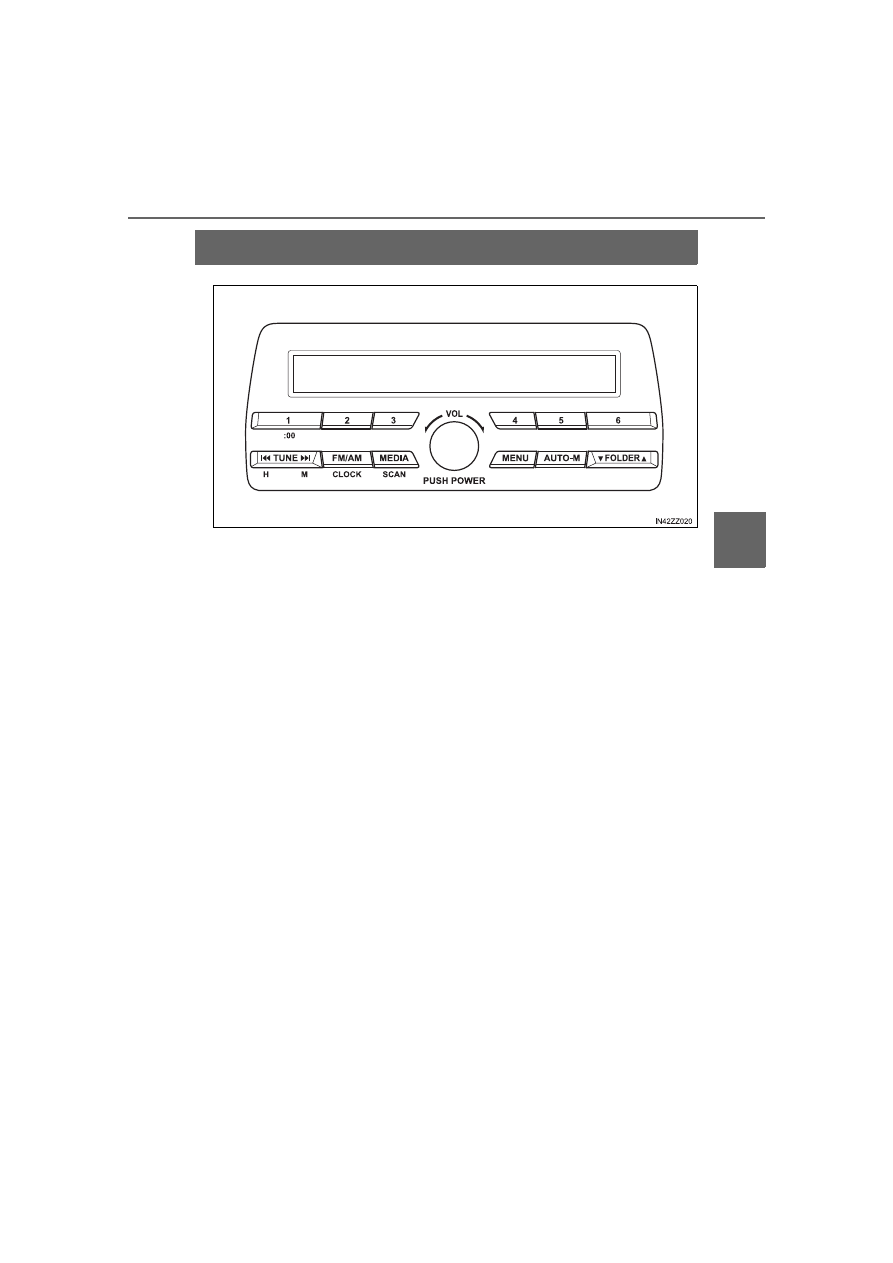

Audio Set (Type A)



● Power/Volume/Sound Controls (P. 260)
● Clock (P. 263)
● Operating the Radio (P. 264)
● Operating the Compact Disc (CD) Player (P. 267)
● How to use Auxiliary jack/USB port (P. 274)
● Error Indications (P. 274)



: If equipped

-------------------------------------------------------------------------------------------------------------------------------------------------------------

260

iA_OM_OM99M17z_(U)

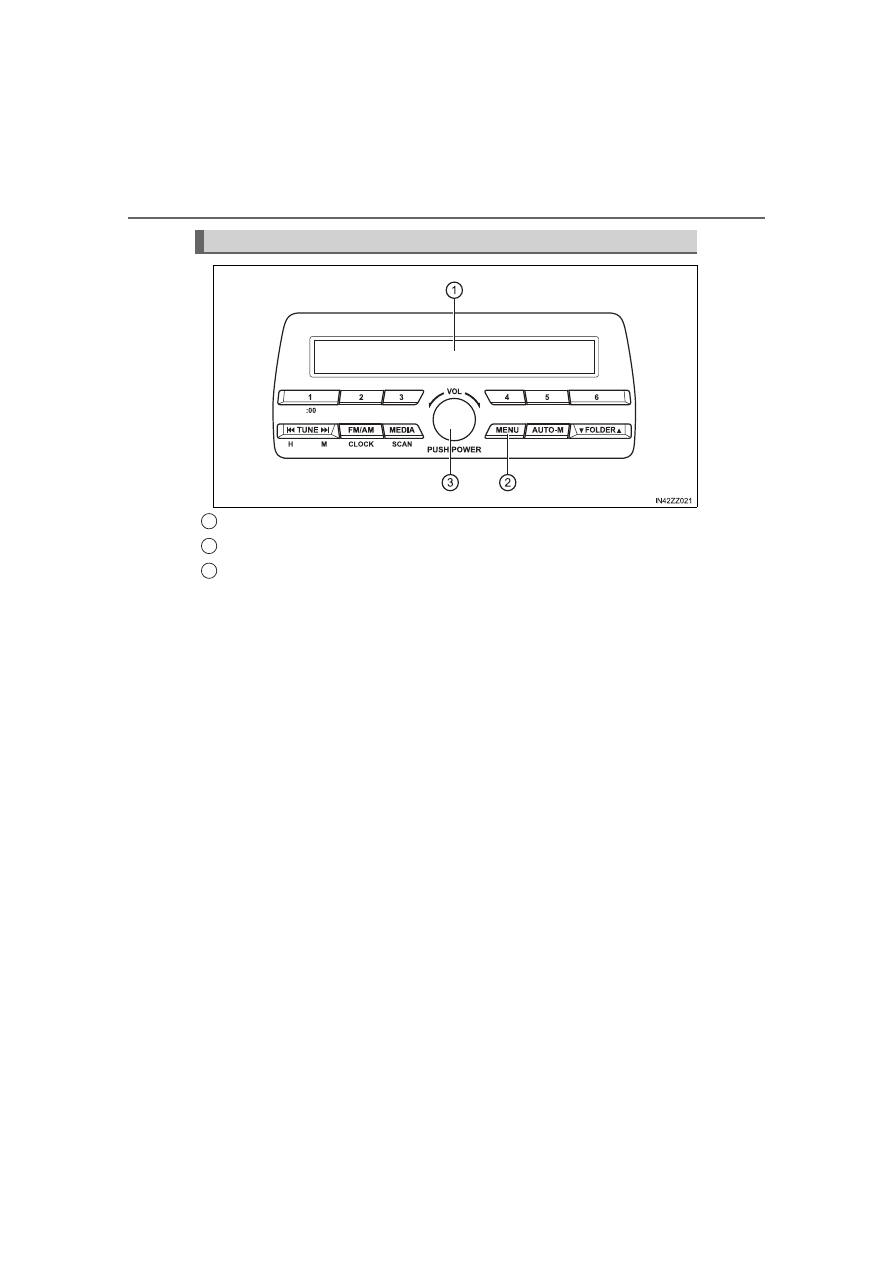

Audio display

Menu button

Power/Volume/Audio control dial

■

Power ON/OFF

Switch the ignition to ACC or ON. Press the power/volume dial to
turn the audio system on. Press the power/volume dial again to turn
the audio system off.

■

Volume adjustment

To adjust the volume, turn the power/volume dial. Turn the power/
volume dial clockwise to increase volume, counterclockwise to
decrease it.

Power/Volume/Sound Controls

1
2
3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

261

■

Audio sound adjustment

Press the menu button (

) to select the function. The

selected function will be indicated.

Turn the audio control dial to adjust the selected functions as fol-
lows:

Depending on the model, this function may not be available.

Indication

Setting value

Turn Counterclockwise

Turn Clockwise

ALC

(Automatic volume

adjustment)

Level decrease

Level increase

BASS

(Low pitch sound)

Decrease bass

Increase bass

TREB

(Treble sound)

Decrease treble

Increase treble

FADE

(Front/back volume bal-

ance)

Shift the sound to the

front

Shift the sound to the

rear

BAL

(Left/right volume bal-

ance)

Shift the sound to the

left

Shift the sound to the

right

BEEP

(Audio operation sound)

Off

BT SETUP

Select mode

12Hr< >24Hr

(12 Hr/24 Hr time

adjustment)

12Hr (Flashing)

24Hr (Flashing)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

262

iA_OM_OM99M17z_(U)

● ALC (Automatic volume adjustment)

The automatic level control (ALC) changes the audio volume auto-
matically according to the vehicle speed. The faster the vehicle
speed, the higher the volume increases. ALC has ALC OFF and
ALC LEVEL 1 to 7 modes. At ALC LEVEL 7, the amount that the
volume can increase is at the maximum. Select the mode according
to the driving conditions.

● BEEP (Audio operation sound)

The setting for the operation sound when pressing and holding a
button can be changed. The initial setting is ON. Set to OFF to
mute the operation sound.

● BT SETUP mode (if equipped)

Music and other audio such as voice data recorded on portable
audio devices and mobile phones available on the market which
are equipped with the Bluetooth

transmission function can be lis-

tened to via wireless transmission over the vehicle’s speakers.
Using the BT SETUP mode, these devices can be programmed to
the Bluetooth

unit or changed (

P. 327).

● 12Hr< >24Hr (12 Hr/24 Hr time adjustment)

Rotating the audio control dial switches the display between 12 and
24-hour clock time (

P. 263).

If not operated for several seconds, the display returns to the previous dis-
play. To reset bass, treble, fade, and balance, press the menu button (

)

for 2 seconds.
The unit will beep and “CLEAR” will be displayed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

263

■

Setting the time

The clock can be set at any time when the ignition is switched to
ACC or ON.

To adjust the time, press the clock button (

) for about 2

seconds until a beep is heard.

The clock’s current time will flash.
Time adjustment
● To adjust the time, press the hour/minute set button (

) while the clock’s current time is flashing.

● The hours advance while the hour set button (

) is

pressed. The minutes advance while the minute set button
(

) is pressed.

Press the clock button (

) again to start the clock.

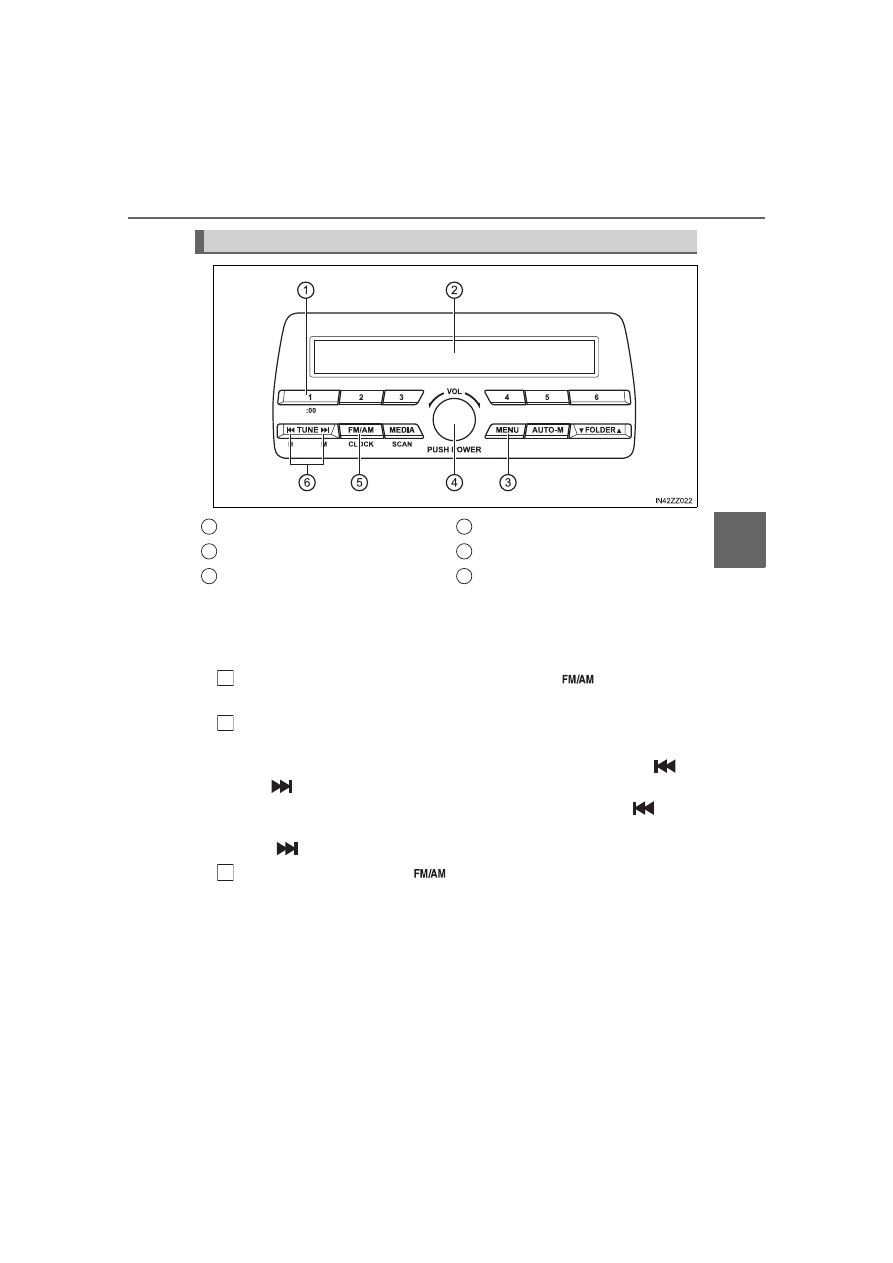

Clock

:00 button

Audio display

Menu button

Audio control dial

Clock button

Hour/Minute set switch

1
2
3

4
5
6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

264

iA_OM_OM99M17z_(U)

■

Time resetting

Press the clock button (

) for about 2 seconds until a beep

is heard.

Press the :00 button (1).

When the button is pressed, the time will be reset as follows:

(Example) 12:01 - 12:29

12:00

12:30 - 12:59

1:00

●

When the :00 button (1) is pressed, the seconds will start at “00”.

●

Switching between 12 and 24-hour clock time:
Press the menu button (

) several times until 12 and 24-hour clock time

are displayed. Turn the audio control dial in either direction, select the
desired clock setting while the preferred clock time is flashing.

■

Radio ON

Press a band selector button (

) to turn the radio on.

■

Band selection

Successively pressing the band selector button (

) switches

the bands as follows: FM1

FM2AM.

The selected mode will be indicated.

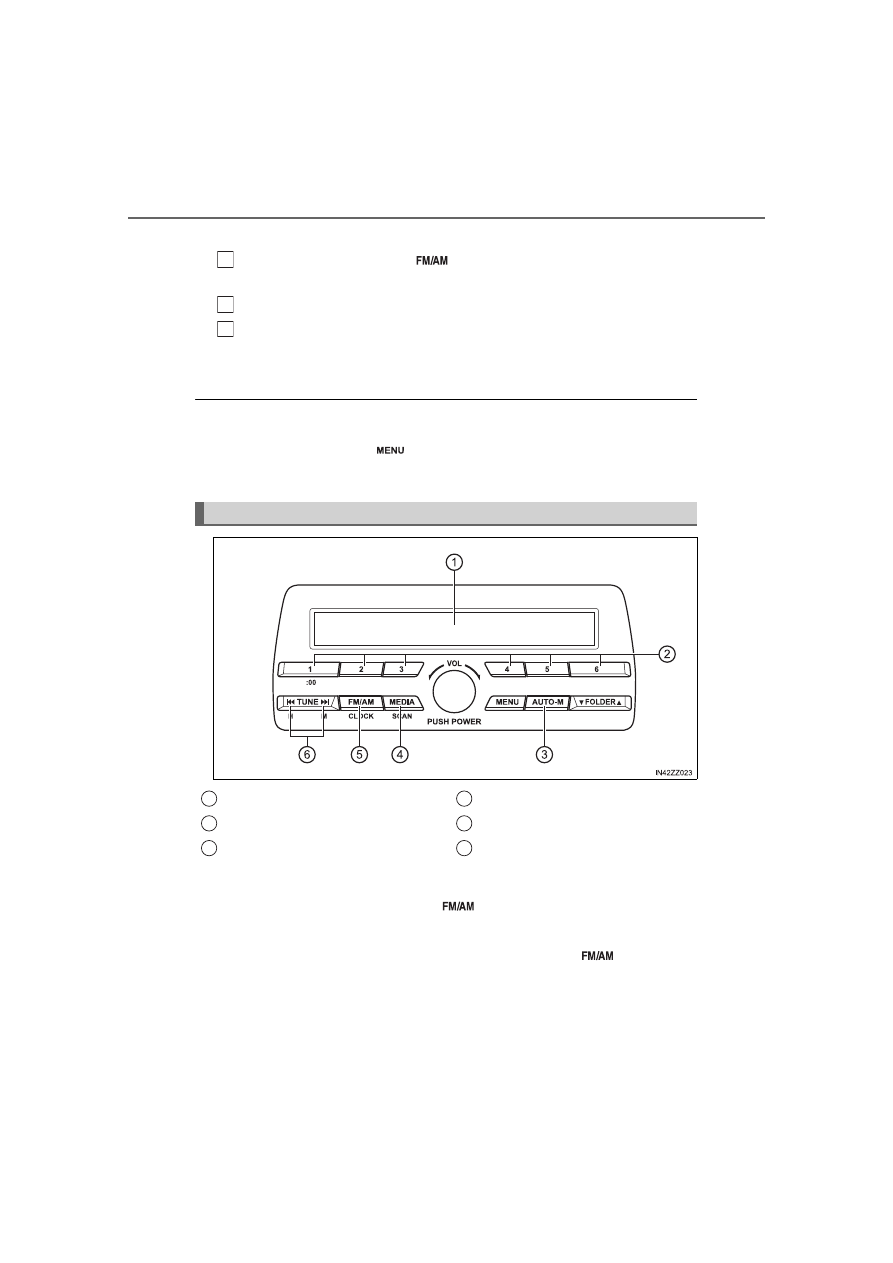

Operating the Radio

Audio display

Channel preset buttons

Auto memory button

Scan button

Band selector button

Tuning button

1
2
3

4
5
6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

265

■

Tuning

The radio has the following tuning methods: Manual, Seek, Scan,
Preset channel, and Auto memory tuning. The easiest way to tune
stations is to set them on preset channels.
● Manual tuning

Select the station by pressing the tuning button (

)

lightly.

● Seek tuning

Automatic search for radio stations starts when the tuning button
(

) is pressed until a beep sound is heard. The

search stops when a station is found.

● Scan tuning

Press and hold the scan button (

) to automatically sample

strong stations.

Scanning stops at each station for about 5 seconds. To hold a
station, press and hold the scan button (

) again during this

interval.

● Preset channel tuning

The 6 preset channels can be used to store 6 AM and 12 FM sta-
tions.

To set a channel first select AM, FM1, or FM2. Tune to the
desired station.

Press a channel preset button for about 2 seconds until a beep
is heard. The preset channel number or station frequency will
be displayed. The station is now held in the memory.

Repeat this operation for the other stations and bands you
want to store. To tune one in the memory, select AM, FM1, or
FM2 and then press its channel preset button. The station fre-
quency or the channel number will be displayed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

266

iA_OM_OM99M17z_(U)

● Auto memory tuning

This is especially useful when driving in an area where the local
stations are not known.

Press and hold the auto memory button (

) for about 2 sec-

onds until a beep is heard; the system will automatically scan
and temporarily store up to 6 stations with the strongest frequen-
cies in each selected band in that area.

After scanning is completed, the station with the strongest fre-
quency will be tuned and its frequency displayed. Press and
release the auto memory button (

) to recall stations from

the auto-stored stations. One stored station will be selected each
time and its frequency and channel number will be displayed.

■

Operating the Radio

●

If the FM broadcast signal becomes weak, reception automatically changes
from STEREO to MONO for reduced noise.

●

If you continue to press and hold the button, the frequency will continue
changing without stopping.

●

If no stations can be tuned after scanning operations, “A” will be displayed.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

267

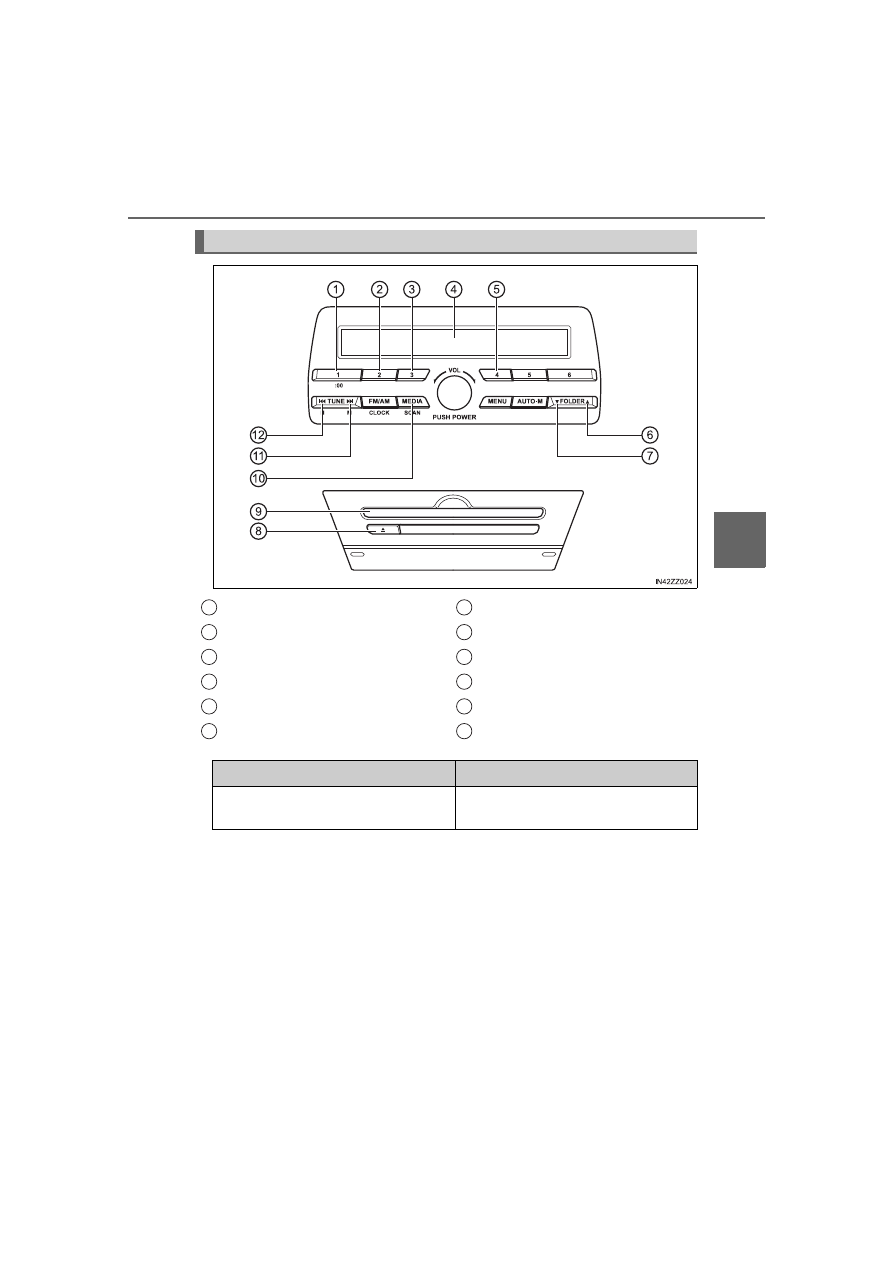

Operating the Compact Disc (CD) Player (if equipped)

Repeat button

Random button

Text button

Audio display

Play/Pause button

Folder up button

Folder down button

CD eject button

CD slot

Media/Scan button

Track up/Fast-forward button

Track down/Reverse button

1
2
3
4
5
6

7
8
9

10
11
12

Type

Playable data

Music/MP3/WMA/ AAC CD player

• Music data (CD-DA)
• MP3/WMA/AAC file

-------------------------------------------------------------------------------------------------------------------------------------------------------------

268

iA_OM_OM99M17z_(U)

■

Inserting the CD

Insert the CD into the slot, label-side up. The auto-loading mecha-
nism will set the CD and begin play.

■

Ejecting the CD

Press the CD eject button (

) to eject the CD.

■

Playback

Press the media button (

) to switch to CD mode and start

playback.

■

Pause

To stop playback, press the Play/Pause button (4).

Press the button again to resume playback.

■

Fast-forward/Reverse

Press and hold the fast-forward button (

) to advance through

a track at high speed. Press and hold the reverse button (

) to

reverse through a track at high speed.

■

Track search

Press the track up button (

) once to skip forward to the

beginning of the next track. Press the track down button (

)

within a few seconds after playback begins to track down to the
beginning of the previous track.

Press the track down button (

) after a few seconds have

elapsed to start playback from the beginning of the current track.

■

Folder search (during MP3/WMA/AAC CD playback)

To change to the previous folder, press the folder down button
(

), or press the folder up button (

) to advance to the

next folder.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

269
