Scion iA. Service Manual - part 15

■

Temperature control dial

This dial controls temperature. Turn it clockwise for hot and coun-
terclockwise for cold.

■

Fan control dial

This dial allows variable fan speeds.

■

Mode selector dial

Turn the mode selector dial to select airflow mode (

P. 236).

■

A/C switch

Press the A/C switch to turn the air conditioner on. The indicator
light on the switch will illuminate when the fan control dial is set at
position 1, 2, 3, or 4.

Press the switch once again to turn the air conditioner off.

■

Air intake selector

This switch controls the source of air entering the vehicle.

Press the air intake selector switch to alternate between the outside
air and recirculated air positions.
● Recirculated air position (

)

Outside air is shut off. Air within the vehicle is recirculated.

● Outside air position (

)

Outside air is allowed to enter the cabin. Use this mode for venti-
lation or windshield defrosting.

Control Switches

Dial

Fan speed

Fan off

Low speed

Medium low speed

Medium high speed

High speed

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

239

■

Control Switches

●

When the mode is set to

with the fan control dial in a posi-

tion other than 0 and the temperature control dial in the maximum cold posi-
tion, the air intake selector switches to the recirculated air position and the
A/C turns on automatically. If A/C is not desired, press the A/C switch to turn
it off.

●

The mode selector dial can be set at the intermediate positions (

)

between each mode. Set the dial to an intermediate position if you want to
split the airflow between the two modes.

●

For example, when the mode selector dial is at the

position between

the

and

positions, airflow from the floor vent is less than that of

the

position.

●

The air conditioner may not function when the outside temperature
approaches 32 °F (0 °C).

WARNING

■

Do not use the recirculated air position in cold or rainy weather:
Using the recirculated air position in cold or rainy weather is dangerous as it
will cause the windows to fog up. Your vision will be hampered, which could
lead to a serious accident.

■

Do not use the

position in cold or rainy weather

Using the

position in cold or rainy weather is dangerous as it will

cause the windows to fog up. Your vision will be hampered, which could
lead to a serious accident.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

240

iA_OM_OM99M17z_(U)

Set the mode selector dial to the

position.

Set the air intake selector to the outside air position.

Set the temperature control dial to the hot position.

Set the fan control dial to the desired speed.

If dehumidified heating is desired, turn on the air conditioner.

■

Heating

●

If the windshield fogs up easily, set the mode selector dial to the

posi-

tion.

●

If cooler air is desired at face level, set the mode selector dial to the
position and adjust the temperature control dial to maintain maximum com-
fort.

●

The air to the floor is warmer than air to the face (except when the tempera-
ture control dial is set at the extreme hot or cold position).

Heating

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

241

Set the mode selector dial to the

position.

Set the temperature control dial to the cold position.

Set the fan control dial to the desired speed.

Turn on the air conditioner by pressing the A/C switch.

After cooling begins, adjust the fan control dial and temperature
control dial as needed to maintain maximum comfort.

■

Cooling

●

When maximum cooling is desired, set the temperature control dial to the
extreme cold position and set the air intake selector to the recirculated air
position, then set the fan control dial to position 4.

●

If warmer air is desired at floor level, set the mode selector dial to the
position and adjust the temperature control dial to maintain maximum com-
fort.

●

The air to the floor is warmer than air to the face (except when the tempera-
ture control dial is set at the extreme hot or cold position).

Cooling

NOTICE

If the air conditioner is used while driving up long hills or in heavy traffic,
monitor the engine coolant temperature warning light to see if it is illumi-
nated or flashing (

P. 148).

The air conditioner may cause engine overheating. If the warning light is
illuminated or flashing, turn the air conditioning off (

P. 502).

-------------------------------------------------------------------------------------------------------------------------------------------------------------

242

iA_OM_OM99M17z_(U)

Set the mode selector dial to the

position.

Set the air intake selector to the outside air position.

Set the temperature control dial to the desired position.

Set the fan control dial to the desired speed.

Set the mode selector dial to the

position.

Set the temperature control dial to the desired position.

Set the fan control dial to the desired speed.

If dehumidified heating is desired, turn on the air conditioner.

■

Windshield Defrosting and Defogging

●

For maximum defrosting, turn on the air conditioner, set the temperature
control dial to the extreme hot position, and the fan control dial to position 4.

●

If warm air is desired at the floor, set the mode selector dial to the
position.

●

In the

position, the air conditioner is automatically turned on

and the outside air position is automatically selected to defrost the wind-
shield. In the

position, the outside air position cannot be

changed to the recirculated air position.

Ventilation

Windshield Defrosting and Defogging

WARNING

■

Do not defog the windshield using the

position with the tempera-

ture control set to the cold position
Using the

position with the temperature control set to the cold posi-

tion is dangerous as it will cause the outside of the windshield to fog up.
Your vision will be hampered, which could lead to a serious accident. Set
the temperature control to the hot or warm position when using the
position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

243

Operate the air conditioner in cool or cold weather to help defog the
windshield and side windows.

Set the mode selector dial to the desired position.

Set the air intake selector to the outside air position.

Set the temperature control dial to the desired position.

Set the fan control dial to the desired speed.

Turn on the air conditioner by pressing the A/C switch.

■

Dehumidifying
One of the functions of the air conditioner is dehumidifying the air and, to use
this function, the temperature does not have to be set to cold. Therefore, set
the temperature control dial to the desired position (hot or cold) and turn on
the air conditioner when you want to dehumidify the cabin air.

Dehumidifying

-------------------------------------------------------------------------------------------------------------------------------------------------------------

244

iA_OM_OM99M17z_(U)

Antenna

The antenna is embedded into the window glass.

Embedded Type (if equipped)

NOTICE

When washing the inside of the window which has an antenna, use a soft
cloth dampened in lukewarm water, gently wiping the antenna lines. Use of
glass cleaning products could damage the antenna.

●

To prevent damage to the antenna, remove it before entering a car wash
facility or passing beneath a low overhead clearance.

●

Be careful around the antenna when removing snow from the roof. Other-
wise the antenna could be damaged.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

245

iA_OM_OM99M17z_(U)

Operating Tips for Audio System

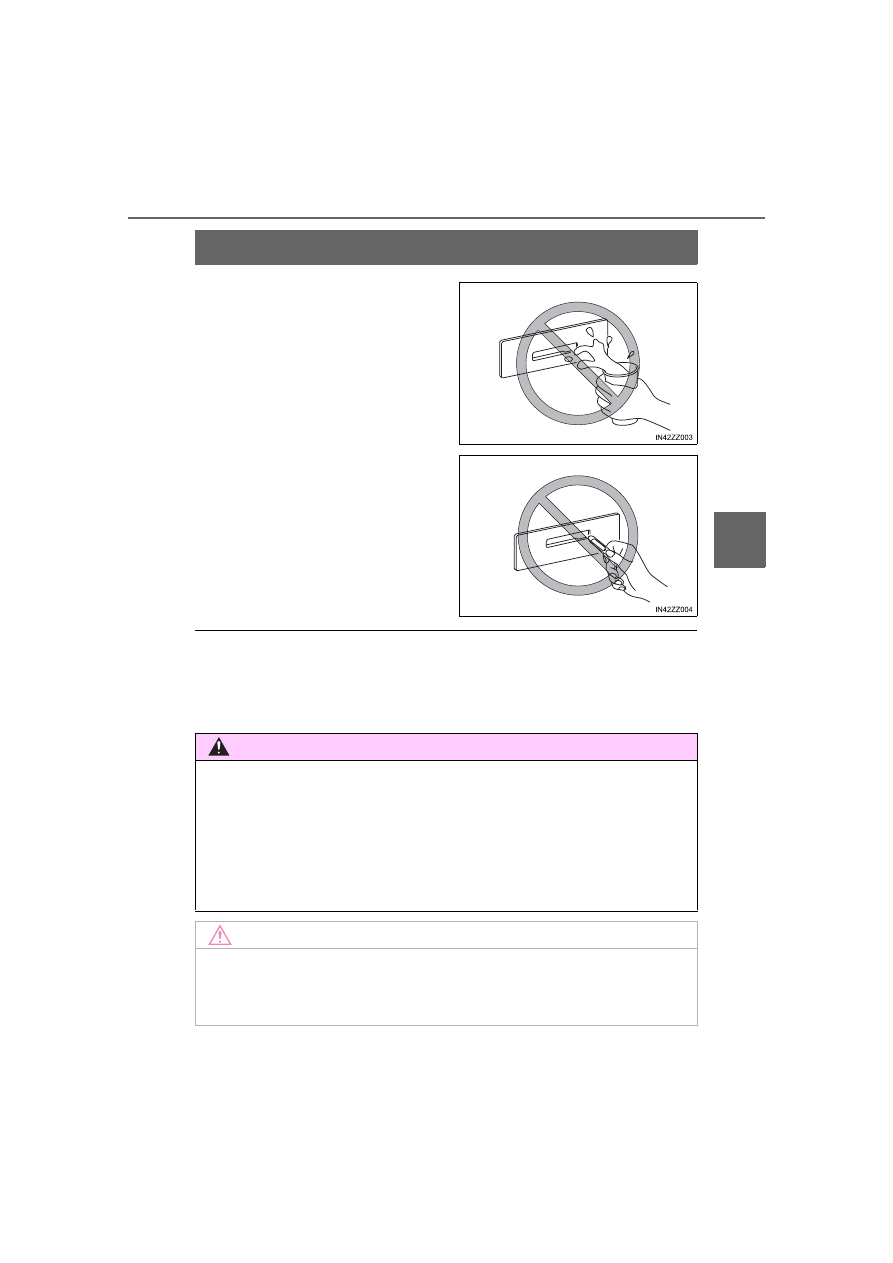

Do not spill any liquid on the audio
system.

Do not insert any objects, other
than CDs, into the slot.

●

To prevent the battery from being discharged, do not leave the audio system
on for a long period of time when the engine is not running.

●

If a cellular phone or CB radio is used in or near the vehicle, it could cause
noise to occur from the audio system, however, this does not indicate that
the system has been damaged.

WARNING

■

Always adjust the audio while the vehicle is stopped
Do not adjust the audio control switches while driving the vehicle. Adjusting
the audio while driving the vehicle is dangerous as it could distract your
attention from the vehicle operation which could lead to a serious accident.

Even if the audio control switches are equipped on the steering wheel, learn
to use the switches without looking down at them so that you can keep your
maximum attention on the road while driving the vehicle.

NOTICE

For the purposes of safe driving, adjust the audio volume to a level that
allows you to hear sounds outside of the vehicle including car horns and
particularly emergency vehicle sirens.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

246

iA_OM_OM99M17z_(U)

■

AM characteristics

AM signals bend around such things as buildings or mountains and
bounce off the ionosphere.

Therefore, they can reach longer distances than FM signals.

Because of this, two stations may sometimes be picked up on the
same frequency at the same time.

Ionosphere

Station 2

Station 1

■

FM characteristics

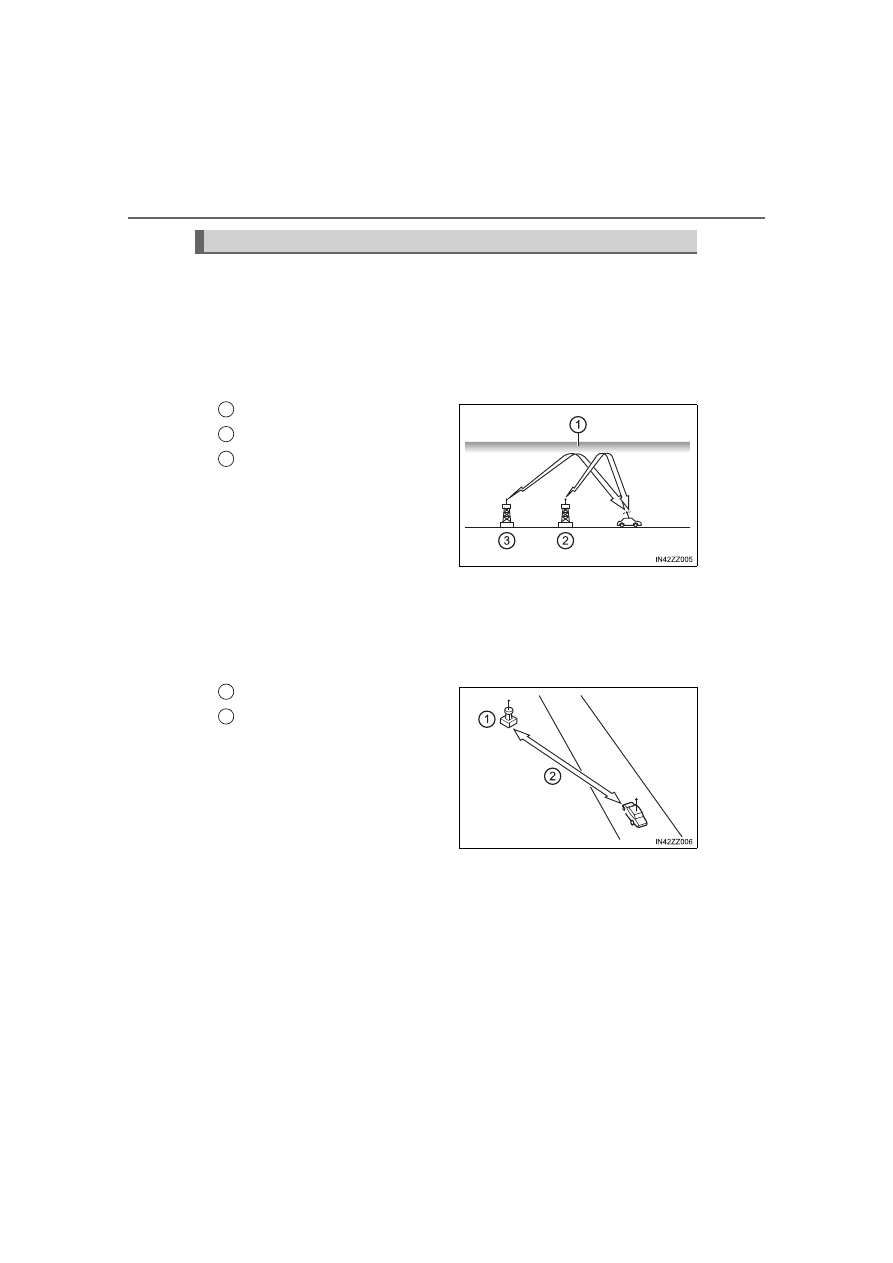

An FM broadcast range is usually about 25 - 30 miles (40 - 50 km)
from the source. Because of extra coding needed to break the
sound into two channels, stereo FM has even less range than mon-
aural (non-stereo) FM.

FM Station

25 - 30 miles (40 - 50 km)

Radio Reception

1
2
3

1
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

247

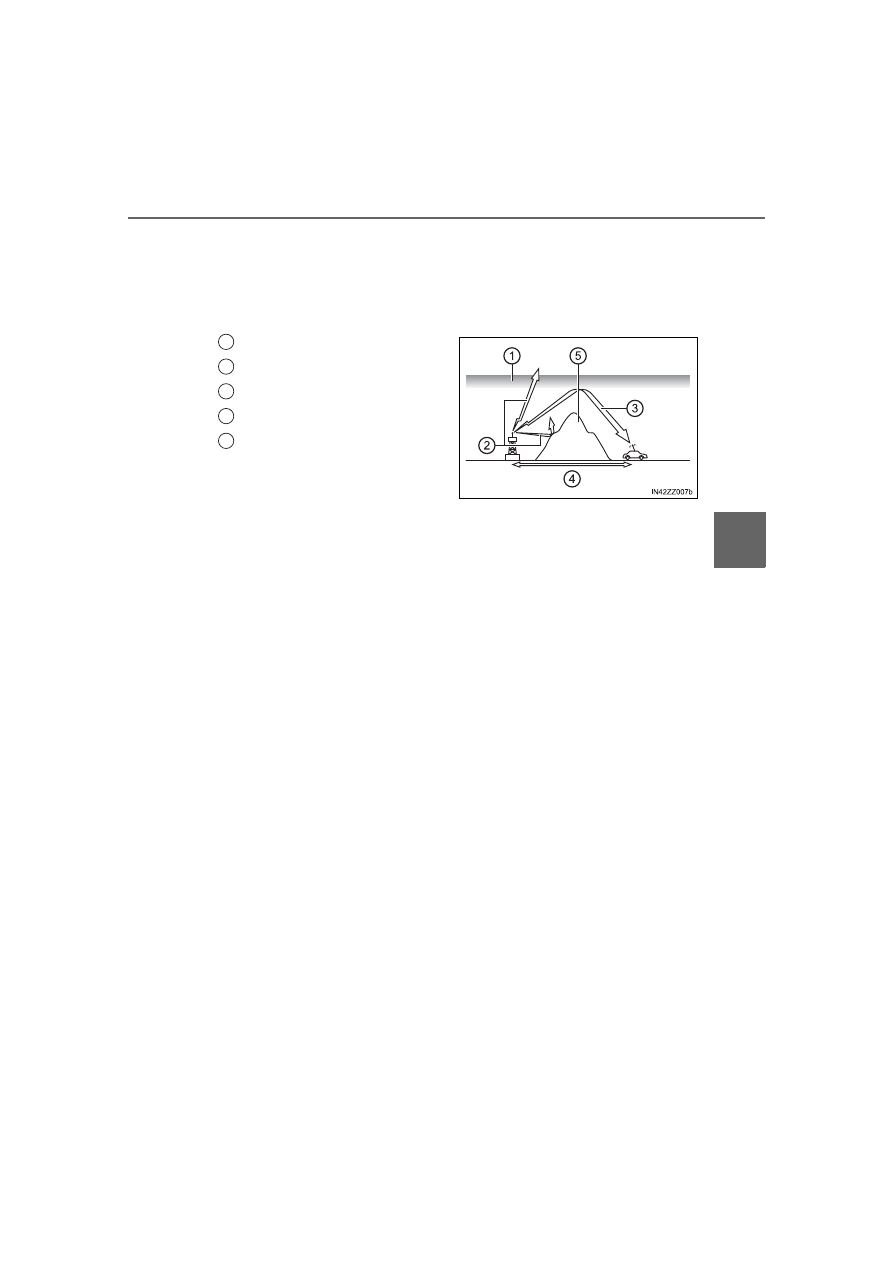

Signals from an FM transmitter are similar to beams of light
because they do not bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot travel beyond the horizon.
Therefore, FM stations cannot be received at the great distances
possible with AM reception.

Ionosphere

FM wave

AM wave

60 - 120 miles (100 - 200 km)

Obstruction

Atmospheric conditions can also affect FM reception. High humidity
will cause poor reception. However, cloudy days may provide better
reception than clear days.

1
2
3
4
5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

248

iA_OM_OM99M17z_(U)

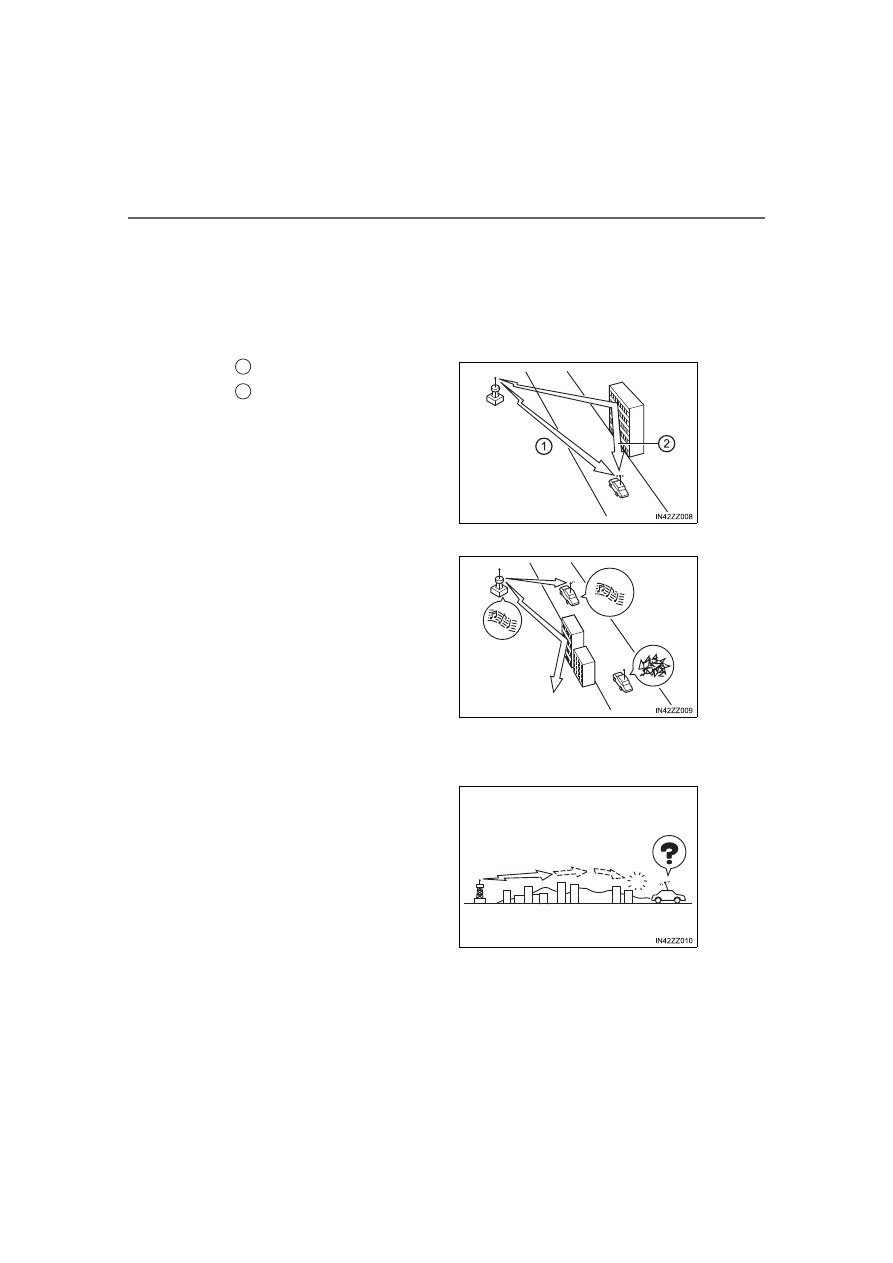

● Multipath noise

Since FM signals can be reflected by obstructions, it is possible
to receive both the direct signal and the reflected signal at the
same time. This causes a slight delay in reception and may be
heard as a broken sound or a distortion. This problem may also
be encountered when in close proximity to the transmitter.

Direct

Reflected wave

● Flutter/Skip noise

Signals from an FM transmit-
ter move in straight lines and
become weak in valleys
between tall buildings, moun-
tains, and other obstacles.
When a vehicle passes
through such an area, the
reception conditions may
change suddenly, resulting in
annoying noise.

● Weak signal noise

In suburban areas, broadcast
signals become weak
because of distance from the
transmitter. Reception in
such fringe areas is charac-
terized by sound breakup.

1
2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

249

● Strong signal noise

This occurs very close to a
transmitter tower. The broad-
cast signals are extremely
strong, so the result is noise
and sound breakup at the
radio receiver.

● Station drift noise

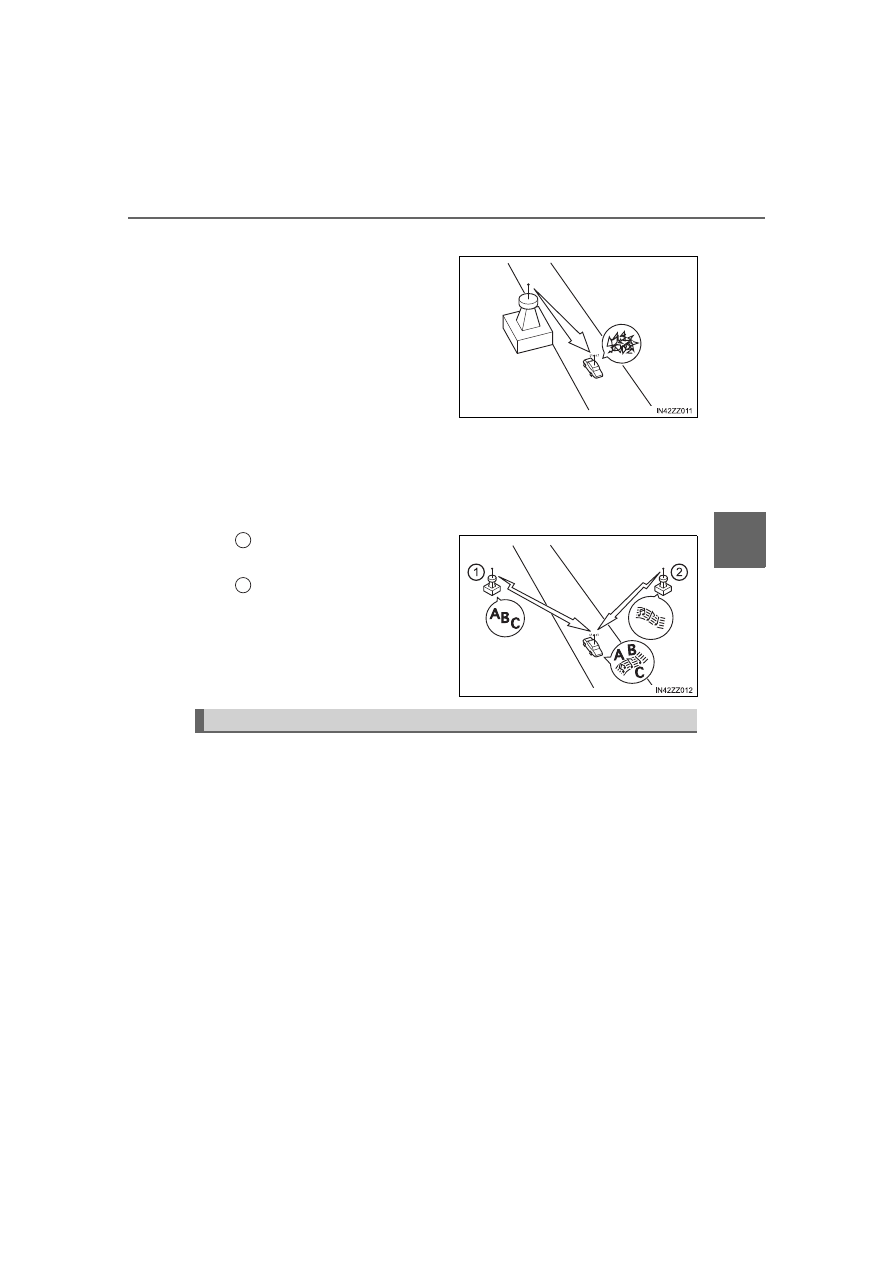

When a vehicle reaches the area of two strong stations broad-
casting at similar frequencies, the original station may be tempo-
rarily lost and the second station picked up. At this time there will
be some noise from this disturbance.

Station 1
88.1 MHz

Station 2
88.3 MHz

■

Condensation phenomenon

Immediately after turning on the heater when the vehicle is cold, the
CD or optical components (prism and lens) in the CD player may
become clouded with condensation. At this time, the CD will eject
immediately when placed in the unit.

A clouded CD can be corrected simply by wiping it with a soft cloth.
Clouded optical components will clear naturally in about an hour.
Wait for normal operation to return before attempting to use the
unit.

Operating Tips for CD Player

-------------------------------------------------------------------------------------------------------------------------------------------------------------

250

iA_OM_OM99M17z_(U)

■

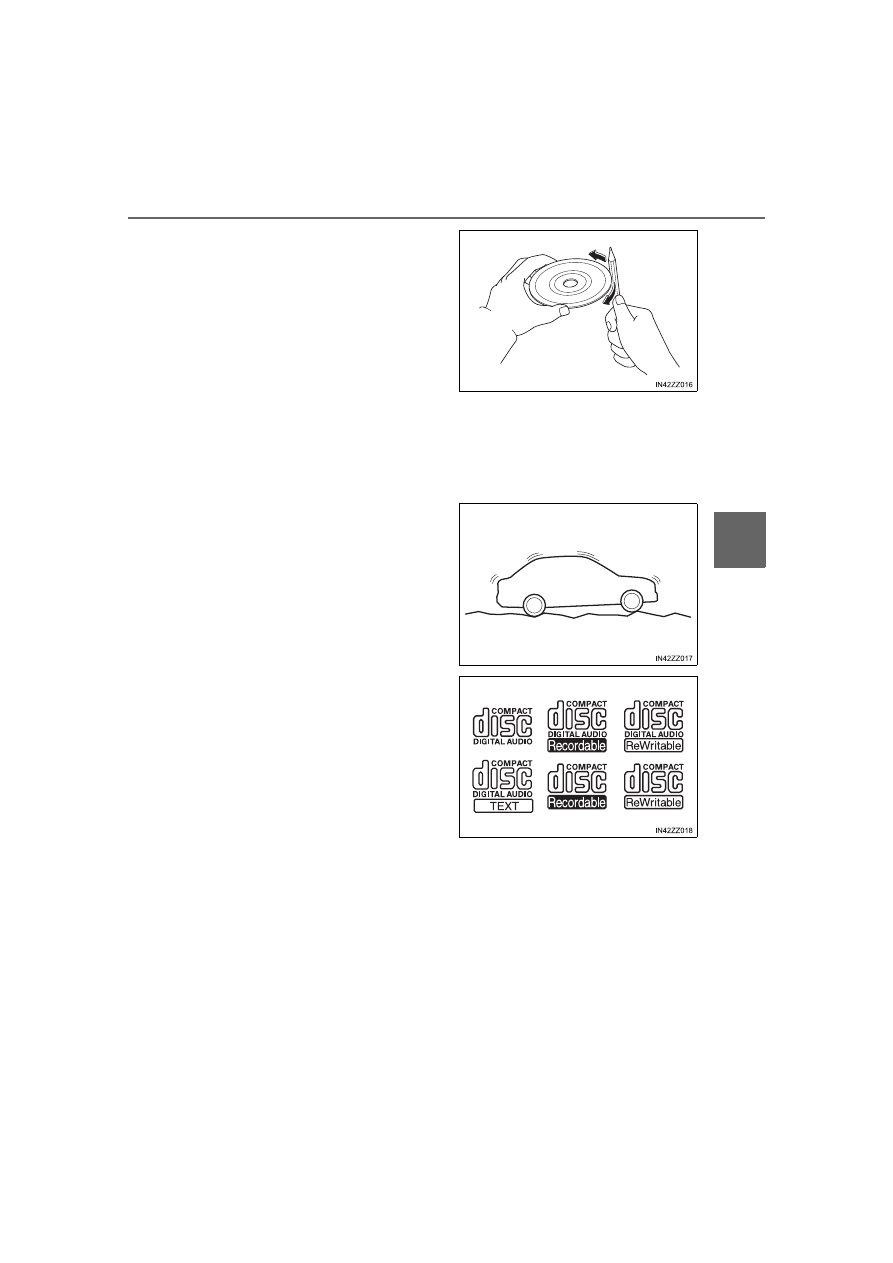

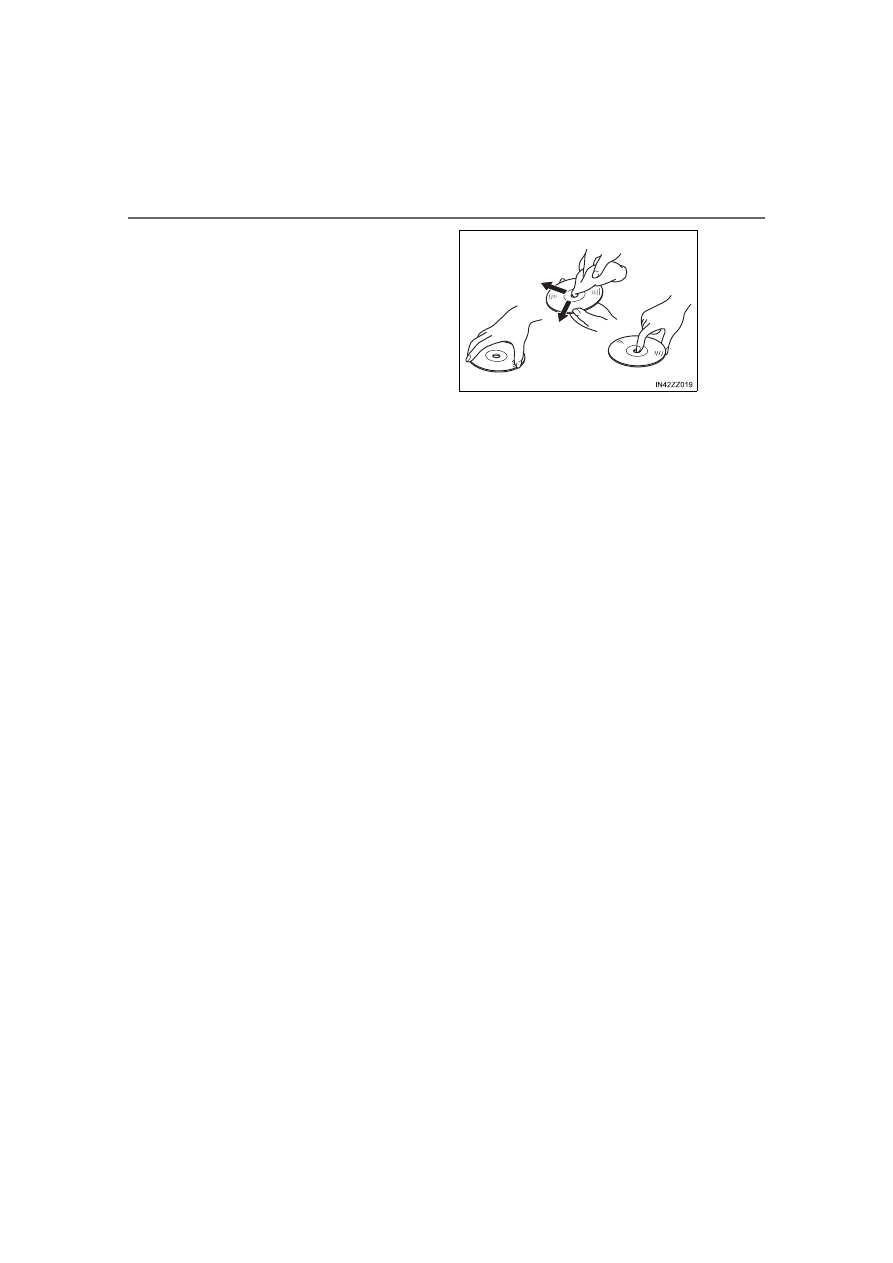

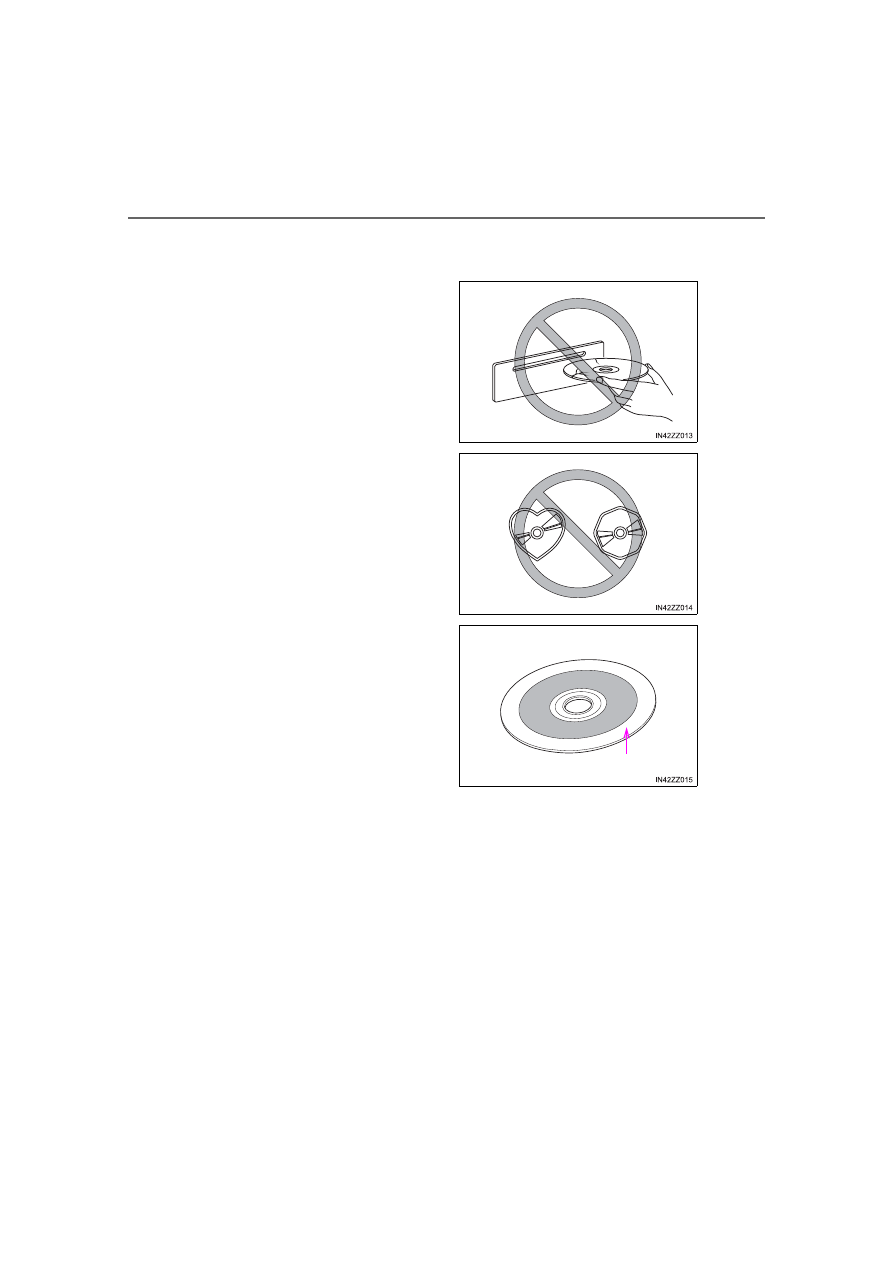

Handling the CD player

The following precautions should be observed.

● Do not use deformed or

cracked CDs. The disc may
not eject resulting in a mal-
function.

● Do not use non-conventional

discs such as heart-shaped,
octagonal discs, etc.
The disc may not eject result-
ing in a malfunction.

● If the memory portion of the

CD is transparent or translu-
cent, do not use the disc.

Transparent

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

251

● A new CD may have rough

edges on its inner and outer

perimeters. If a disc with

rough edges is used, proper

setting will not be possible

and the CD player will not

play the CD. In addition, the

disc may not eject resulting

in a malfunction.
Remove the rough edges in advance by using a ball-point pen or

pencil as shown below. To remove the rough edges, rub the side

of the pen or pencil against the inner and outer perimeter of the

CD.

● When driving over uneven

surfaces, the sound may

jump.

● CDs bearing the logo shown

in the illustration can be

played. No other discs can

be played.

● Use discs that have been legitimately produced. If illegally-cop-

ied discs such as pirated discs are used, the system may not

operate properly.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

252

iA_OM_OM99M17z_(U)

● Be sure never to touch the

signal surface when handling
the CDs. Pick up a CD by
grasping the outer edge or
the edge of the hole and the
outer edge.

● Do not stick paper or tape on the CD. Avoid scratching the

reverse side (the side without a label). The disc may not eject
resulting in a malfunction.

● Dust, finger smudges, and dirt can decrease the amount of light

reflected from the signal surface, thus affecting sound quality. If
the CD should become soiled, gently wipe it with a soft cloth from
the center of the CD to the edge.

● Do not use record sprays, antistatic agents, or household spray

cleaners. Volatile chemicals such as benzine and thinner can
also damage the surface of the CD and must not be used. Any-
thing that can damage, warp, or fog plastic should never be used
to clean CDs.

● The CD player ejects the CD if the CD is inserted upside down.

Also dirty and/ or defective CDs may be ejected.

● Do not insert cleaning discs in the CD player.
● Do not insert any disc with a peel-off seal affixed to it.
● This unit may not be able to play certain CD-R/CD-RWs made

using a computer or music CD recorder due to disc characteris-
tics, scratches, smudges, dirt, etc., or due to dust or condensa-
tion on the lens inside the unit.

● Storing CDs in the vehicle exposed to direct sunlight or high tem-

perature may damage the CD-R/CD-RWs, and make them
unplayable.

● CD-R/CD-RW exceeding 700 MB cannot be played.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

iA_OM_OM99M17z_(U)

253
