Genesis G90 (2017 year). Manual - part 27

7-45

07

Wheel replacement

When replacing the metal wheels for
any reason, make sure the new
wheels are equivalent to the original
factory units in diameter, rim width
and offset.

Tire traction

Tire traction can be reduced if you
drive on worn tires, tires that are
improperly inflated or on slippery
road surfaces. Tires should be
replaced when tread wear indicators
appear. To reduce the possibility of
losing control, slow down whenever
there is rain, snow or ice on the road.

Tire maintenance

In addition to proper inflation, correct
wheel alignment helps to decrease
tire wear. If you find a tire is worn
unevenly, have your dealer check the
wheel alignment.
When you have new tires installed,
make sure they are balanced. This
will increase vehicle ride comfort and
tire life. Additionally, a tire should
always be rebalanced if it is removed
from the wheel.

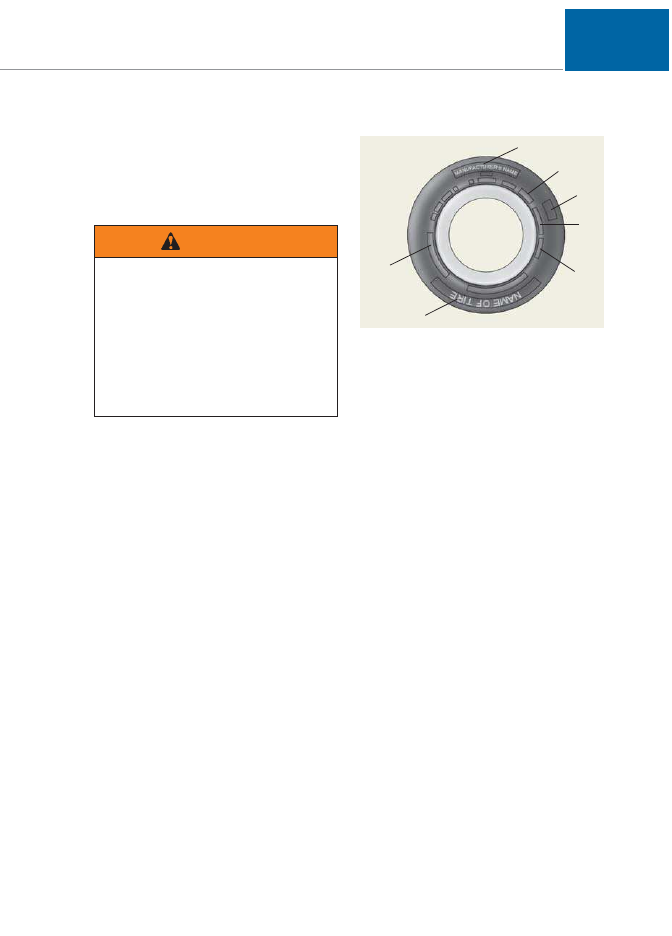

Tire sidewall labeling

This information identifies and
describes the fundamental charac-
teristics of the tire and also provides
the tire identification number (TIN)
for safety standard certification. The
TIN can be used to identify the tire in
case of a recall.

1. Manufacturer or brand name

Manufacturer or Brand name is
shown.

2. Tire size designation

A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replace-
ment tires for your car. The following
explains what the letters and num-
bers in the tire size designation
mean.
Example tire size designation:
(These numbers are provided as an
example only; your tire size designa-
tor could vary depending on your
vehicle.)

A wheel that is not the correct
size may adversely affect wheel
and bearing life, braking and
stopping abilities, handling char-
acteristics, ground clearance,
body-to-tire clearance, snow
chain clearance, speedometer
and odometer calibration, head-
lamp aim and bumper height.

WARNING

OHI076059

1

1

2

3

4

5,6

7

7-46

Maintenance

245/50 R18 100W
245 - Tire width in millimeters.
50 - Aspect ratio. The tire’s section

height as a percentage of its
width.

R - Tire construction code (Radial).
18 - Rim diameter in inches.
100 - Load Index, a numerical code

associated with the maximum
load the tire can carry.

W - Speed  Rating  Symbol. See  the

speed rating chart in this section
for additional information.

Wheel size designation

Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean.

Example wheel size designation:
8.0J X 18

8.0 - Rim width in inches.
J - Rim contour designation.
18 - Rim diameter in inches.

Tire speed ratings

The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire's designed maximum safe oper-
ating speed.

3. Checking tire life

(TIN : Tire Identification
Number)

Any tires that are over 6 years old,
based on the manufacturing date,
tire strength and performance,
decline with age naturally (even
unused spare tires). Therefore, the
tires (including the spare tire) should
be replaced by new ones. You can
find the manufacturing date on the
tire sidewall (possibly on the inside of
the wheel), displaying the DOT
Code. The DOT Code is a series of
numbers on a tire consisting of num-
bers and English letters. The manu-
facturing date is designated by the
last four digits (characters) of the
DOT code.

Speed

Rating

Symbol

Maximum Speed

S

180 km/h (112 mph)

T

190 km/h (118 mph)

H

210 km/h (130 mph)

V

240 km/h (149 mph)

W

270 km/h (168 mph)

Y

300 km/h (186 mph)

7-47

07

DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 2216 represents
that the tire was produced in the 22th
week of 2016.

4. Tire ply composition and

material

The number of layers or plies of rub-
ber-coated fabric are in the tire. Tire
manufacturers also must indicate the
materials in the tire, which include
steel, nylon, polyester, and others.
The letter "R" means radial ply con-
struction; the letter "D" means diago-
nal or bias ply construction; and the
letter "B" means belted-bias ply con-
struction.

5. Maximum permissible infla-

tion pressure

This number is the greatest amount
of air pressure that should be put in
the tire. Do not exceed the maximum
permissible inflation pressure. Refer
to the Tire and Loading Information
label for recommended inflation
pressure.

6. Maximum load rating

This number indicates the maximum
load in kilograms and pounds that
can be carried by the tire. When
replacing the tires on the vehicle,
always use a tire that has the same
load rating as the factory installed
tire.

7. Uniform tire quality grading

Quality grades can be found where
applicable on the tire sidewall
between tread shoulder and maxi-
mum section width.
For example:
TREADWEAR 200
TRACTION AA
TEMPERATURE A

Tire age
Tires degrade over time, even
when they are not being used.
Regardless of the remaining
tread, it is recommended that
tires generally be replaced after
six (6) years of normal service.
Heat caused by hot climates or
frequent high loading condi-
tions can accelerate the aging
process. Failure to follow this
Warning can result in sudden
tire failure, which could lead to
a loss of control and an acci-
dent involving serious injury or
death.

WARNING

7-48

Maintenance

Tread wear

The tread wear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specified govern-
ment test course. For example, a tire
graded 150 would wear one-and-a-
half times (1½) as well on the gov-
ernment course as a tire graded 100.
The relative performance of tires
depends upon the actual conditions
of their use, however, and may
depart significantly from the norm
because of variations in driving
habits, service practices and differ-
ences in road characteristics and cli-
mate.
These grades are molded on the
side-walls of passenger vehicle tires.
The tires available as standard or
optional equipment on your vehicles
may vary with respect to grade.

Traction - AA, A, B & C

The traction grades, from highest to
lowest, are AA, A, B and C. Those
grades represent the tires ability to
stop on wet pavement as measured
under controlled conditions on spec-
ified government test surfaces of
asphalt and concrete. A tire marked
C may have poor traction perform-
ance.

Temperature -A, B & C

The temperature grades are A (the
highest), B and C representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. Grades B and A
represent higher levels of perform-
ance on the laboratory test wheel
than the minimum required by the
law.

The traction grade assigned to
this tire is based on straight-
ahead braking traction tests,
and does not include accelera-
tion, cornering, hydroplaning,
or peak traction characteristics.

WARNING

Tire temperature
The temperature grade for this
tire is established for a tire that
is properly inflated and not
overloaded. Excessive speed,
underinflation,

or excessive

loading, either separately or in
combination, can cause heat
build-up and possible sudden
tire failure. This can cause loss
of vehicle control and serious
injury or death.

WARNING

7-49

07

Low Aspect Ratio Tires

Low aspect ratio tires, the aspect
ratio is lower than 50, are provided
for sporty looks.
Because low aspect ratio tires are
optimized for handling and braking,
their sidewall is a little stiffer than a
standard tire. Also low aspect ratio
tires tend to be wider and conse-
quently have a greater contact patch
with the road surface. In some
instances they may generate more
road noise compared with standard
tires.

Because the sidewall of a low
aspect ratio tire is shorter than a
standard tire, the rim of the wheel
and the tire itself is more easily
susceptible to damage. Use cau-
tion when driving and follow the
guidelines below to help minimize
damage to the wheel and tire:
- When driving on a rough road or

off road,

drive cautiously

because tires and wheels may
be damaged. And after driving,
inspect tires and wheels.

- When passing over a pothole,

speed bump, manhole, or curb
stone, drive slowly so that the
tires and wheels are not dam-
aged.

- If the tire is subjected to a severe

impact, have the tire and wheel
inspected by an authorized
retailer of Genesis Branded
products.

- Inspect the tire condition and

pressure every 1,800 miles
(3,000km).

• It is not easy to recognize tire

damage with your own eyes. But
if there is the slightest hint of
tire damage,

have the tire

checked or replaced because
the tire damage may cause air
leakage from the tire.

• If the tire is damaged by driving

on a rough road, off road, pot-
hole, manhole, or curb stone, it
will not be covered by the war-
ranty.

NOTICE

NOTICE

7-50

Maintenance

A vehicle’s electrical system is pro-
tected from electrical overload dam-
age by fuses.

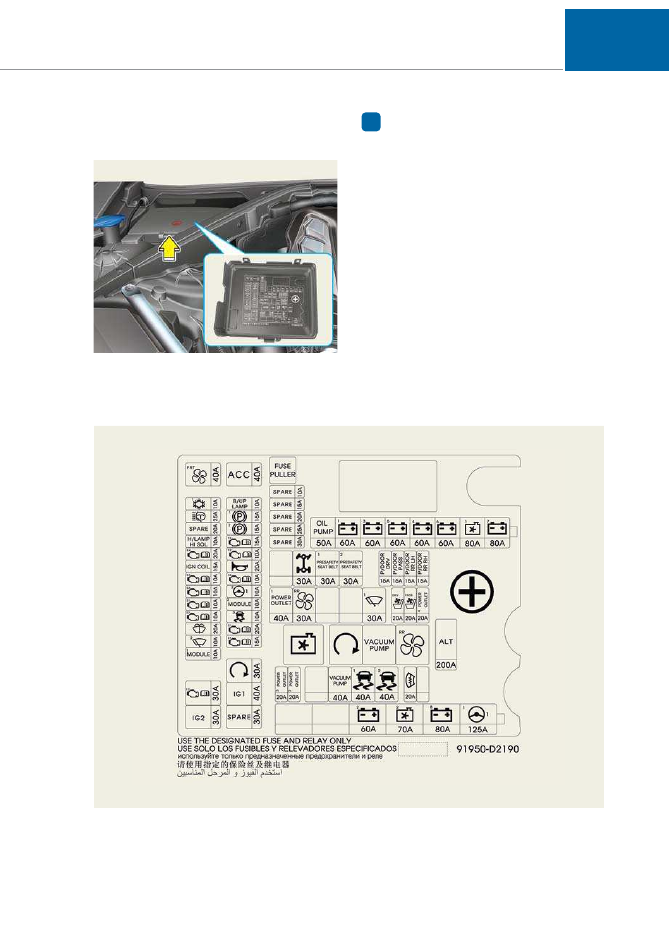

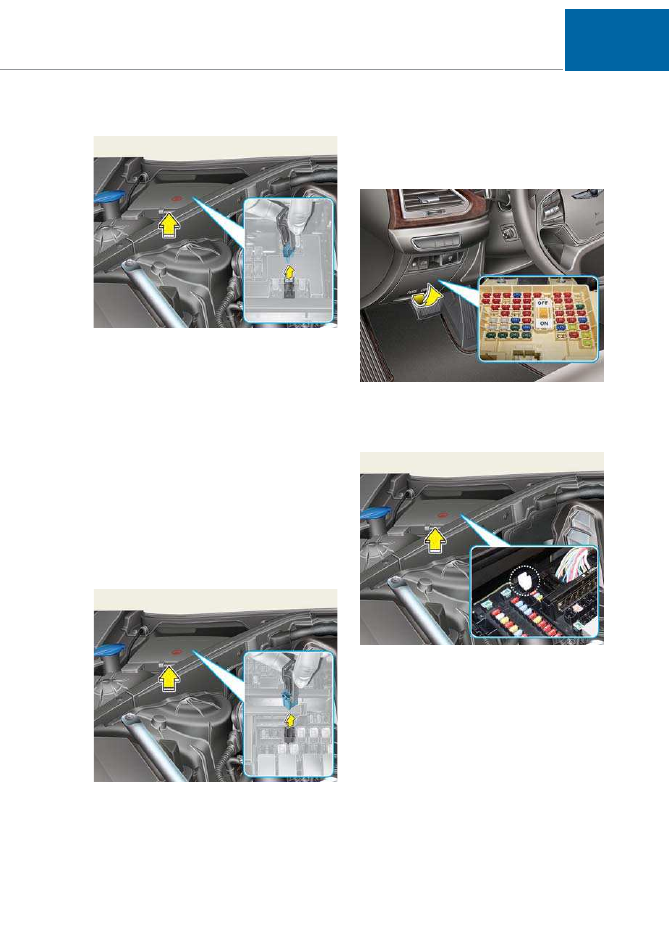

This vehicle has 4 fuse panels, one
located in the driver’s side panel bol-
ster, another in the engine compart-
ment, and two others in the trunk
compartment.
If any of your vehicle’s lights, acces-
sories, or controls do not work, check
the appropriate circuit fuse. If a fuse
has blown, the element inside the
fuse will be melted.

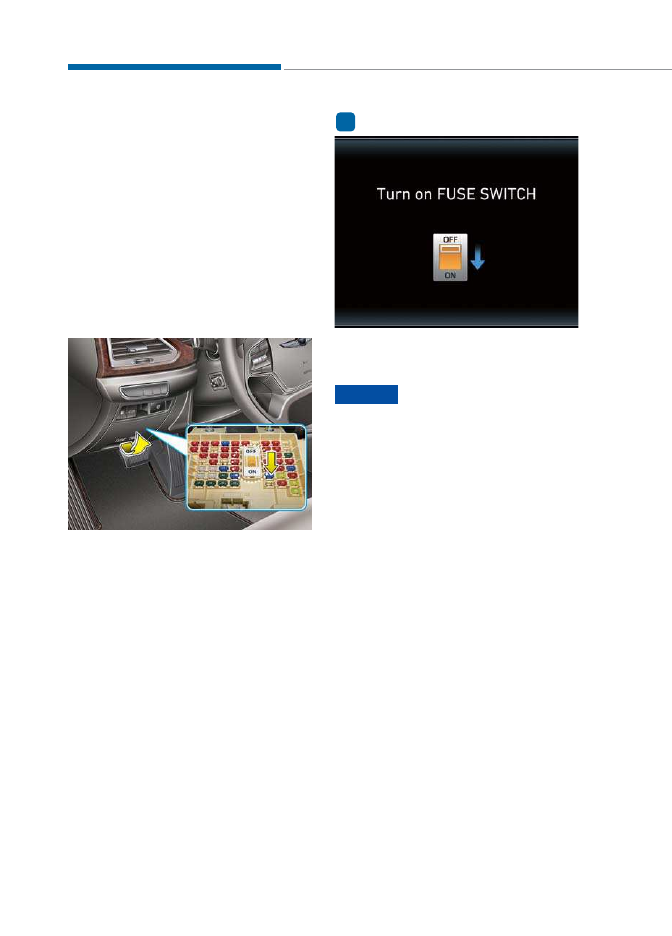

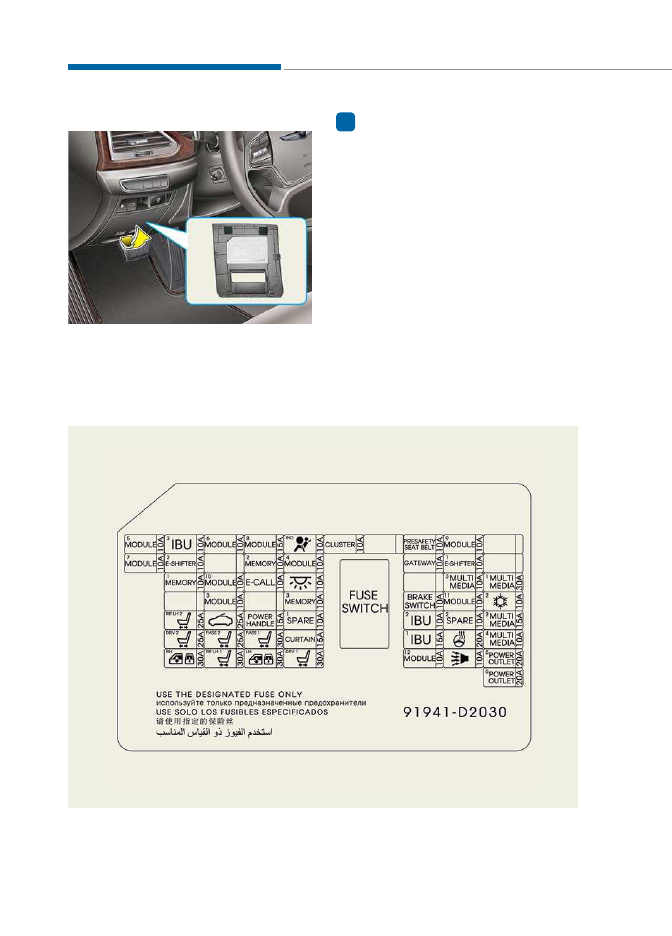

If the electrical system does not work,
first check the driver’s side fuse panel.

Before replacing a blown fuse, dis-
connect the negative battery cable.
Always replace a blown fuse with
one of the same rating.
If the replacement fuse blows, this
indicates an electrical problem. Avoid
using the system involved and imme-
diately consult an authorized retailer
of Genesis Branded products.

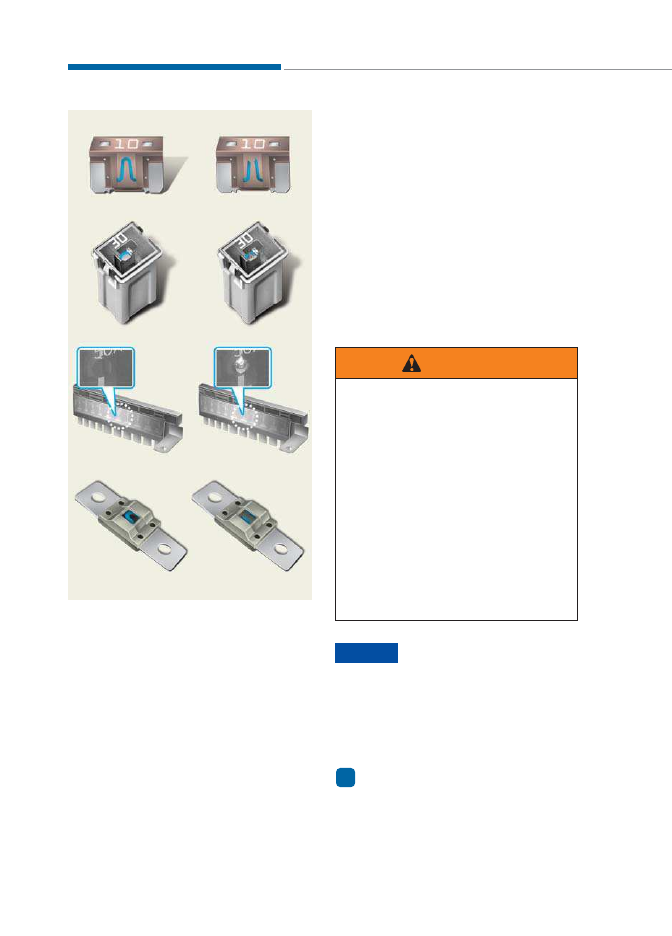

Four kinds of fuses are used: blade
type for lower amperage rating, car-
tridge type, multi fuse and fusible link
for higher amperage ratings.

Do not use a screwdriver or any
other metal object to remove
fuses because it may cause a
short circuit and damage the sys-
tem.

Information

The actual fuse/relay panel label may
differ from equipped items.

i

NOTICE

F

FU

US

SE

ES

S

Normal

Normal

■

Blade type

■

Cartridge type

■

Multi fuse

Blown

Blown

Normal

Blown

■

Fusible link

Normal

Blown

OHI076054

Fuse replacement
• Never replace a fuse with any-

thing but another fuse of the
same rating.

• A higher capacity fuse could

cause damage and possibly
cause a  fire.

• Never install a wire or alu-

minum foil instead of the
proper fuse - even as a tempo-
rary repair. It may cause
extensive wiring damage and
a possible fire.

WARNING

7-51

07

• When replacing a blown fuse or

relay with a new one, make sure
the new fuse or relay fits tightly
into the clips. The incomplete
fastening fuse or relay may
cause the vehicle wiring and
electric systems damage and a
possible fire.

• Do not remove fuses, relays and

terminals fastened with bolts or
nuts. The fuses, relays and ter-
minals may be fastened incom-
pletely, and it may cause a pos-
sible fire. If fuses, relays and ter-
minals fastened with bolts or
nuts are blown, we recommend
that you consult an authorized
retailer of Genesis Branded
products.

• Do not input any other objects

except fuses or relays into
fuse/relay terminals such as a
driver or wiring. It may cause
contact failure and system mal-
function.

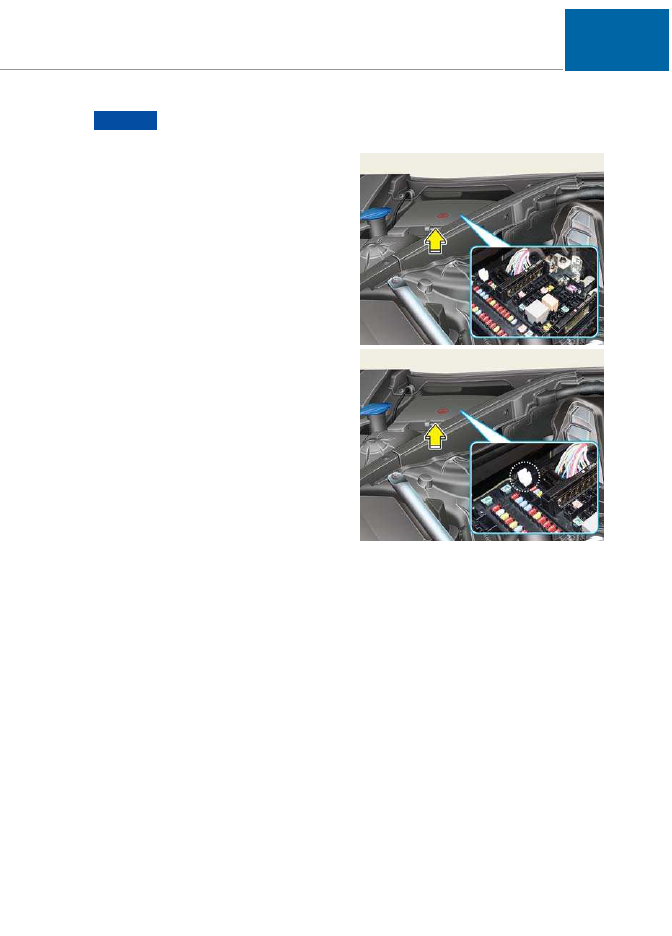

Engine compartment panel fuse
replacement

1. Turn the engine start/stop button

and all other switches off.

2. Remove the fuse box cover by

pressing the tap and pulling up.

3. Check the removed fuse; replace it

if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.

4. Push in a new fuse of the same

rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorized retailer of Genesis
Branded products.

NOTICE

OHI076025

OHI076023

7-52

Maintenance

After checking the fuse box in the
engine compartment, securely
install the fuse box cover. If not,
electrical failures may occur from
water leaking in.

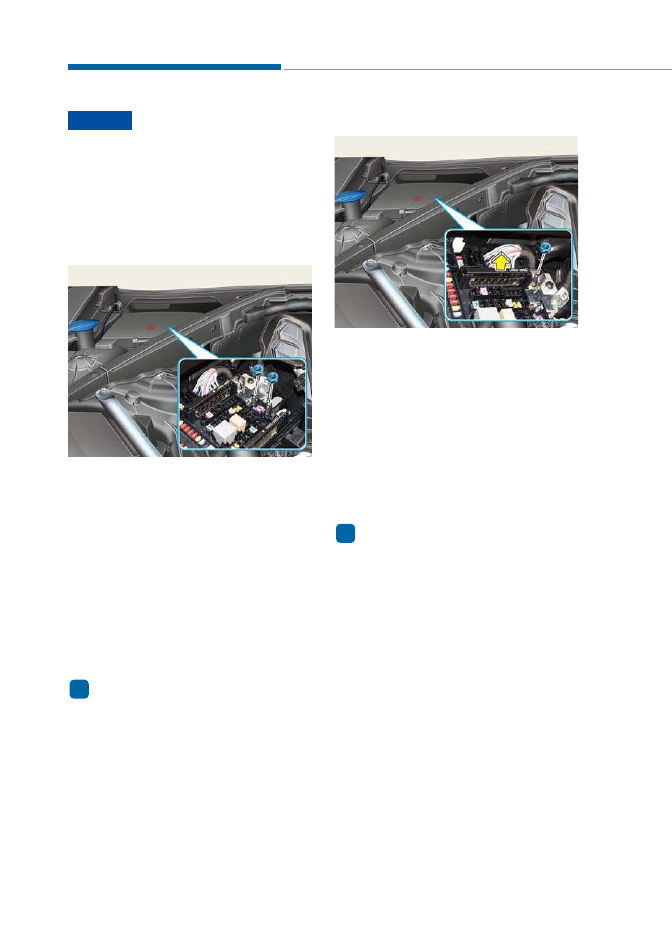

Main fuse

If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery

cable.

3. Remove the nuts shown in the pic-

ture above.

4. Replace the fuse with a new one

of the same rating.

5. Reinstall in the reverse order of

removal.

Information

If the main fuse is blown, even though
the engine compartment panel fuse
and inner fuse are not blown, if the
electrical system is not operated, the
main fuse may be blown. The main
fuse is connected with other parts and
system. We recommend that you con-
tact an authorized retailer of Genesis
Branded products.

Multi fuse

If the multi fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery

cable.

2. Remove the bolts shown in the

picture above.

3. Replace the fuse with a new one

of the same rating.

4. Reinstall in the reverse order of

removal.

Information

If the multi fuse is blown, we recom-
mend that you consult an authorized
retailer of Genesis Branded products.

i

i

NOTICE

OHI076026

OHI076027

7-53

07

Blade type fuse

Before inspecting a fuse, you should
turn OFF the engine as well as the
other electric system switches. If a fuse
is blown out, remove the blown-out
fuse and install a new fuse of the same
capacity by using the fuse puller, which
is prepared inside the fuse box in the
engine compartment. A new fuse may
be prepared along with the fuse puller.
However, if not, you may temporarily
select/use a fuse of the other systems,
which do not affect the vehicle opera-
tion, such as the audio system.

Cartridge type fuse

Before inspecting a fuse, you should
turn OFF the engine as well as the
other electric system switches. If a
fuse is blown out, remove the blown-
out fuse and install a new fuse of the
same capacity.

Pay extreme caution not to damage
the blown-out fuse while removing it.

Inner panel fuse replacement

1. Turn the Engine Start/Stop button

and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight

out. Use the removal tool provided
in the engine compartment fuse
panel.

4. Check the removed fuse; replace it

if it is blown.

5. Push in a new fuse of the same

rating, and make sure it fits tightly
in the clips.

If it fits loosely, we recommend that
you consult an authorized retailer of
Genesis Branded products.

OHI076028

OHI076029

OHI076022

OHI076023

7-54

Maintenance

If you do not have a spare, use a
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigar lighter
fuse.
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse block in
the engine compartment. If a fuse is
blown, it must be replaced with the
same rating.

Fuse switch

Always, place the fuse switch to the
ON position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
the smart key may not work properly.

Information

If the fuse switch is OFF, the above
message will appear.

• Always place the fuse switch in

the ON position while driving the
vehicle.

• Place the fuse switch in the OFF

position when the vehicle is
parked more than a month to
prevent battery discharge.

• Do not move the transportation

fuse switch repeatedly. The fuse
switch may be damaged.

NOTICE

i

OHI076024

OHI046130L

7-55

07

Fuse/Relay panel description

Engine compartment fuse panel

Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.

i

OHI076030

OHI076031L

Engine compartment fuse panel

7-56

Maintenance

Symbol

Fuse name  Fuse rating

Circuit protected

ALT

200A

Alternator, Multifuse (BATT) - F12/F13/F14/ F15,
Fuse - F24/F25/F28/F29/F30/F31/F33/F34/F35/
F36/ F37/F38/F39

B+1

60A

IGPM (IPS1, Fuse - F36, Leak Current Autocut
Device (Fuse - F5/F18/F19/F26/F27/F42/F49/F51/
F52))

B+3

60A

[Except Middle East] IGPM (IPS2/IPS3, Fuse -
F13/F41)

B+5

60A

IGPM (Fuse - F7/F8/F9/F14/F15/F16/F46)

B+4

60A

[Except Middle East] IGPM (IPS4/IPS5/IPS6/IPS7,
Fuse - F37/F38/F39)

B+6

60A

Metal Core Block (PCB #1 Fuse - F40/F41/ F42)

C/FAN1

80A

[G6DP] [G8BE-Middle East] Cooling Fan Controller
(BLDC)

B+7

80A

Metal Core Block (PCB #2 Fuse - F65/F68/F69/
F70/F71)

B+2

60A

IGPM (Fuse - F21/F22/F23/F29/F30)

C/FAN2

70A

[G6DN] [G8BE-Except Middle East] RLY. 1
(Cooling Fan Relay)

B+8

80A

Metal Core Block (PCB #1 Fuse - F51/F53/ F55)

MDPS

125A

MDPS Unit

POWER

OUTLET3

20A

[5:5 Seat] Rear Power Outlet #1
[W/O 5:5 Seat] Front Power Outlet & Cigarette

Lighter

POWER

OUTLET2

20A

[5:5 Seat] Rear Power Outlet #2
[W/O 5:5 Seat] Front Power Outlet & Cigarette

Lighter

VACUUM

PUMP

40A

[G6DP] RLY. 3 (Vacuum Pump Relay)

ESC1

40A

ESC Control Module, Multipurpose Check
Connector

ESC2

40A

ESC Control Module, Multipurpose Check
Connector

DEICER

20A

Front Deicer Relay

7-57

07

Symbol

Fuse name  Fuse rating

Circuit protected

POWER

OUTLET1

40A

Metal Core Block (PCB #1 - Power Outlet Relay)

RR

BLOWER

30A

RLY. 4 (Rear Blower Relay)

WIPER1

30A

Wiper Motor

DRIVER

CCS

20A

Driver CCS Module

DRIVER

CCS

20A

Passenger CCS Module

POWER

OUTLET4

20A

[W/O 5:5 Seat] Power Outlet Relay

4WD

30A

4WD ECM

PRESAFETY

SEAT BELT1

30A

Pre Active Seat Belt Unit

PRESAFETY

SEAT BELT2

30A

Pre Active Seat Belt Unit

DRIVER

P/DOOR

15A

Driver Door Latch

PASSENGER

P/DOOR

15A

Passenger Door Latch

RR LH

P/DOOR

15A

Rear Door Latch LH

RR RH

P/DOOR

15A

Rear Door Latch RH

IGN2

30A

IG2 Relay

ECU3

30A

Engine Control Relay

MODULE1

10A

4WD ECM, Active Air Flap, Smart Cruse Control
Radar

WIPER2

10A

PCB #2 (Wiper Relay)

WASHER

20A

Washer Relay

SENSOR2

10A

[G6DP] Oxygen Sensor #1/#2/#3/#4
[G6DN] Oxygen Sensor #1/#2/#3/#4, Variable

Intake Solenoid Valve #1/#2

[G8BE] Oxygen Sensor #1/#2/#3/#4, Electronic

Thermostat

7-58

Maintenance

Symbol

Fuse name  Fuse rating

Circuit protected

SENSOR1

10A

[G6DP/G6DN] Oil Controlvalve #1/#2/#3/#4

(Intake/Exhaust), Purge Control
Solenoid Valve, Oil Pressure
Solenoid Valve

[G8BE] Oil Controlvalve #1/#2/#3/#4 (Intake/

Exhaust), Purge Control Solenoid Valve

SENSOR3

10A

[G6DP/G6DN] Electronic Thermostat, Rear Sub

Junction Block (Fuel Pump Relay)

[G8BE] Rear Sub Junction Block (Fuel Pump

Relay)

SENSOR4

10A

[G6DP] E/R Junction Block (RLY. 1 - Cooling Fan

Relay)

[G8BE - Except Middle East] E/R Junction Block

(RLY. 1 - Cooling Fan Relay), Camshaft
Position Sensor #1/#2/#3/#4 (Intake/
Exhaust)

IGN COIL

15A

[G6DP/G6DN] Ignition Coil #1/#2/#3/#4/#5/#6
[G8BE] Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8

ECU4

20A

ECM

H/LAMP

HI SOL

10A

Head Lamp (HI SOL) Relay

H/LAMP

WASHER

25A

Head Lamp Washer Relay

A/CON1

10A

A/C Control Module

FRT

BLOWER

40A

Front Blower Relay

IGN1

40A

IG1 Relay

START

30A

E/R Junction Block (RLY. 2 - Start Relay)

ECU1

15A

ECM

TCU1

20A

TCM

ESC3

10A

ESC Control Module

7-59

07

Symbol

Fuse name  Fuse rating

Circuit protected

MODULE2

10A

4WD ECM, Active Air Flap, Smart Cruse Control
Radar

MDPS2

10A

MDPS Unit, Steering Angle Sensor

SENSOR5

10A

[G6DP] E/R Junction Block (RLY. 3 - Vacuum

Pump- Relay), Brake Vacuum Switch

HORN

20A

Horn Relay

ECU2

10A

ECM

TCU2

15A

TCM, B/UP Lamp Relay, P/N Relay

EPB2

15A

Electric Parking Brake Module

EPB1

15A

Electric Parking Brake Module

B/UP

LAMP

10A

B/Up Lamp Relay

ACC

40A

ACC Relay

7-60

Maintenance

Inner panel fuse panel

Inside the fuse/relay box covers, you
can find the fuse/relay label describ-
ing fuse/relay name and capacity.

Information

Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
box on your vehicle, refer to the fuse
box label.

i

OHI076032

OHI076033L
