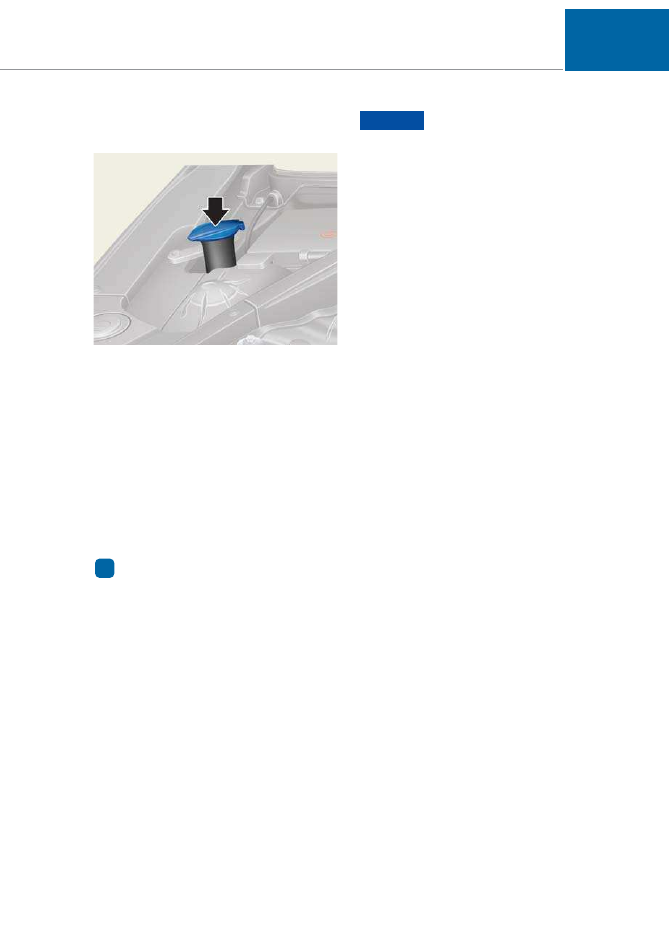

Checking the washer fluid
level

The reservoir is translucent so that
you can check the level with a quick
visual inspection.
Check the fluid level in the washer
fluid reservoir and add fluid if neces-
sary.
Plain water may be used if washer
fluid is not available.
However, use washer solvent with
antifreeze characteristics in cold cli-
mates to prevent freezing.

Information

A warning message is displayed in the
instrument cluster LCD display if the
washer fluid level in the reservoir is
nearly empty.  Have the washer fluid
reservoir refilled.
For more information, refer to “LCD
Display Messages” in chapter 3.

Coolant
• Do not use radiator coolant or

antifreeze in the washer fluid
reservoir.

• Radiator coolant can severely

obscure visibility when sprayed
on the windshield and may
cause loss of vehicle control or
damage to paint and body trim.

• Windshield Washer fluid agents

contain some amounts of alco-
hol and can be flammable under
certain circumstances. Do not
allow sparks or flame to contact
the washer fluid or the washer
fluid reservoir. Damage to the
vehicle or occupants could
occur.

• Windshield washer fluid is poi-

sonous to humans and animals.
Do not drink and avoid contact-
ing windshield washer fluid.
Serious injury or death could
occur.

NOTICE

i

OHI076017

7-30

Maintenance

Filter replacement

The air cleaner filter can be cleaned
for inspection using compressed air.
Do not attempt to wash or to rinse it,
as water will damage the filter. If
soiled, the air cleaner filter must be
replaced.
We recommend that you visit an
authorized retailer of Genesis Branded
products to replace air cleaner filter.
Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extremely
dusty or sandy areas, replace the ele-
ment more often than the usual rec-
ommended intervals.

(Refer to

“Maintenance under severe usage
conditions” in this section.)

• Do not drive with the air cleaner

removed; this will result in
excessive engine wear.

• When removing the air cleaner

filter, be careful that dust or dirt
does not enter the air intake, or
damage may result.

• We recommend that you use

parts for replacement from an
authorized retailer of Genesis
Branded products.

NOTICE

A

AIIR

R  C

CL

LE

EA

AN

NE

ER

R

OHI076018

7-31

07

Filter inspection

If the vehicle is operated in the
severely air-polluted cities or on dusty
rough roads for a long period, it
should be inspected more frequently
and replaced earlier. When you, the
owner, replace the climate control air
filter, replace it performing the follow-
ing procedure, and be careful to
avoid damaging other components.
Replace the filter according to the
Maintenance Schedule.

Information

Install a new climate control air filter
in the correct direction with the arrow
symbol (↓

↓) facing downwards.

Otherwise, the climate control effects
may decrease, possibly with a noise.

Filter replacement

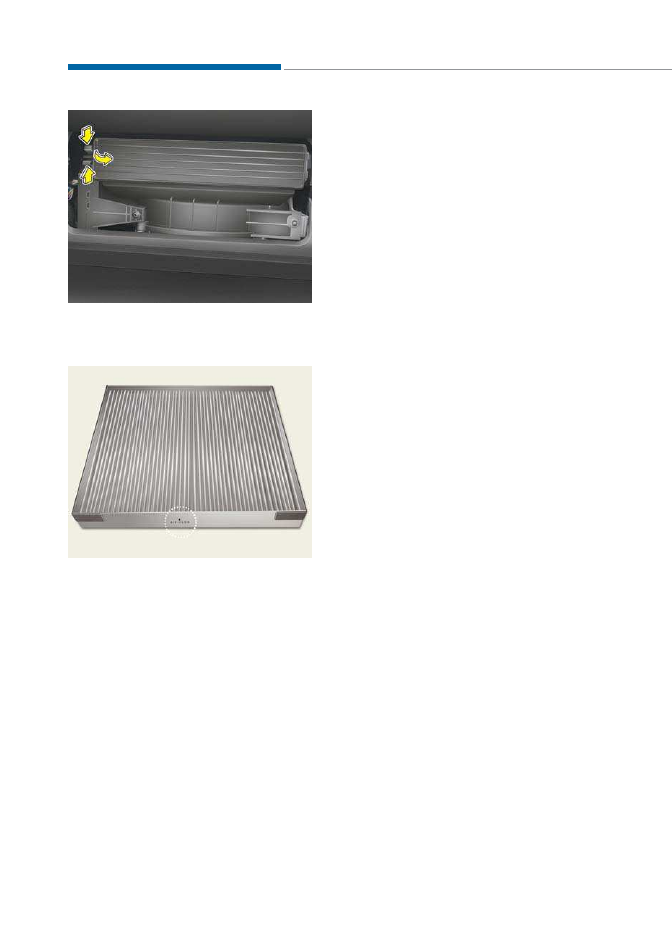

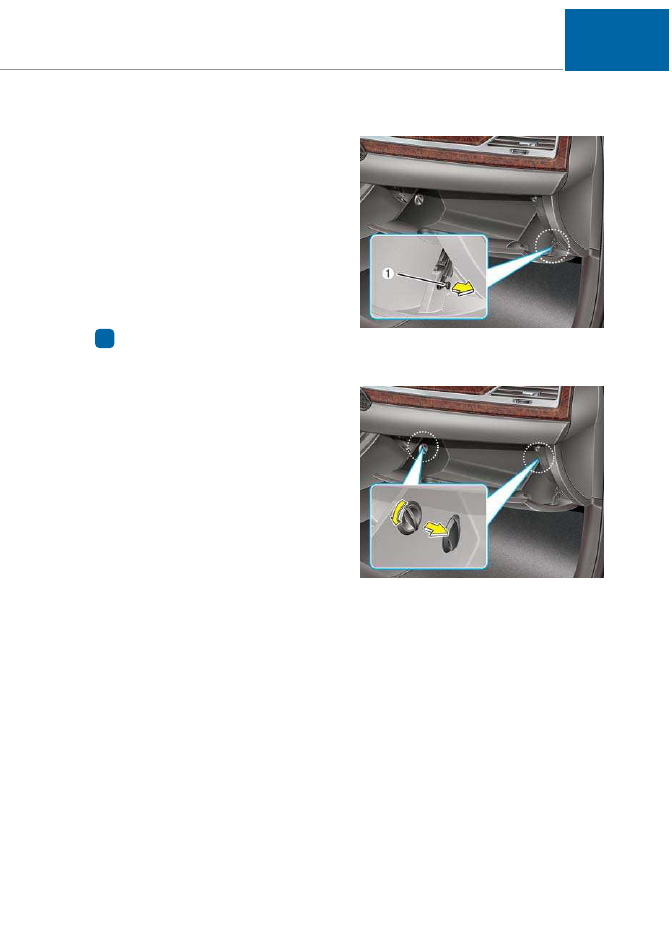

1.Open the glove box and remove

the support pin (1).

2.With the glove box open, remove

the stoppers on both sides.

i

C

CL

LIIM

MA

AT

TE

E  C

CO

ON

NT

TR

RO

OL

L  A

AIIR

R  F

FIIL

LT

TE

ER

R

OHI076051

OHI076052

7-32

Maintenance

3.Remove the climate control air fil-

ter case while pressing the lock on
the left side of the cover.

4.Replace the climate control air fil-

ter.

5.Reassemble in the reverse order of

disassembly.

OHI076050

OHI076055

7-33

07

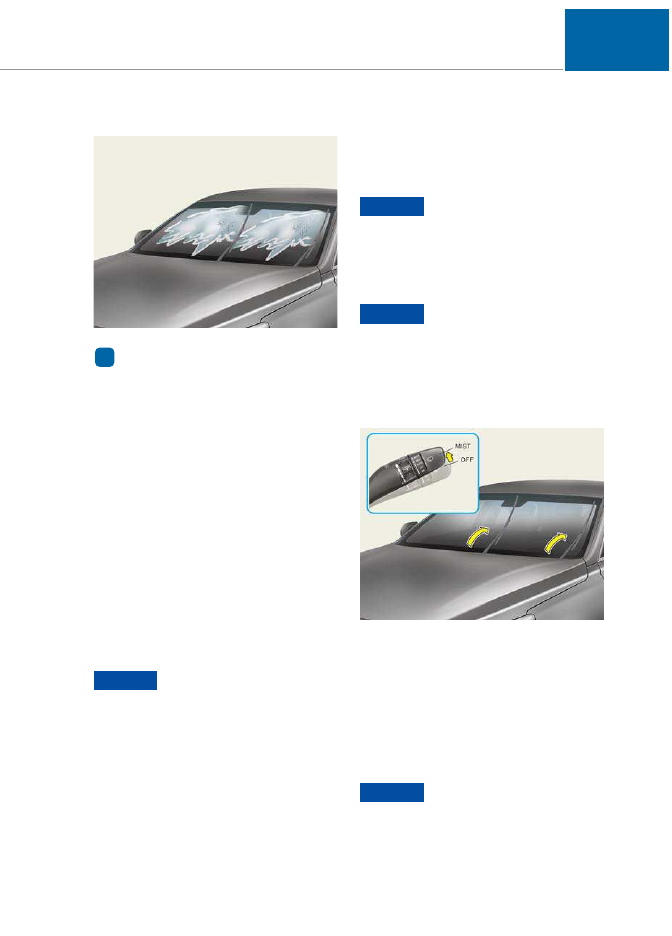

Blade inspection

Information

Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.

Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water.

To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.

Blade replacement

When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.

To prevent damage to the wiper
arms or other components, do not
attempt to move the wipers manu-
ally.

The use of a non-specified wiper
blade could result in wiper mal-
function and failure.

Front windshield wiper blade

For your convenience, move the
windshield wiper blades to the serv-
ice position as follows;
After turning off the engine, move the
wiper switch to the single wiping
(MIST) position within 20 seconds
and hold the switch more than 2 sec-
onds until the wiper blade is in the
fully up position.

Do not allow the wiper arm to fall
against the windshield, since it may
chip or crack the windshield.

NOTICE

NOTICE

NOTICE

NOTICE

i

W

WIIP

PE

ER

R  B

BL

LA

AD

DE

ES

S

OHI076056

OHI076019

7-34

Maintenance

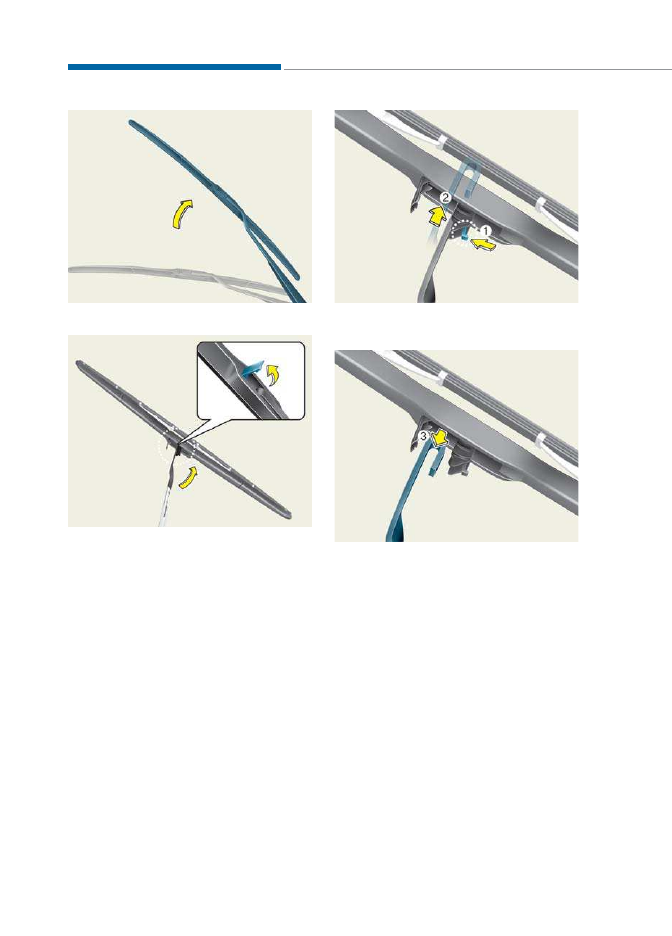

1. Raise the wiper arm.

2. Open the wiper blade clip and

slightly rotate the wiper blade
assembly to expose the plastic
locking clip.

3. Push the clip (1) and push up the

wiper arm (2).

4. Push down the wiper arm (3).
5. Install a blade assembly in the

reverse order of removal.

6. Return the wiper arm on the wind-

shield.

7. Place the Engine Start/Stop but-

ton to the ON position. The wiper
arms will return to the normal
operating position.

OVI075165N

OVI075168N

OVI075169N

OVI075170N

7-35

07

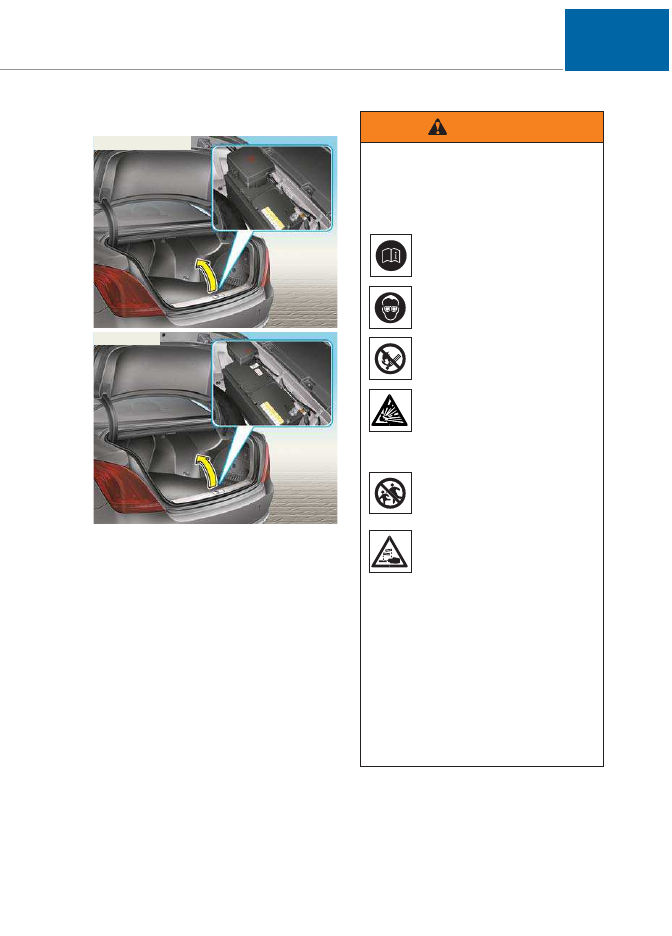

For best battery service

• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connec-

tions clean, tight, and coated with
petroleum jelly or terminal grease.

• Rinse any spilled electrolyte from

the battery immediately with a
solution of water and baking soda.

• If the vehicle is not going to be

used for an extended time, discon-
nect the battery cables.

B

BA

AT

TT

TE

ER

RY

Y

OHI076020N

OHI076072N

■

For Brazil

■

Except for Brazil

To prevent SERIOUS INJURY or
DEATH to you or bystanders,
always follow these precautions
when working near or handling
the battery:

Always read and follow
instructions carefully
when handling a battery.

Wear eye protection
designed to protect the
eyes from acid splashes.
Keep all flames, sparks,
or smoking materials
away from the battery.
Hydrogen is always
present in battery cells,
is highly combustible,
and may explode if ignit-
ed.
Keep batteries out of
reach of children.

Batteries contain sulfu-
ric acid which is highly
corrosive. Do not allow
acid to contact your
eyes, skin or clothing.

If acid gets into your eyes, flush
your eyes with clean water for at
least 15 minutes and get imme-
diate medical attention. If acid
gets on your skin, thoroughly
wash the area. If you feel pain or
a burning sensation, get med-
ical attention immediately.

(Continued)

WARNING

7-36

Maintenance

To prevent damage to your vehicle:
• Only use a 12-volt power supply

(battery or jumper system) to
jump start your vehicle.

• Do not attempt to jump start

your vehicle by push-starting.

Information

An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
or regulations.

If you are not able to start the
engine after a front or rear colli-
sion, we recommend that you
have your vehicle inspected by an
authorized retailer of Genesis
Branded products.

If you connect unauthorized elec-
tronic devices to the battery, the
battery may be discharged.
Never use unauthorized devices.

NOTICE

NOTICE

i

NOTICE

(Continued)
• When lifting a plastic-cased

battery, excessive pressure
on the case may cause battery
acid to leak. Lift with a battery
carrier or with your hands on
opposite corners.

• Do not attempt to jump start

your vehicle if your battery is
frozen.

• NEVER attempt to recharge

the battery when the vehicle’s
battery cables are connected
to the battery.

• The electrical ignition system

works with high voltage.
NEVER touch these compo-
nents with the engine running
or when the Engine Start/Stop
button is in the ON position.

• Do not allow the (+) and (-)

jumper cables to touch. It may
cause sparks.

• The battery may rupture or

explode when you jump start
with a low or frozen battery.

Pb

7-37

07

Battery capacity label

❈

The actual battery label in the vehicle

may differ from the illustration.

1.CMF60L-BCI :

The Genesis

Branded Vehicle model name of
battery

2.12V : The nominal voltage
3.60Ah(20HR) : The nominal capacity

(in Ampere hours)

4.92RC : The nominal reserve capac-

ity (in min.)

5.550CCA : The cold-test current in

amperes by SAE

6.440A : The cold-test current in

amperes by EN

Battery recharging

Your vehicle has a maintenance-free,
calcium-based battery.
• If the battery becomes discharged

in a short time (because, for exam-
ple, the headlights or interior lights
were left on while the vehicle was
not in use), recharge it by slow
charging (trickle) for 10 hours.

• If the battery gradually discharges

because of high electric load while
the vehicle is being used, recharge
it at 20-30A for two hours.

OLMB073072_HI

■

Example

When recharging the battery,
observe the following precau-
tions:
• Before performing mainte-

nance or recharging the bat-
tery, turn off all accessories
and stop the engine.

• Do not allow cigarettes,

sparks, or flame near the bat-
tery.

• Wear eye protection when

checking the battery during
charging.

• The battery must be removed

from the vehicle and placed in
an area with good ventilation.

• Watch the battery during

charging, and stop or reduce
the charging rate if the battery
cells begin gassing (boiling)
violently or if the temperature
of the electrolyte of any cell
exceeds 49°C (120°F).

• The negative battery cable

must be removed first and
installed last when the battery
is disconnected.

• Disconnect the battery charg-

er in the following order.
1. Turn off the battery charger

main switch.

2. Unhook the negative clamp

from the negative battery
terminal.

3. Unhook the positive clamp

from the positive battery
terminal.

WARNING

7-38

Maintenance

Information

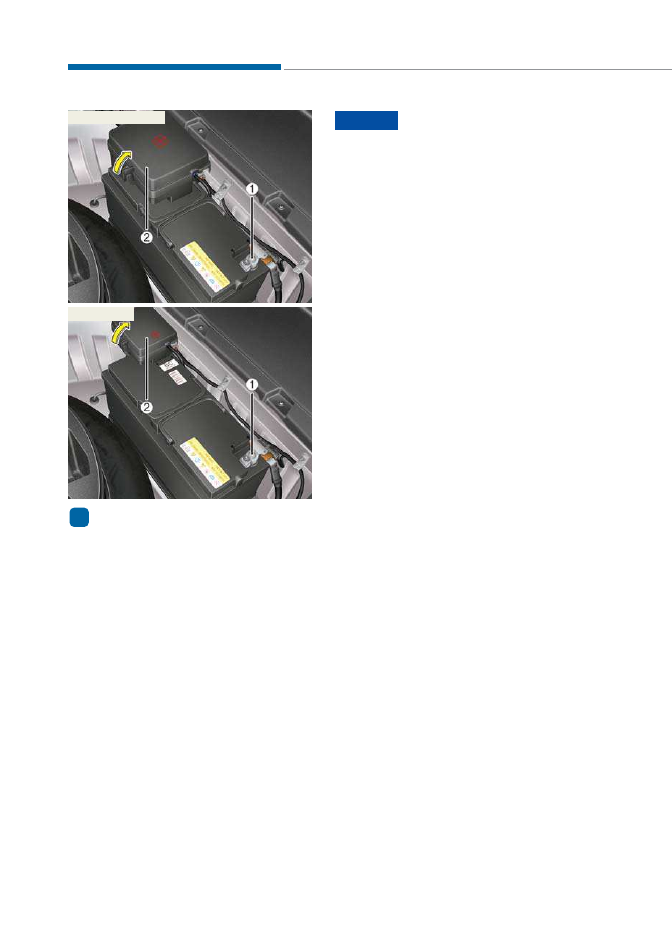

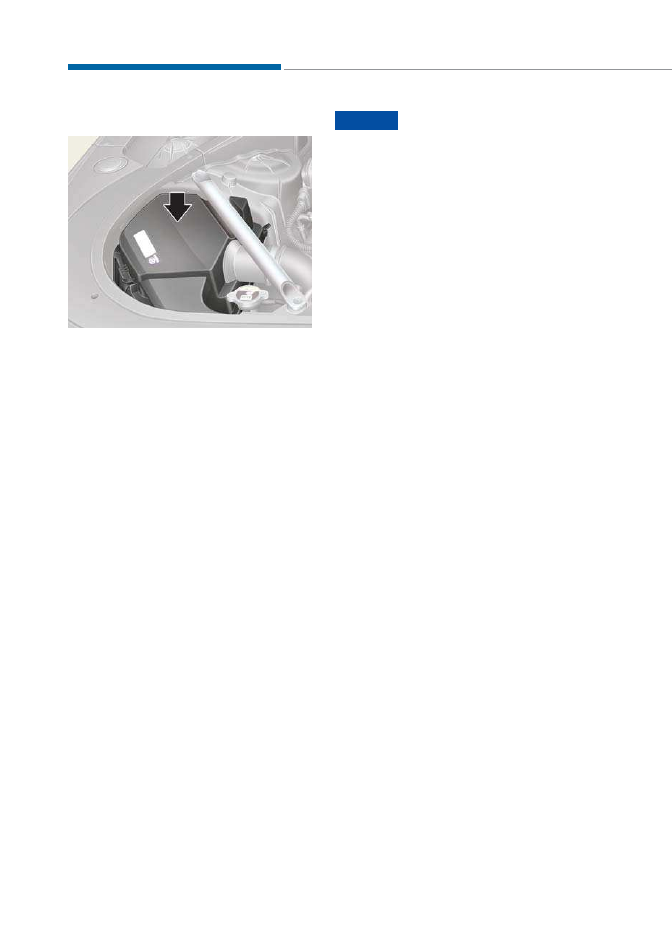

The battery is in the trunk.
When replacing the battery, discon-
nect the negative (-) cable (1) and
remove the positive (+) battery fuse
box (2).

AGM battery
• Absorbent Glass Matt (AGM)

batteries are maintenance-free
and we recommend that the
AGM battery be serviced by an
authorized retailer of Genesis
Branded products. For charging
your AGM battery, use only fully
automatic battery chargers that
are specially developed for AGM
batteries.

• When replacing the AGM bat-

tery, we recommend that you
use parts for replacement from
an authorized retailer of Genesis
Branded products.

• Do not open or remove the cap

on top of the battery. This may
cause leaks of internal elec-
trolyte that could result in
severe injury.

Reset items

Items should be reset after the bat-
tery has been discharged or the bat-
tery has been disconnected.
• Auto up/down window

(See chapter 3)

• Sunroof (See chapter 3)
• Trip computer (See chapter 3)
• Climate control system

(See chapter 3)

• Power trunk (See chapter 3)
• Seat position memory system

(See chapter 3)

• Rear door window curtain

(See section 3)

NOTICE

i

OHI076021L

OHI076021

■

For Brazil

■

Except for Brazil

7-39

07

Tire care

For proper maintenance, safety, and
maximum fuel economy, you must
always maintain recommended tire
inflation pressures and stay within
the load limits and weight distribution
recommended for your vehicle.

Recommended cold tire infla-
tion pressures

All tire pressures (including the
spare) should be checked when the
tires are cold. “Cold Tires” means the
vehicle has not been driven for at
least three hours or driven less than
1.6 km (1 mile).
Recommended pressures must be
maintained for the best ride, top vehi-
cle handling, and minimum tire wear.
For recommended inflation pressure
refer to “Tire and wheels” in section
8.

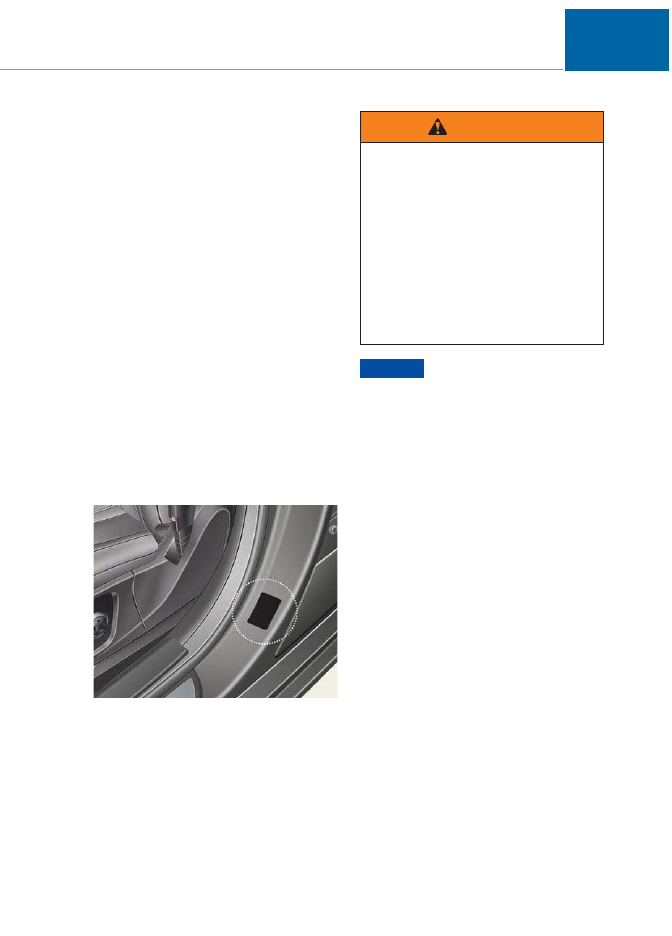

All specifications (sizes and pres-
sures) can be found on a label
attached to the vehicle.

• Underinflation also results in

excessive wear, poor handling
and reduced fuel economy.
Wheel deformation also is pos-
sible. Keep your tire pressures
at the proper levels. If a tire fre-
quently needs refilling, we rec-
ommend that the system be
checked by an authorized retail-
er of Genesis Branded products.

• Overinflation produces a harsh

ride, excessive wear at the cen-
ter of the tire tread, and a greater
possibility of damage from road
hazards.

NOTICE

T

TIIR

RE

ES

S  A

AN

ND

D  W

WH

HE

EE

EL

LS

S

OHI086006L

Tire underinflation
Severe underinflation (70 kPa
(10 psi) or more) can lead to
severe heat build-up, causing
blowouts, tread separation and
other tire failures that can result
in the loss of vehicle control
leading to severe injury or
death. This risk is much higher
on hot days and when driving
for long periods at high speeds.

WARNING

7-40

Maintenance

• Warm tires normally exceed rec-

ommended cold tire pressures
by 28 to 41 kPa (4 to 6 psi). Do
not release air from warm tires
to adjust the pressure or the
tires will be underinflated.

• Be sure to reinstall the tire infla-

tion valve caps. Without the
valve cap, dirt or moisture could
get into the valve core and
cause air leakage. If a valve cap
is missing, install a new one as
soon as possible.

Tire pressure
Always observe the following:
• Check tire pressure when the

tires are cold. (After vehicle has
been parked for at least three
hours or hasn't been driven
more than 1.6 km (1 mile) since
startup.)

• Check the pressure of your

spare tire each time you check
the pressure of other tires.

• Never overload your vehicle. Be

careful not to overload a vehicle
luggage rack if your vehicle is
equipped with one.

• Worn, old tires can cause acci-

dents. If your tread is badly
worn, or if your tires have been
damaged, replace them.

Checking tire inflation pres-
sure

Check your tires once a month or
more.
Also, check the tire pressure of the
spare tire.

How to check

Use a good quality gage to check tire
pressure. You can not tell if your tires
are properly inflated simply by look-
ing at them. Radial tires may look
properly inflated even when they're
underinflated.
Check the tire's inflation pressure
when the tires are cold. - "Cold"
means your vehicle has been sitting
for at least three hours or driven no
more than 1.6 km (1 mile).

NOTICE

NOTICE

Tire inflation

Overinflation or underinflation
can reduce tire life, adversely
affect vehicle handling, and
lead to sudden tire failure. This
could result in loss of vehicle
control and potential injury.

WARNING

7-41

07

Remove the valve cap from the tire
valve stem. Press the tire gage firm-
ly onto the valve to get a pressure
measurement. If the cold tire inflation
pressure matches the recommended
pressure on the tire and loading
information label, no further adjust-
ment is necessary. If the pressure is
low, add air until you reach the rec-
ommended amount.
If you overfill the tire, release air by
pushing on the metal stem in the
center of the tire valve. Recheck the
tire pressure with the tire gage. Be
sure to put the valve caps back on
the valve stems. They help prevent
leaks by keeping out dirt and mois-
ture.

• Inspect your tires frequently

for proper inflation as well as
wear and damage. Always use
a tire pressure gauge.

• Tires with too much or too little

pressure wear unevenly caus-
ing poor handling, loss of vehi-
cle control, and sudden tire
failure leading to accidents,
injuries, and even death. The
recommended cold tire pres-
sure for your vehicle can be
found in this manual and on
the tire label located on the dri-
ver's side center pillar.

• Worn tires can cause acci-

dents. Replace tires that are
worn, show uneven wear, or
are damaged.

• Remember to check the pres-

sure of your spare tire.
Genesis Branded Vehicle rec-
ommends that you check the
spare every time you check the
pressure of the other tires on
your vehicle.

WARNING

Tire rotation

To equalize tread wear, it is recom-
mended that the tires be rotated
every 12,000 km (7,500 miles) or
sooner if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness.
Refer to “Tire and wheels” in section 8.

Disc brake pads should be inspected
for wear whenever tires are rotated.

Information

If your tire is unsymmetrical tire,
check the outside and inside marked
in tire.
If the inside tire is installed on outside,
the vehicle driving and wear perform-
ance may be damaged.

i

7-42

Maintenance

OHI076057

OHI076058

■

18inch tire

■

19inch tire

7-43

07

Wheel alignment and tire bal-
ance

The wheels on your vehicle were
aligned and balanced carefully at the
factory to give you the longest tire life
and best overall performance.
In most cases, you will not need to
have your wheels aligned again.
However, if you notice unusual tire
wear or your vehicle pulling one way
or the other, the alignment may need
to be reset.
If you notice your vehicle vibrating
when driving on a smooth road, your
wheels may need to be rebalanced.

Improper wheel weights can dam-
age your vehicle's aluminum
wheels. Use only approved wheel
weights.

Tire replacement

If the tire is worn evenly, a tread wear
indicator will appear as a solid band
across the tread. This shows there is
less than 1.6 mm (1/16 in.) of tread
left on the tire. Replace the tire when
this happens.
Do not wait for the band to appear
across the entire tread before replac-
ing the tire.

When replacing the tires, recheck
and tighten the wheel nuts after
driving about 1,000 km (620
miles). If the steering wheel
shakes or the vehicle vibrates while
driving, the tire is out of balance.
Align the tire balance. If the prob-
lem is not solved, we recommend
that you contact an authorized
retailer of Genesis Branded prod-
ucts.

NOTICE

NOTICE

• Do not use the compact spare

tire for tire rotation.

• Do not mix bias ply and radial

ply tires under any circum-
stances. This may cause
unusual handling characteris-
tics that could result in death,
severe injury, or property
damage.

WARNING

OHI076053

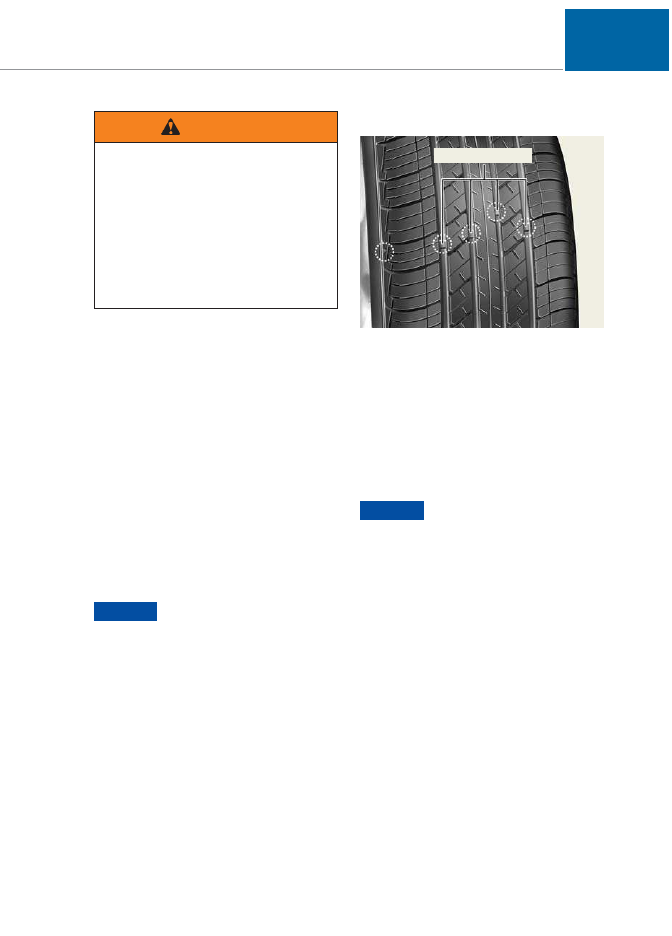

Tread wear indicator

7-44

Maintenance

Compact spare tire replacement

A compact spare tire has a shorter
tread life than a regular size tire.
Replace it when you can see the
tread wear indicator bars on the tire.
The replacement compact spare tire
should be the same size and design
tire as the one provided with your
new vehicle and should be mounted
on the same compact spare tire
wheel. The compact spare tire is not
designed to be mounted on a regular
size wheel, and the compact spare
tire wheel is not designed for mount-
ing a regular size tire.

(Continued)
• The ABS works by comparing

the speed of the wheels. Tire
size can affect wheel speed.
When replacing tires, all 4
tires must use the same size
originally supplied with the
vehicle. Using tires of a differ-
ent size can cause the ABS
(Anti-lock Brake System) and
ESC (Electronic Stability
Control) (if equipped) to work
irregularly.

• For replacement with an

unsymmetrical tire,

you

should check the outside/
inside of the unsymmetrical
tire. Make sure that the out-
side mark should locate in the
outward direction. If not, it
may adversely affect the vehi-
cle performance, riding com-
fort, and tire worn-out rates.

Replacing tires
• Driving on worn-out tires is

very hazardous and will
reduce braking effectiveness,
steering accuracy, and trac-
tion.

• Your vehicle is equipped with

tires designed to provide for
safe ride and handling capa-
bility. Do not use a size and
type of tire and wheel that is
different from the one that is
originally installed on your
vehicle. It can affect the safety
and performance of your vehi-
cle, which could lead to han-
dling failure or rollover and
serious injury. When replacing
the tires, be sure to equip all
four tires with the tire and
wheel of the same size, type,
tread, brand and load-carrying
capacity.

• The use of any other tire size

or type may seriously affect
ride, handling, ground clear-
ance, stopping distance, body
to tire clearance, snow tire
clearance, and speedometer
reliability.

• It is best to replace all four

tires at the same time. If that
is not possible, or necessary,
then replace the two front or
two rear tires as a pair.
Replacing just one tire can
seriously affect your vehicle’s
handling.

(Continued)

WARNING
