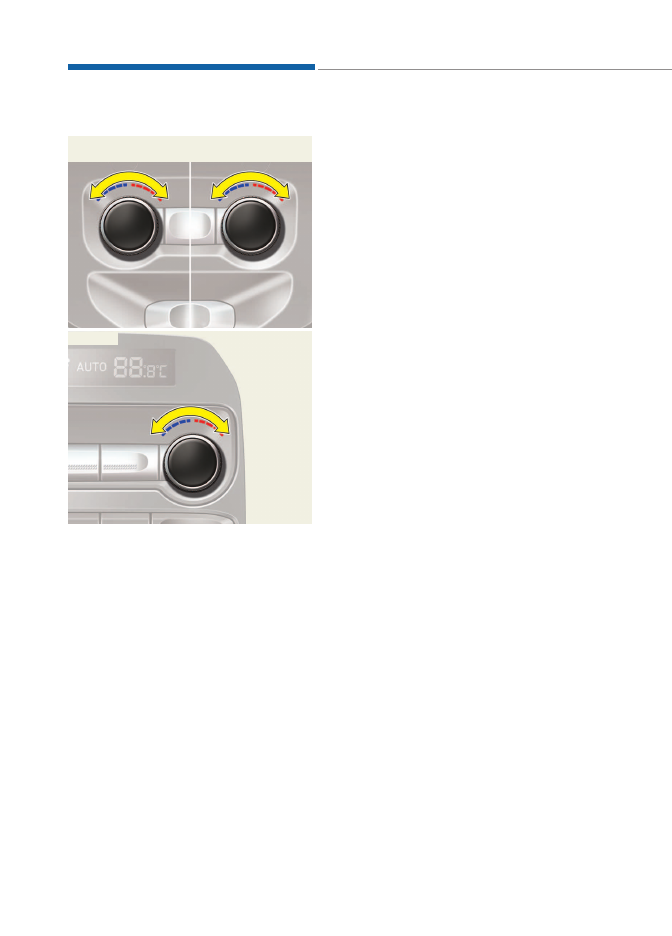

Temperature control

The temperature will increase to the
maximum (HI) by turning the knob to
the right. The temperature will
decrease to the minimum (Lo) by
turning the knob to the left. The tem-
perature will increase or decrease by
0.5°C (1°F). When set to the lowest
temperature setting, the air condi-
tioning will operate continuously.

Temperature conversion

If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
This is a normal condition. You can
switch the temperature mode between
Centigrade to Fahrenheit as follows;
- Automatic climate control system

While pressing the OFF button,
press the driver's side AUTO but-
ton for 3 seconds or more. The dis-
play will change from Centigrade to
Fahrenheit, or from Fahrenheit to
Centigrade.

- 'User settings mode' in the cluster :

You can change the temperature
unit in the 'Other features -
Temperature unit'

3-120

Convenient features of your vehicle

OHI046307

■ Front

• Driver’s side

• Passenger’s side

OHI046308

■ Rear

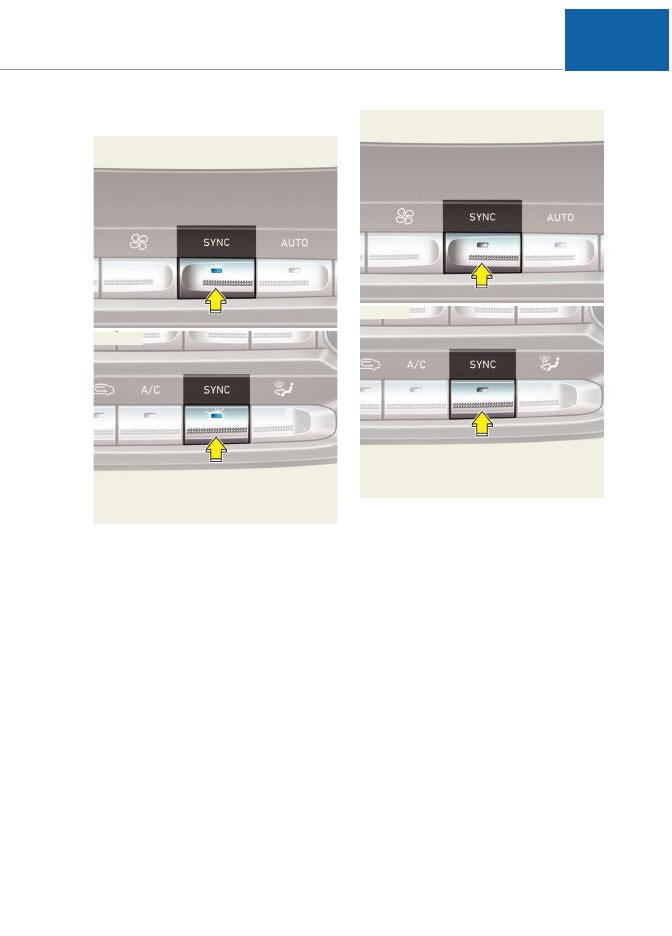

SYNC button

Adjusting the driver and passenger
side temperature and air flow
direction equally

• Press the SYNC button (button

indicator ON) to adjust the driver
and front/rear passenger side tem-
perature and air flow direction
equally.
The front and rear passenger side
temperature and air flow direction
will be set to the same temperature
and air flow direction as the driver’s
side.

• Turn the temperature control knob

for the driver’s side to control the
temperature settings of all seats.
Also, press the mode selection but-
ton for the driver’s side to control
the air flow direction of all seats.

Adjusting the driver and passenger
side temperature and air flow
direction individually

• Press the SYNC button again (but-

ton indicator OFF) to adjust the
driver and front/rear passenger
side temperature and air flow
direction individually.

• When the temperature settings are

differently adjustable :
- Operate the driver’s side temper-

ature control knob and mode
selection button to adjust the dri-
ver’s side temperature and air
flow directions.

- Operate the front/rear passen-

ger’s side temperature control
knob and mode selection button
to adjust the front/rear passen-
ger’s side temperature and air
flow directions.

3-121

03

OHI046317L

■ Front

• Type A

OHI046318

• Type B

OHI046332L

■ Front

• Type A

OHI046333L

• Type B

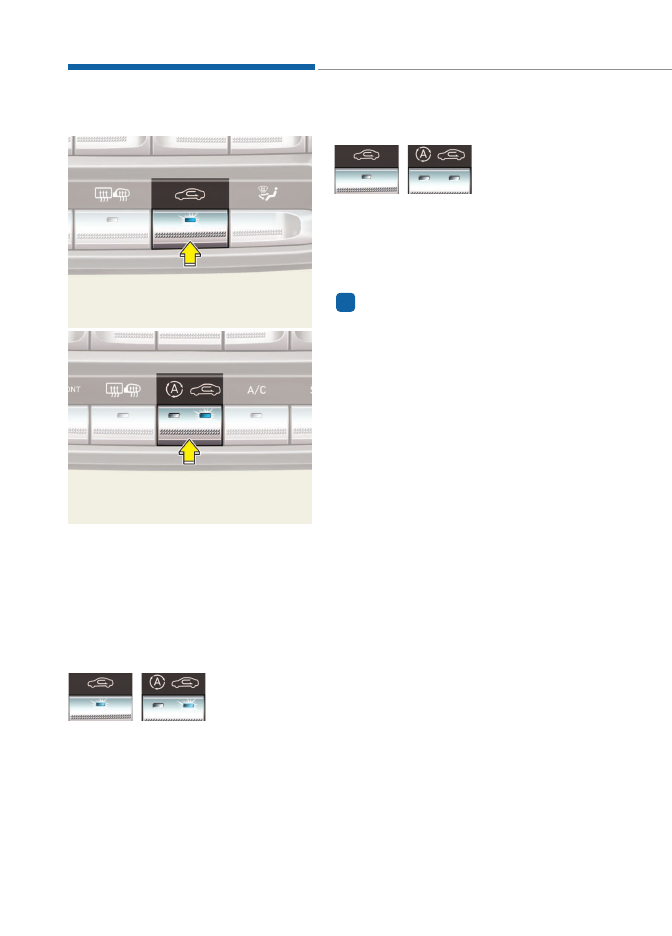

Air intake control

This is used to select the outside
(fresh) air position or recirculated air
position.
To change the air intake control posi-
tion, push the control button.

Recirculated air position

With the recirculated air position
selected, air from the passenger com-
partment will be drawn through the
heating system and heated or cooled
according to the function selected.

Outside (fresh) air position

With the outside (fresh) air position
selected, air enters the vehicle from
outside and is heated or cooled
according to the function selected.

Information

Prolonged operation of the heater in
the recirculated air position (without
air conditioning selected) may cause
fogging of the windshield and side
windows and the air within the pas-
senger compartment may become
stale.
In addition, prolonged use of the air
conditioning with the recirculated air
position selected will result in exces-
sively dry air in the passenger com-
partment.

i

3-122

Convenient features of your vehicle

■

Type A

■

Type B

OHI046320

■

Type A

OHI046321

■

Type B

■

Type A

■

Type B

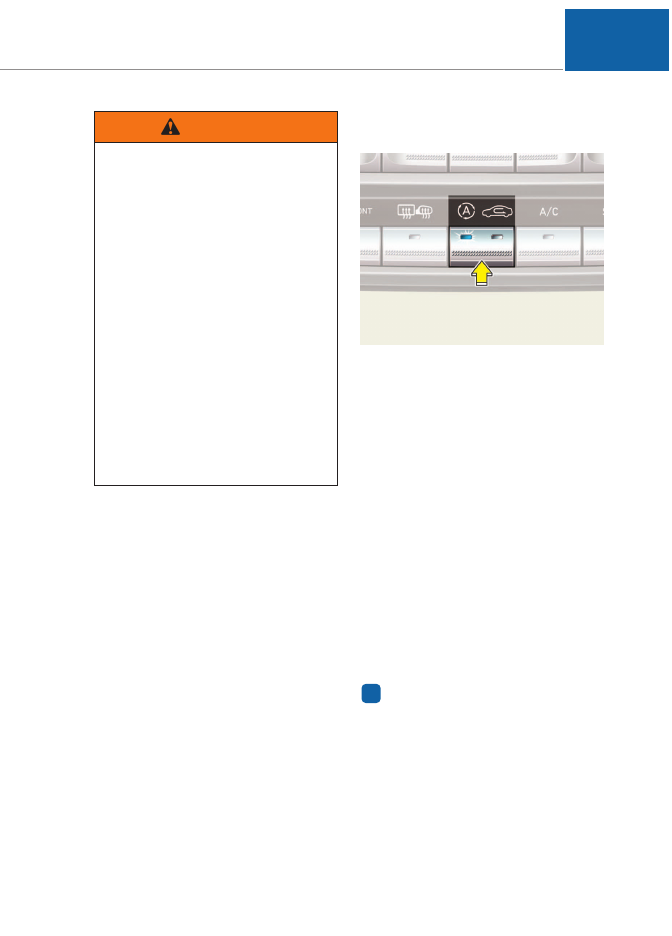

Air quality system
(AQS, if equipped)

The air inflow from outside the vehi-
cle can be automatically controlled.
Press the button to activate the air
quality control system.
When using AQS mode, AQS (Air
Quality System) automatically sens-
es outdoor air pollutants and mini-
mizes them from entering the vehi-
cle, however, unpleasant or foul
odors that might be present may still
be noticeable within the vehicle.

Exhaust gas cutoff mode :

Air enters the vehicle from the outside.
If exhaust gas from the outside of the
vehicle is detected, the exhaust gas
cutoff mode is automatically converted
from the outside air position to the
recirculated air position to prevent
exhaust gas from entering the vehicle.

Information

• The AQS button indicator will imme-

diately illuminate when the engine is
started with the AQS in the ON posi-
tion. However, the AQS starts oper-
ating after 40 seconds.

• The AQS filters out toxic exhaust (i.e.

NO, NO2, SO2, CO, CxHy) to pre-
vent it from entering the passenger
compartment but, does not totally
block odor.

i

3-123

03

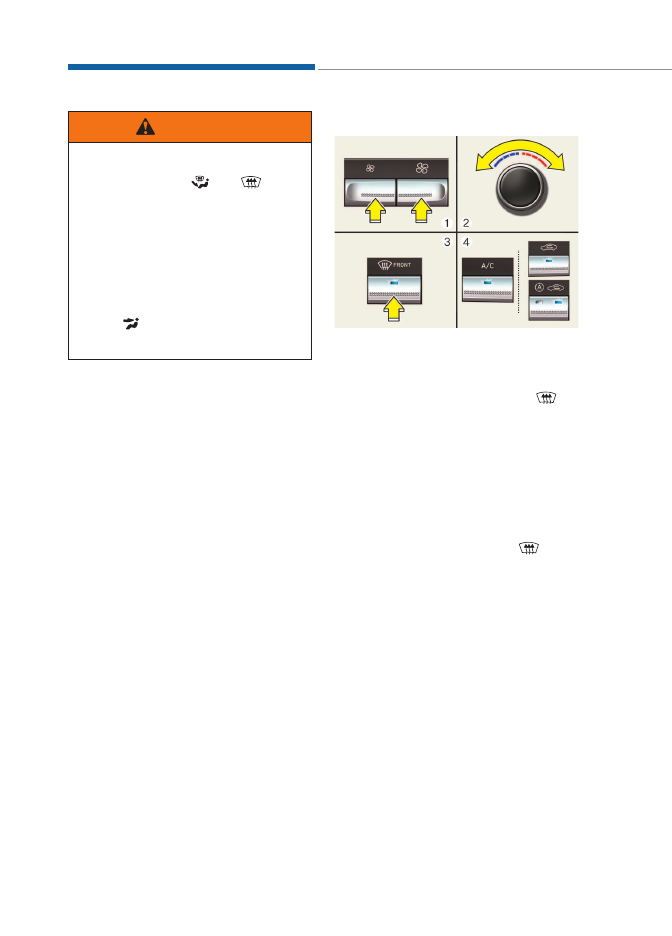

• Continued climate control

system operation in the recir-
culated air position may allow
humidity to increase inside
the vehicle which may fog the
glass and obscure visibility.

• Do not sleep in a vehicle with

the air conditioning or heating
system on. It may cause seri-
ous harm or death due to a
drop in the oxygen level and/
or body temperature.

• Continued climate control sys-

tem operation in the recirculat-
ed air position can cause
drowsiness or sleepiness, and
loss of vehicle control. Set the
air intake control to the outside
(fresh) air position as much as
possible while driving.

WARNING

OHI046330

The AQS does not operate in any of
the following situations :

• The AQS button is re-repressed to

the OFF position.

• Either the outside (fresh) air posi-

tion or the recirculated air position
is selected.

• The defroster button is pressed to

the ON position, or the floor &
defrost (

) mode is selected.

• The temperature is set to either the

highest (HI) or the lowest (Lo) posi-
tion, while the climate control sys-
tem is automatically controlled
(AUTO button indicator ON).

• The OFF button of the climate con-

trol system is selected.

• The auto defogging system oper-

ates to defog the front windshield.

Information

If the windows fog up with the
Recirculation or AQS mode selected,
set the air intake control to the fresh
air position or or turn off the AQS
mode.

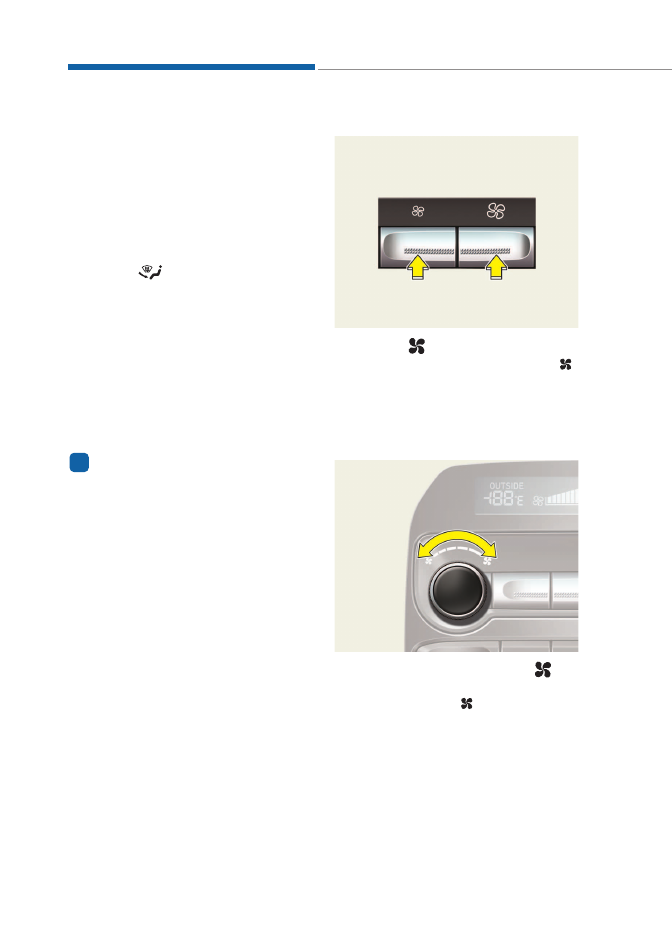

Fan speed control

Press the (

) button to increase the

fan speed and air flow. Press the (

)

button to decrease fan speed and air
flow.
Pressing the OFF button turns off the
fan.

Turn the knob to  the right (

) to

increase the fan speed and airflow.Turn
the knob to  the left (

) to decrease fan

speed and airflow.
To adjust the rear fan speed control
individually, the LOCK button on the
rear armrest must be deactivated (but-
ton indicator off). If the LOCK button is
activated (button indicator on), the rear
fan speed control will operate same as
the front fan speed control. For more
information on the LOCK button, refer
to “Rear Switches Operating Limitation”
in chapter 2.

i

3-124

Convenient features of your vehicle

OHI046324

■ Front

OHI046331

■ Rear

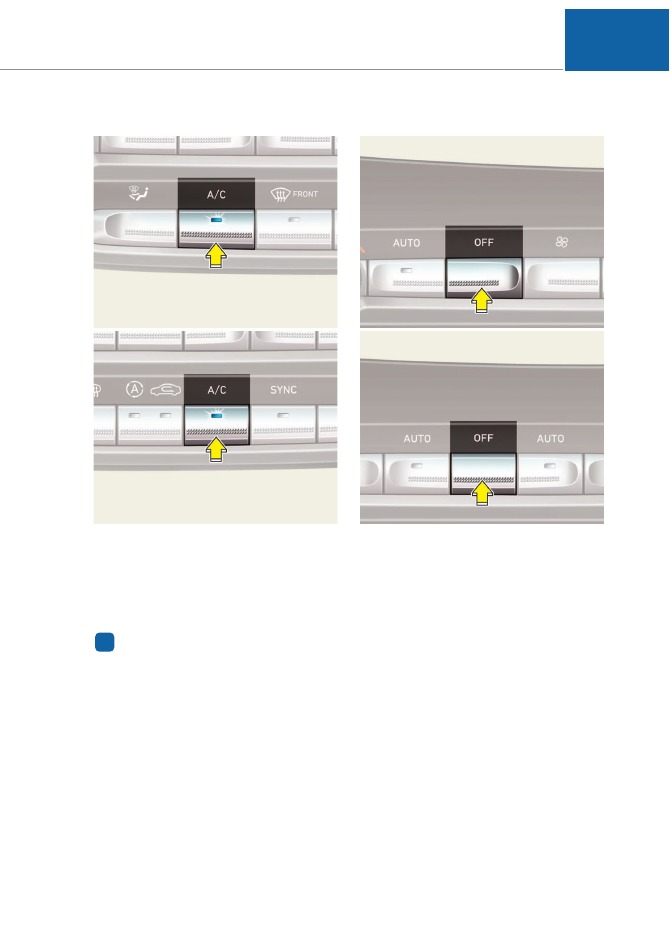

Air conditioning

Push the A/C button to turn the air
conditioning system on (indicator
light will illuminate).
Push the button again to turn the air
conditioning system off.

Information

When AUTO mode and the desired
temperature have been selected, the
climate control system will select the
A/C operation automatically. The A/C
button is not illuminated at all times
during AUTO mode operation.

OFF mode

Push the OFF button to turn off the
climate control system.

i

3-125

03

OHI046325

■

Type A

OHI046326

■

Type B

OHI046322

■

Type A

OHI046323

■

Type B

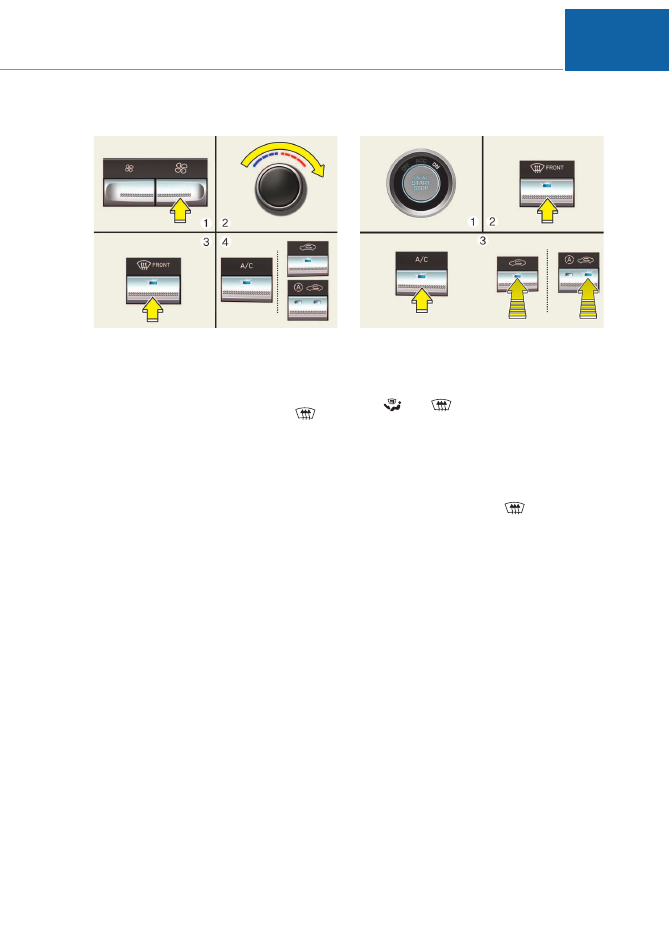

System operation

Ventilation

1. Set the mode to the

position.

2. Set the air intake control to the

outside (fresh) air position.

3. Set the temperature control to the

desired position.

4. Set the fan speed control to the

desired speed.

Heating

1. Set the mode to the

position.

2. Set the air intake control to the

outside (fresh) air position.

3. Set the temperature control to the

desired position.

4. Set the fan speed control to the

desired speed.

5. If dehumidified heating is desired,

turn the air conditioning system on.

• If the windshield fogs up, set the

mode to the

or

position.

Operation Tips

• To keep dust or unpleasant fumes

from entering the vehicle through
the ventilation system, temporarily
set the air intake control to the
recirculated air position. Be sure to
return the control to the fresh air
position when the irritation has
passed to keep fresh air in the
vehicle. This will help keep the driv-
er alert and comfortable.

• Air for the heating/cooling system

is drawn in through the grilles just
ahead of the windshield. Care
should be taken that these are not
blocked by leaves, snow, ice or
other obstructions.

• To prevent interior fog on the wind-

shield, set the air intake control to
the fresh air position and fan speed
to the desired position, turn on the
air conditioning system, and adjust
the temperature control to desired
temperature.

Air conditioning

Genesis Branded Vehicle Air
Conditioning Systems are filled with
refrigerant*.
1. Start the engine. Push the air con-

ditioning button.

2. Set the mode to the

position.

3. Set the air intake control to the out-

side air or recirculated air position.

4. Adjust the fan speed control and

temperature control to maintain
maximum comfort.

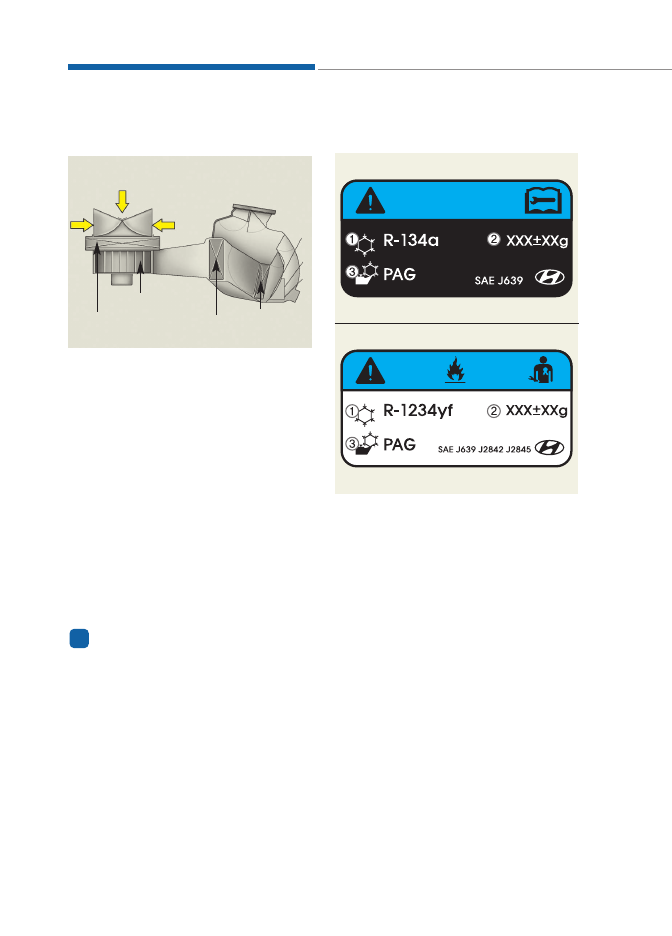

* : Your vehicle is filled with R-134a or

R-1234yf according to the regula-
tion in your country at the time of
producing. You can find out which
air conditioning refrigerant is
applied your vehicle at the label
inside of the engine room. Refer to
chapter 8 for more detail location
of air conditioning refrigerant label.

• The refrigerant system should

only be serviced by trained and
certified technicians to insure
proper and safe operation.

• The refrigerant system should be

serviced in a well-ventilated place.

• The air conditioning evaporator

(cooling coil) shall never be
repaired or replaced with one
removed from a used or salvaged
vehicle and new replacement MAC
evaporators shall be certified (and
labeled) as meeting SAE Standard

NOTICE

3-126

Convenient features of your vehicle

J2842.

Information

• When using the air conditioning sys-

tem, monitor the temperature gauge
closely while driving up hills or in
heavy traffic when outside tempera-
tures are high. Air conditioning sys-
tem operation may cause engine
overheating. Continue to use the
blower fan but turn the air condi-
tioning system off if the temperature
gauge indicates engine overheating.

• When opening the windows in

humid weather air conditioning
may create water droplets inside the
vehicle. Since excessive water
droplets may cause damage to elec-
trical equipment, air conditioning
should only be used with the win-
dows closed.

Air conditioning system operation
tips

• If the vehicle has been parked in

direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

• Use air conditioning to reduce

humidity and moisture inside the
vehicle on rainy or humid days.

• During air conditioning system

operation, you may occasionally
notice a slight change in engine
speed as the air conditioning com-
pressor cycles. This is a normal
system operation characteristic.

• Use the air conditioning system

every month only for a few minutes
to ensure maximum system per-
formance.

• When using the air conditioning

system, you may notice clear water
dripping (or even puddling) on the
ground under the passenger side
of the vehicle. This is a normal sys-
tem operation characteristic.

• Operating the air conditioning sys-

tem in the recirculated air position
provides maximum cooling, how-
ever, continual operation in this
mode may cause the air inside the
vehicle to become stale.

• During cooling operation, you may

occasionally notice a misty air flow
because of rapid cooling and
humid air intake. This is a normal
system operation characteristic.

i

3-127

03

3-128

Convenient features of your vehicle

System maintenance

Climate control air filter

The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
air position is selected. If this hap-
pens, we recommend that the cli-
mate control air filter be replaced by
an authorized retailer of Genesis
Branded products.

Information

• Replace the filter according to the

Maintenance Schedule.
If the car is being driven in severe
conditions such as dusty, rough
roads, more frequent climate control
air filter inspections and changes are
required.

• When the air flow rate suddenly

decreases, we recommend that the
system be checked by an authorized
retailer of Genesis Branded products.

Air Conditioning refrigerant
label

The actual Air Conditioning refriger-
ant label in the vehicle may differ
from the illustration.

Each symbols and specification on
air conditioning refrigerant label
means as below:

1. Classification of refrigerant
2. Amount of refrigerant
3. Classification of Compressor lubri-

cant

You can find out which air condition-
ing refrigerant is applied to your vehi-
cle on the label located inside of the
hood.

i

ODH044365R

ODH043366

■ Example

OHI046480

Outside air

Recirculated

air

Climate control

air filter

Blower

Evaporator

core

Heater core

Checking the amount of air con-
ditioner refrigerant and com-
pressor lubricant

When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a bad influence on the air condi-
tioning system.
Therefore, if abnormal operation is
found, we recommend that the sys-
tem be inspected by an authorized
retailer of Genesis Branded products.

3-129

03

Vehicles equipped with R-134a

Because the refriger-
ant is at very high
pressure, the air con-
ditioning system
should only be serv-

iced by trained and certified
technicians. It is important that
the correct type and amount of
oil and refrigerant is used.
Otherwise, it may cause damage
to the vehicle and personal injury.

WARNING

Vehicles equipped with R-1234yf

Because the refrigerant is mildly
inflammable and at very high
pressure, the air conditioning
system should only be serviced
by trained and certified techni-
cians. It is important that the cor-
rect type and amount of oil and
refrigerant is used.
Otherwise, it may cause damage
to the vehicle and personal injury.

WARNING

W

WIIN

ND

DS

SH

HIIE

EL

LD

D  D

DE

EF

FR

RO

OS

ST

TIIN

NG

G  A

AN

ND

D  D

DE

EF

FO

OG

GG

GIIN

NG

G

3-130

Convenient features of your vehicle

• For maximum defrosting, set the

temperature control to the extreme
right/hot position and the fan speed
control to the highest speed.

• If warm air to the floor is desired

while defrosting or defogging, set the
mode to the floor-defrost position.

• Before driving, clear all snow and

ice from the windshield, rear win-
dow, outside rear view mirrors, and
all side windows.

• Clear all snow and ice from the

hood and air inlet in the cowl grill to
improve heater and defroster effi-
ciency and to reduce the probability
of fogging up the inside of the wind-
shield.

To defog inside windshield

1. Set the fan speed to the desired

position.

2. Select desired temperature.
3. Press the defroster button (

).

4. The air conditioning will turn on

according to the detected ambient
temperature and outside (fresh)
air position will be selected auto-
matically.

If the air conditioning and outside
(fresh) air position are not selected
automatically, adjust the correspon-
ding button manually. If the

posi-

tion is selected, lower fan speed is
adjusted to a higher fan speed.

- Windshield heating

Do not use the

or

posi-

tion during cooling operation in
extremely humid weather. The
difference between the tempera-
ture of the outside air and the
windshield could cause the outer
surface of the windshield to fog
up, causing loss of visibility. In
this case, set the mode selection
to the

position and fan speed

control to the lower speed.

WARNING

OHI046334N

To defrost outside windshield

1. Set the fan speed to the highest

position.

2. Set the temperature to the extreme

hot (HI) position.

3. Press the defroster button (

).

4. The air conditioning will turn on

according to the detected ambient
temperature and outside (fresh)
air position will be selected auto-
matically.

Defogging logic

To reduce the possibility of fogging
up the inside of the windshield, the
air intake is controlled automatically
according to certain conditions such
as

or

position. To cancel or

return the defogging logic, perform
the following steps:
1. Turn the Engine Start/Stop Button

to the ON position.

2. Select the defrost position press-

ing defrost button (

).

3. While holding the air conditioning

button (A/C) pressed, press the air
intake control button at least 5
times within 3 seconds.

The indicator on the air intake control
button blinks 3 times with 0.5 second
of interval. It indicates that the defog-
ging logic is canceled or returned to
the programmed status.
If the battery has been discharged or
disconnected, the system resets to
the preprogrammed defogging logic.

3-131

03

OHI046328

OHI046329

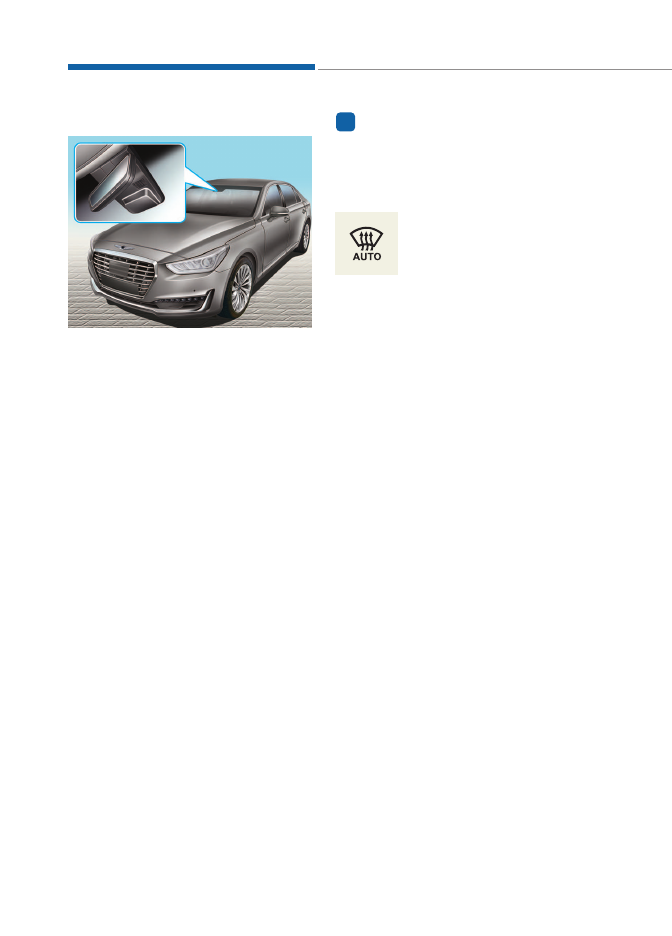

Auto defogging system

Auto defogging reduces the possibil-
ity of fogging up the inside of the
windshield by automatically sensing
the moisture of inside the windshield.
The auto defogging system operates
when the climate control system is on.
• To cancel/reactivate the auto defog-

ging system

1. Press the Engine Start/Stop but-

ton to the ON position.

2. Press the front defroster button

over 3 seconds.

The front defroster button indicator
will blink 3 times and then ADS OFF
will illuminate on the climate control
LCD display when the auto defogging
system is canceled.

• To reactivate the auto defogging

system

1. Press the Engine Start/Stop button

to the ON position.

2. Press the front defroster button

over 3 seconds.

3. The front defroster button indicator

will blink 6 times and then ADS
OFF will go out on the climate con-
trol LCD display when the auto
defogging system is reactivated.

Information

The auto defogging system may not
operate normally, when the outside
temperature is below -10 °C.

This indicator illuminates
when the auto defogging
system senses the mois-
ture of inside the wind-
shield and operates.

If more moisture is in the vehicle,
higher steps operate as follow.

Step 1 : Outside air position
Step 2 : Operating the air conditioning
Step 3 : Blowing  air  flow  toward  the

windshield

Step 4 : Increasing  air  flow  toward

the windshield

i

3-132

Convenient features of your vehicle

OHI046309

3-133

03

C

CL

LIIM

MA

AT

TE

E  C

CO

ON

NT

TR

RO

OL

L  A

AD

DD

DIIT

TIIO

ON

NA

AL

L  F

FE

EA

AT

TU

UR

RE

ES

S  ((IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

Clean air

When the Engine Start/Stop button is in
the ON position, the clean air function
turns on automatically.
Also, the clean air function turns off
automatically, when the Engine
Start/Stop button is in the OFF position.

Automatic ventilation

The system automatically selects the
outside (fresh) air position when the
climate control system operates over a
certain period of time (approximately
30 minutes) in low temperature with
the recirculated air position selected.

To cancel or reactivate
the Automatic Ventilation

When the air conditioning system is
on, select Face Level

mode and

press the recirculated air position
button for more than 3 seconds.
When the automatic ventilation is can-
celed, the indicator blinks 3 times.
When the automatic ventilation is acti-
vated, the indicator blinks 6 times.

Sunroof inside air recirculation

The outside (fresh) air position is auto-
matically selected, when the sunroof
is opened while operating the heat-
ing/air conditioning system.
When you select the recirculated air
position, the system maintains the
recirculated air position for 3 minutes
and then automatically converts to the
outside (fresh) air position.
When the sunroof is closed, the air
intake position will return to the origi-
nal position that was selected.

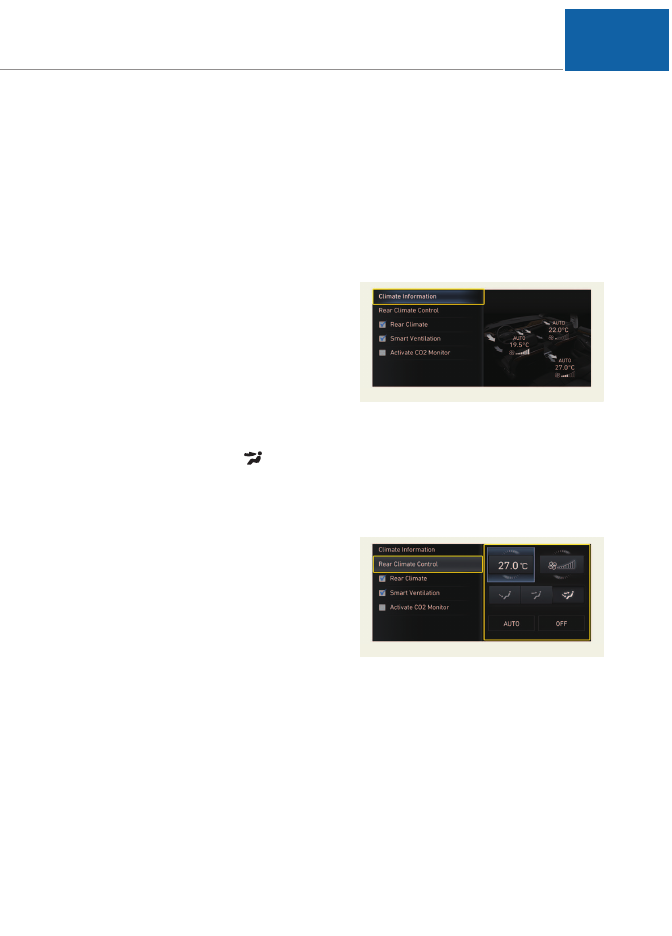

Setting the climate control
system on the DIS navigation
system monitor

Using the DIS Navigation System
monitor, press 'Setup → Climate'.
The Climate settings screen will be
displayed.

Climate information

Climate information (e.g. temperature,
air-flow direction, fan speed, etc.) of
the driver’s/front passenger’s/rear
seats is displayed.

Adjusting the rear climate con-
trol system

Select ‘Rear Climate Control’ and
then adjust the temperature, fan
speed and mode selection.

OHI046201L

OHI046202L

3-134

Convenient features of your vehicle

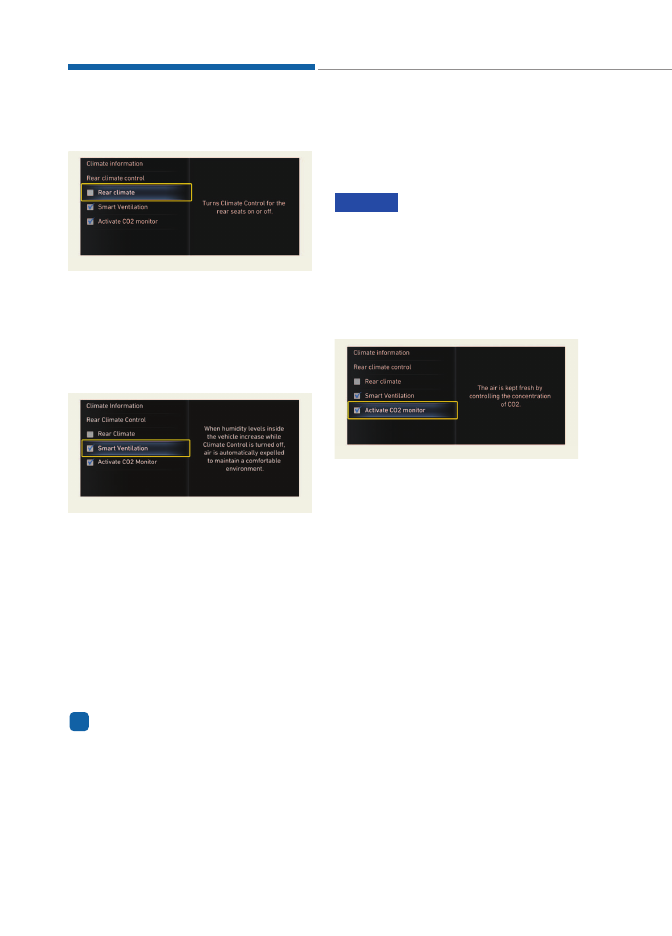

Rear climate control system
ON/OFF

Check the box next to ‘Rear Climate’
to turn on the rear climate control
system and uncheck the box to turn
off the system.

Smart ventilation

The smart ventilation system main-
tains pleasant/fresh air condition
inside the passenger compartment
by automatically detecting/controlling
the temperature, humidity, etc., when
you drive the vehicle with the climate
control system in the OFF position.
When the smart ventilation system
starts to operate, the message,
“SMART VENTILATION ON” appears
for 5 seconds.

Information

• The smart ventilation system stops

operating, when the OFF button of
the climate control system is selected.

• The smart ventilation system stops

operating, when any button of the
climate control system is selected for
operation.

(Continued)

(Continued)
• The smart ventilation system may

not operate, when the vehicle is
driven at low speed.

Pay extreme caution not to damage
the CO2 sensor, which is located
inside the glove box undercover.

Activate CO2 monitor
(if equipped)

When driving, the climate control sys-
tem controls CO2 concentration and
maintains pleasant air in the vehicle.
Check the box next to ‘Activate CO2
monitor’ to turn on the function and
uncheck the box to turn off the func-
tion.

For more information on the fea-
tures described, refer to the sepa-
rately supplied DIS Navigation
System manual.

NOTICE

i

OHI046205L

OHI046203L

OHI046207N

3-135

03

To avoid possible theft, do not
leave valuables in the storage
compartments.

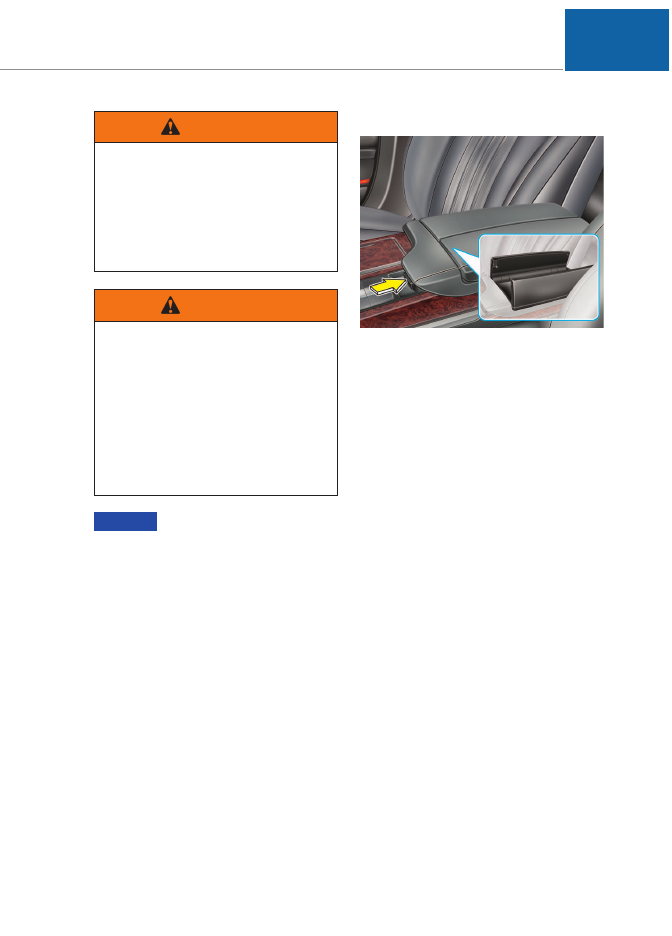

Center console storage

To open :
Press the button.

NOTICE

S

ST

TO

OR

RA

AG

GE

E  C

CO

OM

MP

PA

AR

RT

TM

ME

EN

NT

T

Never store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.

WARNING

ALWAYS keep the storage com-
partment covers closed secure-
ly while driving. Items inside
your vehicle are moving as fast
as the vehicle. If you have to
stop or turn quickly, or if there
is a crash, the items may fly out
of the compartment and may
cause an injury if they strike the
driver or a passenger.

WARNING

OHI046431
