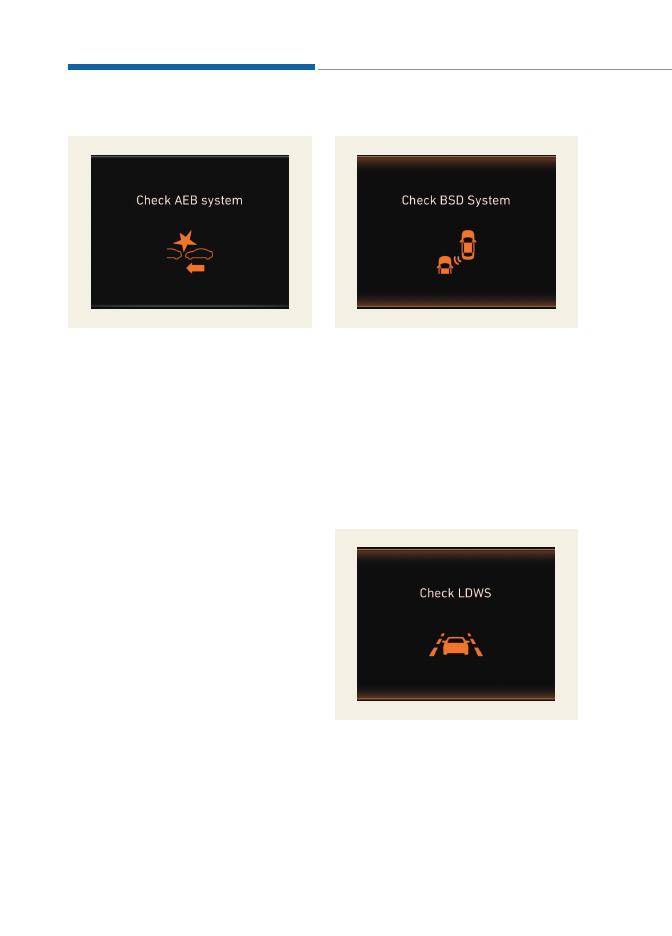

Check AEB system (if equipped)

This warning message is displayed if
there is a problem with the Autonomous
Emergency Braking (AEB) system.
In some cases, the AEB sensor or the
cover located in the lower front grille
may be dirty or obscured with dirt or
snow. Check the sensor and cover and
clean them by using a soft cloth.
If the warning message persists, have
your vehicle inspected by an author-
ized retailer of Genesis Branded prod-
ucts.
For more information, refer to
"Autonomous Emergency Braking
(AEB) System" in chapter 5.

Check BSD System (if equipped)

This warning message is displayed if
there is a problem with the Blind Spot
Detection (BSD) system. We recom-
mend that the vehicle be inspected
by an authorized retailer of Genesis
Branded products.
For more information, refer to "Blind
Spot Detection (BSD) System" in
chapter 5.

Check LDWS (if equipped)

This warning message is displayed if
there is a problem with the Lane
Departure Warning System (LDWS).
We recommend you to have the vehi-
cle inspected by an authorized retail-
er of Genesis Branded products.
For more information, refer to
“Lane Departure Warning System
(LDWS)” in chapter 5.

3-72

Convenient features of your vehicle

OHI046137L

OHI046143L

OHI056135L

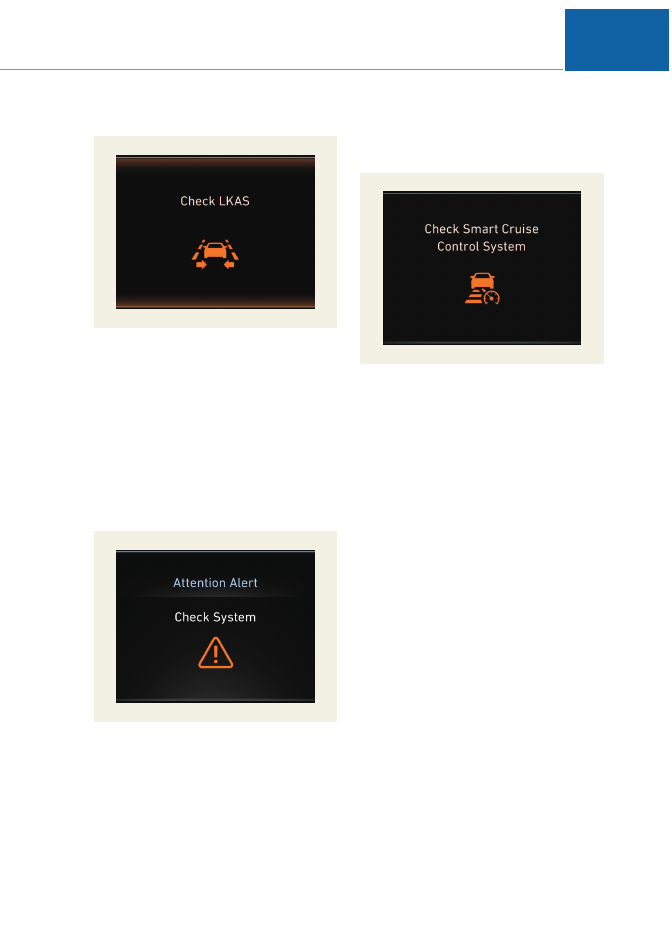

Check LKAS (if equipped)

This warning message is displayed if
there is a problem with the Lane
Keeping Assist System (LKAS). We
recommend you to have the vehicle
inspected by an authorized retailer of
Genesis Branded products.
For more information, refer to
“Lane Keeping Assist System
(LKAS)” in chapter 5.

Driver Attention Alert

Check System (if equipped)

This warning message is displayed if
there is a problem with the Driver
Attention Alert System. We recom-
mend you to have the vehicle inspect-
ed by an authorized retailer of Genesis
Branded products.
For more information, refer to “Driver

Attention Alert (DAA)” in chapter 5.

Check Smart Cruise Control
System (if equipped)

This warning message is displayed if
there is a problem with the Smart
Cruise Control System. We recom-
mend you to have the vehicle inspect-
ed by an authorized retailer of
Genesis Branded products.
For more information, refer to
“Advance Smart Cruise Control
(ASCC) System” in chapter 5.

3-73

03

OHI056117L

OHI046141L

OHI046138L

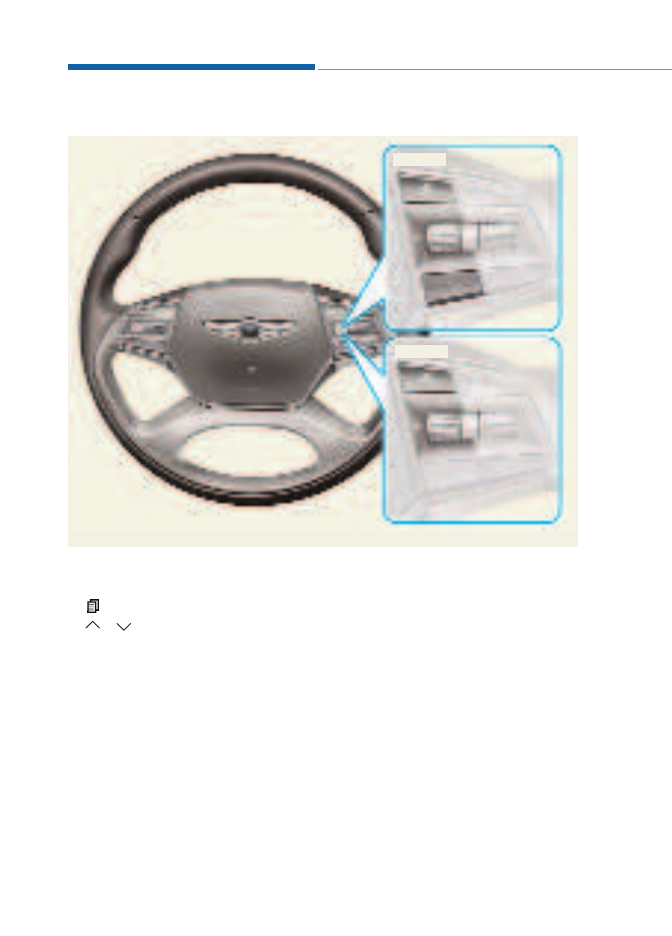

The LCD display modes can be changed by using the control buttons.

1.

: MODE button for changing modes

2.

,

: MOVE switch for changing items

3. OK : SELECT/RESET button for setting or resetting the selected item

OHI046400

■ Type A

■ Type B

LCD display control

L

LC

CD

D  D

DIIS

SP

PL

LA

AY

Y

3-74

Convenient features of your vehicle

LCD modes

3-75

03

Modes

Symbol

Explanation

Trip Computer

This mode displays driving information like the trip-
meter, fuel economy, etc.
For more information, refer to "Trip Computer" in
this chapter.

Turn By Turn

(TBT)

(if equipped)

This mode displays the state of the navigation.

Assist

• This mode displays the state of the Smart Cruise

Control (SCC) and Lane Departure Warning
System (LDWS)/Lane Keeping Assist System
(LKAS).
For more information, refer to "Smart Cruise
Control (SCC)“and “Lane Departure Warning
System (LDWS)/Lane Keeping Assist System
(LKAS)” in chapter 5.

• This mode displays information related to Driver

Attention Alert and Tire Pressure Monitoring
System (TPMS).

For more information, refer to "Driver Attention
Alert (DAA)" in chapter 5 and "Tire Pressure
Monitoring System (TPMS)“ in chapter 6.

User Settings

In this mode, you can change settings of the
doors, lamps, etc.

Warning

This mode displays warning messages related to
the Blind Spot Detection system, etc.

The information provided differs according to the items applied to your
vehicle.

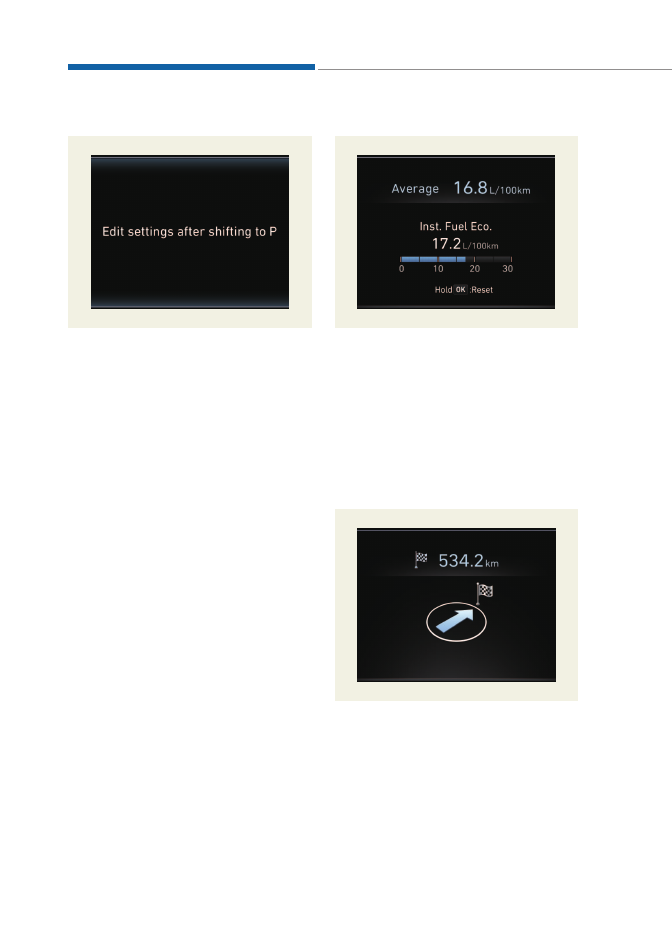

Edit settings after shifting to P

This warning message appears if
you try to adjust the User Settings
while driving.
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and mov-
ing the shift lever to P (Park).

Quick guide help

This mode provides quick guides for
the systems in the User Settings
mode.
Select an item, press and hold the
OK button.
For more information about each
system, refer to this Owner’s
Manual.

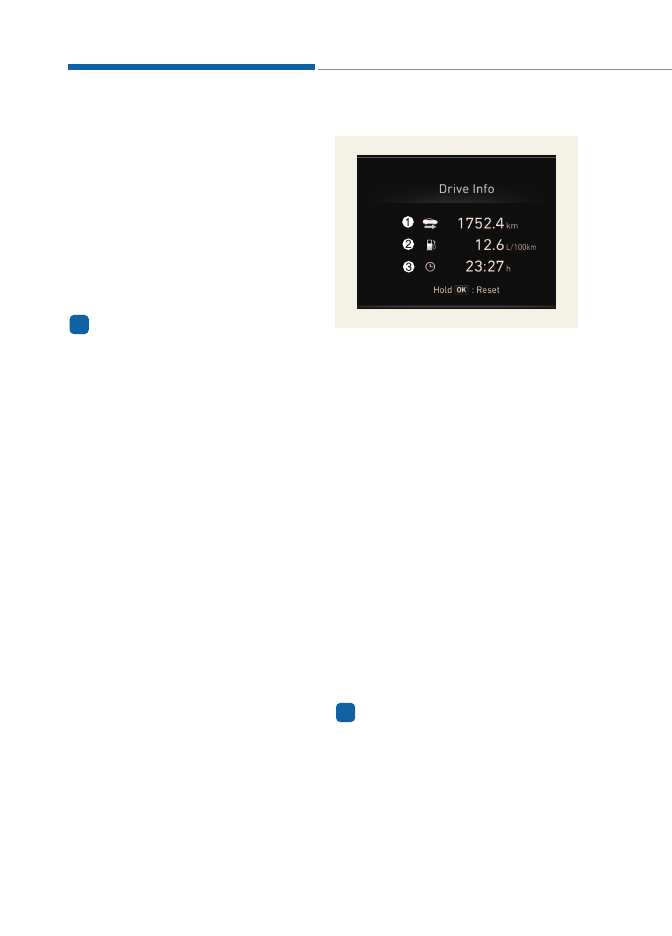

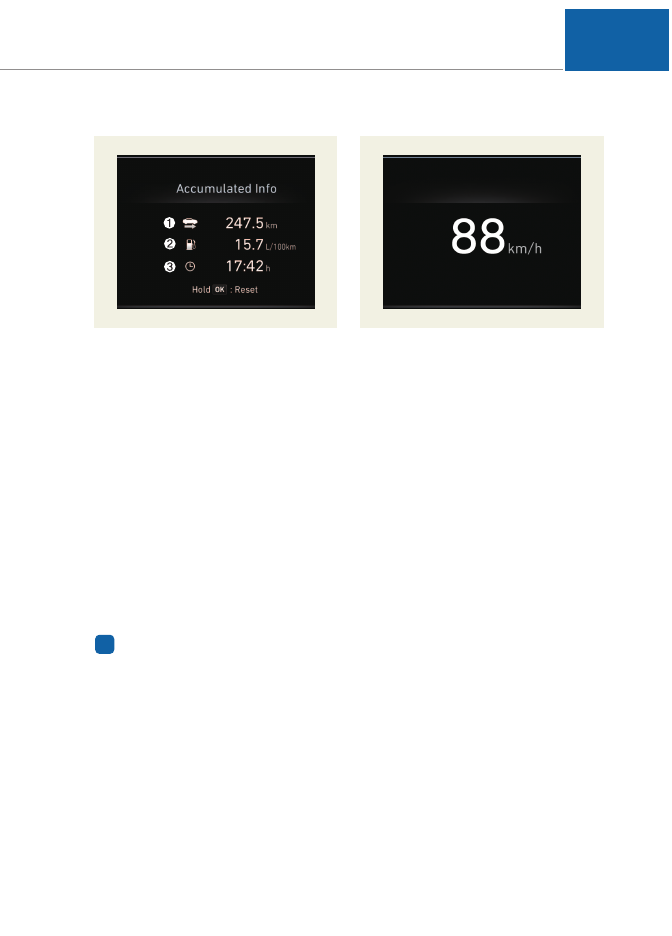

Trip computer mode

The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
trip meter information and vehicle
speed.

For more information, refer to
"Trip Computer" in this chapter.

Turn By Turn (TBT) mode

This mode displays the state of the
navigation.

3-76

Convenient features of your vehicle

OHI046154L

OHI046156L

OHI046157

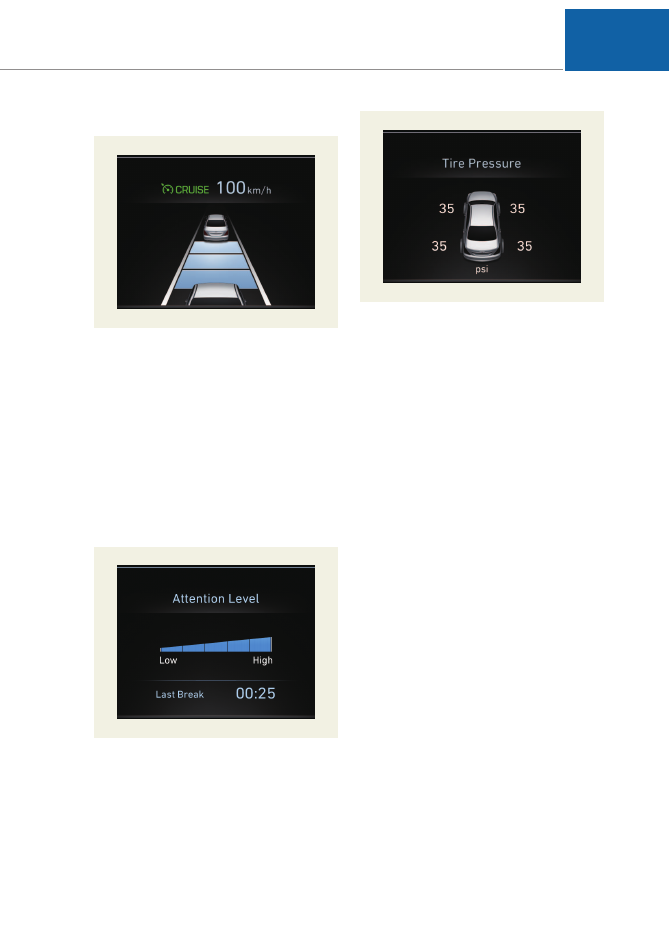

Assist mode

SCC/LKAS

This mode displays the state of the
Smart Cruise Control (SCC) and
Lane Departure Warning System
(LDWS)/Lane Keeping Assist
System (LKAS).
For more information, refer to
"Smart Cruise Control (SCC)“and
“Lane Departure Warning System
(LDWS)/Lane Keeping Assist
System (LKAS)” in chapter 5.

Driver Attention Alert (DAA)

This mode displays information relat-
ed to Driver Attention Alert (DAA).
For more information, refer to "Driver
Attention Alert (DAA)" in chapter 5.

Tire Pressure

This mode displays information relat-
ed to Tire Pressure Monitoring
System (TPMS).
For more information, refer to
"Tire Pressure Monitoring System
(TPMS)“ in chapter 6.

Warning mode

If one of followings occurs, warning
messages will be displayed in the
information mode for several seconds.
- Pre-Active Seat Belt (PSB) malfunc-

tion

- Smart high beam malfunction
- Adaptive Front Lighting System

(AFLS) malfunction

- Blind Spot Detection (BSD) mal-

function (if equipped)

- Autonomous Emergency Braking

(AEB) malfunction

- Smart cruise control malfunction
- Electronic Controlled Suspension

(ECS) malfunction

- Haptic steering malfunction

3-77

03

OHI046158

OHI046160L

OHI056120L

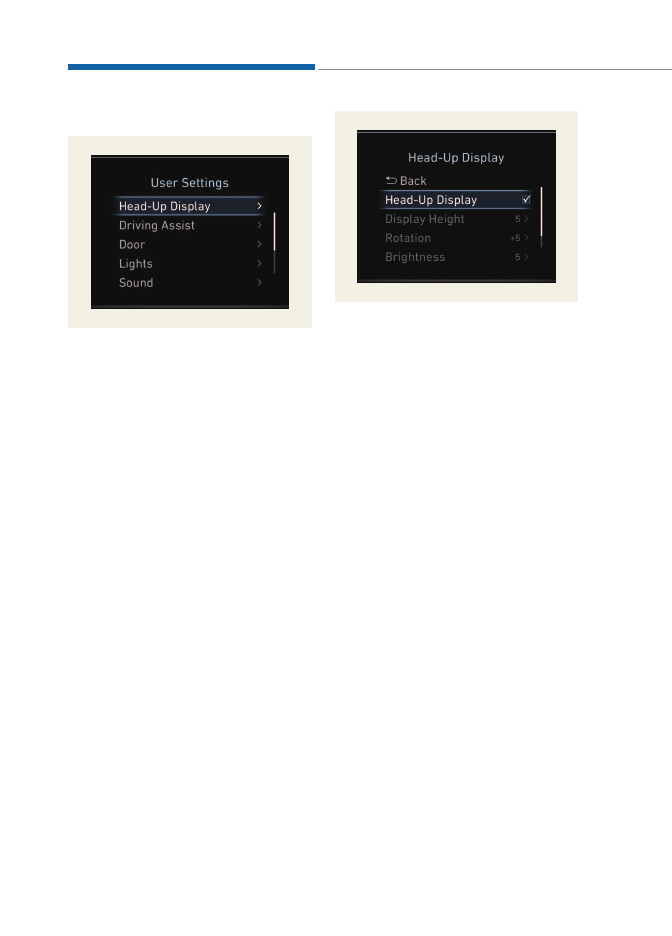

User settings mode

In this mode, you can change the
setting of the instrument cluster,
doors, lamps, etc.
1. Head-Up Display
2. Driving Assist
3. Door
4. Lights
5. Sound
6. Convenience
7. Service Interval
8. Other Features
9. Reset
The information provided differs
according to the items applied to your
vehicle.

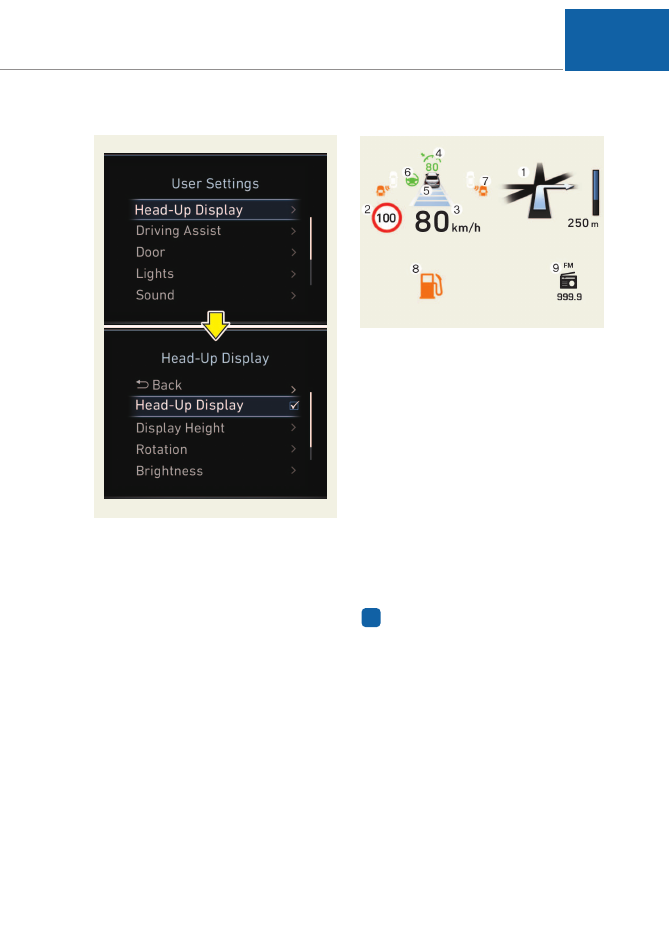

1. Head-Up Display
• Head-Up Display
If this item is checked, it will turn on
the head-up display.

• Display Height
To adjust the height of the image.

• Rotation
To adjust the angle of the image.

• Brightness
To adjust the brightness of the image.

• Content Select
To select the information displayed
- Turn by Turn
- Traffic information
- Cruise control or Smart cruise control
- Lane keeping assist system or Lane

departure warning system

- Blind spot detection system

• Speedometer Size
To select the speedometer font size.
- Large/Medium/Small

• Speedometer Color
To select the speedometer font color.
White/Orange/Green

For more information, refer to the
"Head-Up Display" in this chapter.

3-78

Convenient features of your vehicle

OHI046161L

OHI046162L

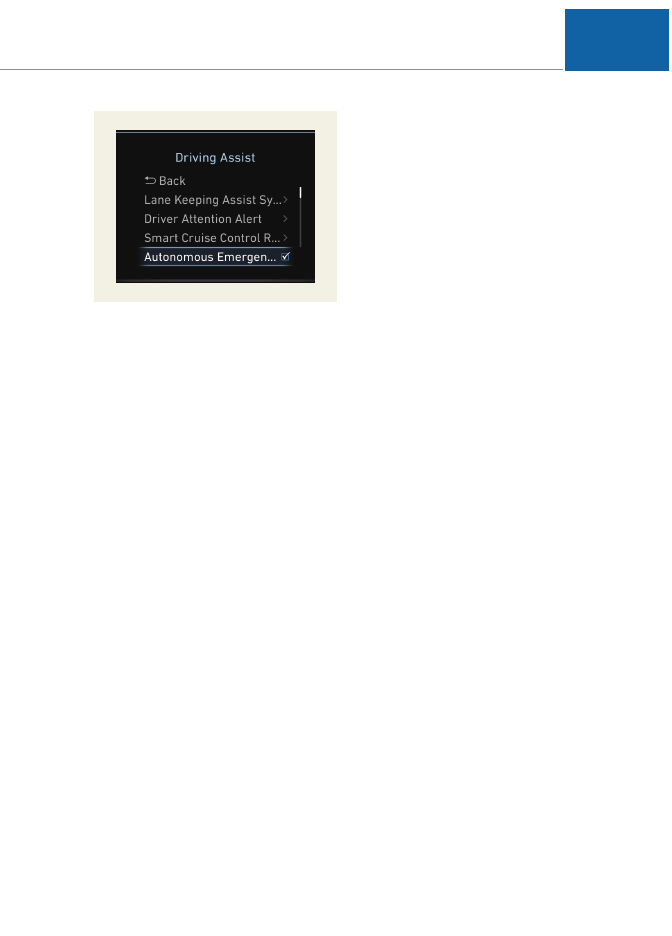

2. Driving Assist
• Lane Keeping Assist System
To adjust the sensitivity of the Lane
Keeping Assist System.
- Lane Departure/Standard LKA/

Active LKA

For more information, refer to the
"Lane Keeping Assist System" in
chapter 5.

• Driver Attention Alert
To adjust the sensitivity of the Driver
Attention Alert (DAA).
- Off/Normal/Early
For more information, refer to the
"Driver Attention Alert (DAA)" in
chapter 5.

• Smart Cruise Control Response
To adjust the sensitivity of the Smart
Cruise Control system.
- Slow/Normal/Fast
For more information, refer to the
"Advanced Smart Cruise Control"
in chapter 5.

• Autonomous Emergency Braking
To activate or deactivate the
Autonomous Emergency Braking
(AEB).
For more information, refer to
"Autonomous Emergency Braking
(AEB)" in chapter 5.

• Forward Collision Warning
To adjust the initial warning alert time
for Autonomous Emergency Braking
system.
- Late/Normal/Early
For more information, refer to
"Autonomous Emergency Braking
(AEB)" in chapter 5.

• Lane Change Assist
To adjust the initial warning alert time
for the Lane Change Assist.
- Normal/Late
For more information, refer to
“Blind Spot Detection" in chapter
5.

• Rear Cross Traffic Alert
To activate or deactivate the Rear
Cross Traffic Alert system.
For more information, refer to
“Blind Spot Detection" in chapter
5.

• Blind Spot Detection Sound
To activate or deactivate the Blind
Spot Detection sound.
For more information, refer to “Blind
Spot Detection" in chapter 5.

3-79

03

OHI046208L

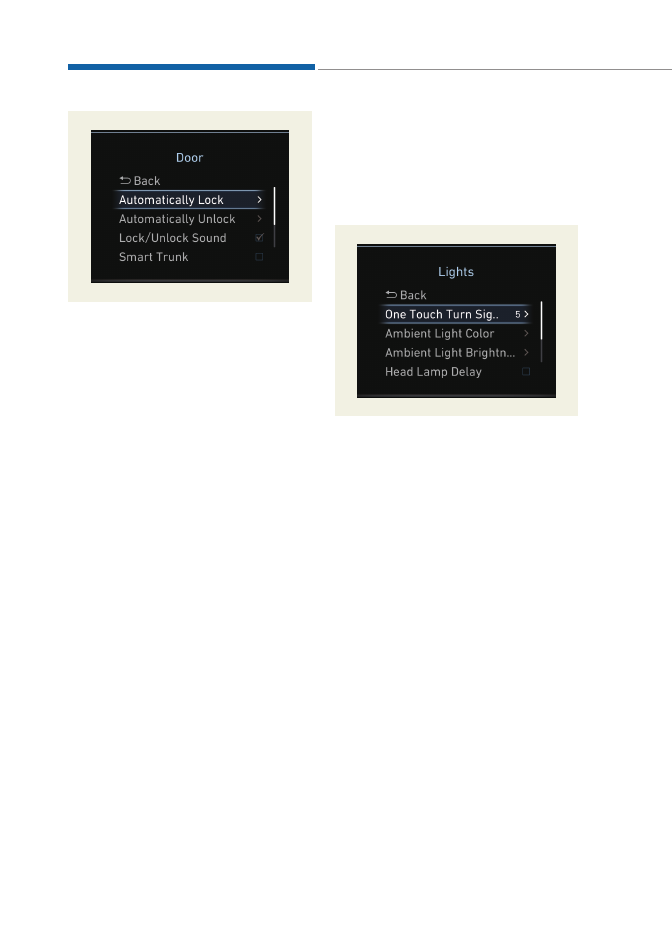

3. Door
• Automatically Lock
- Disable: The auto door lock opera-

tion will be canceled.

- Enable on Speed: All doors will be

automatically locked when the vehi-
cle speed exceeds 15km/h
(9.3mph).

- Driver Door Unlock : All doors will

be automatically unlocked when
the driver’s door is unlocked.

- Enable on Shift: All doors will be

automatically locked if the automat-
ic transmission shift lever is shifted
from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive)
position.

• Automatically Unlock
- Disable: The auto door unlock oper-

ation will be canceled.

- Vehicle Off: All doors will be auto-

matically unlocked when the
Engine Star/Stop button is set to
the OFF position.

- On Shift to P: All doors will be auto-

matically unlocked if the automatic
transmission shift lever is shifted to
the P (Park) position.

• Lock/Unlock Sound
To activate or deactivate the lock
sound when the doors are locked
and unlocked.

• Smart Trunk
To activate or deactivate the Smart
Trunk system.
For more information, refer to the
"Smart Trunk" in this chapter.

4. Lights
• One Touch Turn Signal
- Off: The one touch turn signal func-

tion will be deactivated.

- 3, 5, 7 Flashes: The turn signal indi-

cator will blink 3, 5, or 7 times when
the turn signal lever is moved slightly.

For more information, refer to
"Light" in this chapter.

• Ambient Light Color
To select the color of the ambient
light.
- Polar White/Ocean Blue/Lake Blue

Green/Orchid Green/Freesia Yellow/
Sunrise Red/Aurora Purple

• Ambient Light Brightness
To select the brightness of the ambient
light.
- Level 1~4

3-80

Convenient features of your vehicle

OHI046164L

OHI046165L

• Headlamp Delay
To activate or deactivate the head-
lamp delay function.
For more information, refer to
"Light" in this chapter

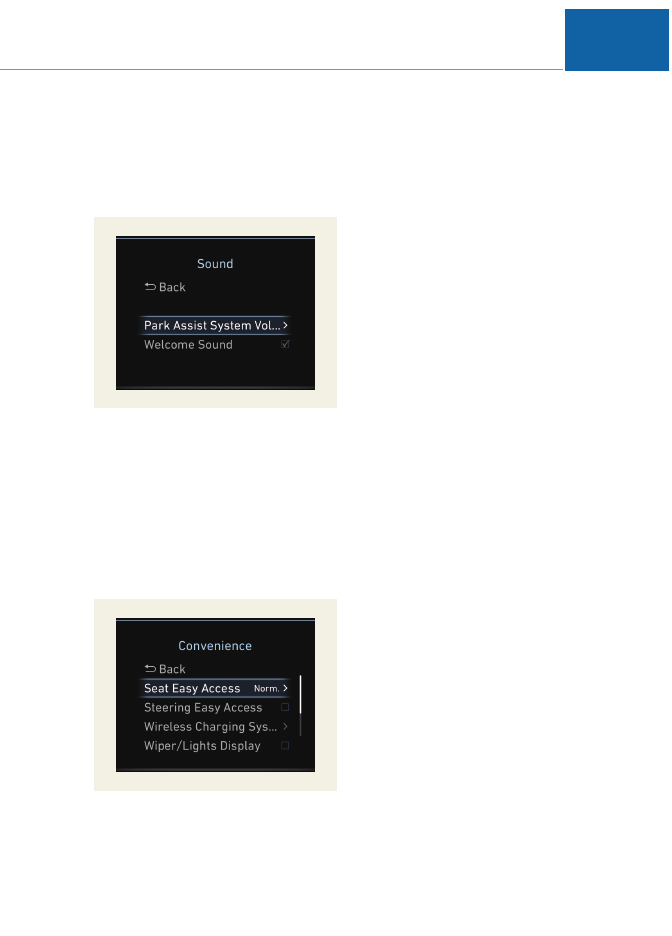

5. Sound
• Park Assist System Volume
To adjust the Park Assist System vol-
ume.
- Level 1~3

• Welcome Sound
To activate or deactivate the wel-
come sound function.

6. Convenience

• Seat Easy Access
- None: The seat easy access func-

tion is deactivated.

- Normal/Extended: When  you  turn

off the engine, the driver's seat will
automatically move rearward short
(Normal) or long (Extended) for you
to enter or exit the vehicle more
comfortably.

For more information, refer to
"Seat Position Memory System" in
this chapter.

• Steering Easy Access
• On: The steering wheel will auto-

matically move forward or rearward
for the driver to enter or exit the
vehicle comfortably.

• Off: The steering easy access func-

tion will be deactivated.

For more information, refer to
"Seat Position Memory System" in
this chapter.

• Wireless Charging System
- Front: To activate or deactivate the

wireless charging system in the
front seat.

- Rear: To activate or deactivate the

wireless charging system in the
rear seat.

For more information, refer to
"Wireless Charging System" in
this chapter.

• Wiper/Lights Display
To activate or deactivate the Wiper/
Light mode.
When activated, the LCD display
shows the selected Wiper/Light mode
whenever you change the mode.

3-81

03

OHI046196L

OHI046167L

• Gear Position Pop-up
To activate or deactivate the gear
position pop-up.
When activated, the gear position
will be displayed on the LCD display.

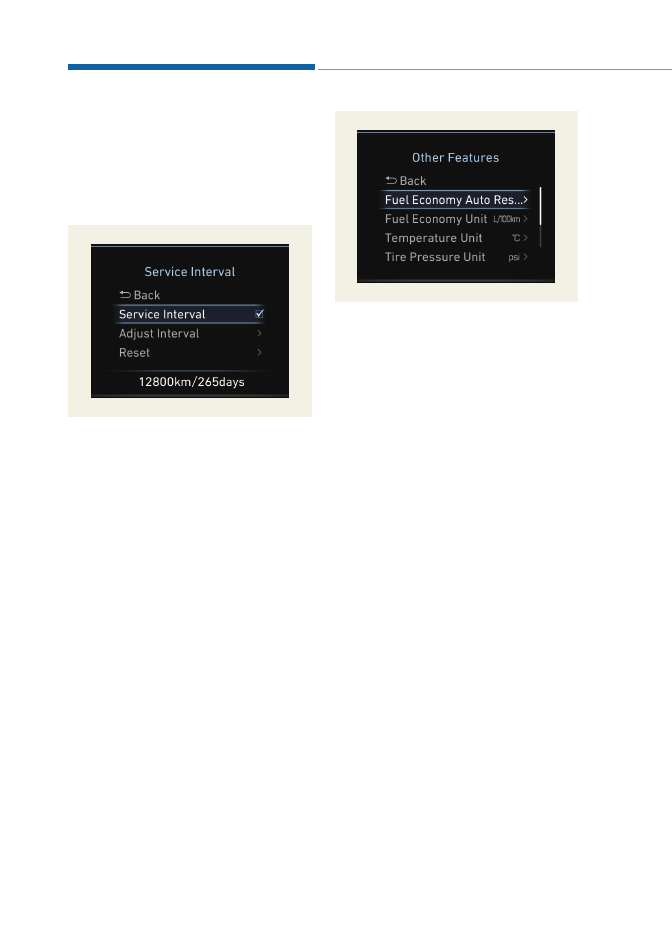

7. Service Interval
• Service Interval
To activate or deactivate the service
interval function.

• Adjust Interval
To adjust the interval by mileage and
period.

• Reset
To reset the service interval function.

8. Other Features
• Fuel Economy Auto Reset
- Off: The average fuel economy will

not reset automatically whenever
refueling.

- After Ignition: The average fuel

economy will reset automatically
whenever it has passed 4 hours
after turning OFF the engine.

- After Refueling: The average fuel

economy will reset automatically
when refueling.

For more information, refer to
"Trip Computer" in this chapter.

• Fuel Economy Unit
To select the fuel economy unit.
(km/L, L/100)

• Temperature Unit
To select the temperature unit.

(°C,°F)

• Tire Pressure Unit
To select the tire pressure unit.
(psi, kPa, bar)

9. Reset
You can reset the menus in the User
Settings Mode. All menus in the User
Settings Mode are initialized, except
language and service interval.

3-82

Convenient features of your vehicle

OHI046168L

OHI046169L

3-83

03

The trip computer is a microcomput-
er-controlled driver information sys-
tem that displays information related
to driving.

Information

Some driving information stored in the
trip computer resets if the battery is
disconnected.

Trip modes

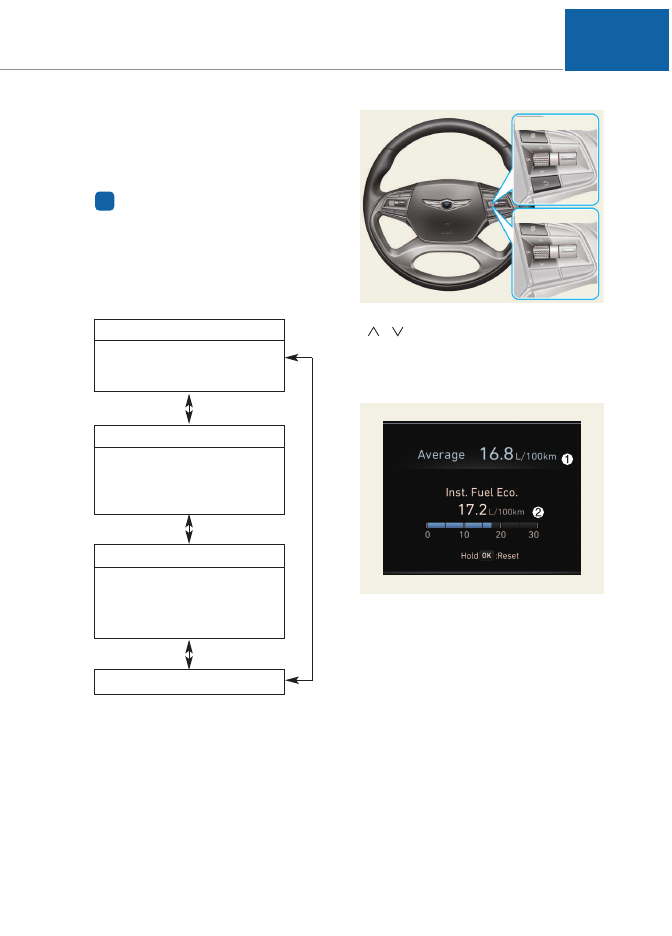

To change the trip mode, toggle the
“

,

” switch on the steering

wheel.

Fuel economy

Average Fuel Economy (1)

• The average fuel economy is calcu-

lated by the total driving distance
and fuel consumption since the last
average fuel economy reset.

• The average fuel economy can be

reset both manually and automati-
cally.

Manual reset

To clear the average fuel economy
manually, press the [OK] button on
the steering wheel for more than 1
second when the average fuel econo-
my is displayed.

i

T

TR

RIIP

P  C

CO

OM

MP

PU

UT

TE

ER

R

• Tripmeter
• Fuel Economy
• Elapsed Time

Drive Info

• Tripmeter
• Fuel Economy
• Elapsed Time

Accumulated Info

• Average Fuel Economy
• Instant Fuel Economy

Fuel Economy

Digital Speedometer

OHI046400

OHI046156L

■ Type A

■ Type B

3-84

Convenient features of your vehicle

Automatic reset

To reset the average fuel economy
automatically whenever refueling,
select the "After refueling" mode in
User Setting menu of the LCD display
(Refer to "LCD Display").
Under "After refueling" mode, the
average fuel economy will be cleared
to zero (----) when the vehicle speed
exceeds 1 km/h (1 mph ) after refuel-
ing more than 6 liters (2 gallons ).

Information

The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.

Instant Fuel Economy (2)

This mode displays the instanta-
neous fuel economy while driving
when the vehicle speed is greater
than 8 km/h (5 mph).

Driving Info display

This display shows the trip distance
(1), the average fuel economy (2),
and the total driving time (3).
The information is calculated for each
ignition cycle. The driving information
data gets initialized, when it has
passed 4 hours after turning OFF the
engine. In other words, the last driv-
ing information is available 4 hours
after you have turned on the engine.
To manually reset the information,
press and hold the OK button when
viewing the Driving info. The trip dis-
tance, the average fuel economy, and
total driving time will reset simultane-
ously.
The driving information will continue
to be counted while the engine is still
running (for example, when the vehi-
cle is in traffic or stopped at a stop
light.)

Information

The vehicle must be driven for a mini-
mum of 300 meters (0.19 miles) since the
last ignition key cycle before the average
fuel economy will be recalculated.

i

i

OHI046171L

3-85

03

Accumulated Info display

This display shows the accumulated
trip distance (1), the average fuel
economy (2), and the total driving
time (3).
The information is calculated starting
from the last reset.
To manually reset the information,
press and hold the OK button when
viewing the Accumulated driving info.
The trip distance, the average fuel
economy, and total driving time will
reset simultaneously.
The accumulated driving information
will continue to be counted while the
engine is still running (for example,
when the vehicle is in traffic or
stopped at a stop light.)

Information

The vehicle must be driven for a min-
imum of 300 meters (0.19 miles) since
the last ignition key cycle before the
average fuel economy will be recalcu-
lated.

Digital speedometer

This message shows the speed of
the vehicle (km/h, MPH).

i

OHI046173

OHI046172L

3-86

Convenient features of your vehicle

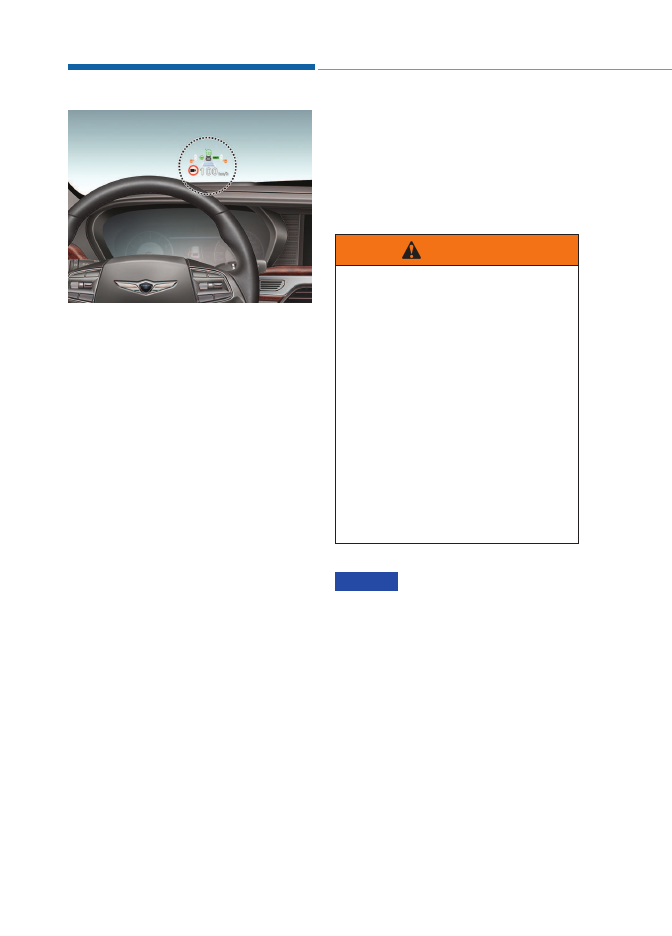

The Head-Up Display is a transpar-
ent display which projects a shadow
of  information of the instrument clus-
ter and navigation on the windshield
glass.

Precautions while using the
Head-Up Display

It may be difficult to read information
on the Head-Up Display in the follow-
ing situations.
- The driver is improperly positioned

in the driver’s seat.

- The diver wears polarizing-filter

sunglasses.

- An object is located above the

Head-Up Display cover.

- The vehicle is driven on a wet road.
- Any improper lighting accessory is

installed inside the vehicle, or there
is incoming light from outside of the
vehicle.

- The driver wears glasses.
- The driver wears contact lenses.
When it is difficult to read the Head-
Up Display information, adjust the
Head-Up display angle or the Head-
Up Display brightness level in the
User Settings Mode. For more infor-
mation, refer to "LCD Display" in
this chapter.

We recommend you to have your
Head-Up Display maintained by an
authorized retailer of Genesis
Branded products.
The Head-Up Display maintenance
requires a special windshield exclu-
sive for the Head-Up Display.

When replacing the front wind-
shield glass of the vehicles
equipped with the head up display,
replace it with a windshield glass
designed for the head up display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.

NOTICE

H

HE

EA

AD

D-

-U

UP

P  D

DIIS

SP

PL

LA

AY

Y  ((IIF

F  E

EQ

QU

UIIP

PP

PE

ED

D))

OHI046401

• Do not tint the front wind-

shield glass or add other
types of metallic coating.
Otherwise, the head up dis-
play image may be invisible.

• Do not place any accessories

on the crash pad or attach any
objects on the windshield
glass.

• The blind spot detection warn-

ings on the Head-Up Display
are mere supplemental. Do not
solely depend on them to
change lanes. Always take a
look around before changing
lanes.

WARNING

3-87

03

Head-Up Display ON/OFF

To activate the head-up display,
select “Head-Up Display” on the
“User Settings mode” in the cluster.
If you do not select “Head-Up Display”,
the head-up display will be deactivated.

Head-Up Display information

1. Turn-by-turn (TBT) navigation infor-

mation

2. Road information
3. Driving speed information
4. Cruise system set speed informa-

tion

5. Advanced smart cruise informa-

tion

6. Lane Departure Warning System

LDWS) / Lane Keeping Assist System
(LKAS) information

7. Blind spot detection warnings
8. Warning lights
9. AV information

Information

If you select the Turn By Turn (TBT)
navigation information as Head-Up
Display contents, the Turn By Turn
(TBT) navigation information will not
be displayed on the LCD Display.

i

OHI046175L

OHI046404C
