Immobilizer Indicator
Light

This indicator light illuminates for
up to 30 seconds:

When the vehicle detects the smart
key in the vehicle with the Engine
Start/Stop button in the ACC or ON
position.
- At this time, you can start the

engine.

- The indicator light goes off after

starting the engine.

This indicator light blinks for a few
seconds:

When the smart key is not in the
vehicle.
- At this time, you cannot start the

engine.

This indicator light illuminates for
2 seconds and goes off:

If the smart key is in the vehicle and
the Engine Start/Stop button is ON,
but the vehicle cannot detect the
smart key.
In this case, we recommend that you
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

This indicator light blinks:

• When the battery voltage of the

smart key is low.
- At this time, you can not start the

engine. However, you can start the
engine if you press the Engine
Start/Stop button with the smart
key. (For more information, refer
to "Starting the Engine" in chap-
ter 5).

• When there is a malfunction with

the immobilizer system.
In this case, we recommend that
you have the vehicle inspected by
an authorized retailer of Genesis
Branded products.

Turn Signal Indicator
Light

This indicator light blinks:

When you operate the turn signal
indicator light.

If any of the following occurs, there
may be a malfunction with the turn
signal system.
- The turn signal indicator light illumi-

nates but does not blink

- The turn signal indicator light blinks

rapidly

- The turn signal indicator light does

not illuminate at all

If either of these conditions occur, we
recommend you to have your vehicle
inspected by an authorized retailer of
Genesis Branded products.

3-56

Convenient features of your vehicle

Low Beam Indicator
Light (if equipped)

This indicator light illuminates:

When the headlights are on.

High Beam Indicator
Light

This indicator light illuminates:

• When the headlights are on and in

the high beam position

• When the turn signal lever is pulled

into the Flash-to-Pass position.

Light ON Indicator
Light

This indicator light illuminates:

When the tail lights or headlights are
on.

Smart High Beam
Indicator

This warning light illuminates:

• When the high-beam is on with the

light switch in the AUTO light position.

• If your vehicle detects oncoming or

preceding vehicles, the smart high
beam system  will switch the high
beam to low beam automatically.

For more information, refer to
“Smart High Beam” in this chapter.

Rear Fog Indicator
Light (if equipped)

This indicator light illuminates:

When the rear fog lights are on.

LED Headlamp Warning
Light (if equipped)

This warning light illuminates:

• Once you place the Engine Start/

Stop Button to the ON position.
- It illuminates for approximately 3

seconds and then goes off.

• When there is a malfunction with

the LED headlamp.

In this case, we recommend that you
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

This warning light blinks:

When there is a malfunction with a
LED headlamp related part.
In this case, we recommend that you
have the vehicle inspected by an
authorized retailer of Genesis
Branded products.

Continuous driving with the LED
Headlamp Warning Light on or
blinking can reduce LED head-
lamp (low beam) life.

NOTICE

3-57

03

Adaptive Front
Lighting System
(AFLS) Warning Light

This warning light illuminates:

• Once you place the Engine Start/

Stop Button to the ON position.
- It illuminates for approximately 3

seconds and then goes off.

• When there is a malfunction with

the AFLS.

If there is a malfunction with the
AFLS:

1. Drive carefully to the nearest safe

location and stop your vehicle.

2. Turn the engine off and restart the

engine. If the warning light remains
on, we recommend that you have
the vehicle inspected by an author-
ized retailer of Genesis Branded
products.

SPORT Mode Indicator
Light

This indicator light illuminates

When you select "SPORT" mode as
drive mode.
For more information, refer to
"Drive Mode Integrated Control
System" in chapter 5.

SMART Mode Indicator Light

This indicator illuminates:

When you select “SMART” mode as
drive mode.
For more information, refer to
"Drive Mode Integrated Control
System" in chapter 5.

ECO Mode Indicator
Light

This indicator light illuminates:

When you select “ECO” mode as
drive mode.
For more information, refer to “Drive
Mode Integrated Control System” in
chapter 5.

INDIVIDUAL Mode
Indicator Light

This indicator light illuminates:

When you select “INDIVIUAL” mode
as drive mode.
For more information, refer to
"Drive Mode Integrated Control
System" in chapter 5.

3-58

Convenient features of your vehicle

Autonomous
Emergency Braking
(AEB) Warning light
(if equipped)

This warning light illuminates :

• When the AEB system is turned

off.

• When the radar sensor or cover is

blocked with dirt or snow. Check
the sensor and cover and clean
them by using a soft cloth.

• When there is a malfunction with

AEB. In this case, we recommend
you to have your vehicle inspected
by an authorized retailer of
Genesis Branded products.

Lane Departure Warning System
(LDWS) Indicator Light
(if equipped)

This indicator light illuminates:

• [Green] When the system operat-

ing conditions are satisfied for
LDWS.

• [White] When the system operat-

ing conditions are not satisfied or
when the sensor does not detect
the lane line.

• [Yellow] When there is a malfunc-

tion with the lane departure warn-
ing system.
In this case, we recommend that
you have the vehicle inspected by
an authorized retailer of Genesis
Branded products.

For more information, refer to “Lane
Departure Warning System (LDWS)”
in chapter 5.

LKAS (Lane Keeping Assist
System) Indicator (if equipped)

This indicator light illuminates:

• [Green] When the system operat-

ing conditions are satisfied for
LKAS.

• [White] When the system operat-

ing conditions are not satisfied or
when the sensor does not detect
the lane line.

• [Yellow] When there is a malfunc-

tion with the lane keeping assist
system.
In this case, we recommend that
you have the vehicle inspected by
an authorized retailer of Genesis
Branded products.

For more information, refer to “Lane
Keeping Assist System (LKAS)” in
chapter 5.

All Wheel Drive (AWD)
Warning Light
(if equipped)

This warning light illuminates:

• Once you place the Engine Start/

Stop button to the ON position.
- It illuminates for approximately 3

seconds and then goes off.

• When there is a malfunction with

the AWD system.
In this case, we recommend that you
have the vehicle inspected by an
authorized retailer of Genesis
Branded products.

3-59

03

LCD display messages

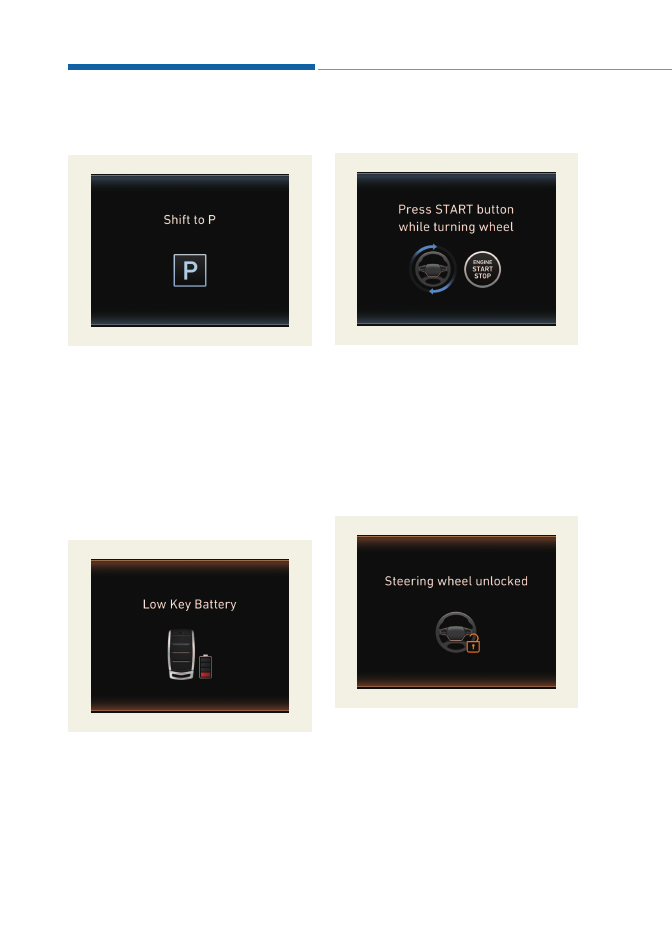

Shift to "P"

This warning message is displayed if
you try to turn off the engine without
the shift lever in P (Park) position.
At this time, the Engine Start/Stop
button turns to the ACC position (If
you press the Engine Start/Stop but-
ton once more, it will turn to the ON
position).

Low Key Battery

This warning message is displayed if
the battery of the smart key is dis-
charged while changing the Engine
Start/Stop button while changing to
the OFF position.

Press START button while turn-
ing wheel

This warning message is displayed if
the steering wheel does not unlock
normally when the Engine Start/Stop
button is pressed.
You should press you should press the
Engine Start/Stop button while turning
the steering wheel right and left.

Steering wheel unlocked

This warning message is displayed if
the steering wheel does not lock
while the Engine Start/Stop button
changes to the OFF position.

3-60

Convenient features of your vehicle

OHI046120L

OHI046192L

OHI046118L

OHI046193L

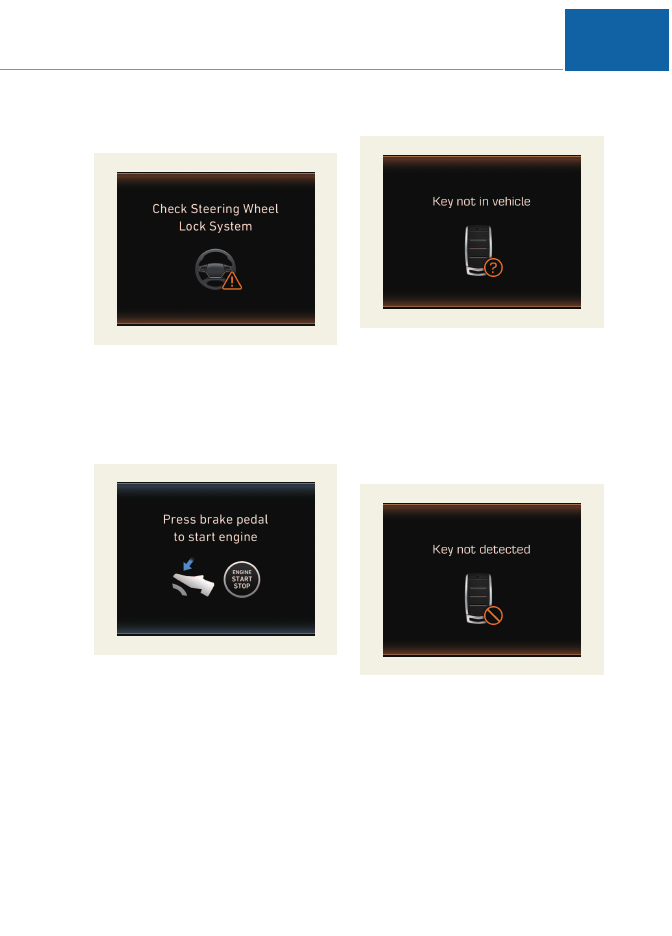

Check steering wheel lock
system

This warning message is displayed if
the steering wheel does not lock nor-
mally while the Engine Start/Stop but-
ton changes to the OFF position.

Press brake pedal to start engine

This warning message is displayed if
the Engine Start/Stop button changes
to the ACC position twice by pressing
the button repeatedly without depress-
ing the brake pedal.
In order to start the vehicle, press the
brake pedal to start the engine.

Key not in vehicle

This warning message is displayed if
the smart key is not in the vehicle
when you press the Engine Start/Stop
button.
When attempting to start the vehicle,
always have the smart key with you.

Key not detected

This warning message is displayed if
the smart key is not detected when you
press the Engine Start/Stop button.

3-61

03

OHI046194L

OHI046115L

OHI046116L

OHI046119L

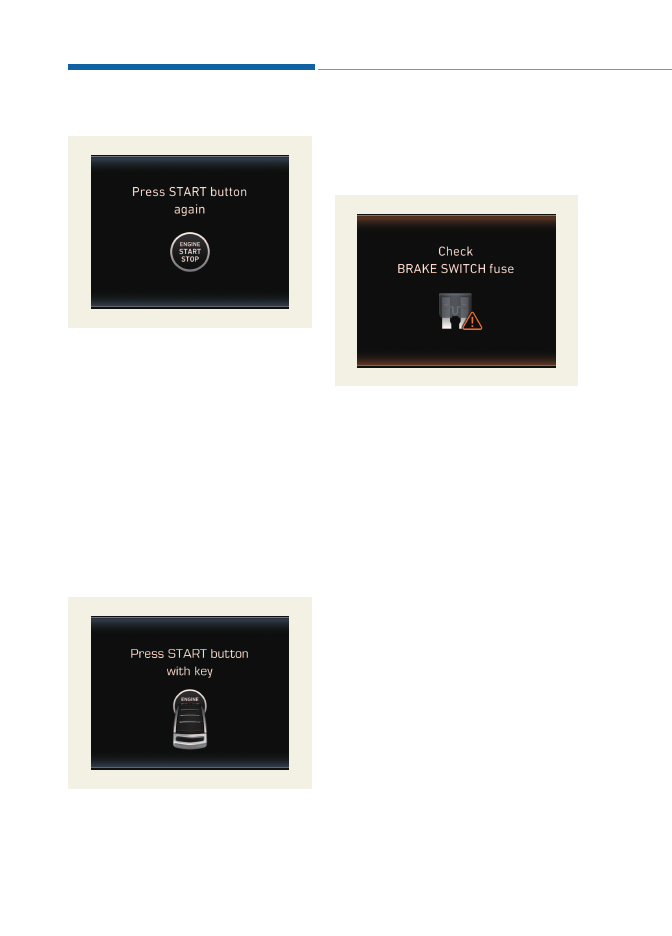

Press start button again

This message is displayed if you
were unable to start the vehicle when
the Engine Start/Stop button was
pressed.
If this occurs, attempt to start the
engine by pressing the Engine
Start/Stop button again.
If the warning message appears
each time you press the Engine
Start/Stop button, we recommend
you to have your vehicle inspected
by an authorized retailer of Genesis
Branded products.

Press “START” button with key

This warning message is displayed if
you press the Engine Start/Stop but-
ton while the warning message “Key
not detected” is displayed.

At this time, the immobilizer indicator
light blinks.

Check "BRAKE SWITCH" fuse

This warning message is displayed if
the brake switch fuse is disconnected.
If this message is displayed, replace
the fuse with a new one before start-
ing the vehicle. If that is not possible,
you can start the engine by pressing
the Engine Start/Stop button for 10
seconds in the ACC position.

3-62

Convenient features of your vehicle

OHI046122L

OHI046117L

OHI046124L

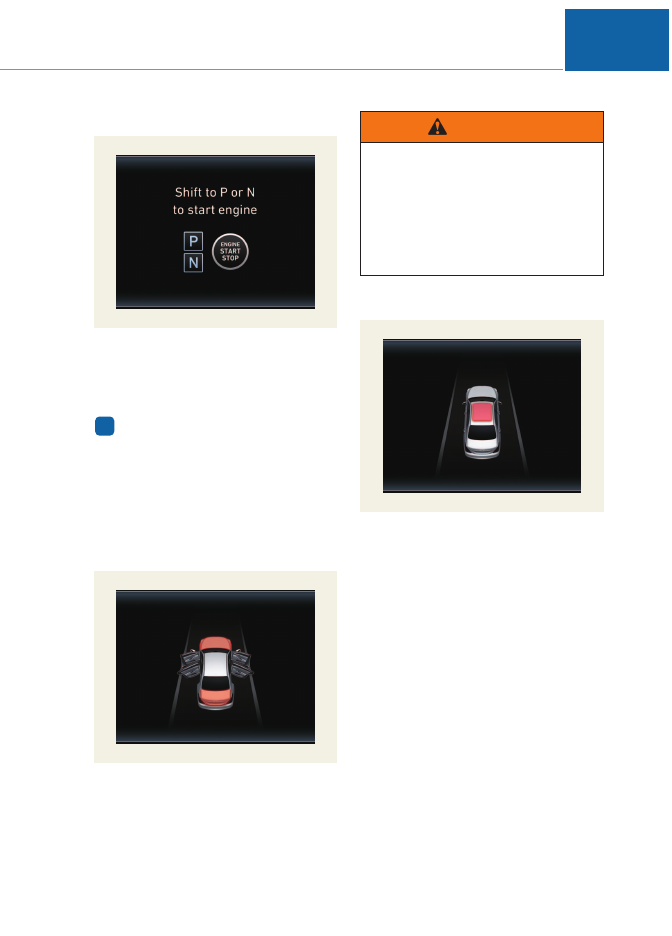

Shift to "P" or "N" to start engine

This warning message is displayed if
you try to start the engine with the
shift lever not in the P (Park) or N
(Neutral) position.

Information

You can start the engine with the shift
lever in the N (Neutral) position. But,
for your safety, we recommend that
you start the engine with the shift
lever in the P (Park) position.

Door, hood, trunk open

This warning is displayed indicating
which door, or the hood, or the trunk
is open.
If the door/trunk open warning is
blocked with another warning mes-
sage, an icon will appear on the top
of the LCD display.

Sunroof open (if equipped)

This warning is displayed if you turn
off the engine when the sunroof is
open.

i

3-63

03

OHI046123L

OHI046126

OHI046125

Before driving the vehicle, you
should confirm that the door/
hood/tailgate is fully closed.
Also, check there is no door/
hood/tailgate open warning
light or message displayed on
the instrument cluster.

WARNING

3-64

Convenient features of your vehicle

Window open (if equipped)

This warning is displayed indicating
which window is open.

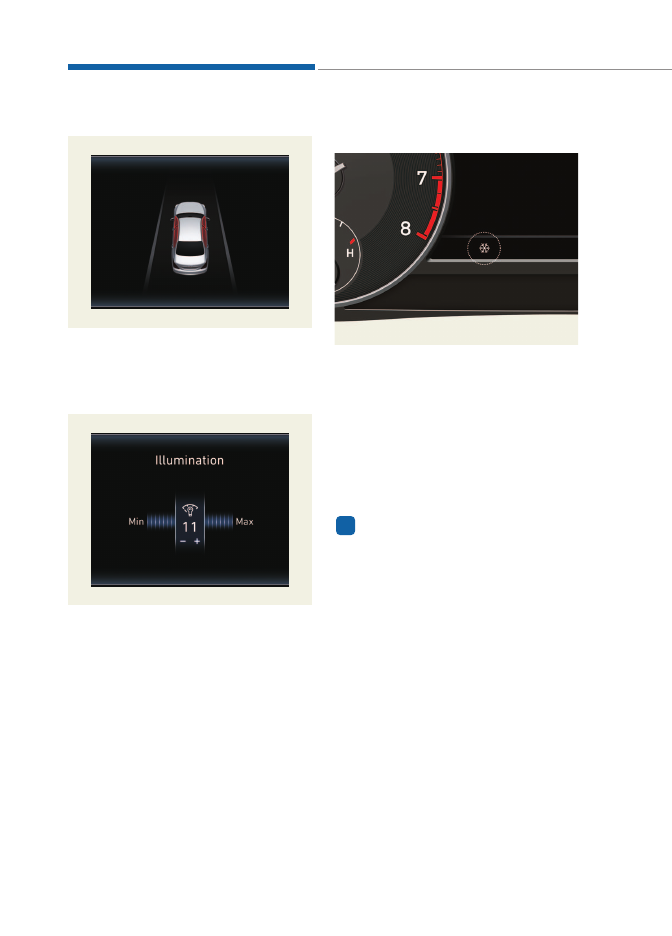

Illumination

The brightness of the instrument
panel illumination is displayed when
it is adjusted.
For more information, refer to
“Instrument Panel Illumination” in
this chapter.

Icy road warning light
(if equipped)

This warning light is to warn the driv-
er the road may be icy.
When the temperature on the out-
side temperature gauge is approxi-
mately below 4°C (40°F), the Icy
Road Warning Light and Outside
Temperature Gauge blinks 5 times,
and then illuminates. Also, the warn-
ing chime sounds 1 time.

Information

If the icy road warning light appears
while driving, you should drive more
attentively and safely refraining from
over-speeding, rapid acceleration, sud-
den braking or sharp turning, etc.

i

OHI046200L

OHI046110L

OHI046127

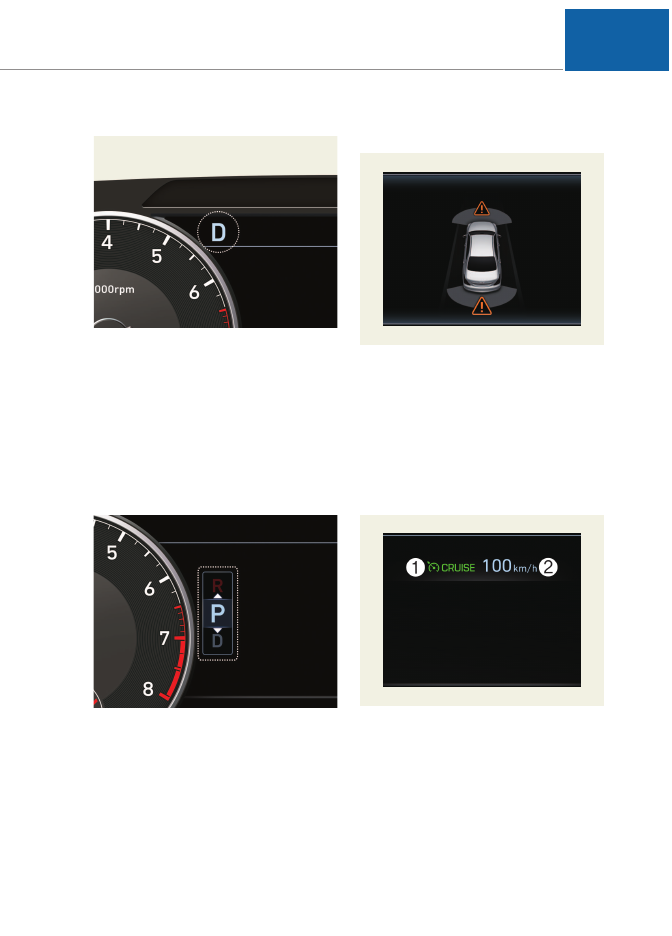

Transmission shift indicator

This indicator displays which shift
lever is selected.
• Park  : P
• Reverse : R
• Neutral : N
• Drive  : D
• Manual mode : 1, 2, 3, 4, 5, 6, 7, 8

Shift Indicator Pop-up

The pop-up that indicates the current
gear position is displayed in the clus-
ter for about 2 seconds when shifting
into other positions (P/R/N/D).

Parking assist system malfunc-
tion (if equipped)

This warning is displayed if there is a
problem with the Parking Assist
System. We recommend you to have
the vehicle inspected by an authorized
retailer of Genesis Branded products.
For more information, refer to
“Parking Assist System”in chapter 3.

Cruise indicator

The indicator is displayed when the
cruise control system is enabled (1)
and the cruise control speed is set (2).
For more information, refer to
"Cruise Control System" or
“Advanced Cruise Control System”
in chapter 5.

3-65

03

OHI046174

OHI056134

OHI046112

OHI046113

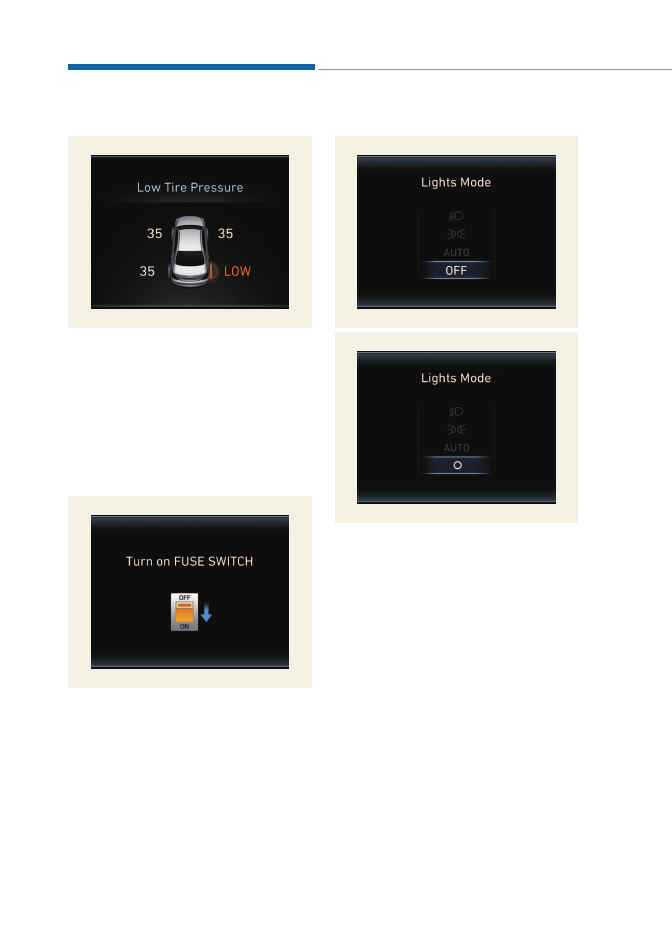

Low Tire Pressure (if equipped)

This warning message is displayed if
the tire pressure is low. The corre-
sponding tire on the vehicle will be
illuminated.
For more information, refer to
"Tire Pressure Monitoring System
(TPMS)" in chapter 6.

Turn on "FUSE SWITCH"

This warning message is displayed if
the fuse switch located on the fuse
box under the steering wheel is OFF.
If this message is displayed, turn the
fuse switch on.
For more information, refer to
“Fuses” in chapter 7.

Lights Mode

This indicator displays which exterior
light is selected using the lighting
control.

3-66

Convenient features of your vehicle

OHI046148L

■

Type A

OHI046197L

■

Type B

OHI046130L

OHI046129N

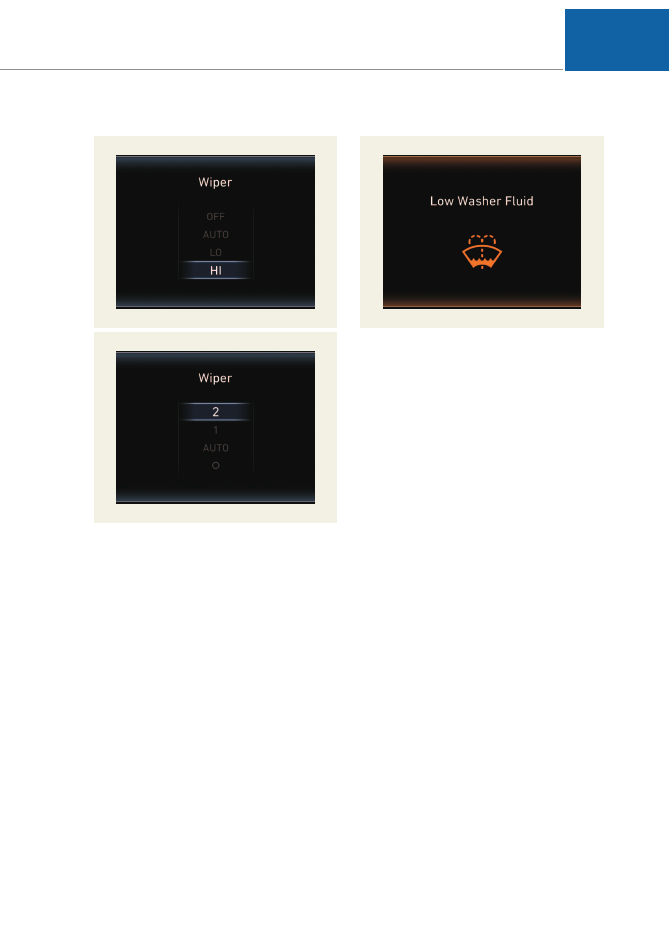

Wiper

This indicator displays which wiper
speed is selected using the wiper
control.

Low Washer Fluid

This warning message is displayed
in the service reminder mode if the
washer fluid level in the reservoir is
nearly empty.
Have the washer fluid reservoir
refilled.

3-67

03

OHI046149L

■

Type A

OHI046198L

■

Type B

OHI046150L

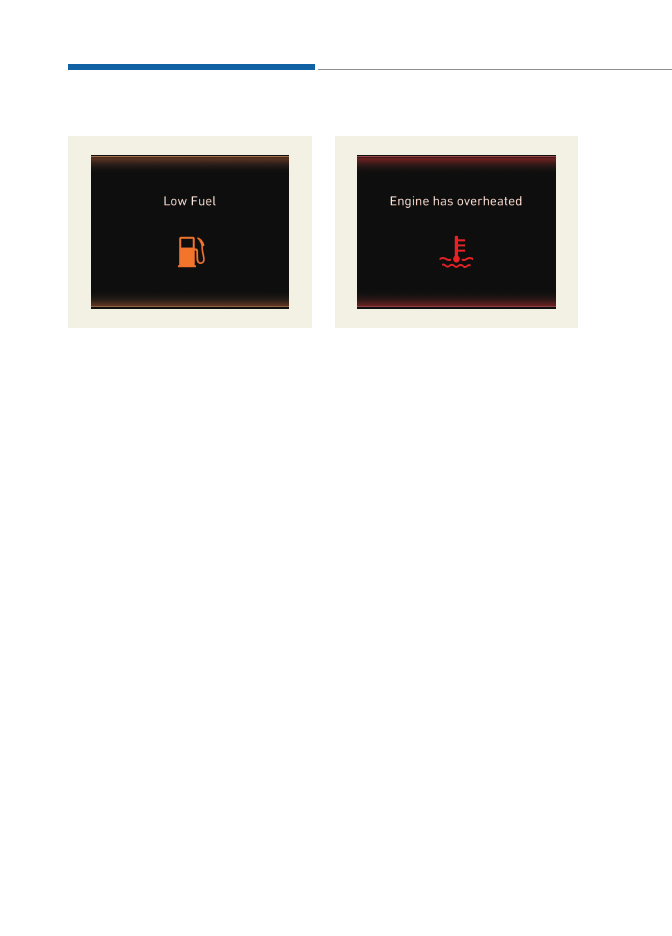

Low Fuel

This warning message is displayed if
the fuel tank is almost out of fuel.
When this message is displayed, the
low fuel level warning light in the
cluster will come on.
It is recommended to look for the
nearest fueling station and refuel as
soon as possible.
If your vehicle is equipped with a
head-up display, Low Fuel warning
will be displayed only on the head-up
display.

Engine has overheated

This warning message is displayed
when the engine coolant tempera-
ture is above 120°C (248°F). This
means that the engine is overheated
and may be damaged.
If your vehicle is overheated, refer
to "Overheating" in chapter 6.

3-68

Convenient features of your vehicle

OHI046145L

OHI046147L

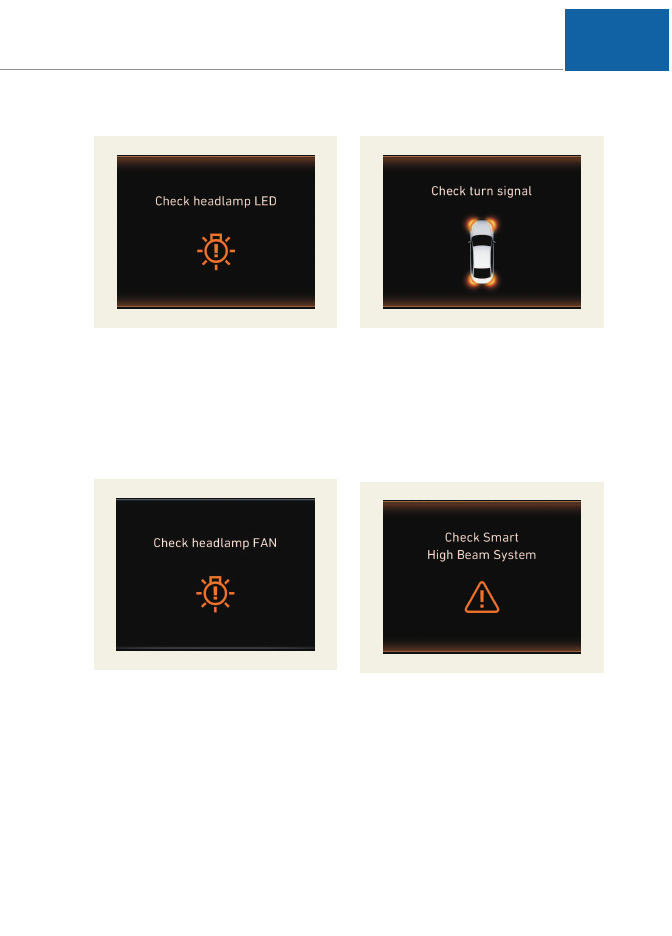

Check headlamp LED

This warning message is displayed if
there is a problem with the LED
headlamp. We recommend you to
have the vehicle inspected by an
authorized retailer of Genesis Branded
products.

Check headlamp FAN

This warning message is displayed if
there is a problem with headlamp
fan. We recommend you to have the
vehicle inspected by an authorized
retailer of Genesis Branded prod-
ucts.

Check turn signal (if equipped)

This warning message is displayed if
there is a problem the turn signal. We
recommend you to have the vehicle
inspected by an authorized retailer of
Genesis Branded products.

Check Smart High Beam
System (if equipped)

This warning message is displayed if
there is a problem with the Smart
High Beam System. We recommend
you to have the vehicle inspected by
an authorized retailer of Genesis
Branded products.
For more information, refer to
“Smart High Beam System” in
chapter 3.

3-69

03

OHI046152L

OHI046153L

OHI046151L

OHI046142L

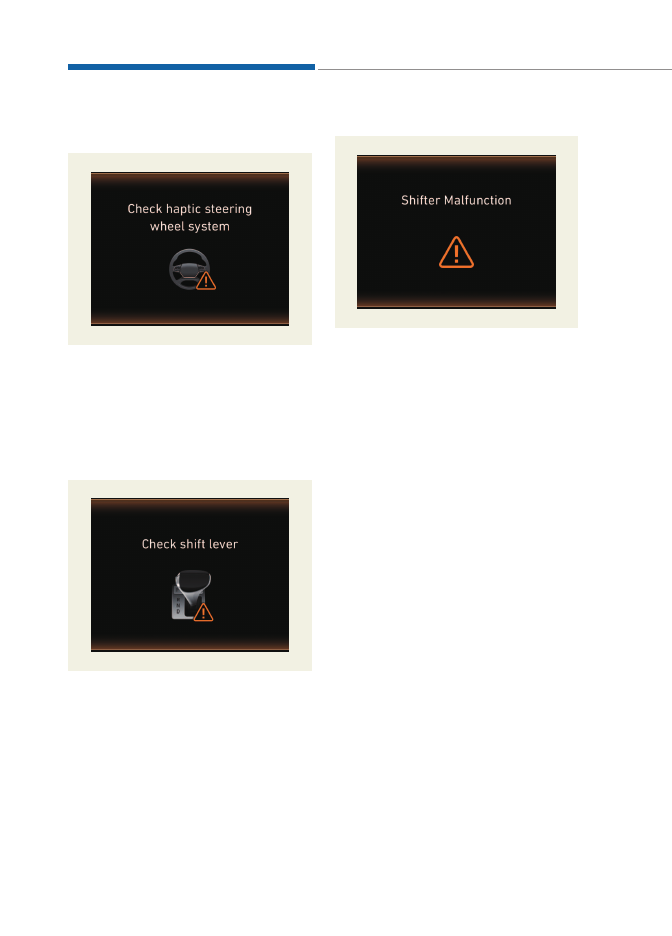

Check haptic steering wheel
system (if equipped)

This warning message is displayed if
there is a problem with the haptic
steering wheel system. We recom-
mend you to have the vehicle inspect-
ed by an authorized retailer of
Genesis Branded products.

Check shift lever

This warning message is displayed if
there is a problem with the shift lever.
We recommend you to have the vehi-
cle inspected by an authorized retail-
er of Genesis Branded products.

Shifter Malfunction

This warning message is displayed if
there is a problem with the automatic
transmission system. We recommend
you to have the vehicle inspected by
an authorized retailer of Genesis
Branded products.

3-70

Convenient features of your vehicle

OHI046135L

OHI046133L

OHI046134L

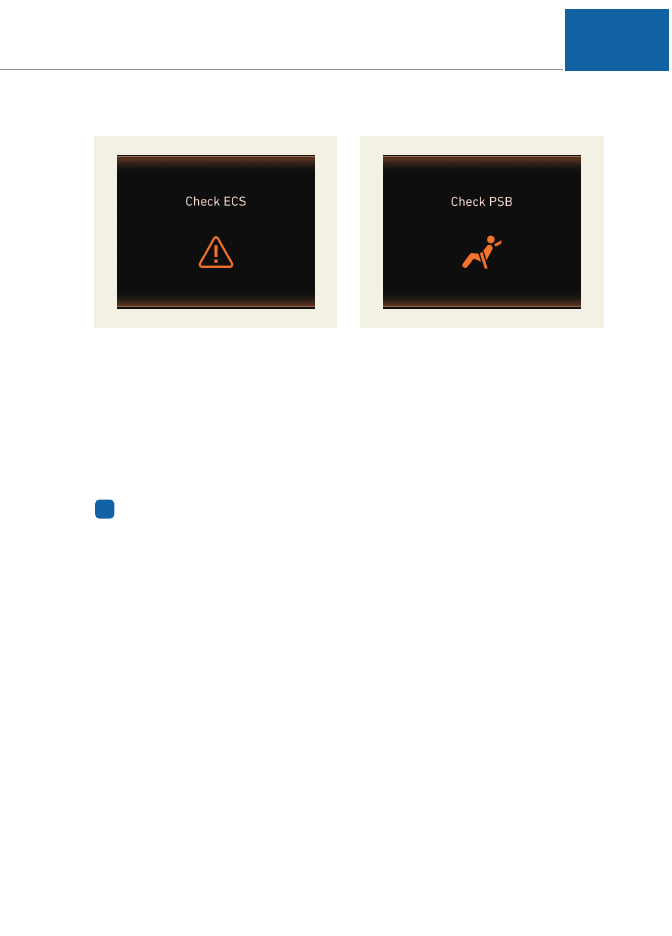

Check ECS (if equipped)

This warning message is displayed if
Electronic Control Suspension (ECS)
system is not working properly. We
recommend that the vehicle be
inspected by an authorized retailer of
Genesis Branded products.
For more information, refer to
"Electronic Control Suspension
(ECS)" in chapter 5.

Information

When there is a malfunction with the
Electronic Stability Control (ESC),
the Electronic Control  Suspension
(ECS) warning message may be dis-
played as well as the Electronic
Stability Control (ESC) indicator
light.

Check PSB

This warning message is displayed if
there is a problem with the Pre-active
Seat Belt (PSB) system. We recom-
mend that the vehicle be inspected
by an authorized retailer of Genesis
Branded products.
For more information, refer to
"Seat Belt" in chapter 2.

i

3-71

03

OHI046132L

OHI046144L
