CONTROLS

1

13

2

14

3

15

4

16

5

17

6

18

7

19

8

20

9

21

10

22

11

23

12

24

Instrument Cluster: Gasoline – Hand Gear Box

* If equipped

1- Safety Belt Warning Light*

2- Passenger Air Bag Deactivation

Warning Light

3- Air Bags Warning Light

4- Front Fog Lamp

5- Anti-Brake System Warning Light (ABS)

6- Rear Fog Lamp Warning Light

7- Left Direction Indicator

8- Kilometer Counter & Service Indicator

9- Right Direction Indicator

10- Engine Fault Warning Light

11- Main Beam Light

12- Hand Brake Warning Light-Low

Brake Fluid level Warning & EBD System

Warning Light.

13- Downward Beam Light

14- Battery Charge Warning Light

15- Engine Oil Level Warning Light

16- Coolant Fluid Temperature Indicator

17- Kilometer Counter Button (Total

distance recorder)

18- STOP Warning Light

19- Speedometer

20- Rev. Counter

21- Adjusting the illumination intensity of

the Instrument Cluster.

22- Fuel amount indicator

23- Low Fuel Warning Light

24- Immobilizer Light

55

3

CONTROLS

* If equipped

Warning Lights

If the engine is running, the warning lights

turns on in blinking or stationary mode,

it means that your vehicle parts do not

function properly.

Some warning lights get on along with

audio alarming simultaneously.

Do pay attention to these warnings and you

should contact to Iran Khodro authorized

dealers as soon as possible.

Central Warning Light (Stop)

The light is connected to the following warning
lights:
1- Engine Oil
2- Error in the battery
3- The engine water temperature
- Also, the light is connected to the Coolant
Temperature Indicator System.

When the engine is running, if the light

blinks, it’s necessary to stop.

Contact to the Iran Khodro authorized dealers.

Engine Oil Temperature and Pressure

Warning Light

The light is connected to the Stop Warning
Light.
It’s necessary to stop.

The warning indicates the following:
- Low Fluid pressure.
- The oil doesn’t reach to the top of lubricating
circuit.Please fill up the oil reservoir adequately.
- Oil High Temperature.
To reduce oil temperature, reduce the speed.
Contact to the Iran Khodro authorized dealers.

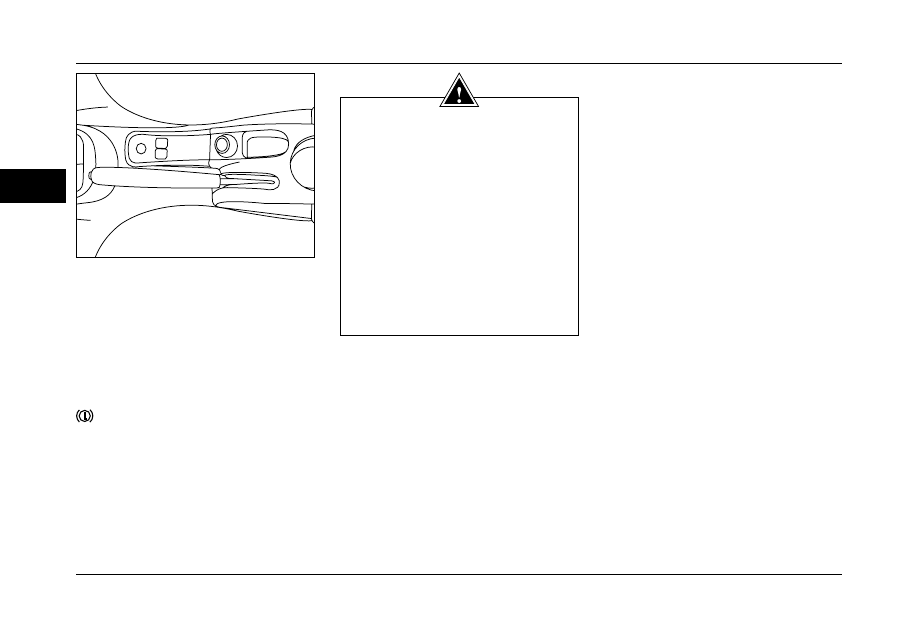

Hand Brake Warning Light and

emptiness of brake oil and fault in Brake

electric supply  system (EBD)

The light indicates one of the followings:
- The Hand Brake is active or not released
completely. The brake fluid is extremely reduced.
(If the hand brake is released and the light is still on)
- There is a fault in the Brake Electrical
Distribution System (EBD), if lighting the light
is along with lighting the ABS warning light.
It’s necessary to stop.

Contact to the Iran Khodro authorized dealers.

Anti-brake system Warning Light (ABS)

If the switch is ignited, this light stays on

for a few seconds.

If the light stays on continually, it means that
there is a fault in ABS System.
Anyway, the vehicle normal brake system
operates. If the light gets on along with audio
alarming and warning message on display
panel, indicates an unusual mode related to
ABS System. If so, contact to the Iran Khodro
authorized dealers.

Warning

- Accepted oil level with gauge should be
checked in smooth area after 10 minutes
the engine is off.
- The driver should not keep driving, when
the stop light gets on for any reason. In
this case ,if the driver keeps driving, he/
she will be responsible for any damages
to the vehicle.

56

3

CONTROLS

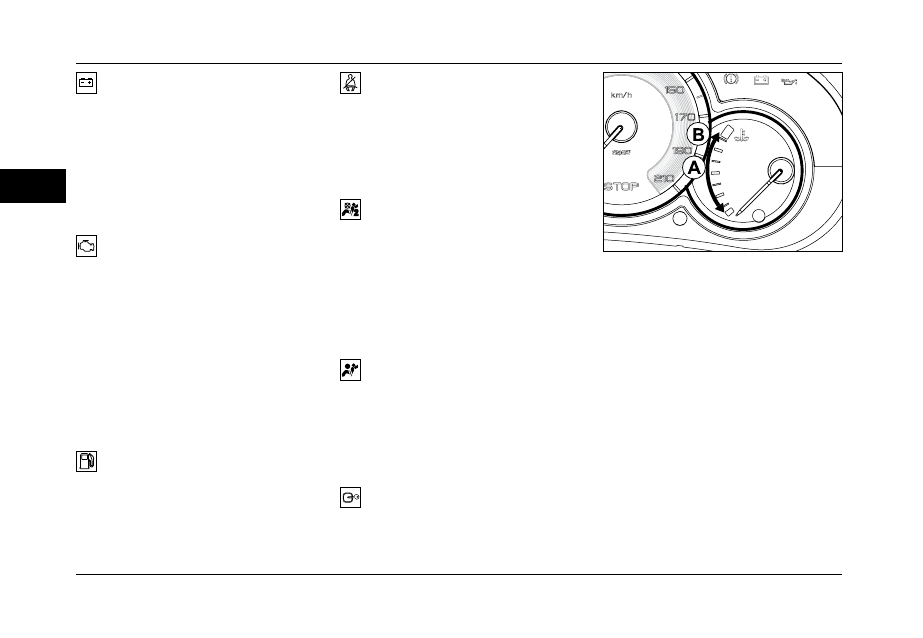

Battery Charge Warning Light

Indicates the following:

- A fault in charging circuit.

- Battery powers less or starts input.

- Generator belt is broke-up or loosened.

- Generator failure

- If so, contact to one of the Iran Khodro

authorized dealers.

Engine Diagnostic system Warning

Light

The light comes on after the engine is

ignited for a few seconds. In case this light

comes on during driving, it means that

there is a fault in the fuel ignition control

system or in the emission control system.

In gasoline engines, if the warning light blinks,

there is a risk the catalyzer to be damaged.

Contact to one of the Iran Khodro authorized

dealers.

Fuel Warning Light

If this light turns on for first time, it means that

there is gasoline for at least 50 kilometers

(The tank capacity is about 50 liter).

Safety Belt Warning Light*

After starting the ignition switch, the light

turns on, if the seat belt is not fastened.

When the vehicle speed exceeds 5 km/h,

lighting of the warning lamp gets on along

with audio alarming for 60 seconds.

Passenger Air Bag Deactivation

Warning Light

When this light turns on, it means that

passenger air bag is inactived. As long

as the passenger air bag is inactived,

this light remains on. In any case, if the

warning light blinks, you should contact to

one of the Iran Khodro authorized dealers.

Air Bag Warning Light

When engine is ignited, this light turns on for

a few seconds. At the time driving if the light

turns on together with an audio-warning or

a message on the display, it means that

there is a fault in the air bags system.

Immobilizer System Light

When the light blinks, it means that the

immobilizer system is actived.

Coolant High Temperature Warning Light

- The indicator in “A” position shows

improper temperature.

- The indicator in “B” position shows a

high coolant temperature.

In this case the Stop Warning Light blinks.

It’s necessary to stop.

Contact to the Iran Khodro authorized dealers.

* If equipped

57

3

CONTROLS

1

* If equipped

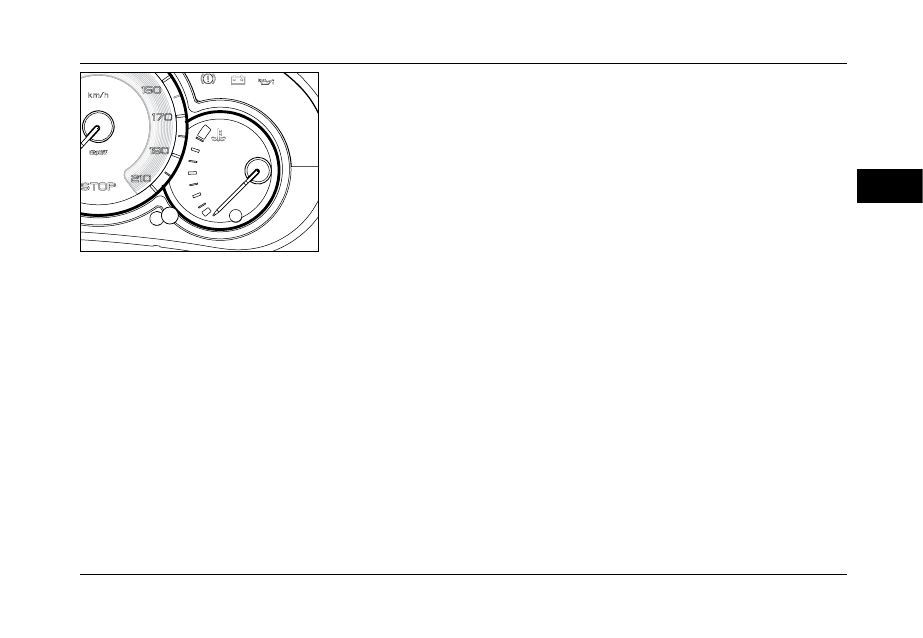

Setting the Service Indicator

The Iran Khodro authorized dealers set

this, after each service.

If you do the setting by yourself, follow

the followings to set the indicator:

- Off the switch.

- Press and hold button “1” .

- Turn on the switch.

*Kilometer Counter Indicator starts

countdown for 10 seconds.

- Hold the button “1” for 10 seconds. The

sign [=.] is displayed. Then turn off the

switch and turn on again.

58

3

CONTROLS

Front Instrument Panel Display

Starting the engine, two functions are

displayed.

- Service Indicator

- Kilometer Counter Indicator, which after

the engine is off, shows the driver’s side

door is open and locking/unlocking too

for 30 seconds.

The Vehicle Service Indicator

The indicator points the periodic service

time that is offered by manufacturer.

Function

When the ignition switch is on, the Wrench

Indicator which indicates periodic service

comes on for 5 seconds.

The Kilometer Counter shows the total

remained kilometer to next service

(Approximately).

Example: It remains 4800 kilometer to

next service.

After the ignition switch is on, the following

image is displayed for 5 seconds.

After 5 seconds, the indicator returns to

its normal position and displays the total

or daily distance traversed by the vehicle

and wrench indicator will be turned off.

It remains less than 1000km to next

service.

Example:It remains 900km to next

service.

- After the ignition switch is on, the wrench

indicator blinks for 5 seconds and then

the kilometer counter indicator returns

to the normal position ,wrench indicator

stays on.

Time of the vehicle service is terminated.

5 seconds after the ignition switch is on,

the wrench indicator and the service

termination kilometer blinks.

Example:  The following display shows

that time of service is terminated and the

vehicle has traversed  300 Km more than

what is allowed; and the vehicle should

be serviced as soon as possible.

Then, the indicator returns to its normal

position and shows the total or daily

distance traversed by the vehicle and

wrench indicator stays on.

59

3

CONTROLS

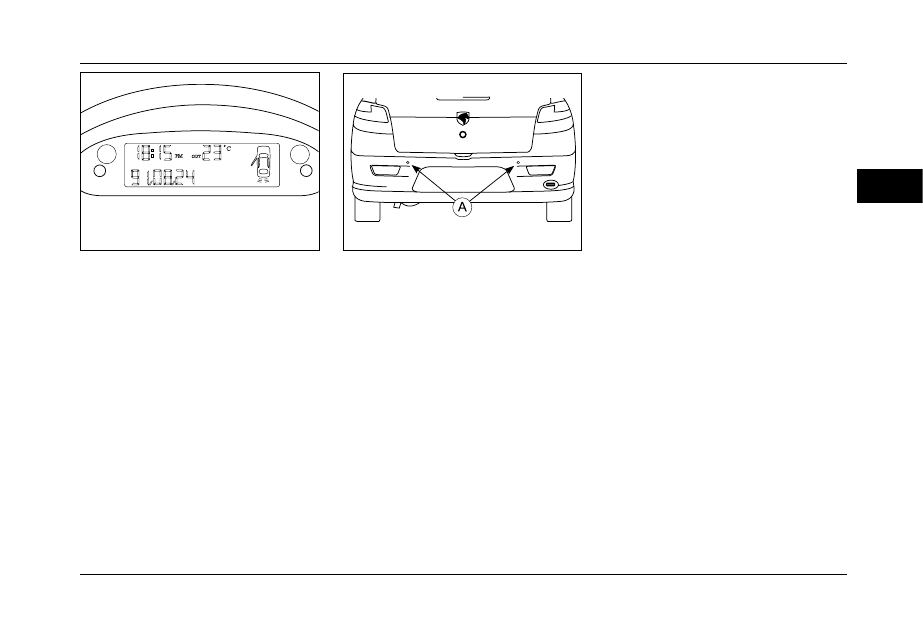

Display Panel

This page shows the following information:

- Clock: Since 12 midnight to 12 at noon

points to AM and from 12  at noon to 12

midnight points to PM. The default is 1.00 AM.

- Date: The year could be set from 00 to

99, the month from 01 to 12. And the day

could be set from 01 to approximately 31.

The date default display is 01/01/91.

- Outside Temperature: If the temperature

is between +3 till – 3˚C, the sign blinks.

- The doors position: The door indicator

on display panel is blinking while each

door is open.

(Example: In up image,  front left door is open).

Rear Alarm System

The system contains two intelligent

sensors (A) which is installed on the

vehicle bumper and is connected to the

interior electronic network of the vehicle

Adjusting the Parameters

Press the button (1) for 3 seconds to

enter adjusting menu.

The information that is blinking is

changeable. In this case, by pressing

on the button (1) each time, one of the

following information could be adjusted:

The clock – the minute – the year – the

month – the day

By pressing the button (2), the mentioned

information is changed. If press the

button and hold it, statistics will increase

swiftly and by reaching the last no returns

to prime number again. If there is no

operation on display panel for 8 seconds,

the panel comes to normal position and

the information is recorded in it.

1

2

60

3

CONTROLS

Rear Alarm System

The system contains two intelligent

sensors which is installed on the vehicle

bumper and is connected to the interior

electronic network of the vehicle

Visual /audible rear parking assistance

operation

By this system, the driver will be aware

of the vehicle rear obstacles in two ways:

Visual(via instrument panel)  and audible

(via the horn sound).

When the ignition switch is on and the

gear is in reverse position, the system

is activated to inform the driver of the

obstacle by half second alarm and lighting

the rear segments on the display.

While there is no obstacle within 150 cm

of the rear bumper, the display segments

as per the above image is on but it’s not

heard any sound signal.

In case of obstacle within the nearer 150

cm of the rear bumper (left/right), the

segment is off and sound signal is heard.

The nearer obstacle (within 50 cm)

causes that the system sensitivity will

increase swiftly the sound signal speed

up and more segments get off.

For example, the following image shows

an obstacle within 100 to 150 cm of the

rear bumper (right side).

The display segments blink and prolong

sound signal is heard within the obstacle

less than 50 cm.

Error Alarm for the Sensor Cut off

Any of sensor  cut off is differentiated by  the

rear alarm intelligent system and informs

the driver by visual/audible message.

Right side Sensor cut off

Rapid single buzzer (3 times) and right

side segments of display starts  blinking.



Left side sensor or  both sensors cut off

Two rapid buzzers (3 times) and both

sides and left  segments of display starts

blinking.

Warning

This system is meant to help the driver to
distinguish the objects within 150cm with
speed of less than 5km/h (from behind
the vehicle during running with reverse
gear). It also has limitations regarding
estimation of detectable distance and
the obstructions, therefore, in cases of
having undetectable obstruction, driver’s
precaution is necessary.
- This system uses the sound signals to
help facilitation of parking and obtaining
the distance to the obstruction, during
movement with reverse gear.
- Therefore, existence of this system,
should never cause sudden movement and
careless driving back side. (Reverse gear).
- The driver should always take precautions
about sudden cases that might happen
during usage of reverse gear. Mobile
obstructions (Kids,trolleys bicycles,
pets,...) or short and very tin obstructions
(Road blocks, tin guard rails,...)

61

3

CONTROLS

Prioritization of the audio warnings

Type of the

warning chime

Function

Priority

Warning chime

Igniting

Continuous

warning chime

When the parking lamp and driver or front passenger’s door is

open

1

Warning chime lights

Vehicle off

3 seconds

When speed is more than 10 Km/h and one of the six doors of

the vehicle is open

1

Warning chime door open

II & III

3 seconds

Speed more than 120Km/h

2

Warning chime high speed

3 seconds

When low fuel warning light is on, the warning chime is also heard

3

Warning chime low fuel

3 seconds

When engine high temperature light is displayed, the warning

chime is also heard

4

Warning chime

Together with

 Flasher

When flasher is activated, warning chime is also heard

5

high temperature of engine

0 & I & II

& III

Together with

indicator

When one of the indicator is activated, warning chime is heard.

6

I & II & III

Failure of traffic

lights

When one of the traffic lights fail, and one of them are

activated,

the display traffic lights on the front of instrument panel

with twice the frequency becomes active.

7

I & II & III

Audio warning chimes

62

3

Speedometer

If you press button (1), the total distance

and distance traversed  per day are

displayed. To set the kilometer counter

to zero, push the button no. (1) when

the kilometer counter is displayed until it

shows zero.

Adjusting the illumination intensity of

the instrument cluster

Push the button (when the lights are

on) to adjust illumination intensity of the

instrument cluster. Release the button as

soon as the minimum (or maximum) setting

is obtained and then push the button to

increase (or decrease) brightness. As soon

as the lighting is of the required brightness,

release the button.

Flasher or Blinker light

Press the flasher button. All the direction

indicators start blinking. Even, when the

engine is off, the flasher stays on.

Automatic starting of the flashers

At the time of a sudden braking, flashers

get on automatically; this will continue

for about 5 seconds. Upon releasing the

brake or deceleration, scintillator are off.

again, the lights will get off automatically.

By  pressing  on  the  button,  the  flashers

turn off.

CONTROLS

Warning

In case the vehicle speed is reduced

at once (hard brake), flasher comes

on automatically is  activated for at

least 5 seconds. This is for warning

the severe reduction of the speed.

63

3

Warning

Before driving in night:

Ensure of proper function of electric equipments and adjust the lights(in case of overloading

the vehicle).

In general, take care of the lights, not to be covered by dirt, mud, snow or any other objects.

Right and left turn signals

Position 1, 2:  push the lights lever down

(position 1) when moving to the left.

push the lights lever up (position 2) when

moving to the right.

(Green turn signal light blinks on the

instrument cluster as to the direction of

the turning)

Horn

push the button on the end part of the

light lever.

Main beam and low beam headlamp

Pull the lever toward steering wheel

completely to change to main beam (in

this position the main beam blue indicator

comes on).

To sign with head lamp, pull the lever

toward the steering wheel midway and

release it.

Lights key

Position 1: all lights are OFF

Position 2: parking lamp, rear lights and

instrument cluster ON

Position 3: head lamp on

Warning chime:

It warns the driver that the head lamps

are ON. It comes on when the driver  or

passenger door is open and engine is

ignited OFF.

INDICATOR LEVER

64

3

INDICATOR LEVER

Cuation

Using of front or rear fog lamps in

normal or rainy weather and in day

or night is prohibited. Because they

‘re too dazzling.

Use them only, when they are needed.

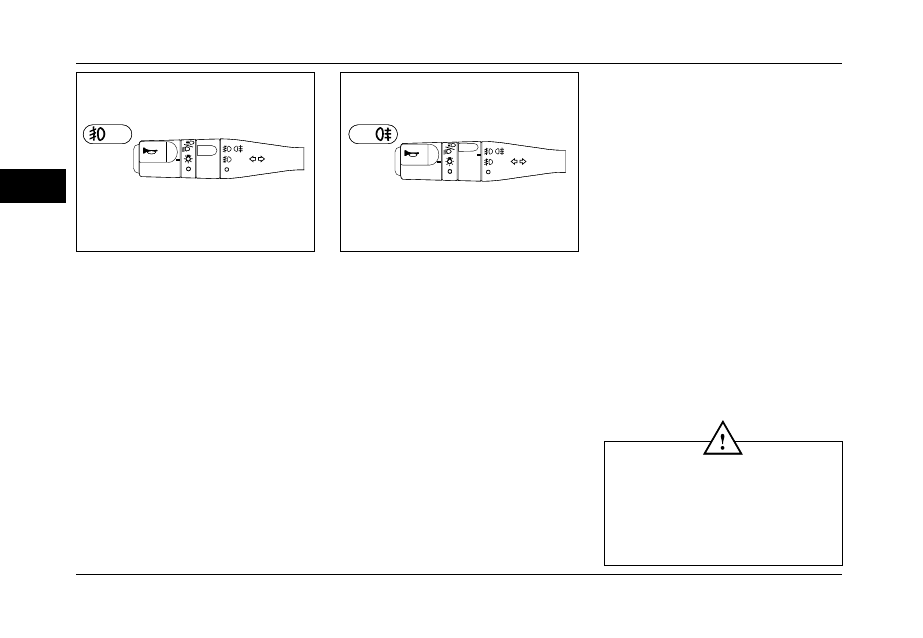

Front fog lamps

Turn the middle part of the light lever one

stage upward to turn the front fog lamps.

When the fog lamps are ON, a green

indicator comes on the instrument cluster.

These lights come on when the small

lights are ON.

Rear fog lamp

 Turn the middle part of the light lever two

stages upward. When the fog lamps is

ON, a yellow indicator on the instrument

cluster comes on.

This light comes on in following situations:

- Small Lights are ON.

- Side lamps and front fog lamp (if

available) are ON.

Please use the fog lamp only when your

visibility range is low, otherwise it cause

nuisance to other road users in ordinary

conditions.

Lighting system “ Leaving of Vehicle “

When you decide to leave your vehicle and

the surrounding lighting is very less; you

can keep the area alight for 30 seconds, by

the above capability (i.e. Lighting system)

by turning on the front head lamps. For this

purpose do the followings:

- Keep the switch in stop position (or

remove the key switch from its place).

- Turn off the lights

- Then pull the indicator lever once

towards yourself.

- Get out of the vehicle and lock the vehicle.

- The front head lamps will get on and

again will get off automatically after 30

seconds.

65

3

DIRECTION INDICATOR LEVER

Warning

Before starting driving at night:

Ensure the correct function of the

electrical equipment and adjust the

vehicle lights (in case of load more

than the normal). In general the

lamps should not be covered (by

dirty, mud, snow or any object).

Cuation

Switch position change (0, 1, 2 and

vice versa) should be done with a

short pause.

Head lamp height adjustment

The height of the headlamps should be

adjusted in relation to the load in the vehicle.

It is recommended to adjust the head

lamp in relation to the load in the vehicle.

0- 1 or 2 people in front seats

1- 5 people

2- 5 people + max. Authorized load.

The first adjustment is in zero position .

66

3

Warning

Ensure the wiper blades are not frosted (otherwise the wiper engine gets hot)

Check the blades and replace them when needed (approx. once a year)

Wash the windscreen regularly. If before stopping the windshield wiper (0 mode) to turn off the motor, wiper blades return to zero position.

If you switch the ignition OFF (position 0) before switching the wipers, the wiper blades stop at any position.

When you ignite ON, take the wiper at position 0, then the blades return to the initial position.

Ensure the wiper blades are in position 0 (stop), when you open the engine compartment (risk of injury)

WIPER AND SCREEN WASHER

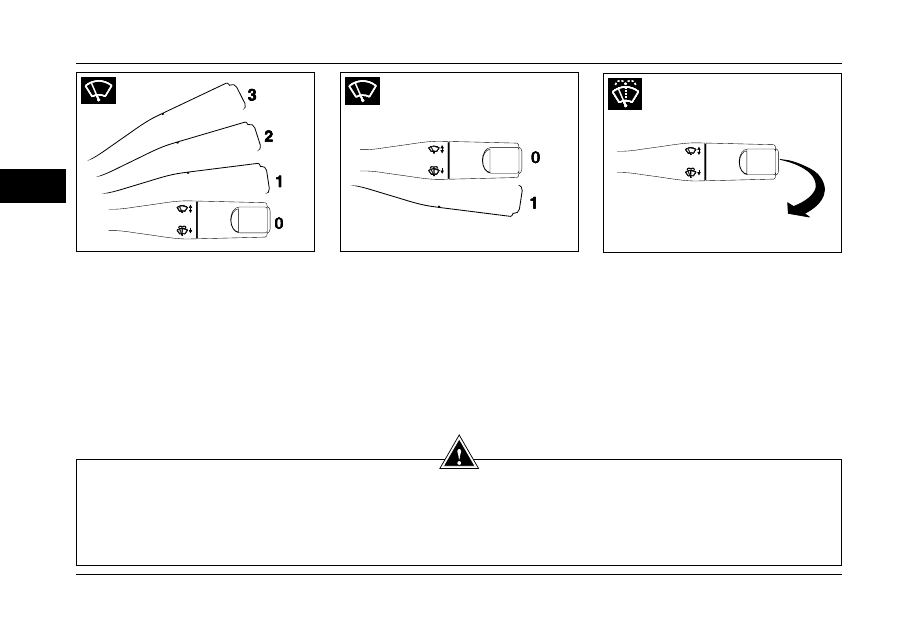

Wiper

Wiper and screen washer control is by

the lever on the right side of the steering

wheel and only when the switch is ON.

0- OFF

1- Intermittent ( The interval between two

movements of wipers depends on speed

of the vehicle)

2- Slow

3- Fast

Single wiper

Push the lever downward and release it

to have single wiper.

If you keep the lever down, the wiper

functions continuously.

Windscreen washing

Soon after pulling the lever, spray of the

water gets started ,then the wipers will

start moving after 0.7 second . Spray

of water continues as long as you have

the lever pulled towards yourself. But

soon after releasing the lever , wipers

stop moving after 3 times of movements.

Then the fourth movement of the wiper

takes place after 3 seconds cessation to

complete cleaning of the glass.

67

3

BRAKES

Warning

- ABS braking system functions in

ordinary situation by any move of

the pedal. In emergency situations,

press the pedal hard and do not take

your foot out of the pedal.

- This system shall be as persuasion for

sudden acceleration and very fast driving.

That could not be a replacement for

caution and responsibility of the driver.

This system is an auxiliary system

which controls the situation based

on the conditions.

- In sliding surfaces, the dragged

distance of the vehicle will be increased.

Therefore after taking off the vehicle

from the puddles or after washing of

the vehicle, ensure the proper function

of brakes, by using them frequently.

Because all sets of disc and lining pads

are wet, in this situation.

Anti-Lock Brake System (ABS) and

electronic brake force distribution

system (EBD)

ABS will help you avoid skidding

by electronically controlling braking

pressure. It will also help you maintain

steering control when braking on slippery

surfaces or when braking hard.

During activation of the ABS system, such

as routine brake, brake force increases

with foot increasing pressure.

Note

When replacing tires or wheels, use

only the size and type approved by the

manufacturer company.

The ABS works automatically.

 If this warning lights comes on it

means there is a problem in the ABS

system which may cause lack of control

when braking

This  indicator  shows  the  fault

in the Electronic brake force

distribution which may cause lack of

control when braking.

You must stop

Refer to the Iran Khodro authorized

dealer for two above cases.

Accessory system during emergency

braking

This system help to achieve proper brake

force very fast in emergency situations and

reduce stoppage distance. This system

functions when the pedal resistance has

decreased and effect of the braking has

increased. Flashers or blinking hazard

lights come on automatically depending

on the acceleration. They may be

stopped manually by driver.

68

3

BRAKES

Warning

-When you stop your vehicle on a

steep place, turn the wheels toward

pavement and pull handbrake.

-When the ignition is off, brake

booster does not function and you

should press pedal more forcefully

when braking.

-When the engine is OFF, the

hydraulic steering wheel and brake

do not function

-Avoid sudden acceleration and braking.

Handbrake

Pull the handbrake when you stop and

park the vehicle.

Releasing handbrake

Take its handle and press the button on

it, then press the handbrake downward.

 If this light comes on it means the

handbrake is not released yet or is not

released properly.

69

VEHICLE MAINTENANCE

4

GASOLINE TANK ...................................................... 70

ENGINE COMPARTMENT DOOR .............................. 71

ENGINE COMPARTMENT .......................................... 71

FLUID LEVEL .............................................................. 72

INSTALLATION OF THE RADIO ................................. 74

PROTECTION OF THE VEHICLE BODY ................. 75

BATTERY ...................................................................... 76

FILTERS ...................................................................... 76

BRAKING PAD ........................................................... 76

MANUAL GEARBOX ................................................... 76

STOP FUELING TO ENGINE ...................................... 76
