Iran Khodro Runna. Service Manual - part 2

21

1

RUNNA AT A GLANCE

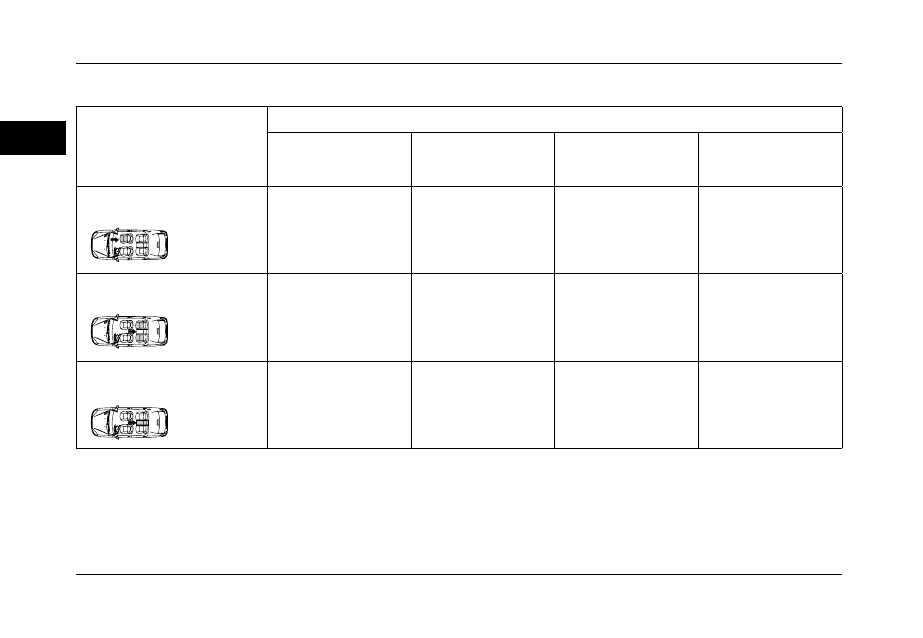

Hearing/air condition

I require

--------

Manual A/C

Temperature

Air recirculation/

 inlet of exterior air

Air flow

Air distribution

----------

Heat

ON

Cold

ON

Demisting /

deicing

Recommended interior settings

23

BEFORE DRIVING

2

DOORS ..........................................................................24

ANTI  THEFT SYSTEM .............................................28-30

ANTI-THEFT SECURITY SYSTEM ..........................28-30

SEATS ............................................................................31

SEAT BELTS .................................................................33

CHILD SAFETY .............................................................35

AIR BAGS ...................................................................... 40

STEERING WHEEL ......................................................42

MIRRORS ......................................................................43

WINDOW CONTROLS..................................................44

HEATING AND AIR CONDITION..................................45

INTERIOR EQUIPMENT................................................49

24

2

DOORS

Unlocking doors from inside of the vehicle

Vehicle’s doors

Locking/unlocking by key from outside

of the vehicle (central locking)

Use the key for locking/unlocking the

central lock system. From driver’s and or

front passenger door, turn the key to the

left, all doors and luggage compartment are

locked (locking) and to the right (unlocking).

Unlocking from inside of the vehicle

Use the door handle to open the door.

“Door open” warning

When the vehicle is running (speed

more than 10 km/h) and dome light’s

key is in ON position, as soon as doors

are open, then the dome light starts

blinking.

Note

If the vehicle doors are locked through

remote ;control you must deactivate

the system,if you require to unlock the

doors or boot.

Otherwise security system will be

activated and the flashers get on if you

open the doors through mechanical

switch key.

25

2

Warning

In case of being a child in rear seat,

activate the children safety lock.

DOORS

Locking/unlocking form inside of the

vehicle

Doors are locked and unlocked by

pushing the switch A. indicator light

comes when locking. This indicator blinks

when doors are locked by remote control.

To lock /unlock the boot, please refer to

the relevant section.

Automatic central locking of the doors

When driving (speed more than 10km/h)

doors are locked automatically. When

speed is more than 10Km/h, to unlock

doors temporarily, just push switch A.

You can activate/deactivate this function.

Activation

When ignition switch is on, push switch

A for 5 second, activation of the function

is displayed by three times blinking of

the light on the key. and hearing of  the

buzzer sound.

Deactivation

Push switch A for 5 seconds extendedly

Note:

If either of the doors is open, you can not

lock the doors from inside of the vehicle

and automatic central locking does not

work. If the luggage compartment door is

left open, this will not prevent locking of the

vehicle’s doors by automatic central lock.



Child’s safety lock

The child’s safety lock prevent opening

of the door from inside. Turn the locking

special pin (1) one fourth clockwise using

ignition key.

26

2

Locking / unlocking of the boot.

Key for opening of boot :

To open the boot,  press the opener

button of the lock  for 1.5 seconds  (1).

Without central lock

Turn the key (from A to C position) to lock

the luggage compartment.

Turn the key (from A to B position) to

unlock it.

Luggage compartment light comes on/

goes off while its door is open/close

While vehicle is in motion and the

luggage compartment door is not closed

properly, dome’s light starts blinking, only

if its switch is in this position.

Volume of the luggage compartment

is 400 liter.

DOORS

27

2

DOORS

Warning

Avoid keeping the battery or remote

controller in infants’ access ,because

swallowing of the battery can cause

death. In case of swallowing the battery,

refer to health care centers immediately.

Warning

Never leave used batteries in the

environment. Take them to the approved

collection points.

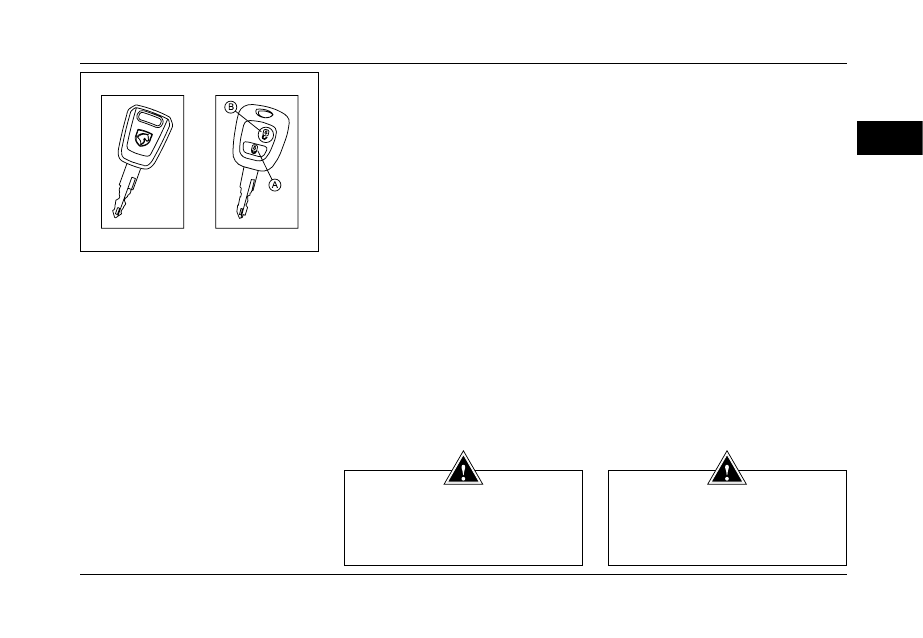

Keys

The keys allow you to independently operate

the locks on the driver’s and front passenger

door and the trunk lid, fuel cap cover, child’s

safety lock, steering wheel and to switch on

the ignition.

Locking and unlocking by using central lock

You can lock all doors by using these keys and

luggage compartment door by the driver’s door

lock. But by using this you can unlock all doors

except luggage compartment door. If one of

the doors is open, central locking does not

work. Central lock unlocks only the vehicle side

doors ( not the luggage compartment door).

Remote control carries out the same function

as the key but from a distance.

Locking:

All vehicles’ doors are locked by pressing

button  “A”.  This  function  is  confirmed  by

lighting of the turn signal for about 2 seconds.

Unlocking:

All vehicles’ doors are unlocked by pressing

button “B”. This function is confirmed by twice

flashing of the turn signal twice.

If vehicle doors are unlocked but none of them

are opened for 12 seconds, all of them are

locked again automatically.

Avoid frequent pressing of the remote control

switch out of range of your vehicle, otherwise,

it may not work properly and you will need

to reprogram it to be activated. (Refer to

relevant chapter).

Parking the vehicle

Press button “A” to lock the vehicle’s doors.

If the turn signals light on and off for once, it

means that all doors are locked and anti-theft

protection system has been activated. But if

the turn signals light on and off rapidly four

times, it means one of the vehicle’s door is

open and the anti-theft protection system has

not been activated. So close the door and

press button “A” again.

Changing the remote control battery

The approved battery is CR2032. For changing

the battery, first remove the screw and unclip

the casing using a coin in the notch.

If after changing the battery, the remote control

switch does not function properly, reprogram it.

Do not discard the battery. They contain metals

which are harmful for environment. Take them

to Iran Khodro authorized dealers or other

approved collection places.

28

2

ANTI THEFT SECURITY SYSTEM

* If equipped

1- The shock sensor has not been installed.

For installation, refer to Iran Khodro authorized

dealers. After installation, activate it by diag-

nostic device.

Anti-Theft*

Anti-theft activation

Theft deterrent alarm will be armed after

you lock the doors using the remote

controller while the ignition key is in initial

mode and all vehicles’ doors (including

engine hood and trunk lid) are closed.

When theft deterrent alarm is armed, the

lights come on and go out once and turn

signal lights blinks.

Central lock key light on the instrument

panel start blinking when the theft

deterrent alarm is armed.

When the theft deterrent alarm is armed,

occurrence of any of the followings will

cause the alarm to be triggered (turn

signal lights and alarm come on):

- Opening of any doors (including engine

hood and trunk lid)



- Unlocking of front doors by key.

- Changing the position of the starter

switch.

- Vehicle stroke.

Alarm will continue for 30 seconds. Then

the alarm is stopped for 5 seconds. After

that, flasher lights turn signal and alarm

go out and otherwise, the alarm will

continue.

This cycle goes on with 10 times, then

the turn signal lights and alarm goes out,

but the theft deterrent alarm stays armed.

In alarming position, by pressing on/off

button on the remote controller, if the case

caused alarming position is eliminated,

the alarm is disconnected and the theft

deterrent will be activated. In case of

pressing the key, they are locked.

Deactivation of anti-theft

Press the unlock key on the remote

control, doors will be opened and the

theft deterrent alarm will be deactivated.

When the theft deterrent alarm is

deactivated, turn signal lights blink twice.

29

2

Warning

Copying the key is not enough for

igniting the vehicle. If you need more

keys, vehicle owner should request

Iran Khodro authorized dealers.

Warning

- When purchasing a second - hand

vehicle, be careful to receive the vehicle

identity card. It is recommended to

have the key codes memorized by the

authorized dealers to ensure that keys

in your possession are the only ones

which can start the vehicle.

- Do not make any modification to the

electronic engine immobilizer system

(starting the engine).

ANTI THEFT SECURITY SYSTEM

Bar-Coded card

You receive together with key one set of the

spare key and a coded card. The card has

identification code which is needed by the

Iran Khodro authorized dealer when working

on the electronic immobilizer system. The

code is covered by a label which should be

cleaned only when needed.

Keep the vehicle identity card in a safe

place and never leave it in the vehicle.

Take the card with yourselves during travel

together with other document of the vehicle.

If the vehicle is equipped with immobilizer,

the vehicle engine ignites on only by using

two keys delivered together with the vehicle

to the owner.

30

2

ANTI THEFT SECURITY SYSTEM

Warning

- Anti-theft system, which your vehicle is equipped with, is one of the safest type of the protection systems which increases the

security of your vehicle, without any special work. Of course this should not cause carelessness of the vehicle owner about his

vehicle.

- Anti-start, electronic immobilizer (anti-theft system)

This system controls the engine’s electronic system, just a few seconds after switching the engine off. So prevents igniting the

engine by anyone who has not main key.

- If there is any fault in the system function

If the engine fault indicator blinks when you start the vehicle,  avoid re-starting. In this case contact with one the Iran Khodro

authorized dealers, as soon as possible.

- Note down the number of each key carefully. The number is written on the label attached to the key. If the key is lost, Iran Khodro

authorized dealer can present you a new key.



High frequency remote control system is a very sensitive system; do not operate it while it is in your pocket as there is a possibility

of unlocking your vehicle. Driving with the doors locked, may make access to the passenger compartment by the emergency

services more difficult. When the children are left in the vehicle, take the ignition key out of the steering lock when you leave your

vehicle even for a few moments.  Avoid touching remote control when they are in your pocket, otherwise it may not work properly

and you will need to reprogram it to activate it. When purchasing a second- hand vehicle, be careful to receive the vehicle identity

card. It is recommended to have the key codes memorized by the authorized dealers to ensure that keys in your possession are

the only ones which can start the vehicle.

Do not make any modification to the electronic engine immobilizer system.

31

2

SEATS

32

2

Warning

- take care that front passengers

should never travel with the back

seat tilted down. Complete safety

capability of the seat belt is only

when the seat back angle in relation

to the vertical line to be 25 degrees.

- The seat belt should be positioned

on the shoulder; otherwise it will not

have optimum performance. Ensure

the seat backs are in correct and

proper position.

Warning

- Never drive with the head restraint

removed. They should be in place

and correctly adjusted.

- Never adjust the seat when driving.

- take care the foot of the rear

passenger not to be under the seat

when lowering the seat.

SEATS

Front seats

1- Forwards-backwards adjustment

(Adjusting forwards-backwards of the seat)

Pull up the adjusting lever and push the

seat forward and backward (slide it)

2- Head restraint height adjustment

To raise the head restraint, pull it upwards.

The adjustment is correct when the top of

the head restraint is aligned with the top

of the head of the occupant of the seat.

Head restraint is fitted with metal frame

with notches, which prevent the head

restraint dropping down (this is a safety

device in case of impact).

To lower the head restraint, push

simultaneously the button on the left hand

guide at the base of the head restraint frame

and head restraint downwards. To remove

the head restraint, push the lug. Head

restraint angle is adjustable.

3-Driver’s seat height adjustment

Pull the adjusting handle upwards. Remove

your weight from the seat to raise it, or

press on the seat to lower.

4- Seat back angle adjustment

Push the adjusting handle back.

33

2

Warning

Prevent entrance of the objects,

especially the adhesive ones, into the

buckle otherwise it will not function

properly.

Warning

In order to reduce personal and safety

injuries of the driver and the front

passenger, their head restraints height

and heads position toward it should

be adjusted as the above figures.

SEAT BELTS

Seat belt

- Seat belt height adjustment

To lower: pull the controls towards you

and slide it downwards.

- To raise: slide the lever upwards.

Fastening the seat belt

Pull the strap, and then insert the belt

tongue into buckle.

Front seat belt with pre-tensioner and

force limiter

Safety in the event of the front impact has

been improved by introduction of the seat

belt with pre-tensioner and force limiter for

front seats. Depending on the seriousness

of the impact, pre-tensioner system

instantly fastens the seat belt and pulls

them against the bodies of the occupants.

The pre-tensioner seat belts are active

when ignition is on.

Force limiters decrease the pressure of

the seat belt on the body of the occupants.

Rear seat belts

The rear seats are fitted with three seat

belts and three steel reels.

34

2

SEAT BELTS

Warning

Wherever you are seated in the vehicle always fasten your seat belt even for short journeys.

Do not relocate the belt buckles, since the functions of the buckles are not exactly the same.

If the seat is fitted with arms, the lower part of strap passing over the pelvis should pass under the seat arm.

Ensure that the seat belt is rolled up correctly before and after each use

In order to be effective, the seat belt:

- Must be tightened as close to the body as possible.

- Must restrain one person of the adult size only.

- Must not bear any trace of cuts or fraying.

- Must not be twisted.

- Must not be modified or transformed.

Clean your seat belt straps with clean soapy water or special cloth detergents.

After folding or moving the rear bench seat, ensure that the seat belts are positioned and rolled up correctly.

Recommendations for children

Use a suitable child seat if the passenger is less than 12 years old or shorter than one meter fifty.

- Do not use the guide-strap when placing the child seat in the vehicle.

Depending of the nature and seriousness of the impact, the pre-tensioning device may trigger before and independently

of the air bags.

In all cases the air bag warning light comes on.

Following an impact, have the seat belts and air bag system checked, and if necessary replaced by one the authorized dealers.

35

2

CHILDREN PROTECTION

General points relating to the child seats

One of Iran Khodro’s main criteria when designing
your vehicle is the safety of your children.
For maximum safety please follow these
precautions:
- From 1992 onward and in accordance to

the Directive 2000/3, all children under 12

years must travel in approved child seats

suited to their weight on seats with a seat

belt or ISOFIX straps.

- Statistically, the safest seats in your

vehicle for transportation of the children

are the rear seat.

A child under 9 months old must travel

in “rearwards facing” seat both in front

and rear. Iran Khodro recommends that

children should travel in the rear seats of

your vehicle:

- “Rearward-facing” up to  the age of 2,

- “Forward-facing” over the age 2

The child seat is attached to the seat belt

in three points.

Rearward-facing- When a rearward-facing
child seat is installed on the front passenger
seat, it is essential that the passenger air bag
to be disarmed.
Otherwise

the child would risk being

seriously injured or killed if the airbag

were to inflate.



When a “forward-facing” child seat is installed
on the front passenger seat, adjust the vehicle
seat to the intermediate longitudinal position
with the seat back upright and leave the
passenger air bag armed.

36

2

Location of the child seats secured using the seat belt

Weight of the child/ indicative age

Seat

22 to 36 kgs

(group 3)

6 to 10 years old

15-25 kgs

(group 2)

3 to 6 years old

9-18 kgs

(group 1)

 1 to 3 years approx.

Below 13 kgs

(groups 0 (b) and 0+)

Up to approx. 1 year old

U

U

U

U

Front seat of fixed passenger (C)

U

U

U

U

Side rear seat

UF

UF

UF

X

Rear center  seat (d) seat belts
with three points attachment

Above table, in accordance with the European legalization (Directive 2000/3) indicates the child seat installation capability secured with

seat belt and approved for general application according to the child weight and its location in the vehicle.

CHILDREN PROTECTION

37

2

CHILDREN PROTECTION

(a) Universal child seat. Child seat which

can be installed in all vehicles using seat

belt.

(b) Group 0: from birth to 10 kgs

(c) Consult the current legalization in

your country before installing your child

on this seat.

(d) Child seat with (LI) brand “BRITAX

Body Sure” should not be installed on the

rear center seat

(U)  seat for installation of a child seat

secured using seat belt and universally

approved and is suitable for  “rear-facing”

and/or “forwards facing” child seats

(Uf) seat suitable for installation of a

child seat secured using seat belt which

universally approved, and is only for

“forwards facing” child seats.

(X) Seat which is not suitable for

installation of a child seat.

Warning

- No object should be on the floor of

the vehicle (driver side); otherwise it

may slide under the pedal during a

hard braking.

- Children should not sit on the lap

of the vehicle passengers. When the

child is sitting on your lap, there is the

risk of the serious injuries. Never use

a seat belt for fastening two people

simultaneously.
