Iran Khodro Runna. Service Manual - part 1

5

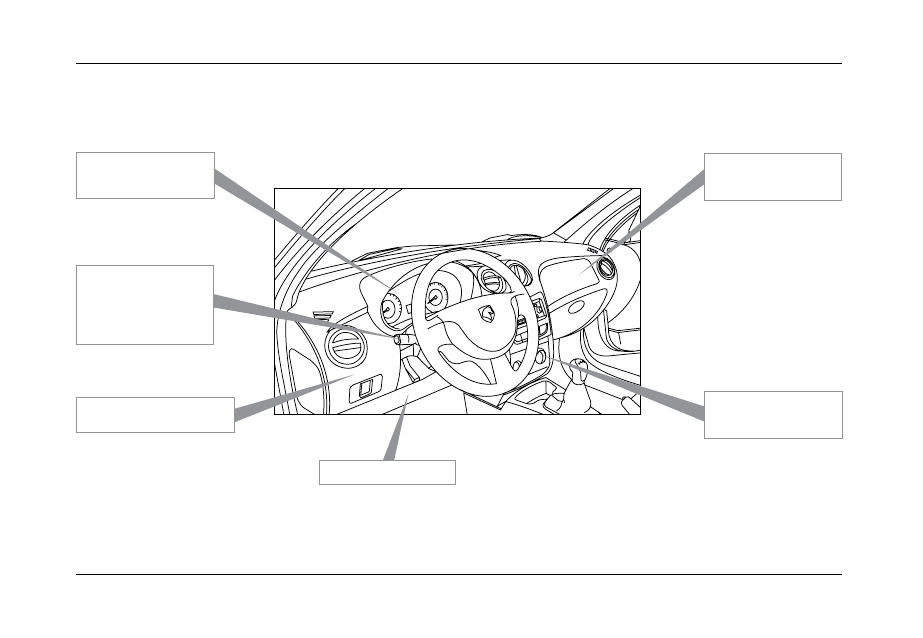

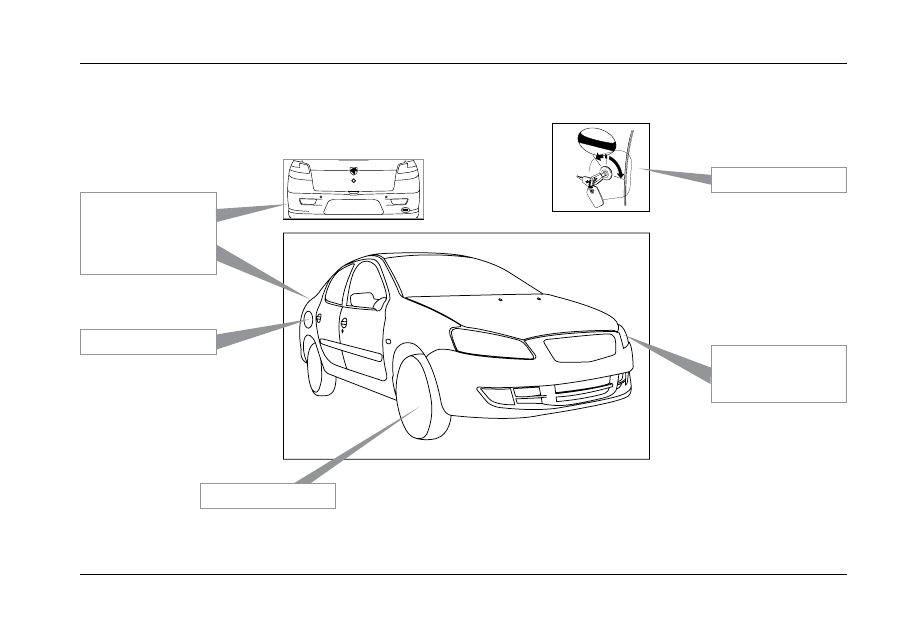

PICTORIAL LIST

Rear lamps .................... 89

Rear fog lamp ................. 64

Rear Alarm System ......... 60

Opening luggage

compartment door ......... 26

Towing vehicle ............... 92

Front lamps .................... 87

Front fog lamps ............. 64

Blinker lamp beside mud

fender ............................ 89

Refueling ....................... 70

Changing tires ............... 80

Switch, start, central lock .. 12,27

6

PICTORIAL LIST

Instrument cluster and

indicators ......................... 54

Warning lights ................. 55

 Lights control lever ......... 16

Steering wheel height

adjusting ......................... 42

Opening engine compartment

door ................................ 70

Horn ............................... 49

Inlet port ........................ 48

Head Lamp Height Adjudtment.. 65

Fuses ............................. 84

Opening luggage

compartment door .......... 19

Central lock ................... 27

Front passenger air bag ... 40

Glove box ...................... 50

Inlet port ....................... 48

7

PICTORIAL LIST

Power outside mirror ..... 43

Opening of door

from inside .................... 24

Adjusting seats ............. 32

Ash tray ........................ 51

Adjusting power mirrors ....43

Handbrake ...................... 68

Lighter ............................. 50

Opening luggage

compartment door .......... 19

Central lock .................... 27

Air condition system ........ 48

Air circulation system ...... 48

Demisiting ........................ 47

Inlet ports ..................... 48

Instrument Panel .............54

Screen wiper .................. 66

Starting vehicle .............. 14

8

PICTORIAL LIST

Vehicle technical

information .....................92

Vehicle identifications .... 93

Windscreen washer fluid ... 73

Replacing lamps ........... 88

Hydraulic steering wheel ... 73

Opening engine

compartment ................. 70

Oil and fluids level ....... 72

Fuse box ..................... 84

Battery ........................... 76

Checking air and

oil filters ....................... 72

9

YOUR VEHICLE AT A GLANCE

1

VEHICLE PARTS .................................................10-11

KEYS .....................................................................12 , 27

STEERING WHEEL’S LOCK .....................................14

AIR BAGS...................................................................14

POWER WINDOW .....................................................15

POWER MIRRORS ....................................................15

CONTROL LEVER .....................................................16

SEATS .........................................................................17

STEERING WHEEL ADJUSTMENT ...........................18

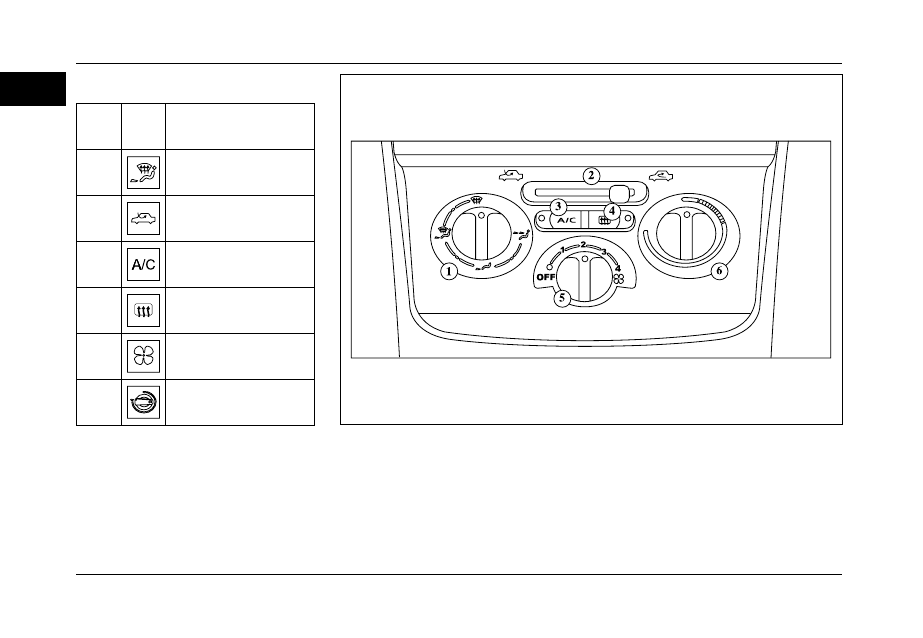

HEATING AND AIR CONDITION .............................20

TIPS ABOUT VEHICLE INTERIOR SETTINGS..........21

10

1

RUNNA AT A GLANCE

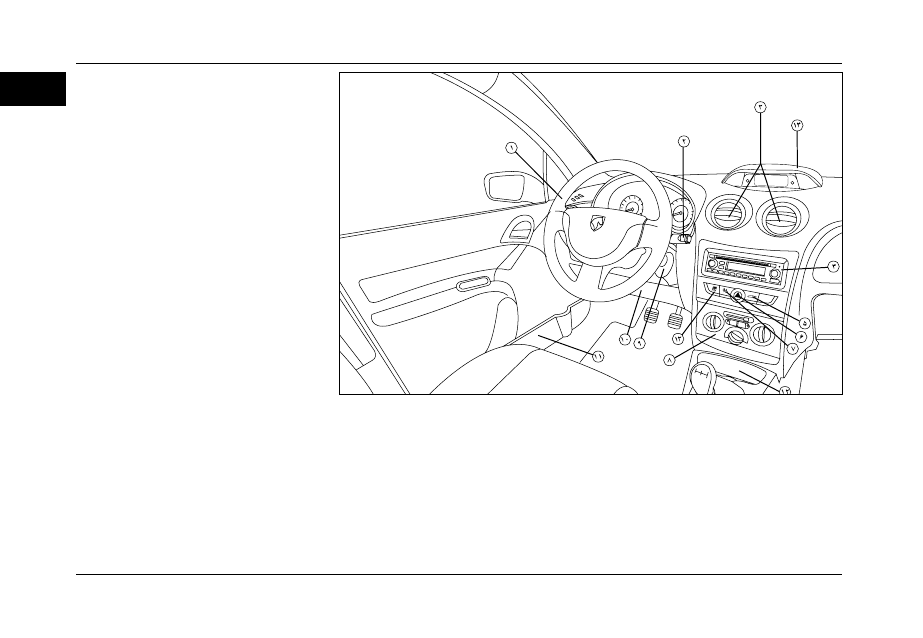

Vehicle parts

1) Steering wheel

2) Windshield wiper and washer lever

3) Adjustable inlet of central air condition

4) Audio equipment

5) Trunk lock opener

6) Flasher switch

7) Central lock control key

8) Heater, ventilation, air condition, rear

window heater and mirrors heater’s

control keys.

9) Switch

10) Fuse box

11) Bottle and disposable tissue place

12) Place for glass, drink can and other things

13) Rear Power Window Deactivating Key*

14) Instrument panel (multipurpose)*

* If equipped

11

1

RUNNA AT A GLANCE

Vehicle parts

1) Side windows de-mister vent

2) Front screen de-mister vent

3) Lighting system controls and turning

signals

4) Glove box lighting adjusting switch

5) Driver air bag

6) Passenger air bag’s location

7) Front air condition system’s adjustable

inlet

8) Instrument panel display

9) Parking brake

10) Gear-change lever

11) Front ash tray

12) Steering wheel’s height adjustment

control

13) Headlamp adjustment

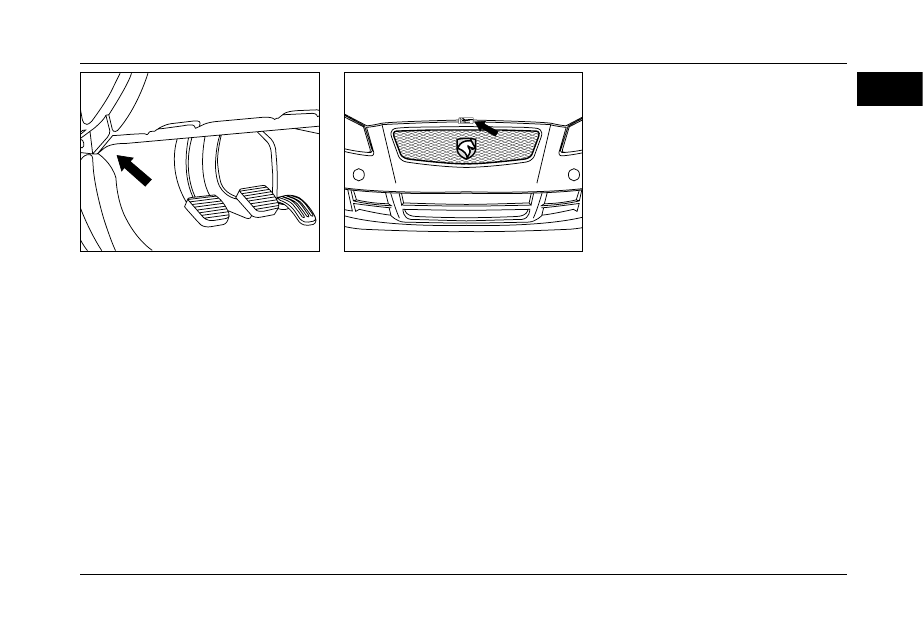

14) Engine compartment door opening lever

12

1

RUNNA AT A GLANCE

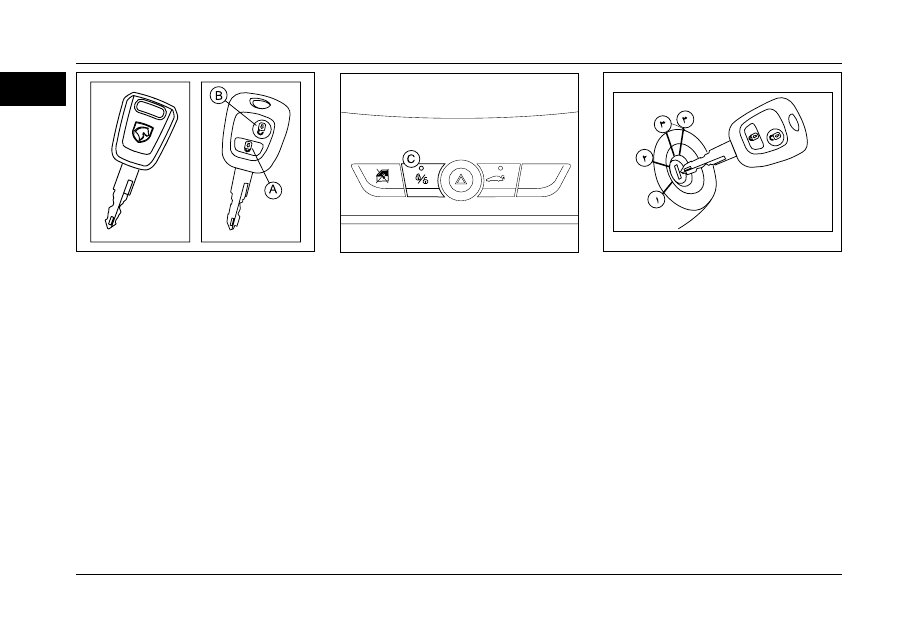

Keys

The keys allow you to

independently

operate the locks on the front doors, luggage

compartment door, front passenger air bag

disarming switch, fuel tank cap, steering wheel

lock and switching on the ignition.

Remote control

Vehicle’s doors are remotely locked by

pressing button “A”. This function is confirmed

by lighting of the turn signal for about 2

seconds.

Press button “B” to unlock the vehicle doors.

This is confirmed by twice flashing of the turn

signals.

Central locking and unlocking on the

instrument panel

By pressing button “C”, you can open/close all

the doors except the trunk lid.

If one of the doors is open, the central locking

does not work.

This  function  is  confirmed  by  lighting  of  the

direction indicator for about 1 second. Press

button “B” to unlock the vehicle doors. This

is  confirmed  by  twice  flashing  of  the  direction

indicator.

Parking the vehicle

Press button “A” to lock the vehicle’s doors. If

the turn signals light on and off for one second,

it means that all doors are locked and anti-

theft protection system has been activated.

But if the turn signals light on and off rapidly

four times, it means one of the vehicle’s door

is open and the anti-theft protection system

has not been activated. So close the door and

press button “A” again.

Starting

There are four possible positions of the

key in the ignition switch:

1- Stop position or off:

The ignition is off.

2- 1st notch, accessories position:

The ignition is off but the accessories could be

operated.

3- 2nd notch, move position:

The ignition is on.

4- Start position:

The engine ignition on (Start)

* If equipped

13

1

RUNNA AT A GLANCE

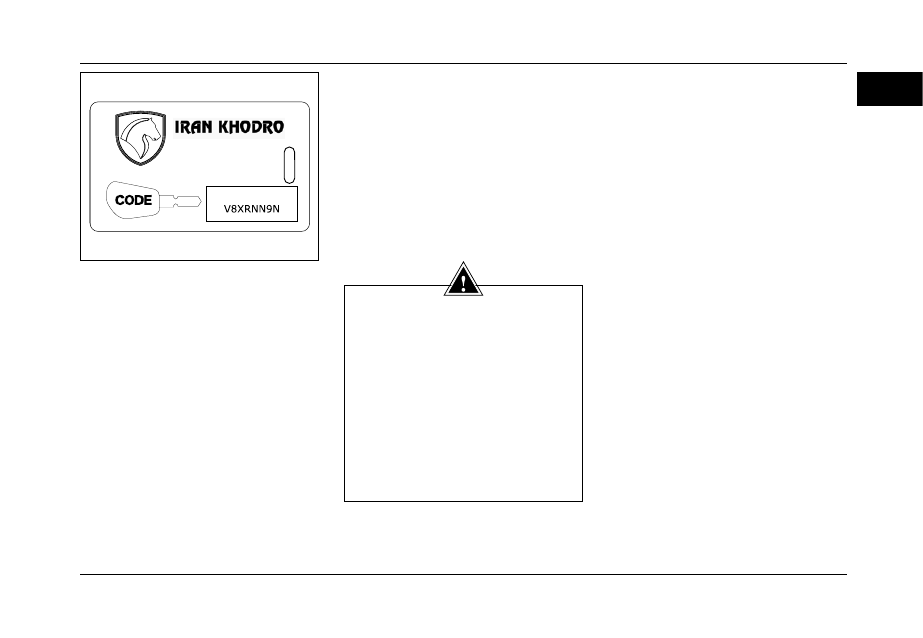

Bar-Coded card

You  receive  a  coded  card  together  with

one set of the spare key. The card has

identification code which is needed by the

Iran Khodro authorized dealer when working

on the electronic immobilizer system. The

code is covered by a label which should be

cleaned only when needed.

Keep the vehicle identity card in a safe

place and never leave it in the vehicle.

Take the card with yourselves during travel

together with other document of the vehicle.

Warning

When purchasing a second- hand

vehicle, be careful to receive the vehicle

identity card.

It is recommended to have the key

codes memorized by the authorized

dealers to ensure that keys in your

possession are the only ones which

can start the vehicle. Do not make

any  modification  to  the  electronic

engine immobilizer system.

14

1

RUNNA AT A GLANCE

steering lock

Before starting, unlock the steering, if

necessary, by turning the steering wheel

slightly while turning the key.

It is advisable to press the clutch during

the igniting on to facilitate the starting of

the engine.

Starting gasoline engine

Do not press the accelerator-control

pedal during starting.

Start and do not release the button until

the engine is ignited on.

Air bag malfunction

 If this indicator comes on and stays

on, refer to one of the Iran Khodro

authorized dealers.

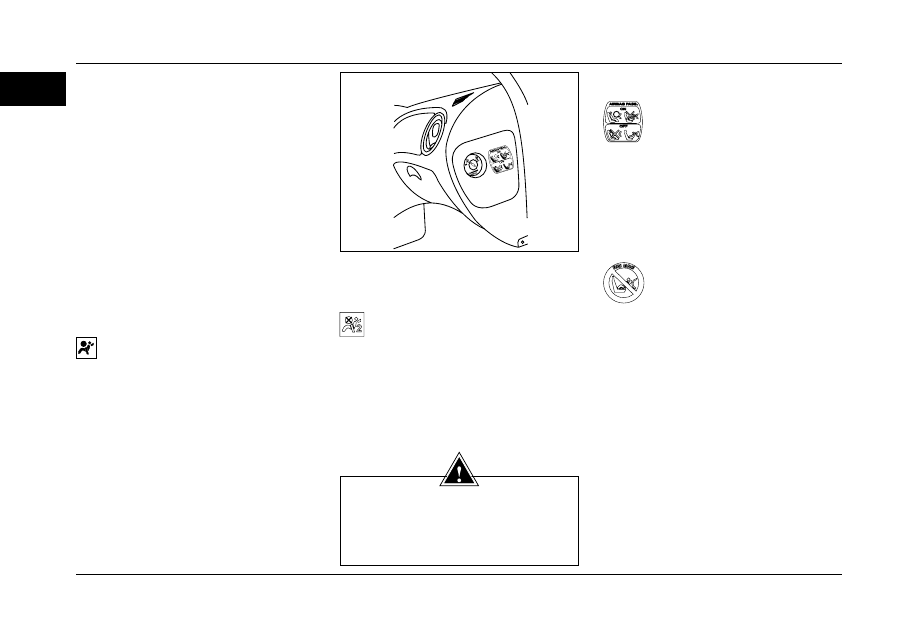

Front air bags

Deactivation of the front air bag

Select “1” split of passenger activation/

deactivation switch  and then turn the button.

- “ON” Position activates the passenger

air bag.

- “OFF” Position deactivates the passenger

air bag.

Controlling the proper function of the

front air bag

 When you turn the ignition Switch (2nd

notch), this light comes on and a message

is displayed on the instrument panel

display, which indicates the passenger air

bag is deactivated (“OFF” position). As long

as the passenger air bag is deactivated this

warning light remains on.

Warning

Never start the engine in a confined area.

Never attempt to modify the lock

system of the steering wheel.

Safety cautions for passenger air bag

In vehicles equipped with air bag

deactivation button

- Deactivate the function of the air bag,

in case the child seat is secured “rear

facing”  in front of  the air bag.

- Activate the air bag for adult passengers.

For vehicles which have not the

air bag deactivation button.

- Never have the child seat in “rear face”

position on the front passenger seat in

front of the air bag. Never put your leg or

any object on the panel board.

15

1

RUNNA AT A GLANCE

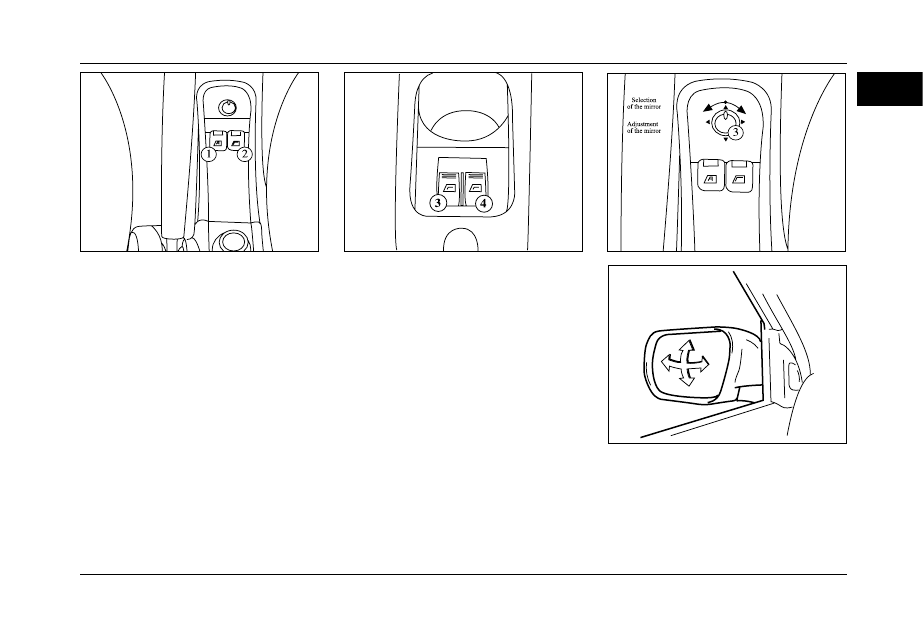

Front power windows control

1- Driver power window control

Manual mode: push or pull the switch

gently and continuously. Window stops

as soon as you release the switch.

Automatic mode:

Push or pull the switch once, the window

is closed or opened completely.

Autoglass closing action takes place only

when the engine is running. (Automatic

mode is activated by momentary

pressing or dragging the regulator button

of the window in some model)

2- Passenger power window control

Push or pull the switch continuously and

gently. Window stops as soon as you

release the switch. There is no automatic

mode for passenger power window control.

3-Electrical    Rear  Window  regulator  (Left)*

4- Electrical  Rear Window regulator (Right)*

Electric mirrors:

Turn right or left the lever 3 to select

intended mirror. You can turn lever 3 to all

direction to adjust the mirror.

* If equipped

16

1

RUNNA AT A GLANCE

Light switches, control lever and horn

1- Small lamps, rear parking and

instrument cluster lights.

2- Headlight, downward/upward beam

3- Headlight, upward beam (pulling the

lever toward the driver).

4- Front fog lamps.

5- Front fog lamps / Rear.*

6- Horn

7- Right turning signal

8- Left turning signal

Windscreen wiper and screen washer

1- Off

2- Intermittent wipe (is adjusted according

to the vehicle speed).

3- Slow wipe

4- Fast wipe

5- Single wipe

6- Screen washer (pulling the control lever

towards the driver)

17

1

RUNNA AT A GLANCE

Warning

Never drive with head restraint removed.

Front seats

1- Forwards – backwards adjustment

2- Head restraint height adjustment

3- Height adjustment

4- Seat back angle adjustment

18

1

RUNNA AT A GLANCE

Warning

Never adjust the steering wheel while

driving. This is very dangerous.

Warning

In order to reduce the personal injuries

to the driver and front passenger,

adjustment of the head  restraint height

and head position toward it should be

observed exactly as per above figures.

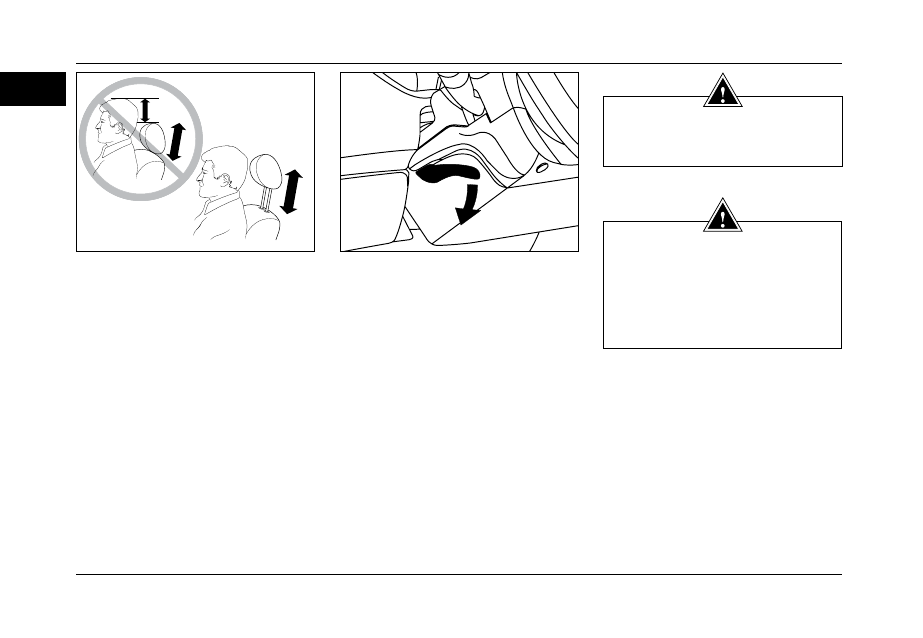

Head restraint height and angle

adjustment

To raise the restraint, pull it upwards.

The adjustment is correct when the upper

edge of the head restraint is leveled with

the top of the head.

The head restraint has a frame with

notches, which prevent the head restraint

dropping down(this is a safety device in

the event of an impact).

To lower the head restraint , it is necessary

to push simultaneously:

a)The button located on the belt guide at

the base of the head restraint,

b)The head restraint downwards. To remove

the head restraint, press the lug. The angle

of the head restraint can also adjusted.

Steering wheel height adjustment

Push the lever downward  to unlock

steering wheel.

Adjust the steering wheel and raise the

lever.

19

1

RUNNA AT A GLANCE

Opening engine compartment

Interior control:

pull the lever of the engine compartment

door.

Exterior control

pull the lever to the left and open engine

compartment door. Secure the strut in its

place to have the engine compartment

door open.

20

1

RUNNA AT A GLANCE

No.

Sign

Function

1

Selection of the air

distribution

2

Air inlet control

3

Air condition control

4

Rear window heater

5

Adjusting air flow amount

6

Adjusting air temperature

Heating / air condition
