Iran Khodro Runna. Service Manual - part 3

38

2

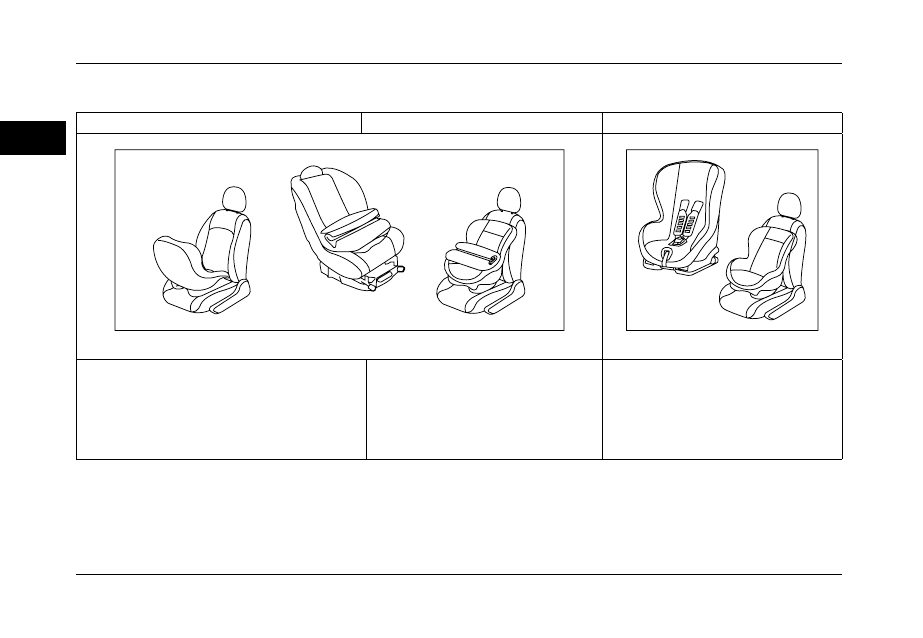

CHILDREN PROTECTION

Group 1: from 9 to 18 kgs

Group 1: from 9 to 18 kgs

Group 0+: from birth to 13 kgs

Should be installed only forward-facing

 to be installed rear-facing                           To be installed forward-facing

Is fixed without using the upper strap, with

capability of providing three inclined position

at body section: sitting, rest and sleep

positions. Adjust front seat in a way that

child’s foot have no contact with its back

Front seat should be in the

intermediate longitudinal position.

Its body should be supported by the back

of front seat

ISOFIX child seat recommended by Iran Khodro and approved for your vehicle

In this position they should be attached to the vehicle seat belt by three points

For information about installing the

child seat refer to the installation

manual of the seat manufacturer.

39

2

CHILDREN PROTECTION

 Advice on child seats

Incorrect installation of the child seat in

the vehicle compromises protection of

the child in the event of an accident.

Remember to fasten the seat belts or

child seat harnesses keeping the slack in

relation to the child’s body in a minimum

even for short journeys.

For optimum installation of the “forward-

facing” child seat, ensure the back of the

child seat is in contact with the back of the

vehicle’s seat and that the head restraint

does not causes any discomfort.

If the head restraint has to be removed,

ensure that it is stored or attached securely

to prevent it from being thrown around the

vehicle in the event of sharp braking.

Children under the age of 10 must not

travel on the front passenger seat. Only if

the rear seat is occupied by other children

or the seat is unusable and/or removed,

child may travel on the front passenger

seat. Disarm the passenger air bag when

the child seat is “rearward-facing” position.

Otherwise there is the risk of severe

injuries or even death of the child in the

event of the air bag inflation.

Installing a booster seat

The chest part of the seat belt must be

positioned on the child’s shoulder without

touching the neck.

Ensure that the lap part of the seat belt

passes correctly over the child’s thighs.

Iran Khodro recommends the use of

a

child booster seat belt which has

a  back,  fitted  with  a  seat  belt  guide  at

shoulder level.

As a safety precaution, do not leave:

- One or more children alone and

unsupervised in a vehicle.

- A child or an animal in a vehicle which is

exposed to the sun, with the windows closed.

- The keys within reach of children inside

the vehicle.

To prevent accidental opening of the doors,

use the “Children safety locking system.”.

Take care not to open the rear windows

by more than one third.

To protect young children from rays of the

sun, fit side blinds on the rear windows.

40

2

Warning

Front air bags are triggered only in case of a serious impact from front of the vehicle when

there is the risk of head and chest injuries. they are not for reaction in case of the minor, rear

and side impacts and certain roll-over of the vehicles.

AIR BAGS

Air bags

System is designed to maximize the safety

of the front occupants in the event of

violent collisions. It supplements the action

of the force-limiting seat belts.

If a collision occurs, the electronic detectors

record and analysis the front impacts

sustained in the impact detection zones:

In the case of a serious impact, the air bags

are triggered instantly and protect the front

occupants of the vehicle; immediately after

the impact, the air bags deflate rapidly so

that they do not hinder visibility or exit of

the occupants. In case of a minor impact,

the air bags will not be triggered; the seat

belt alone is sufficient to provide optimum

protection in these situations.

Seriousness of the impact depends on

the type of obstacle and speed of the

vehicle at impact time.

The air bags do not operate when the

ignition is switched off.

Note: triggering of the air bag is accompanied

by a slight emission of harmless smoke

which may cause slight irritation.

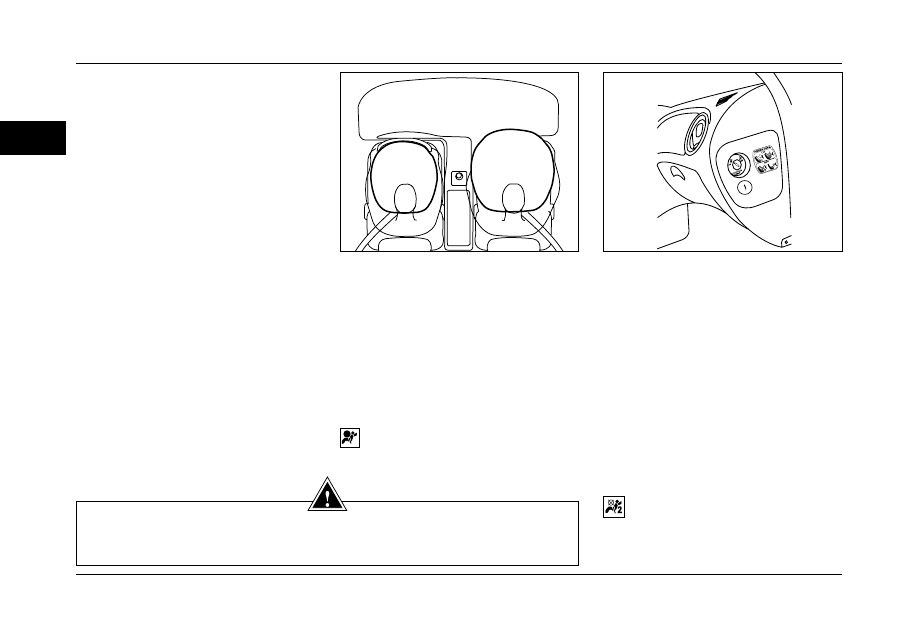

Front air bags

The air bag is fitted in front of the steering

wheel, and front passenger air  bag is

located in front of the instrument panel.

These two air bags are usually triggered

together, except when the front passenger

air  bag is deactivated.

Air bag malfunction

 If this indicator comes on and stays

on, refer to one of the Iran Khodro

authorized dealers.

When a rearward-facing child seat is

installed on the front passenger seat, it

is essential that the passenger air bag

to be disarmed. Otherwise the child

would risk being seriously injured or

killed if the air bag were to inflate.

- Switch off the vehicle, insert key in the

special switch to disarm the passenger air

bag (1) and turn it to the “OFF” position,

then take the key out in the same position.

Deactivation warning light of front

passenger air bag:

 This light stays on as long as the

front passenger air bag is disarmed.

41

2

Warning

Should the air bag warning indicator

light remain on extendedly, you should

not place child seat in the “rearward-

facing” position. Refer to an authorized

dealer as soon as possible.

Warning

In order to have full effectiveness of the air bags, observe the following safety

rules:

- Wear a correctly adjusted seat belt

- Sit in a normal upright position.

- Do not leave anything between the occupants and the air bags (a child, pet, object).

This could hamper the operation of the air bags or injure the occupants.

- Function of the air bag has been programmed very precisely; in case of any fault

refer only to the Iran Khodro authorized dealer.

- After an accident or if the vehicle has been stolen or broken into, have the air bag

systems checked.

- When driving, never put your hands on the steering wheel paddle or its central part.

-Do not smoke in the vehicle, as far as possible, otherwise cigarette ash or smoke

may cause burning or damage to the air bags or their system.

- Do not open steering wheel and avoid punching or hare strike to the steering wheel.

- Do not put your foot on the instrument panel.

- Pay attention to the warning label attached to the front passenger’s sun visor

AIR BAGS

Passenger air bag is not triggered when

its control is in “OFF”  position even in

case of impact. As soon as the child seat

is taken out of vehicle, turn the air bag

key to “ON” position in order to arm it

again to function in case of the impact.

(Turning off the deactivation warning light

of front passenger air bag in instrument

panel display)

Disarming key

A warning indicator comes on when the

air bag is disarmed.

 When the vehicle is ignited on

(second notch) if this light comes on it

indicate the front passenger air bag is

disarmed.

(Air bag “OFF” Position)

42

2

STEERING WHEEL

Warning

- Never adjust steering wheel when

driving. This is very dangerous.

- Due to safety reasons, adjust

steering wheel only when vehicle is

not in motion.

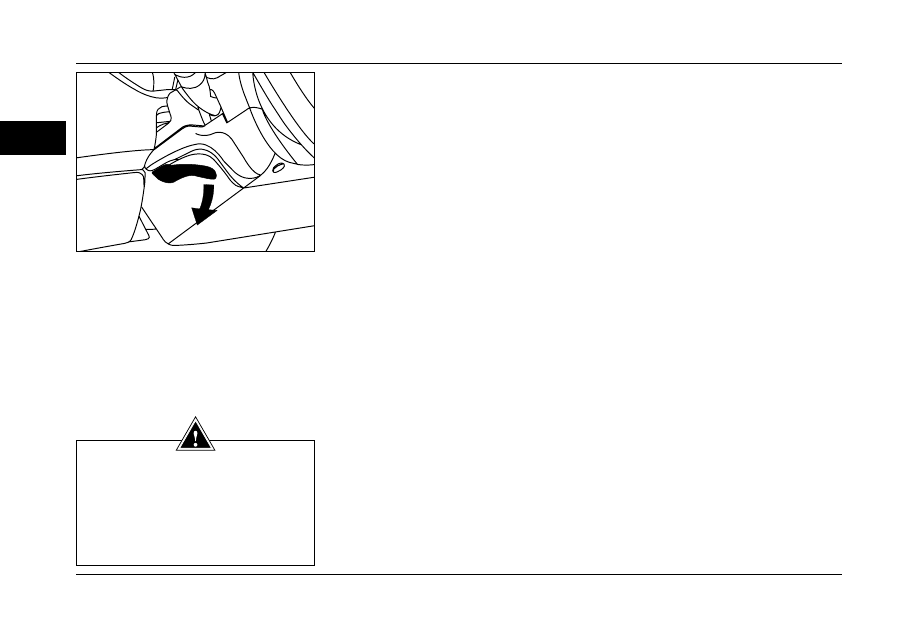

Steering wheel height adjustment

Push the lever downward  to unlock

steering wheel.

Adjust the steering wheel and raise the lever

43

2

MIRRORS

Rearview interior mirror

The mirror has two positions:

Day (normal position)

Night (anti-dazzle)

Push or pull the lever under the mirror to

change position.

Power side mirrors (exterior mirrors)

Turn the adjusting lever(1) to the left or

right to select the mirror.

Then move the lever (1) to all four directions

to adjust the mirror.

Warning

Driver exterior mirror is convex to reduce blind spot. So objects observed in the driver and passenger mirrors are, in reality, closer

than they appear. This must be taken into account in order to judge the distance vehicle approaching from behind correctly.

44

2

ELECTRIC WINDOWS

1- Driver power window switch

- Manual operation:

To open or close the window, press or

pull the switch gently, the window stops

as soon as you release the switch.

-Automatic operation: to open or to close

the window, press or pull switch (1) fully:

the window opens or closes completely

when the switch is pressed or pulled once.

When the engine is running, the driver’s

side window automatically acts to close

the window. ( Automatic mode is activated

by momentary pressing or dragging the

moment window regulator button in some

model)

33

4

* If equipped

Temporary Deactivating of Rear

Electric Window

(Child Safety)

This key locks the rear window at any

point. By initial pressing, the key is

activated (The light is on). By second

pressing, the key is deactivated (The light

gets off).

2- Front electric window switch

3- Rear electric window switch (Left)*

4- Rear electric window switch (Right)*

Warning

-Always remove the key from the

ignition when leaving the vehicle,

even for a short time.

- In the event the power window gets

caught during manual operation, you

should reverse the movement of the

lever, so push the  switch concerned.

- When the driver operates the

passenger electric window switches, he

must ensure that no one is preventing

correct closing of the windows.

- The driver must ensure that the

passengers use the electric windows

correctly.

-Be aware of children when operating

the windows.

-When electric window is closing, if the

head or hands get caught by it, they

may be injured seriously. Incorrect

closing of the windows may cause

serious injuries.

45

2

VENTILATION

Air vents perspective

46

2

VENTILATION

Ventilation

1) Wind screen heating and de-misting vents

2) Front windows heating and de-misting

vents

3) Side vents

4) Central vents

5) Air outlet (heating) under front passenger

foot

Applied recommendations and reminders

Adjust  air  flow  control  switch  to  ensure

enough and suitable fresh air circulation

in the vehicle.

If you leave the switch in the OFF position

(inactivation of the system), passengers

convenience in regard to the air

temperature could not be assured.

Adjust the temperature as per requirements

and climate.

Adjust the temperature to the optimum

temperature.

Leave the air inlet control at “exterior air”

position to have better demisting function.

Vehicle interior temperature is very high

after a long stop under the sun, so have

the vehicle air ventilated for a while.

To ensure proper and complete distribution

of the air, avoid closing the exterior inlet

vents, air vents, and air outlet under

passengers’ foot.

If you switch off ventilation in some hard

usage of vehicle (loading max. cargo at

steep and high temperature), the engine

function is recovered. So its towing power

is improved. Ensure the ventilation filter of

the vehicle cab works properly. This filer is

located at windscreen and under the engine

compartment  cover.  Replace  filter  parts

regularly. In case climate is unfavorable, it

is better to replace them even at scheduled

maintenance intervals.  Air ventilation has

no chlorine and so it is safe for Ozone layer.

Operate the air conditioning system once or

twice a month, to keep it in perfect working

order.

The water formed by the air conditioning

condensation is discharged via an opening

provided for this purpose. Therefore, a

puddle of water may form underneath the

vehicle when stationary.

If the system does not produce cold air,

do not use it and contact an Iran Khodro

dealer.

47

2

VENTILATION

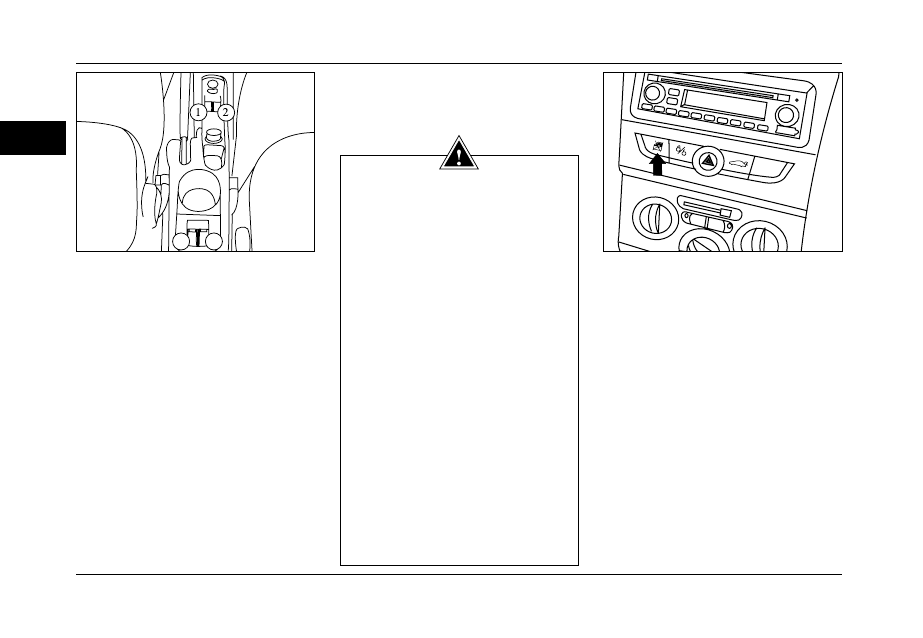

Rear screen heating

Heater of the rear screen and exterior

mirrors are activated by pushing this

switch, while engine is ignited on.

In order to avoid over consumption of the

power, the heater is switched off after 12

minutes automatically.

You  can  inactivate  the  heater    by  re-

pressing the switch before it is switched

OFF automatically.

Switch heater off as soon as the rear

screen is demisted, as low consumption

of the power causes reduction of the

vehicle fuel consumption.

Manual demisting

For rapid demisting of the wind screen

and side windows:

-Activate the ventilation system

-Set the heat control switch and air flow

control switch at maximum.

-Close the central vents.

-Have the exterior air inlet control at the

left side i.e. at position “exterior air”

48

2

VENTILATION

Cuation

- It is recommended to inspect and

service the air condition system

regularly to ensure its proper function.

- Let the manual control 4 to be at left,

“exterior air recirculation” position as

far as possible. This prevents decline

of the good quality of air.

Warning

Do  not  open  the  cooling  fluid  circuit.

This fluid is dangerous for eye and skin.

Air condition

The air conditioning system can only

operate when the engine is running.

1-Air condition ON/OFF switch

This system functions in all seasons

when the windows are closed. It caused

reduction of temperature during summer

and increase demisting power in above

zero degree temperature at winter.

Press the A/C of this button. The indicator

light is activated.

Air condition does not operate when the

air flow control switch is at position “Off”.

2-Temperature adjustment

Turn the dial from blue (cold) to red (hot)

to adjust the temperature to suit your

requirements.

3-Air distribution adjustment

Windscreen and side windows demisting

and deicing Windscreen, side windows

and foot wells.

Passengers’ foot wells

These settings are recommended for

cold climate.

Central and side vents

This setting is recommended for hot climate.

To adjust the air distribution evenly in all

directions, you can leave its switch on “-“ sign.

4-Air flow adjustment

Turn the dial from position 1 toward

position 4 to achieve your desired air flow.

5-Air inlet / Air recirculation

Exterior air in take

Interior air flow

Recirculation of the interior air prevents

exterior smoke and odors from entering

the passenger compartment.

The inlet of the exterior air prevents the

formation of mist on the windscreen and

side windows.

If you apply air recirculation together with

air ventilation, the heating and cooling

functions improves.

In humid climate, air recirculation may

form mist on the windows. Turn the

manual control 5 to right to select  “interior

air flow” position. turn the manual control

5 to left as far as possible to “exterior air

flow”  position.  This  prevents  decline  of

the air quality in the cab.

49

2

     INTERIOR  EQUIPMENTS

Headlamp height adjustment

We recommend adjusting the headlamp

height depending to the load of the vehicle.

0-1 or 2 people in front seats

1-5 people

2-5 people + max. authorized loads

Initial setting is position 0

Horn

Push the end button of the turn signal

lever

50

2

Warning

Ash trays are very dangerous. Never

throw waste in the ashtrays: it could

create a fire hazard.

INTERIOR  EQUIPMENTS

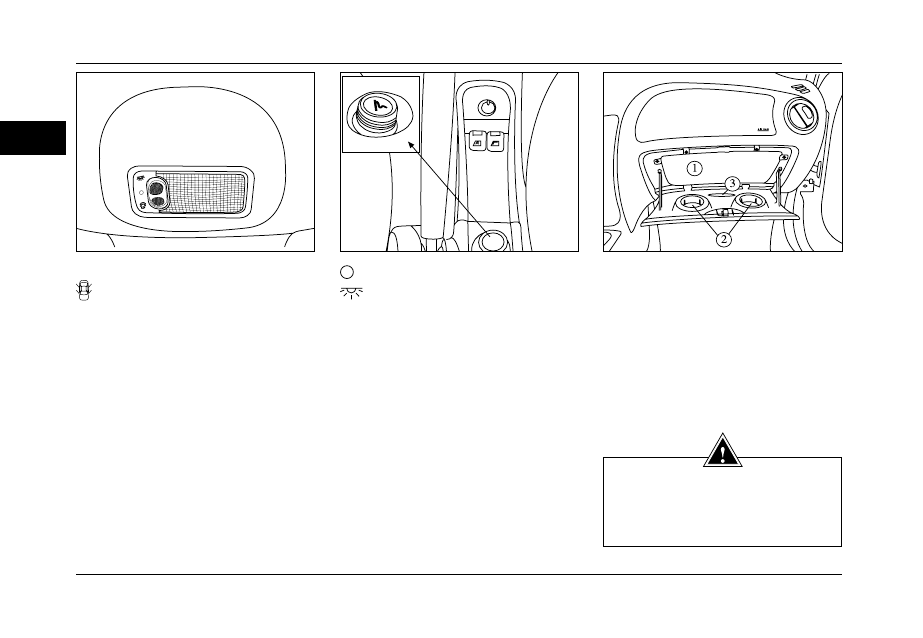

Dome light

 Dome light remains on in following

situations:

- One of the doors is open

- Luggage compartment or engine

compartment door is open

When the vehicle’s doors are closed, if

the key is not removed from ignition,

the light remains on for 12 seconds and

then  goes off. If one of the doors or the

luggage compartment are not closed

properly and the vehicle speed exceeds

10Km/h, the dome light blinks.

When doors are unlocked by remote

control key, the dome light comes on and
goes off in one of the above conditions.



Off (constantly)

 Light remains on (constantly) as long

as the ignition switch is on or the key is in
position accessories equipments.

Lighter
push it all the way into the receptacle
and release it. It will automatically heat
up and will pop out to its normal position
when it is ready to use.

Sun visor
There is a makeup mirror on the sun visor
which its cover is toward the driver.

Glove box
To open the glove box, lift the handle. In
the glove box following places have been
considered:
1.  Handbook packs and map storage.
2.  Can holder.
3.  Pen holder.

51

2

     INTERIOR  EQUIPMENTS

Front and rear ash trays

Ash trays could be in one of the positions

(1) or (2). Pull the door (4) and release

the ashtray upwards. Take the ash tray

(3) and empty the ash tray.

Napkin and can holder

There has been a place for napkin and

can on the front doors.

52

2

INTERIOR  EQUIPMENTS

Warning

Installation of the additional equipment:

It is recommended to use only equipment approved by the manufacturer of the vehicle and its guarantee to ensure the proper

function of the vehicle and avoid any loss of its safety.

Electric and electronic equipment

Any tampering of the vehicle electronic circuits should be done only by the authorized dealers; otherwise one faulty connection

can cause complete damage to the electrical connections or devices attached to it. Ensure the new fitted electrical device is

protected by the fuse. Be aware of the fuse location and its current density.

-Any tampering and/or modification of the fuel feed system (electronic control unit, wiring, fuel circuit, injector, protective cover,)

is strictly forbidden, due to possible danger for you. These works should be done only by the experts of the after sale services

of the Issaco.

53

DRIVING

3

CONTROLS ................................................................. 54

REAR ALARM SYSTEM ........................................... 60

INSTRUMENT PANEL AUDIBLE WARNINGS ......... 61

TURN SIGNAL LEVER ............................................... 63

WINDSCREEN WASHER & WIPER LEVER ............ 66

BRAKES ...................................................................... 67

ANTI-LOCK BRAKE SYSTEM (ABS) ....................... 67

ELECTRONIC BRAKE FORCE DISTRIBUTION (EBD) 67

EMERGENCY ACCESSORY BRAKE SYSTEM ....... 67

HAND BRAKE ............................................................. 68
