Operation

5

Standard  sliding  rear  tow  hooks,  adjustable  in
height - Italian market.

- CUNA ‘C’ tow hook (for the Italian market).
- CUNA ‘D2’ tow hook (trailer hydraulic brakes) (for the

Italian market).

- CUNA C hook and CUNA drawbar, Class A (for the

Italian market)

- CUNA D2 hook (hydraulic trailer brake) and CUNA

drawbar, Class A (for the Italian market)

Standard  sliding  rear  tow  hook,  adjustable  in
height - EEC market

- EEC hook, not automatic
- EEC hook, automatic
- EEC hook, not automatic and EEC drawbar.
- EEC hook, not automatic and EEC drawbar.
- EEC Drawbar

142

Operation

Cat. A drawbar

The tractor may be equipped with an A-type tow hook that
consists of a drawbar, for use with agricultural implements
and one or two-axle trailers. Never use this type of attach-
ment to tow single axle trailers, because they can apply
too much weight to the drawbar. The drawbar might be
damaged because it is not built to sustain vertical loads.

The drawbar can be adjusted to allow correct coupling,
besides to towed implements, to implements driven by
PTO.

It is possible to change the pivoting point of the sector
on the tractor support.

For those implements that need it (e.g. ploughs), the
sector of the tow frame allows for a widespread hori-
zontal adjustment to provide greater lateral swing in
either direction.

Two locking pins can also be used to limit or reduce
drawbar swing in either direction.

WARNING: When towing implements driven
by the PTO, adjust the height of the drawbar
so that it lies between 150 (5.9”) and 300
mm (11.8”) below the height of the PTO
shaft.

Rear tow hook, adjustable in height (type with sa-
fety guards) (not-EEC markets) (Not valid for Italy
and EEC markets)

- Cat. C tow hook
- D2 tow hook (trailer hydraulic brakes)
- CUNA drawbar, Class A

143

Operation

5

Piton-Fixe (if equipped, according
to market)

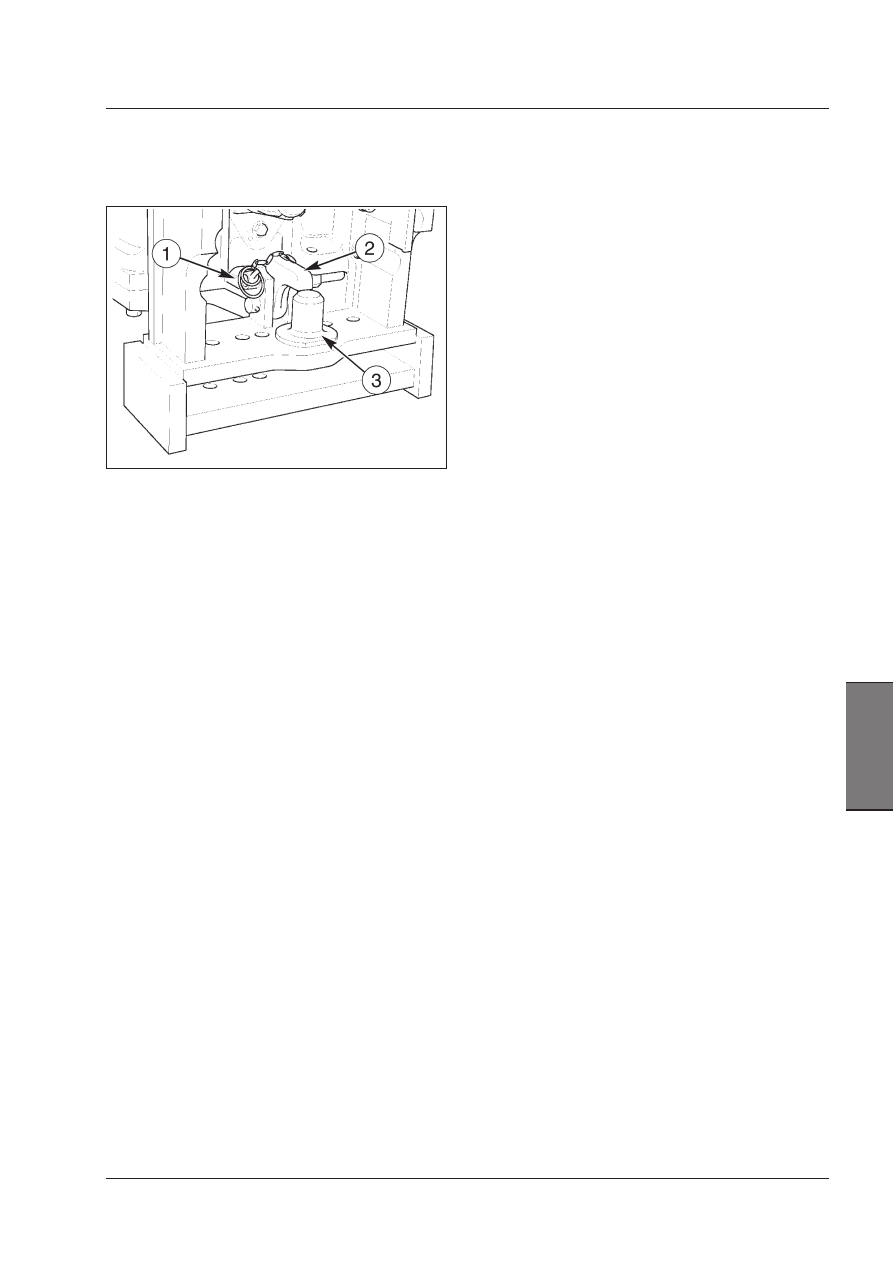

To connect an implement/trailer, remove the spring clip
and pin (1) and lift the retaining hook (2).

Install the implement towing eye over the towing pin (3)
and lower the retaining hook (2).

Install the pin and spring clip (1).

IMPORTANT: Maximum vertical load capacity

depends upon the capacity of the rear tyres fitted. Refer
to your Dealer for more information.

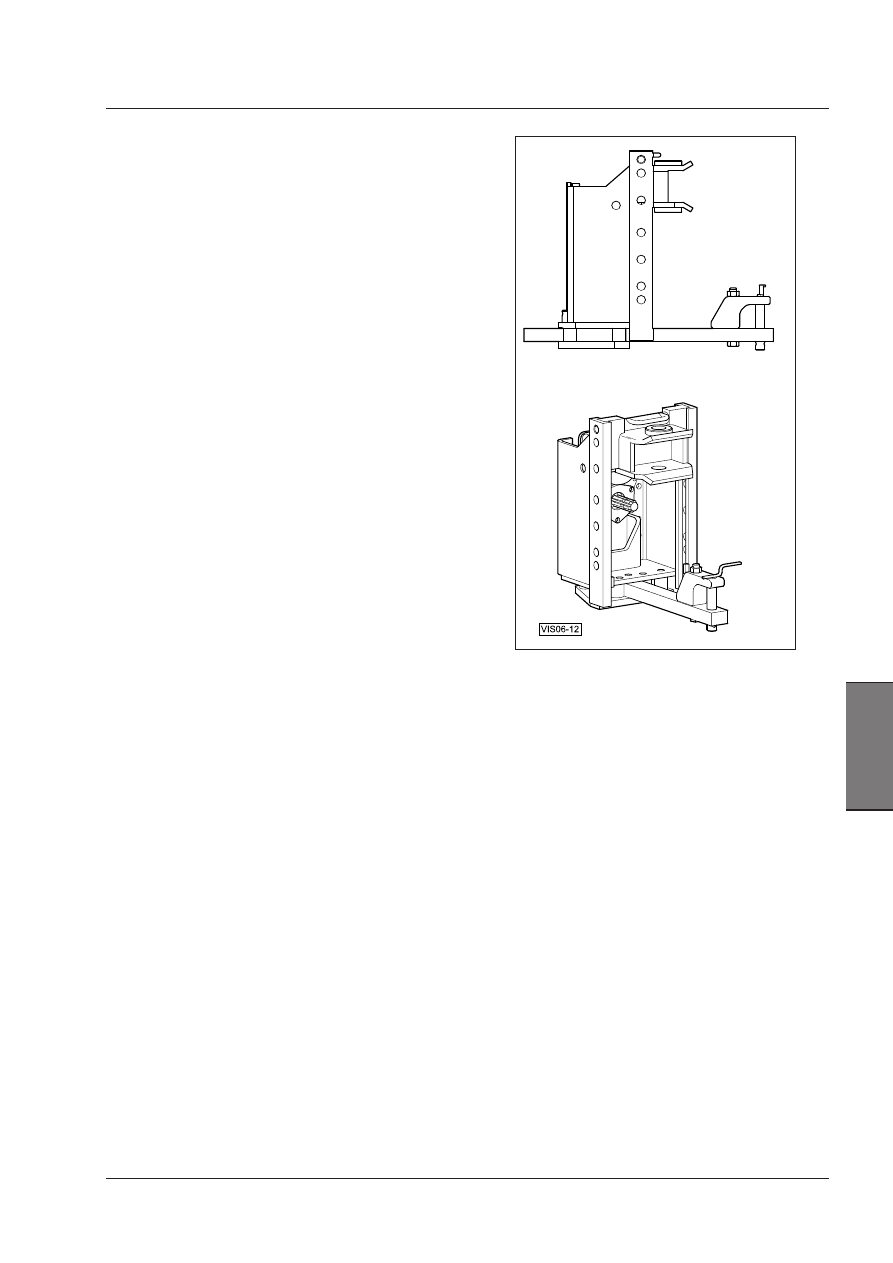

Piton  Fixe  rear  sliding  draft  gear  -  Available
versions:

- EEC hook, not automatic
- EEC hook, automatic
- EEC hook, not automatic and EEC drawbar.
- EEC hook, not automatic and EEC drawbar.
- EEC Drawbar

Operation

144

PICK UP HITCH

(if fitted, on request on certain markets)

Two types of pick-up hitches are available.

- Mechanical

- Hydraulic - Connect the hoses of the hydraulic pick-

up hitch to the rear hydraulic taps (1) of the auxiliary
hydraulic valve to be used.

Pick Up Hitch

Connecting an implement

OPERATION 1

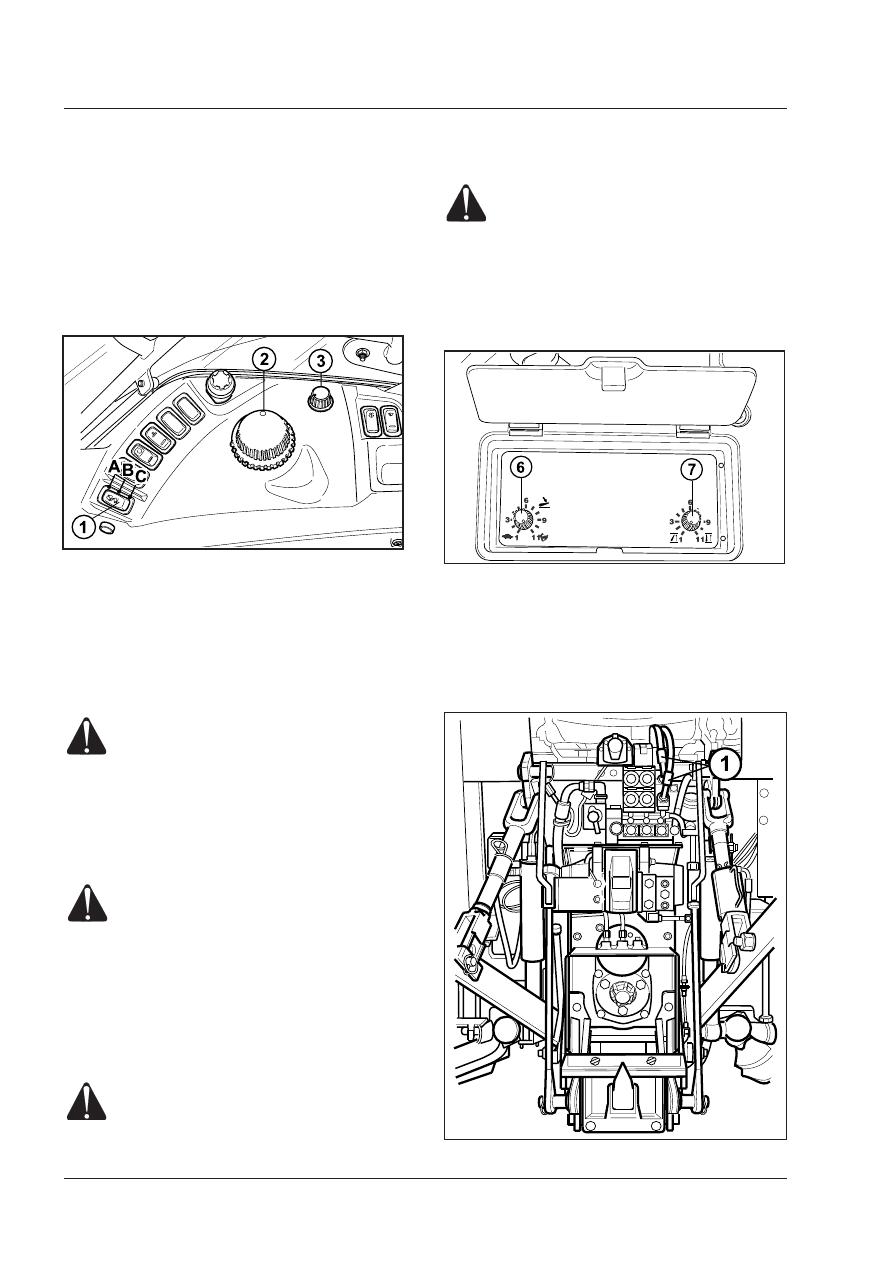

Electronic Power Lift System

Turn the Upper Limit Control Knob (4) to the maximum
setting.

-  Raise the three-point linkage by turning the switch (1)

to Pos. C.

-  Set the selector (3) to position control mode (Pos. 1)

by turning it in an anti-clockwise direction.

-  Set the down-speed selector (6) to position (0) (lock)

to prevent any accidental lowering movement should
the controls be accidentally operated.

WARNING:  If the control switch (1) is
moved to the links down position (A) and
the work height control knob (2) is moved,
the arms can be lowered. Set the lowering
speed control (6) to Pos. 0 (padlock) to pre-
vent any accidental movement.

Maximum  permitted  operating
weights

WARNING: comply with the max. load capacity
of the automatic hitch and of the drawbar. Do
not  work  with  loads  greater  than  the  maxi-
mum  allowed  ones.  This  could  damage  the
automatic hitch and the rod. It also reduces
stability of the front part.
Maximum loads on axles also depend upon the
capacity of the rear tyres fitted. For maximum
allowed  loads,  see  the  “Technical  specifica-
tions” Section.
Ask your Dealer for further information.

WARNING: The automatic Pick-Up Hitch
and pulling trailers on public roads is not
permitted unless a special approval note has
been supplied with the machine documents.
Ask your Dealer for further information.

WARNING: Pick-Up Hitch hook (PUH) - The
coupling and uncoupling of the PUH must
be made strictly with the lifting device in
a controlled position to ensure the proper
functioning of the fastening/release of the
hook.
