Tractors X60 Series. Manual - part 15

61

Instruments and Programming

4

Section 4

Instruments and Programming

62

Instruments and Programming

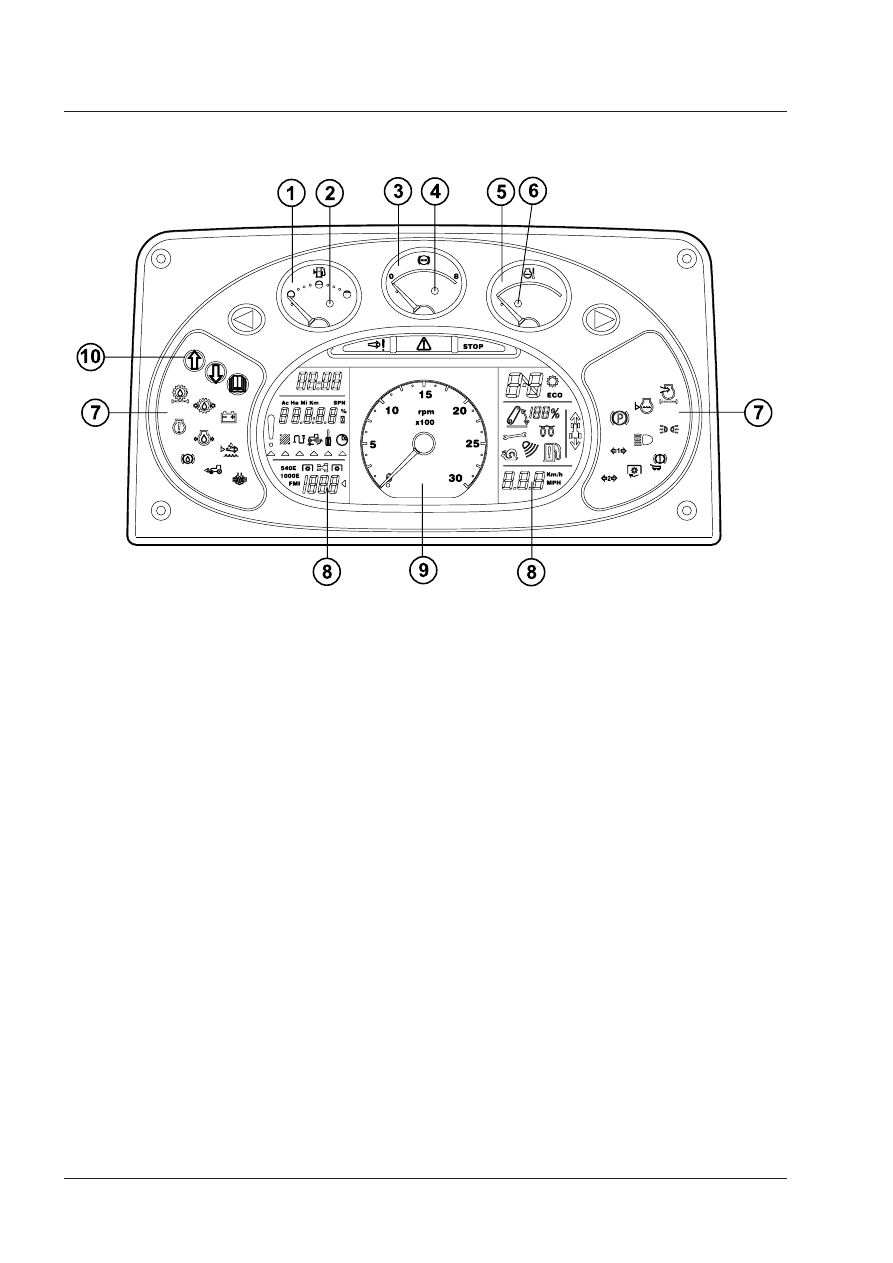

Instrument Cluster

1. FUEL LEVEL GAUGE

2. LOW FUEL WARNING LAMP

3. AIR PRESSURE GAUGE or LOGO (if provided) - Indicates
system pressure for pneumatic trailer brakes.

4. RED WARNING LIGHT - LOW SYSTEM PRESSURE FOR
PNEUMATIC TRAILER BRAKES

5. ENGINE COOLANT TEMPERATURE GAUGE

- Blue area: low temperature.
- Yellow area: normal operating temperature.
- Red area: overheating.

IMPORTANT:  If  the  pointer  is  in  the  red  area,  the
master warning lamp will flash. STOP THE ENGINE
IMMEDIATELY AND CHECK THE CAUSE OF OVERHEAT-
ING. Before beginning the inspection make sure that
the engine has cooled down.

6. RED WARNING LIGHT - OVERHEATING

7.  WARNING  LAMPS  -  see  following  pages  for  more
details.

8. MAIN DIGITAL DISPLAY - see following pages for more
details.

9. ENGINE REV COUNTER

10. ADJUSTMENT PUSH BUTTONS - To go to MENUS
and Functions in the digital display.
UP - Upward arrow
DOWN - Downward arrow
MENU - Book icon

63

Instruments and Programming

4

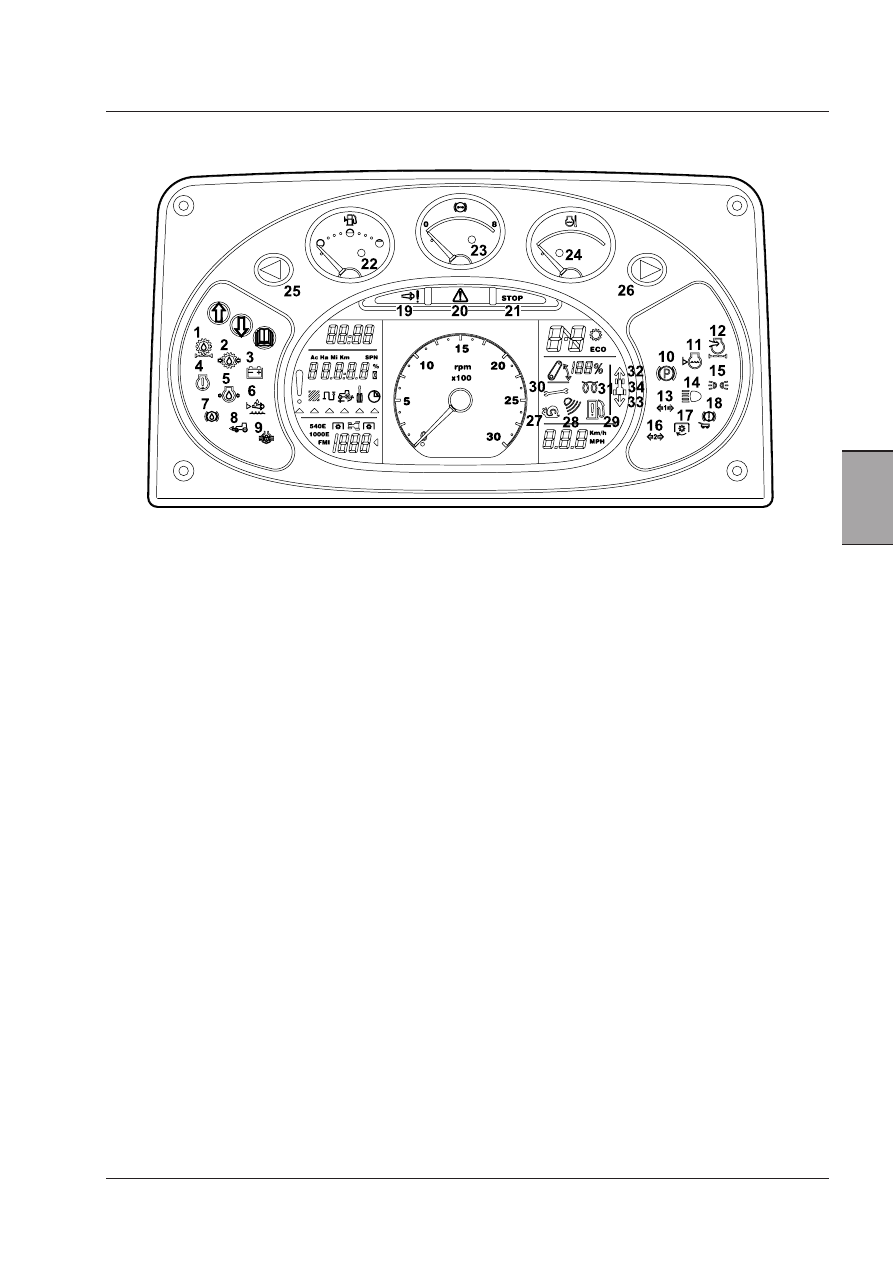

Indicator Lamps

Warning lamps

1  Hydraulic filter clogging, red.
2  Warning light for low pressure in transmission
hydraulic circuit, red.
3  Battery charge, red.
4  Engine fault warning, yellow. Ask your Dealer's
workshop for help.
5  Low engine oil pressure, red.
6  (Not valid) Low level of DEF (Diesel Emission
Fluid), yellow.
7  (Not used) Low oil level in hydraulic trailer brake
circuit, red.
8  4WD engaged, yellow.
9  Differential lock engaged, yellow.
10  Parking brake engaged, red.
11  Low engine coolant level, red
12  Engine air filter clogging, yellow
13  1st trailer indicator, green
14  Headlight high beam on, blue
15  Side lights on, green
16  2nd trailer indicator, green
17  Rear PTO on, yellow
18  Hydraulic trailer brake pressure, red (if equipped)
19  (Not valid) Error in DEF system, yellow
20 General warning, yellow
Tractor malfunction. An error has been detected by the
vehicle's diagnostic system and an error code has been
generated (active errors only).
21  Major warning, red. Stop the engine and ask your
Dealer's specialized workshop for help.
22  Low fuel level, yellow
23  Air brake pressure (optional), red
24  High coolant temperature, red
25  Left turn indicator,

green

26  Right turn indicator, green

LCD Icons

27  Creeper engaged
28  Radar present (not available)
29  Water detected in fuel (if provided). Drain fuel
filter.
30  Service interval indicator. Service the tractor.
31  Heater - Wait-to-start.
Electronic engine - Wait for the lamp to go off before
starting the engine.
Mechanical engine - To operate the heater, press the
heater button that activates the lamp. The lamp is
controlled by a timer: as soon as it goes off, release
the button and start the engine.
32  Forward speed indicator.
33  Reverse speed indicator.
34  Tractor icon: indicates the reverse shuttle lever is
in neutral.

64

Instruments and Programming

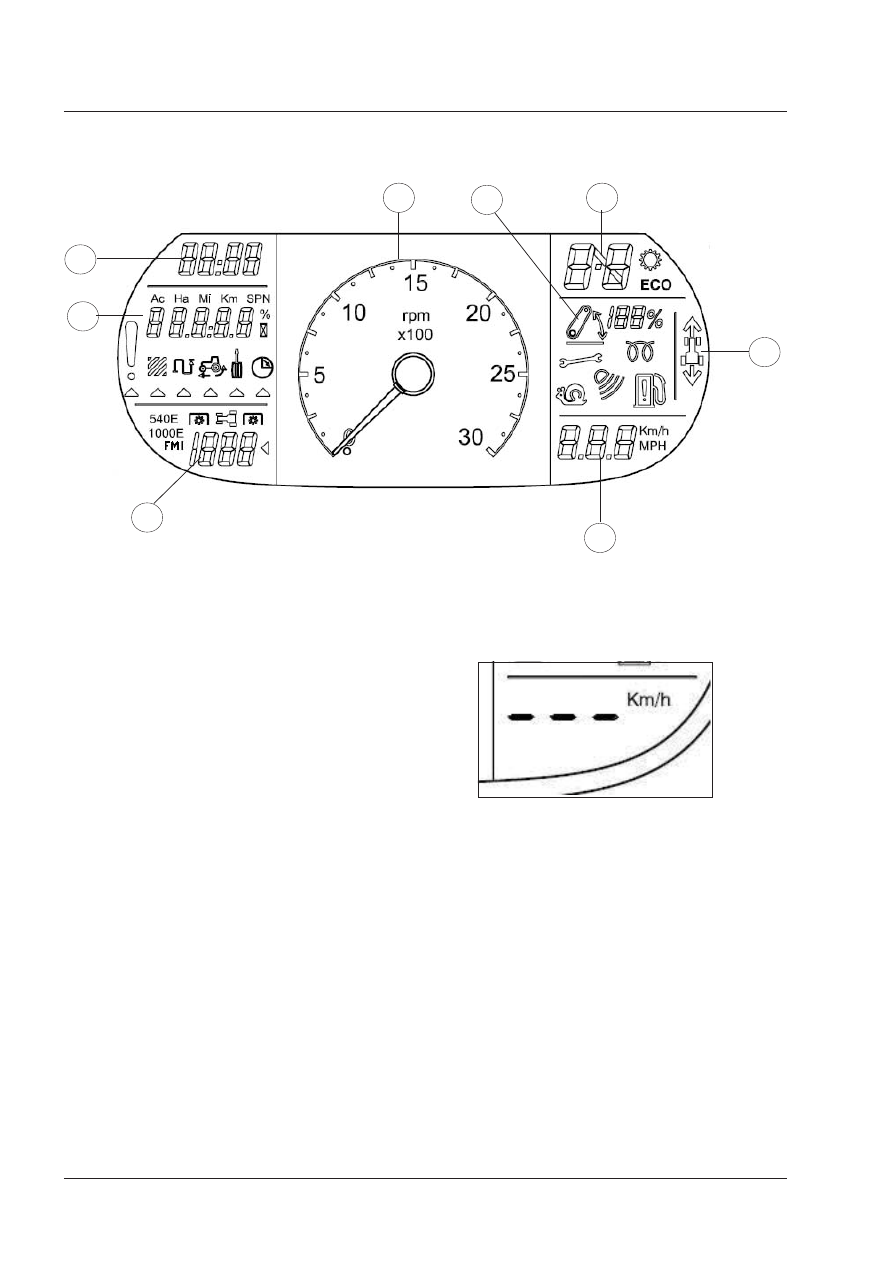

LCD Display

Layout

1. Engine rev counter
2. Hitch position up/down and lift percentage amount.
3. Indicator for gear engaged and reverse shuttle lever in neutral.
4. Drive direction indicator
5. Indicator for speed in kph or mph
If the following figure is displayed at ignition, the speed indicator
is not provided: ask your dealer.

6. Speed and PTO function display.
7. Menu Display
8. Clock

1

2

8

7

6

5

4

3
