Tractors X60 Series. Manual - part 14

Controls - Cab

Heating, air circulation and air con-
ditioning in De Luxe cab

[4.1.b]

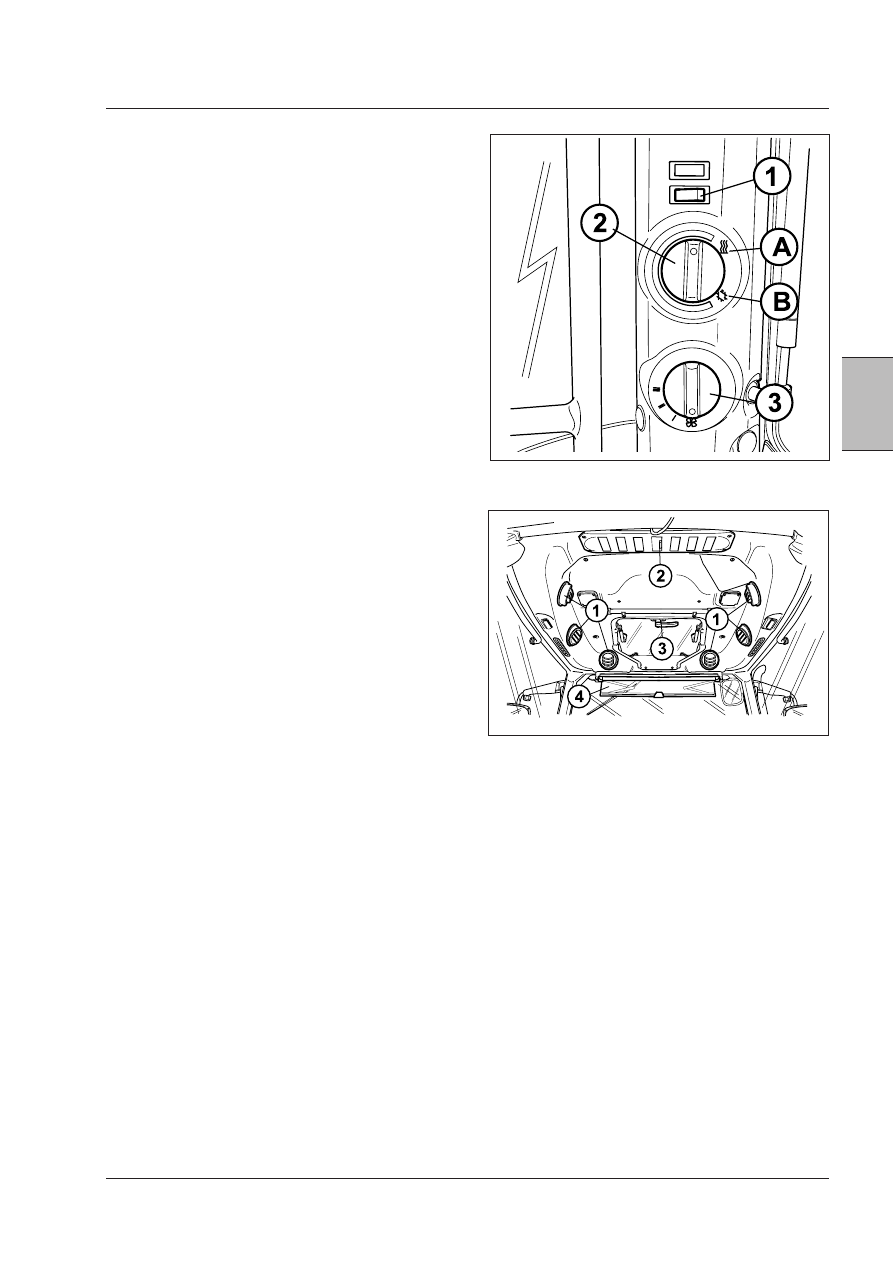

1 - Air conditioning switch:

- Press to turn air conditioning on.
- Press the switch again to turn it off.

2 - Temperature control knob

A - Warm air
B - Cold air

3 - Fan speed switch

0 - OFF
I - Slow
2 - Middle
3 - Fast

Ventilation

The cab ventilation is operated by means of 6 air vents.
Position the air flow in the required direction by turning
the vents.

The air that flows into the cab can be drawn from either
inside the cab or outside by means of the vents.

Air Recycling Inside The Cab

The rear vent (2) allows the internal air to be recycled.

– Open vent: a great quantity of air is sucked up from

inside the cab by this vent and recycled through the
air vents.

- Closed vent: air is sucked in from the outside
nto the cab after passing through
the external filters.

WARNING: Do not open the windscreen, the doors or
the side and rear windows during work. The noise in
the cab could rise to such level as to oblige the opera-
tor to wear headsets or other individual protection
against noise.

1 - Air vents
2 - Vents for internal air recycling in the cab
3 - Handle to open the sun-roof
4 - Sun screen.

Controls - Cab

ADJUSTMENTS WITHIN CAB

[4.1.b]

(De Luxe)

Cab cooling from the outside

- Turn the fan control on the required position, from (I)

for minimum cooling to (III) for maximum cooling.

- Open all air vents.

- Open the defrost vents and adjust as required.

- Turn the temperature knob on OFF.

- Close the air recycling vent (if equipped). When the air

recycling vent is closed, air recycling inside the cab is
reduced to aminimum, while the outside air intake is
maximized.

NOTE: Whatever is the position of the recycling vent,
outside air is sucked into the cab.

Cab heating

For maximum cab heating, let the engine run until it
reaches the operating temperature, then proceed as
follows:

- Adjust the electric fan control as required, from (I) for

minimum heating to (III) for maximum heating. When
the electric fan control is turned on (I), air quantity and
speed are reduced. Therefore, temperature of the
heated air is greater than when the electic fan speed
regulator is turned on (III).

- Adjust air vents as required.

- Open the defrost vents and adjust as required.

- Adjust the temperature control as required. Turn it

completely clockwise for max. heating, or completely
anticlockwise to exclude heating (OFF).

- Open the air recycling vent (if equipped). When the air

recycling vent is closed, air recycling inside the cab is
reduced to aminimum, while the outside air intake is
maximized.

- If an air conditioning system is equipped, turn it OFF.

Pressurized cab (dusty or windy

environment)

WARNING: Cab air filters remove dust in the
air, but are not capable of removing chemi-
cals used in spraying crops or in weed con-
trol. Many chemicals used for these purposes
are toxic when improperly used, and can be
hazardous  to  operators  and  others  in  the
area. Follow the instructions of manufactur-
ers of both the equipment and the chemicals
regarding  prohibitions  against  inhalation
of dust or spray, personal hygiene practices,
and  other  precautions  noted  by  the  manu-
facturers.

- Turn the electric fan control on maximum (III).

- Open all air vents.

- Open the defrost vents and adjust as required.

- Adjust the temperature control as required.

- Close the air recycling vent (if equipped). When the air

recycling vent is closed, air recycling inside the cab is
reduced to aminimum, while the outside air intake is
maximized.

NOTE: Whatever is the position of the recycling vent,
outside air is sucked into the cab.

- If an air conditioning system is provided, turn it on and

adjust as required.

Window Demisting/Defrosting

- Turn the electric fan control on maximum (III).

- Open all air vents.

- Open the defrost vents and directtheir air flows toward

windscreen / windows.

- Turn the temperature control on maximum (III).

- Close the air recycling vent (if equipped).

- If an air conditioning system is provided, turn it on and

adjust as required.

Controls - Cab

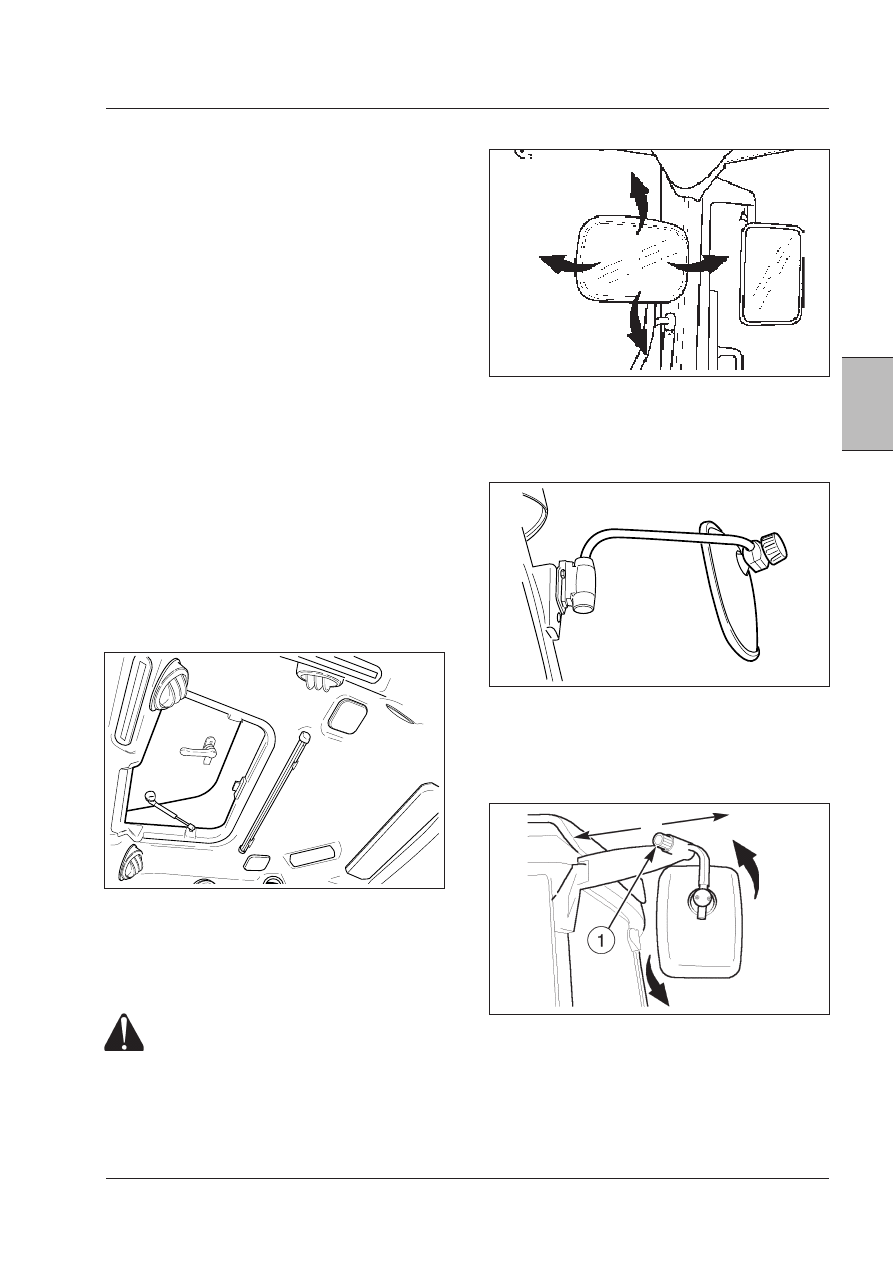

Roof Hatch (if equipped)

Ventilation - Push the latch towards the front of the tractor
and then push the hatch up.
Emergency Exit - Push firmly upward to release the sup-
port struts from the lower retainer clips.

Operation of air conditioning unit
(If provided)

To operate the air conditioner, the blower must be on. The
blower speed, temperature control and all vents must
be adjusted to obtain the best cooling for the ambient
temperature and dust conditions. Under normal operating
conditions, and with the windows and doors closed, tem-
peratures in the cab of 6°C to 15°C (10°F to 25°F) less than
the ambient temperature will occur. When operating the
air conditioner system, the moisture level is decreased.

NOTE: During cold weather, with ambient temperature
above 0°C (-32°F), operate the air conditioner at least once
per month, for a period of 10 to 15 minutes. This operation
is useful to lubricate gaskets and helps to prevent leaks
of cooling fluid.

NOTE: The system is provuded with safety devices to
protect the system for low refrigerant level and restric-
tions in the system. If the air conditioner stops operating
while the tractor is running, ask your Dealer's specialized
workshop for help.

NOTE: The Air Conditioning system is equipped with an
environmentally safe refrigerant, HFC-R134a. Never re-
charge the air conditioning system with refrigerant other
than HFC-R134a as this will result in loss of cooling and
permanent damage to all air conditioning components.

Internal Mirror

To adjust mirror head: hold firmly, tilt horizontally and
vertically as required.

Adjustable rear view mirrors (if equipped)

To change the length: loosen the locking knob (1) and
move the mirror to the required position, then tighten
the locking knob.

To adjust mirror head: hold tightly and tilt
in horizontal and vertical direction as required.

Standard rear view mirrors

To adjust mirror head: hold firmly, tilt in horizontal end
vertical direction as required.

ONLY CAB WITH HATCH (if equipped)
WARNING: If the hatch in the cab roof is open
during work, the required protection against
falling objects is compromised. If there is
such danger, keep the roof hatch closed at
all times.

Controls - Cab

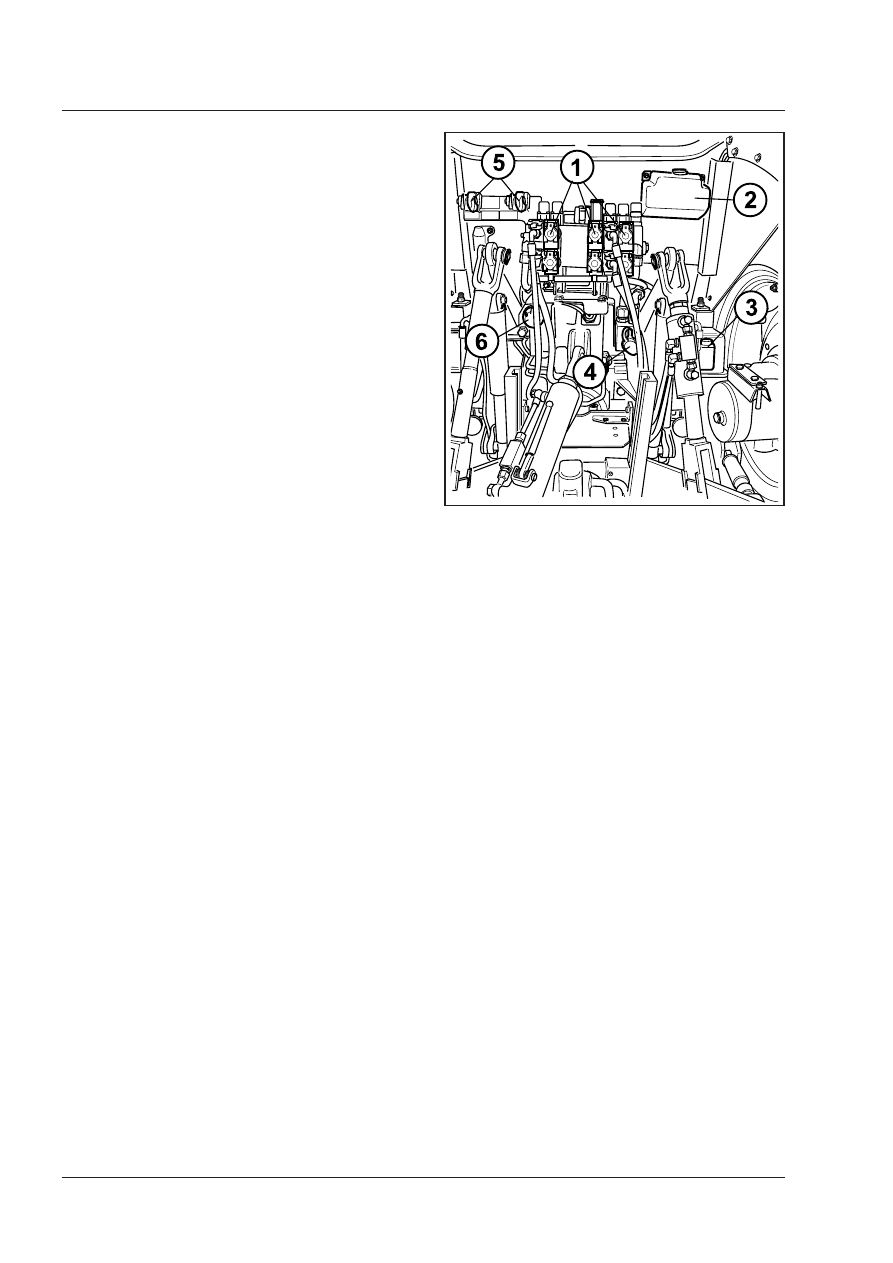

MISCELLANEOUS

1 - Quick couplings

of the "Push-Pull" type for auxiliary

spool valves for remote controls.

2 - Window washer liquid reservoir.

3 - Oil spillage collector.

4 -

Oil union for hydraulic trailer brakes

(optional,

depending on markets).

5 - Trailer air brake unions (optional, depending
on markets).

6 - Rear 7-pin power socket for trailer.
