Controls - Cab

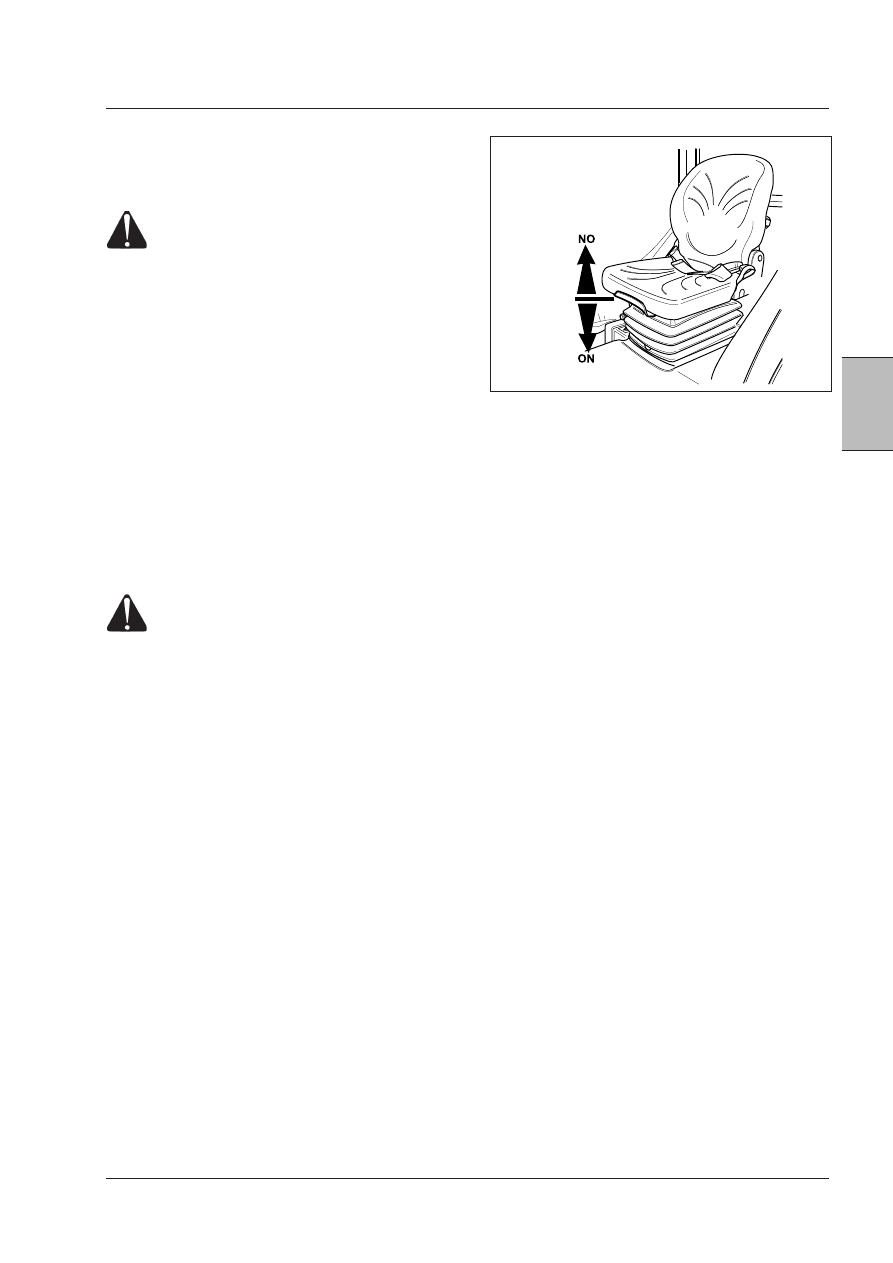

Operator present sensor

The seat cushion acts as a switch. The moment no load is
sensed (the operator’s own weight) an alarm sounds.

WARNING: To warn the operator of incorrect
usage, the tractor has an automatic alarm
system that sounds when the operator is not
correctly seated in driving position while the
machine is being used.

In all machines, both with mechanic and hydraulic
gearbox, this alarm sounds whenever the operator
leaves his/her seat without turning off the engine, and
is silenced only after engaging the parking brake and
shifting the gear to neutral.

Machines with hydraulic reverse shuttle are equipped
with a further restraint that acts (whenever the
operator gets off his/her seat without turning off
the engine) with inhibition of forward and reverse
hydraulic clutches if the tractor is at standstill. If the
tractor is on the move, the system inhibits the same
clutches as soon as the neutral position of the reverse
shuttle lever is sensed: In this case, the transmission
goes automatically to Neutral. The operator must then
return to his/her seat and the reverse shuttle shifted
to Neutral in order to get the tractor started again.

WARNING: Do not tamper with this component
in any way.

Contact your Dealer immediately if the system is not
operating correctly.

Controls - Cab

SEAT

[4.1.a]

WARNING: Do not adjust the seat while driving. Loss of control and injury can result.

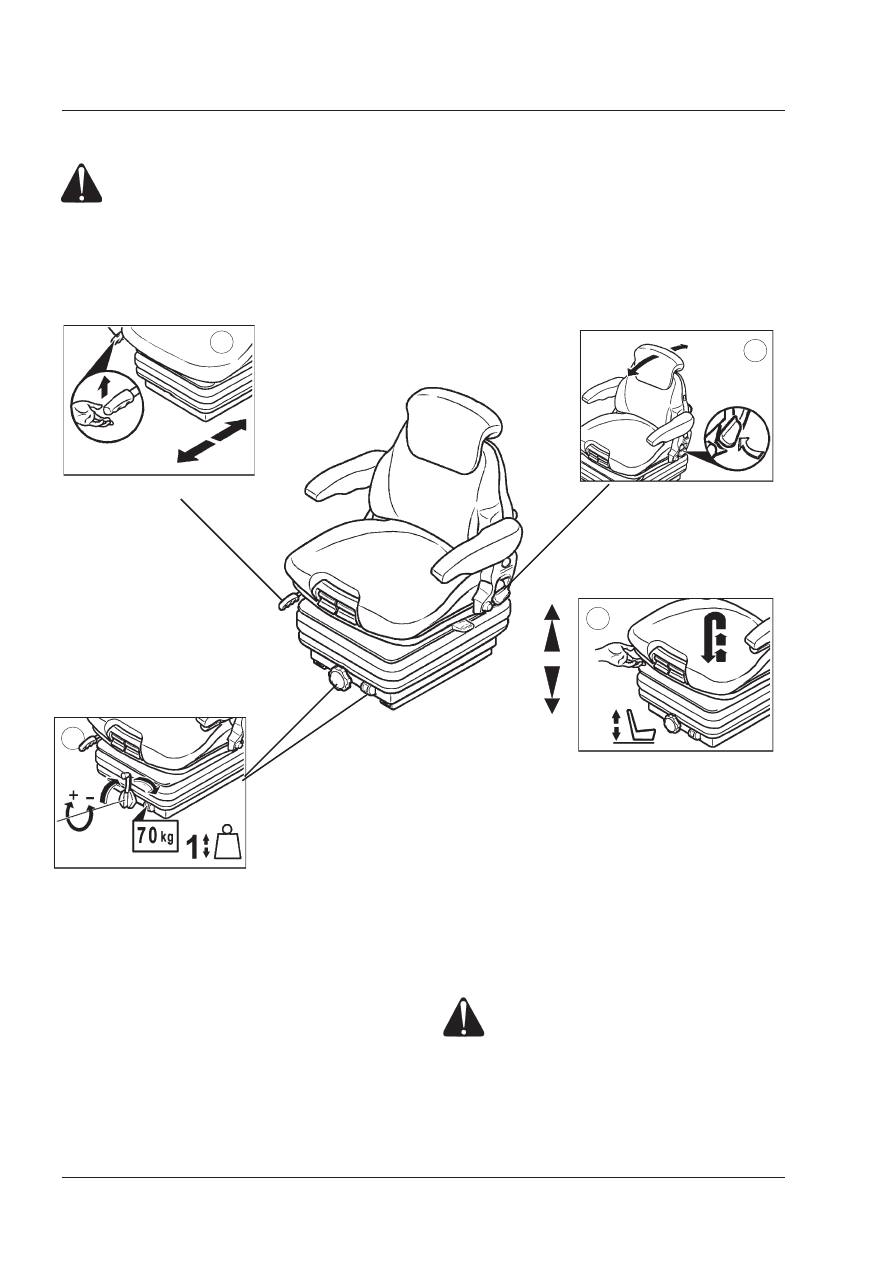

Mechanical suspension seat - Tractors with cab

NOTE: The standard mechanical seat is offered as option for ROPS (footstep) tractors with waterproof cover.

4. WEIGHT ADJUSTMENT CONTROL AND WEIGHT
INDICATOR - Without the operator in the seat, turn the
knob as required, until the operator's weight is displayed
in the indicator.

WARNING:  To  avoid  injuries,  the  operator's
weight  setting  should  be  checked  and  ad-
justed  to  the  operator  before  starting  the
tractor.

1. FORE/AFT ADJUSTMENT CONTROL -
Lift lever and adjust seat as required, release lever to lock
in position.

2. BACK REST ADJUSTMENT CONTROL - Lift control
to tilt the back rest as required, release lever to lock in
position.

3. HEIGHT ADJUSTMENT CONTROL - Grasp the seat and
lift it to the required height. To lower it, raise the seat and
move it beyond the upper end stop, then lower to the
required height.

Controls - Cab

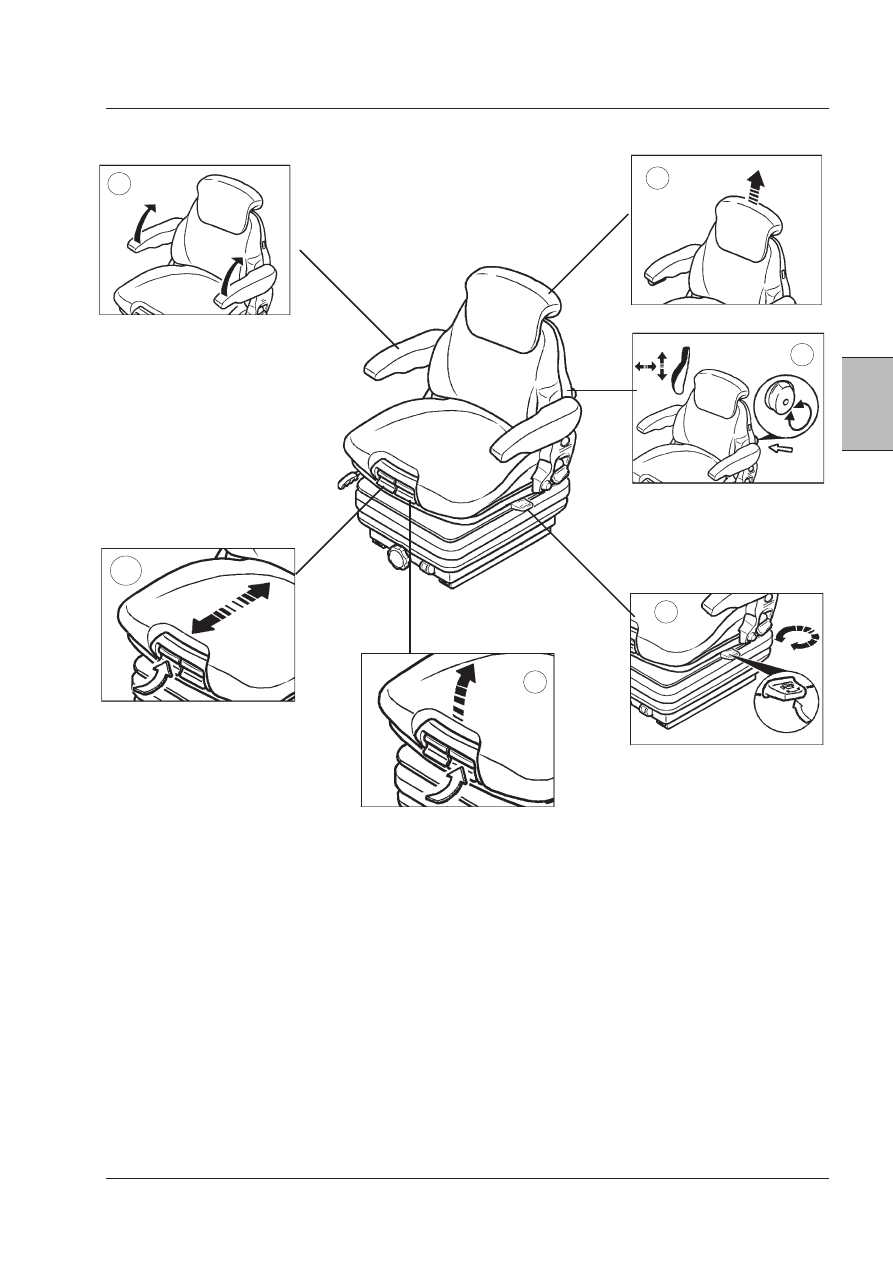

5. ARMRESTS - Raise or lower armrests.

6. BACK REST REMOVAL/HEIGHT ADJUSTMENT (if
equipped) - Raise or lower the back rest to the required
height. Pull up past end stop to remove the back rest.

7. LUMBAR ADJUSTMENT CONTROL - Turn the adjust-
ment knob as required.

8. SWIVEL ADJUSTMENT CONTROL (only Deluxe seat) -
Lift the lever to adjust the seat as required.

NOTE: There is no fore/aft adjustment in the offset posi-
tions.

9. CUSHION TILT ADJUSTMENT (Deluxe seat only) - Lift
lever to adjust seat cushion tilt angle.

10. CUSHION FORE/AFT ADJUSTMENT (Deluxe seat
only) - Lift lever to adjust seat cushion depth.

Controls - Cab

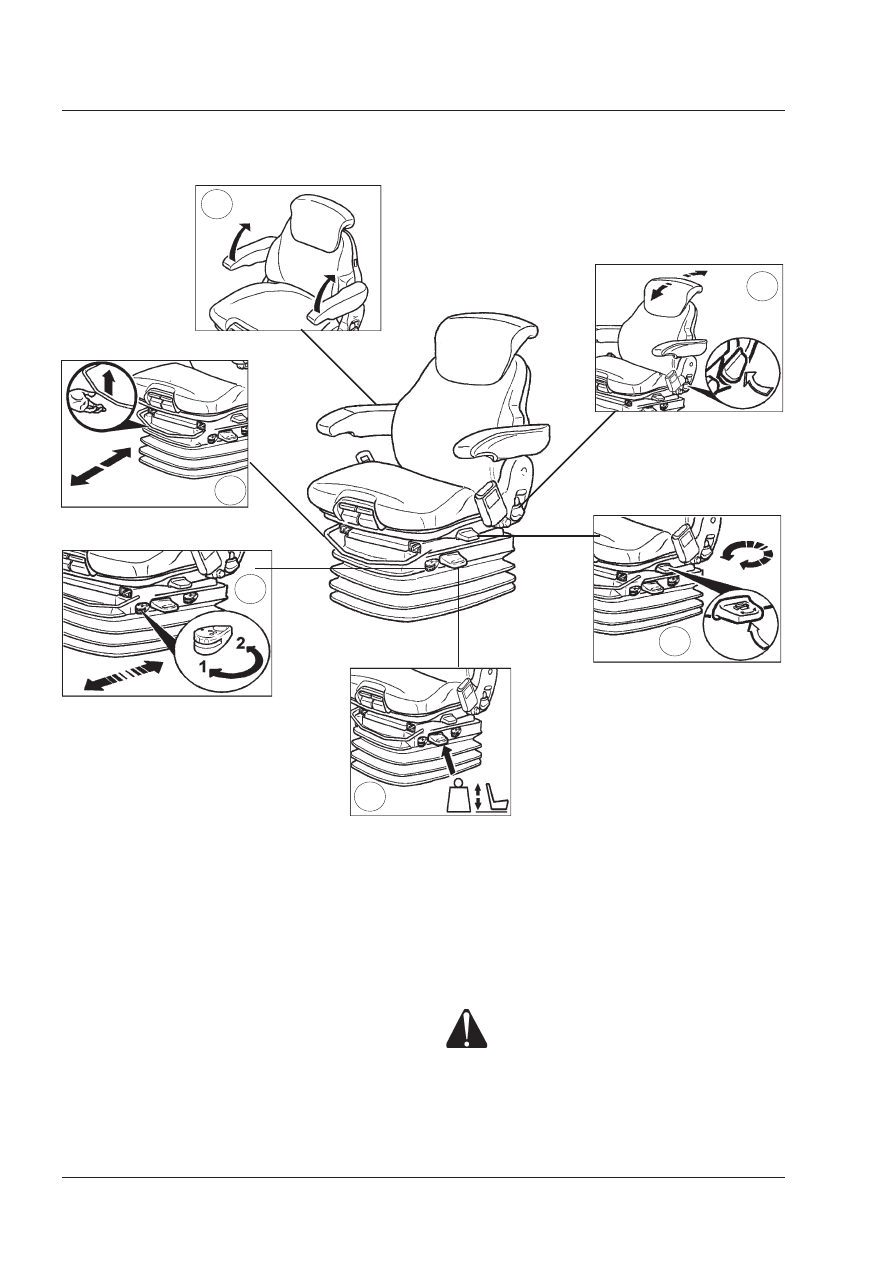

Air suspension seat - Tractors with cab

1. FORE/AFT ADJUSTMENT CONTROL - Lift lever and
adjust seat as required, release lever to lock in position.

2. ARMRESTS - Raise or lower armrests.

3. BACK REST ADJUSTMENT CONTROL - Lift control to
tilt as required. Release the lever to lock in position.

4. SWIVEL ADJUSTMENT CONTROL (only Deluxe seat) -
Lift the lever to adjust the seat as required.

NOTE: There is no fore/aft adjustment in the offset posi-
tions.

5. HEIGHT & WEIGHT ADJUSTMENT CONTROL - Lift and
release for automatic weight adjustment. Lift and hold to
raise, or push and hold to lower.

NOTE: Seat must be lowered before the automatic weight
adjustment can be made.

IMPORTANT: Never operate the compressor for longer
than 1 minute.

WARNING:  To  avoid  injuries,  the  operator's
weight  setting  should  be  checked  and  ad-
justed  to  the  operator  before  starting  the
tractor.

6. ISOLATOR CONTROL - Move control from rear to front
(position 1) for float. Move control from front to rear (posi-
tion 2) to lock.
