Safety Notes

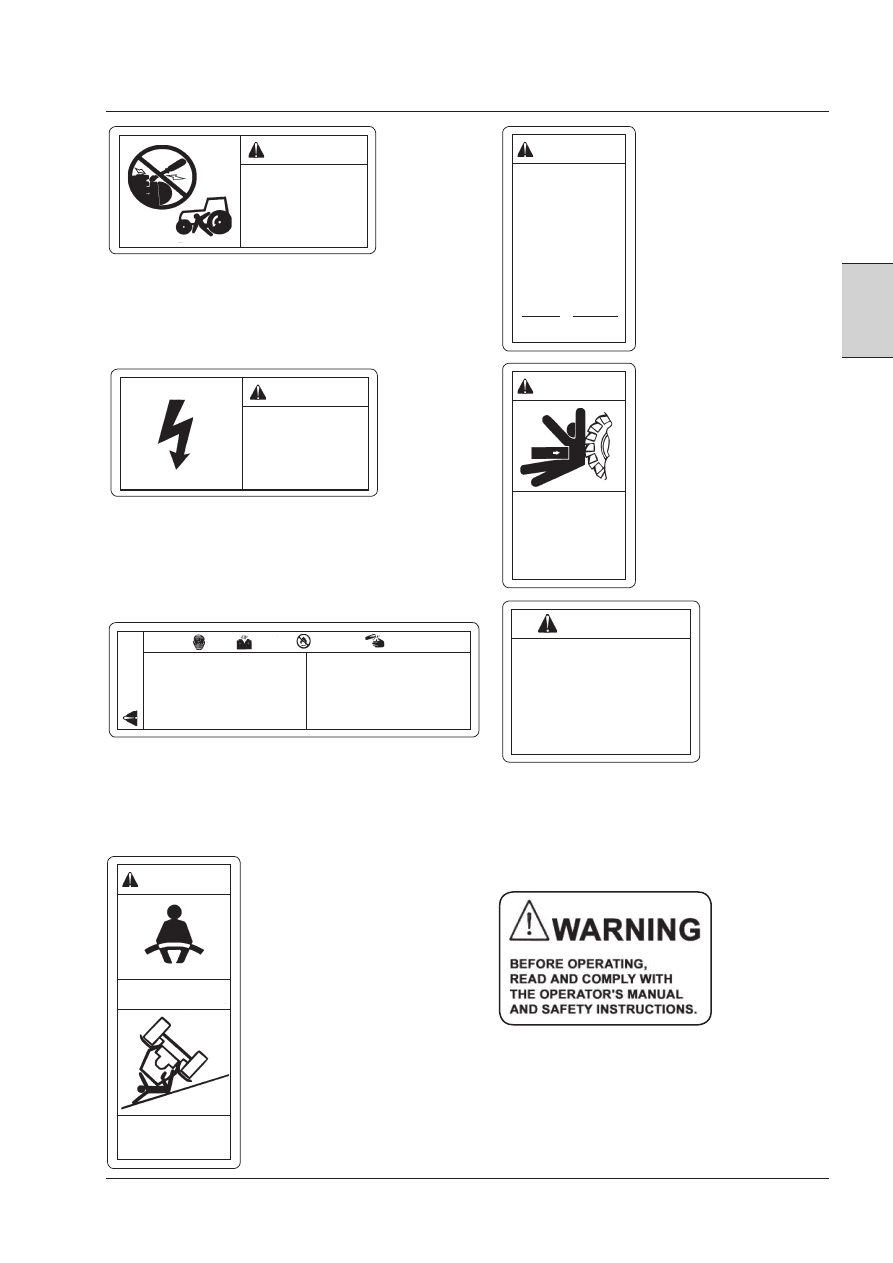

DECAL 5

Danger of electric shock. Always discon-
nect the negative cable from the battery
before carrying out any repairs on the
electrical system.

DANGER

Start only from seat

with transmission and

PTO in neutral.

Starting in gear kills.

WARNING

Remove negative ca-

bles from batteries

before removing sole-

noid cover and before

servicing the electrical

system.

DECAL 4

Risk of being crushed. ONLY start the
engine when you are sitting in the driver's
seat.

WARNING

Do not jump if

tractor tips

USE SEAT BELT.

Keep seat belt adjusted snugly

DECAL 7

Always fasten your safety belt.
DO NOT leave your seat if the
tractor overturns.

ANGER

Shield

eyes

Explosive

gas

Avoid sparks

and flame

Sulphuric

acid

EXPLOSIVE GASES

Always shield eyes and face from bat-

tery. Cigarettes, flames or sparks could

cause battery to explode.

Do not charge or use booster cables or

adjust post connections without proper

instructions or training.

POISON causes severe burns

Contains sulphuric acid. Avoid contact

with skin, eyes or clothing.

In event of accident flush with water

and call a physician immediately.

Keep out of reach of children.

DECAL 6

Batteries produce explosive gases. Keep clear of sparks and
naked flames.
KEEP OUT OF REACH OF CHILDREN.

WARNING

Stand clear when

using switch to

m o v e 3 - p o i n t

hitch.

DECAL 9
Only with electronic lift

Keep at a safe distance
from the tractor when using
external lift controls.

DECAL 8

Choose a suitable PTO
speed for the use of the
implement.

WARNING

Serious personal injury

or machine damage

may result from over-

speed of PTO driven

equipment.

Select tractor PTO speed

to match implement

specified speed.

Do not operate PTO

above recommended

maximum speed.

Nominal Maximum

540

630

1000

1170

DECAL 11
(If equipped with a front hitch - Located near the
multi-purpose control valve)

Read the Operator's Manual carefully before using.

DECAL 10

A PTO used at a speed over the max. allowed might
cause serious accidents.

Serious personal injury or ma-
chine damage may result from
overspeed of PTO driven equip-
ment.
Never use the 1000 rpm set-
ting with the 6 spline shaft
installed.

WARNING

Safety Notes

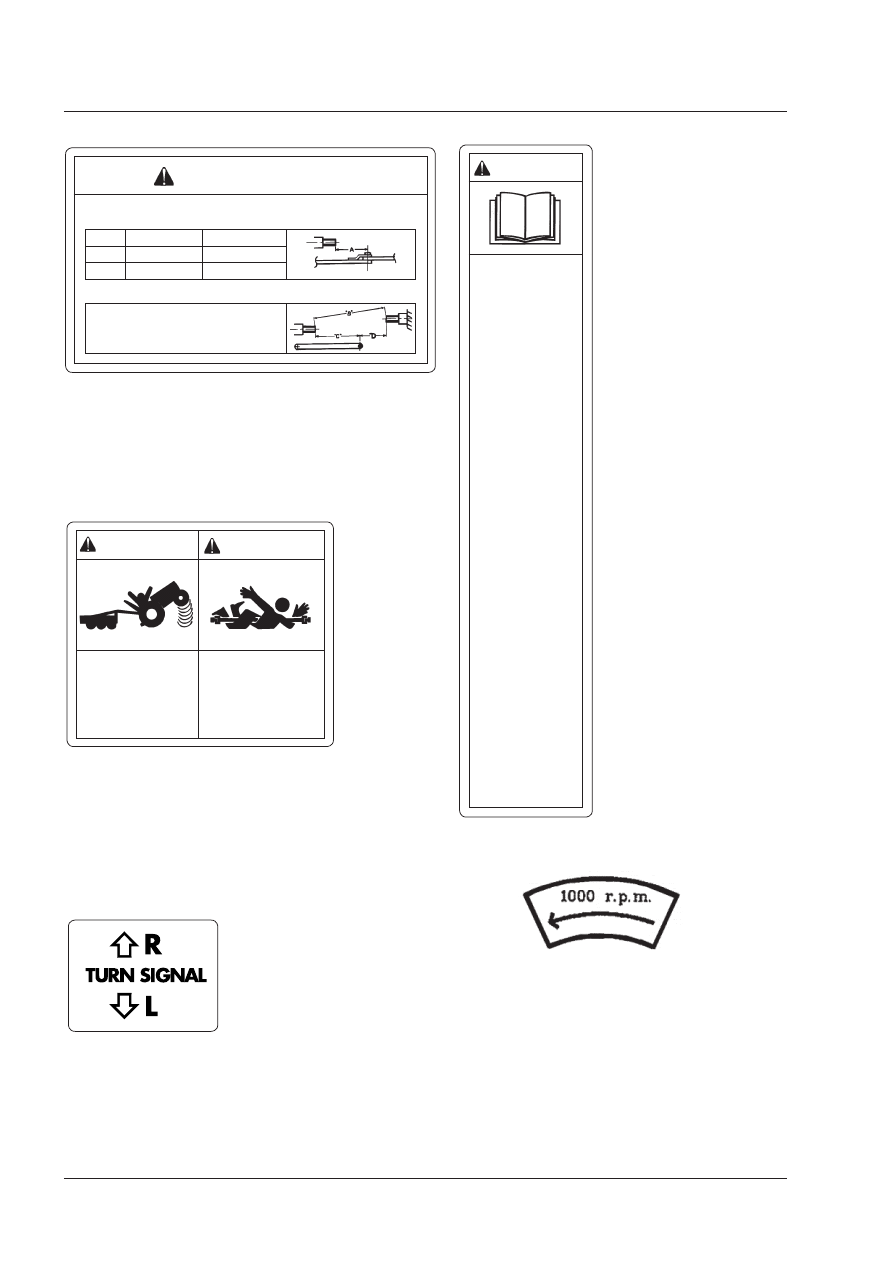

DECAL 16
Provided by the front PTO maker. (If equipped with
front PTO).

WARNING: Keep yourself at a safe distance.

Speed (rpm) and spinning of the front PTO shaft.

DECAL 14

Use the turn indicator to
signal a change in your drive
direction.

DANGER

Pull  only  from  ap-
proved  drawbar  or
lower  links  of  3-point
linkage  at  horizontal
position or below.

Rotating driveline con-
tact may cause serious
injury or death.
Keep all driveline, tractor
and equipment shields in
place during operation.

DECAL 13

Only use an approved drawbar to tow implements.
Danger of entanglement: Keep well away from spin-
ning shafts.

WARNING

Personal injury could result from PTO driveline separation.

1. Drawbar supplied provides standard distance “A”. Do not change.

2. Three-point link distance “C” and mounter implement distance “D” may not be
standard.

PTO

SHAFT SIZE DISTANCE “A”

540

35mm (1.38 in) 356mm (14.0 in)

1000 35mm (1.38 in) 406mm (16.0 in)

Measure distance “B” over complete lift range for

tractor and implement combination. Select driveline

length to ensure that driveline will not bottom out at

minimum distance “B” and will have sufficient overlap

at maximum distance.

DECAL 12

Warning: Separation of the PTO drive line might cause seri-
ous accidents. Adjust the connections carefully.

CAUTION

Read the operator instruc-

tion Book for safety in-

formation and operating

instructions.

Fasten your seat belt be-

fore tractor operation.

Start engine only when

seated in operator’s seat.

Make sure everyone is

clear of tractor and equip-

ment before starting en-

gine or operation.

Keep all shields, covers

and guards in place and

stay away from moving

parts while engine is run-

ning.

Place transmission shift

lever in neutral and apply

parking brake before us-

ing external 3-point hitch

controls.

Apply parking brake,

lower equipment, stop

engine and remove key

before leaving the tractor

unattended.

Wait for all movement to

stop before servicing trac-

tor or equipment.

Securely support or block

lifted implements which

must be in the raised

position for servicing or

adjustment.

Couple brake pedals to-

gether for road travel.

Use flashing warning

lights and SMV emblem

when on public roads,

except where prohibited

by law.

Always drive with care and

attention.

DECAL 15

WARNING: Consult the opera-

tion and maintenance manual
for information about safety and
how to use the tractor.

Controls - Cab

Section 3

Controls - Cab

Controls - Cab

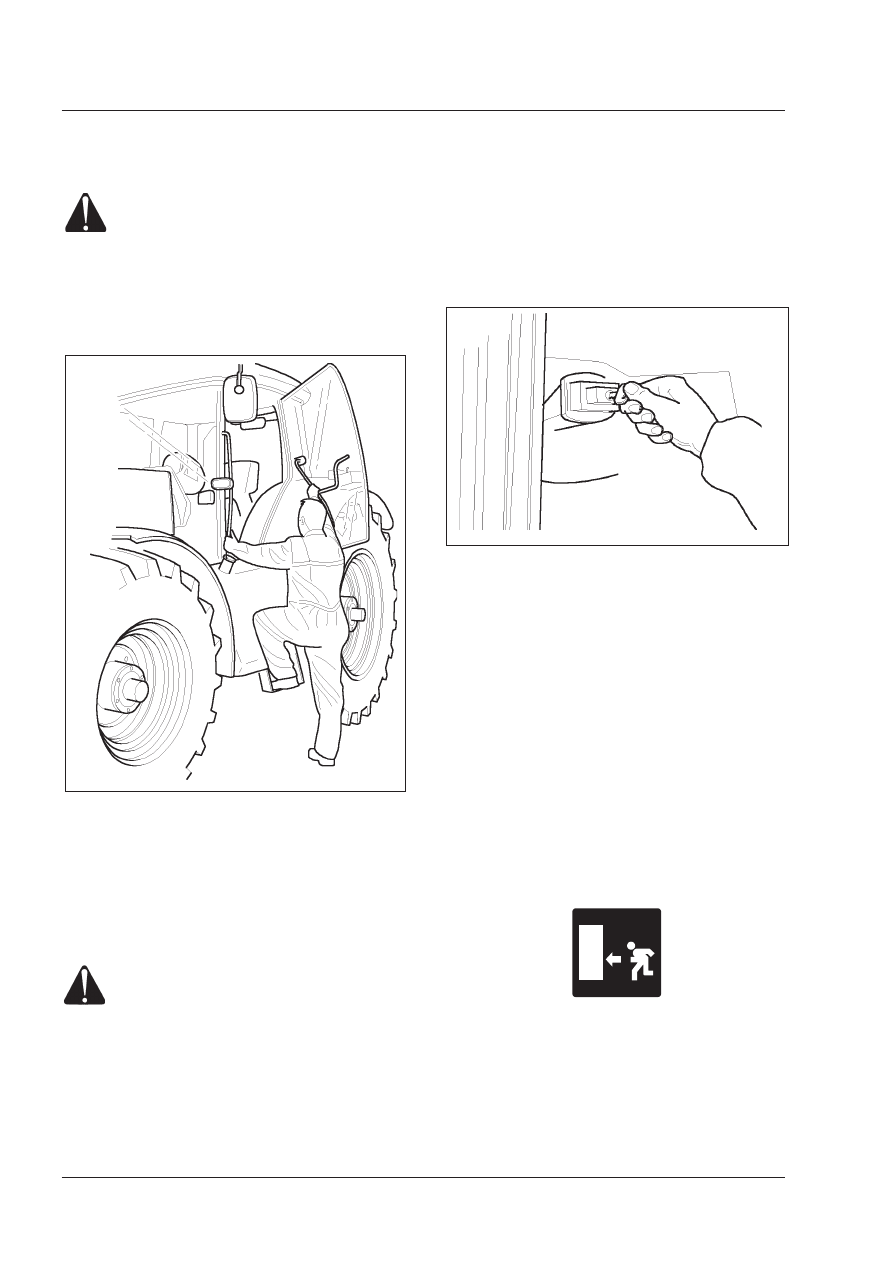

WARNING: Do not jump on or off the tractor.
It may cause injuries. Always face the tractor,
use the hand rails and steps, and get on or
off slowly. Maintain a minimum three point
contact to avoid falling (both hands on rails
and one foot on the step, or one hand on the
hand rail and both feet on the steps).

When entering or leaving the tractor, use the left-hand
door whenever possible. If you enter or leave the tractor
through the right-hand door, avoid interference with the
control levers.

TRACTOR ACCESS

[4.1.e]

Cab Door Lock

The ignition key is also used to lock or unlock the cab
door from the outside.

Cab emergency exit

[4.1.d]

The rear window of the cab may be used as an emer-
gency exit.

Access to the tractor with cab

If you have to get out the cabin an emergency and it is
not possible to use the left door: turn the engine off,
open the rear door by means of the central handle and
get out quickly.
