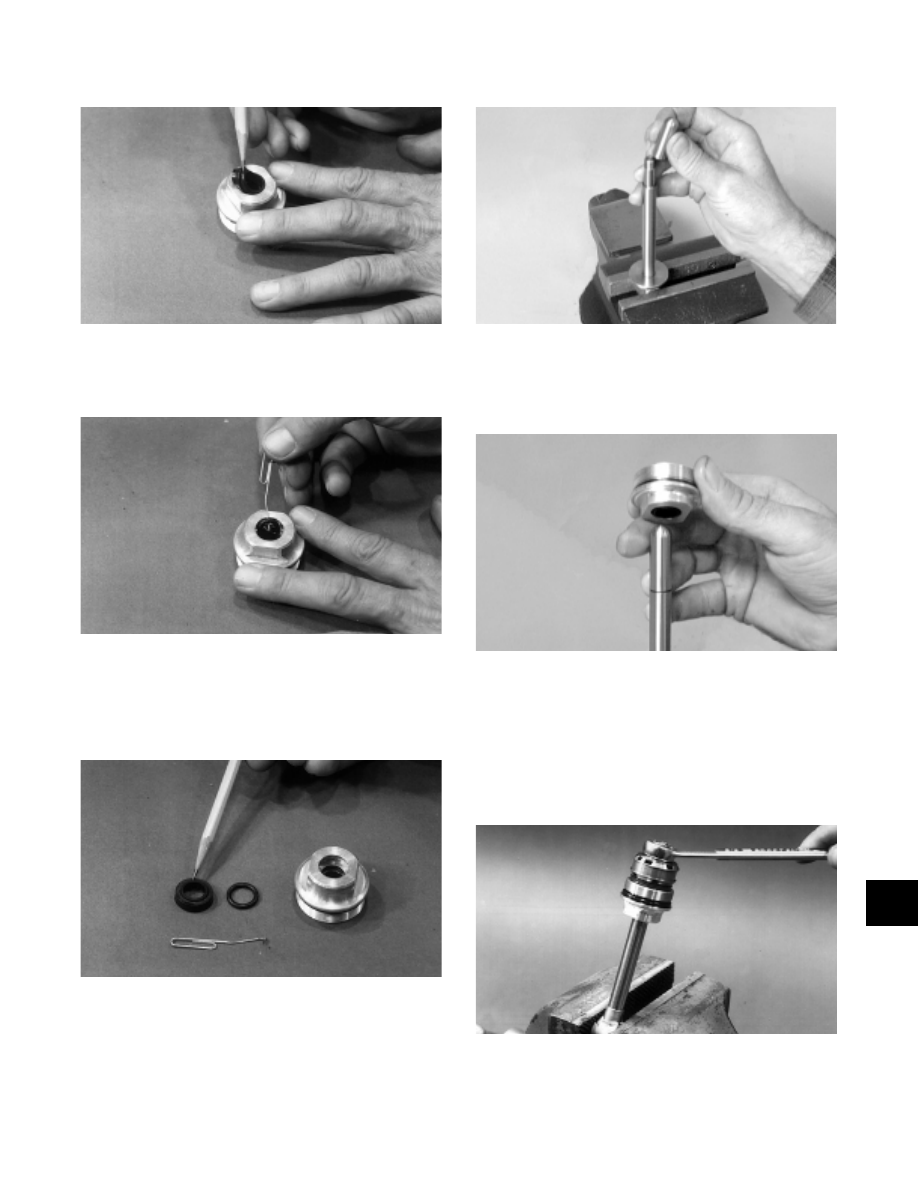

Fig. 9-545 AG257 5. Using a small paper clip bent on one end, remove the inner O-ring. Fig. 9-546 AG258 ASSEMBLING AND INSTALLING 1. Install new O-ring and inner rubber wiper into the shaft bearing cap; then install outer plastic wiper. Fig. 9-547 AG259 2. Inspect the shoulder or step of the shaft for sharp edges or a burr. Smooth up with #400 grit sand 3. Put Bearing Cap Installation Tool (p/n 0644-268) over the threaded end of the shaft. Fig. 9-548 AP114DA 4. Put a small amount of light grease on the seal and slide the bearing cap over the tool and onto the Fig. 9-549 AP115DA 5. On a front arm adjuster shock, install the spacer washer on shaft and install adjuster piston in the 6. Install piston valve assembly. Tighten the self-locking nut to 2.1-2.8 kg-m (15-20 ft-lb). Fig. 9-550 AG280 9 9-175 |
