Snowmobile Arctic Cat (2000 year). Manual - part 131

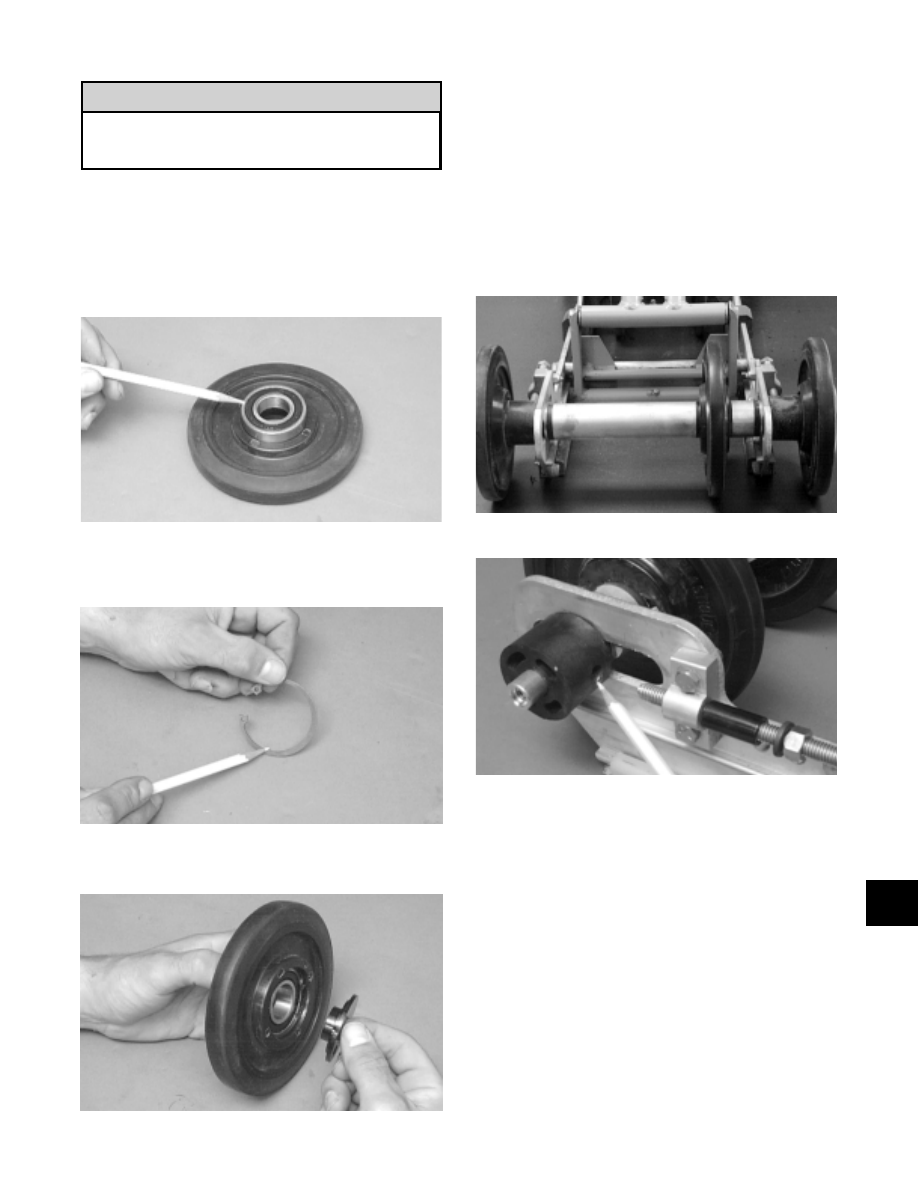

Do not remove the bearing unless it is absolutely
necessary. The bearing will be damaged during
removal.

A. Remove the wheel insert and the snap ring.

B. Using a hydraulic press, press the bearing out the

inside of the wheel.

C. Press the new bearing (on its outer race) into the

idler wheel.

Fig. 9-110

AG538D

D. Install the snap ring making sure the “sharp side”

is directed away from the bearing.

Fig. 9-111

AG539D

E. Install the insert.

Fig. 9-112

AG540D

ASSEMBLING

1. In order from the right-hand side, slide the axle through

the slide rail axle bracket; then place a flat washer, short
spacer with bushings, inner idler wheel with insert, long
spacer with bushings, and flat washer on the axle. Slide
the axle through the opposite slide rail axle bracket.
Place the plastic adjuster bushings on the axle (on the
outside of each axle bracket). Make sure the hole in the
adjuster bushing is aligned directly with the adjusting
bolt.

Fig. 9-113

AG805D

Fig. 9-114

AG551D

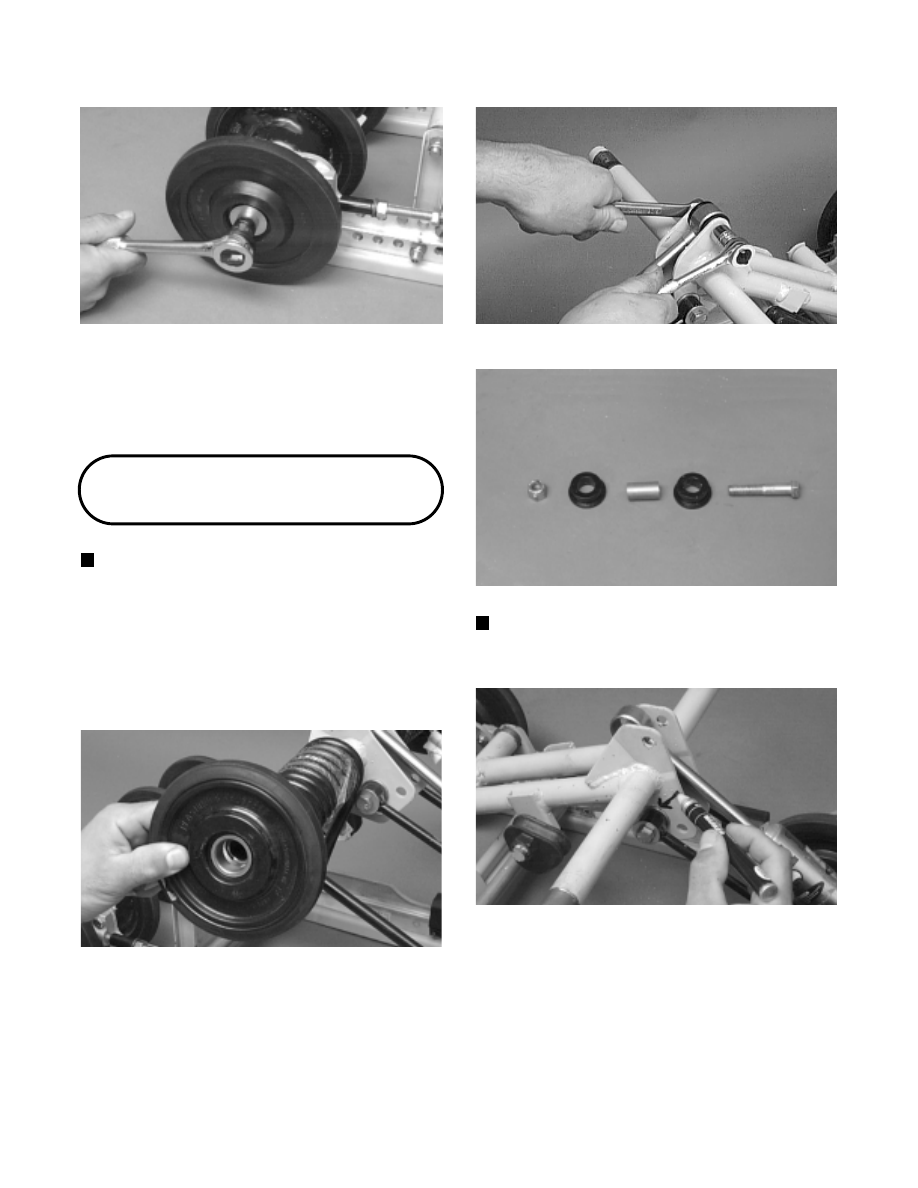

2. Place the outer idler wheels on the axle (with the

large flat of the insert directed inward) and secure
with two cap screws (coated with red Loctite #271)
and large flat washers. Tighten cap screws to 3.2
kg-m (23 ft-lb).

! CAUTION

9-47

Fig. 9-115

AG548D

3. Adjust track alignment (see Track Alignment in this

sub-section).

4. Adjust track tension deflection (see Track Tension

in this sub-section).

Idler Arm

NOTE: The skid frame must be removed for this

procedure (see Removing Skid Frame in this
sub-section).

DISASSEMBLING

1. Remove the rear upper idler wheels and springs (see

Rear Upper Idler Wheels/Rear Springs in this
section).

Fig. 9-116

AG545D

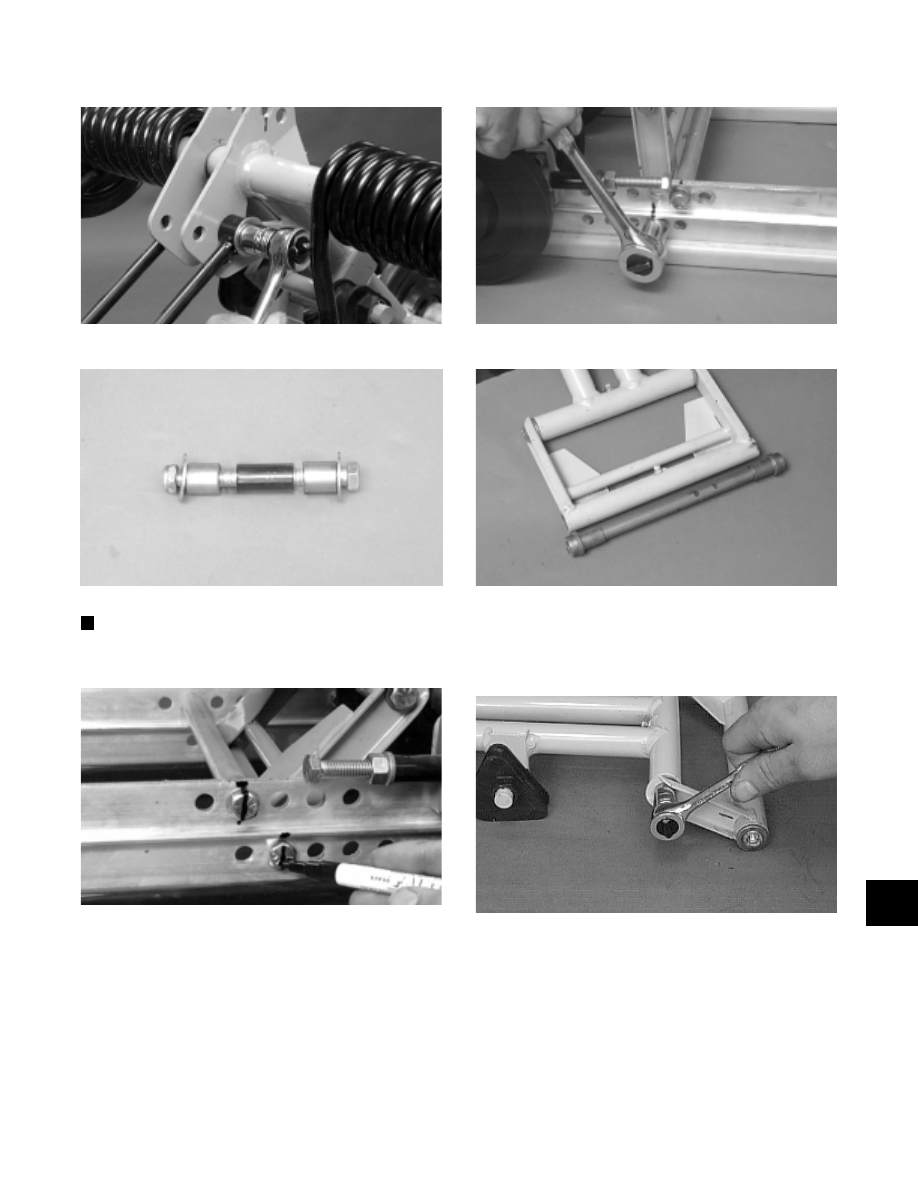

2. Remove the cap screw and lock nut securing the

upper shock eyelet to the idler arm. Account for a
spacer, lock nut, and bushings.

Fig. 9-117

AG467D

Fig. 9-118

AG553D

NOTE: Mark the hole that the upper shock links

are mounted in for assembly purposes.

Fig. 9-119

AG554D

3. Remove the cap screw and lock nut securing the

upper shock links to the idler arm. Account for a
lock nut, spacer, flat washers, and axle links.

9-48

Fig. 9-120

AG682D

Fig. 9-121

AG556D

NOTE: Note the mounting hole from which the

rear arm was removed for assembly purposes.

Fig. 9-122

AG683D

4. Remove the cap screw and lock nut securing the

rear arm to the slide rail. Account for the serrated
axles and axle tube.

Fig. 9-123

AG558D

Fig. 9-124

AG560D

5. Remove the cap screw and lock nut securing the

rear arm to the idler arm. Account for the aluminum
axle and bushing assemblies.

Fig. 9-125

AG477D

9-49

Fig. 9-126

AG561D

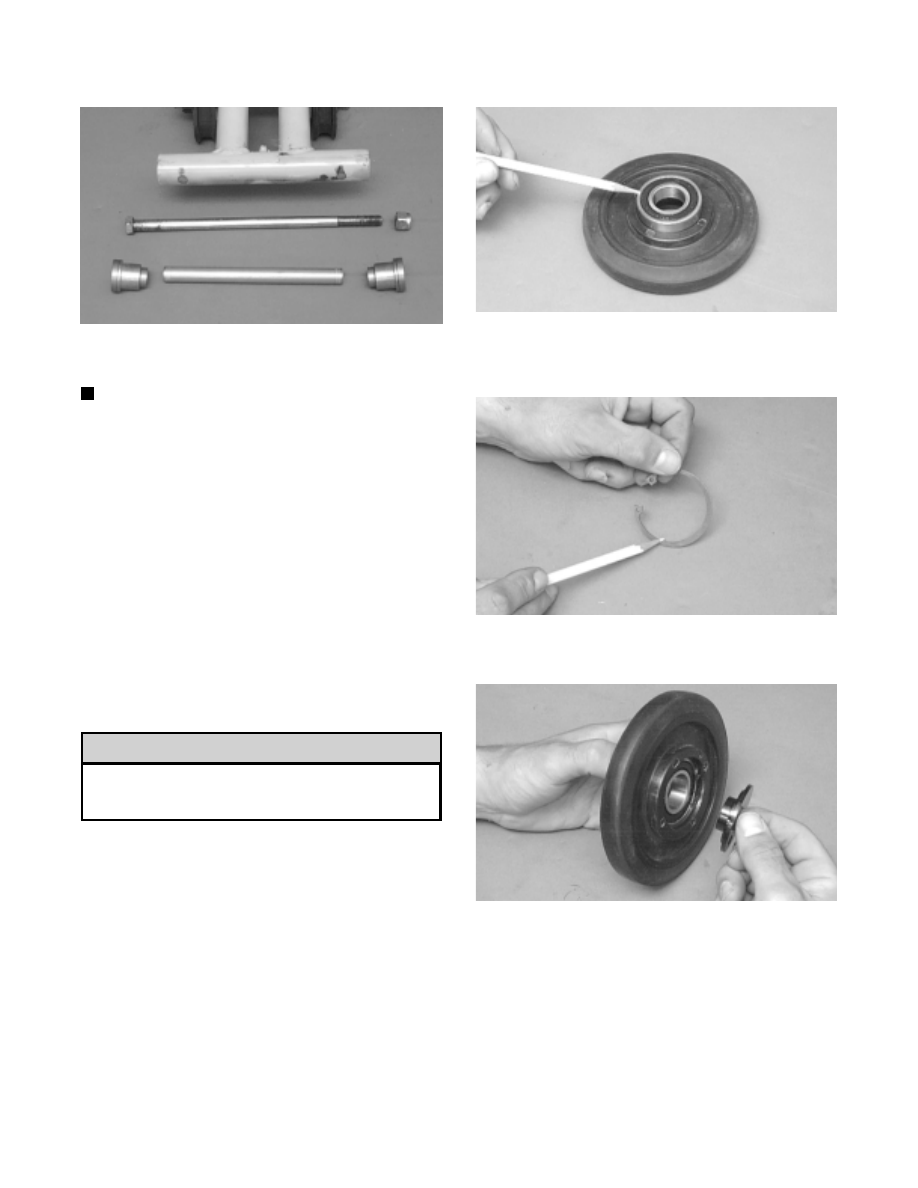

CLEANING AND INSPECTING

NOTE: Whenever a part is worn excessively,

cracked, or damaged in any way, replacement is
necessary.

1. Clean the bearings with a clean cloth.

2. Inspect each idler wheel for cracks or damage.

3. Inspect the bushings (located in the arm pivot area)

for wear or damage.

4. Inspect all welds and the tubing of the upper arm for

cracks or unusual bends.

5. Inspect the two adjusting cams for damage.

6. Rotate the idler wheel bearings (by hand) and check

for binding or roughness.

7. If a bearing must be replaced, use this procedure.
