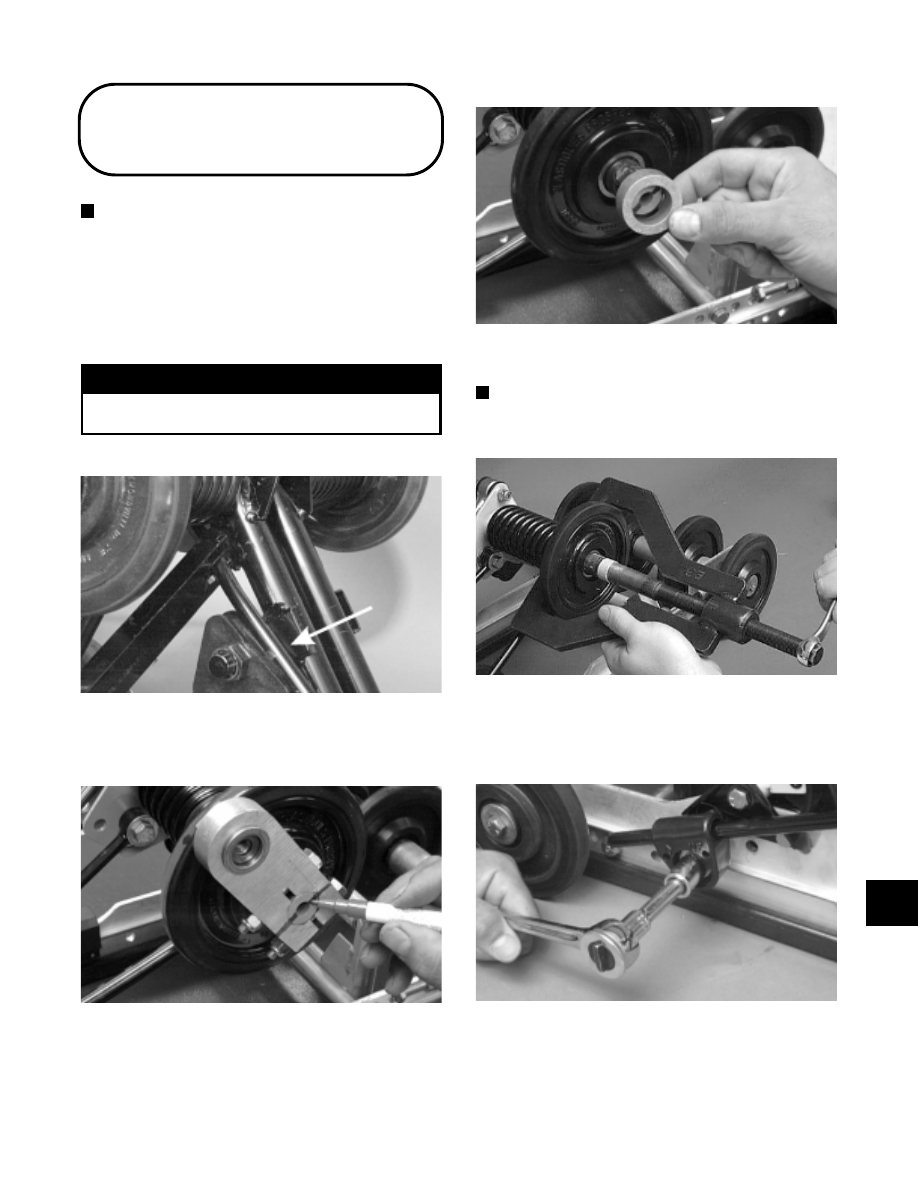

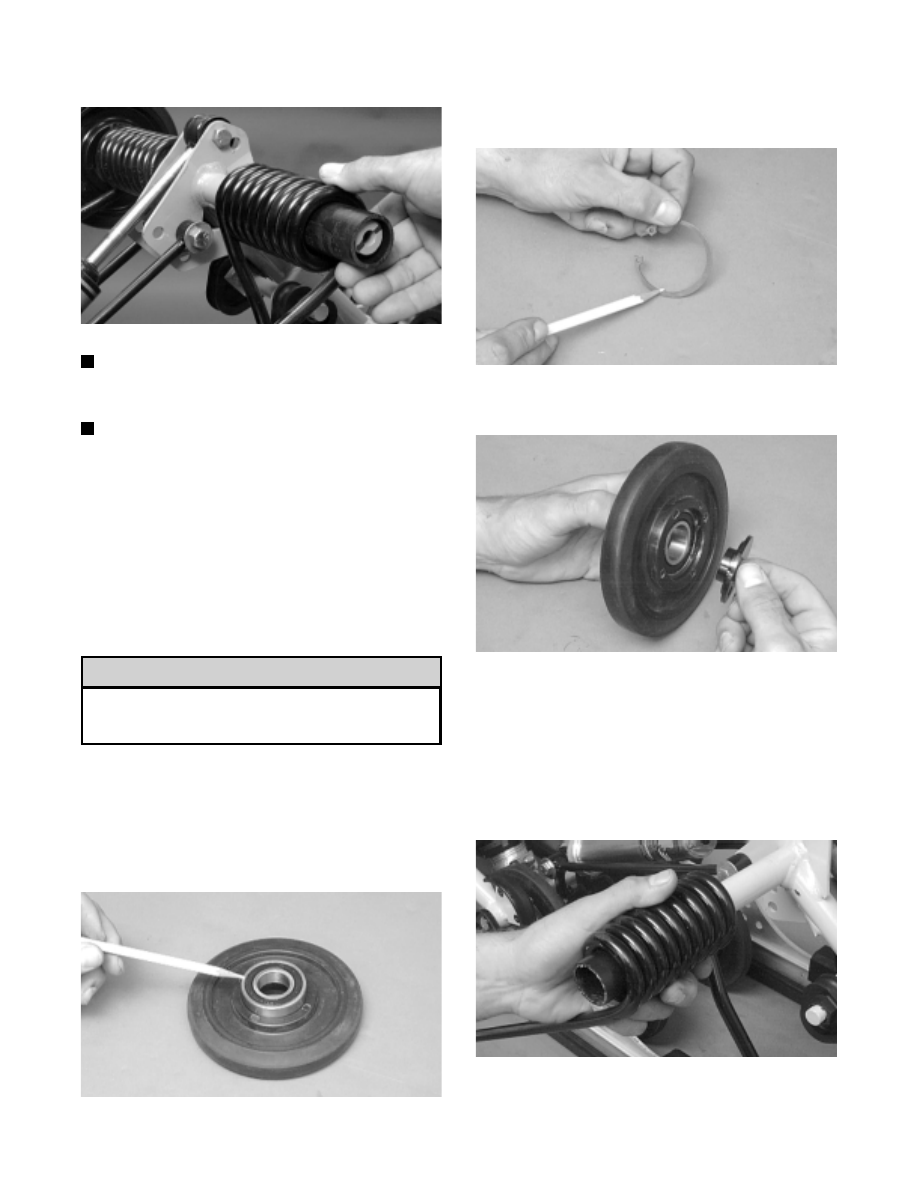

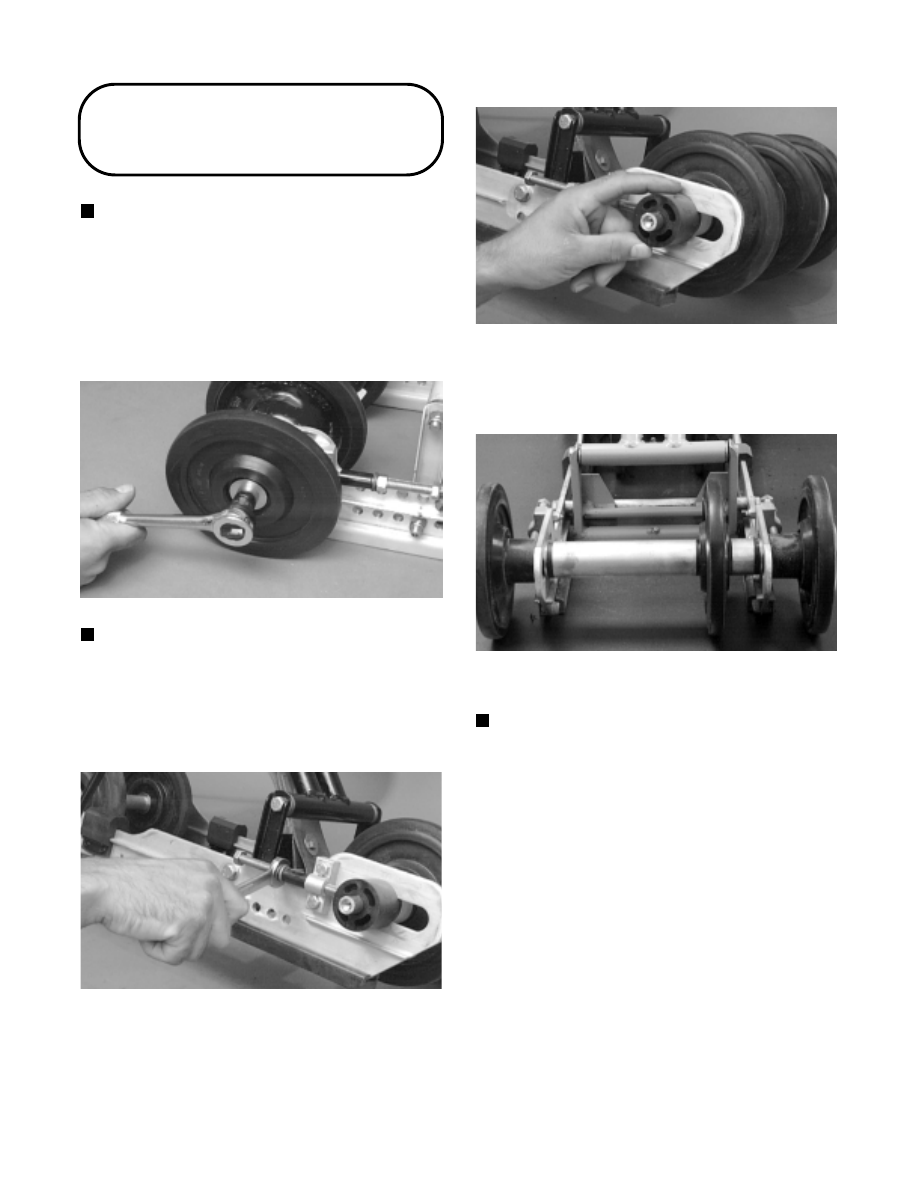

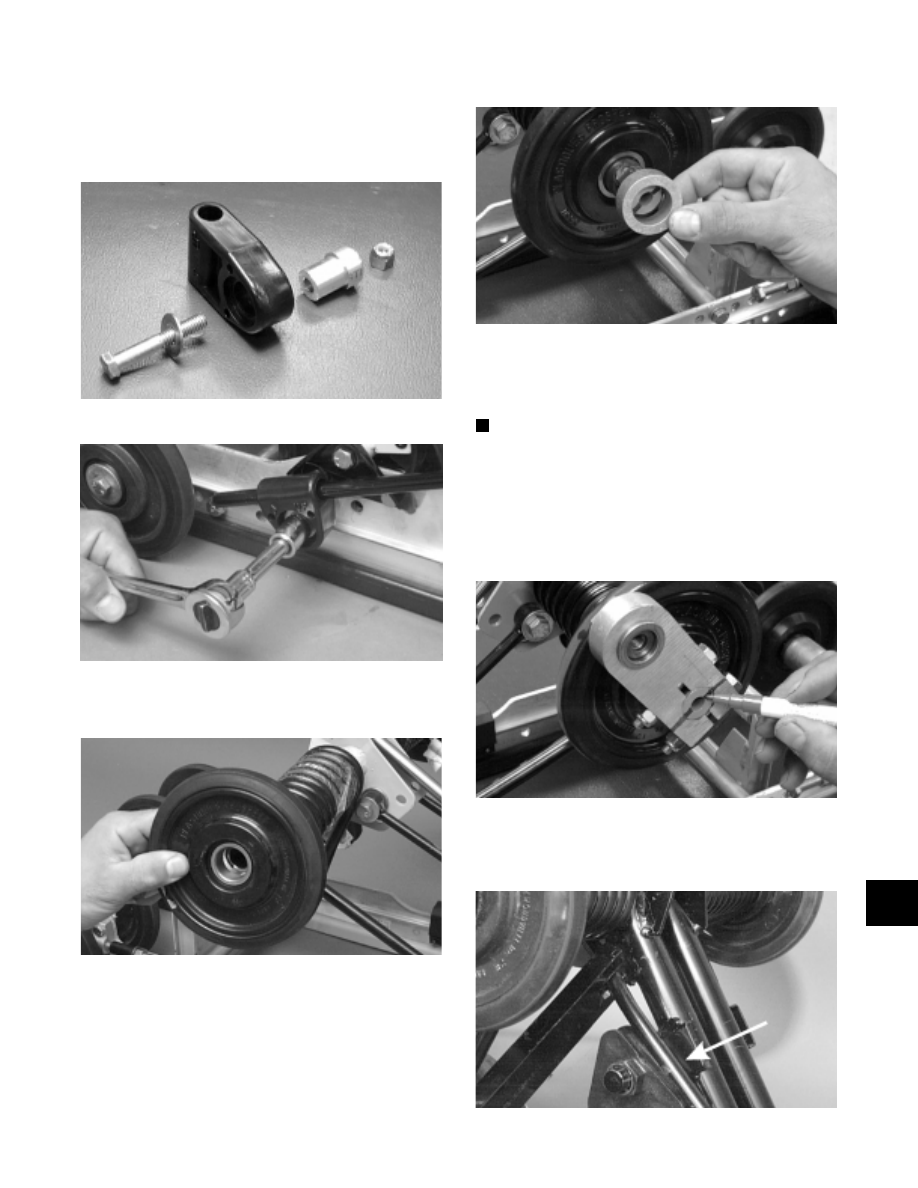

Rear Upper Idler Wheels/Rear Springs NOTE: The skid frame must be removed for this procedure (see Removing Skid Frame in this REMOVING 1. Using the Rear Suspension Spring Tool (p/n 0144-311), remove the spring from the adjusting ! WARNING Care must be taken when removing the spring or Fig. 9-90 AG624DA 2. Mark the offset pivot idler and the idler arm for assembly purposes. Fig. 9-91 AG675D 3. Remove the cap screws securing the offset pivot idler arm assembly to the idler arm; then remove the Fig. 9-92 AG677D 4. Remove the idler wheel. NOTE: It may be necessary to use the Idler Wheel Puller Kit (p/n 0644-122) to remove the wheel. Fig. 9-93 AG461D 5. Remove the cap screw and flat washer securing the spring slide to the rail. Account for a slide block and Fig. 9-94 AG593D 6. Remove the spring and sleeve from the idler arm. 9 9-43 |
