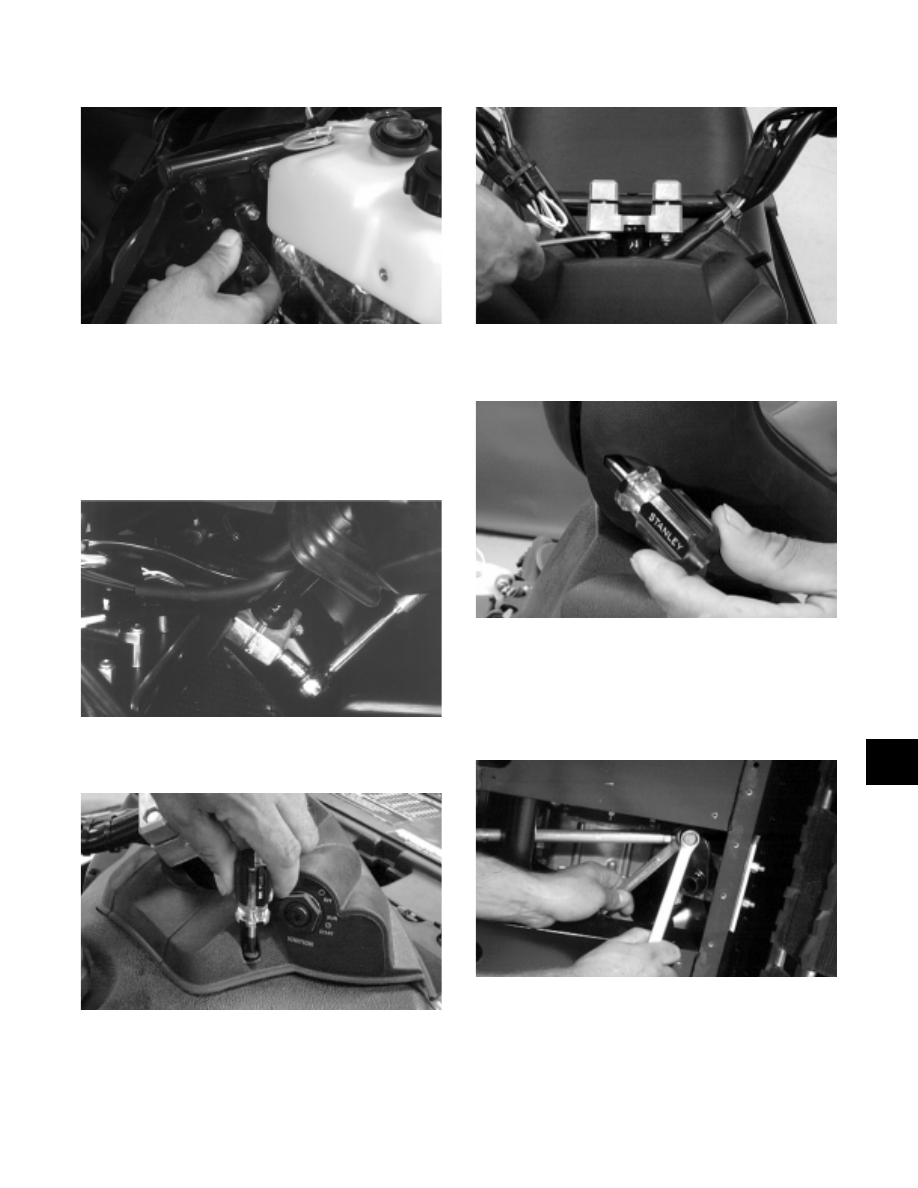

Fig. 7-26 AL149D 7. On the upper end of the steering post, apply a light oil to the bearing halves and place into position Fig. 7-27 AL090 8. Secure the console with the Phillips-head screws. Fig. 7-28 AL142D 9. Place the adjuster block, handlebar assembly, and adjuster caps into position; then secure with four Fig. 7-29 AL147D 10. Secure the handlebar pad. Fig. 7-30 AL136D 11. Tip the snowmobile on its side; then place the tie rod into position. Secure with a cap screw (coated Fig. 7-31 AL146D 12. On the lower end of the steering post, apply a light oil to the bearing halves and place into position 7 7-7 |
