Snowmobile Arctic Cat (2000 year). Manual - part 46





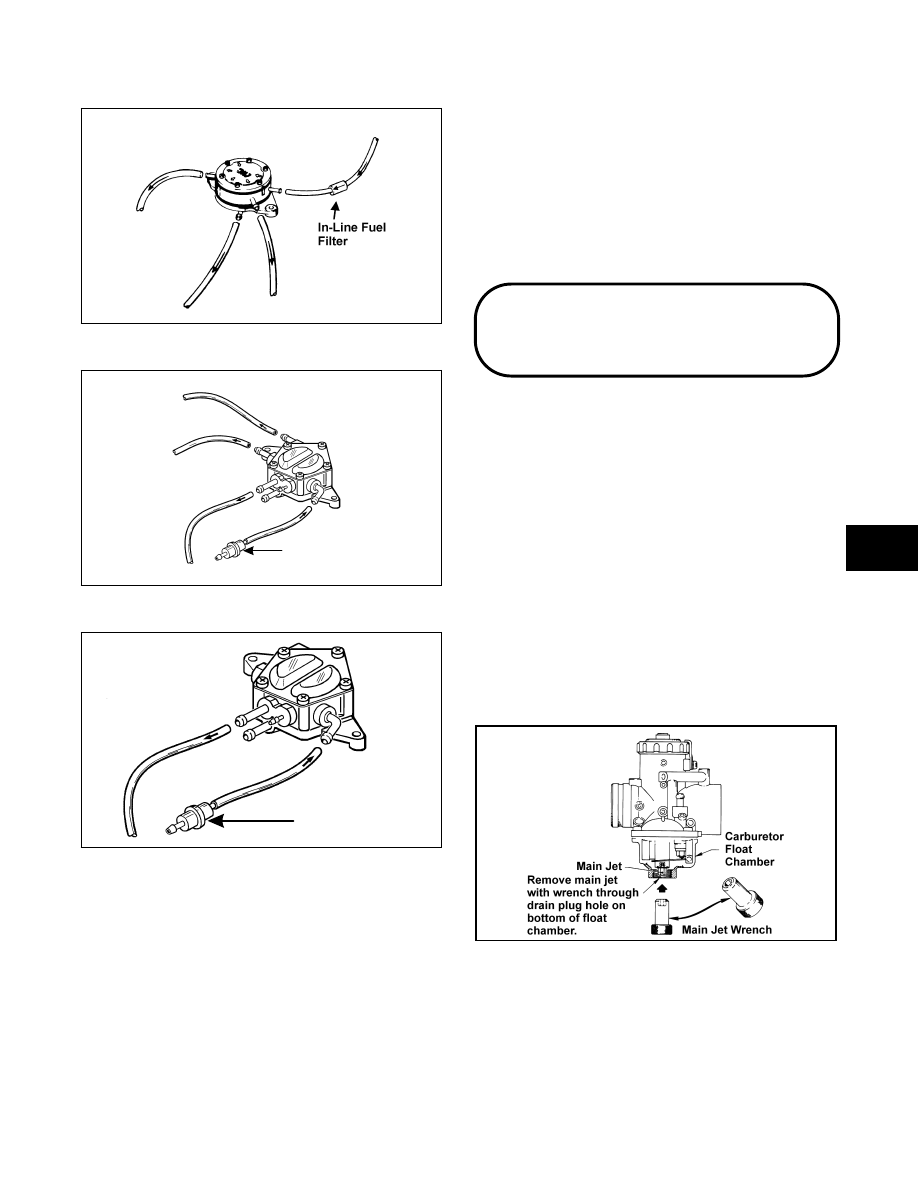

Fig. 4-3

725-067A

Fig. 4-4

734-292A

Fig. 4-5

734-292B

4. Check the hoses to ensure that all are correctly

connected; then check for cracks. If any cracks are
evident in the hoses, replace them making sure none
are against any hot or moving parts. Hoses must fit
tightly. If hoses do not fit tightly, cut 6 mm (1/4 in.)
from the end and install.

5. Check the impulse hose for cracks or any possible

air leaks. The hose must fit tightly at both ends. If
loose or cracked, replace the hose.

6. Check each carburetor vent hose for kinks or

obstructions; remove any obstructions.

7. Check each carburetor float chamber drain hose for

water or debris. If seen, clean by removing the plug
and draining the drain hose into a small container.

8. Check the gas tank vent hose and fuel hose for

obstructions; remove any obstructions.

9. Turn the fuel shut-off valve to the OPEN position.

Changing Main Jet(s)

(VM-Style)

The carburetor main jet(s) must be changed in
conjunction with the changes in temperature, altitude,
and type of gasoline being used.

1. Loosen each carburetor flange clamp and remove

each carburetor from the intake flange and boot.

2. Remove the drain plug and O-ring from each

carburetor float chamber and drain the gas into
either a small container or an absorbent towel.

3. Using the Main Jet Wrench (p/n 0644-065), thread

the main jet out of each carburetor. Account for the
baffle ring. Install the new main jet with baffle ring
and tighten securely.

4. Install the drain plug  and O-ring; then tighten

securely.

Fig. 4-6

0728-054

5. Install and secure each carburetor.

In-Line
Fuel Filter

In-Line Fuel Filter

4

4-3

Changing Main Jets

(TM-Style)

The carburetor main jets must be changed in
conjunction with the changes in temperature, altitude,
and type of gasoline being used.

1. Remove the machine screw and washer securing the

mounting plate (for the ignition coil and fuel pump)
to the air-intake silencer.

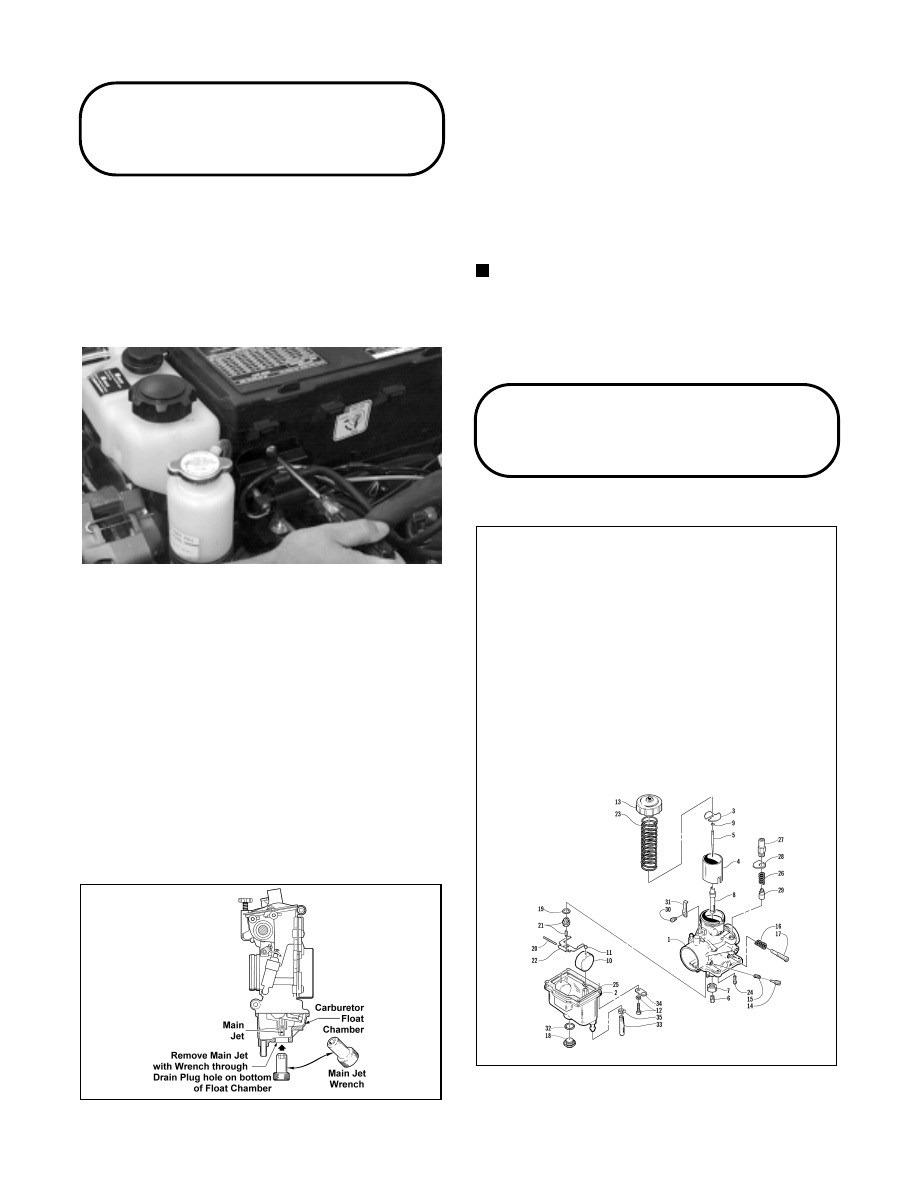

Fig. 4-7

AN613D

2. Remove the screws securing the air-intake silencer;

then  move  the  silencer forward and  out of the
engine compartment.

3. Loosen the carburetor flange clamps and slide the

carburetors out of the intake flanges. Tilt the
carburetors forward to access the main jets.

4. Remove the drain plug (with O-ring) from each

carburetor float chamber and drain the gas into
either a small container or an absorbent towel.

5. Using the Main Jet Wrench (p/n 0644-065), thread

the main jet out of each carburetor. Account for the
washer. Install the new main jet and washer and
tighten securely.

Fig. 4-8

0734-280

6. Install the drain plug  with  O-ring; then  tighten

securely.

7. Push the carburetors back into position and into the

intake flanges; then tighten the flange clamps.

8. Place the air-intake silencer into position in the

engine compartment making sure the carburetors
are properly positioned in the boot and secure with
the screws.

NOTE: Make sure the pilot air jet hoses are

properly positioned in the air-intake silencer.

9. Place the ignition coil/fuel pump mounting plate

into position on the air-intake silencer and secure
with the machine screw and washer.

Carburetor

Schematics

Fig. 4-9

0734-559

KEY

1. Mixing Body Assy
2. Float Chamber
3. Plate
4. Piston Valve
5. Jet Needle
6. Main Jet
7. Baffle Ring
8. Needle Jet
9. E-Clip

10. Float
11. Cap
12. Screw w/Spring Washer
13. Mixing Body Top
14. Pilot Air Screw
15. Spring
16. Spring
17. Idle Speed Screw
18. Drain Screw

19. Washer
20. Float Pin
21. Needle Valve Assy
22. Float Arm
23. Piston Valve Spring
24. Pilot Jet
25. Gasket
26. Starter Plunger Spring
27. Starter Plunger Cap
28. Washer
29. Starter Plunger
30. Screw w/Spring Washer
31. Plate
32. O-Ring
33. Drain Hose
34. Plate
35. Clamp

VM-32

4-4

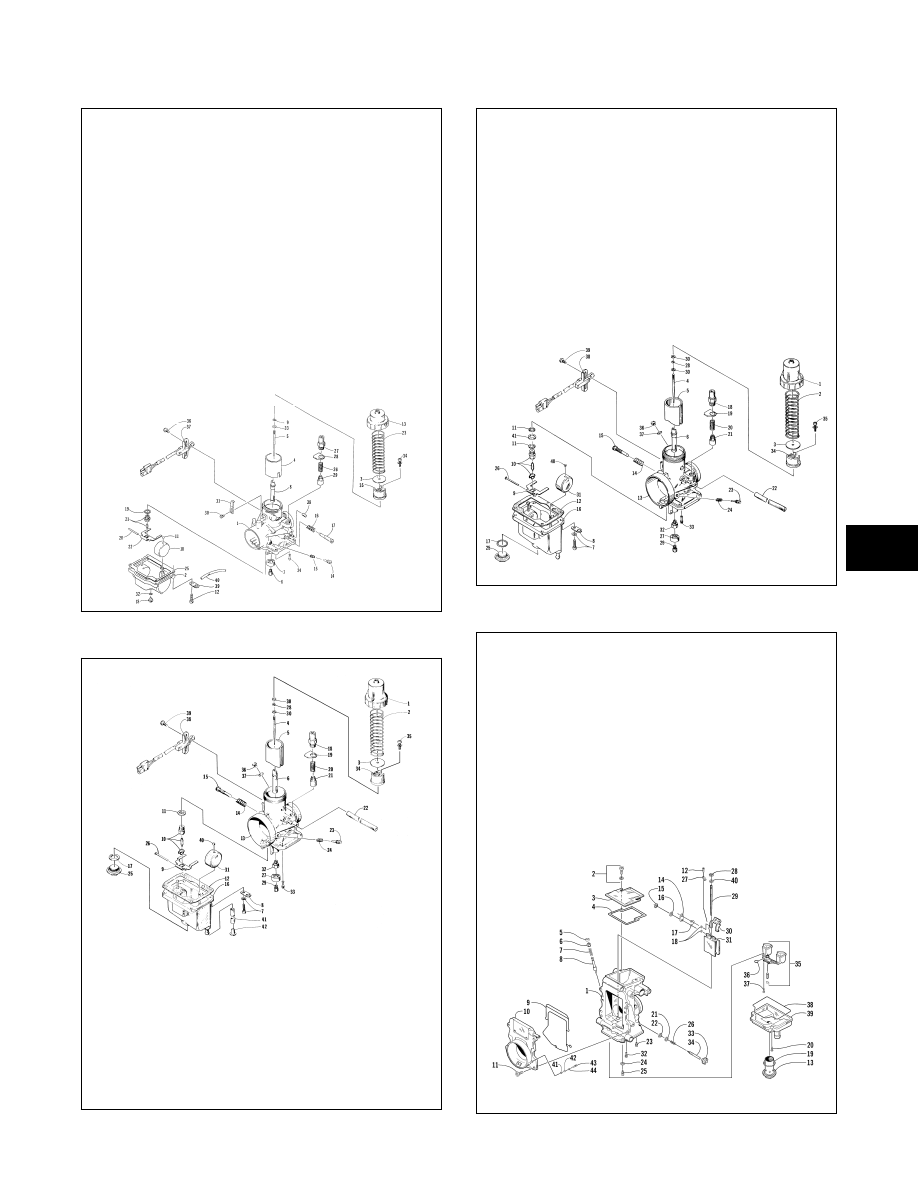

Fig. 4-10

0728-769

Fig. 4-11

0733-907

Fig. 4-12

0733-676

Fig. 4-13

0735-335

KEY

1. Mixing Body Assy
2. Float Chamber
3. Plate
4. Piston Valve
5. Jet Needle
6. Main Jet
7. Baffle Ring
8. Needle Jet
9. E-Clip

10. Float
11. Cap
12. Screw w/Spring

Washer

13. Mixing Body Top
14. Pilot Air Screw
15. Spring
16. Spring
17. Idle Speed Screw
18. Drain Screw
19. Washer
20. Float Pin
21. Needle Valve Assy

22. Float Arm
23. Piston Valve Spring
24. Pilot Jet
25. Gasket
26. Starter Plunger Spring
27. Starter Plunger Cap
28. Washer
29. Starter Plunger
30. Screw w/Spring

Washer

31. Plate
32. O-Ring
33. Washer
34. Screw w/Washer
35. Magnet
36. Self-Tapping Screw
37. Magnetic Switch
38. Cap
39. Plate
40. Hose

VM-34

KEY

1. Mixing Body Top
2. Piston Valve Spring
3. Plate
4. Jet Needle
5. Piston Valve
6. Needle Jet
7. Screw w/Spring

Washer

8. Plate
9. Float Arm

10. Needle Valve Assy
11. Washer

12. Gasket
13. Mixing Body Assy
14. Spring
15. Idle Speed Screw
16. Float Chamber
17. Packing
18. Starter Plunger

Cap

19. Washer
20. Spring
21. Plunger
22. Tube

23. Pilot Air Screw
24. Spring
25. Drain Plug
26. Float Arm Pin
27. Baffle Ring
28. E-Clip
29. Main Jet
30. E-Clip Washer
31. Float
32. Screw Guide
33. Pilot Jet
34. Magnet Block
35. Machine Screw
36. Machine Screw
37. Washer
38. Magnetic Switch
39. Cap Screw
40. Cap
41. Hose
42. Drain Plug

VM-36

VM-38

KEY

1. Mixing Body Top
2. Piston Valve

Spring

3. Plate
4. Jet Needle
5. Piston Valve
6. Needle Jet
7. Screw w/Spring

Washer

8. Plate
9. Float Arm

10. Needle Valve Assy
11. Washer
12. Gasket
13. Mixing Body Assy

14. Spring
15. Idle Speed Screw
16. Float Chamber
17. Washer
18. Starter Plunger

Cap

19. Washer
20. Spring
21. Plunger
22. Air Vent Tube
23. Pilot Air Screw
24. Spring
25. Drain Plug
26. Float Arm Pin

27. Baffle Ring
28. E-Clip
29. Main Jet
30. E-Clip Washer
31. Float
32. Screw Guide
33. Pilot Jet
34. Magnet Block
35. Screw w/Washer
36. Cap Screw
37. Washer
38. Magnetic Switch
39. Cap Screw
40. Cap
41. Washer

TM-38 (Triple)

KEY

1. Mixing Body
2. Screw w/Washer
3. Top Cap
4. Gasket
5. Plunger Cap
6. Guide
7. Spring
8. Starter Plunger
9. Gasket

10. Funnel Assy
11. Screw
12. Screw
13. Plug
14. Plate
15. E-Clip
16. Washer
17. Clip

18. Bushing
19. O-Ring
20. Screw
21. Washer
22. Washer
23. Starter Jet
24. Washer
25. Main Jet
26. Spring
27. Plate
28. E-clip
29. Jet Needle
30. Lever Assy

31. Throttle Valve
32. Pilot Jet
33. Cap
34. Fuel Mixture Screw
35. Float Assy
36. O-Ring
37. Screw
38. O-Ring
39. Float Chamber
40. Washer
41. O-Ring
42. Washer
43. Adjuster
44. Spring

4

4-5

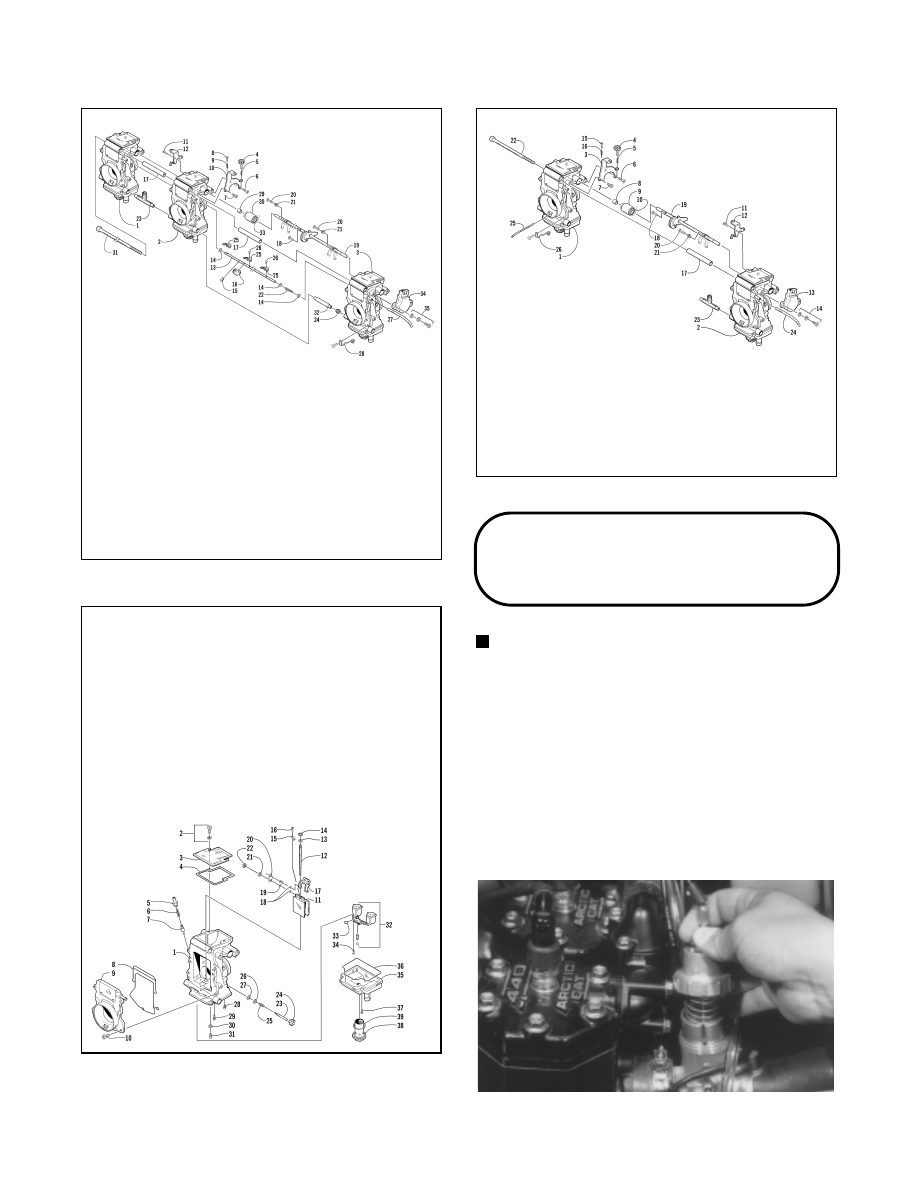

Fig. 4-14

0735-336

Fig. 4-15

0734-158

Fig. 4-16

0734-586

Removing Carburetor

(VM-Style)

NOTE: On twin and triple carburetor models,

remove the carburetors using this basic procedure.

1. Turn the fuel shut-off valve to the CLOSED

position.

2. Loosen the screw and lock plate securing the

mixing body top.

3. Remove the mixing body top by rotating it

counterclockwise; then remove the top with spring,
plate, jet needle with E-clip, and piston valve from
the carburetor.

Fig. 4-17

AH100

TM-38 (Triple)

KEY

1. Carburetor Assy
2. Carburetor Assy
3. Carburetor Assy
4. Idle Speed Screw
5. Spring
6. Screw
7. Screw
8. Screw
9. Spring

10. Bracket
11. Screw
12. Bracket
13. Shaft
14. Washers
15. E-Clip
16. Lever

17. Spacer
18. Screw
19. Throttle Lever

Shaft Assy

20. Lever Ring Screw
21. Synchronizing Nut
22. Spring
23. Inlet T-Fitting
24. Seal

KEY

1. Mixing Body
2. Screw w/Washer
3. Top Cap
4. Gasket
5. Plunger Cap
6. Spring
7. Starter Plunger
8. Gasket
9. Funnel Assy

10. Screw
11. Throttle Valve
12. Jet Needle
13. Washer
14. E-Clip

25. Spring
26. Washer
27. Rubber Washer
28. Starter Jet
29. Pilot Jet
30. Washer
31. Main Jet
32. Float Assy
33. O-Ring
34. Screw
35. Float Chamber
36. O-Ring
37. Screw
38. Drain Plug
39. O-Ring

15. Retaining Plate
16. Retaining Plate

Screw

17. Lever Assy
18. Bushing
19. Clip
20. Plate
21. Washer
22. E-Clip
23. Fuel Mixture

Screw

24. Cap

TM-38/TM 40 (Twin)

KEY

1. Carburetor Assy
2. Carburetor Assy
3. Bracket
4. Idle Speed Screw
5. Spring
6. Screw
7. Screw
8. Spacer
9. Sleeve

10. Spring
11. Screw
12. Bracket
13. Sensor Assy
14. Screw w/Washers
15. Screw
16. Spring

TM 38/TM 40

(Twin)

25. Lever
26. Machine Screw
27. Hose
28. Clip
29. Spacer
30. Sleeve
31. Bolt
32. Spacer
33. Spring
34. Sensor Assy
35. Screw

17. Spacer
18. Screw
19. Throttle Lever Shaft Assy
20. Lever Ring Screw
21. Synchronizing Nut
22. Bolt
23. T-Fitting
24. Hose
25. Hose
26. Clip

4-6
