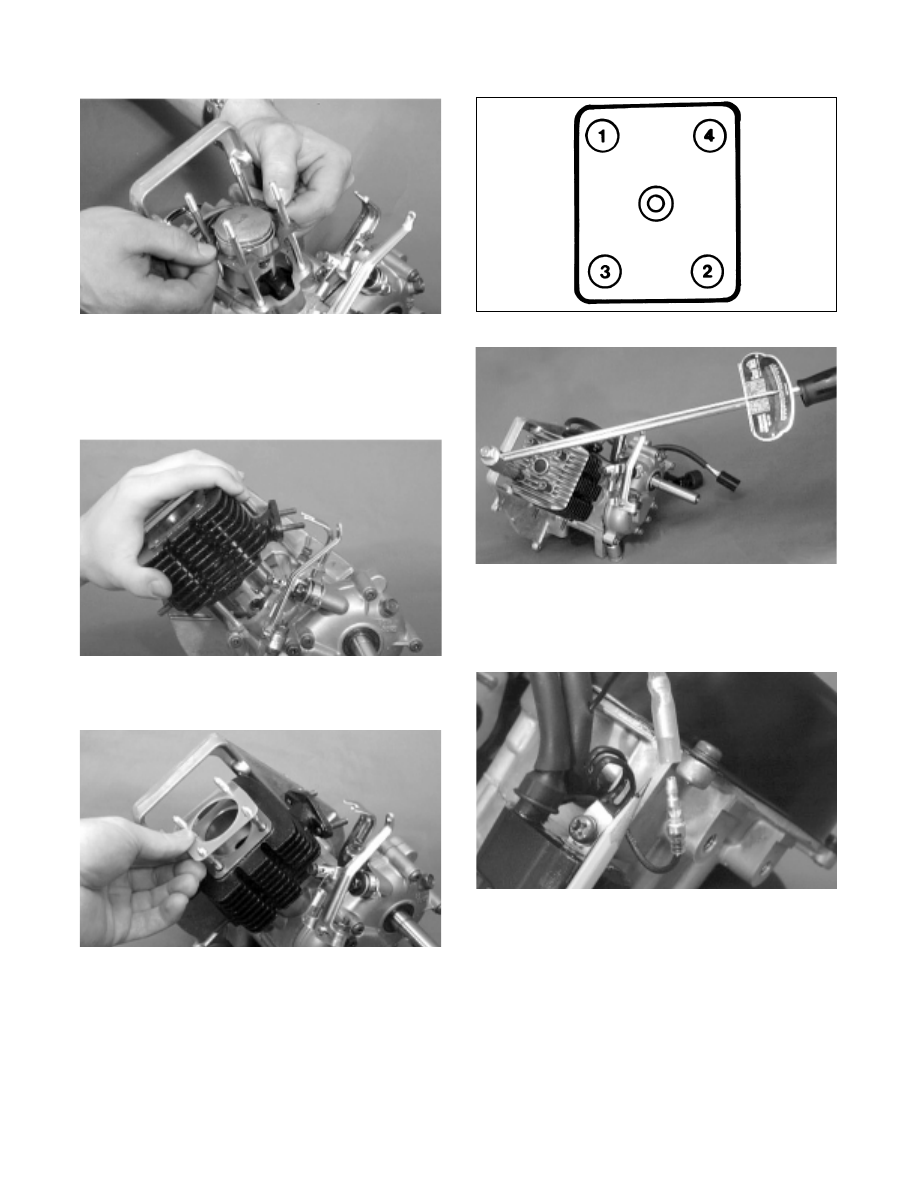

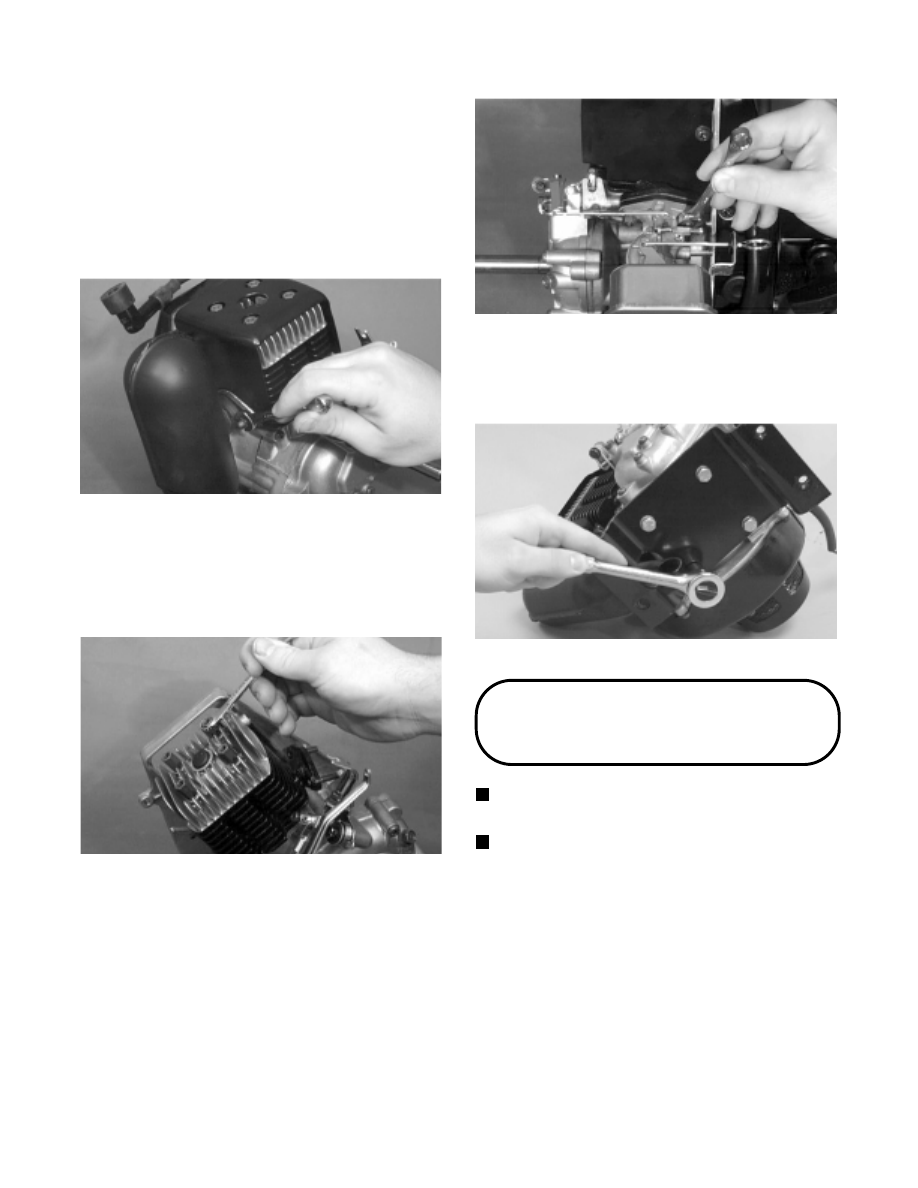

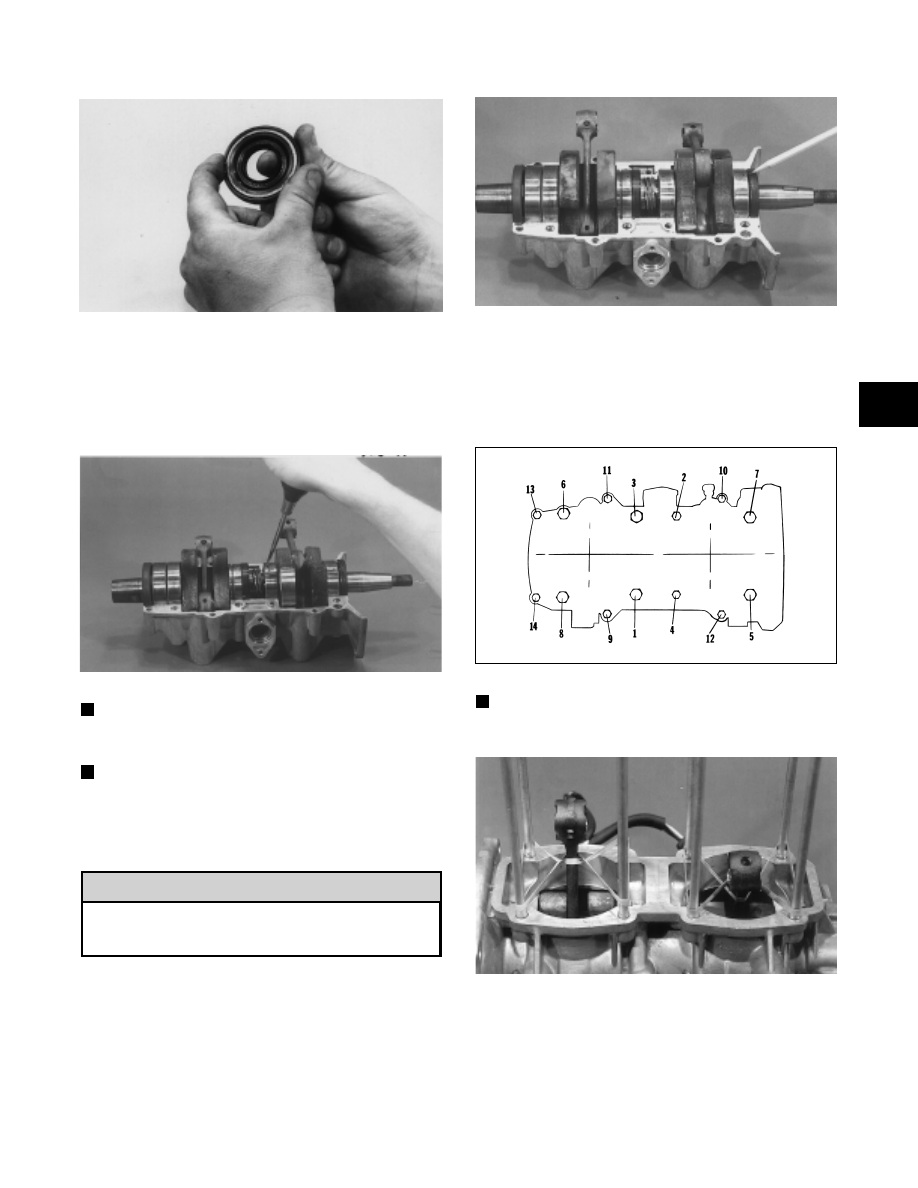

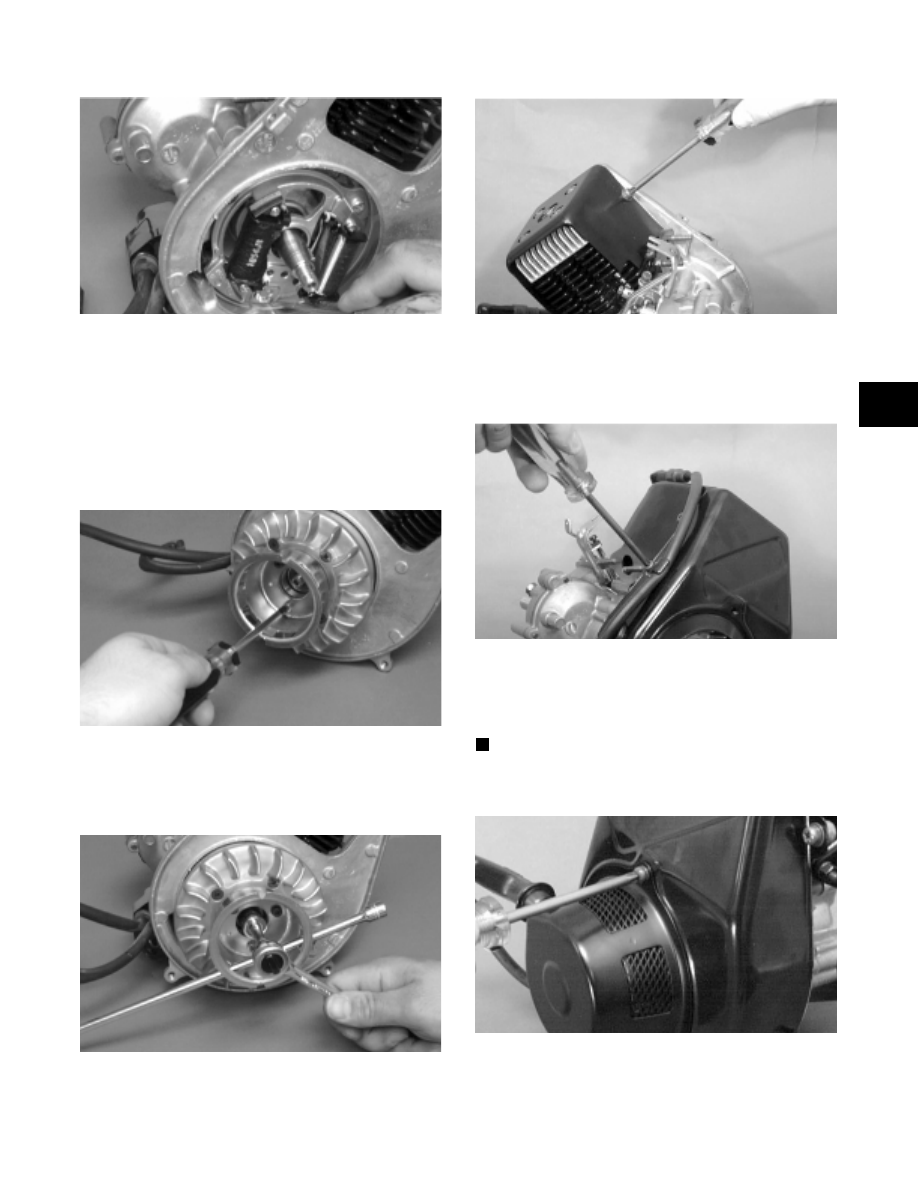

Fig. 2-233 A770 21. Using a piston holder to “square” the piston, compress the piston rings and install the cylinder. Fig. 2-234 A771 22. Place the head gasket into position. Fig. 2-235 A772 23. Place the cylinder head into position. The head must be positioned so the cooling air flow is parallel to 24. Tighten cylinder head nuts to 0.8-1.2 kg-m (6-9 ft-lb) using the pattern shown. Fig. 2-236 725-318A Fig. 2-237 A773 25. Place the ignition coil into position; then secure with two screws and lock washers. Connect the coil lead Fig. 2-238 A757 26. When installing the stator plate, align the scribed marks made during disassembly. Apply red Loctite 2-56 |
