9-33

SPEC

CABLE ROUTING

E

F

G

H

I

J

K

8

9

0

A

B

C

D

1

2

3

4

5

6

7

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

[

\

]

^

9-34

SPEC

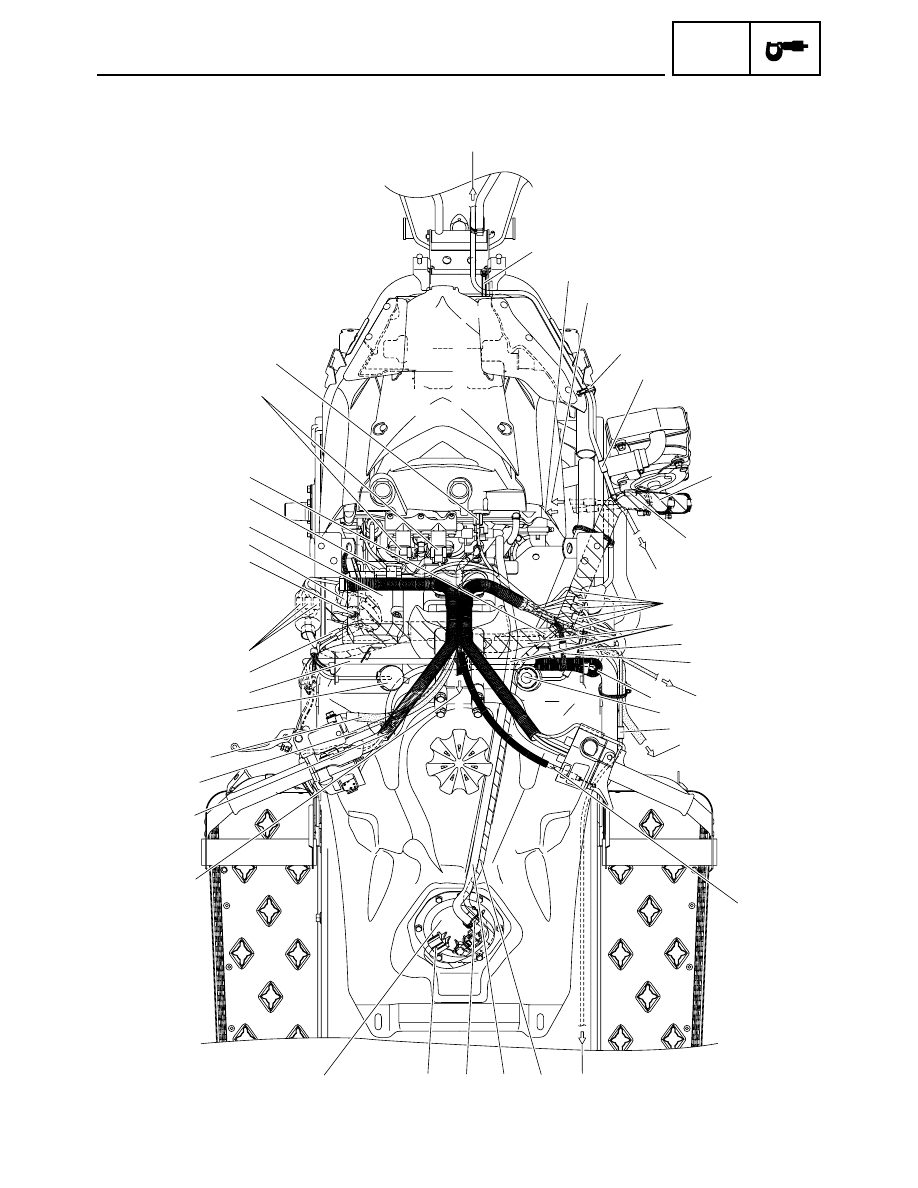

CABLE ROUTING

PZ50VT/PZ50MP

1 To the coolant temperature sen-

sor

2 To the knock sensor
3 Pass the plastic band through

the hole in the frame front cross
member, and then fasten the
wire harness with the band. Posi-
tion the buckle of the plastic
band on top of the leads, with the
end facing to the left.

4 Headlight lead coupler
5 Wire harness
6 Radiator fan motor lead coupler
7 To the oil level switch
8 Right handlebar switch lead cou-

plers

9 Route the fuel hose and sub-wire

harness over the wire harness
and fuel tank breather hose.

0 Fasten the sub-wire harness,

parking brake cable, and brake
hose to the steering gate with the
plastic band.

A Fasten the sub-wire harness and

fuel tank breather hose to the
steering gate with the plastic
band.

B To parking brake
C Fuel tank breather hose
D Main switch
E Tail/brake light harness coupler
F To the brake caliper
G Throttle cable
H To the tail/brake light
I Fuel pump lead
J Fuel hose
K Fasten the fuel pump lead at the

white tape to the fuel hose with
the plastic band.

L Fuel pump coupler
M Fuel pump
N To the multi-function meter

9-35

SPEC

CABLE ROUTING

E

F

G

H

I

J

K

8

9

0

A

B

C

D

1

2

3

4

5

6

7

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

[

\

]

^

9-36

SPEC

CABLE ROUTING

O Install the fuel tank breather hose

to the fuel tank with the hose
clamp. Be sure to connect the
hose end that does not have a
paint mark to the fuel tank.

P Parking brake cable
Q Brake hose
R Auxiliary DC jack
S Route the fuel tank breather

hose along the steering gate.

T Speed sensor coupler
U Left handlebar switch lead cou-

plers

V Install the frame ground lead ter-

minal and the Rectifier/regulator
using the same nut.

W Sub-wire harness coupler
X Rectifier/regulator
Y Crankshaft position sensor cou-

pler

Z Fuel pump coupler
[ Intake air pressure sensor cou-

pler

\ Intake air temperature sensor

coupler

] To the Headlight
_ Fasten the headlight lead cou-

pler to the frame front cross
member with the plastic band.
