9-25

SPEC

TIGHTENING TORQUE

CHASSIS

Parts to be tightened

Tightening torque

Remarks

Nm

m · kg

ft · lb

Front bumper

23

2.3

17

Wind shield bracket

16

1.6

11

(PZ50GT/PZ50FX/PZ50M)

Mirror

18

1.8

13

(PZ50VT/PZ50MP)

Headlight bracket

10

1.0

7.2

(PZ50/PZ50GT/PZ50FX/PZ50M)

Side panel

8

0.8

5.8

(PZ50/PZ50GT/PZ50FX/PZ50M)

Lower cover

8

0.8

5.8

Seat rail assembly bolt

47

4.7

34

(PZ50/PZ50GT/PZ50FX/PZ50M)

Seat rail assembly nut

23

2.3

17

(PZ50/PZ50GT/PZ50FX/PZ50M)

Seat

10

1.0 7.2

(PZ50/PZ50GT/PZ50FX/PZ50M)

Rider seat

23

2.3

17

(PZ50VT/PZ50MP)

Rear cover

7

0.7

5.1

(PZ50/PZ50GT/PZ50FX/PZ50M)

Side cover

11

1.1

8.0

(PZ50VT/PZ50MP)

Passenger grip warmer and frame

23

2.3

17

(PZ50VT/PZ50MP)

Passenger grip warmer and rear carrier

7

0.7

5.1

(PZ50VT/PZ50MP)

Rear side cover

8

0.8

5.8

(PZ50VT/PZ50MP)

Rear side lower cover

8

0.8

5.8

(PZ50VT/PZ50MP)

Passenger seat bracket

23

2.3

17

(PZ50VT/PZ50MP)

Passenger seat

7

0.7

5.1

(PZ50VT/PZ50MP)

Rear cover

8

0.8

5.8

(PZ50VT/PZ50MP)

Sub frame panel

7

0.7

5.1

(PZ50VT/PZ50MP)

Rear carrier

23

2.3

17

(PZ50VT/PZ50MP)

Tail/brake light assembly

10

1.0

7.2

(PZ50VT/PZ50MP)

Handlebar holder

15

1.5

11

Multi-function meter bracket

20

2.0

14

Steering joint and steering joint bracket

21

2.1

15

(PZ50VT/PZ50MP)

Steering joint bracket and steering column

16

1.6

11

(PZ50VT/PZ50MP)

Steering column and relay rod

21

2.1

15

Relay rod and steering control arm

21

2.1

15

Steering column (upper)

23

2.3

17

Steering column (lower)

23

2.3

17

Steering control arm and steering control arm
bracket

35

3.5

25

Steering control arm bracket and frame

25

2.5

18

Steering control arm and steering shaft

21

2.1

15

Steering shaft and steering arm

35

3.5

25

Steering arm pinch bolt

30

3.0

22

Steering shaft end locknut

25

2.5

18

Apply LOCTITE

®

Pivot arm bracket

35

3.5

25

Pivot arm bracket and relay arm

38

3.8

27

Pivot arm bracket and pivot arm shaft

90

9.0

65

Pivot arm shaft and idler arm

38

3.8

27

Relay arm and idler arm

38

3.8

27

Idler arm and tie rod

25

2.5

18

Tie rod and steering knuckle

28

2.8

20

Tie rod end locknut

25

2.5

18

Apply LOCTITE

®

Ski

48

4.8

35

Ski runner

19

1.9

14

Ski and ski handle (M8

× 55)

12

1.2

8.7

Ski and ski handle (M8

× 100)

17

1.7

12

9-26

SPEC

TIGHTENING TORQUE

Shock absorber (upper)

45

4.5

33

Shock absorber (lower)

45

4.5

33

Upper arm ball joint and upper arm

60

6.0

43

Upper arm and frame

45

4.5

32

Upper arm ball joint and steering knuckle

45

4.5

32

Lower arm and frame

65

6.5

47

Lower arm and steering knuckle

65

6.5

47

Stabilizer and stabilizer joint

45

4.5

32

(PZ50/PZ50FX/PZ50M)

Stabilizer joint and lower arm

34

3.4

25

(PZ50/PZ50FX/PZ50M)

Stabilizer bracket

7

0.7

5.1

(PZ50GT/PZ50VT/PZ50MP)

Stabilizer holder

34

3.4

25

Parts to be tightened

Tightening torque

Remarks

Nm

m · kg

ft · lb

9-27

SPEC

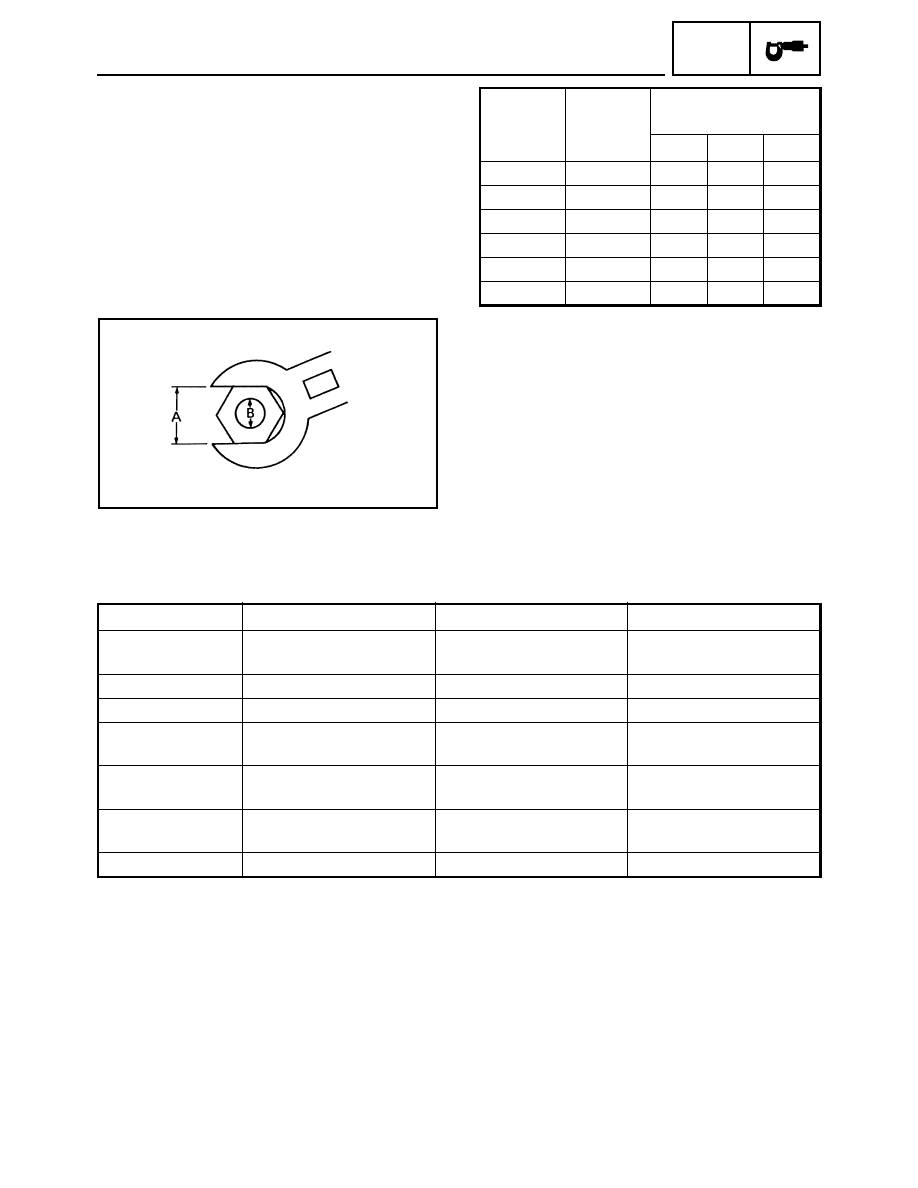

GENERAL TORQUE SPECIFICATIONS/

DEFINITION OF UNITS

GENERAL TORQUE
SPECIFICATIONS

This chart specifies torque for standard fasteners
with standard I.S.O. pitch threads. Torque specifi-
cations for special components or assemblies are
included in the applicable sections of this book. To
avoid warpage, tighten multi-fastener assemblies in
a crisscross fashion, in progressive stages, until full
torque is reached. Unless otherwise specified,
torque specifications call for clean, dry threads.
Components should be at room temperature.

A: Distance across flats
B: Outside thread diameter

DEFINITION OF UNITS

A

(nut)

B

(bolt)

General torque

specifications

Nm

m · kg

ft · lb

10 mm

6 mm

6

0.6

4.3

12 mm

8 mm

15

1.5

11

14 mm

10 mm

30

3.0

22

17 mm

12 mm

55

5.5

40

19 mm

14 mm

85

8.5

61

22 mm

16 mm

130

13.0

94

Unit

Read

Definition

Measurement

mm
cm

Millimeter
Centimeter

10

-3

 meter

10

-2

 meter

Length
Length

kg

Kilogram

10

3

 gram

Weight

N

Newton

1 kg

× m/sec

2

Force

Nm
m · kg

Newton meter
Meter kilogram

N

× m

m

× kg

Torque
Torque

Pa
N/mm

Pascal
Newtons per millimeter

N/m

2

N/mm

Pressure
Spring rate

L
cm

3

Liter
Cubic centimeter

—

Volume or capacity

r/min

Rotations per minute

—

Engine speed
