Snowmobile Yamaha Phazer PZ50W, PZ50GTW, PZ50FXW, PZ50MW, PZ50VTW, PZ50MPW. Manual - part 94





9-29

SPEC

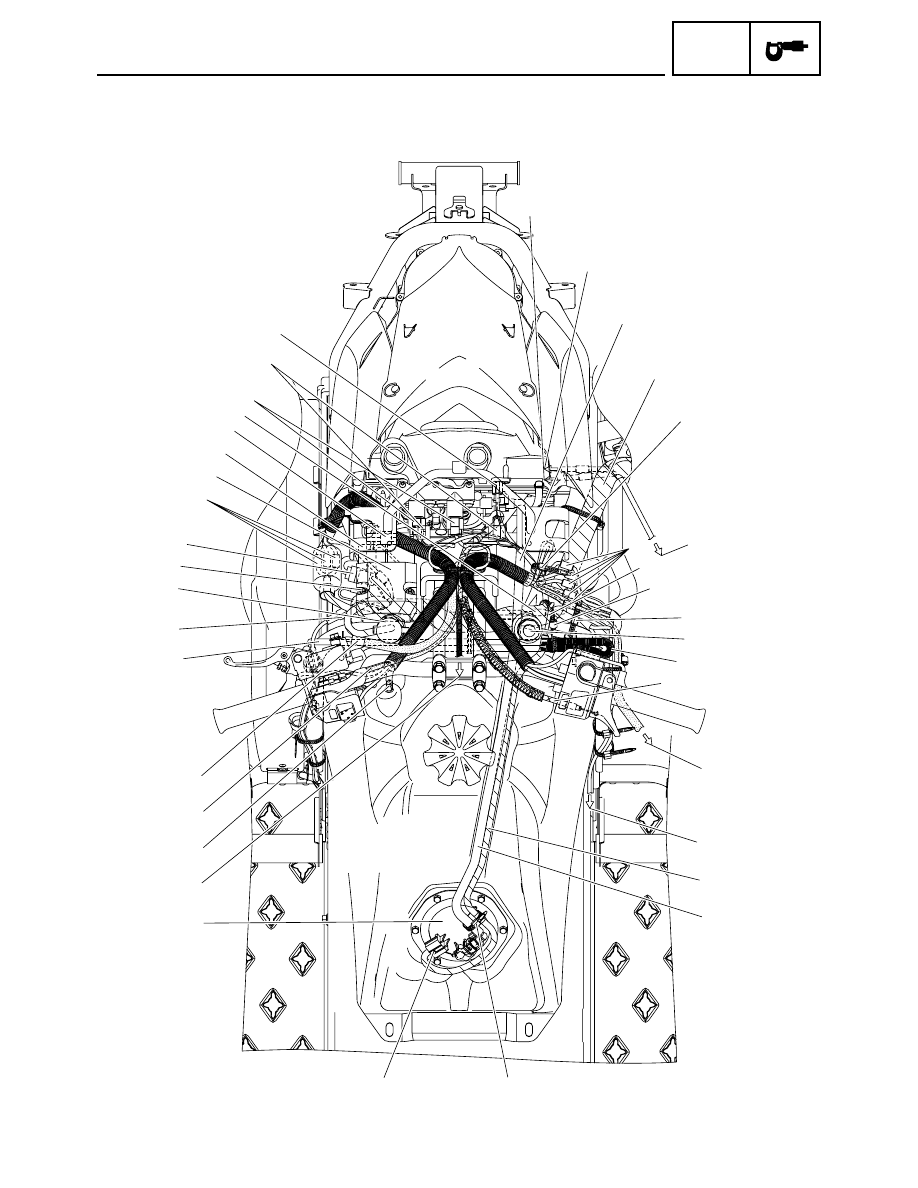

CABLE ROUTING

E

F

G

H

I

J

K

6

8

7

0

A

B

9

C

D

1

2

3

4

5

L

M

N

O

P

Q

R

S

T

U

V

W

Y

X

Z

[

9-30

SPEC

CABLE ROUTING

CABLE ROUTING

PZ50/PZ50M/PZ50FX/PZ50GT

1 To the coolant temperature sen-

sor

2 To the knock sensor
3 Route the fuel hose over the wire

harness and fuel tank breather
hose.

4 Wire harness
5 Bundle the slack in the wire har-

ness and fasten it with the plastic
band.

6 Right handlebar switch lead cou-

plers

7 Route the sub-wire harness over

the wire harness and fuel tank
breather hose.

8 Fasten the sub-wire harness and

fuel tank breather hose to the
steering gate with the plastic
band.

9 To the oil level switch
0 Fasten the sub-wire harness,

parking brake cable, and brake
hose to the steering gate with the
plastic band.

A Main switch
B Fuel tank breather hose
C Throttle cable
D To the brake caliper
E To the tail/brake light
F Fuel pump lead
G Fuel hose
H Fasten the fuel pump lead at the

white tape to the fuel hose with
the plastic band.

I Fuel pump coupler
J Fuel pump
K To the multi-function meter
L Install the fuel tank breather hose

to the fuel tank with the hose
clamp. Be sure to connect the
hose end that does not have a
paint mark to the fuel tank.

9-31

SPEC

CABLE ROUTING

E

F

G

H

I

J

K

6

8

7

0

A

B

9

C

D

1

2

3

4

5

L

M

N

O

P

Q

R

S

T

U

V

W

Y

X

Z

[

9-32

SPEC

CABLE ROUTING

M Parking brake cable
N Brake hose
O Route the fuel tank breather

hose along the steering gate.

P Speed sensor coupler
Q Auxiliary DC jack (PZ50GT/

PZ50FX/PZ50M)

R Install the frame ground lead ter-

minal and the Rectifier/regulator
using the same nut.

S Sub-wire harness coupler
T Left handlebar switch lead cou-

plers

U Rectifier/regulator
V Connect the wire harness cou-

pler to the Rectifier/regulator
coupler shown in the illustration.

W A.C. magneto lead coupler
X Fuel pump lead coupler
Y Intake air pressure sensor cou-

pler

Z Headlight coupler
[ Intake air temperature sensor

coupler
