9-37

SPEC

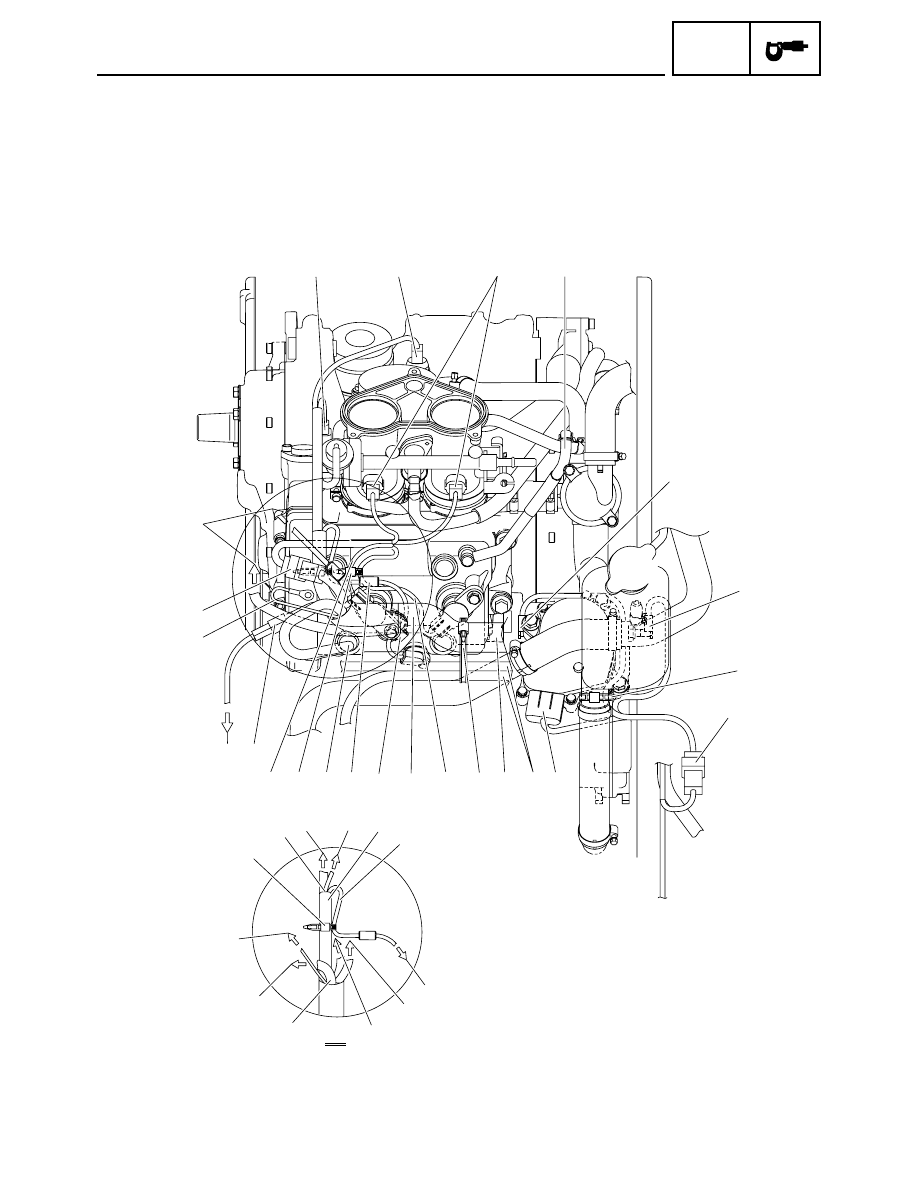

CABLE ROUTING

A

E

H

I

J

K

L

M

7

9 8

0

A

B

C

D

1

2

3

4

5

6

N

G F

A

W

X Y

Z O

P

Q

R

S

T

U

V

9-38

SPEC

CABLE ROUTING

1 Injector coupler
2 Cylinder head breather hose
3 Reverse position switch coupler

(PZ50GT/PZ50FX/PZ50M/
PZ50VT/PZ50MP)

4 Drive position switch coupler

(PZ50GT/PZ50FX/PZ50M/
PZ50VT/PZ50MP)

5 Fasten the sub-wire harness to

the coolant reservoir with the
plastic band, making sure to
route the harness to the front of
the gear motor. Install the plastic
band with its buckle positioned
towards the front of the machine
and its end facing to the right.
(PZ50GT/PZ50FX/PZ50M/
PZ50VT/PZ50MP)

6 Sub-wire harness coupler
7 Gear motor coupler (PZ50GT/

PZ50FX/PZ50M/PZ50VT/
PZ50MP)

8 Fuel tank breather hose
9 Wire harness
0 Fasten the wire harness and fuel

tank breather hose to the steer-
ing gate with the plastic band,
making sure to fasten the hose
before and after the bend in the
hose.

A Route the wire harness under the

steering gate.

B Cylinder #1 ignition coil lead
C Fasten the cylinder identification

sensor lead to the cylinder head
cover with the plastic band.

D Cylinder identification sensor

lead coupler

E To the auxiliary DC jack

(PZ50GT/PZ50FX/PZ50M/
PZ50VT/PZ50MP)

F Fasten the cylinder #1 ignition

coil lead and cylinder #2 ignition
coil lead with the plastic band.
Position the plastic band 20 mm
(0.79 in) from the cylinder #1
ignition coil coupler. Install the
plastic band on the leads’ protec-
tive sleeves.

9-39

SPEC

A

E

H

I

J

K

L

M

7

9 8

0

A

B

C

D

1

2

3

4

5

6

N

G F

A

W

X Y

Z O

P

Q

R

S

T

U

V

CABLE ROUTING

9-40

SPEC

CABLE ROUTING

G Cylinder #2 ignition coil lead
H Speed sensor lead coupler
I To the speed sensor
J Frame ground lead
K Connect the sub-wire harness

coupler to the wire harness cou-
pler.

L To the handlebar switch
M Throttle position sensor coupler
N Oil pressure switch coupler
O Wire harness
P Cylinder identification sensor

lead

Q To the cylinder identification sen-

sor

R To the handlebar switch
S To the sub-wire harness
T Location where the sub-wire har-

ness branches off from the wire
harness.

U To the speed sensor
V To the frame ground lead
W Fasten the cylinder identification

sensor lead and wire harness
with the plastic band as shown in
the illustration, making sure to
position the band halfway
between where the lead and
where the sub-wire harness
branch off from the wire harness.

X Location where the sub-wire har-

ness branches off from the wire
harness.

Y To the throttle position sensor

coupler and oil pressure switch
coupler

Z To the Rectifier/regulator
