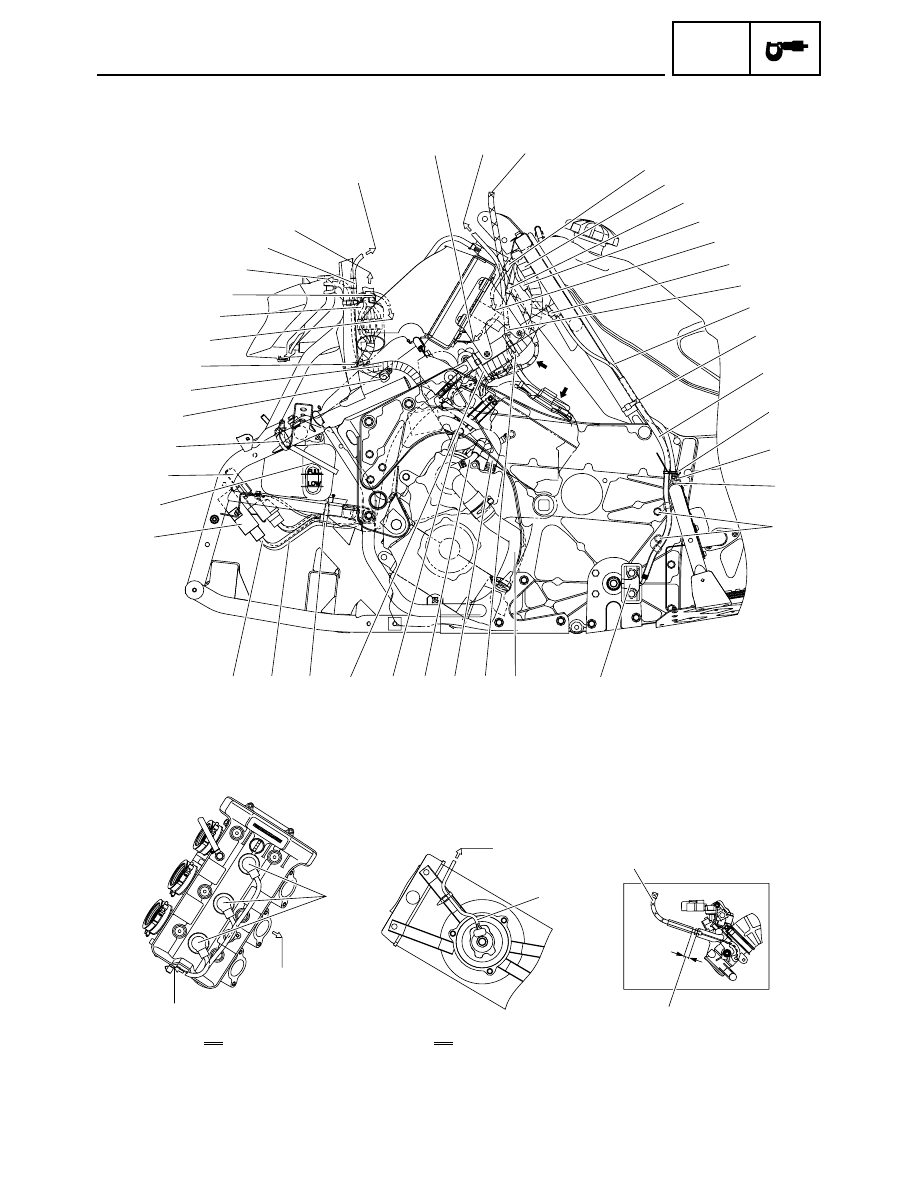

9-33

SPEC

CABLE ROUTING

I H

N

O

P

J

K

L

M

Q

R

S

T

U

V

W

9

A

0

B

C

D

E

F

G

1

2

3

4

5

6

7

8

Y

Z

[

\

]

X

_

a

2

b

c

d

e

f

d

A

B

B

A

9-34

SPEC

CABLE ROUTING

P Rectifier/regulator lead
Q Rectifier/regulator
R Route the coolant reservoir

breather hose above the coolant
reservoir check window.

S ECU (engine control unit)
T Fasten the coolant reservoir

breather hose to the front frame
with the plastic band, making
sure not to pinch the hose.

U Intake air temperature sensor
V Route the wire harness above

the intake air temperature sen-
sor.

W Fasten the wire harness, at the

portion just before the leads split,
to the headlight stay with the
plastic band.

X To the headlight (left)
Y Slide the rubber coupler over the

engine stop switch coupler, throt-
tle switch couplers, right grip
warmer coupler, and thumb
warmer coupler.

Z Pass the plastic band through

the holes in the rubber cover,
and then fasten the cover with
the band, making sure that the
band is not fastened over the
projections at the top of the
cover.

[ To the headlight (right)
\ Speedometer unit sub-lead cou-

pler

] To the right handlebar switch
_ To the speedometer unit
a Route the fuel injection system

sub-wire harness (to the throttle
body) to the right of the radiator
outlet hose.

b 10 mm (0.39 in)
c Radiator fan motor lead
d To the wire harness
e Ignition coils
f Rearward

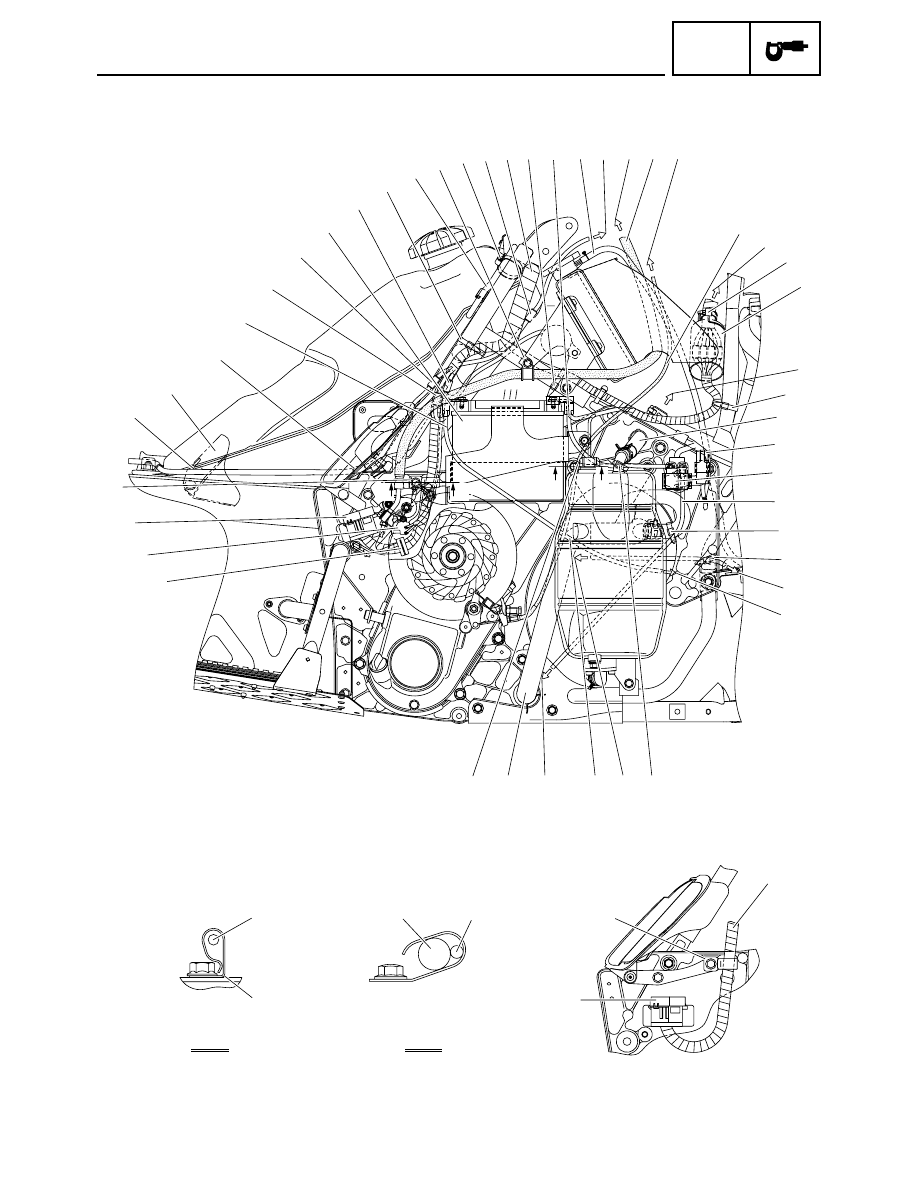

9-35

SPEC

CABLE ROUTING

B

C

D

E

F

G

H

I

J

9

0

A

2 3 4 5

7

6

1

8

K

Q M L

N

O

P

R

S

T

U

X

W

V

Y

Z

[

\

]

1

a

_

b c d

T

f

g

d

8

h

e

A-A

B-B

A

B

B

A

9-36

SPEC

CABLE ROUTING

1 Fasten the wire harness to the

frame rear cross member with
the plastic band. Face the end of
the plastic band downward.

2 Positive battery lead
3 Coolant reservoir hose
4 To the main switch
5 To the brake master cylinder
6 Brake hose
7 To the parking brake lever
8 Parking brake cable
9 To the left handlebar switch
0 Pass the plastic band through

the holes in the rubber cover,
and then fasten the cover with
the band, making sure that the
band is not fastened over the
projections at the top of the
cover.

A Slide the rubber coupler over the

grip/thumb warmer adjustment
switch coupler, left grip warmer
coupler, brake light switch cou-
pler, and headlight beam switch
coupler.

B To the air filter case
C Fasten the wire harness to the

headlight stay with the plastic
band.

D Oil tank breather hose
E Main fuse
F Starter relay
G Starter motor lead
H Fasten the starter motor lead to

the oil tank inlet hose with the
plastic band, making sure not to
pinch the hose.

I Fasten the stator coil lead to the

front frame with the plastic band,
making sure to route it to the
inside of the frame.

J To the rectifier/regulator
K To the engine
L Fasten the positive battery lead

to the oil tank breather pipe with
the plastic band.

M To the AC magneto
N Pass the negative battery lead

between the parking brake cable
and the frame.

O Route the starter motor lead (to

the starter motor) to the rear of
the engine.

P Thermostat outlet hose
Q Pass the parking brake cable

through the holder, making sure
that the holder is positioned to
the front of the bolt.
