Snowmobile Yamaha FX10X, FX10RTX, FX10RTRX, FX10RTRAX, FX10MTX, FX10MTRX, FX10MTRAX. Manual - part 96

9-29

SPEC

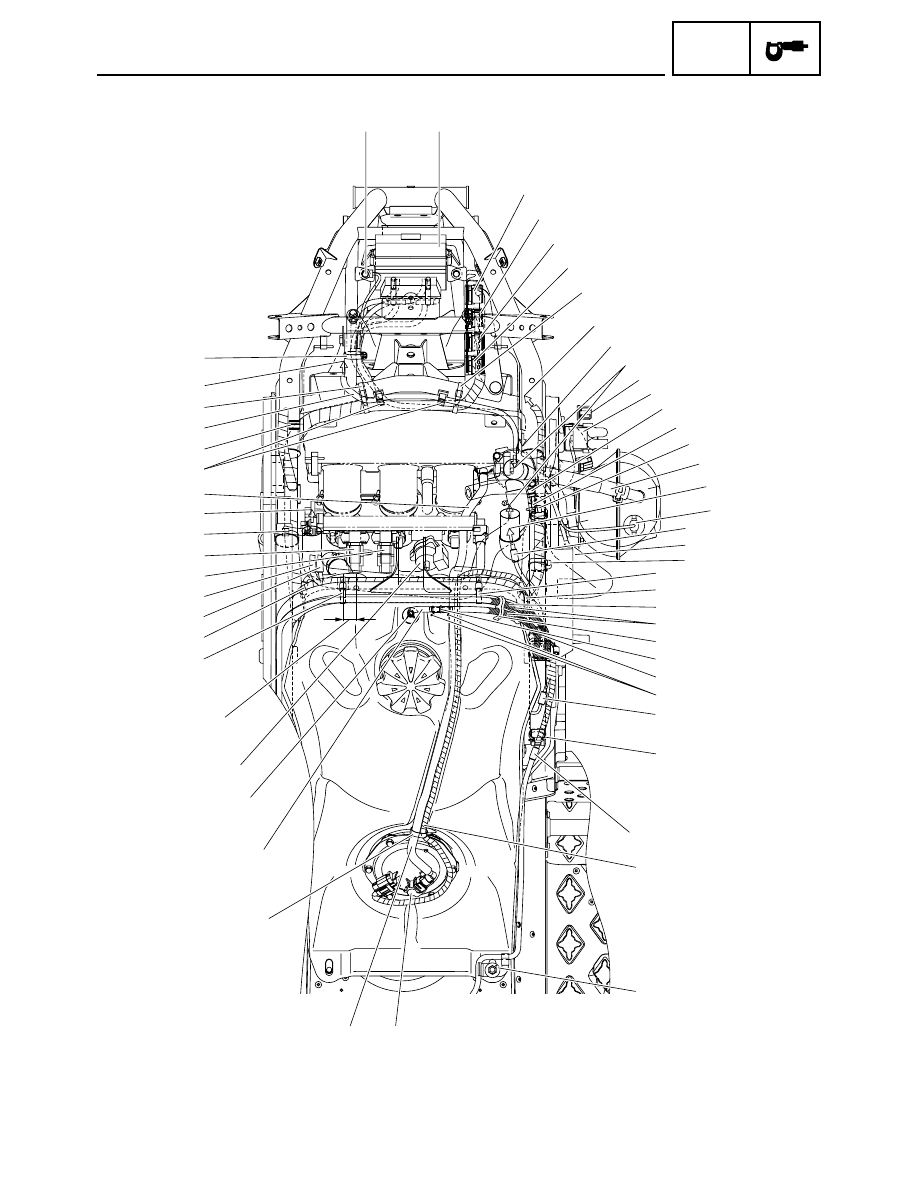

CABLE ROUTING

G

K
L

N

M

P

O

I

H

J

R

8

9

9

g

0

A

B

C

D

F

E

1

2

3

4

5

6

7

Q

S

T

U

V

W

X

Y

Z

[

\

_

D

]

a

b

c

d

e

f

j
i
h

k

l

6

m

9-30

SPEC

CABLE ROUTING

R Face the ends of each hose

clamp toward the fuel tank.

S Fuel sender coupler
T Fasten the tail/brake light lead

(wire harness side) to the frame
rear cross member with the plas-
tic band.

U Tail/brake light coupler
V Fuel pump lead
W Fasten the tail/brake light lead

with the holders, making sure to
push the lead against the fuel
tank.

X Fuel hose connector holder
Y Fuel hose
Z Fasten the fuel hose and fuel

pump lead with the plastic band.
Align the plastic band with the
positioning tape on the fuel pump
lead and install it with its buckle
facing toward the fuel tank.

[ Be sure to install the fuel tank

breather hose with its long end
facing to the right.

\ Face the ends of the hose clamp

rearward.

] ISC (idling speed control) unit
_ 20

 ~

40 mm (0.79

 ~

1.57 in)

a Speed sensor coupler
b Radiator fan motor coupler
c Fuel injection system sub-wire

harness coupler

d Intake air pressure sensor 1 (cyl-

inders #1, #2, and #3)

e Intake air pressure sensor 2 (cyl-

inder #1)

f Fasten the wire harness, oil pres-

sure switch sub-lead, and crank-
shaft position sensor lead to the
frame rear cross member with
the plastic band.

g Cylinder head breather hose.
h Fasten the coolant reservoir

hose with the holder.

i Intake air temperature sensor
j Coolant reservoir hose
k Fasten the wire harness, at the

portion just before the leads split,
to the front frame with the plastic
band.

l To the coolant reservoir
m Install the ground lead terminal to

the left side of the front frame,
making sure to face the crimped
portion of the terminal inward.

9-31

SPEC

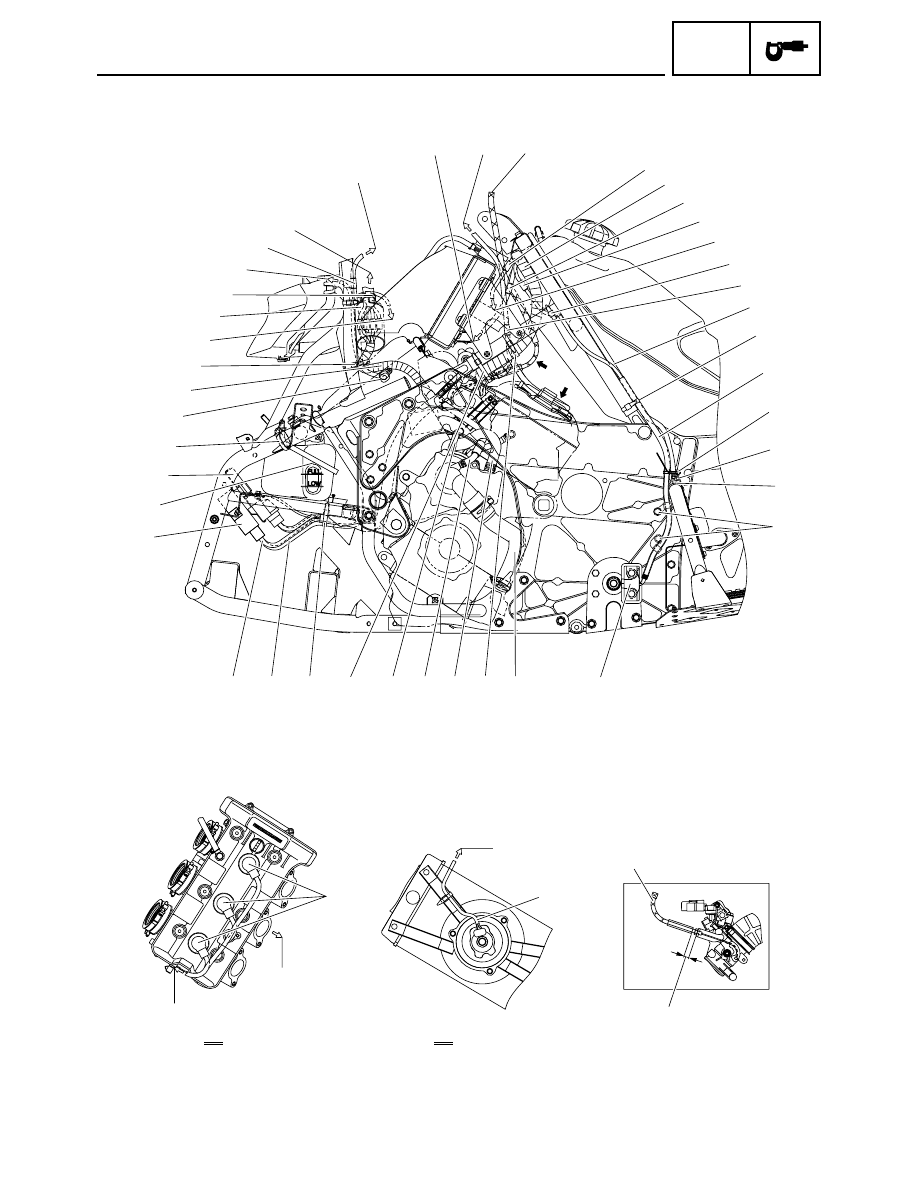

CABLE ROUTING

I H

N

O

P

J

K

L

M

Q

R

S

T

U

V

W

9

A

0

B

C

D

E

F

G

1

2

3

4

5

6

7

8

Y

Z

[

\

]

X

_

a

2

b

c

d

e

f

d

A

B

B

A

9-32

SPEC

CABLE ROUTING

1 To the auxiliary DC jack

(FX10MT/FX10MTR/
FX10MTRA)

2 Throttle cable
3 Radiator fan motor coupler
4 Wire harness
5 Fuel injection system sub-wire

harness coupler

6 Speed sensor coupler
7 To the radiator fan motor
8 Fasten the speed sensor lead to

the frame rear cross member
with the plastic band.

9 Pass the auxiliary DC jack lead

between the radiator fan motor
lead and the fuel injection system
sub-wire harness. (FX10MT/
FX10MTR/FX10MTRA)

0 Fuel tank breather hose
A Fasten the speed sensor lead

and fuel tank breather hose to
the frame rear cross member
with the plastic band, making
sure not to pinch the hose.

B Speed sensor lead
C Fasten the speed sensor lead

and fuel tank breather hose to
the frame with a plastic locking
tie, and then cut off the excess
end of the tie.

D Face the ends of the hose clamp

rearward.

E Install the fuel tank breather hose

completely onto the hose joint,
making sure that the end of the
hose contacts the frame.

F Fasten the corrugated tube of the

speed sensor lead with the hold-
ers.

G Speed sensor
H Water pump inlet hose
I Fasten the wire harness, at the

portion just before the leads split,
to the frame rear cross member
with the plastic band.

J Water pump outlet hose (to oil

cooler)

K Throttle body outlet hose
L Water pump outlet hose (to water

jacket)

M Fasten the wire harness, oil pres-

sure switch sub-lead, and crank-
shaft position sensor lead to the
frame rear cross member with
the plastic band.

N Fasten the wire harness and sta-

tor coil lead to the front frame
with the plastic band.

O Stator coil lead
