9-25

SPEC

TIGHTENING TORQUE

CHASSIS

Parts to be tightened

Tightening torque

Remarks

Nm

m · kg

ft · lb

Headlight stay nut

4

0.4

2.9

Front cover screw

7

0.7

5.1

Lower cover bolt

7

0.7

5.1

Front bumper bolt

23

2.3

17

Seat bolt

23

2.3

17

Rear upper cover screw

7

0.7

5.1

Rear side cover bolt

8

0.8

5.8

Tail/brake light assembly bolt

7

0.7

5.1

Wind deflector bracket and wind deflector bolt

7

0.7

5.1

Apply LOCTITE

®

(FX10/FX10RT/FX10RTR/
FX10RTRA)

Handlebar holder bolt

23

2.3

17

Steering joint holder bolt

23

2.3

17

(FX10RT/FX10RTR/FX10RTRA)

Steering column and rear frame cross member nut

23

2.3

17

Steering column and front frame nut

23

2.3

17

Steering shaft and steering column nut

35

3.5

25

Steering shaft end locknut

25

2.5

18

Apply LOCTITE

®

Steering shaft and pivot arm nut

35

3.5

25

Pivot arm bolt

67

6.7

48

Tie rod and pivot arm nut

35

3.5

25

Tie rod and steering knuckle nut

28

2.8

20

Tie rod end locknut

25

2.5

18

Apply LOCTITE

®

Ski and steering knuckle nut

48

4.8

35

Ski runner nut

19

1.9

13

Ski and ski handle nut (M8

× 55)

12

1.2

8.7

Ski and ski handle nut (M8

× 100)

17

1.7

12

Shock absorber nut (upper)

45

4.5

32

Shock absorber nut (lower)

45

4.5

32

Upper arm ball joint and upper arm nut

90

9.0

65

Upper arm and frame bolt

45

4.5

32

Upper arm ball joint and steering knuckle bolt

45

4.5

32

Lower arm and frame nut

65

6.5

47

Lower arm and steering knuckle nut

65

6.5

47

Stabilizer and stabilizer joint nut

45

4.5

32

Stabilizer joint and lower arm nut

34

3.4

24

Stabilizer holder bolt

34

3.4

24

9-26

SPEC

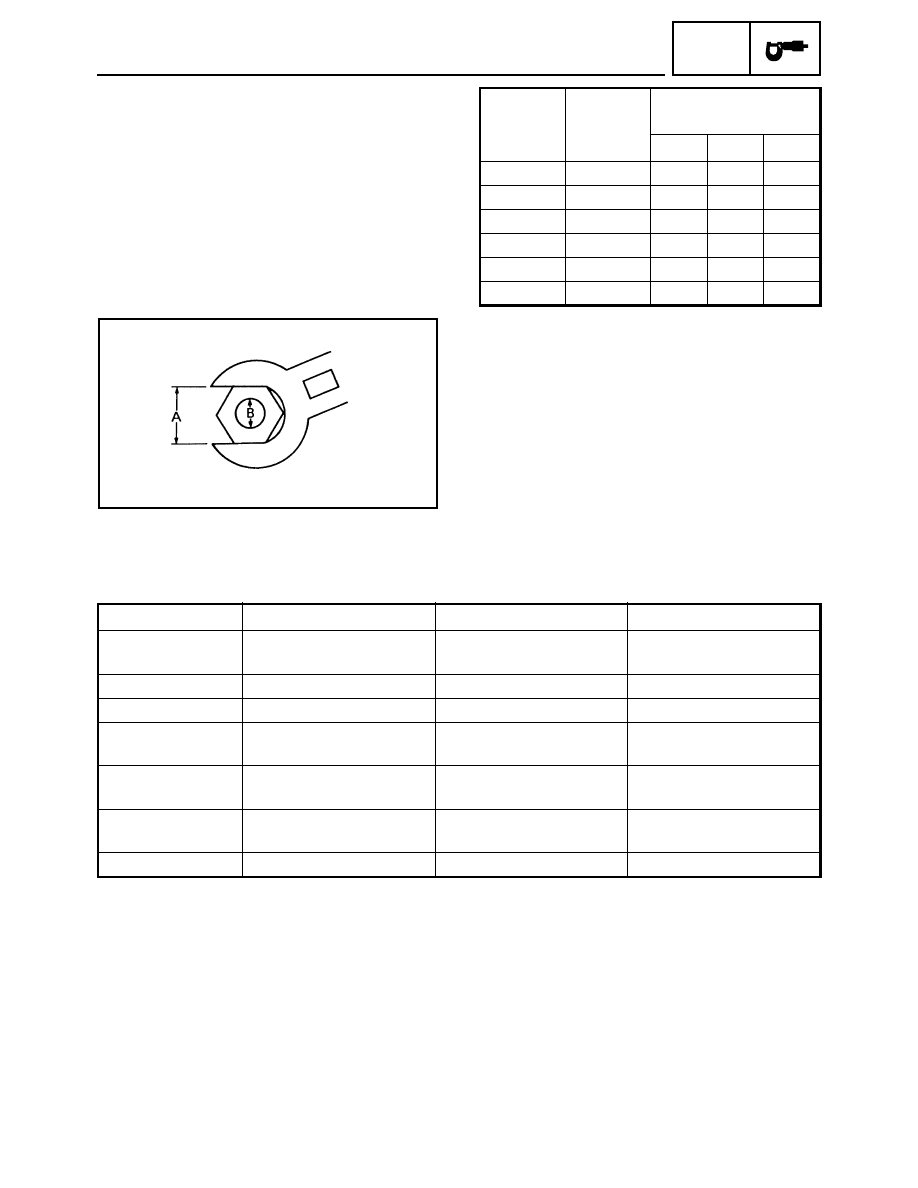

GENERAL TORQUE SPECIFICATIONS/

DEFINITION OF UNITS

GENERAL TORQUE
SPECIFICATIONS

This chart specifies torque for standard fasteners
with standard I.S.O. pitch threads. Torque specifi-
cations for special components or assemblies are
included in the applicable sections of this book. To
avoid warpage, tighten multi-fastener assemblies in
a crisscross fashion, in progressive stages, until full
torque is reached. Unless otherwise specified,
torque specifications call for clean, dry threads.
Components should be at room temperature.

A: Distance across flats
B: Outside thread diameter

DEFINITION OF UNITS

A

(nut)

B

(bolt)

General torque

specifications

Nm

m · kg

ft · lb

10 mm

6 mm

6

0.6

4.3

12 mm

8 mm

15

1.5

11

14 mm

10 mm

30

3.0

22

17 mm

12 mm

55

5.5

40

19 mm

14 mm

85

8.5

61

22 mm

16 mm

130

13.0

94

Unit

Read

Definition

Measurement

mm
cm

Millimeter
Centimeter

10

-3

 meter

10

-2

 meter

Length
Length

kg

Kilogram

10

3

 gram

Weight

N

Newton

1 kg

× m/sec

2

Force

Nm
m · kg

Newton meter
Meter kilogram

N

× m

m

× kg

Torque
Torque

Pa
N/mm

Pascal
Newtons per millimeter

N/m

2

N/mm

Pressure
Spring rate

L
cm

3

Liter
Cubic centimeter

—

Volume or capacity

r/min

Rotations per minute

—

Engine speed

9-27

SPEC

CABLE ROUTING

G

K
L

N

M

P

O

I

H

J

R

8

9

9

g

0

A

B

C

D

F

E

1

2

3

4

5

6

7

Q

S

T

U

V

W

X

Y

Z

[

\

_

D

]

a

b

c

d

e

f

j
i
h

k

l

6

m

9-28

SPEC

CABLE ROUTING

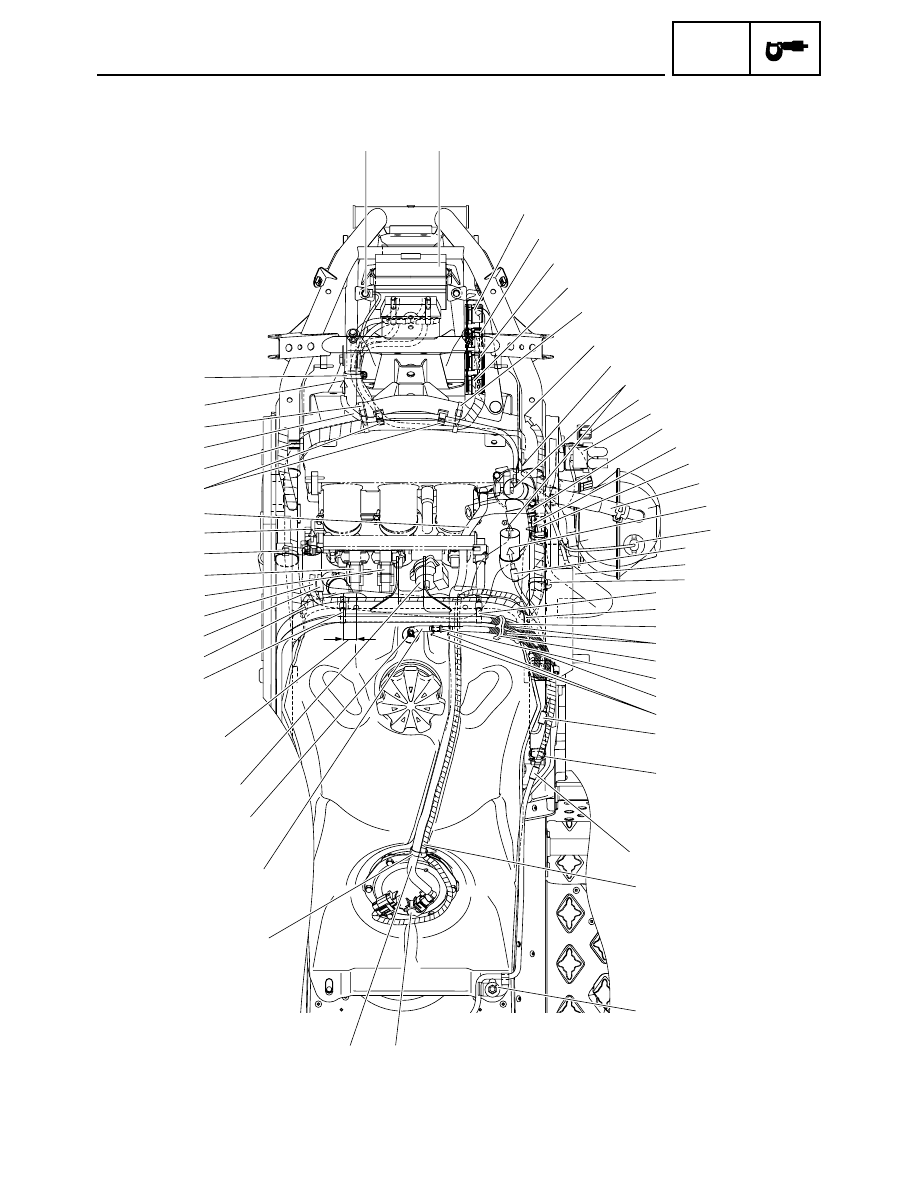

CABLE ROUTING

1 ECU (engine control unit)
2 Load control relay
3 Headlight relay
4 Fuel injection system relay
5 Radiator fan motor relay
6 Fasten the wire harness and sta-

tor coil lead to the front frame
with the plastic band.

7 To the left handlebar switch
8 To the AC magneto
9 To the radiator
0 Main fuse
A Starter relay
B Coolant temperature sensor cou-

pler

C Coolant temperature sensor sub-

lead

D Fasten the wire harness at the

positioning tape to the rear frame
cross member with the plastic
band.

E Oil tank breather hose
F To the main switch
G Oil level switch coupler
H Main switch coupler
I Thermostat outlet hose
J Fasten the wire harness to the

frame rear cross member with
the plastic band.

K Fasten the wire harness and fuel

tank breather hose to the frame
rear cross member.

L Fasten the hose protector of the

fuel tank breather hose to the
rear frame cross member with
the plastic band, making sure to
fasten it after the bend in the
hose as shown in the illustration.

M Fuel tank breather hose
N The ends of the hose protector

should be 20 mm (0.79 in) or less
from each other.

O Fasten the fuel tank breather

hose with the holder, making
sure to position the portion of the
hose from the fuel tank to the
rear of the portion after the bend
in the hose.

P Face the cutout in the hose joint

flange downward.

Q Bend the fuel tank breather hose

as shown in the illustration, and
then fasten it after the bend in
the hose with the holder as
shown in the illustration. Face
the open ends of the holder
toward the fuel tank.
