9-37

SPEC

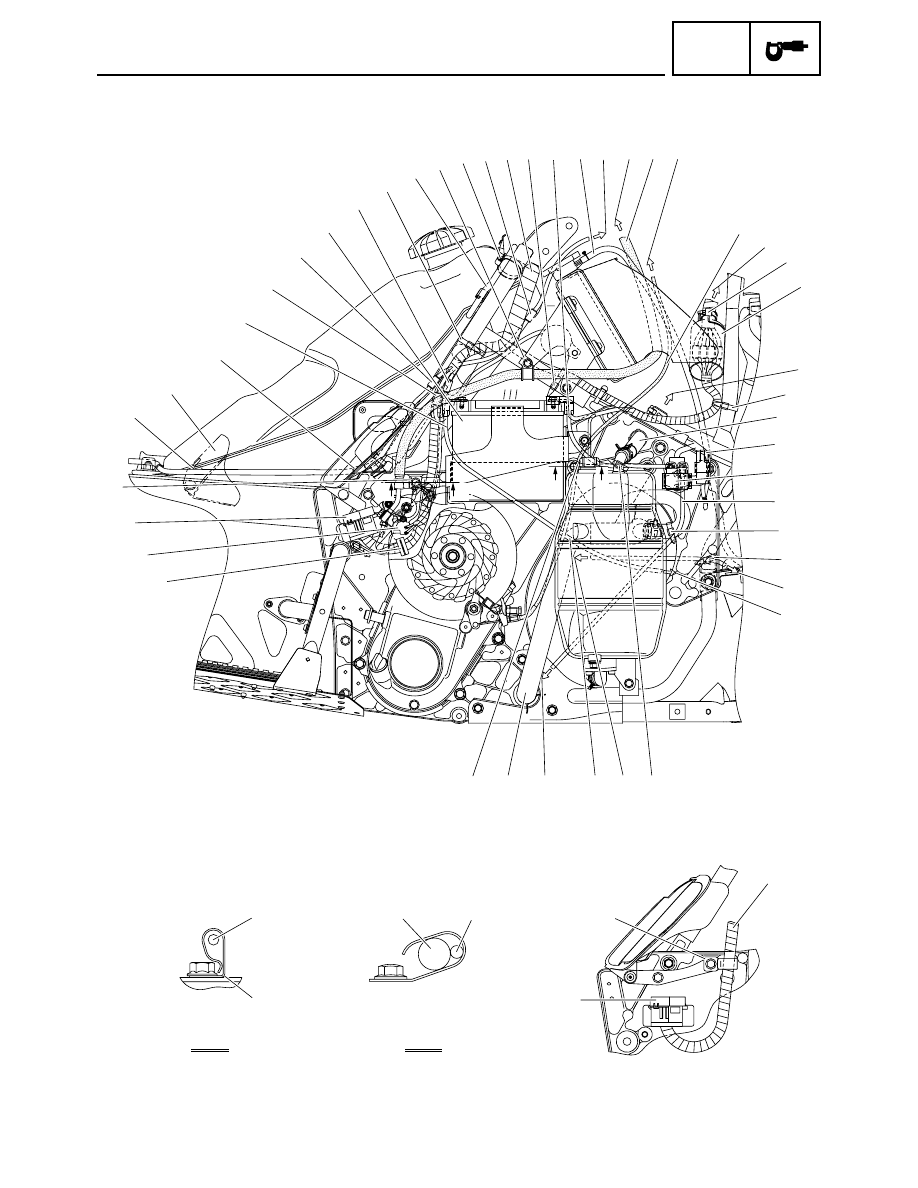

CABLE ROUTING

B

C

D

E

F

G

H

I

J

9

0

A

2 3 4 5

7

6

1

8

K

Q M L

N

O

P

R

S

T

U

X

W

V

Y

Z

[

\

]

1

a

_

b c d

T

f

g

d

8

h

e

A-A

B-B

A

B

B

A

9-38

SPEC

R Make sure that the catch of the

holder is facing downward.
(FX10/FX10RTR/FX10RTRA/
FX10MTR/FX10MTRA)

S DC back buzzer (FX10/

FX10RTR/FX10RTRA/
FX10MTR/FX10MTRA)

T Fuse box
U Pass the wire harness and DC

back buzzer lead through the
guide, making sure that the guide
is positioned to the front of the
bolt. (FX10/FX10RTR/
FX10RTRA/FX10MTR/
FX10MTRA)

V Route the tail/brake light lead

below the rib on the fuel tank,
making sure not to pinch it
between the tank and the right
fuel tank cover.

W Right fuel tank cover
X Tail/brake light coupler
Y Negative battery lead
Z Negative battery lead coupler
[ Fuel sender coupler
\ Battery
] DC back buzzer coupler (FX10/

FX10RTR/FX10RTRA/
FX10MTR/FX10MTRA)

_ Fuel tank breather hose
a Fasten the brake hose with the

holder.

b Fasten the fuel tank breather

hose to the rear cross member
with the plastic band.

c Main switch coupler
d Wire harness
e To the wire harness
f Pass the wire harness through

the guide, making sure that the
guide positioned to the front of
the bolt. (FX10RT/FX10MT)

g DC back buzzer lead (FX10/

FX10RTR/FX10RTRA/
FX10MTR/FX10MTRA)

h Fasten the parking brake cable

with the holder, making sure to
bend the holder so that its end
contacts the side of the bolt head
as shown in the illustration.

CABLE ROUTING

9-39

SPEC

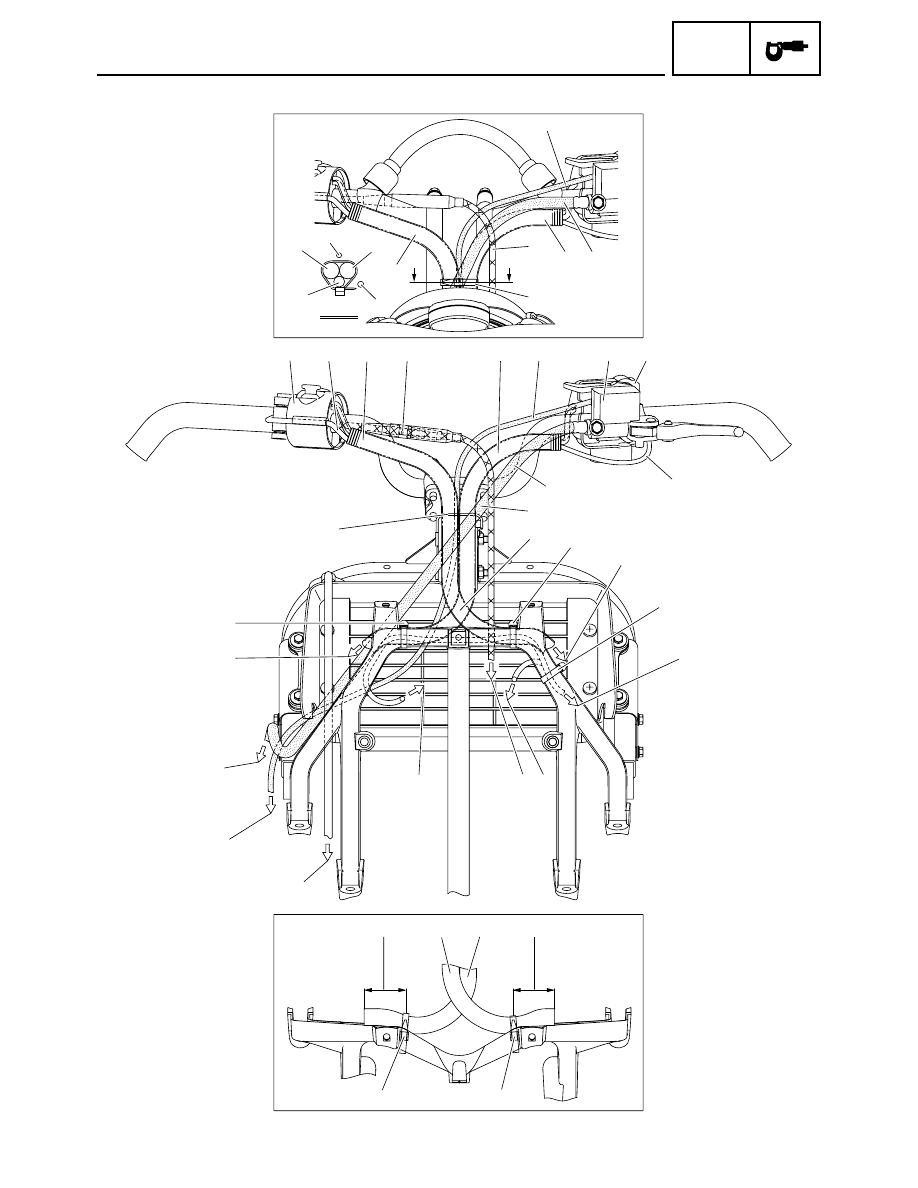

CABLE ROUTING

G

H

I

J

K

L

L

M

A

0

0

0

B

C

D

E

H

9

F

1

1

2

3

4

5

6

9

O

P

L

2

6

1

M

L

1 6

2

N

M

A-A

A

A

8

7

9-40

SPEC

CABLE ROUTING

1 Corrugated tube (left grip warmer

lead, grip/thumb warmer adjust-
ment switch lead, brake light
switch lead, and headlight beam
switch lead)

2 Parking brake cable
3 Brake master cylinder
4 Left handlebar switch
5 Left grip warmer lead
6 Brake hose
7 Route the brake hose behind the

throttle cable and in front of the
corrugated tubes.

8 Route the corrugated tube

(engine stop switch lead, throttle
switch leads, right grip warmer
lead, and thumb warmer lead) in
front of the corrugated tube (left
grip warmer lead, grip/thumb
warmer adjustment switch lead,
brake light switch lead, and
headlight beam switch lead).

9 Fasten the wire harness and cor-

rugated tube (engine stop switch
lead, throttle switch lead, right
grip warmer lead, and thumb
warmer lead) to the headlight
stay with the plastic band, mak-
ing sure to route the tube to the
rear of the stay and the harness
to the rear of the tube.

0 To the wire harness
A Fasten the headlight unit lead

and speedometer unit sub-lead
to the headlight stay with the
plastic band.

B To the headlight (left)
C To the throttle body
D To the headlight (right)
E To the coolant reservoir
F To the parking brake
G To the brake caliper
H Fasten the wire harness and cor-

rugated tube (left grip warmer
lead, grip/thumb warmer adjust-
ment switch lead, brake light
switch lead, and headlight beam
switch lead) to the headlight stay
with the plastic band, making
sure to route the tube to the rear
of the stay and the harness to the
rear of the tube.

I Pass the corrugated tubes and

parking brake cable through the
guide.

J Right handlebar switch
K Right grip warmer lead
L Corrugated tube (engine stop

switch lead, throttle switch leads,
right grip warmer lead, and
thumb warmer lead)

M Throttle cable
