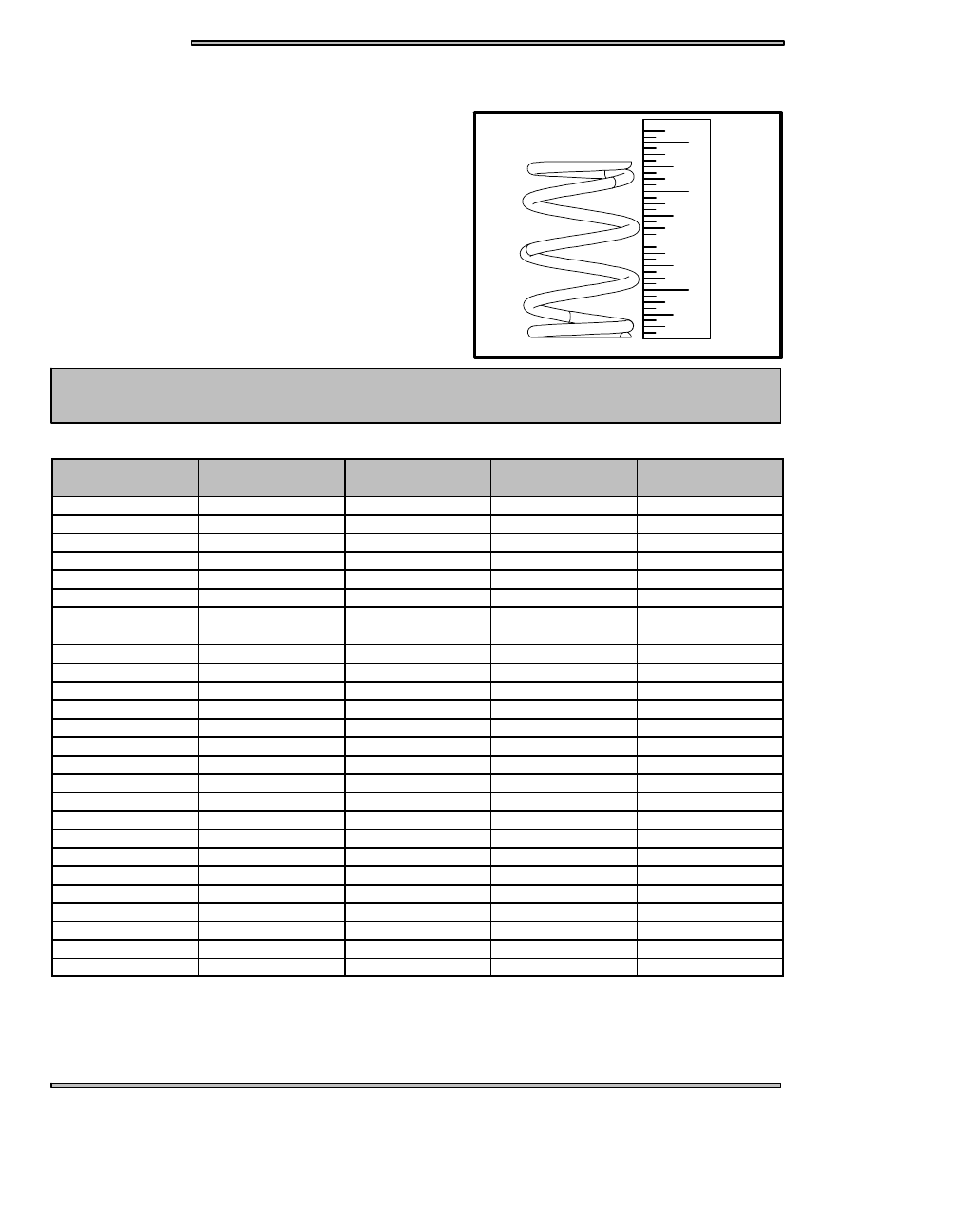

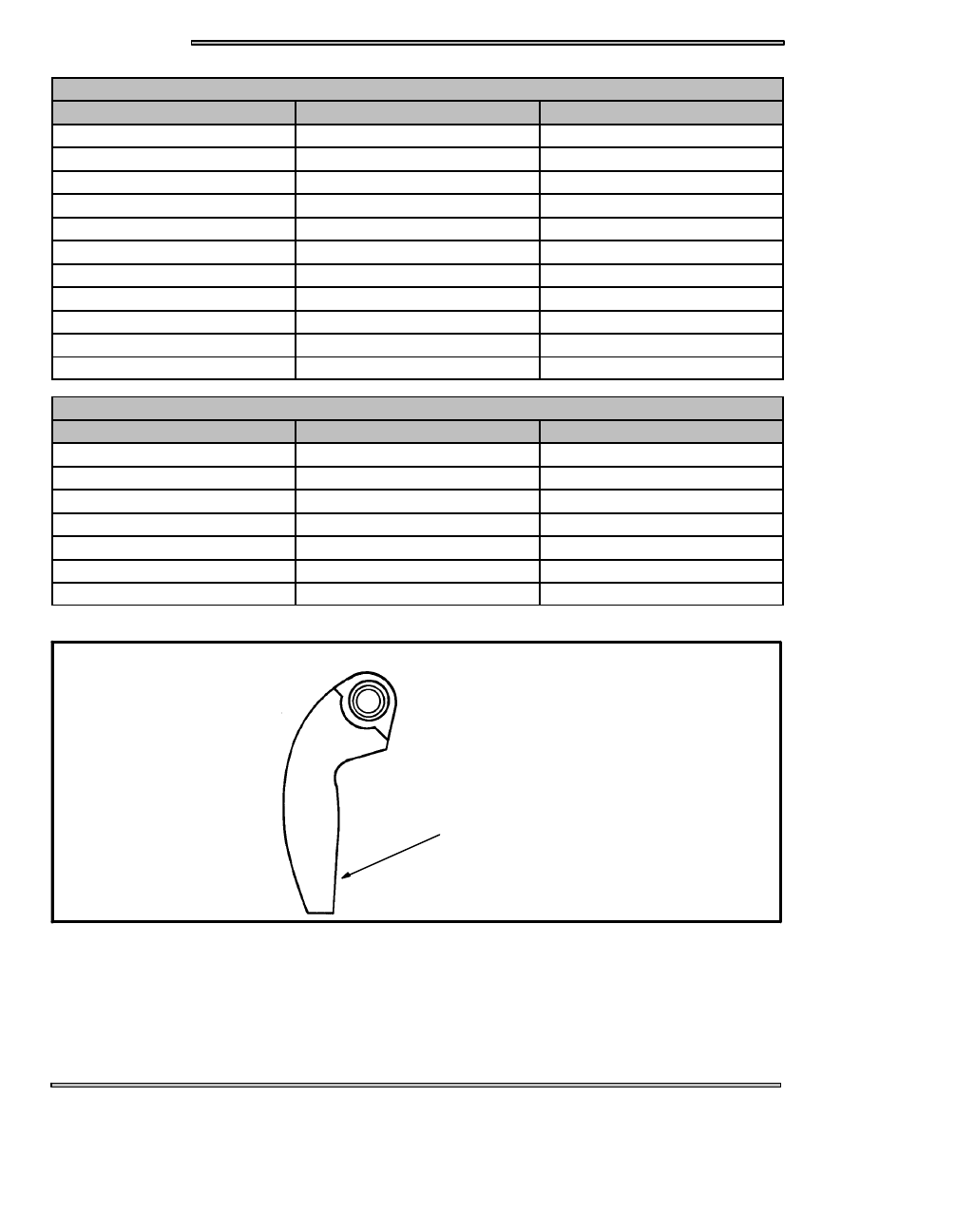

CLUTCHING 6.4 DRIVE CLUTCH SPRINGS Maximum efficiency of the variable speed drive system is dependent upon many factors. Included in these are clutch offset and alignment, belt tension, belt to sheave clearance, and internal condition of the drive and driven clutch components. One of the most critical and easi- ly serviced parts is the drive clutch spring. Due to the severe stress the spring is subject to during operation, it should always be inspected and checked for tolerance limits during any clutch operation diagnosis or repair. With the spring resting on a flat surface, measure free length from out- er coil surfaces as shown. Refer to the chart above for specific free length measurements and tolerances. In addition to proper free length, the spring coils should be parallel to one another when placed on a flat surface. Distortion of the spring in- dicates stress fatigue. Replacement is required. CAUTION: Never shim a drive clutch spring to increase its compression rate. This may result in complete PART NUMBER COLOR CODE WIRE DIAMETER FREE LENGTH +/- .125″ Force lbs. @ 2.50”--1.19 (+/-- 12lbs.) 7041021 Clear .157″ 4.38″ 70--130 7041022 Black .140″ 4.25″ 44--77 7041063 Purple .168″ 4.37″ 75--135 7041062 Silver .208″ 3.12″ 75--243 7041065 Pink .177″ 4.69″ 112--200 7041060 Orange .196″ 3.37″ 70--199 7041080 Blue/Gold .207″ 3.50″ 120--300 7041083 Red .192″ 3.77″ 120--245 7041102 Yellow .192″ 2.92″ 44--185 7041061 Brown .200″ 3.06″ 69--212 7041132 White .177″ 2.92″ 34--141 7041168 Green .177″ 3.05″ 42--142 7041148 Gold .207″ 3.25″ 100--275 7041150 Red/White .192″ 3.59″ 100--220 7041286 Silver/Gold .218″ 3.05″ 77--240 7041080 Blue .207″ 3.55″ 120--300 7041526 Dark Blue .218″ 3.52″ 120--310 7041781 Dark Blue/White .225″ 3.52″ 120--310 7041566 Almond .207″ 3.65″ 140--330 7041645 Almond/Gold .207″ 4.00″ 150--290 7041818 Black/White .218″ 3.52″ 140--320 7041816 Almond/Black .200″ 3.75″ 165--310 7041922 Almond/Blue .218″ 3.75″ 150--310 7041988 Almond/Red .207″ 4.29″ 165--310 7042083 Black/Green .218” 3.38” 120--340 7043077 Black .225” 2.90” 80--340 12 3 4 |
