Index Snowmobiles / ATV Snowmobile Polaris 700 XC EDGE, 700 XC SP EDGE, 800 XC EDGE, 800 XC SP EDGE - service manual 2004 year
|
|

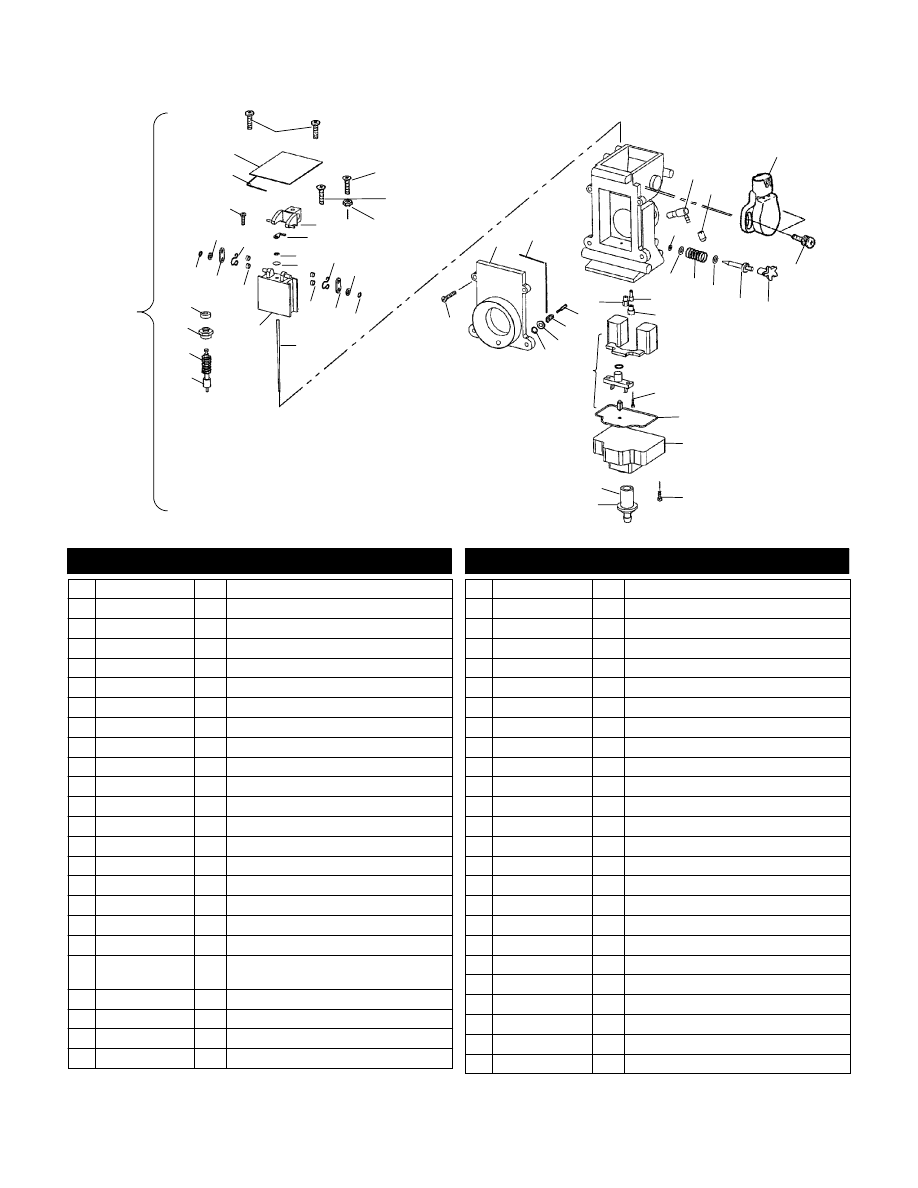

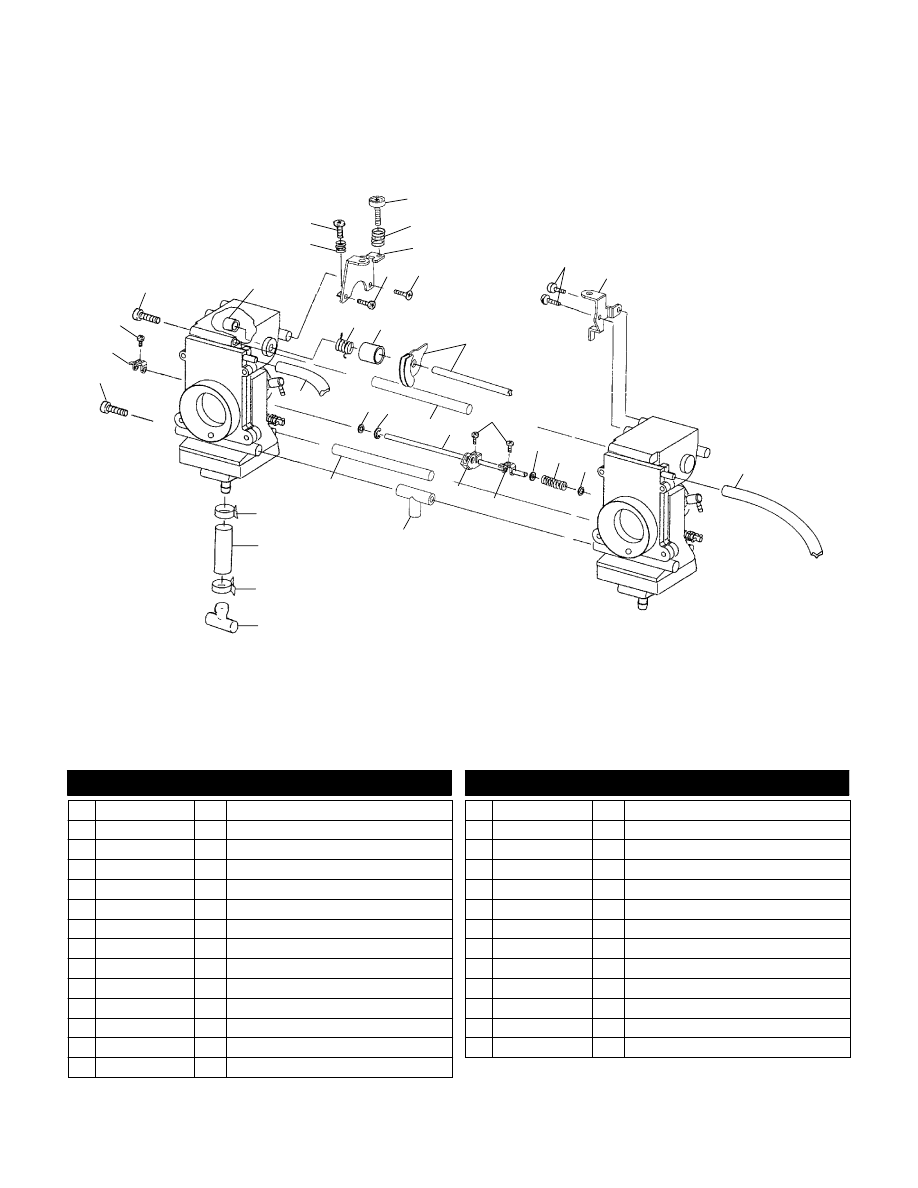

E1 CARBURETOR (700) 700 XC EDGE F/O S04NP7CS and 700 XC SP EDGE M-10 F/O S04NE7CS and 700 XC SP EDGE STOCK A S04NP7CSA and 700 XC SP EDGE STOCK B S04NP7CSB and 700 XC SP EDGE STOCK C S04NP7CSC 10 21 23 2 3 26 25 17 18 16 15 39 40 27 34 33 22 37 32 36 9 7 20 6 8 5 19 47 10 6 9 8 7 11 12 13 43 41 42 48 14 24 35 28 41 49 45 46 38 29 30 31 44 1 E 2003 Polaris Sales Inc. Part numbers may have changed since this microfiche was issued. To ensure that correct parts are received, refer to PartSmart, which is updated monthly. Ref. Part No. Qty. Description Ref. Part No. Qty. Description 1 1253462 1 Asm., Carburetor 2 3130951 4 Screw 3 3130872 2 Cap, Top 4 3130871 2 Gasket 5 3130844 2 Screw 6 3130846 4 Packing 7 3130856 4 Clip 8 3130845 8 Ring 9 3130857 4 Plate 10 3130847 4 E-Ring 11 3130831 2 Cap, Rubber 12 3130830 2 Holder, Guide 13 3130829 2 Spring 14 3130828 2 Plunger 15 3130940 2 Valve, Piston(1.5) 16 3131415 2 Needle, Jet, J8-9DGN05-57 17 3130867 2 Packing 18 3130868 2 E-Ring 19 3130843 2 Plate 20 3130855 3130849 1 1 Lever, LH Lever, RH 21 3130848 1 Ring 22 3130854 1 Screw, LH 23 3130850 1 Screw, RH 24 3130825 8 Screw 25 3131439 2 Funnel, Long 26 3131356 2 O-Ring, Air Funnel, Long 27 3130144 2 Jet, Main (440) 28 3131336 2 Screw, Air 29 3131371 1 Spring 30 3131372 1 Washer 31 3130522 1 O-Ring 32 3131231 2 Float 33 3131248 2 Bolt, Drain 34 3130863 2 O-Ring 35 3130824 2 Screw 36 3130858 2 Body, Float 37 3130861 2 O-Ring 38 3130860 2 Screw 39 3130068 2 Jet, Pilot (45) 40 3130769 2 Jet, Starter (145) 41 3130837 4 Washer 42 3130836 2 Spring 43 3130987 2 Adjuster 44 3130986 1 Cap 45 3131010 2 Screw (MAG Side) 46 3131009 1 Asm., Sensor (MAG Side) 47 3130479 2 Cap 48 3130835 2 Packing 49 7051020 2 Valve, Check, 90 Degree 3/02 |
