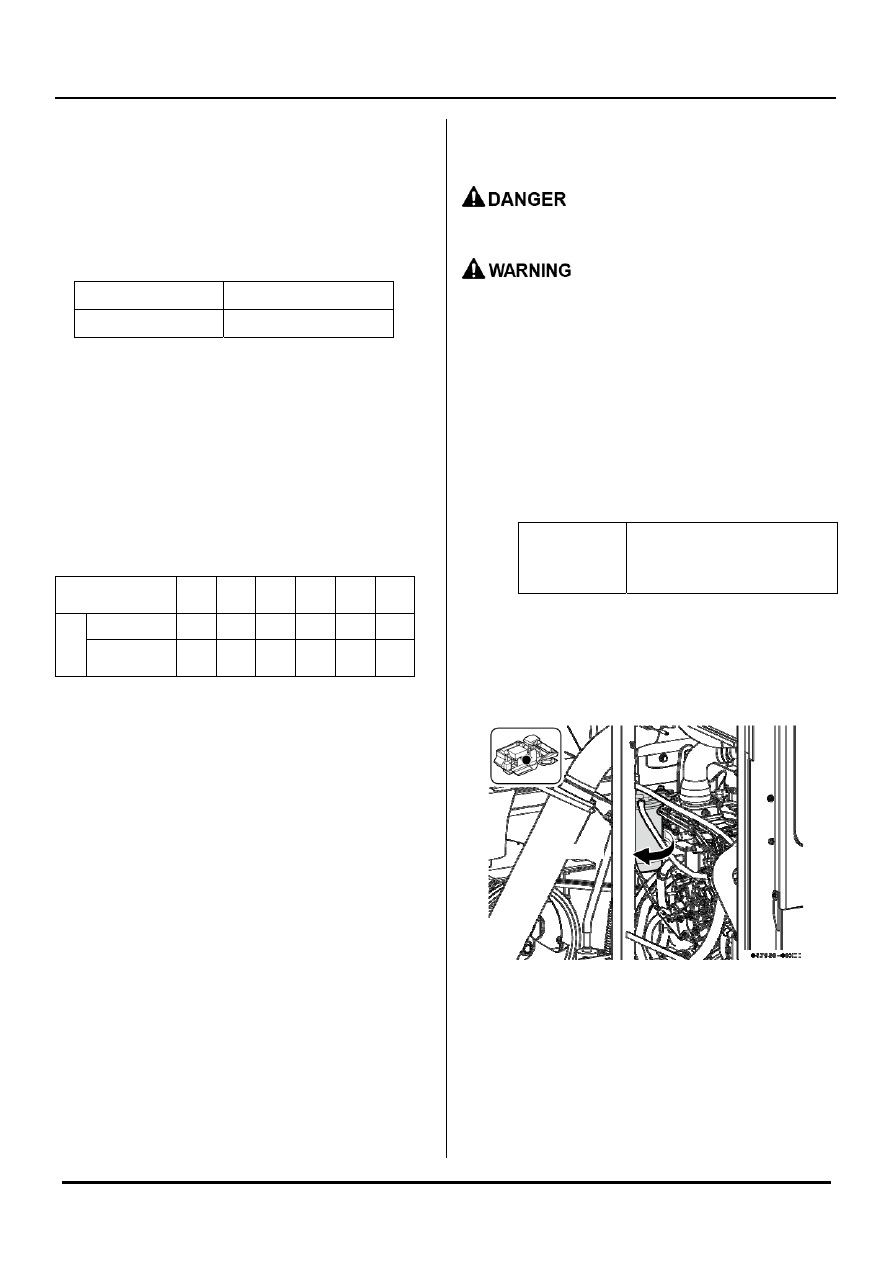

Periodic Inspection



77





3- Mount the drain pin, add necessary anti-freezing

liquid or long life coolant, and fill with pure water.

4- Mount the cover of main radiator cap and start up the

engine to fully mix the anti-freezing liquid or long life
coolant with cooling water.



Replacing interval

Cooling water level

1 year

Appr. 7.2L





<Use of anti-freezing liquid>
Anti-freezing liquid can reduce the freezing point of
water. Before delivery, the mixing ratio of the liquid is
determined based on a cold resistance of -15℃,
namely 70% water and 30% anti-freezing liquid. This
mixing ratio should be adjusted if the ambient
temperature is below -15℃.


Ambient

temperature(℃)

-5 -10 -15 -20 -25 -30

Ratio



Water (%)

85 75 70 65 60 55

Anti-freezing
liquid (%)

15 25 30 35 40 45


<Long life coolant>
It is suggested to use a long life coolant for diesel
engine instead of clean water.    The long life coolant
avoids from rusting inside of the radiator.

[Precaution]





When replacing with new cooling water, be
sure to add the anti-freezing liquid or long life
coolant and perform idle running of the engine
for 5 minutes to mix the liquid as quickly as
possible.





The mixing ratio, which varies with
manufacturers, should be determined
according to the instruction manual provided
by the manufacturer.





You can fill with pure water to make up natural
consumption of cooling water.





The effective period of anti-freezing liquid is 1
year. Therefore, replace with new anti-freezing
liquid every year.





5. Replacing fuel filter





Open flame is prohibited during operation.





Be sure to wipe off fuel attached on all
parts. Otherwise, fire hazard may be
caused.



After opening the rear cover of engine, you can see the
fuel filter above the rear part of engine, a black
container connected with the fuel inlet pipe and the inlet
pipe of injection pump. (This is a one-piece filter that
can not be cleaned and should be replaced with a new
one.)





<Replacing>
1- When mounting the new filter with air inside, turn the

key switch to “ON” to exhaust air.













Replacing

interval

Every 200 hours

Fuel filter

Periodic Inspection



78





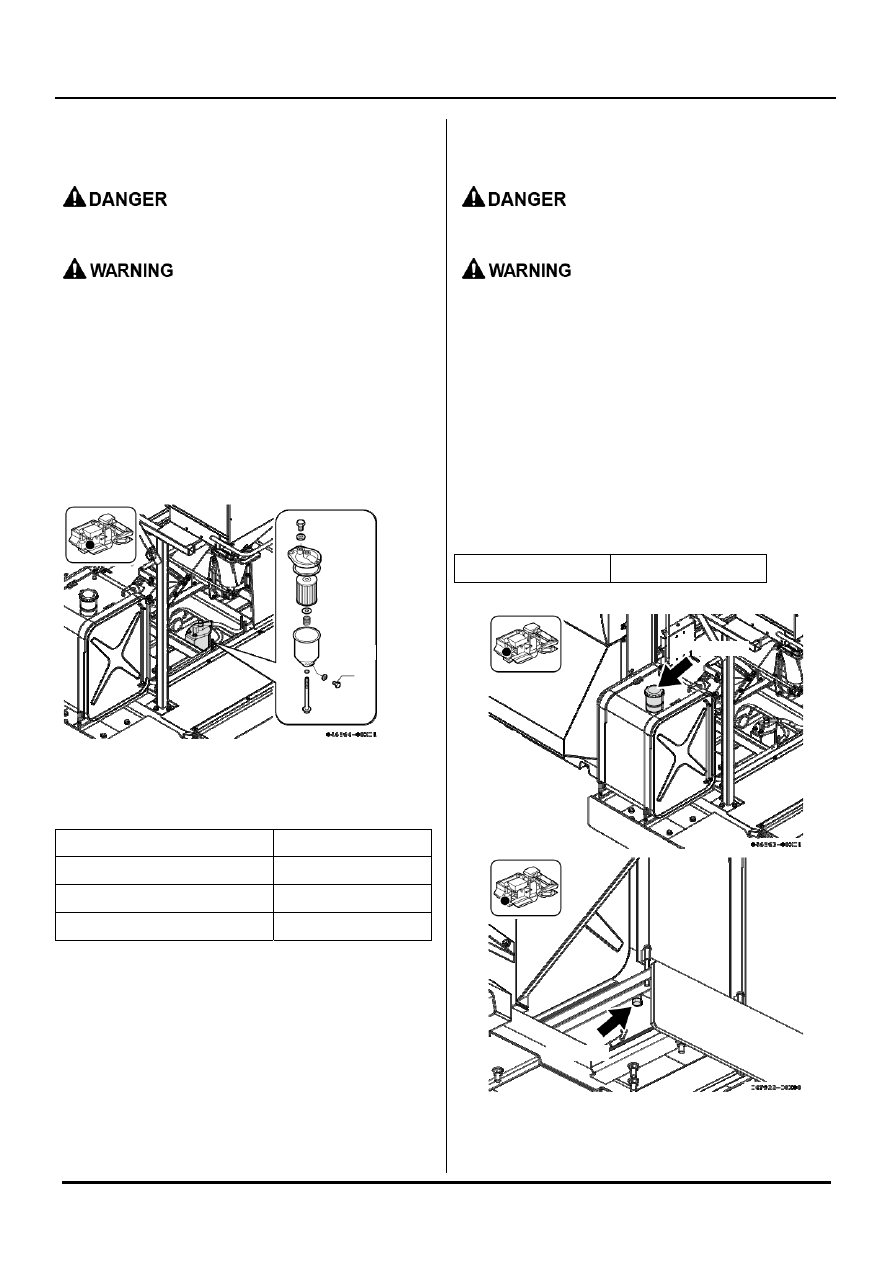

6. Cleaning the water separator







Open flame is prohibited during operation.





Be sure to wipe off fuel attached on all
parts. Otherwise, fire hazard may be
caused.


The water separator in the rear part of the machine can
remove dirt and water in fuel.

<Draining>
Dismount the drain bolt shown below to remove water
and dirt.




<Cleaning>
Dismount the water separator to clean the filter element
inside.
Item Interval

Draining

Every 50 hours

Cleaning the filter element

Every 100 hours

Replacing the filter element

Every 200 hours


[IMPORTANT]
The time of cleaning and replacing should be
adjusted as per fuel quality.











7. Draining the fuel tank







Open flame is prohibited during operation.





Be sure to wipe off fuel attached on all
parts. Otherwise, fire hazard may be
caused.


The fuel tank is subject to water and dirt sediment
inside. The sediments may enter the fuel pipeline to
cause problems, thus should be removed regularly.

<Draining>
Take off the drain plug at the bottom of the fuel tank to
remove sediments inside.


Interval

Every 100 hours









Drain

bolt

Fuel port

Drain bolt

Periodic Inspection



79





8 Bleeding fuel system







Be careful to avoid fuel spilling on the
engine fun belt, rubber vibration insulator,
hose and other parts, and clean them with
water if any to avoid fire hazard.



Air may enter the fuel system and result in stalling of
the engine after fuel is used up.
1. Tighten the fuel tank cap after refueling.
2. Put the key switch to “ON”, wait 20-30 seconds till air

in the fuel pipeline is exhausted, and then move the
switch to “Start” to start up the engine.



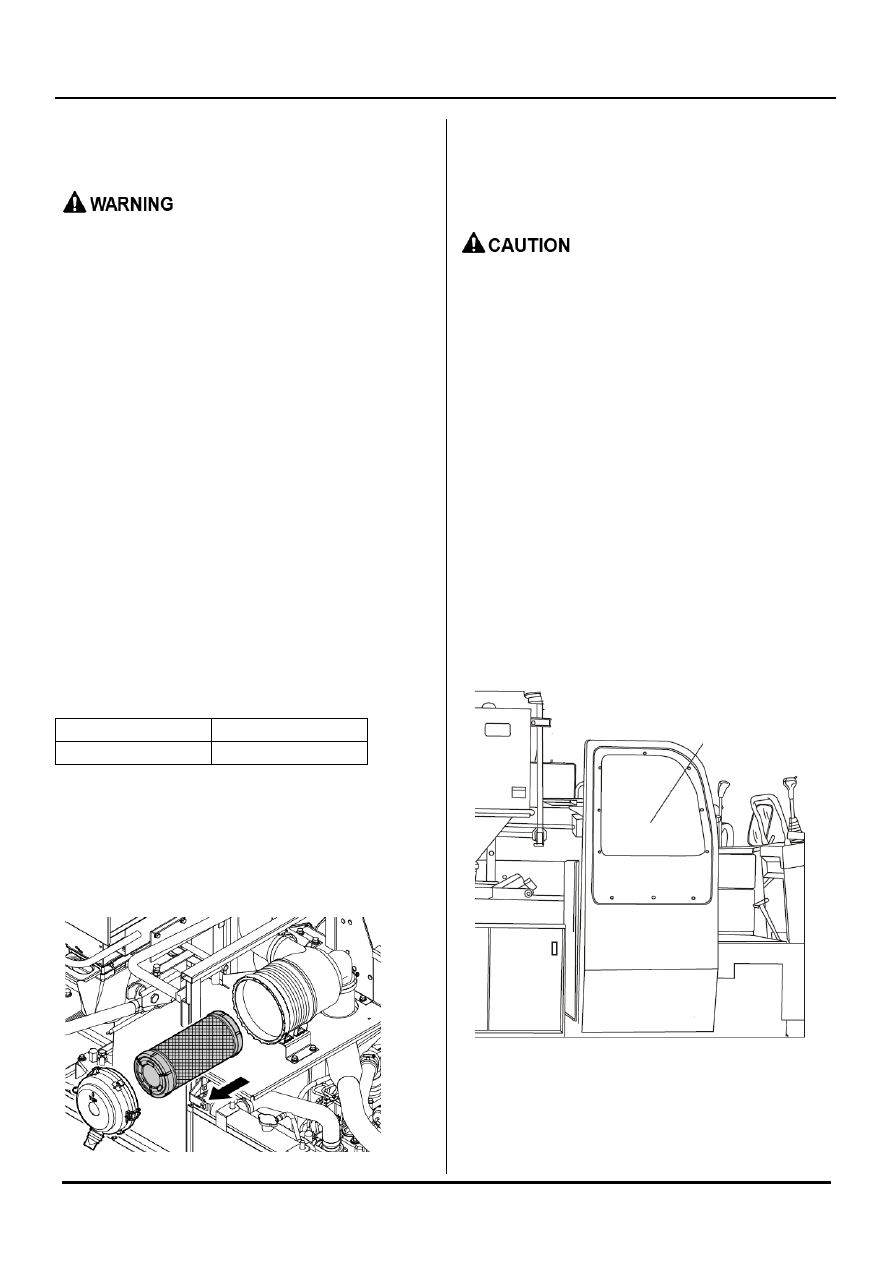

9. Cleaning and replacing the air

filter




The air filter can remove dust in the air to prevent wear
of parts inside the engine. As lots of dust may be
generated during harvesting, the filter should be
cleaned frequently (every day) and replaced every 400
hours.

Cleaning interval

Replacing interval

Every day

Every 400 hours


<Cleaning and replacing>
1. Open the air cleaner cover.
2. Take out the filter element.
3. Use the compressed air (7 kg/cm

2

) to purge inside

the element.









[Precaution]





Keep the filter element dry.





Do not clean the filter element with water or oil.





●

Engine oil may be consumed and
failures be caused if the filter element
is blocked.

●

Be careful to prevent deformation of
the element during cleaning. Otherwise,
dust may enter and cause abnormal
wear of the engine piston and cylinder.





10. Cleaning the engine dust

protector




The air entry is designed for suction of cooling air. It
may be accumulated with dust, thus should be cleaned
with a soft brush after the engine is stopped. Open the
engine room cover, and remove dust on it.
The screen of hydraulic oil cooler and radiator exposed
to dust should also be cleaned.






Air intake screen

Periodic Inspection



80





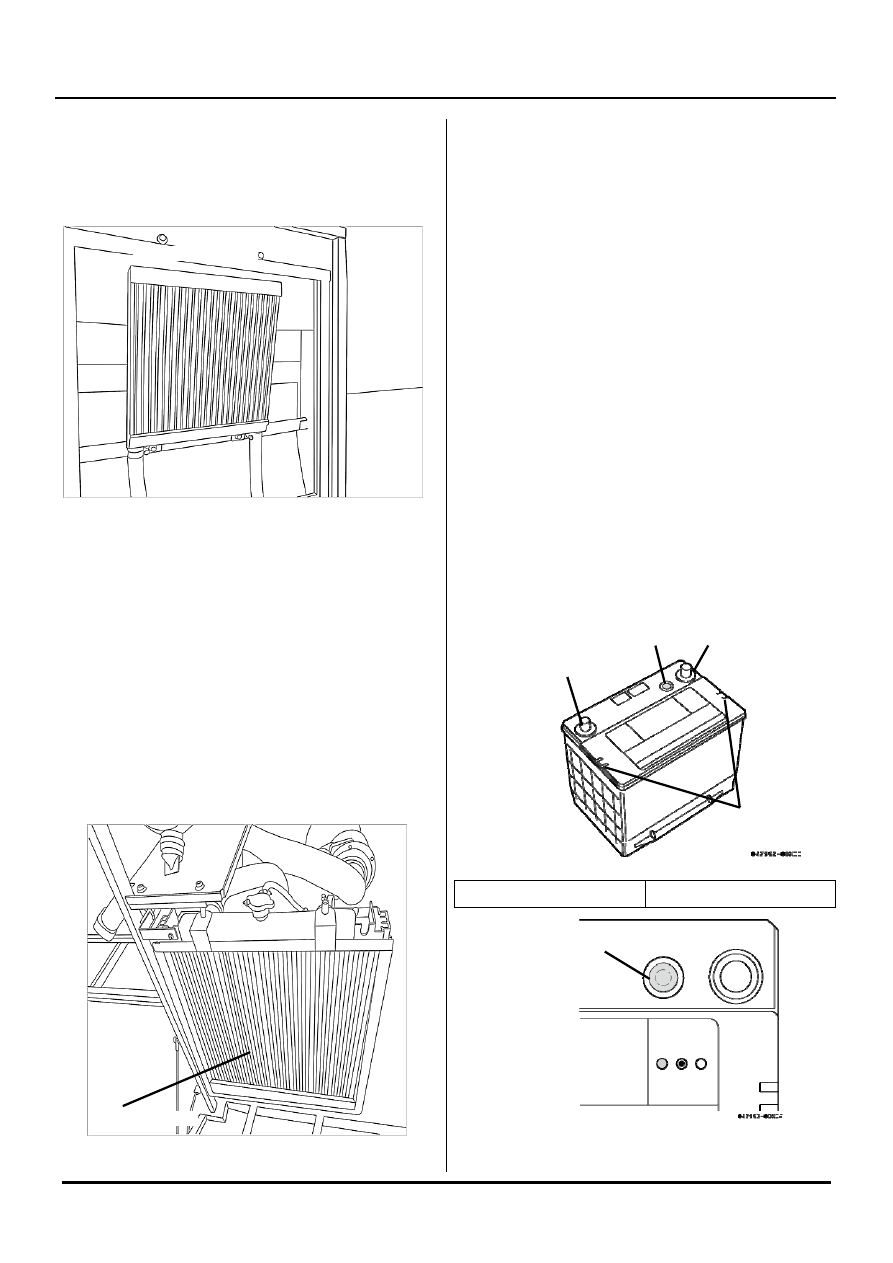

[Precaution]
Open the engine room cover to clean the hydraulic
oil cooler inside it.




<Cleaning the radiator screen>
Open the engine compartment and dismount the
radiator screen to remove chaff and dust on the side of
hydraulic oil cooler.




The screen must be cleaned before and after
operation.


Chaff and dust on it should be removed in a certain
interval.

[Precaution]
Use a brush to clean deep inside.









[Precaution]





Check the screens frequently, and remove dust
if any.





Clean the fins of the radiator & the hydraulic oil
cooler with a soft brush on a daily basis, and
use the compressed air or low-pressure water
to purge it after the busy season.





The engine load may be increased if the air
intake screen, the radiator screen and the fins
of the radiator and the hydraulic oil cooler
radiator are blocked by dust.



11. Maintaining the battery




The battery used for this machine is free of
maintenance. It is sealed and does not need any water
prior to expiry of the service life. Use a hydrometer to
check the battery status. If the meter is “transparent”, it
means there is little electrolyte in the battery, service
life of the battery is to expire, and the battery can be
replaced.





Designated battery

95D31L





Hydraulic oil cooler

Radiator fins

(+) Anode

(-) Cathode

Hydrometer

Air outlet

Hydrometer
