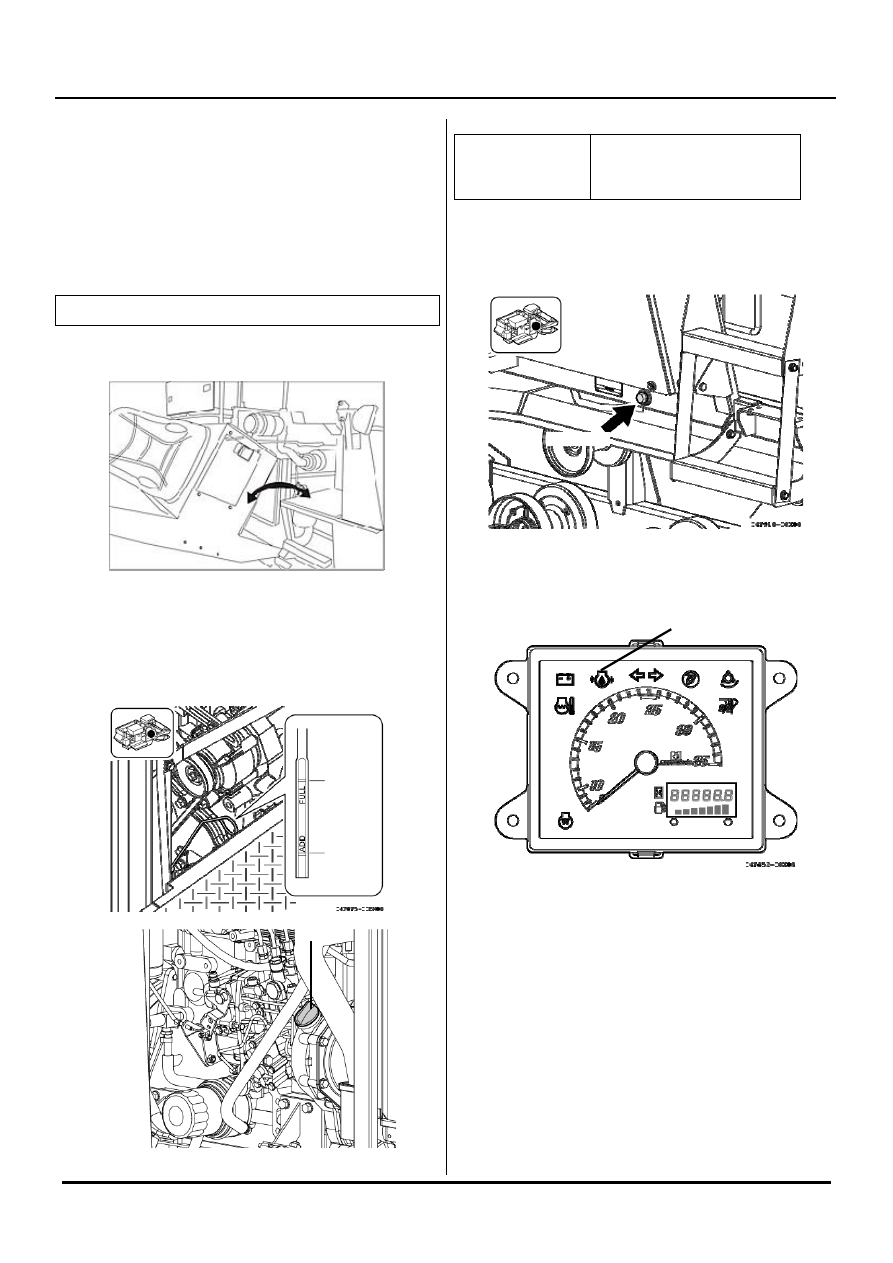

Periodic Inspection



73





2. Checking and replacing oil of each

part



[Precaution]
Keep the machine on a horizontal level while oiling.
Oiling may be insufficient if the machine is inclined.


Engine oil

<Checking>
1- Open the engine room cover




2- Pull of the dipstick and clean its front end. Push the

dipstick all the way in, and then take it out to check
whether the oil level falls between the upper limit
and lower limit of the dipstick. Fill or drain when
necessary.









Replacing

interval

First time: 50 hours
2nd time : 200 hours
After   :every 200 hours


<Replacing>
1- Drain oil by taking off the drain bolt under the engine,
and add oil through the port.





2- After replacing oil, start up the engine and run at a

low speed till the oil pressure indicator is off.





3- If engine oil is insufficient, add through the oil port to

the specified level, and check any leakage.

4- After the oil pressure indicator is off, turn off the

engine, and use the dipstick to check oil level 5
minutes later. Replenish if it is insufficient.




Check and replace oil before the engine is started
up or after it is cooled down.



It will be easier to drain oil if you screw off the port
cover.



Lower

Dipstick

Upper

Oil port

Drain bolt

Oil pressure indicator

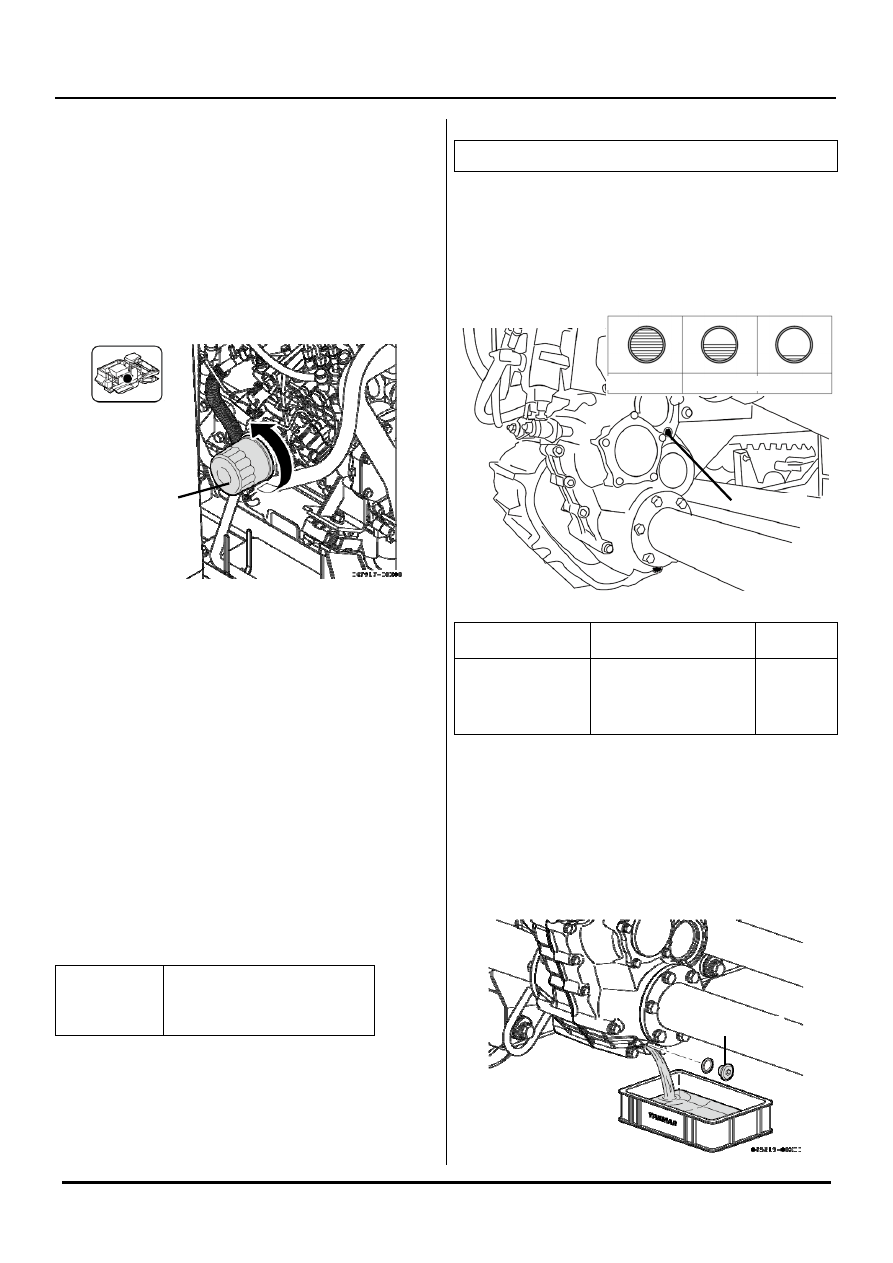

Periodic Inspection



74





<Replacing the engine oil filter>
The engine oil filter is used to filter small particles and
foreign matters in engine oil.
* The filter should be replaced on a regular basis as it is

a one-piece filter cartridge.


1- After engine oil is drained, rotate the filter in the

direction of arrow to remove it.






2- Apply new engine oil on the rubber ring of the new

filter.

3- Screw the filter by 1 around or more turns after the

rubber ring touches the installation surface of the
filter.

4- Add engine oil to the specified level.
5- Check the oil level at steps 2 to 4 of “Checking”.

[Precaution]





Be sure to check whether there is any oil
leakage on the installation surface of the filter.





Use the genuine YANMAR engine oil filter.
Failures may be caused if you use any other
products.
























Transmission oil




<Checking>
Check the transmission oil level through the sight glass
on the left side of gear box, and add to the standard
level if it is insufficient, and check any oil leakage at the
same time.






Recommended

oil

Replacing interval

Standard

level

TF300 or TF500

Transmission oil

First time: 50 hours
2nd time : 400 hours
After: every 400
hours

8.5L


<Replacing>
Remove the drain bolt at the bottom of the gear box to
drain the old transmission oil. When adding oil, mount
the drain bolt and take down the oil port cover to add,
through the port, new oil to the standard level shown by
the sight glass.




Replacing

interval

First time: 50 hours
2nd time : 200 hours
After    : every 200 hours

Engine Oil filter

Sight glass

Drain bolt

Excessive  Standard Insufficient

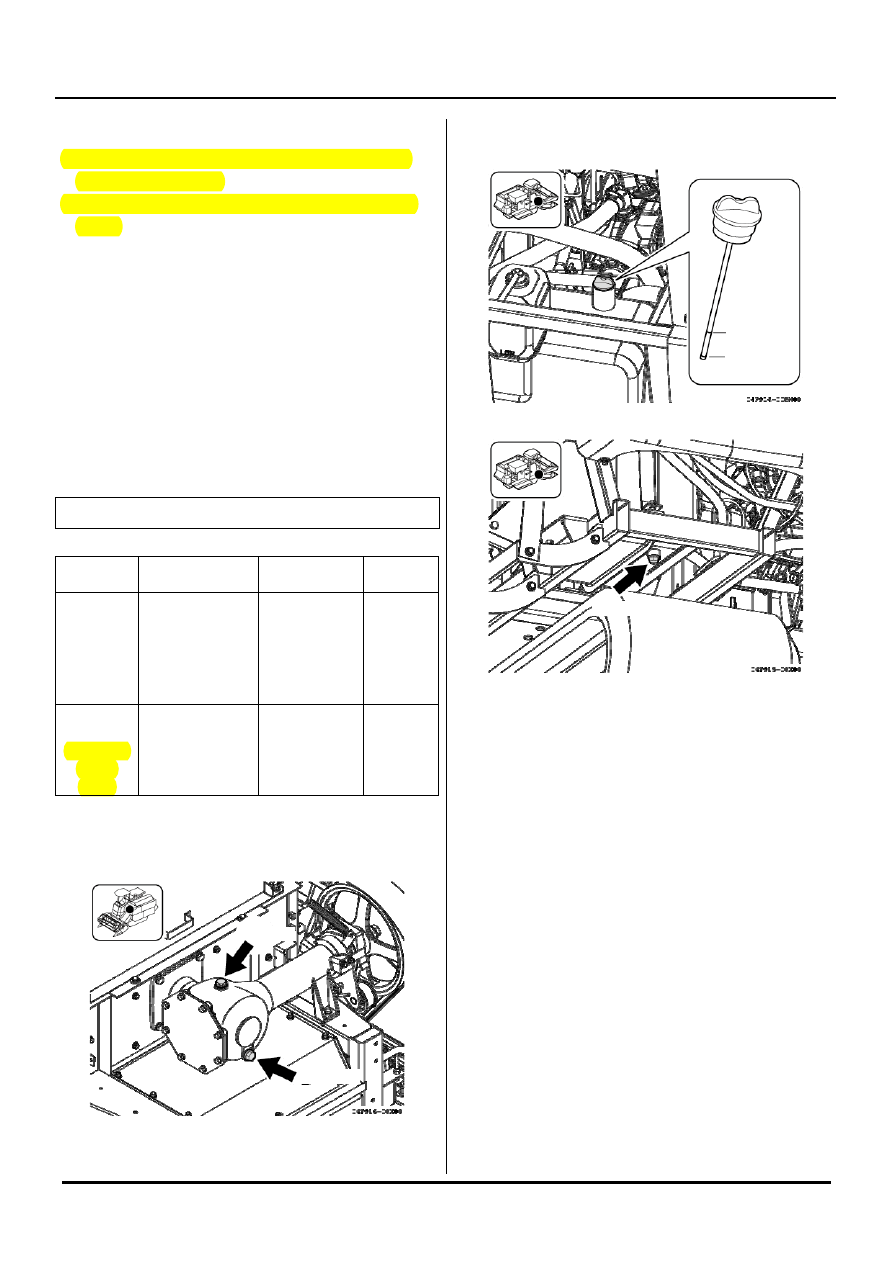

Periodic Inspection



75





* Be sure to wait till the engine becomes cool before

checking the oil level.

* It will be easier to drain oil if you remove the oil port

cover.


[Precaution]





Keep the machine on a horizontal level ground.





Raise the header to the highest position and fix
the safety lock.





Gears and bearing in the transmission and the
case may be damaged if transmission oil is not
replaced as scheduled.





The transmission should be disassembled and
checked every 1000 service hours of the
machine.



Other parts



Add oil to the specified level through the oil port.



Recommended

oil

Replacing

interval

Standard

level

Rotor

drive case

Gear oil 90#

First time:

50 hours

2nd time :

400 hours

After: every

400 hours

1.4L

Hydraulic

oil tank

(about 3L

in the

pipe)

Hydraulic oil

VG46 orVG56

Every 400

hours

17L



Rotor drive case










Hydraulic oil tank











Oil port

Drain bolt

Upper

Lower

Drain bolt

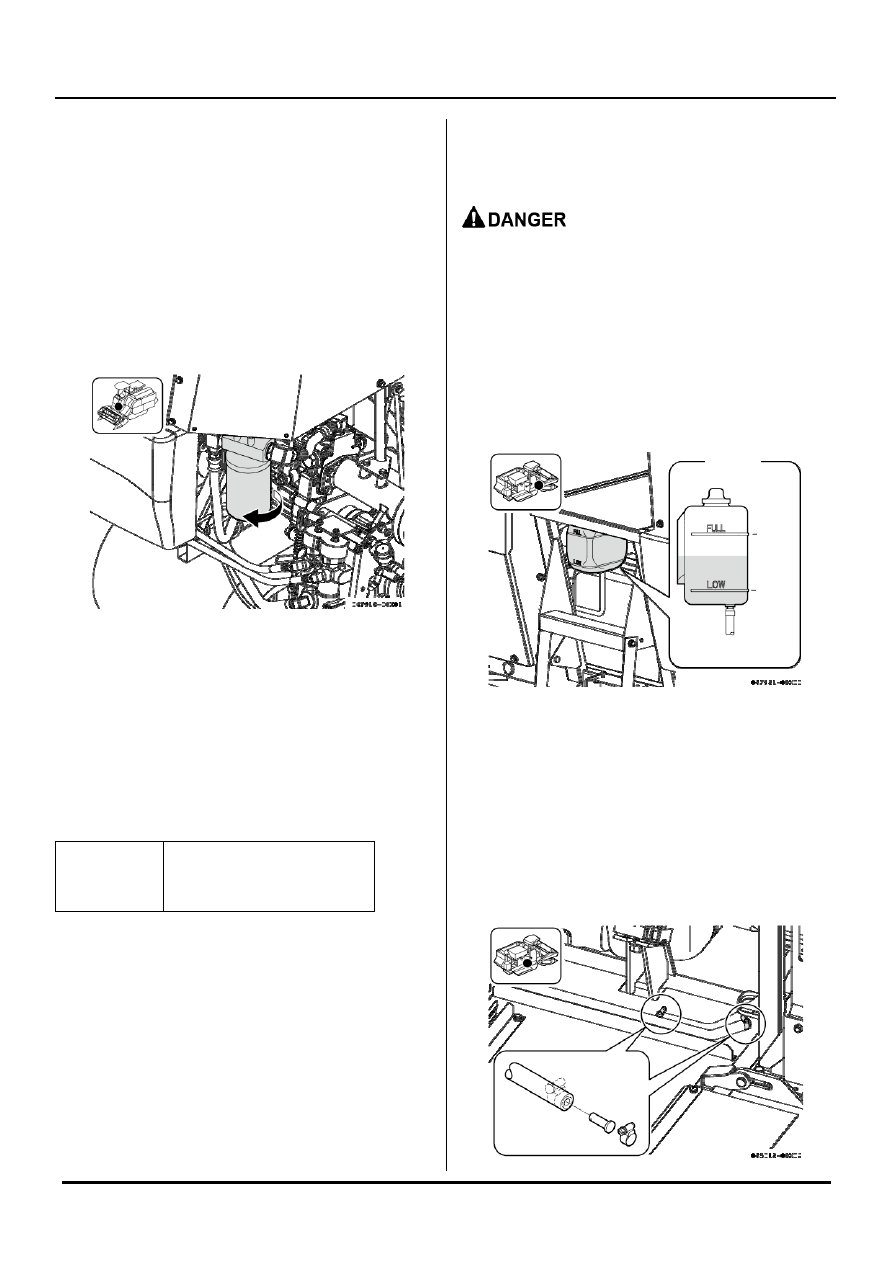

Periodic Inspection



76





3. Replacing HST filter and

hydraulic oil




HST filter and HST hydraulic oil should be replaced at
the same time.
Replacing HST filter and hydraulic oil
1- Remove the drain plug at the bottom of hydraulic oil

tank to drain the old oil.
(Refer to the diagram for hydraulic oil tank above)

2- Turn the HST filter element to the left to remove it.



3- Apply new oil to the rubber sealing ring of the new

HST filter, and then mount it in the original position.

4- Remove the cover of hydraulic oil tank to add oil to

the specified level.

(Refer to the diagram for hydraulic oil tank above)

5- After replacement, perform idle running of the engine

for a few minutes, stop it and check the oil level with
a dipstick.









[Precaution]





Be sure to check oil leakage on the installation
surface of the filter.





Use the genuine YANMAR HST filter only.





Wipe off oil on the machine body.











4. Checking and replacing cooling

water







Do not open the radiator cap during
operation of the engine or immediately
after the engine stops. Otherwise, hot
water may spill out and cause burning.


<Checking>
Check cooling water level in the sub tank, which should
falls between “FULL” and “LOW”. Add pure water in the
sub tank through the inlet port, and check water
leakage at the same time.





<Replacing>
1- Remove the cover of engine room cover and the

drain pin to completely drain water in the radiator.

2- Remove the cover of main radiator, and wash out

dust and rust inside with clean water.



Before adding the detergent mixed with radiator
cleaning fluid, drain water inside after 15 minutes
idle running of the engine to make it easier to
clean the radiator.



Replacing

interval

Every 400 hours

Sub tank

Upper

Lower

Drain pin
